◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#57288) — 135 parça

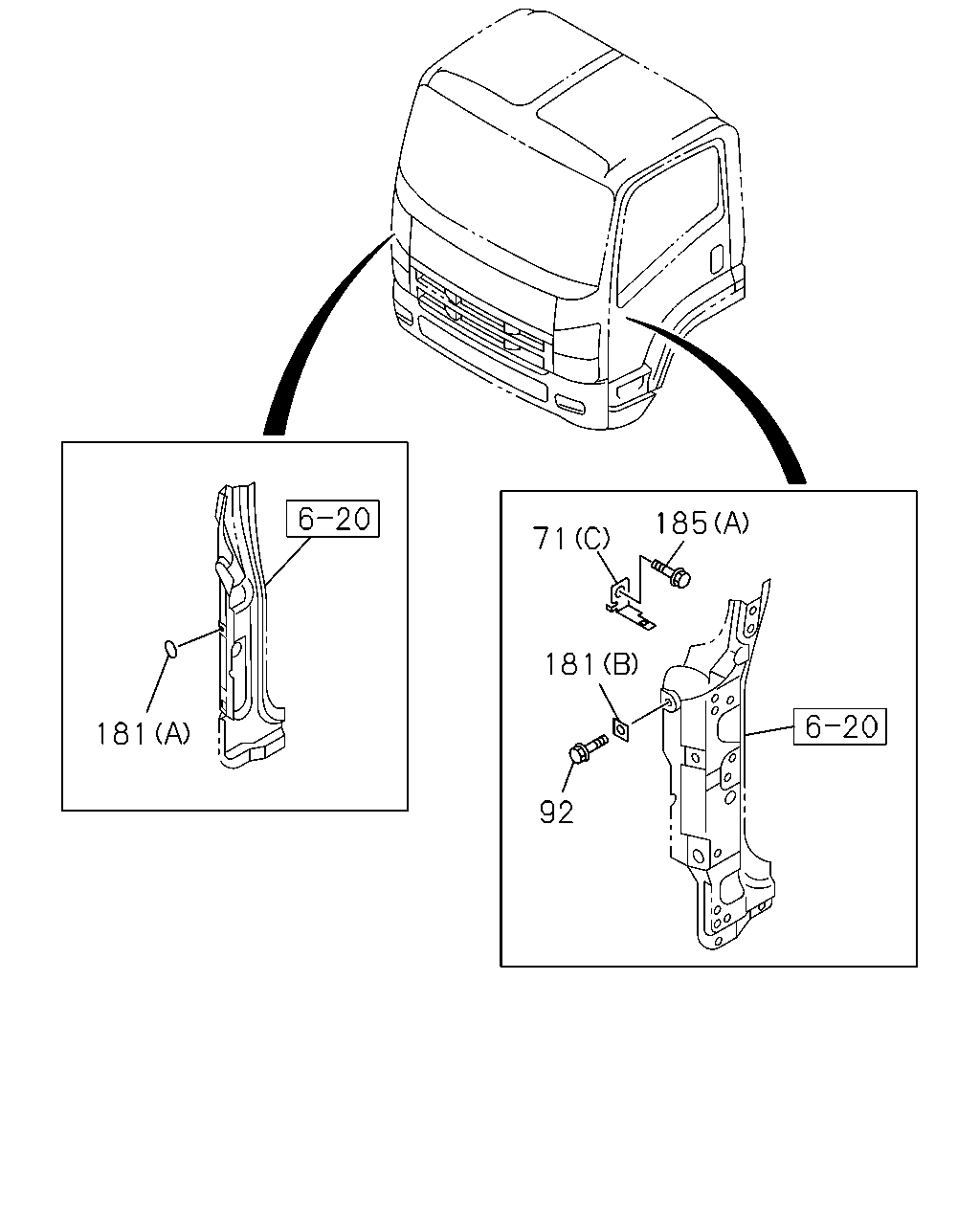

çizim 165793
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0906- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0906- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0906-0907 ● ●

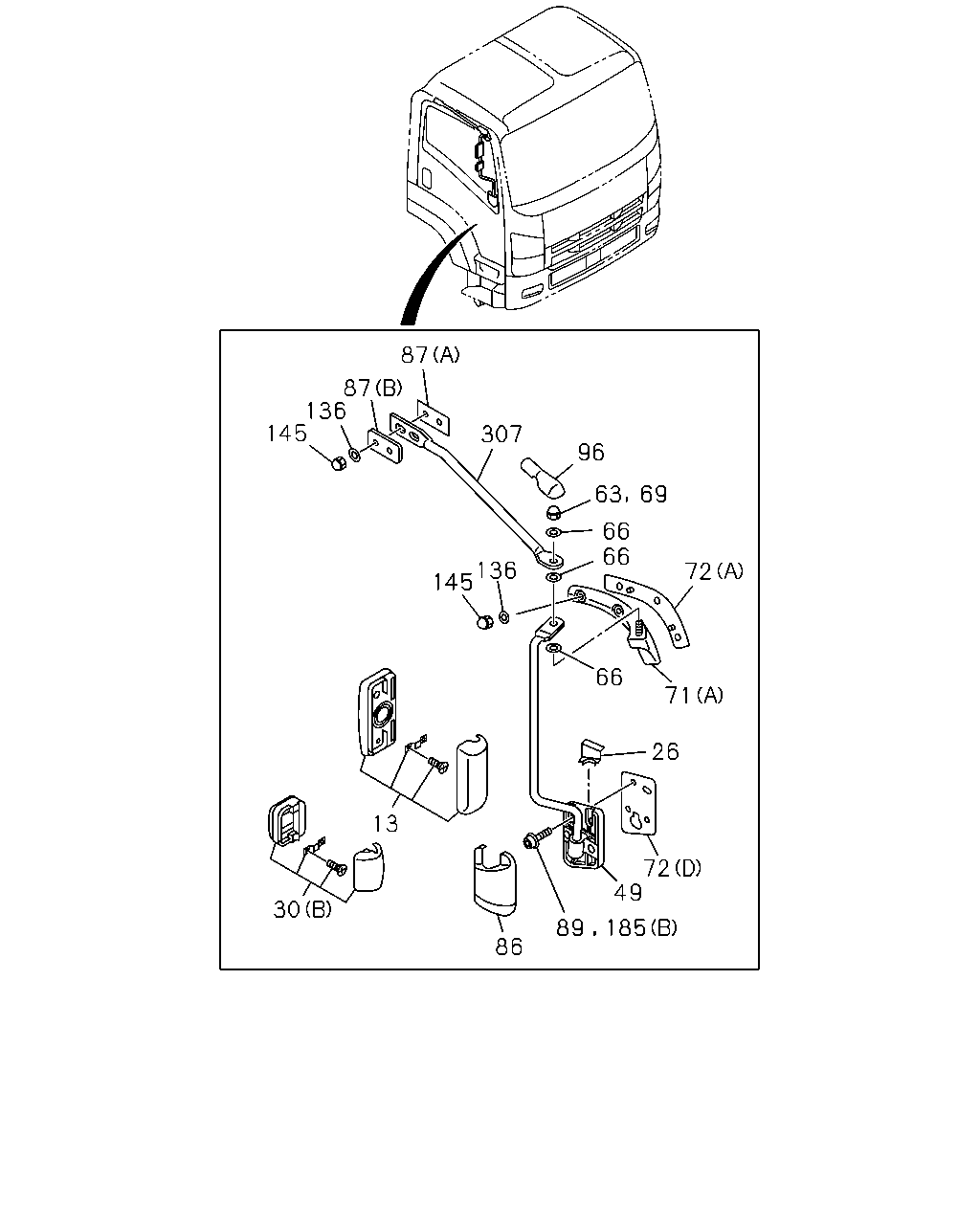

çizim 165797
87 87 136 145 307 96 63 69 66 66 136 145 72 66 71 26 13 72 49 30 89 185 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0908- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0908- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0906-1005 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 03 1 0906-0907 ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0908- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0906- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 0906- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0906-0907 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906- ● ●

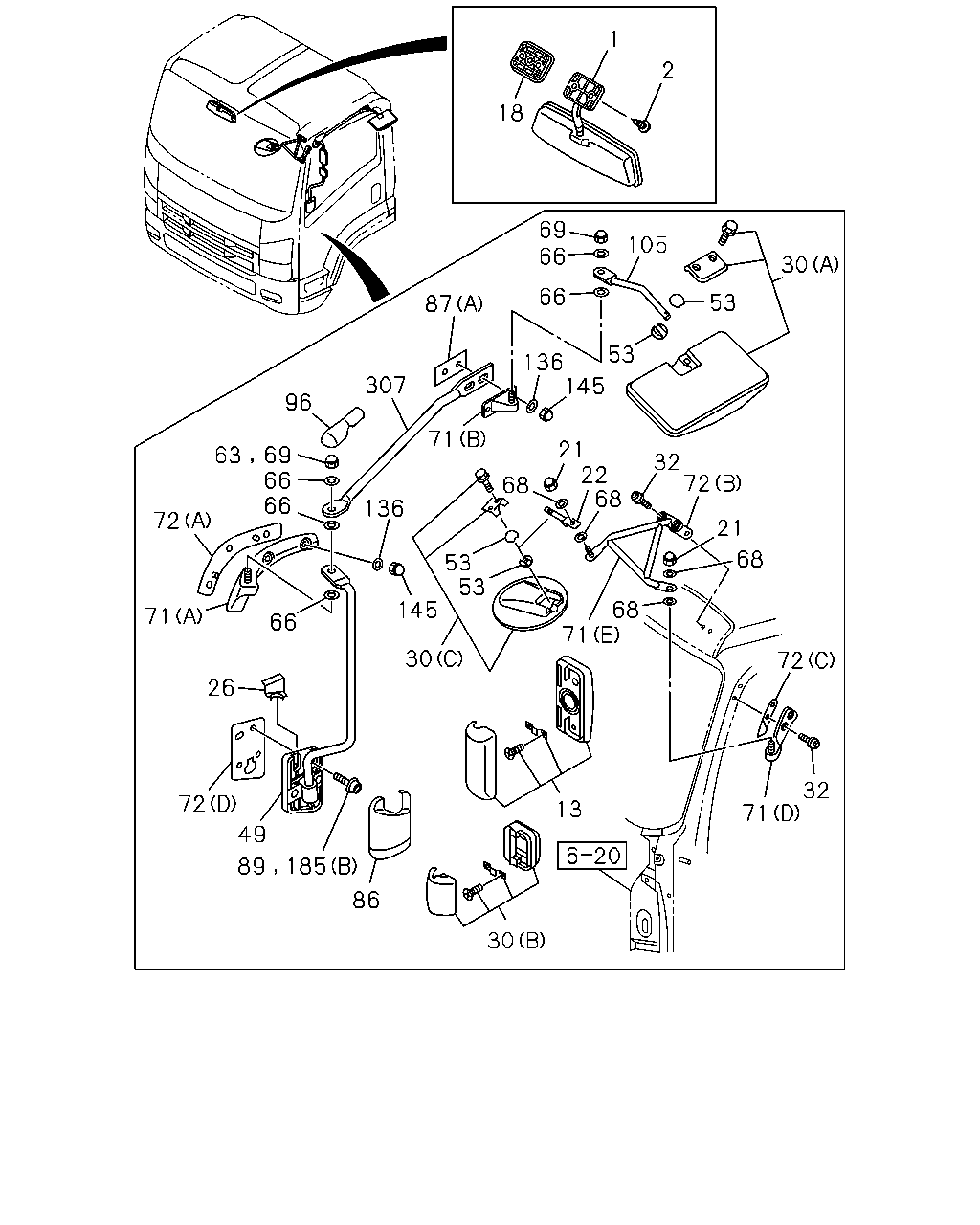

çizim 165805
1 2 18 69 66 105 30 66 53 87 53 136 145 307 96 71 21 22 68 69 66 66 63 32 72 68 136 72 21 68 53 53 68 71 145 71 66 30 72 26 32 71 72 13 49 89 185 86 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 0906- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 0906- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0908- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-0907 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0908- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 0906- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0906- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0906- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0906-1005 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0906- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 03 1 0906-0907 ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0908- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0906- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 0906- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0906- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0906-0907 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
