◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#57287) — 13 parça

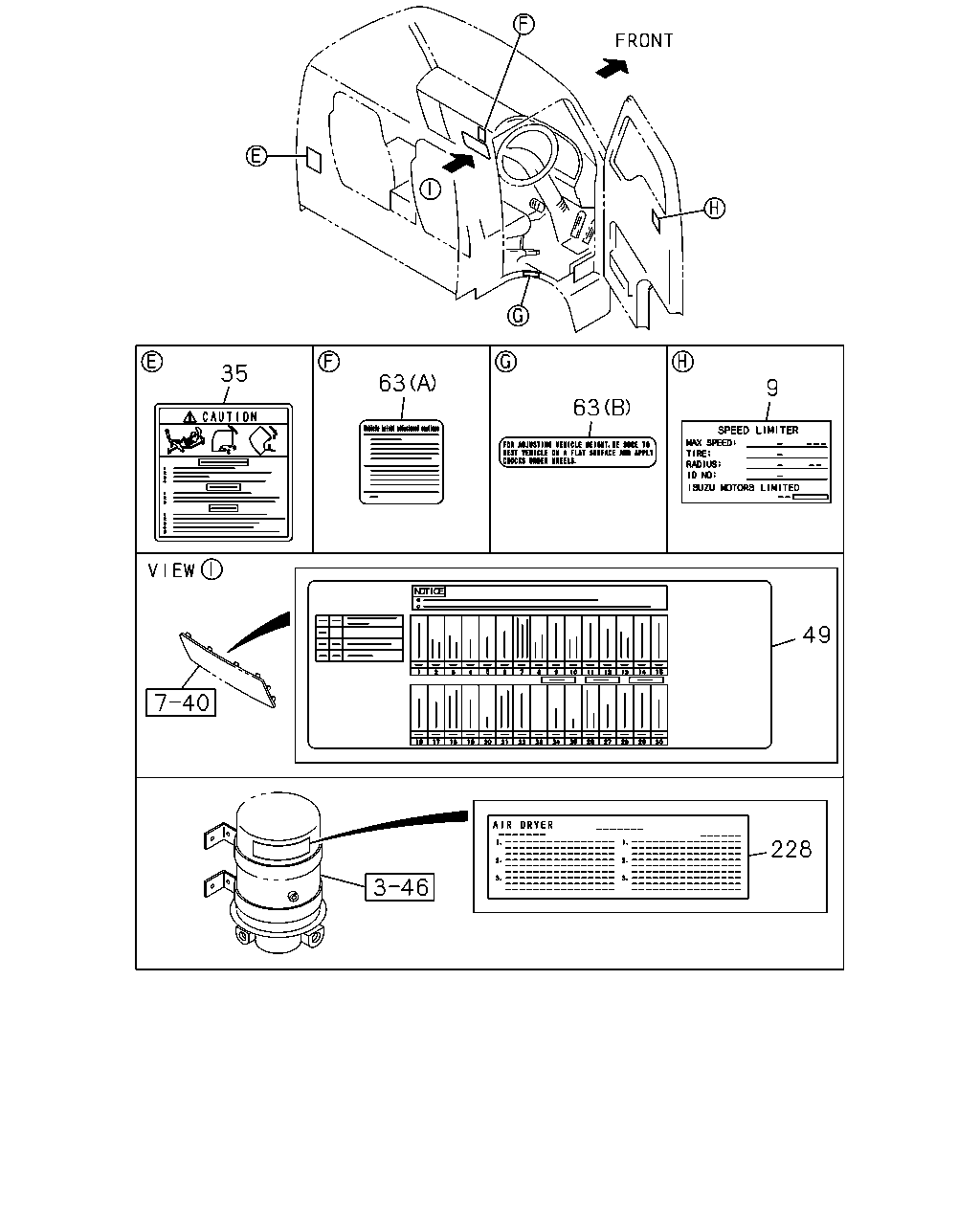

çizim 165788
35 63 9 63 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-983-0 01 1 0906-1201 ● ●
9 PLATE; NAME,SPD RANGE
6 PER 1 SHEET 		8-98142-983-0 01 1 1202- ● ●
9 PLATE; NAME,SPD RANGE
EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-982-0 01 1 0906-1201 ● ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0906- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0906- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0906- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0906-1001 ● ●

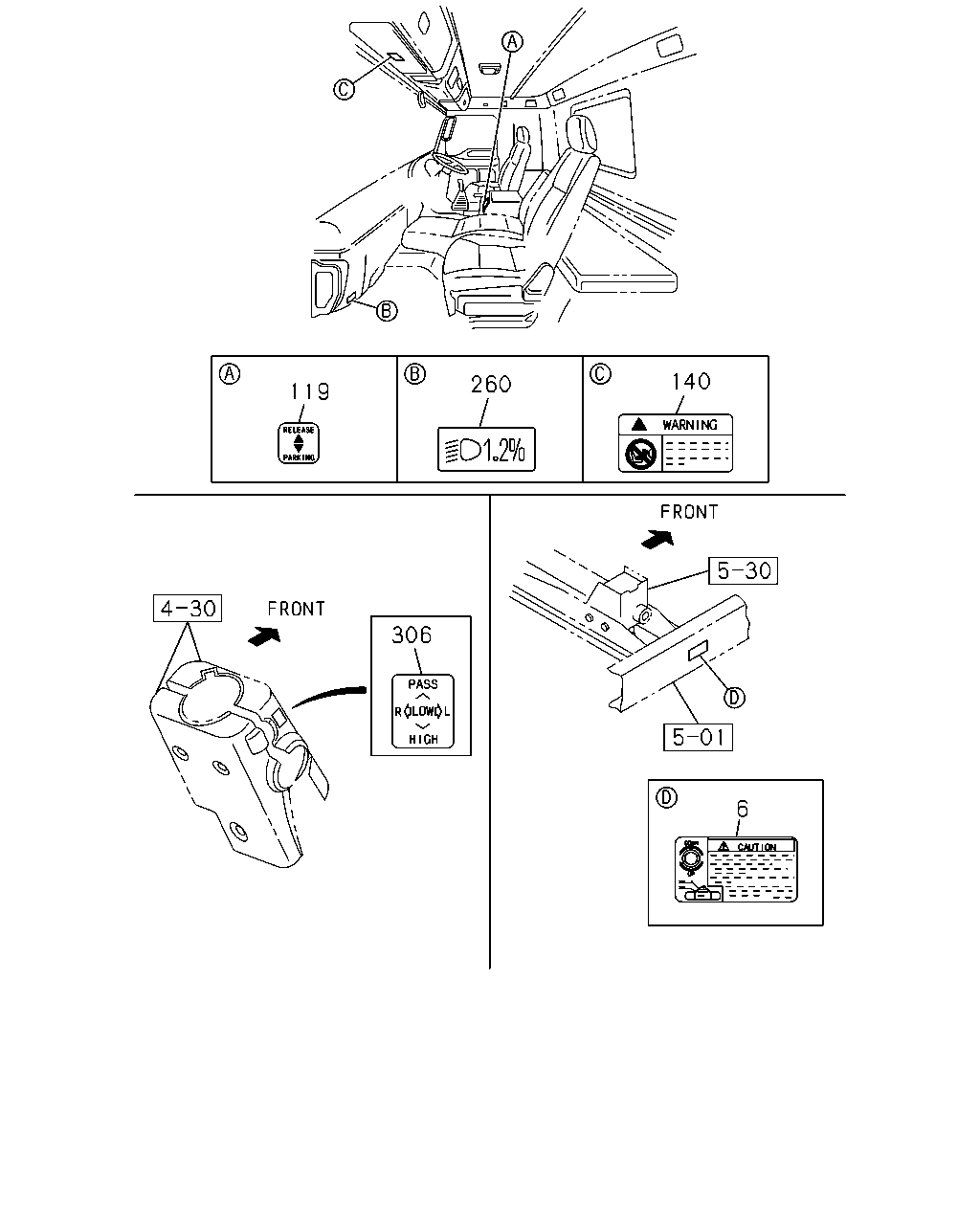

çizim 165799
140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0906- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0906- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
