6-84 — BACK TRIM (#57284) — 11 parça

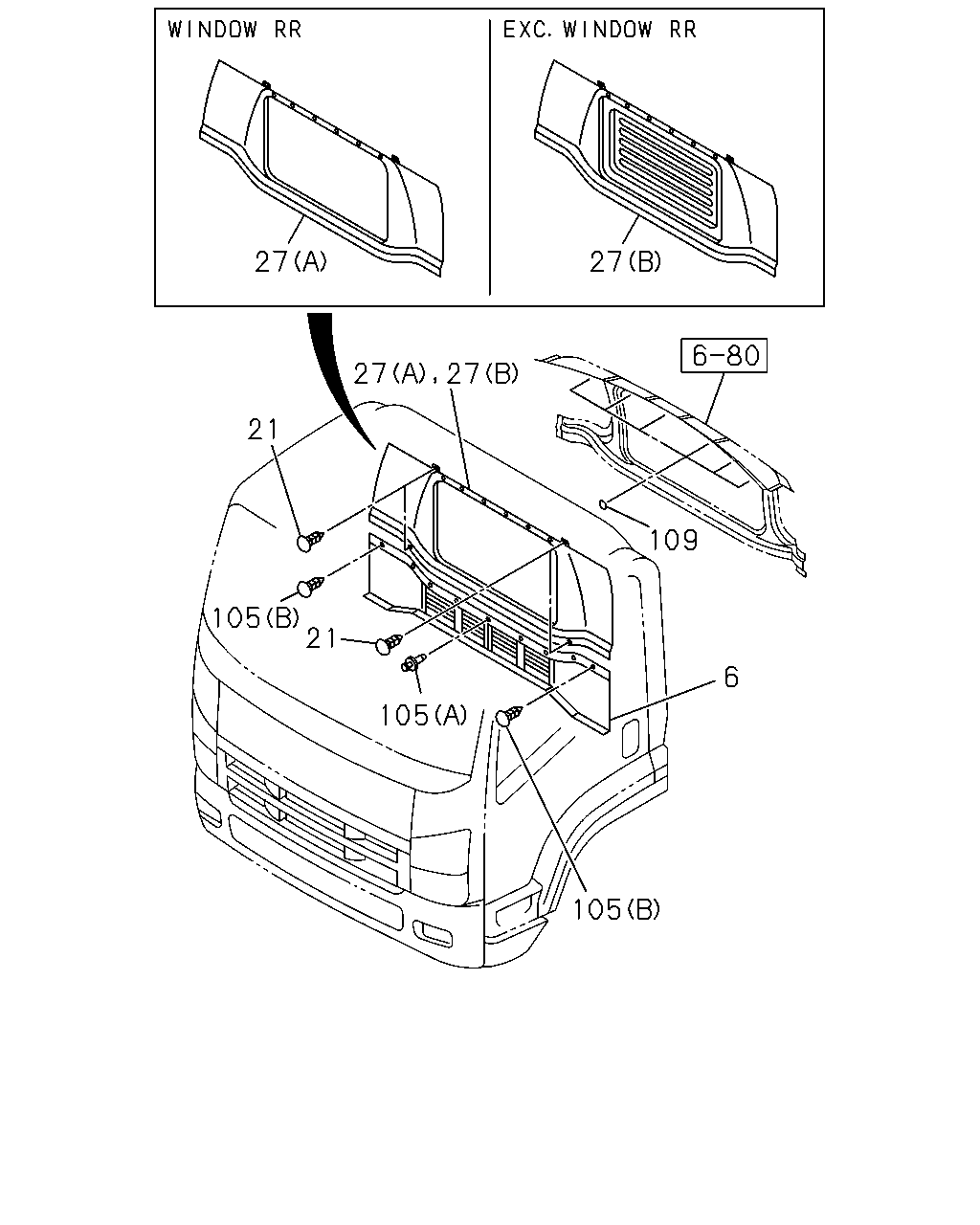

çizim 165802
27 27 27 27 21 109 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 0906- ● ●
21 RETAINER; TRIM,BED ROOM
GRAY 		8-97407-467-0 04 1 0906-1103 ● ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1104- ● ●
27 COVER; TRIM,BACK
WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 0906-1103 ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 1104- ● ●
27 COVER; TRIM,BACK
EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 0906-1103 ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1104- ● ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 0906- ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 0906- ● ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1104- ● ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1104- ● ●
