3-11 — PARKING BRAKE CONTROL (#5728) — 74 parça

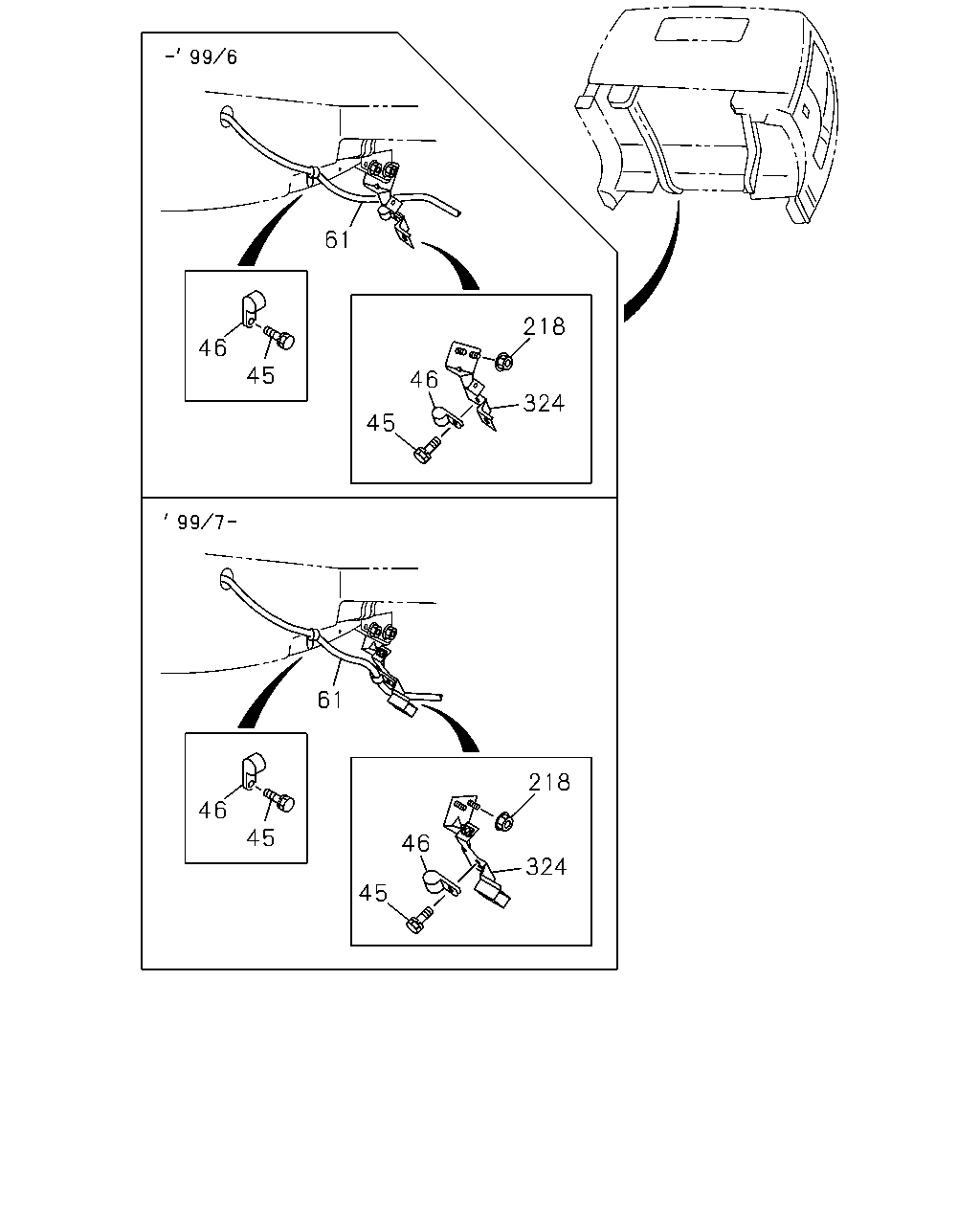

çizim 26282
61 218 46 45 46 324 45 61 218 46 45 46 324 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 03 1 0611- ●
45 BOLT; CABLE TO FLOOR
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 02 1 9811-9812 ● ●
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 02 1 9901-0610 ● ●
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 02 1 0611- ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 03 1 0611- ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 02 1 9811-0606 ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 02 1 0607-0610 ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 02 1 0611- ●
61 CABLE; PARKING BRK
L=4831 		1-79996-642-2 01 1 0611- ●
61 CABLE; PARKING BRK
L=4405 		1-79996-275-0 01 1 9811-9906 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-442-3 01 1 9907-9909 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-469-1 01 1 9910-0007 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-571-2 01 1 0008-0610 ● ●
61 CABLE; PARKING BRK
L=4733 		1-79996-660-2 01 1 0611- ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE TAI 		1-09985-340-0 02 1 9811- ● ●
324 BRACKET 1-79996-260-2 01 1 9811-9906 ● ●
324 BRACKET 1-79996-443-0 01 1 9907- ● ●

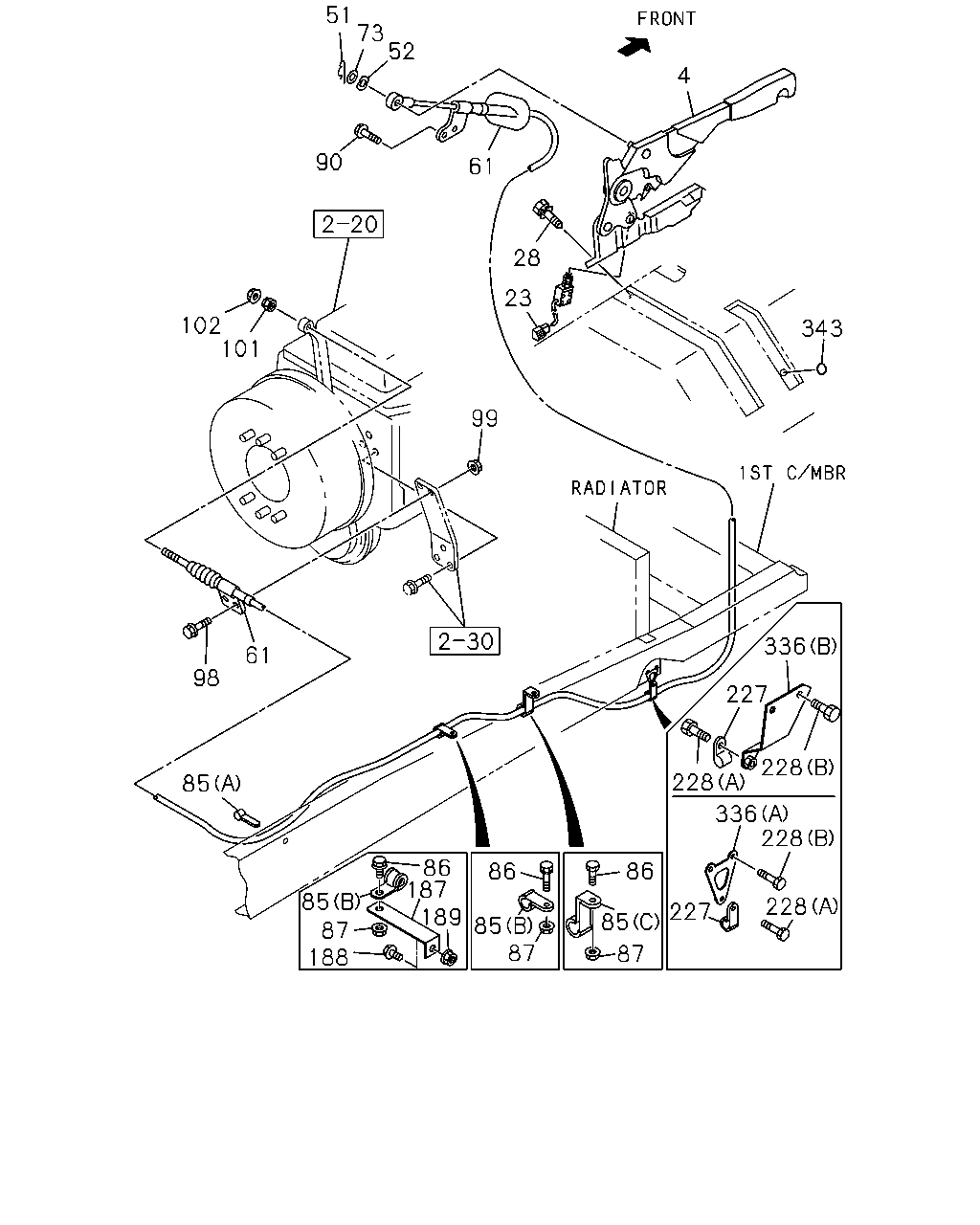

çizim 99584
51 73 52 4 90 61 28 23 102 101 343 99 336 61 98 227 228 85 228 336 228 86 187 189 86 86 85 227 85 228 85 87 87 188 87
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK 1-79996-423-0 01 1 9811-9908 ● ●
4 STEM; PARKING BRK 1-79996-485-0 01 1 9909-9911 ● ●
4 STEM; PARKING BRK 1-79996-505-0 01 1 9912-0010 ● ●
4 STEM; PARKING BRK 1-79996-565-0 01 1 0011- ● ●
23 SWITCH; PARKING BRK
TAI 		1-82440-100-0 01 1 9811- ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 03 1 9811- ● ●
51 PIN; JOINT,RELAY LEVER
TAI 		1-09987-243-1 01 1 9811- ● ●
52 WASHER; CURVED RELAY LEVER
ID=19 TAI 		8-94206-429-1 02 1 9811- ● ●
61 CABLE; PARKING BRK
L=4831 		1-79996-642-2 01 1 0611- ●
61 CABLE; PARKING BRK
L=4405 		1-79996-275-0 01 1 9811-9906 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-442-3 01 1 9907-9909 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-469-1 01 1 9910-0007 ● ●
61 CABLE; PARKING BRK
L=4689 		1-79996-571-2 01 1 0008-0610 ● ●
61 CABLE; PARKING BRK
L=4733 		1-79996-660-2 01 1 0611- ●
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 9811-0605 ● ●
73 WASHER; PL,CABLE
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
85 CLIP; BRKT
(B) ID=19 L=40 		0-95235-876-0 01 1 0611-0703 ● ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 01 1 0704- ● ●
85 CLIP; BRKT
(B) ID=16 L=28 		1-09700-872-0 01 1 0611- ●
85 CLIP; BRKT
(A) ID=15 L=65 TAI 		1-09700-466-0 01 1 9811-9906 ●
85 CLIP; BRKT
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9907-9907 ●
85 CLIP; BRKT
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9811-9906 ● ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 01 1 9907-9907 ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 02 1 9908-0610 ● ●
85 CLIP; BRKT
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0611- ● ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 01 1 9811-9906 ● ●
85 CLIP; BRKT
(A) ID=15 L=65 TAI 		1-09700-466-0 02 1 9907- ● ●
85 CLIP; BRKT
(A) ID=15 L=65 TAI 		1-09700-466-0 02 1 9811-9906 ●
85 CLIP; BRKT
(B) ID=24 L=40 		1-09701-139-0 02 1 9907-9907 ●
86 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 0611- ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512 ● ●
86 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ● ●
86 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0611- ●
87 NUT
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
87 NUT
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
90 BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 02 1 9811- ● ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 9811-0512 ● ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91150-210-0 02 1 9811-0602 ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 9811- ● ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 9811-0602 ● ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
187 BRACKET; HAND BRK
L=95 		1-82699-085-0 01 1 0611- ●
188 BOLT; BRKT SET
M8X30 FLANGE 		0-28650-830-0 01 1 0611- ●
189 NUT; BRKT SET
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 9811-0606 ● ●
227 CLIP; RAD
ID=13 L=20 		0-95235-235-0 01 1 0607- ● ●
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0611- ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9906 ● ●
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9811-9906 ● ●
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9907-0302 ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ● ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
336 BRACKET; RADIATOR
(B) 		1-36183-259-0 01 1 0611- ● ●
336 BRACKET; RADIATOR
(A) 		1-36183-162-1 01 1 9811-9906 ● ●
343 SEAL
OD=25 BLACK TAI 		1-76798-019-0 03 1 0611-0706 ●
