Sayfa 6-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

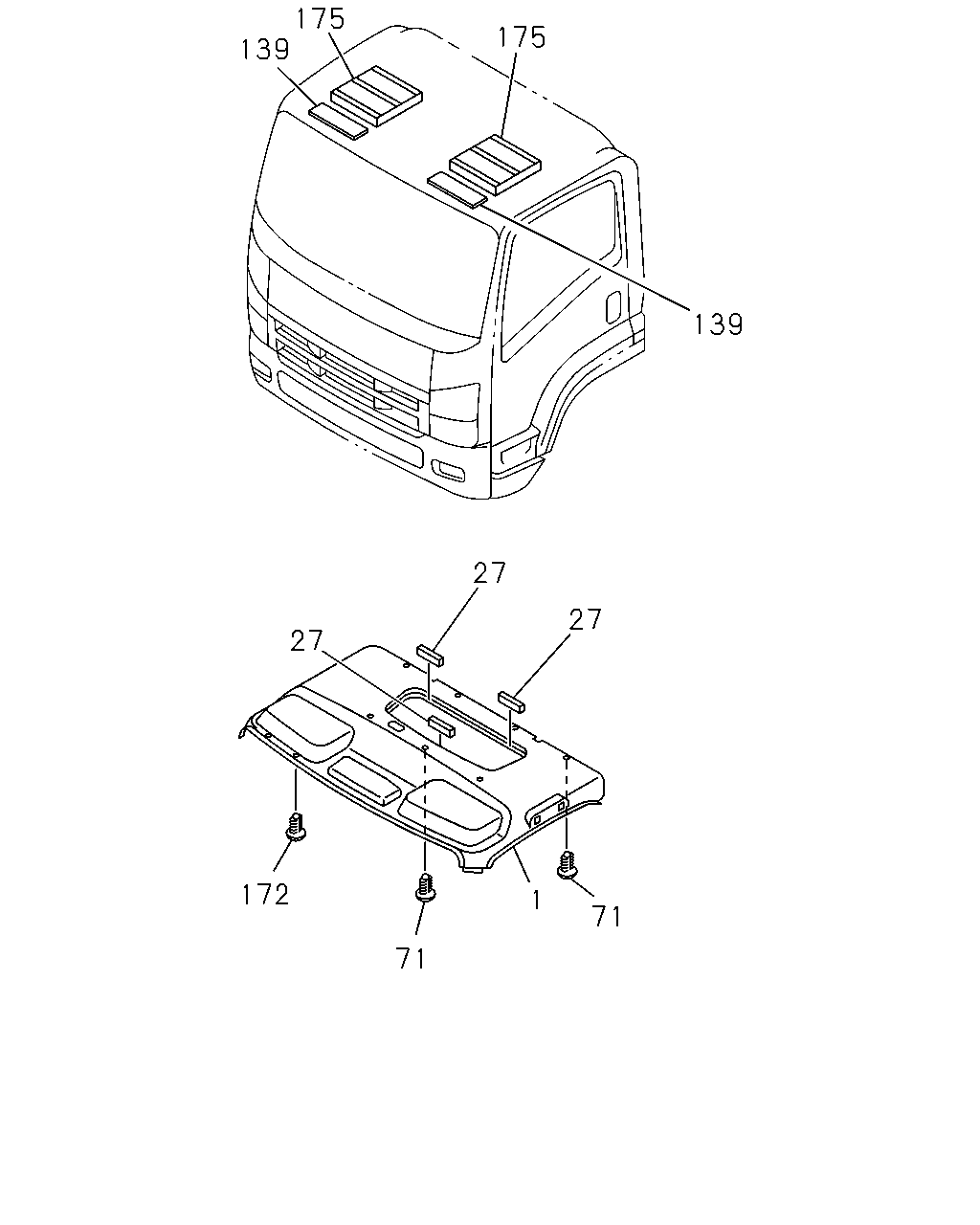

6-66 — HEAD LINING AND TRIM (#57277) — 15 parça

175 139 175 139 27 27 27 172 1 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97416-353-0	01	1	0906-1306	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> EXC. RR VIEW MIRROR<D31> DARK GRAY	8-97426-674-0	01	1	1307-	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97411-888-1	01	1	0906-1306	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-658-0	01	1	1307-	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY	8-97416-351-0	01	1	0906-1306	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-672-0	01	1	1307-	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY	8-97409-897-1	01	1	0906-1306	●	●
1	LINING; HD RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY	8-97426-659-0	01	1	1307-	●	●
27	INSULATION; ROOF	8-98046-638-1	03	1	0906-0911	●	●
27	INSULATION; ROOF FLUORESCENT LAMP<6UC>	8-98046-638-2	03	1	0912-	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	0906-	●	●
139	SEAL; ROOF	8-98076-274-0	02	1	0906-1009	●	●
139	SEAL; ROOF	8-98169-116-0	02	1	1010-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	14	1	0906-	●	●
175	CUSHION; HEAD LINING	8-98030-965-2	02	1	0906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
