6-47 — MUD GUARD AND INSULATOR (#57275) — 52 parça

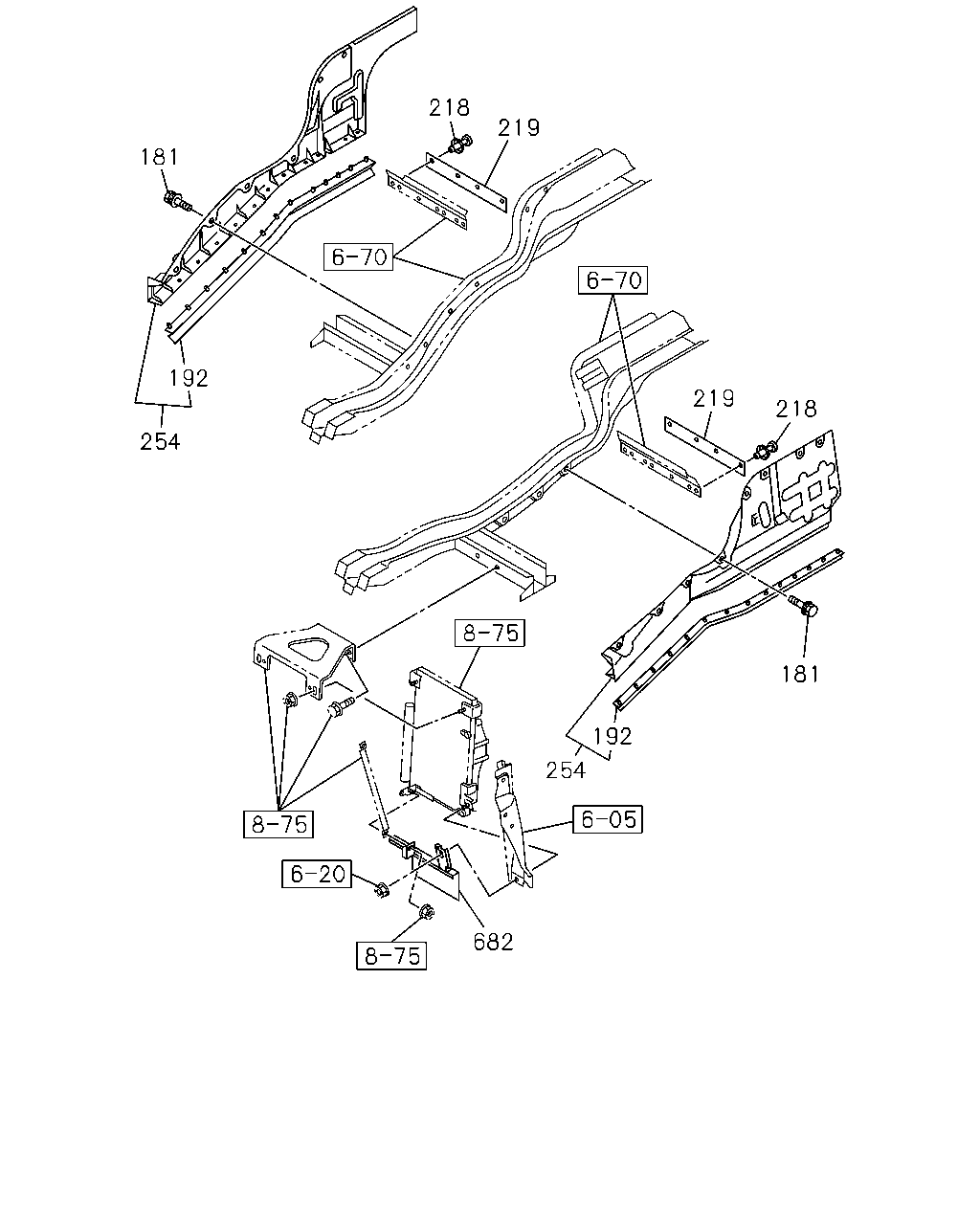

çizim 165806
218 219 181 192 219 218 254 181 192 254 682
BalonParca AdiParca NoAdetTipApplied Date A B
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0906- ● ●
192 SEAL; MUD COVER 8-98041-157-2 01 1 0906- ● ●
192 SEAL; MUD COVER 8-98041-156-2 01 1 0906- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0906- ● ●
219 FLAP; MUD GUARD 8-98041-150-1 02 1 0906- ● ●
254 COVER; MUD,VALANCE 8-98039-924-1 01 1 0906- ● ●
254 COVER; MUD,VALANCE 8-98039-923-2 01 1 0906- ● ●
682 FLAP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98059-228-3 01 1 0906- ● ●

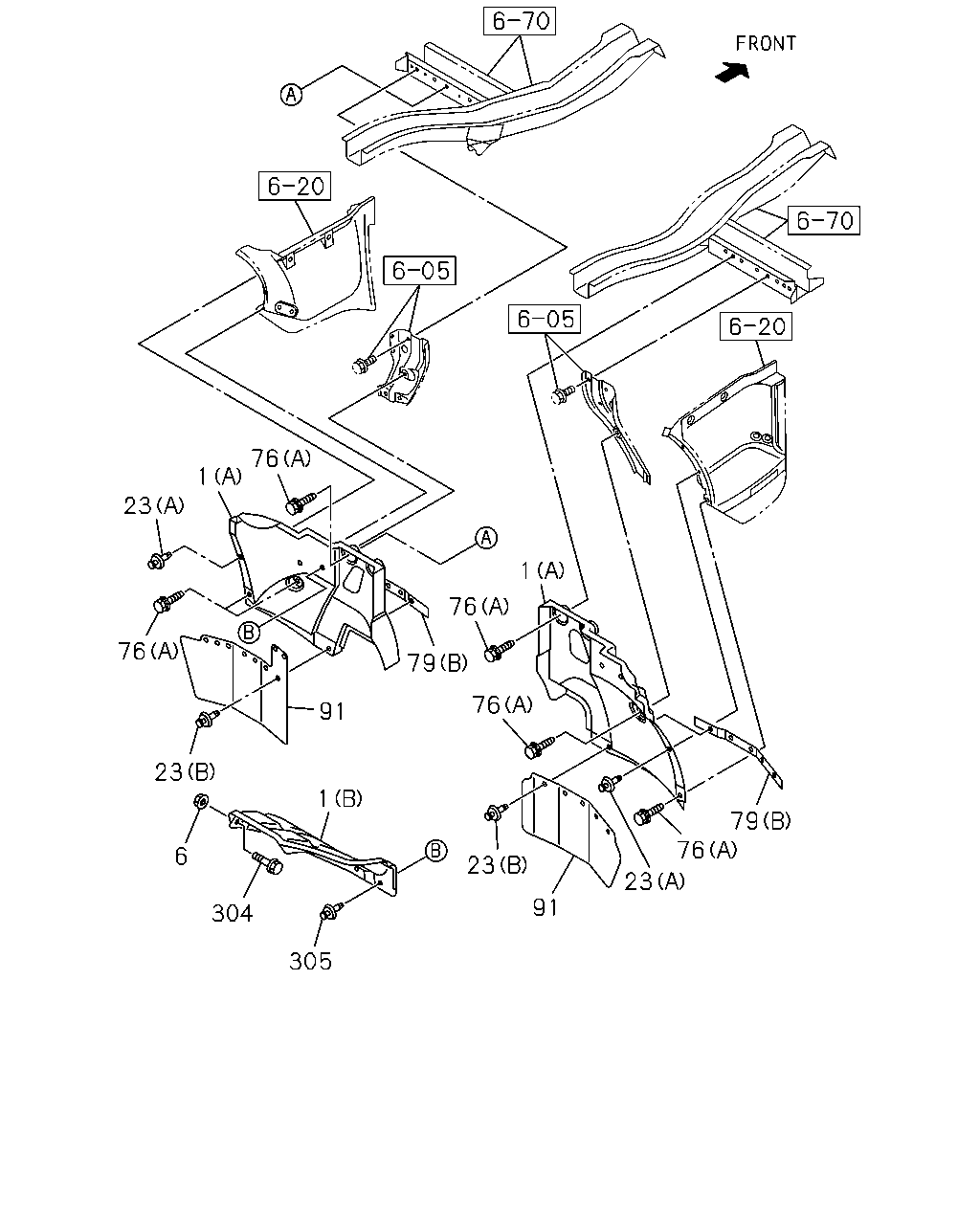

çizim 165807
76 1 23 1 76 76 79 76 91 23 1 79 76 6 23 23 91 304 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98075-188-0 01 1 0906- ● ●
1 GUARD; MUD,FRT
(A) 		8-98039-843-2 01 1 0906-0908 ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-647-0 01 1 0909- ● ●
1 GUARD; MUD,FRT
(A) 		8-98039-842-2 01 1 0906-0908 ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-646-0 01 1 0909- ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 0906- ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 08 1 0906- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 0906- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1008-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0906-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0906- ● ●
79 RETAINER; MUD COVER
(A) 		8-98083-606-1 04 1 0906- ● ●
79 RETAINER; MUD COVER
(C) 		8-98117-496-0 04 1 0906- ● ●
91 COVER; MUD,FRT 8-98092-836-0 01 1 0906- ● ●
91 COVER; MUD,FRT 8-98092-834-0 01 1 0906- ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 0906- ● ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 0906- ● ●

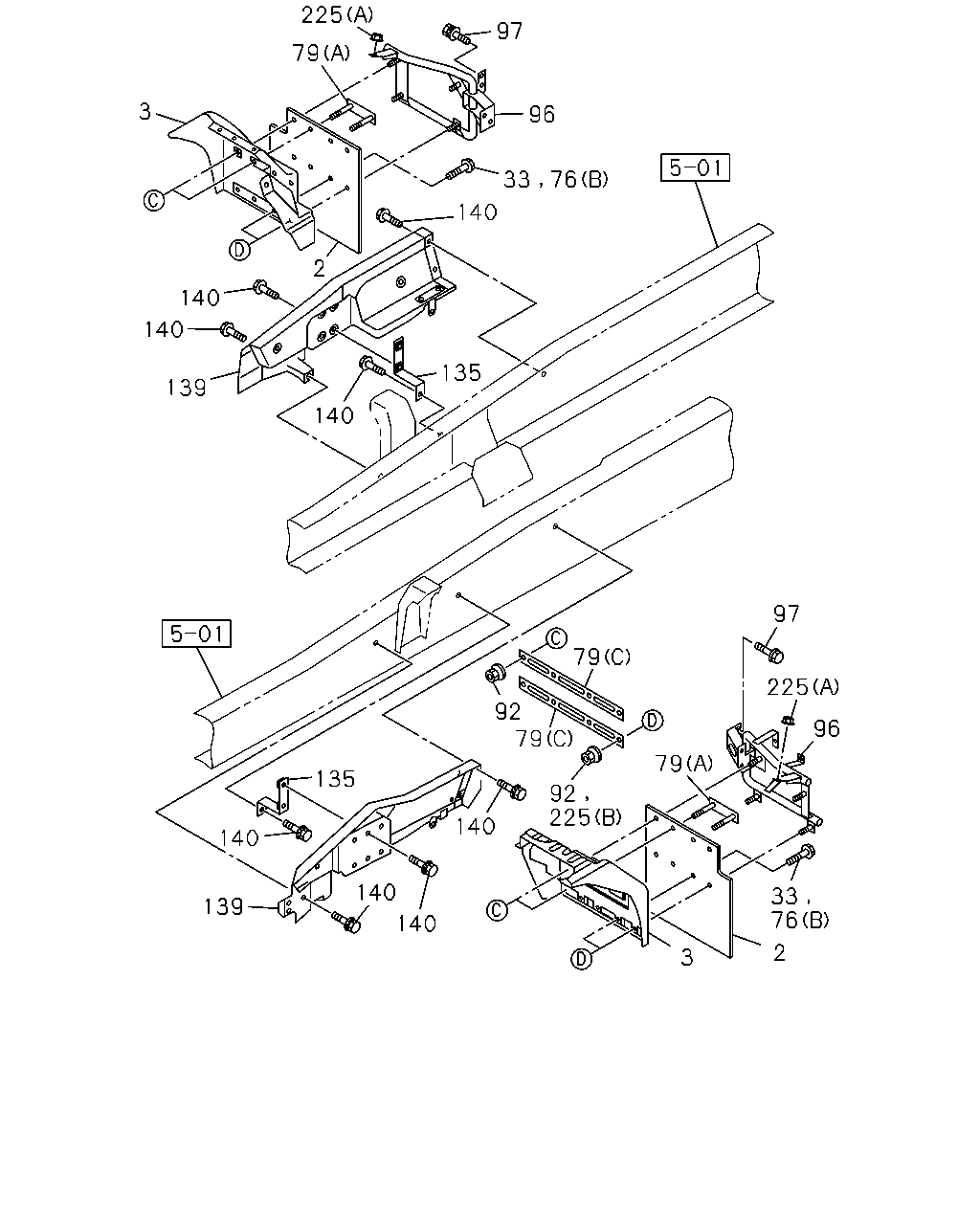

çizim 165814
225 97 79 3 96 140 2 140 140 135 139 140 97 79 225 92 79 96 79 135 92 225 140 140 140 33 76 139 140 2 3 33 76
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; MUD,TIRE RR 8-98083-794-1 01 1 0906-1312 ● ●
2 COVER; MUD,TIRE RR 8-98261-620-0 01 1 1401- ● ●
2 COVER; MUD,TIRE RR 8-98083-793-1 01 1 0906-1312 ● ●
2 COVER; MUD,TIRE RR 8-98261-619-0 01 1 1401- ● ●
3 GUARD; MUD,RR 8-98090-849-1 01 1 0906- ● ●
3 GUARD; MUD,RR 8-98090-850-2 01 1 0906- ● ●
33 BOLT; MUD COVER
M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0906-1007 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1008-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0906-0908 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 0906- ● ●
79 RETAINER; MUD COVER
(A) 		8-98083-606-1 04 1 0906- ● ●
79 RETAINER; MUD COVER
(C) 		8-98117-496-0 04 1 0906- ● ●
92 NUT; MUD COVER
M8 W/DISHED WASHER 		8-97329-625-0 18 1 0906-1007 ● ●
92 NUT; MUD COVER
M8 W/DISHED WASHER 		8-97329-625-0 16 1 1008- ● ●
96 STAY; MUD GUARD 8-98056-956-1 01 1 0906- ● ●
96 STAY; MUD GUARD 8-98140-674-0 01 1 0906- ● ●
97 BOLT; STAY TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0906- ● ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 0906- ● ●
139 PANEL; SIDE 8-98090-078-0 01 1 0906- ● ●
139 PANEL; SIDE 8-98090-077-0 01 1 0906- ● ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 10 1 0906- ● ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1008- ● ●
