3-10 — BRAKE PEDAL AND CONTROL (#5727) — 38 parça

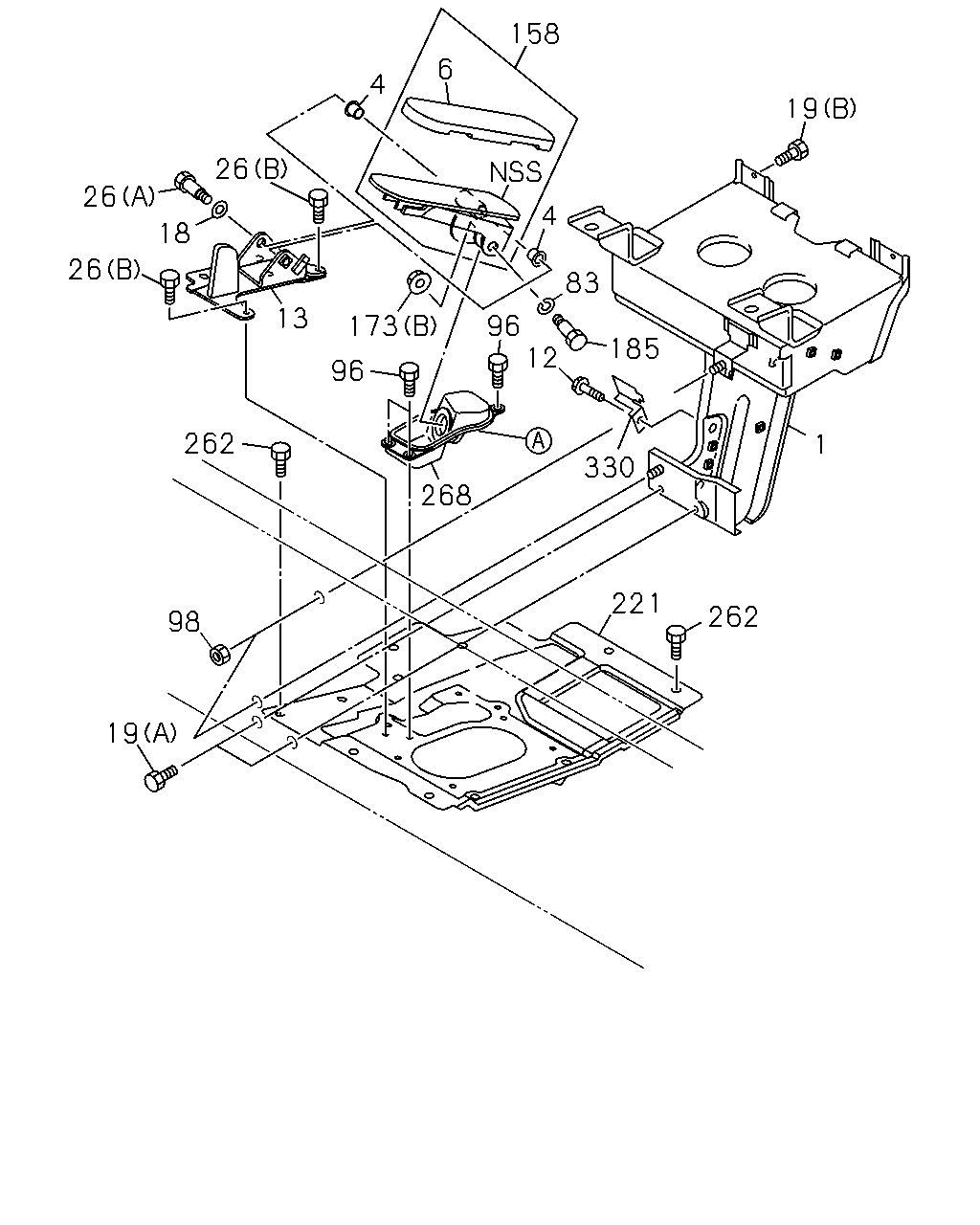

çizim 26244
158 6 4 19 26 26 4 18 26 83 13 173 96 12 185 96 262 1 330 268 221 262 98 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73908-077-9 01 1 9811-0610 ● ●
1 BRACKET ASM; PEDAL 1-73908-478-0 01 1 0611- ● ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 9811- ● ●
6 COVER; BRK PEDAL 1-48119-333-0 01 1 9811- ● ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 01 1 0611- ● ●
13 BRACKET; BRK PEDAL 1-73908-203-1 01 1 9811- ● ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 9811- ● ●
19 BOLT; BRKT
(A) M8X20 TAI 		1-79198-002-0 02 1 9811- ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 02 1 9811- ● ●
26 BOLT; PEDAL
(A) 		1-09980-614-0 01 1 9811- ● ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 9811- ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-814-0 01 1 9811-0603 ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 01 1 0604- ● ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 03 1 9811- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER TAI 		1-09984-176-0 02 1 9811- ● ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 9811- ● ●
173 NUT; JOINT LOCK
(A) M10 FLANGE 		0-91150-110-0 01 1 9811-0602 ● ●
173 NUT; JOINT LOCK
(A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
173 NUT; JOINT LOCK
(B) M12 		9-99110-412-0 01 1 9811-0512 ● ●
173 NUT; JOINT LOCK
(B) M12 TAI 		0-91110-512-0 01 1 0601- ● ●
185 BOLT; BRKT 1-73996-282-1 01 1 9811- ● ●
221 PLATE ASM; SIDE 1-73908-114-7 01 1 9811- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 10 1 9811- ● ●
268 COVER; ROD 1-73908-192-1 01 1 9811- ● ●
330 BRACKET; CONNECTOR 8-97616-605-0 01 1 0611- ● ●

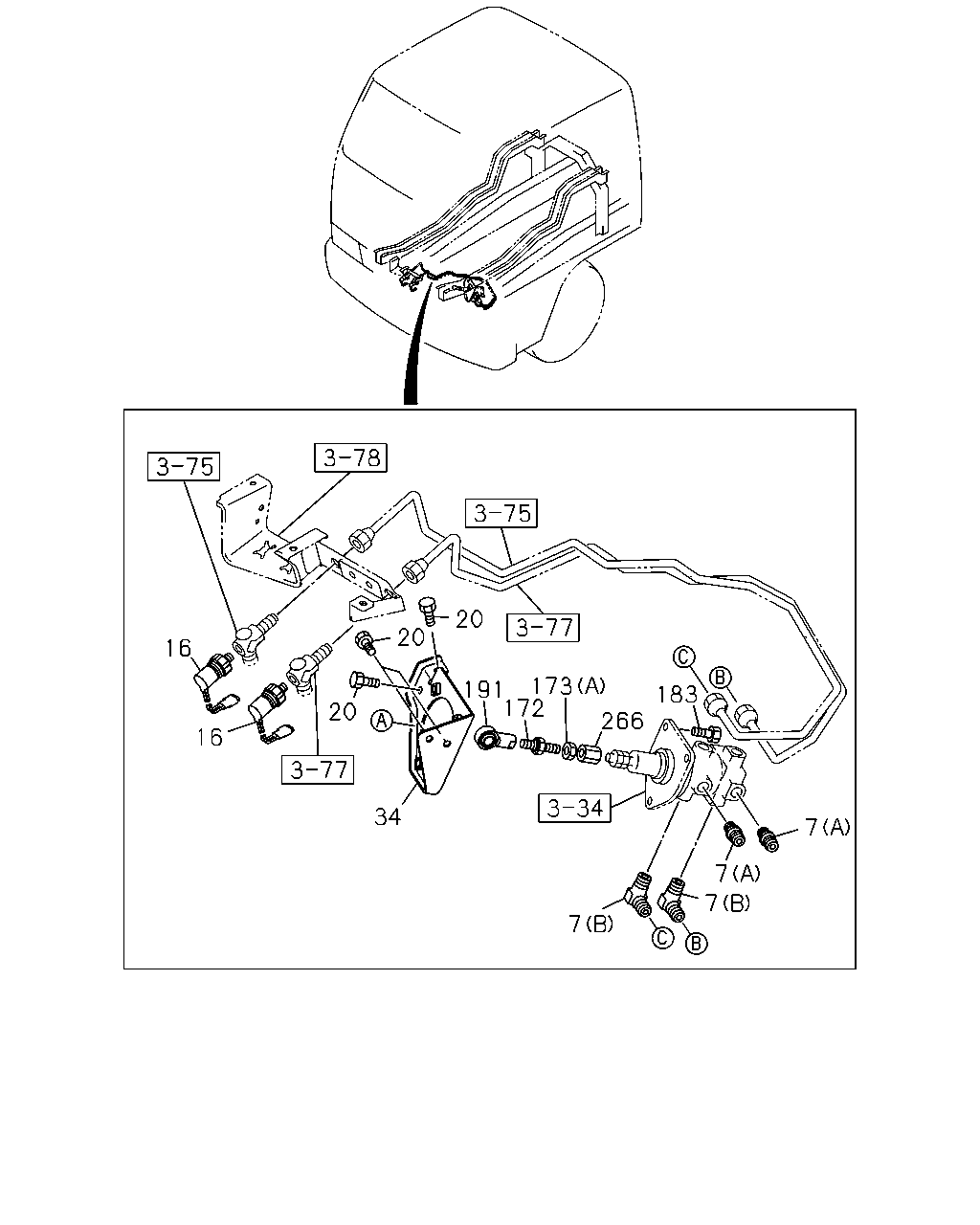

çizim 26368
20 20 16 191 173 172 183 20 266 16 34 7 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT 		1-09650-233-1 02 1 9811- ● ●
7 CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW TAI 		1-09650-438-0 02 1 9811- ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 9811- ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 04 1 9811- ● ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 9811- ● ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 9811- ● ●
173 NUT; JOINT LOCK
(A) M10 FLANGE 		0-91150-110-0 01 1 9811-0602 ● ●
173 NUT; JOINT LOCK
(A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
173 NUT; JOINT LOCK
(B) M12 		9-99110-412-0 01 1 9811-0512 ● ●
173 NUT; JOINT LOCK
(B) M12 TAI 		0-91110-512-0 01 1 0601- ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER TAI 		1-09980-503-0 03 1 9811- ● ●
191 JOINT; BALL,PUSH ROD 1-47355-001-0 01 1 9811- ● ●
266 JOINT ROD 1-73908-166-3 01 1 9811- ● ●
