◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#57267) — 267 parça

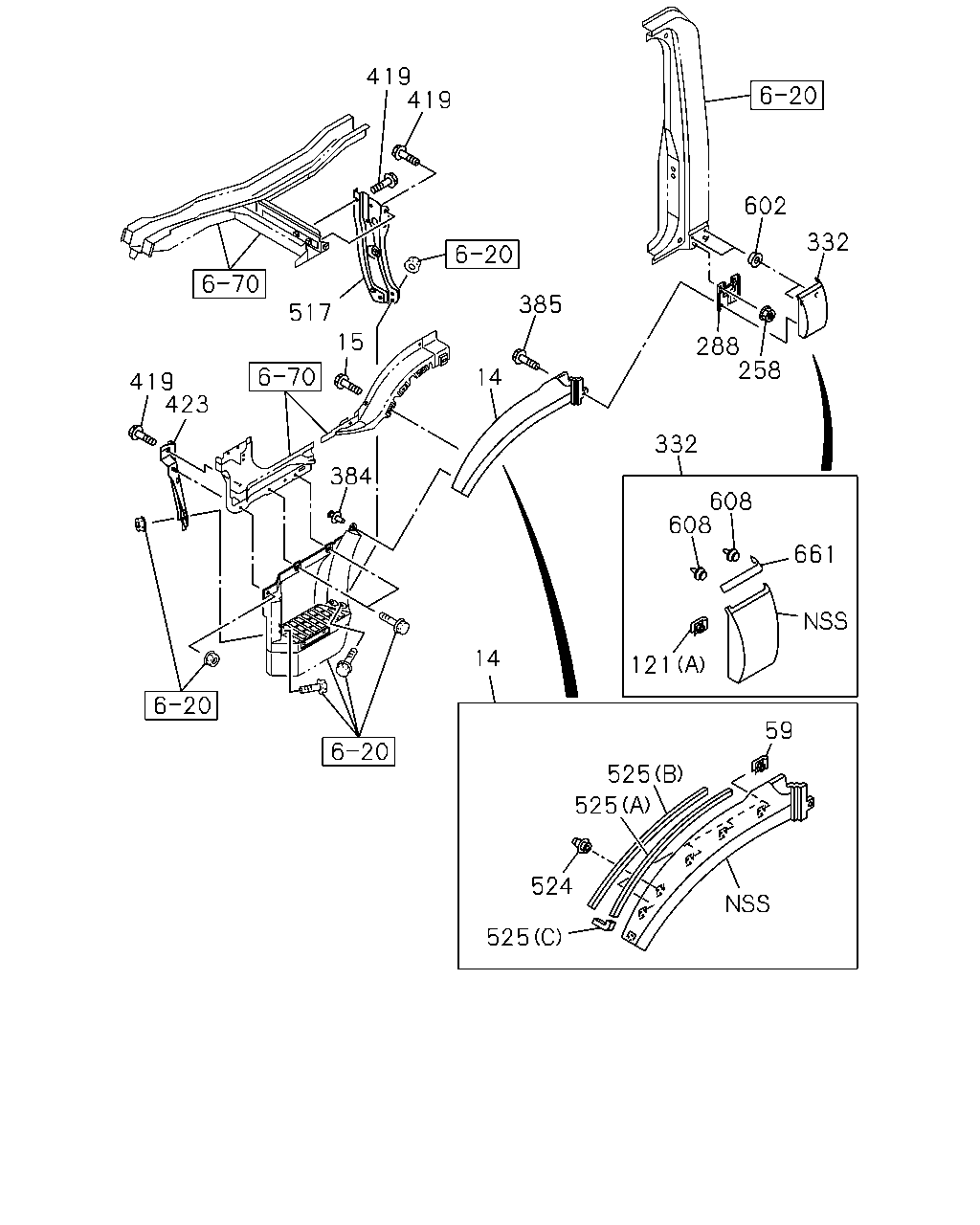

çizim 165750
419 419 602 332 385 517 15 288 258 14 419 423 332 384 608 608 661 14 121 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 0906- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 0906- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0906- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0906- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0906- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0906- ● ●
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-94279-723-0 02 1 0906- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0906- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0906- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0906- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0906- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0906- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 0906- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-706-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-716-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-320-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-313-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-347-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-341-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-709-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-719-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-350-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-344-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-708-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-718-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-349-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-343-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-715-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-725-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-713-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-723-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-712-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-722-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-741-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-740-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-707-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-717-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-348-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-342-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-351-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-345-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-711-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-721-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-710-0 01 1 0906- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-720-0 01 1 0906- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0906- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0906- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0906- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0906- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0906- ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 0906- ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 0906- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0906- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 0906- ● ●
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 0906- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0906- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 04 1 0906-1302 ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1303- ● ●
608 CLIP
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) D5.4X8 		1-09983-154-0 04 1 0906- ● ●
661 FINISHER; FENDER RR
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) 		8-98072-722-0 01 1 0906- ● ●
661 FINISHER; FENDER RR
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) 		8-98041-171-1 01 1 0906- ● ●

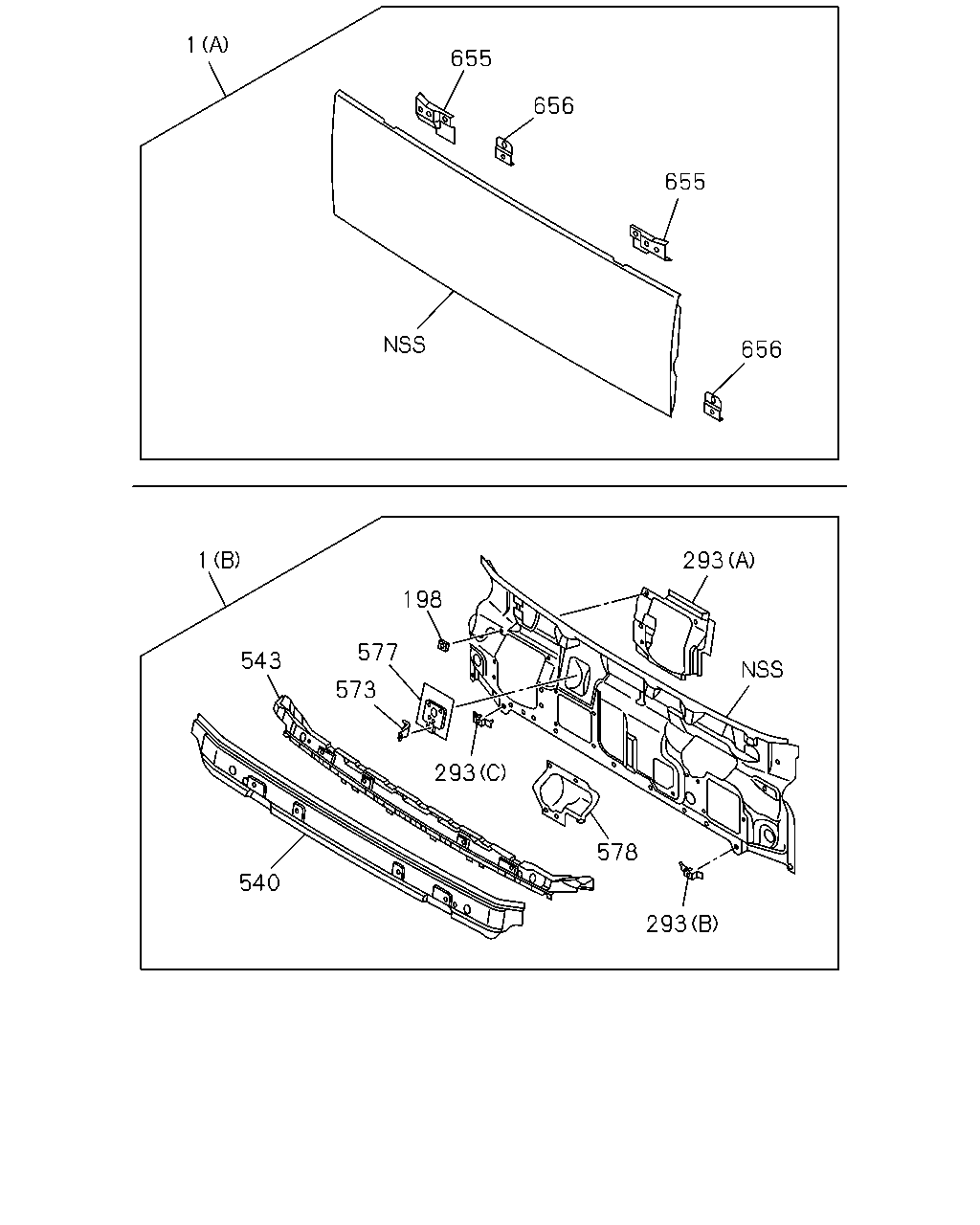

çizim 165752
1 655 656 655 656 1 293 198 577 543 573 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0906- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0906- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0906- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0906- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0906- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 0906- ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 0906- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 0906- ● ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 0906- ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 0906- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0906- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 0906- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 0906- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 0906- ● ●

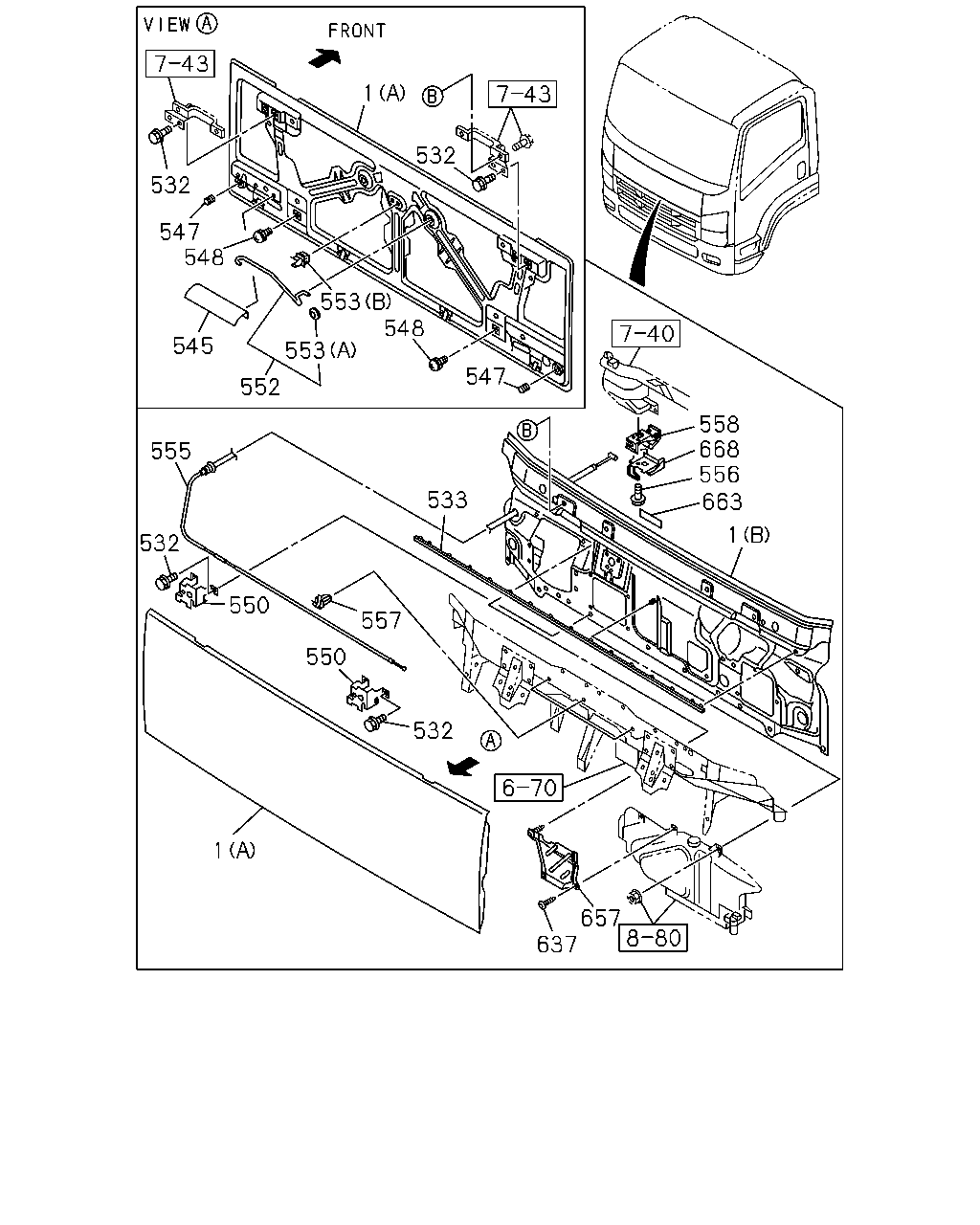

çizim 165759
1 532 532 547 548 553 548 545 553 547 552 558 668 556 663 555 533 1 532 550 557 550 532 1 657 637
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0906- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0906- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0906- ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 0906- ● ●
545 SEAL; FRT LID 8-98036-583-0 01 1 0906-0910 ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 0911- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0906- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0906- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0906- ● ●
552 STAY; FRT LID 8-98089-836-0 01 1 0906- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0906- ● ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 0906- ● ●
555 CABLE; FRT LID 8-98036-573-1 01 1 0906- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0906- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0906- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0906- ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 0906- ● ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 0906- ● ●
663 TAPE; PROTECT
275X11 		8-98070-053-1 01 1 0906-0910 ● ●
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 0906- ● ●

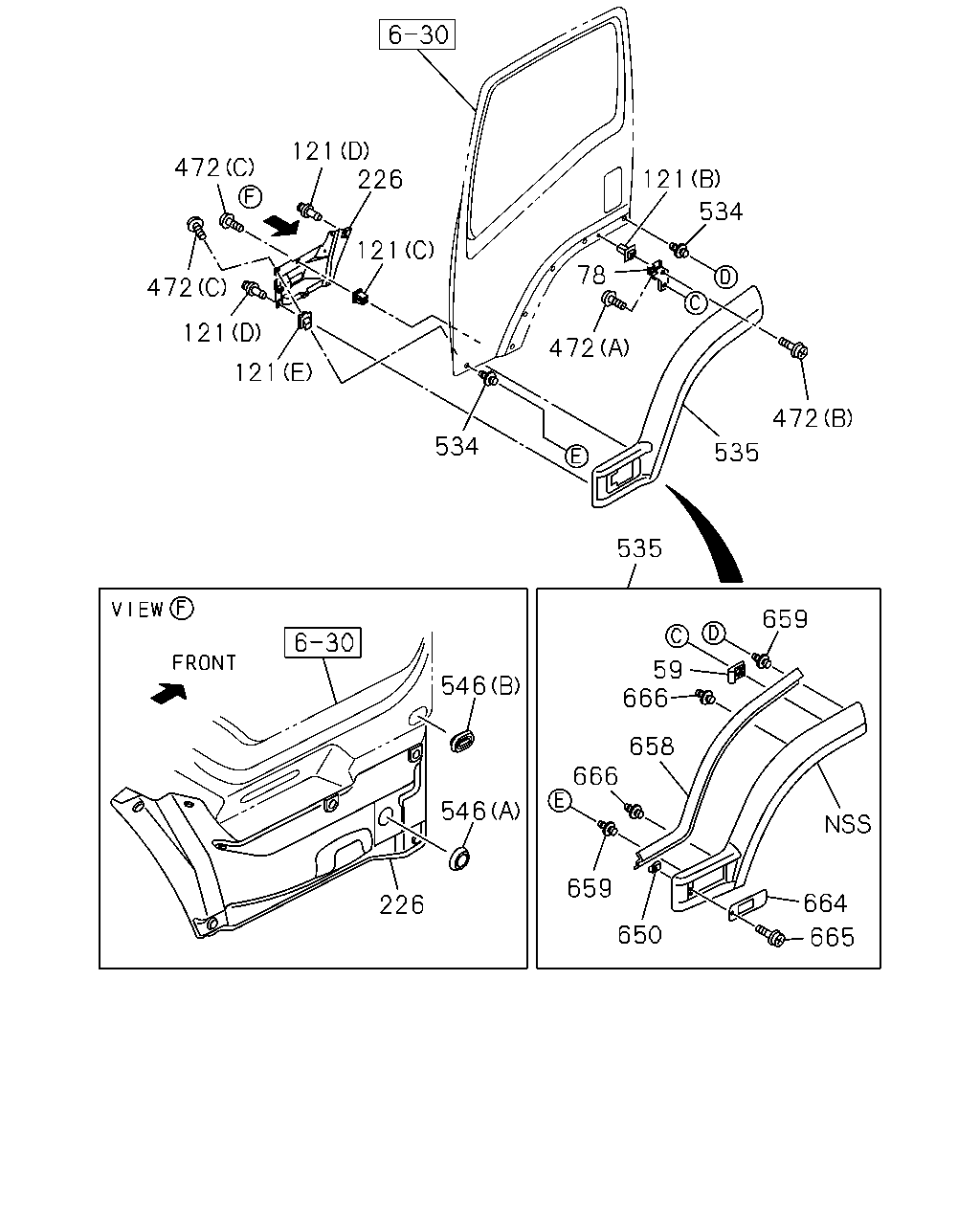

çizim 165761
121 226 472 121 534 121 78 472 121 472 121 472 534 535 535 659 59 666 546 658 666 546 659 664 226 650 665
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 0906- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 0906- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 0906- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 0906- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0906- ● ●
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-94279-723-0 02 1 0906- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0906- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0906- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0906- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0906- ● ●
226 PROTECTOR; FRT 8-98080-913-1 01 1 0906- ● ●
226 PROTECTOR; FRT 8-98080-912-1 01 1 0906- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0906- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0906- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0906- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0906-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-708-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97417-698-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-869-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97412-862-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-870-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97412-863-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-711-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97417-701-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-872-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97412-865-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-710-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97417-700-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-873-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-866-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-717-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97417-707-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-715-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-705-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-714-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-704-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-716-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-706-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-709-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-699-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-871-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-864-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-874-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-867-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-713-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-703-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-712-3 01 1 0906- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-702-3 01 1 0906- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0906- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0906- ● ●
650 NUT; SPIRE 8-94279-501-0 02 1 0906- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0906- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0906- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 0906- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97413-898-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97413-878-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-219-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-218-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97411-454-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97411-448-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97413-901-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97413-881-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97411-457-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97411-451-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97413-900-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97413-880-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-458-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-452-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97413-907-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97413-887-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-905-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-885-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-904-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-884-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-936-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-943-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-899-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-879-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-455-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-449-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-459-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-453-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-903-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-883-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-902-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1008- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-882-1 01 1 0906-1007 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1008- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0906- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0906- ● ●

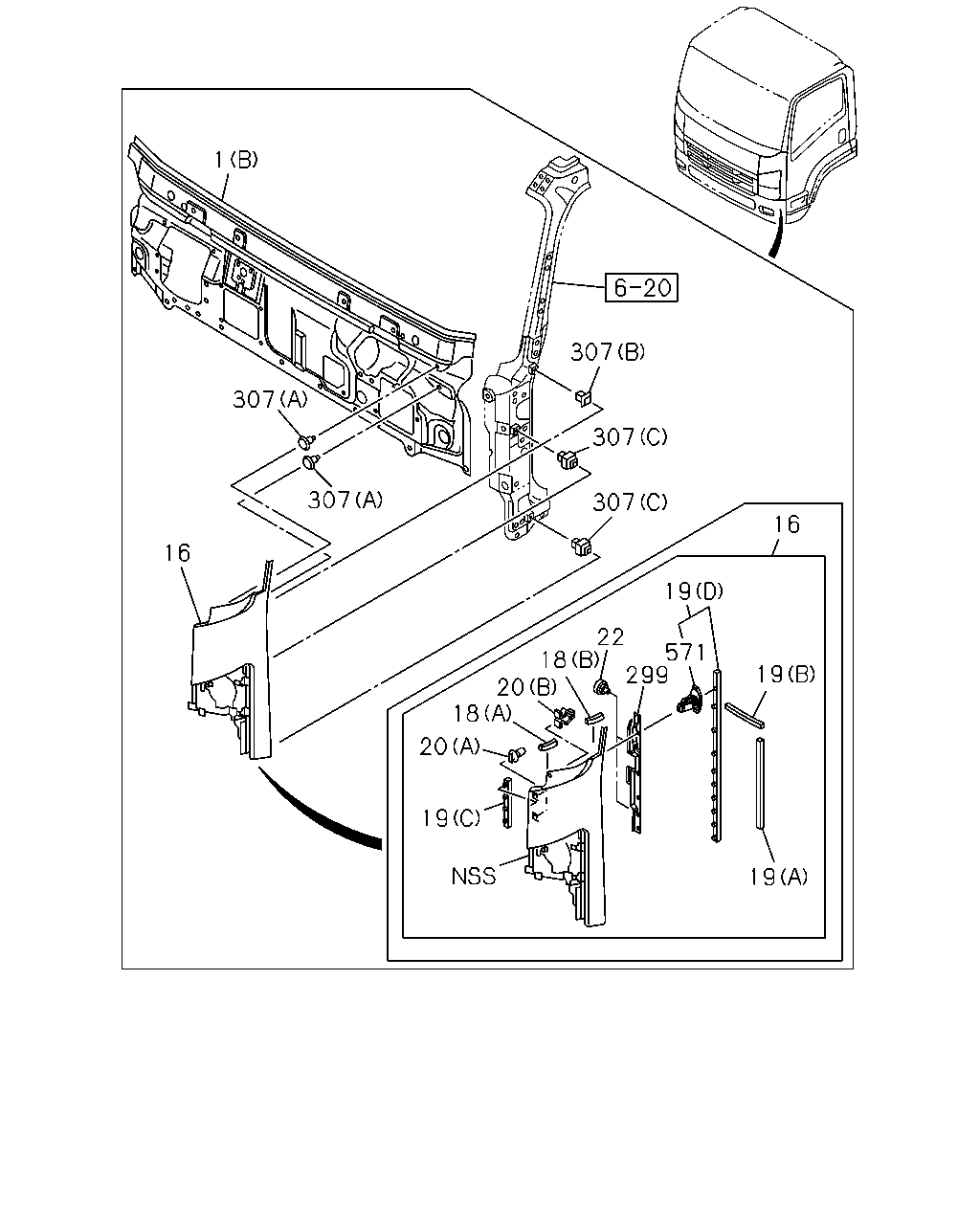

çizim 165765
1 307 307 307 307 307 16 16 19 22 18 20 18 571 299 19 20 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0906- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 0906- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 0906- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0906- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 0906- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 0906- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0906- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0906- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0906- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0906- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0906- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0906- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0906- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
