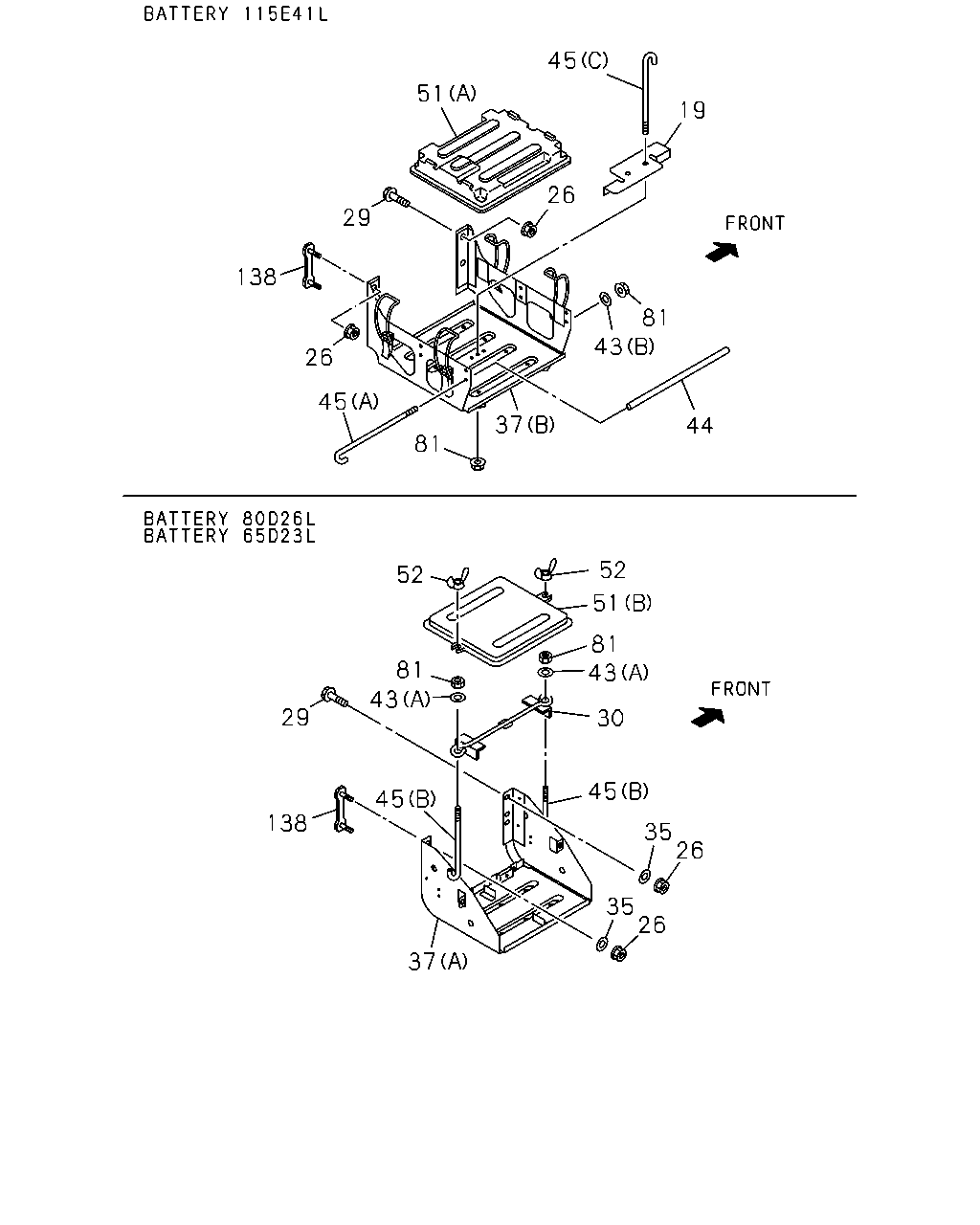

5-20 — BATTERY CARRIER (#57262) — 27 parça

45 51 19 26 29 138 81 43 26 45 37 44 81 52 52 51 81 43 81 43 29 30 45 45 138 35 26 35 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY BATTERY 115E41L<8MA>	8-98120-443-0	01	1	0906-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0906-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	02	1	0906-	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0906-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0906-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	0906-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0906-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0906-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	01	1	0906-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0906-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98120-442-0	01	1	0906-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	01	1	0906-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-081-0	02	1	0906-1003	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250	1-53616-108-0	02	1	1004-1004	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0906-	●	●
45	ROD; TENSION,BATTERY ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	0906-1004	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1005-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (A)	1-53612-037-2	01	1	0906-1004	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0906-	●	●
51	COVER; BATTERY ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	0906-1004	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1005-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0906-	●	●
81	NUT; BATTERY BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	0906-	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
138	STUD	8-98066-802-0	01	1	0906-1010	●	●
138	STUD	8-98178-497-0	01	1	1011-1311	●	●
138	STUD	8-98255-710-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
