Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#5726) — 294 parça

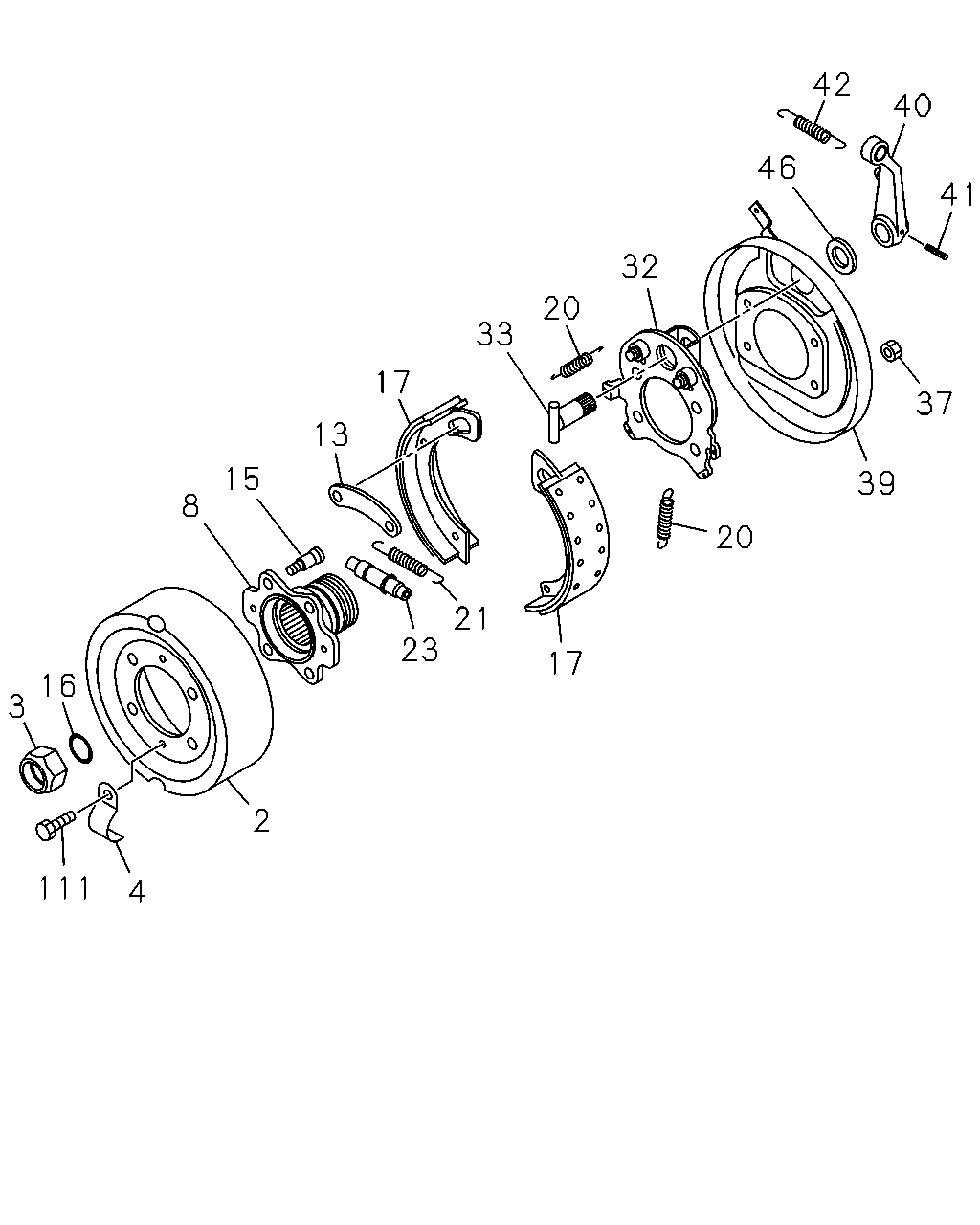

42 40 46 41 32 20 33 17 37 13 15 39 8 20 21 23 17 16 3 2 111 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9811-9904	●
2	DRUM; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46211-019-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0611-		●
2	DRUM; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46211-020-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0611-			●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9811-0610	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	0611-			●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9811-9904	●
4	COVER; ADJ HOLE FVR MIDDLE CHASSIS(FV****)	1-46219-030-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	0611-		●
4	COVER; ADJ HOLE FRR MIDDLE CHASSIS(FR****)	1-46219-018-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0611-			●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9811-9904	●
8	FLANGE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-37243-235-0	01	1	9905-0610	●
8	FLANGE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-37243-236-0	01	1	9905-0610	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0611-			●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9811-9904	●
13	BRACE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-46239-002-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0611-		●
13	BRACE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-46239-003-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0611-			●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9811-9904	●
15	BOLT; FLANGE FVR MIDDLE CHASSIS(FV****) M16X55	1-46219-039-0	04	1	9905-0610	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0611-0707		●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-		●
15	BOLT; FLANGE FRR MIDDLE CHASSIS(FR****) M14X43 KNURL	1-09046-003-0	04	1	9905-0610	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0611-0707			●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0708-			●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9811-0610	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0611-			●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9811-9904	●
17	SHOE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46220-022-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0611-		●
17	SHOE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46220-029-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0611-			●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9811-9904	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-09942-434-0	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0611-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-09942-567-1	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0611-			●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9811-9904	●
21	SPRING; RETURN,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	9-09942-516-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0611-		●
21	SPRING; RETURN,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	1-09583-268-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0611-			●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9811-9904	●
23	SCREW; ADJ,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	1-46240-003-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0611-		●
23	SCREW; ADJ,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	9-46240-008-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0611-			●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9811-9904	●
32	PLATE; SUPPORT,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-039-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-096-0	01	1	0611-		●
32	PLATE; SUPPORT,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-023-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0611-			●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9811-9904	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-006-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-010-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	0611-		●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-002-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-070-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0611-			●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9811-0604	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-0610	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0611-			●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9811-9904	●
39	COVER; DUST,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-038-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-093-0	01	1	0611-		●
39	COVER; DUST,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-019-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0611-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9811-9904	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-013-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-046-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	0611-		●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-003-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-043-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0611-			●
41	PIN; KNOCK,LEVER FRR MIDDLE CHASSIS(FR****)	9-09878-594-0	01	1	9905-0610	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0611-			●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9811-9904	●
42	SPRING; RETURN,LEVER FVR MIDDLE CHASSIS(FV****)	1-09583-104-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	0611-		●
42	SPRING; RETURN,LEVER FRR MIDDLE CHASSIS(FR****)	9-09942-592-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0611-			●
46	WASHER; LEVER	9-09855-362-0	01	1	9811-9904	●
46	WASHER; LEVER FVR MIDDLE CHASSIS(FV****)	9-09855-362-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-362-0	01	1	0611-		●
46	WASHER; LEVER FRR MIDDLE CHASSIS(FR****)	9-09855-367-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-367-0	01	1	0611-			●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0610	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0611-		●	●

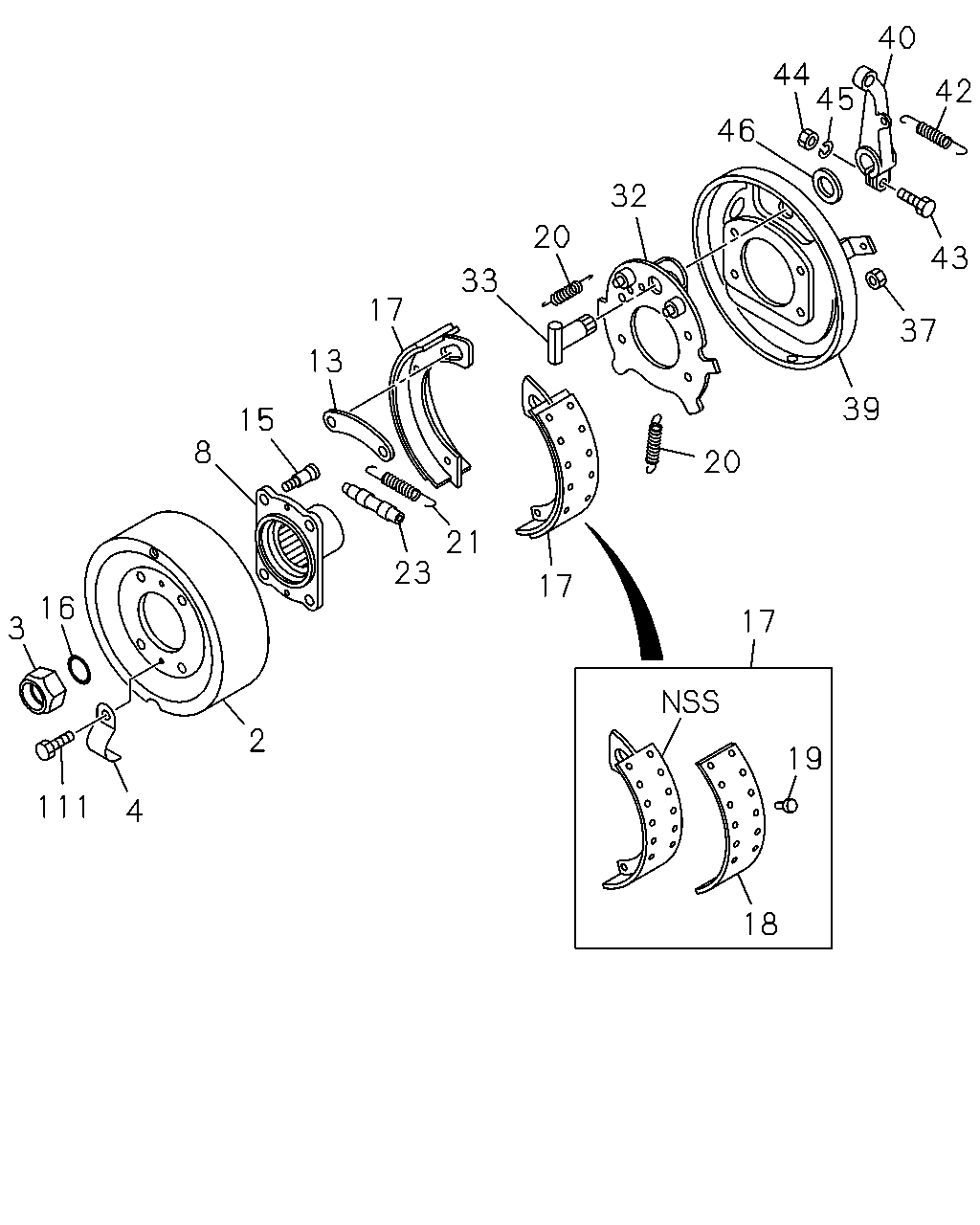

40 44 45 42 46 32 20 43 33 17 37 13 39 15 8 20 21 23 17 16 17 3 2 19 111 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9811-9904	●
2	DRUM; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46211-019-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0611-		●
2	DRUM; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46211-020-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0611-			●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9811-0610	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	0611-			●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9811-9904	●
4	COVER; ADJ HOLE FVR MIDDLE CHASSIS(FV****)	1-46219-030-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	0611-		●
4	COVER; ADJ HOLE FRR MIDDLE CHASSIS(FR****)	1-46219-018-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0611-			●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9811-9904	●
8	FLANGE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-37243-235-0	01	1	9905-0610	●
8	FLANGE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-37243-236-0	01	1	9905-0610	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0611-			●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9811-9904	●
13	BRACE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-46239-002-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0611-		●
13	BRACE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-46239-003-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0611-			●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9811-9904	●
15	BOLT; FLANGE FVR MIDDLE CHASSIS(FV****) M16X55	1-46219-039-0	04	1	9905-0610	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0611-0707		●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-		●
15	BOLT; FLANGE FRR MIDDLE CHASSIS(FR****) M14X43 KNURL	1-09046-003-0	04	1	9905-0610	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0611-0707			●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0708-			●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9811-0610	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0611-			●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9811-9904	●
17	SHOE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46220-022-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0611-		●
17	SHOE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46220-029-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0611-			●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9811-9904	●
19	RIVET; LINING,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-09732-012-0	32	1	9905-0610	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0611-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9811-9904	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-09942-434-0	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0611-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-09942-567-1	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0611-			●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9811-9904	●
21	SPRING; RETURN,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	9-09942-516-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0611-		●
21	SPRING; RETURN,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	1-09583-268-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0611-			●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9811-9904	●
23	SCREW; ADJ,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	1-46240-003-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0611-		●
23	SCREW; ADJ,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	9-46240-008-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0611-			●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9811-9904	●
32	PLATE; SUPPORT,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-039-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-096-0	01	1	0611-		●
32	PLATE; SUPPORT,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-023-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0611-			●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9811-9904	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-006-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-010-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	0611-		●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-002-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-070-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0611-			●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9811-0604	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-0610	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0611-			●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9811-9904	●
39	COVER; DUST,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-038-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-093-0	01	1	0611-		●
39	COVER; DUST,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-019-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0611-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9811-9904	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-013-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-046-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	0611-		●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-003-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-043-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0611-			●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9811-9904	●
42	SPRING; RETURN,LEVER FVR MIDDLE CHASSIS(FV****)	1-09583-104-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	0611-		●
42	SPRING; RETURN,LEVER FRR MIDDLE CHASSIS(FR****)	9-09942-592-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0611-			●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9811-9904	●
43	BOLT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****)	0-10811-040-0	01	1	9905-0610	●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	0611-		●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9811-9904	●
44	NUT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) M10	9-09111-410-0	01	1	9905-0512	●
44	NUT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) M10	0-91111-510-0	01	1	0601-0610	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0611-		●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9811-9904	●
45	WASHER; LK,LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) ID=10.2	9-09150-510-0	01	1	9905-0603	●
45	WASHER; LK,LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) ID=10.2	0-91510-510-0	01	1	0604-0610	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	0611-		●
46	WASHER; LEVER	9-09855-362-0	01	1	9811-9904	●
46	WASHER; LEVER FVR MIDDLE CHASSIS(FV****)	9-09855-362-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-362-0	01	1	0611-		●
46	WASHER; LEVER FRR MIDDLE CHASSIS(FR****)	9-09855-367-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-367-0	01	1	0611-			●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0610	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0611-		●	●

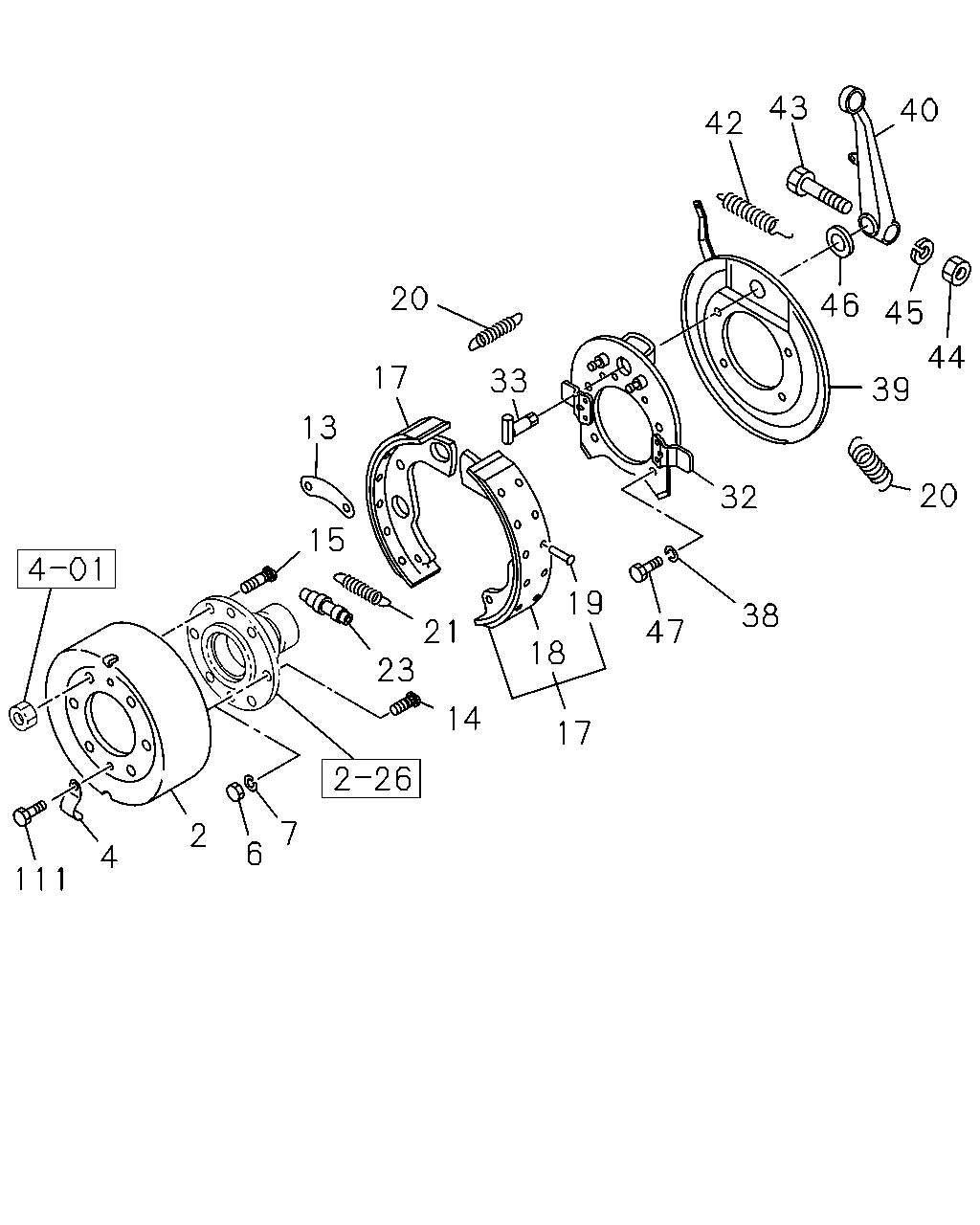

43 40 42 20 46 45 44 17 33 39 13 20 32 15 19 38 21 23 47 18 14 17 7 2 6 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9811-9904	●
2	DRUM; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46211-019-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0611-		●
2	DRUM; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46211-020-0	01	1	9905-0610	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0611-			●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9811-9904	●
4	COVER; ADJ HOLE FVR MIDDLE CHASSIS(FV****)	1-46219-030-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	0611-		●
4	COVER; ADJ HOLE FRR MIDDLE CHASSIS(FR****)	1-46219-018-0	02	1	9905-0610	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0611-			●
6	NUT; FLANGE M16	9-99110-516-0	02	1	0611-		●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	0611-		●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9811-9904	●
13	BRACE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-46239-002-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0611-		●
13	BRACE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-46239-003-0	01	1	9905-0610	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0611-			●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	0611-		●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9811-9904	●
15	BOLT; FLANGE FVR MIDDLE CHASSIS(FV****) M16X55	1-46219-039-0	04	1	9905-0610	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0611-0707		●
15	BOLT; FLANGE M16X55	8-98023-172-0	04	1	0708-		●
15	BOLT; FLANGE FRR MIDDLE CHASSIS(FR****) M14X43 KNURL	1-09046-003-0	04	1	9905-0610	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0611-0707			●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0708-			●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9811-9904	●
17	SHOE; PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46220-022-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0611-		●
17	SHOE; PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46220-029-0	02	1	9905-0610	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0611-			●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9811-9904	●
18	LINING; BRK,PARKING FVR MIDDLE CHASSIS(FV****)	1-46225-023-0	02	1	9905-0610	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0611-		●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9811-9904	●
19	RIVET; LINING,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-09732-012-0	32	1	9905-0610	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0611-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9811-9904	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FVR MIDDLE CHASSIS(FV****)	9-09942-434-0	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0611-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR MIDDLE CHASSIS(FR****)	9-09942-567-1	02	1	9905-0610	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0611-			●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9811-9904	●
21	SPRING; RETURN,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	9-09942-516-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0611-		●
21	SPRING; RETURN,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	1-09583-268-0	01	1	9905-0610	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0611-			●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9811-9904	●
23	SCREW; ADJ,PARKING BRK SHOE FVR MIDDLE CHASSIS(FV****)	1-46240-003-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0611-		●
23	SCREW; ADJ,PARKING BRK SHOE FRR MIDDLE CHASSIS(FR****)	9-46240-008-0	01	1	9905-0610	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0611-			●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9811-9904	●
32	PLATE; SUPPORT,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-039-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-096-0	01	1	0611-		●
32	PLATE; SUPPORT,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-023-0	01	1	9905-0610	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0611-			●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9811-9904	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-006-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46251-010-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	0611-		●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-002-0	01	1	9905-0410	●
33	SHAFT; CAM,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46251-070-0	01	1	0411-0610	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0611-			●
38	WASHER; LK,SUPPORT PLATE	1-33139-092-0	04	1	0611-		●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9811-9904	●
39	COVER; DUST,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46213-038-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-093-0	01	1	0611-		●
39	COVER; DUST,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46213-019-0	01	1	9905-0610	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0611-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9811-9904	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-013-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FVR MIDDLE CHASSIS(FV****)	1-46252-046-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	0611-		●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-003-0	01	1	9905-0410	●
40	LEVER; CM/SHF,PARKING BRK FRR MIDDLE CHASSIS(FR****)	1-46252-043-0	01	1	0411-0610	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0611-			●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9811-9904	●
42	SPRING; RETURN,LEVER FVR MIDDLE CHASSIS(FV****)	1-09583-104-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	0611-		●
42	SPRING; RETURN,LEVER FRR MIDDLE CHASSIS(FR****)	9-09942-592-0	01	1	9905-0610	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0611-			●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9811-9904	●
43	BOLT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****)	0-10811-040-0	01	1	9905-0610	●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	0611-		●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9811-9904	●
44	NUT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) M10	9-09111-410-0	01	1	9905-0512	●
44	NUT; LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) M10	0-91111-510-0	01	1	0601-0610	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0611-		●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9811-9904	●
45	WASHER; LK,LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) ID=10.2	9-09150-510-0	01	1	9905-0603	●
45	WASHER; LK,LEVER TO CM/SHF FVR MIDDLE CHASSIS(FV****) ID=10.2	0-91510-510-0	01	1	0604-0610	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	0-91510-510-0	01	1	0611-		●
46	WASHER; LEVER	9-09855-362-0	01	1	9811-9904	●
46	WASHER; LEVER FVR MIDDLE CHASSIS(FV****)	9-09855-362-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-362-0	01	1	0611-		●
46	WASHER; LEVER FRR MIDDLE CHASSIS(FR****)	9-09855-367-0	01	1	9905-0610	●
46	WASHER; LEVER	9-09855-367-0	01	1	0611-			●
47	BOLT; SUPPORT PLATE	1-33139-091-0	04	1	0611-		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0610	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0611-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
