5-01 — FRAME AND OTHER PARTS (#57259) — 102 parça

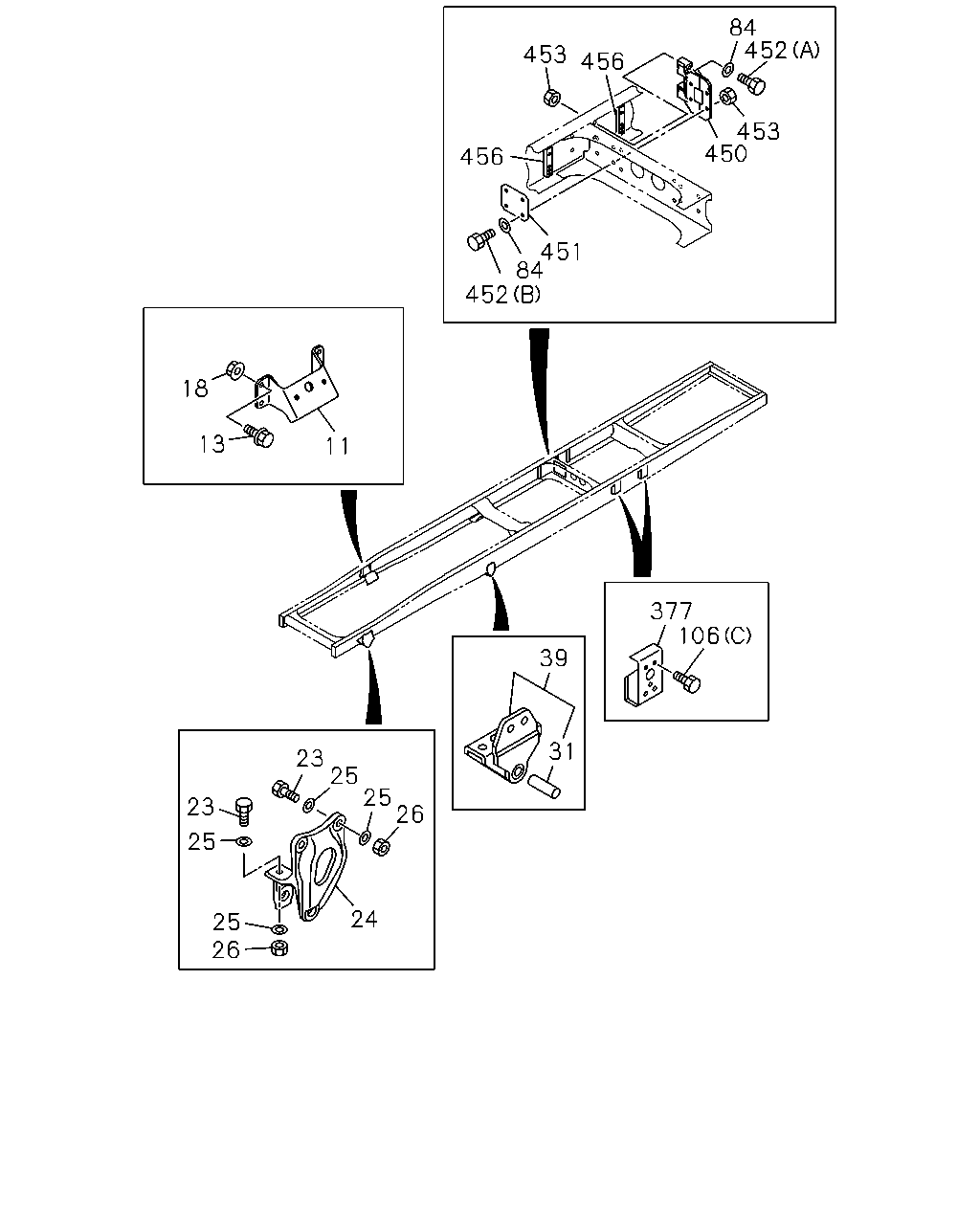

çizim 165745
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97610-244-0 01 1 0906- ● ● ●
11 BRACKET; ENG MTG 8-97610-245-0 01 1 0906- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0906- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0906- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0906- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0906- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0906- ● ● ●
84 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 12 1 0906- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906- ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906- ●
106 BOLT; BRKT
(C) M14X35 FLANGE 		0-28661-435-0 12 1 0906- ●
377 BRACKET; TOP PLATE 8-98061-350-0 04 1 0906- ●
450 BRACKET; V ROD 1-53353-121-0 02 1 0906- ●
451 GUSSET; V ROD 8-97610-436-0 02 1 0906- ●
452 BOLT; V ROD
(A) M16X120 		1-09000-677-0 04 1 0906-0908 ●
452 BOLT; V ROD
(A) M16X110 		1-09000-738-0 04 1 0909- ●
452 BOLT; V ROD
(B) M16X50 		1-09000-679-0 08 1 0906- ●
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 12 1 0906- ●
456 PATCH; STOPPER 8-97610-437-1 04 1 0906- ●

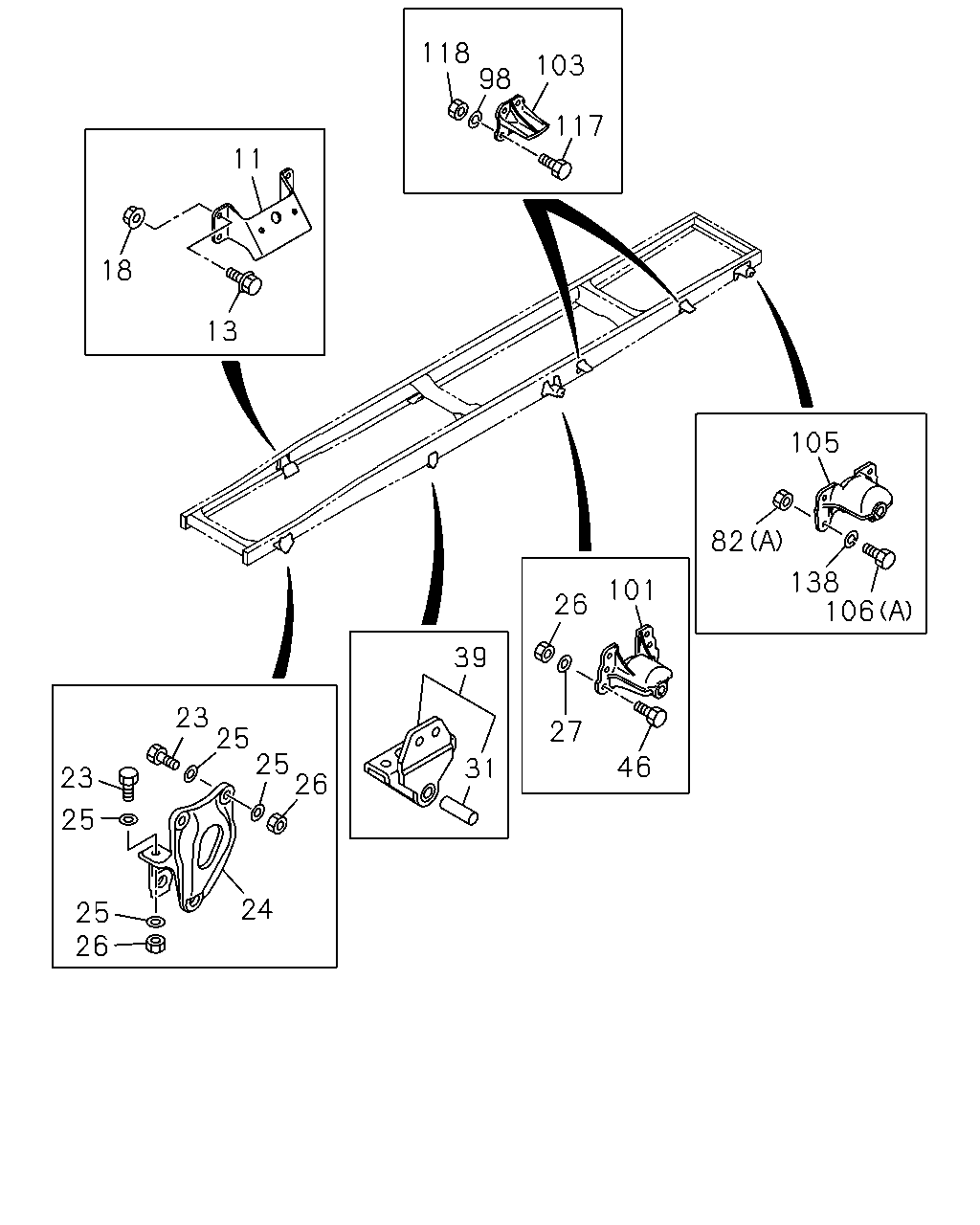

çizim 165763
118 98 103 117 11 18 13 105 82 138 106 101 26 39 23 25 25 26 27 46 31 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97610-244-0 01 1 0906- ● ● ●
11 BRACKET; ENG MTG 8-97610-245-0 01 1 0906- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-983-0 01 1 0906- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-984-0 01 1 0906- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0906- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0906- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0906- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0906- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0906- ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0906- ● ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0906- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0906- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0906- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0906- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0906- ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906- ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906- ●
106 BOLT; BRKT
(C) M14X35 FLANGE 		0-28661-435-0 12 1 0906- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0906- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0906- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0906- ● ●

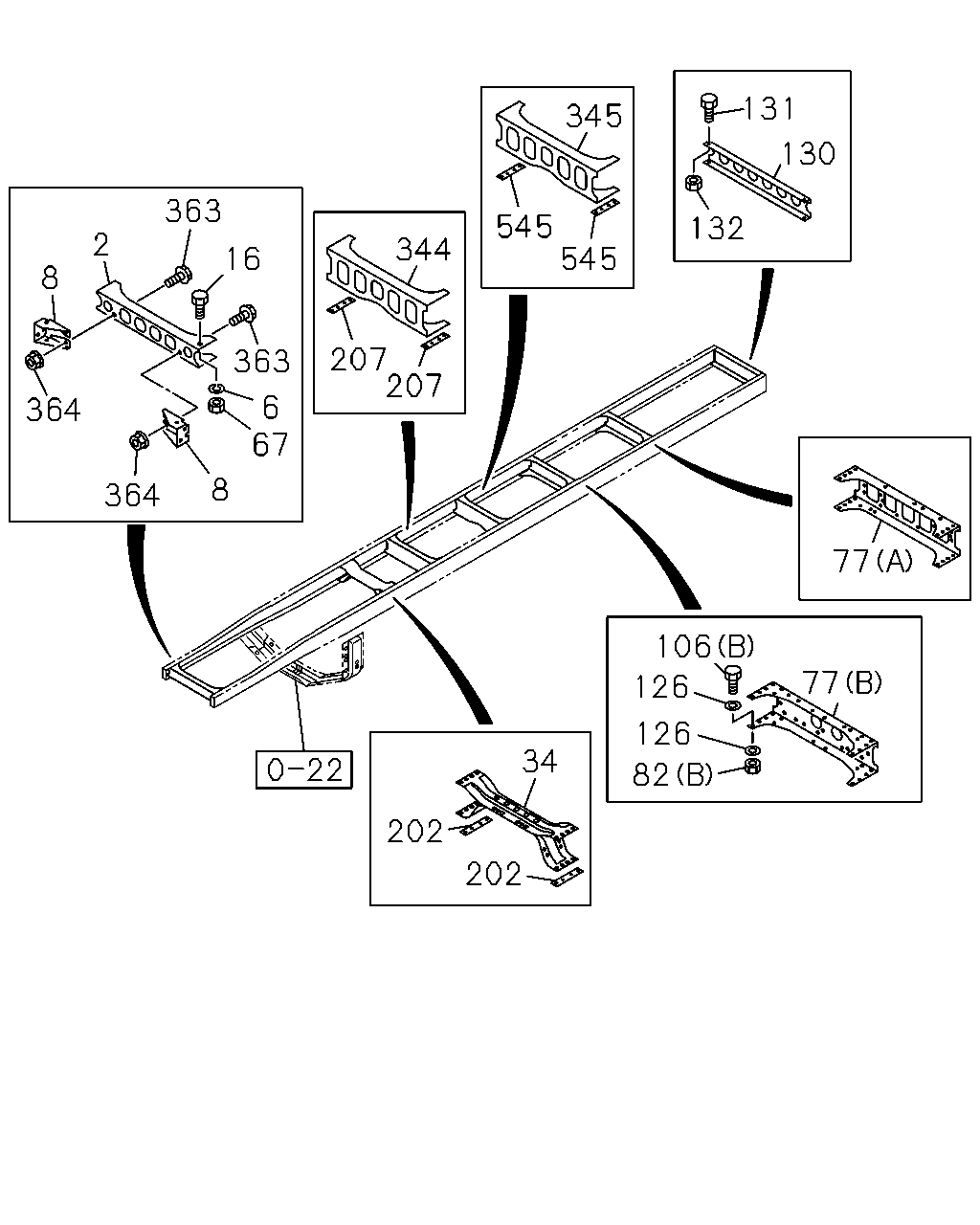

çizim 165920
131 345 130 363 545 545 132 2 344 16 8 363 207 207 6 67 364 8 364 77 106 77 126 126 34 82 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97626-854-1 01 1 0906- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0906- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0906- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0906- ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 0906- ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906- ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 0906- ● ●
82 NUT; BRKT
(B) M10 		0-91110-510-0 04 1 0906- ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 0906- ● ●
106 BOLT; BRKT
(B) M10X35 		0-10961-035-0 04 1 0906- ●
106 BOLT; BRKT
(C) M14X35 FLANGE 		0-28661-435-0 12 1 0906- ●
126 WASHER; PL,BRKT
ID=10.5 OD=22 		0-91614-610-0 08 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0906- ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0906- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0906- ●

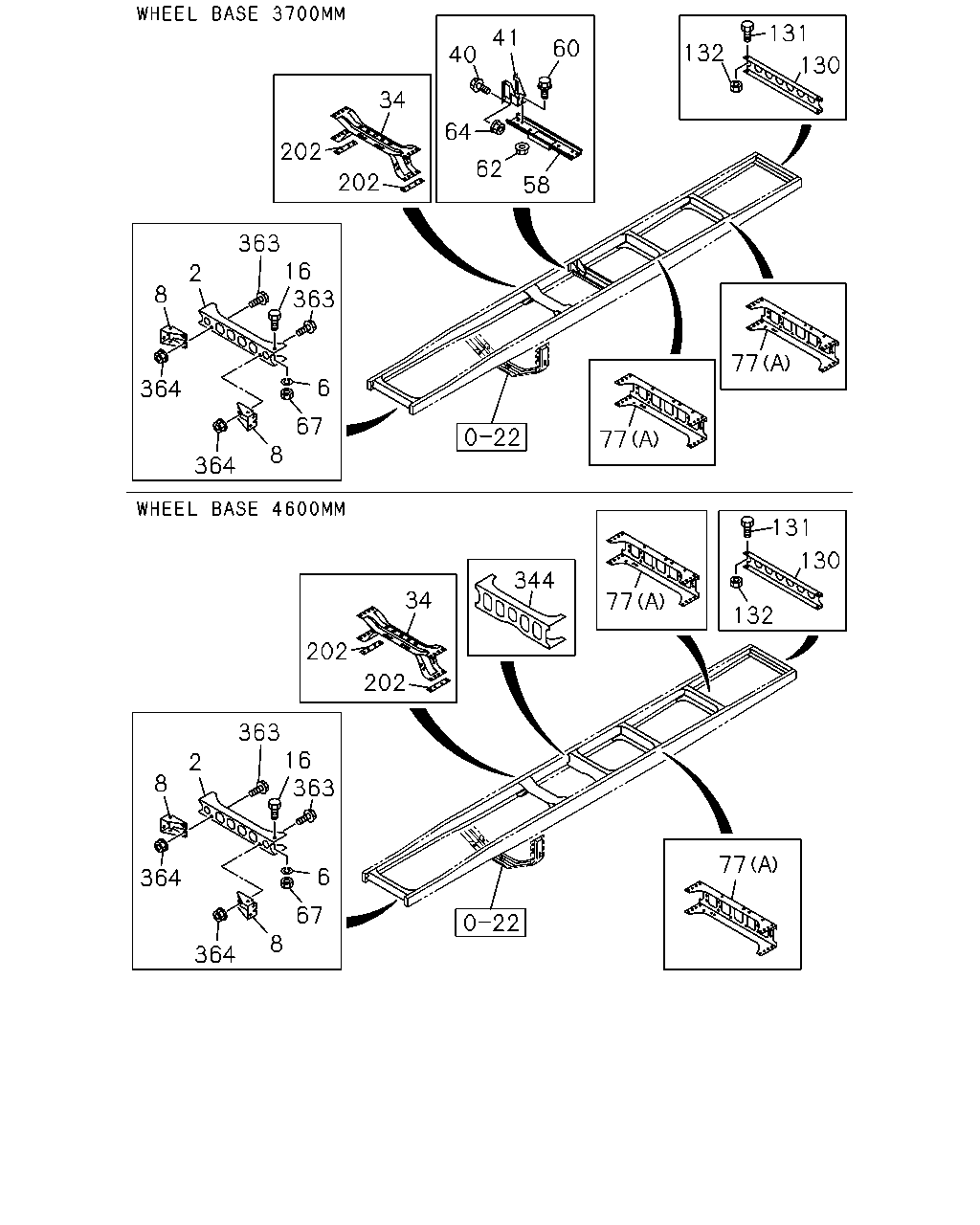

çizim 165922
131 132 41 60 40 130 34 64 202 62 202 58 363 16 363 2 8 77 6 364 67 77 8 364 131 130 344 34 77 132 202 202 363 16 363 2 8 77 6 364 67 8 364
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97626-854-1 01 1 0906- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-1 01 1 0906- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-2 01 1 0906- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0906- ● ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0906- ●
58 MEMBER; CENTER BRG 8-97619-113-0 01 1 0906- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0906- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0906- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 02 1 0906- ● ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-481-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-483-0 01 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0906- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ● ●
