◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#57258) — 24 parça

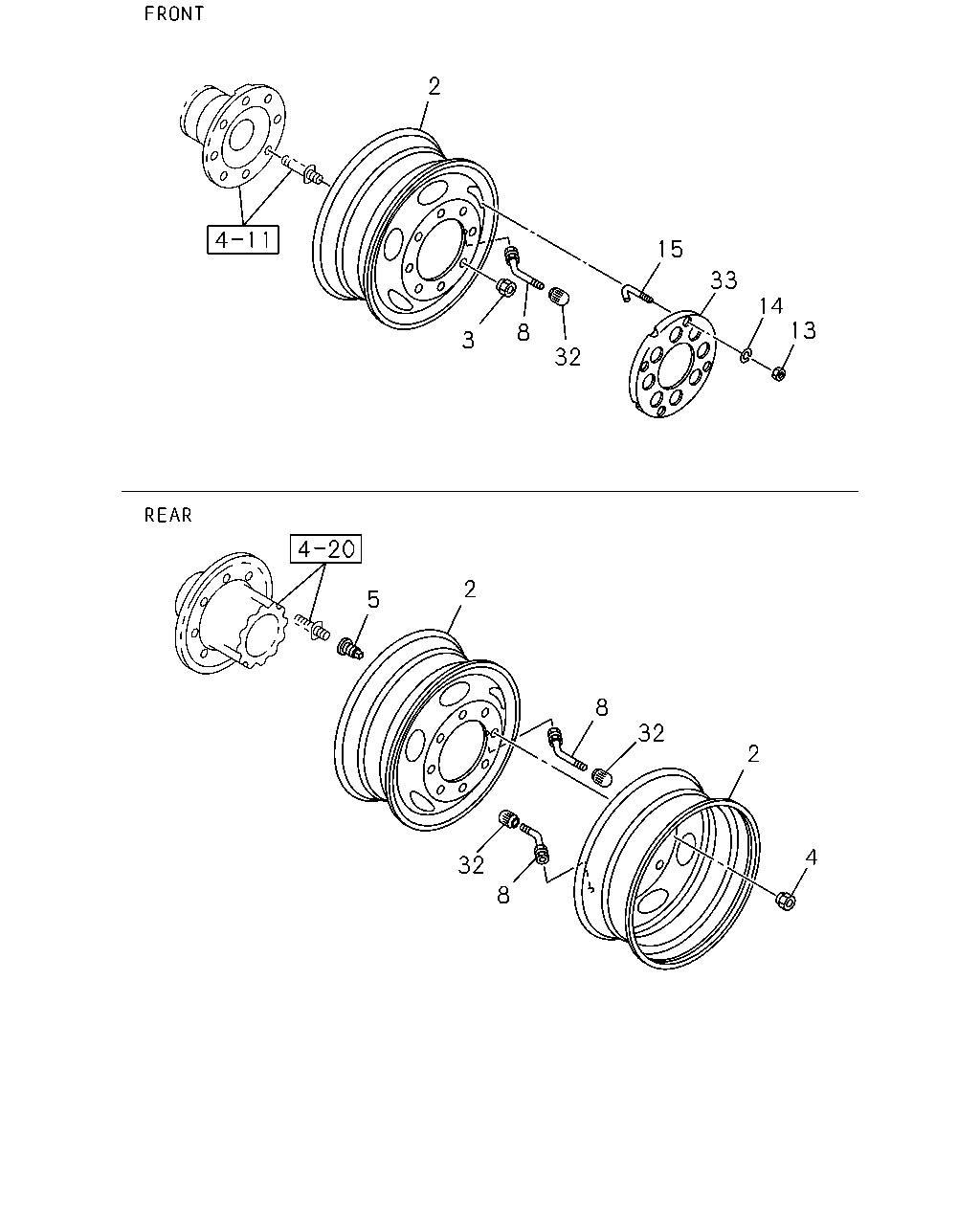

çizim 165918
2 15 33 14 13 8 3 32 2 5 8 32 2 4 32 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
FRONT,REAR 		1-42350-761-1 06 1 0906- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-761-1 01 1 0906- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0906- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0906- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0906- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0906- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0906- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0906- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 0906- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 0906- ● ●
13 NUT; STEP DISC
M10 		0-91110-510-0 08 1 0906-1110 ● ●
13 NUT; STEP DISC
TIRE 245/70R19.5-136/134M RIB EEC(5J8) M10 		0-91110-510-0 08 1 1111-1202 ● ●
13 NUT; STEP DISC
M10 		0-91110-510-0 08 1 1203- ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		0-91510-810-0 08 1 0906-1110 ● ●
14 WASHER; LK,STEP DISC
TIRE 245/70R19.5-136/134M RIB EEC(5J8) ID=10.2 		0-91510-810-0 08 1 1111-1202 ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		0-91510-810-0 08 1 1203- ● ●
15 BOLT; STEP DISC 1-43139-073-0 08 1 0906-1110 ● ●
15 BOLT; STEP DISC
TIRE 245/70R19.5-136/134M RIB EEC(5J8) 		1-43139-073-0 08 1 1111-1202 ● ●
15 BOLT; STEP DISC 1-43139-073-0 08 1 1203- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0906- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0906- ● ●
33 COVER; WHEEL 1-43139-062-2 02 1 0906-1110 ● ●
33 COVER; WHEEL
TIRE 245/70R19.5-136/134M RIB EEC(5J8) 		1-43139-062-2 02 1 1111-1202 ● ●
33 COVER; WHEEL 1-43139-062-2 02 1 1203- ● ●
