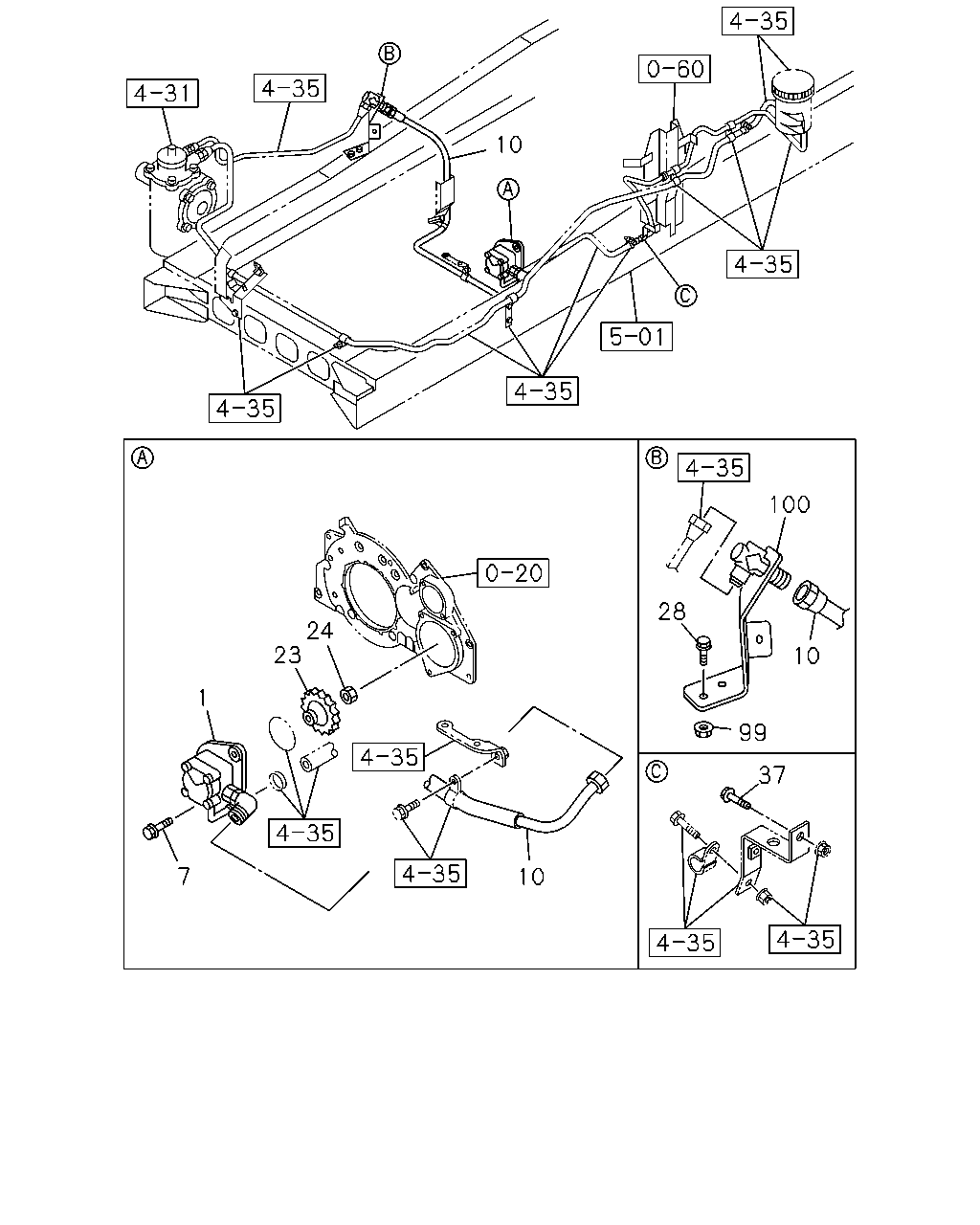

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#57247) — 9 parça

10 100 28 24 23 10 1 99 37 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-628-1	01	1	0906-	●	●
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0906-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL	8-98071-427-3	01	1	0906-	●	●
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	0906-	●	●
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0906-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28050-830-0	02	1	0906-	●	●
37	BOLT; P/S PUMP M8X25 FLANGE	0-28650-825-0	01	1	0906-	●	●
99	NUT; BRKT,FLEX HOSE,P/S M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
100	UNION; FLEX HOSE	8-98049-966-0	01	1	0906-	●	●
