4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#57246) — 58 parça

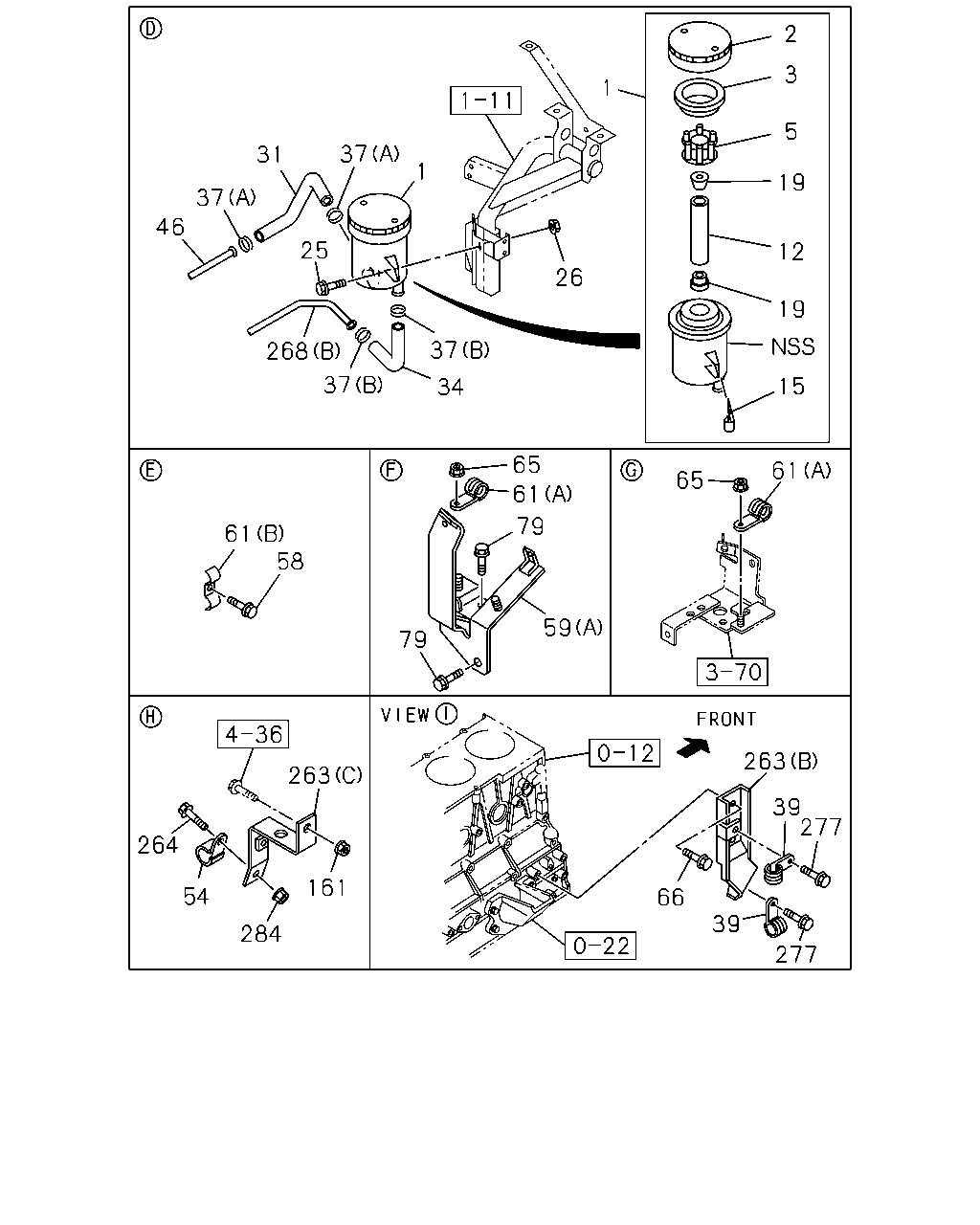

çizim 165915
2 3 1 5 37 31 1 19 37 46 25 12 26 19 37 268 37 15 34 65 61 65 61 79 61 58 59 79 263 263 39 277 264 161 54 66 39 284 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0906-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0906-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0906- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0906- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0906- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0906- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0906- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0906- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
31 HOSE; P/S OIL TANK,INL 8-98093-500-0 01 1 0906- ● ●
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 0906- ● ●
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 0906- ● ●
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 0906- ● ●
39 CLIP; FLEX HOSE
ID=24 L=27 		1-09700-809-0 03 1 0906- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=2855 		8-98093-516-0 01 1 0906- ● ●
54 CLIP; OIL PIPE
ID=19 L=20 		0-95235-836-0 01 1 0906- ● ●
58 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) 		8-98044-737-1 01 1 0906- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=85 		8-98044-743-0 01 1 0906- ● ●
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 0906- ● ●
61 CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20 		1-09700-806-1 02 1 0906- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906- ● ●
66 BOLT; BRKT,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0906- ● ●
161 NUT; P/S PIPE
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(A) 		8-98049-251-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(B) 		8-98071-752-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(C) 		8-98079-445-0 01 1 0906- ● ●
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
(B) 		8-98082-963-0 01 1 0906- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
(A) 		8-98082-964-0 01 1 0906- ● ●
277 BOLT; HOSE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0906- ● ●
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●

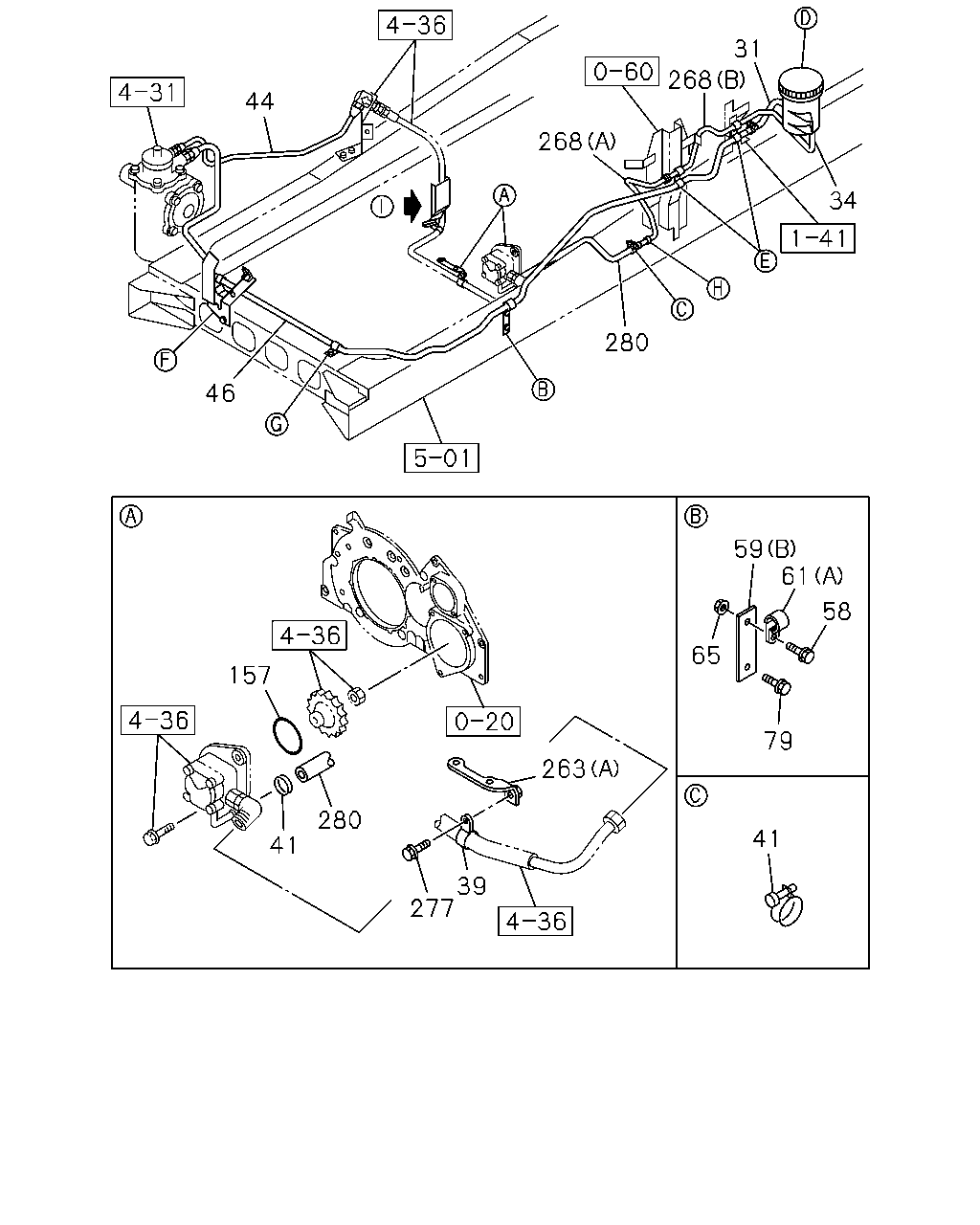

çizim 165916
31 268 44 268 34 280 46 59 61 58 65 157 79 263 280 41 41 39 277
BalonParca AdiParca NoAdetTipApplied Date A B
31 HOSE; P/S OIL TANK,INL 8-98093-500-0 01 1 0906- ● ●
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 0906- ● ●
39 CLIP; FLEX HOSE
ID=24 L=27 		1-09700-809-0 03 1 0906- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0906- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 8-98092-824-0 01 1 0906- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=2855 		8-98093-516-0 01 1 0906- ● ●
58 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) 		8-98044-737-1 01 1 0906- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) L=85 		8-98044-743-0 01 1 0906- ● ●
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 03 1 0906- ● ●
61 CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20 		1-09700-806-1 02 1 0906- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906- ● ●
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0906- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-467-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(A) 		8-98049-251-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(B) 		8-98071-752-0 01 1 0906- ● ●
263 BRACKET; P/S PIPE
(C) 		8-98079-445-0 01 1 0906- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
(B) 		8-98082-963-0 01 1 0906- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
(A) 		8-98082-964-0 01 1 0906- ● ●
277 BOLT; HOSE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0906- ● ●
280 HOSE; P/S OIL PUMP,INL 8-98094-168-0 01 1 0906- ● ●
