◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#57235) — 25 parça

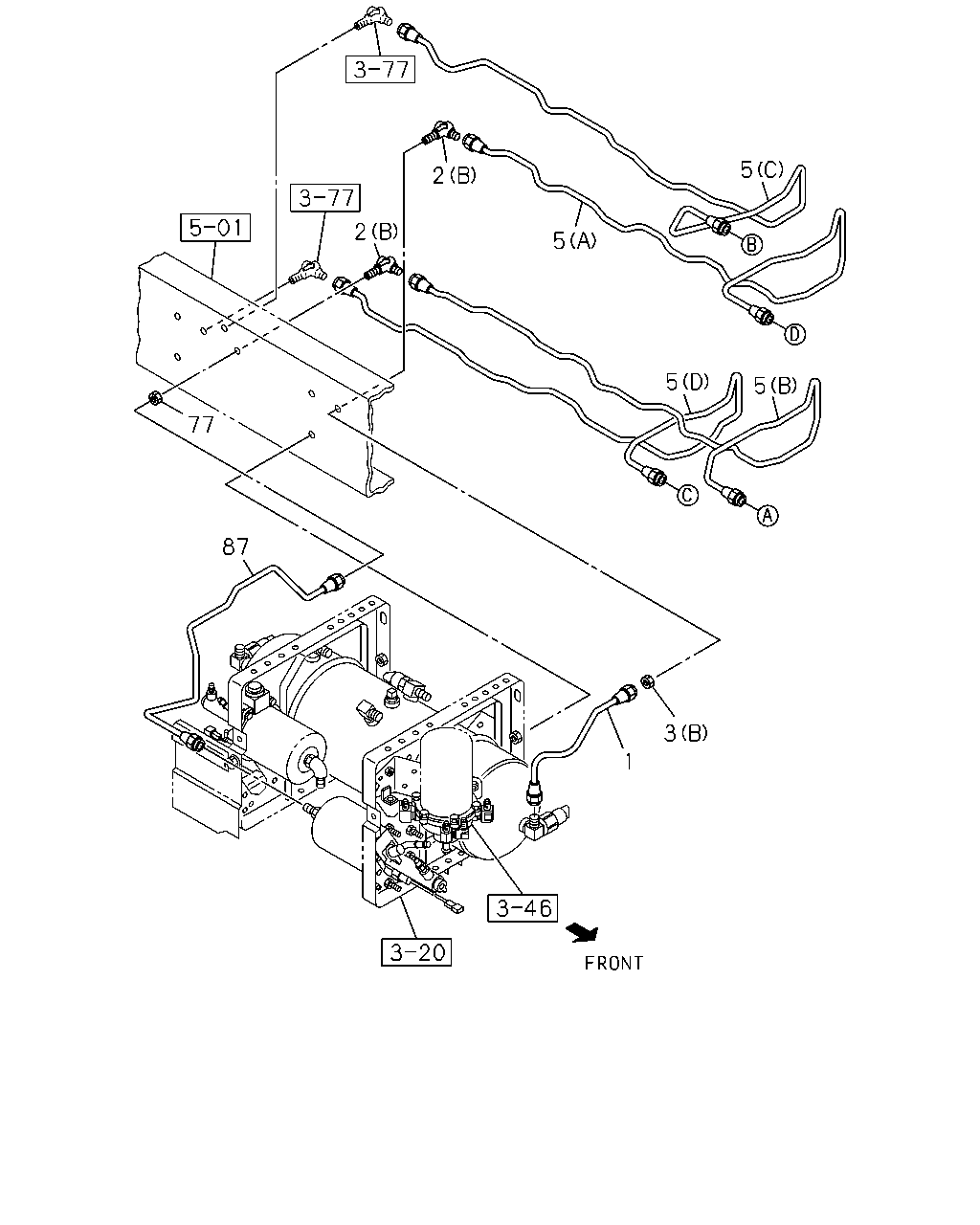

çizim 165714
5 2 2 5 5 5 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0906- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0906- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=1982 SERVICED BY L=2100 		1-47428-882-0 01 1 0906- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2357 SERVICED BY L=2500 		1-47428-883-0 01 1 0906- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2227 SERVICED BY L=2500 		1-47428-883-0 01 1 0906- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2456 SERVICED BY L=2500 		1-47428-883-0 01 1 0906- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0906- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0906- ● ●

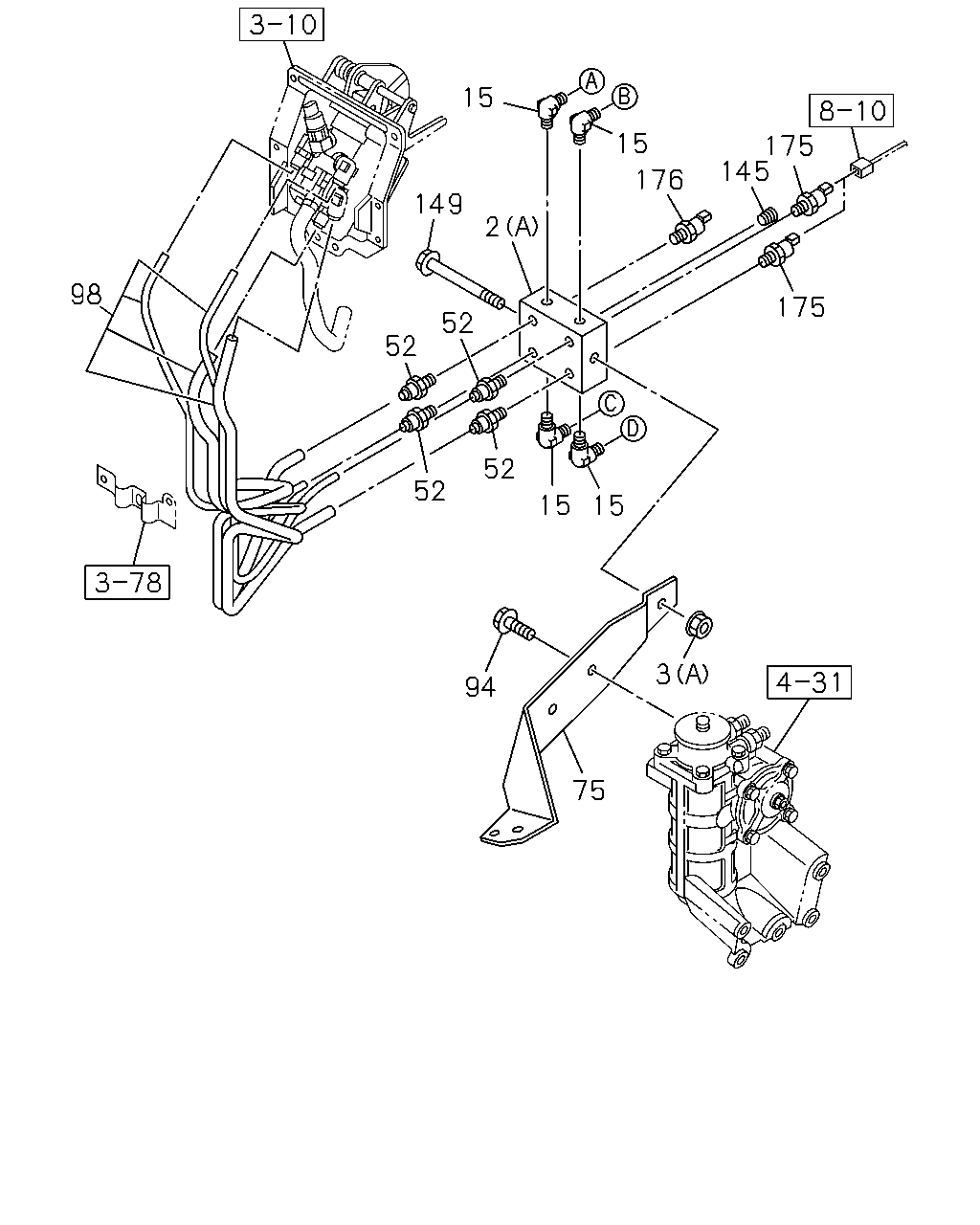

çizim 165738
15 15 175 145 176 149 2 98 175 52 52 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0906- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0906- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0906- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 0906- ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0906-0911 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912- ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 0906- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0906- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0906- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0906- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0906- ● ●
