Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#57217) — 230 parça

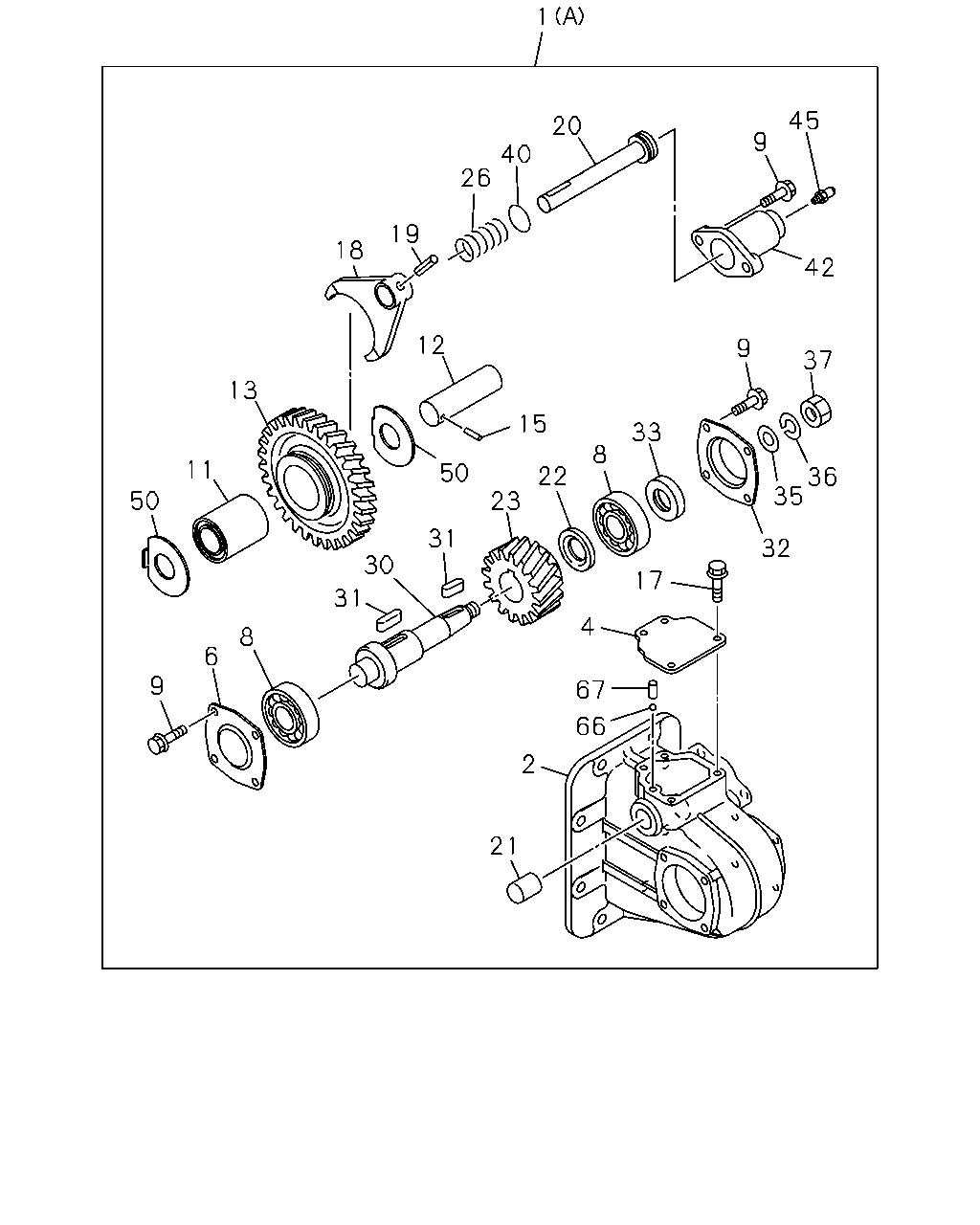

1 45 20 9 40 26 19 18 42 12 9 37 13 15 33 8 11 50 22 36 35 50 23 31 32 30 17 31 4 8 6 9 67 66 2 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-1	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	04	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-043-0	02	1	0906-	●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●

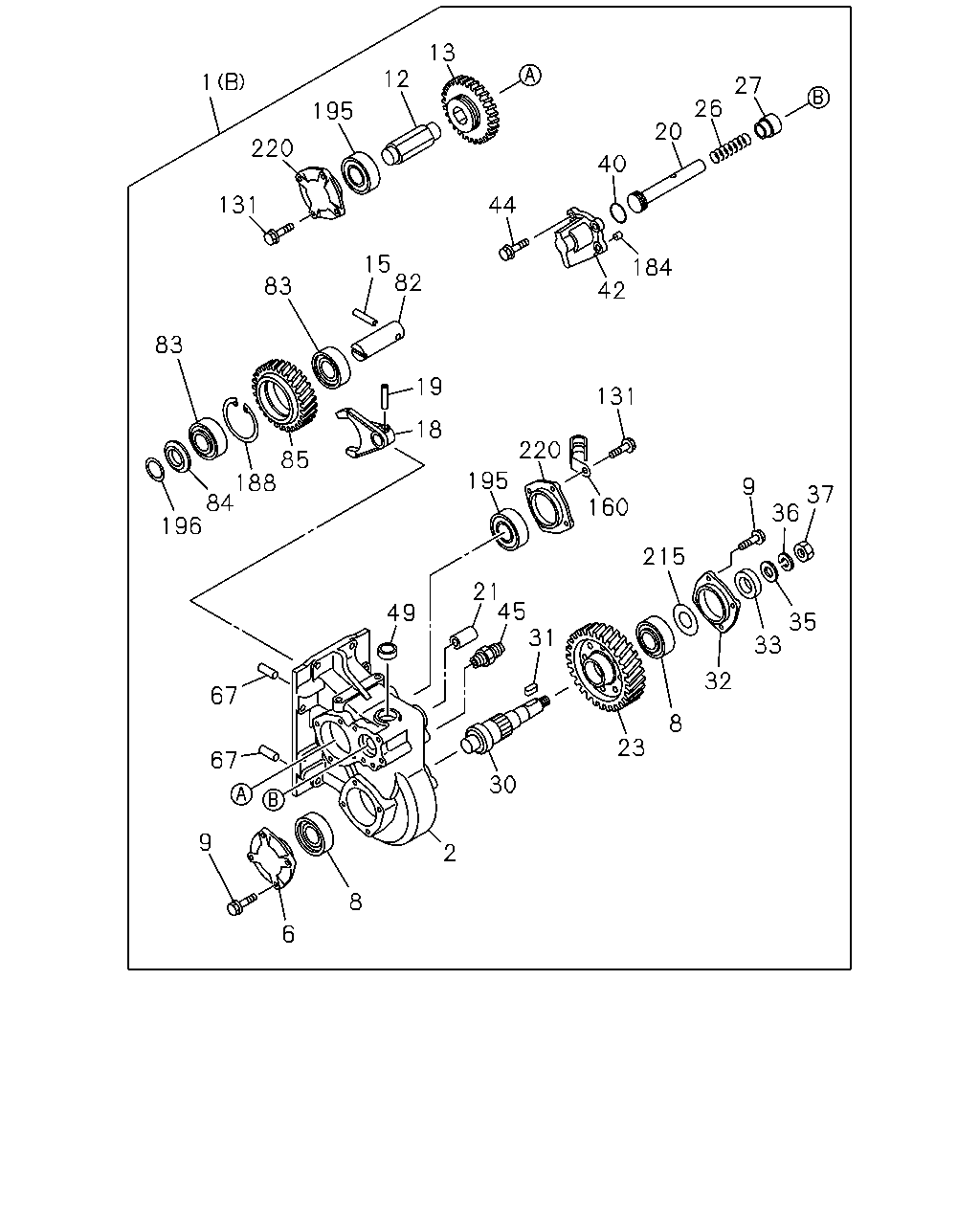

13 12 1 27 26 195 20 220 40 131 44 15 82 184 42 83 83 19 131 18 220 85 188 84 196 195 9 37 36 160 215 21 45 31 49 35 33 32 67 8 23 67 30 9 2 8 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	0906-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	0906-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	0906-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	0906-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	0906-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	0906-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	0906-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	0906-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	0906-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	0906-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	0906-		●

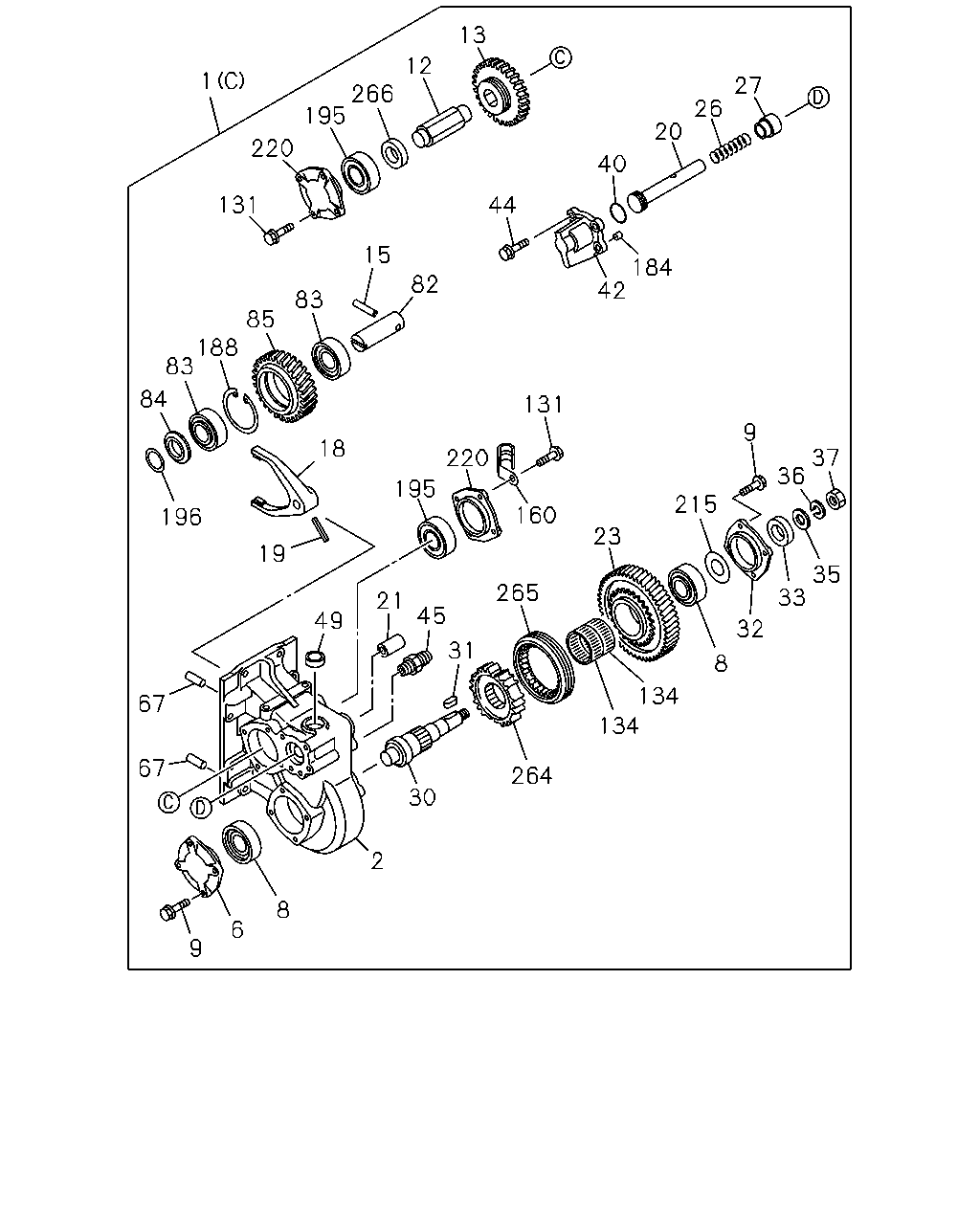

1 220 131 195 266 12 13 84 83 188 85 83 15 44 82 40 20 26 27 42 184 196 18 195 19 131 220 160 21 67 67 49 45 265 23 215 9 36 37 9 6 8 2 30 31 264 134 134 8 32 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	0906-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	0906-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	0906-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	0906-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	0906-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	0906-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	0906-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	0906-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	0906-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	0906-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	0906-		●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-		●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-		●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
