◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#5721) — 166 parça

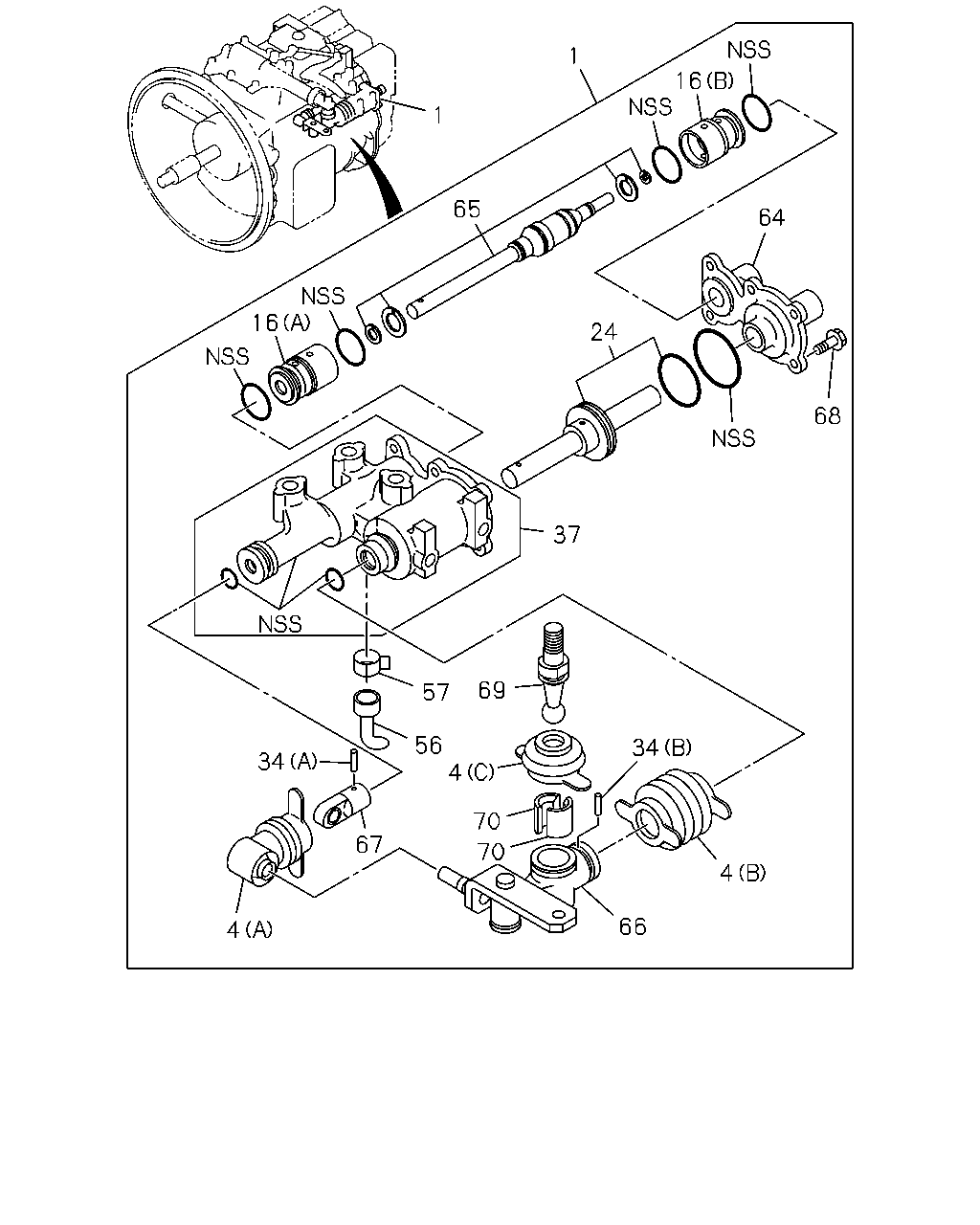

çizim 25985
1 16 1 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT 1-33730-161-1 01 1 0611- ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 9811-0610 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 0611-0705 ●
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0706- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0611- ●
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 0611- ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 9811-0610 ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 0611-0705 ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0706- ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 9811-0610 ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 0611-0705 ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0706- ●
24 PISTON 1-33739-578-0 01 1 0611- ●
24 PISTON 1-33739-836-1 01 1 9811-0610 ●
24 PISTON 1-33739-836-1 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0611- ●
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 0611- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 9811-0610 ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9811-0610 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0611- ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0611- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 9811-0610 ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0611- ●
64 COVER; HOUSING 1-33739-970-0 01 1 9811-0610 ●
64 COVER; HOUSING 1-33739-970-0 01 1 0611- ●
65 VALVE; POWER SHIFTER 1-33739-971-0 01 1 9811-0610 ●
65 VALVE; POWER SHIFTER 1-33739-971-0 01 1 0611-0705 ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0706- ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 9811-0610 ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0611- ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 9811-0610 ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0611- ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 9811-0610 ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0611- ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 9811-0610 ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0611- ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 9811-0610 ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0611- ●

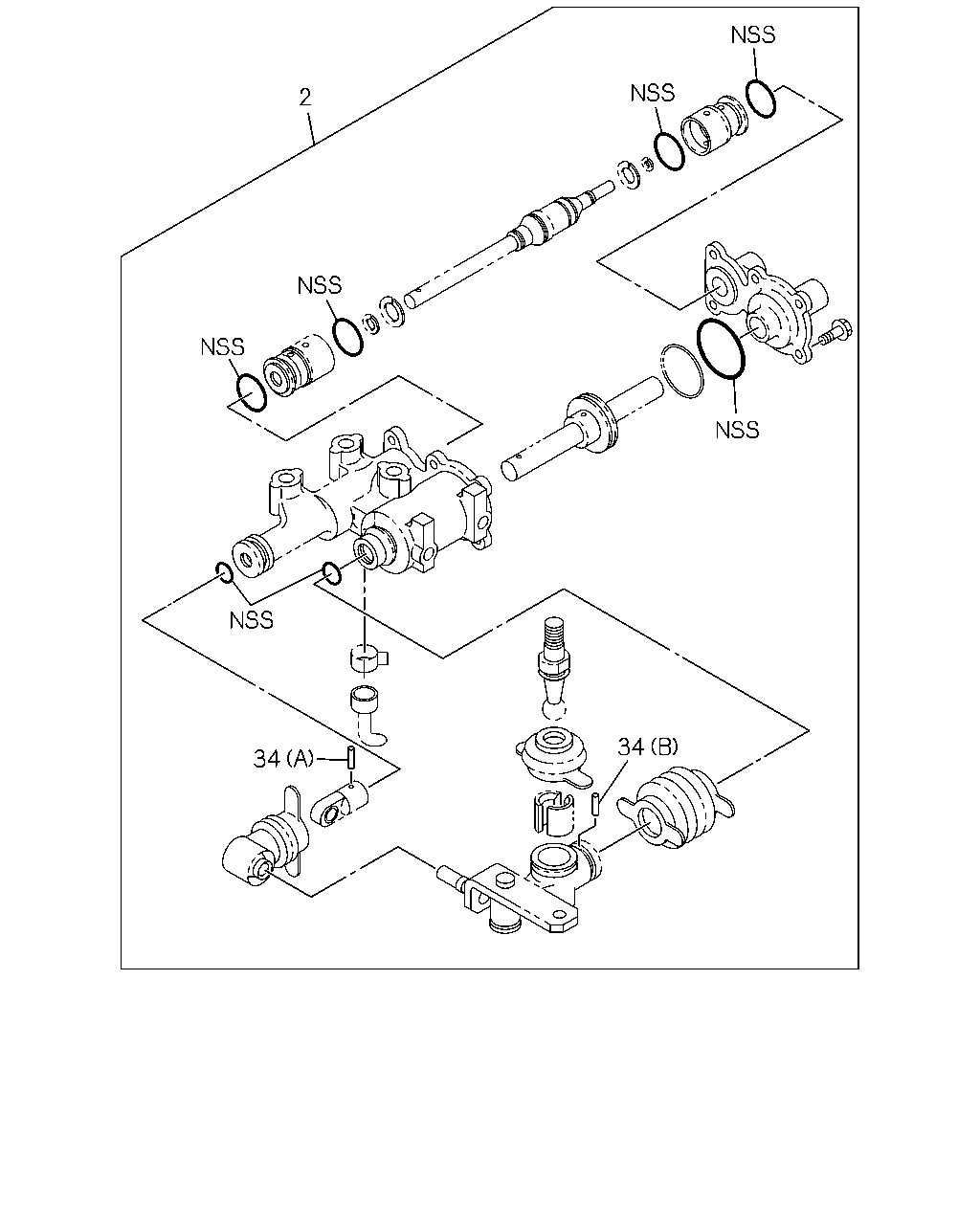

çizim 26323
2 34 34
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 0611- ●
2 REPAIR KIT; POWER SHIFTER 1-33739-975-0 01 1 9811-9910 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 9911-0610 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0611- ●
çizim 26454
23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 22 12 9 17 6 7 26
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 0611- ●
2 REPAIR KIT; POWER SHIFTER 1-33739-975-0 01 1 9811-9910 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 9911-0610 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0611- ●
6 GASKET
(A) 		1-33739-013-0 01 1 0611- ●
6 GASKET
(B) 		1-33739-583-0 02 1 0611- ●
7 FILTER; AIR 1-33739-033-0 01 1 0611- ●
9 RING; SQUARE 1-33739-086-0 04 1 0611- ●
12 RING; RET 1-33739-016-0 01 1 0611- ●
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0611- ●
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0611- ●
22 SEAL; OIL 1-33739-353-0 01 1 0611- ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0611- ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0611- ●
25 RING; "X",PISTON 1-33739-420-0 01 1 0611- ●
26 GASKET
(A) 		1-33739-496-0 01 1 0611- ●
26 GASKET
(B) 		1-33739-573-0 01 1 0611- ●
35 GASKET; CUP 1-33739-073-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9811-0610 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0611- ●

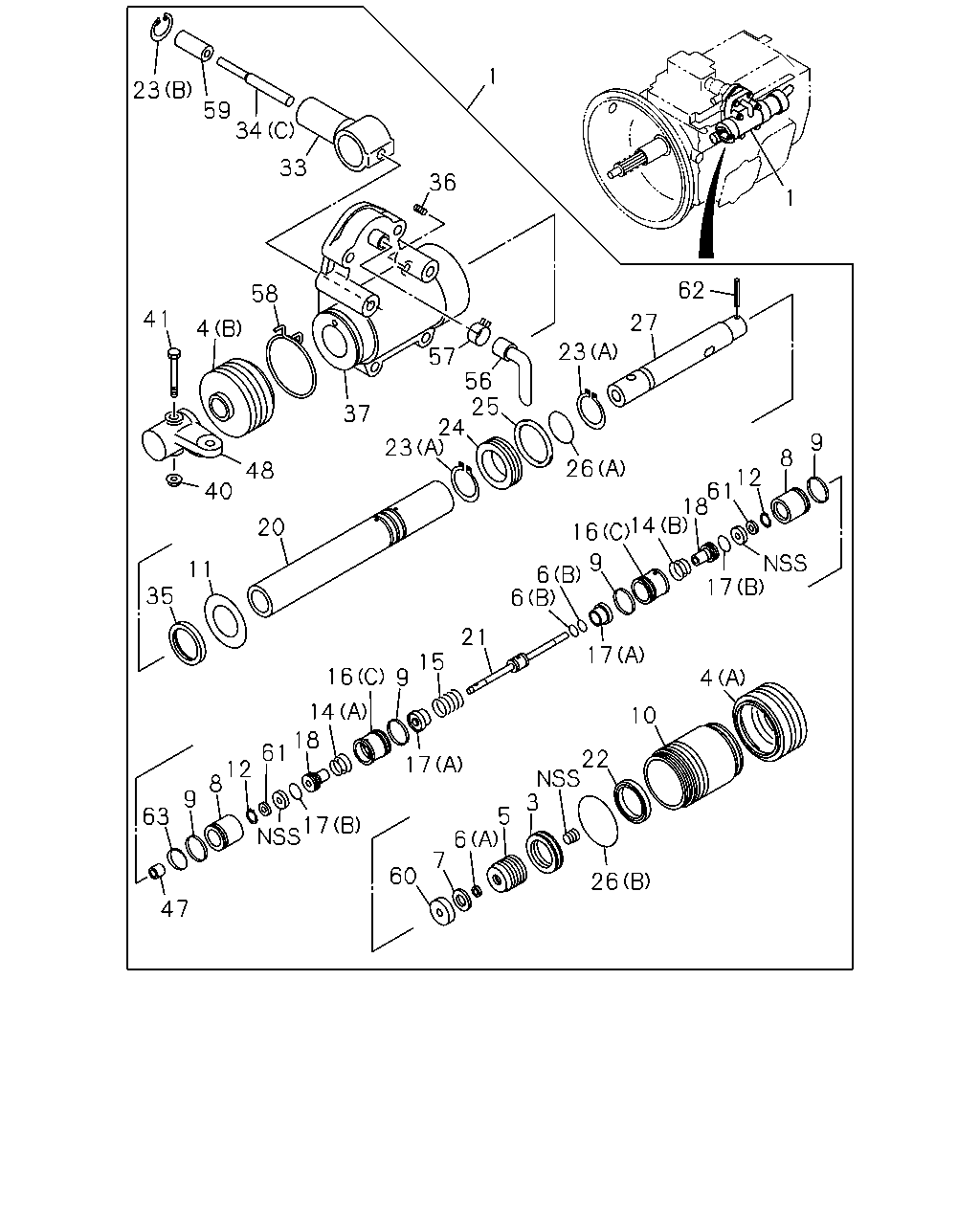

çizim 99586
1 23 59 34 33 36 1 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 14 16 40 20 9 6 6 17 11 35 21 17 15 16 9 4 14 18 10 61 22 3 17 12 8 9 5 63 17 6 7 60 26 47
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT 1-33730-161-1 01 1 0611- ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 9811-0610 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-233-3 01 1 0611-0705 ●
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0706- ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0611- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 9811-0610 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0611- ●
5 CONNECTOR; CYL 1-33739-017-0 01 1 0611- ●
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 9907-0610 ●
5 CONNECTOR; CYL
M12 & PT1/8 		9-09224-306-2 01 1 0611-0705 ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0706- ●
6 GASKET
(A) 		1-33739-013-0 01 1 0611- ●
6 GASKET
(B) 		1-33739-583-0 02 1 0611- ●
7 FILTER; AIR 1-33739-033-0 01 1 0611- ●
8 TUBE 1-33739-560-0 02 1 0611- ●
9 RING; SQUARE 1-33739-086-0 04 1 0611- ●
10 CYLINDER; POWER SHIFTER 1-33739-572-0 01 1 0611- ●
11 PLATE; CYL 1-33739-576-0 01 1 0611- ●
12 RING; RET 1-33739-016-0 01 1 0611- ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-066-0 01 1 0611- ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-568-0 01 1 0611- ●
15 SPRING; VALVE SEAL 1-33739-582-0 01 1 0611- ●
16 SEAT; VALVE
(C) 		1-33739-585-0 02 1 0611- ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 9811-0610 ●
16 SEAT; VALVE
(A) 		1-33739-838-1 01 1 0611-0705 ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0706- ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 9811-0610 ●
16 SEAT; VALVE
(B) 		1-33739-839-1 01 1 0611-0705 ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0706- ●
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0611- ●
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0611- ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0611- ●
20 ROD ASM; W/CAP 1-33739-765-0 01 1 0611- ●
21 PIPE; AIR,POWER SHIFTER 1-33739-587-0 01 1 0611- ●
22 SEAL; OIL 1-33739-353-0 01 1 0611- ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0611- ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0611- ●
24 PISTON 1-33739-578-0 01 1 0611- ●
24 PISTON 1-33739-836-1 01 1 9811-0610 ●
24 PISTON 1-33739-836-1 01 1 0611- ●
25 RING; "X",PISTON 1-33739-420-0 01 1 0611- ●
26 GASKET
(A) 		1-33739-496-0 01 1 0611- ●
26 GASKET
(B) 		1-33739-573-0 01 1 0611- ●
27 ROD; POWER SHIFTER 1-33739-580-0 01 1 0611- ●
33 STRIKER; POWER SHIFTER 1-33739-887-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(C) 		1-33739-575-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0611- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 9811-0610 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0611- ●
35 GASKET; CUP 1-33739-073-0 01 1 0611- ●
36 SCREW; SET 1-33739-040-0 01 1 0611- ●
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 0611- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 9811-0610 ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0611- ●
40 NUT; LEVER 1-33739-940-0 01 1 0611- ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0611- ●
47 BUSHING; CYL 1-33739-567-0 01 1 0611- ●
48 LEVER; CONT,CABLE 1-33739-559-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0611- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 9811-0610 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0611- ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0611- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 9811-0610 ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0611- ●
58 CLAMP; BOOT 1-33739-562-0 01 1 0611- ●
59 SHIM; POWER SHIFTER 1-33739-886-0 01 1 0611- ●
60 COLLAR; CYL 1-33739-561-0 01 1 0611- ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0611- ●
62 PIN; PIPE 1-33739-566-0 01 1 0611- ●
63 CLAMP; CYL 1-33739-565-0 01 1 0611- ●
