Isuzu WW
▶
TRUCKS
▶
FRR
▶
10775 - FRR/FVR(TAIWAN)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

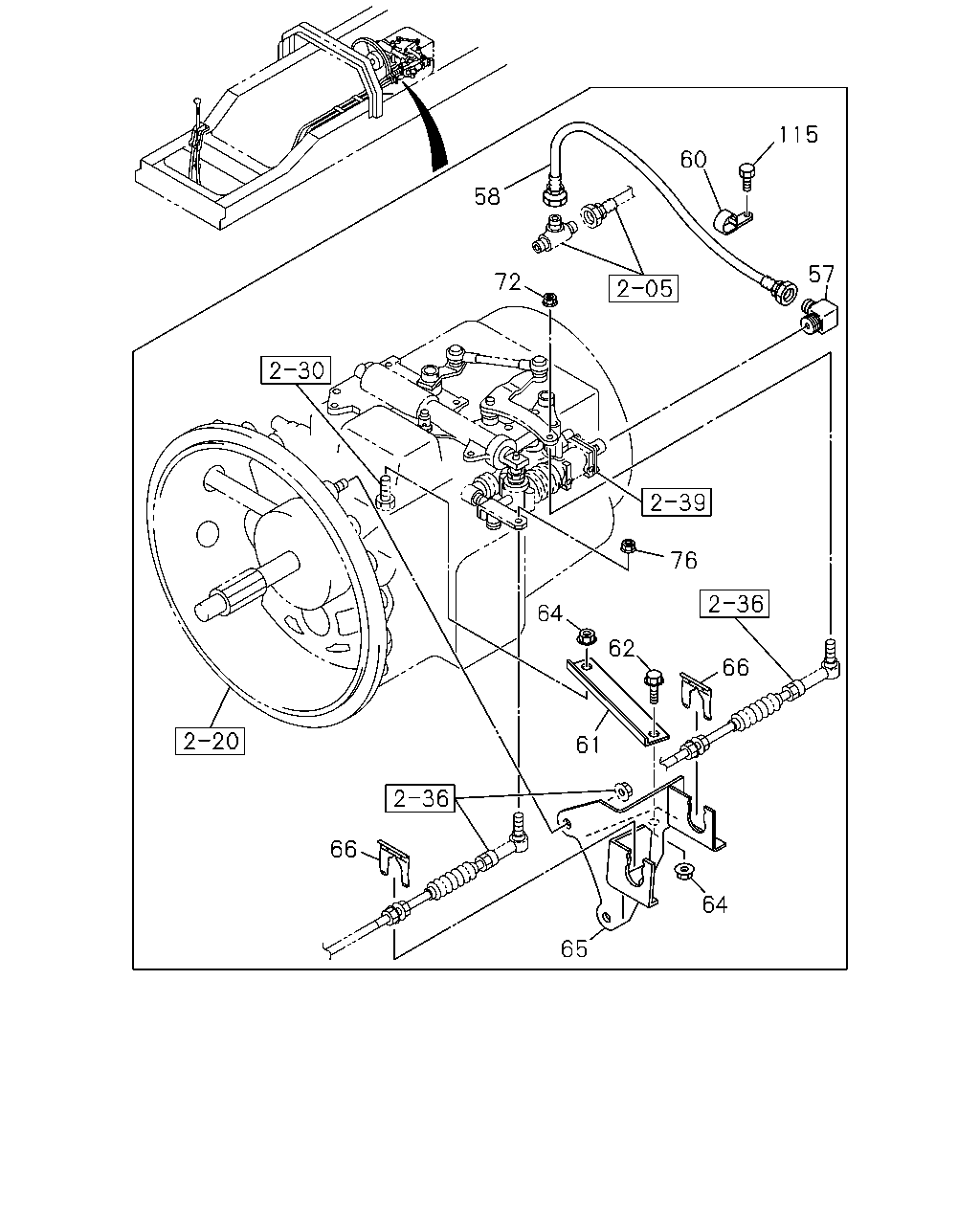

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#5720) — 32 parça
Tümü
A - NISSAN DIESEL MPS62B M/T
B - MLD6Q M/T
C - MLD6W M/T
115
60
58
57
72
76
64
62
66
61
66
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW TAI
1-09650-430-0
01
1
0611-
●
57
NIPPLE; POWER ASSISTOR
M12 & PT1/8
9-09224-306-2
01
1
9811-9910
●
58
HOSE; FLEX,POWER ASSISTOR
L=720
1-09363-933-0
01
1
0611-
●
58
HOSE; FLEX,POWER ASSISTOR
L=740
1-09363-675-0
01
1
9811-0610
●
58
HOSE; FLEX,POWER ASSISTOR
L=740
1-09363-675-0
01
1
0611-
●
60
CLIP; FLEX HOSE
ID=13 L=20
9-09525-235-0
02
1
9811-0606
●
60
CLIP; FLEX HOSE
ID=13 L=20
0-95235-235-0
02
1
0607-0610
●
60
CLIP; FLEX HOSE
ID=13 L=20
0-95235-235-0
02
1
0611-
●
●
61
STAY; BRKT,TRANS CONT
TAI
8-97530-534-0
01
1
9811-0610
●
61
STAY; BRKT,TRANS CONT
TAI
1-33657-267-0
01
1
0611-
●
●
62
BOLT; STAY
M10X30 FLANGE
0-28681-030-0
02
1
9811-0512
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
02
1
0601-0610
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
02
1
0611-
●
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
01
1
0611-
●
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
9811-0602
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0603-0610
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0611-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
FRR MIDDLE CHASSIS(FR****) TAI
8-97530-532-0
01
1
9811-0610
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TAI
1-33657-691-1
01
1
0611-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
FVR MIDDLE CHASSIS(FV****) TAI
8-97530-533-0
01
1
9811-0610
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-36183-253-0
01
1
0611-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
9811-0610
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0611-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE TAI
1-09440-049-0
01
1
9811-0610
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE TAI
1-09440-049-0
01
1
0611-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE TAI
1-09440-056-0
01
1
0611-
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE TAI
1-09440-049-0
01
1
9811-0610
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE TAI
1-09440-049-0
01
1
0611-
●
115
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
02
1
9811-9812
●
115
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
02
1
9901-0512
●
115
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0601-0610
●
115
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0611-
●
●
