5-01 — FRAME AND OTHER PARTS (#57197) — 186 parça

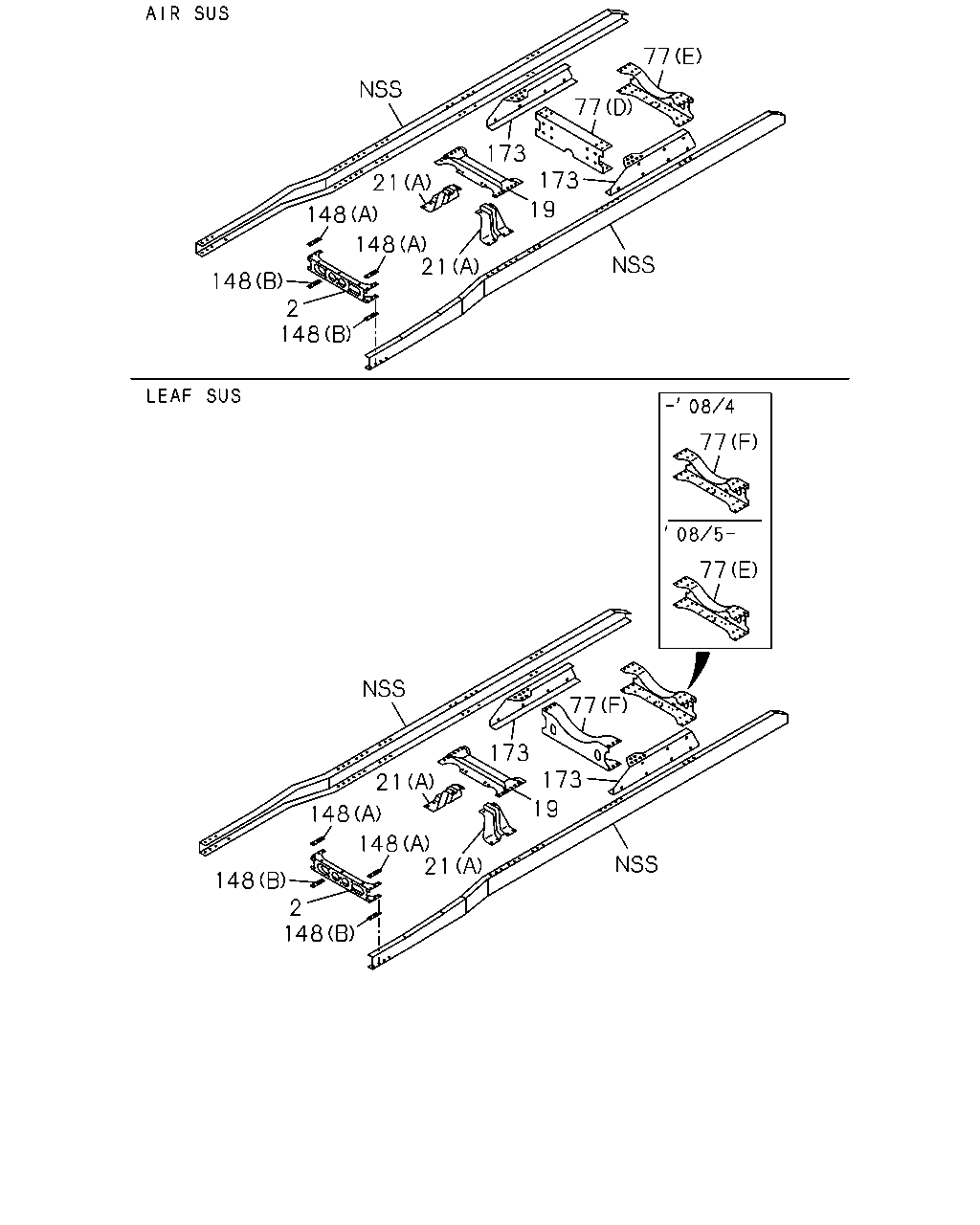

77 77 21 173 173 19 148 148 21 148 2 148 77 77 77 21 173 173 19 148 148 21 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0801-	●	●
19	MEMBER; CROSS,2ND GXR LEAF SUS(GGR***)	8-98098-303-0	01	1	1203-	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-1202	●	●
19	MEMBER; CROSS,2ND GXR AIR SUS(GGD***)	1-53174-231-1	01	1	1203-	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1203-		●
21	GUSSET; 2ND CROSS GXR LEAF SUS(GGR***) (A)	8-98202-398-0	01	1	1203-	●
21	GUSSET; 2ND CROSS GXR LEAF SUS(GGR***) (A)	8-98202-399-0	01	1	1203-	●
21	GUSSET; 2ND CROSS (B)	1-53164-226-1	01	1	0801-		●
21	GUSSET; 2ND CROSS (B)	1-53164-227-1	01	1	0801-		●
21	GUSSET; 2ND CROSS (A)	1-53164-185-0	02	1	0801-1202	●
21	GUSSET; 2ND CROSS GXR AIR SUS(GGD***) (A)	1-53164-185-1	02	1	1203-	●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-97623-454-1	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR LEAF SUS(GGR***) (F)	1-53181-319-8	02	1	0801-0804	●
77	MEMBER; CROSS,TRUNNION RR GXR LEAF SUS(GGR***) (F)	1-53181-319-8	01	1	0805-	●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) (B)	1-53181-995-6	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-97624-097-0	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR AIR SUS(GGD***) (D)	8-97624-344-1	01	1	0801-	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (D)	8-97624-344-1	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR AIR SUS(GGD***) (E)	8-97624-484-1	01	1	0801-0804	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (E)	8-97624-484-1	01	1	0801-0804		●
77	MEMBER; CROSS,TRUNNION RR (E)	8-97624-484-1	01	1	0805-	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (E)	8-97624-484-1	01	1	0805-		●
148	SPACER; C/MBR (C)	1-53168-171-1	02	1	0801-	●
148	SPACER; C/MBR FXR AIR SUS(FGD***) (C)	1-53168-171-1	02	1	0801-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-	●	●
173	STIFFENER; RR SPRING GXR LEAF SUS(GGR***)	8-97627-961-0	01	1	0805-	●
173	STIFFENER; RR SPRING GXR LEAF SUS(GGR***)	8-97627-962-0	01	1	0805-	●
173	STIFFENER; RR SPRING	8-97617-993-1	01	1	0801-0804	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-993-1	01	1	0801-0804		●
173	STIFFENER; RR SPRING GXR AIR SUS(GGD***)	8-97617-993-1	01	1	0805-	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-993-1	01	1	0805-		●
173	STIFFENER; RR SPRING	8-97617-994-1	01	1	0801-0804	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-994-1	01	1	0801-0804		●
173	STIFFENER; RR SPRING GXR AIR SUS(GGD***)	8-97617-994-1	01	1	0805-	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-994-1	01	1	0805-		●

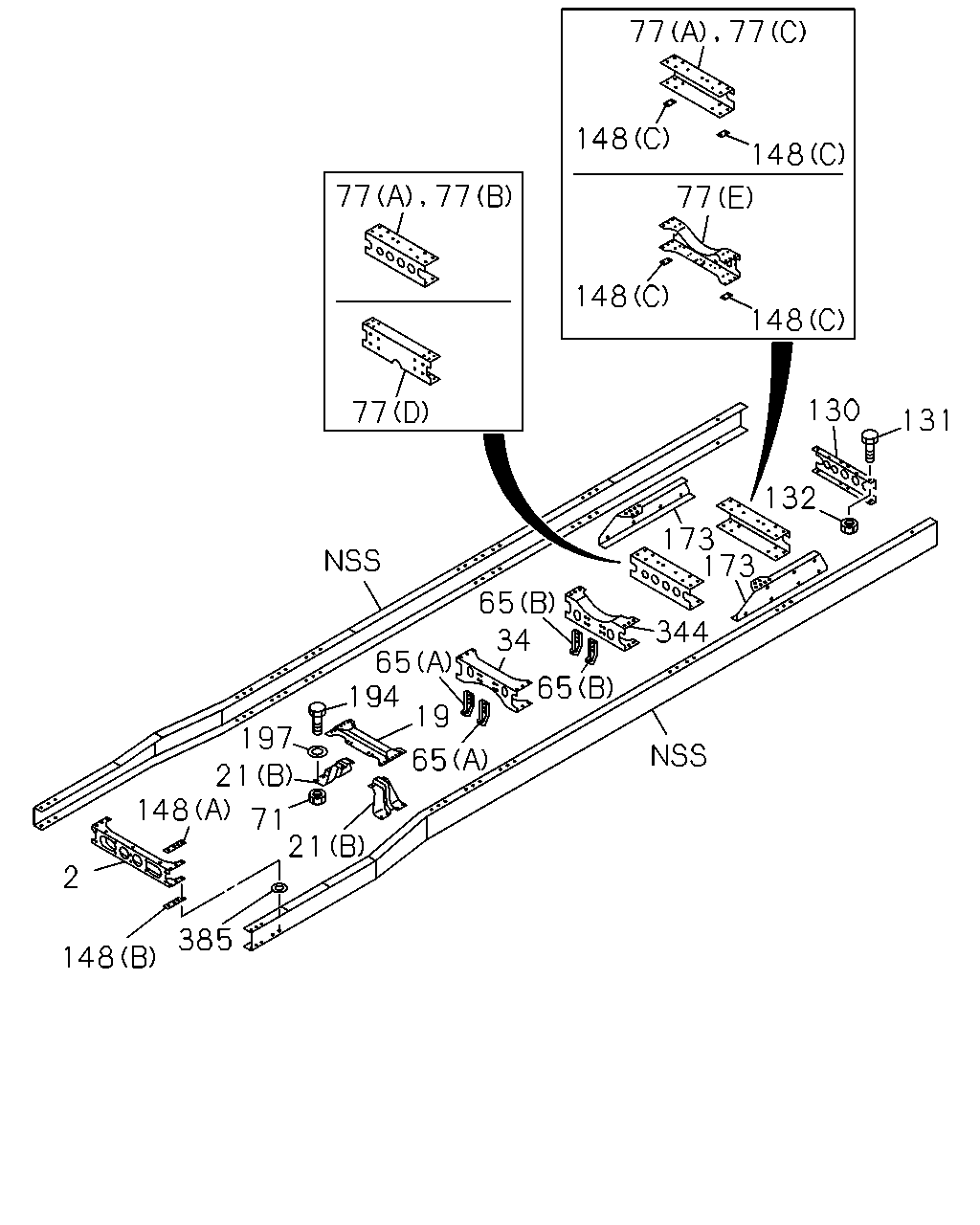

77 77 148 148 77 77 77 148 148 130 77 131 132 173 173 65 34 344 65 194 65 197 21 148 19 65 71 21 2 385 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0801-	●	●
19	MEMBER; CROSS,2ND GXR LEAF SUS(GGR***)	8-98098-303-0	01	1	1203-	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-1202	●	●
19	MEMBER; CROSS,2ND GXR AIR SUS(GGD***)	1-53174-231-1	01	1	1203-	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1203-		●
21	GUSSET; 2ND CROSS GXR LEAF SUS(GGR***) (A)	8-98202-398-0	01	1	1203-	●
21	GUSSET; 2ND CROSS GXR LEAF SUS(GGR***) (A)	8-98202-399-0	01	1	1203-	●
21	GUSSET; 2ND CROSS (B)	1-53164-226-1	01	1	0801-		●
21	GUSSET; 2ND CROSS (B)	1-53164-227-1	01	1	0801-		●
21	GUSSET; 2ND CROSS (A)	1-53164-185-0	02	1	0801-1202	●
21	GUSSET; 2ND CROSS GXR AIR SUS(GGD***) (A)	1-53164-185-1	02	1	1203-	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0801-		●
65	BRACKET; CENTER BRG FXR AIR SUS(FGD***) (B)	8-97611-329-0	02	1	0801-		●
65	BRACKET; CENTER BRG FXR LEAF SUS(FGR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-97624-449-0	02	1	0801-		●
65	BRACKET; CENTER BRG (A)	8-97614-132-0	02	1	0801-		●
65	BRACKET; CENTER BRG FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-97623-447-0	02	1	0801-		●
71	NUT; 2ND C/MBR FXR AIR SUS(FGD***) M14	0-91110-514-0	08	1	0801-		●
71	NUT; 2ND C/MBR FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M14	0-91110-514-0	08	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-97623-454-1	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR LEAF SUS(GGR***) (F)	1-53181-319-8	02	1	0801-0804	●
77	MEMBER; CROSS,TRUNNION RR GXR LEAF SUS(GGR***) (F)	1-53181-319-8	01	1	0805-	●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) (B)	1-53181-995-6	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR FXR LEAF SUS(FGR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-97624-097-0	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR AIR SUS(GGD***) (D)	8-97624-344-1	01	1	0801-	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (D)	8-97624-344-1	01	1	0801-		●
77	MEMBER; CROSS,TRUNNION RR GXR AIR SUS(GGD***) (E)	8-97624-484-1	01	1	0801-0804	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (E)	8-97624-484-1	01	1	0801-0804		●
77	MEMBER; CROSS,TRUNNION RR (E)	8-97624-484-1	01	1	0805-	●
77	MEMBER; CROSS,TRUNNION RR FXR AIR SUS(FGD***) (E)	8-97624-484-1	01	1	0805-		●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0801-		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0801-		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0801-		●
148	SPACER; C/MBR (C)	1-53168-171-1	02	1	0801-	●
148	SPACER; C/MBR FXR AIR SUS(FGD***) (C)	1-53168-171-1	02	1	0801-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-	●	●
173	STIFFENER; RR SPRING GXR LEAF SUS(GGR***)	8-97627-961-0	01	1	0805-	●
173	STIFFENER; RR SPRING GXR LEAF SUS(GGR***)	8-97627-962-0	01	1	0805-	●
173	STIFFENER; RR SPRING	8-97617-993-1	01	1	0801-0804	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-993-1	01	1	0801-0804		●
173	STIFFENER; RR SPRING GXR AIR SUS(GGD***)	8-97617-993-1	01	1	0805-	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-993-1	01	1	0805-		●
173	STIFFENER; RR SPRING	8-97617-994-1	01	1	0801-0804	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-994-1	01	1	0801-0804		●
173	STIFFENER; RR SPRING GXR AIR SUS(GGD***)	8-97617-994-1	01	1	0805-	●
173	STIFFENER; RR SPRING FXR AIR SUS(FGD***)	8-97617-994-1	01	1	0805-		●
194	BOLT; 2ND C/MBR FXR AIR SUS(FGD***) M14X60	0-20951-460-0	08	1	0801-		●
194	BOLT; 2ND C/MBR FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M14X60	0-20951-460-0	08	1	0801-		●
197	WASHER; PL,2ND C/MBR FXR AIR SUS(FGD***) ID=15	8-98010-627-1	16	1	0801-		●
197	WASHER; PL,2ND C/MBR FXR LEAF SUS(FGR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=15	8-98010-627-1	08	1	0801-		●
344	MEMBER; CROSS,4TH FXR LEAF SUS(FGR***) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53181-649-3	01	1	0801-		●
344	MEMBER; CROSS,4TH FXR AIR SUS(FGD***)	1-53181-650-3	01	1	0801-		●
344	MEMBER; CROSS,4TH FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53181-650-3	01	1	0801-		●
385	WASHER; PL,DUMMY FXR LEAF SUS(FGR***) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=16.2	1-09503-316-0	04	1	0801-		●

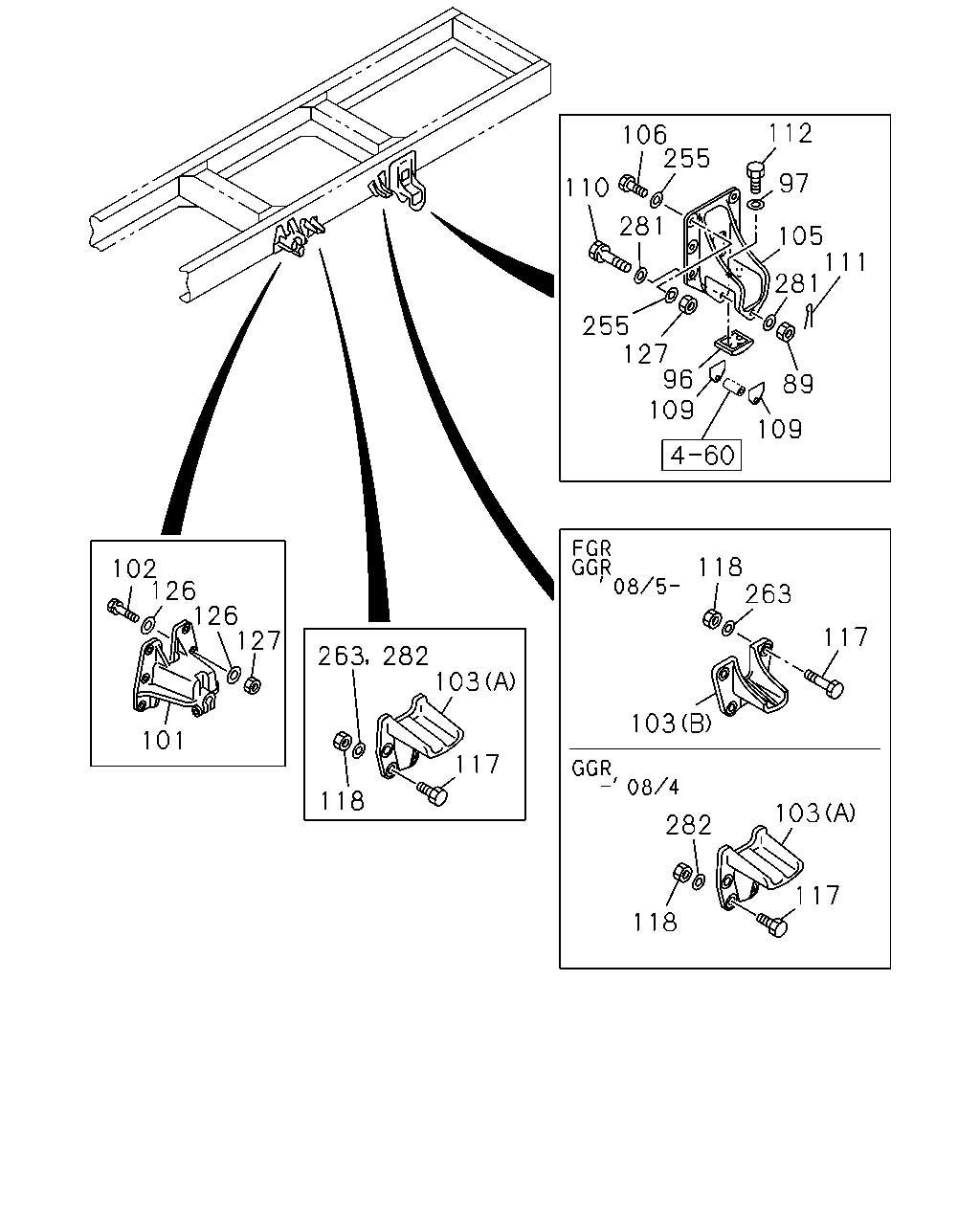

112 106 255 97 110 281 105 111 281 255 127 96 109 89 109 118 263 102 126 126 127 117 263 282 103 103 101 117 118 103 282 117 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; LEAF SPR STOPPER FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) M14 SLOTTED	0-91116-514-0	02	1	0801-	●	●
96	PAD; RR SPR FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*)	1-53359-047-0	02	1	0801-	●	●
97	WASHER; LK,PAD FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) ID=14.2	0-91510-514-0	04	1	0801-	●	●
101	BRACKET; RR SPR,FRT GXR LEAF SUS(GGR***)	1-53353-081-2	02	1	0801-0804	●
101	BRACKET; RR SPR,FRT FXR LEAF SUS(FGR***)	1-53353-078-1	02	1	0801-0804		●
101	BRACKET; RR SPR,FRT GXR LEAF SUS(GGR***)	1-53353-078-1	02	1	0805-	●
101	BRACKET; RR SPR,FRT FXR LEAF SUS(FGR***)	1-53353-078-1	02	1	0805-		●
102	BOLT; BRKT,RR SPR GXR LEAF SUS(GGR***) M14X50	0-20951-450-0	12	1	0801-	●
102	BOLT; BRKT,RR SPR FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	0801-		●
103	STOPPER; SUB SPR GXR LEAF SUS(GGR***) (A)	1-53356-057-0	04	1	0801-0804	●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (A)	1-53356-057-0	02	1	0801-0804		●
103	STOPPER; SUB SPR GXR LEAF SUS(GGR***) (A)	1-53356-057-0	02	1	0805-	●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (A)	1-53356-057-0	02	1	0805-		●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (B)	1-53357-037-0	02	1	0801-0804		●
103	STOPPER; SUB SPR GXR LEAF SUS(GGR***) (B)	1-53357-037-0	02	1	0805-	●
103	STOPPER; SUB SPR FXR LEAF SUS(FGR***) (B)	1-53357-037-0	02	1	0805-		●
105	BRACKET; RR SPR,RR GXR LEAF SUS(GGR***)	1-53354-066-2	02	1	0801-0804	●
105	BRACKET; RR SPR,RR FXR LEAF SUS(FGR***)	1-53354-064-1	02	1	0801-0804		●
105	BRACKET; RR SPR,RR GXR LEAF SUS(GGR***)	1-53354-064-1	02	1	0805-	●
105	BRACKET; RR SPR,RR FXR LEAF SUS(FGR***)	1-53354-064-1	02	1	0805-		●
106	BOLT; BRKT GXR LEAF SUS(GGR***) M14X50	0-20951-450-0	12	1	0801-	●
106	BOLT; BRKT FXR LEAF SUS(FGR***) M14X50	0-20951-450-0	12	1	0801-		●
109	SHIM; RR SPR FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) T=4.5	1-53359-061-1	02	1	0801-	●	●
109	SHIM; RR SPR FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) T=3.2	1-53359-062-1	02	1	0801-	●	●
110	BOLT; LEAF SPR STOPPER FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*)	1-09000-007-0	02	1	0801-	●	●
111	PIN; SPLIT,LEAF SPR STOPPER FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) OD=2.8 L=28	0-81123-028-0	02	1	0801-	●	●
112	BOLT; PAD FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) M14X35	0-20951-435-0	04	1	0801-	●	●
117	BOLT; STOPPER GXR LEAF SUS(GGR***) M14X40	0-20951-440-0	16	1	0801-	●
117	BOLT; STOPPER FXR LEAF SUS(FGR***) M14X40	0-20951-440-0	16	1	0801-		●
118	NUT; STOPPER GXR LEAF SUS(GGR***) M14	0-91110-514-0	16	1	0801-	●
118	NUT; STOPPER FXR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	0801-		●
126	WASHER; PL,BRKT GXR LEAF SUS(GGR***) ID=15	8-98010-627-1	24	1	0801-	●
126	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	24	1	0801-		●
127	NUT; BRKT GXR LEAF SUS(GGR***) M14	0-91110-514-0	24	1	0801-	●
127	NUT; BRKT FXR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	0801-		●
255	WASHER; PL,BRKT FXR AIR SUS(FGD***) ID=15	8-98010-627-1	14	1	0801-		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	38	1	0801-		●
255	WASHER; PL,BRKT GXR LEAF SUS(GGR***) ID=15	8-98010-627-1	24	1	0801-	●
263	WASHER; PL,SUB FRAME FXR LEAF SUS(FGR***) ID=15	8-98010-627-0	16	1	0801-0804		●
263	WASHER; PL,SUB FRAME GXR LEAF SUS(GGR***) ID=15	8-98010-627-1	16	1	0805-	●
263	WASHER; PL,SUB FRAME FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	16	1	0805-		●
281	WASHER; LEAF SPR STOPPER FXR LEAF SUS(FGR*) GXR LEAF SUS(GGR*) ID=15 OD=30	9-09160-614-0	04	1	0801-	●	●
282	WASHER; PL,STOPPER GXR LEAF SUS(GGR***) ID=15	8-98010-627-0	16	1	0801-0804	●

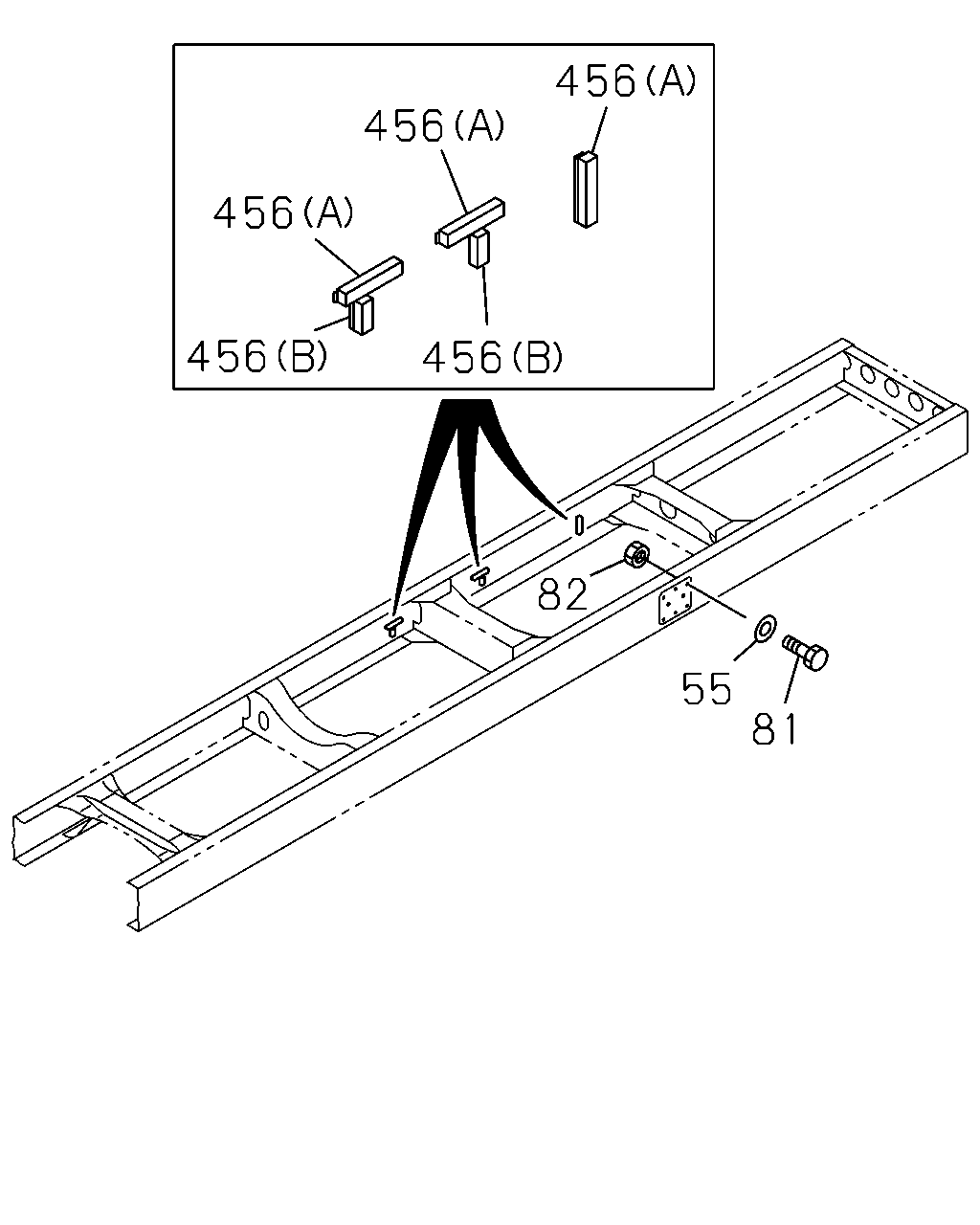

456 456 456 456 456 82 55 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	WASHER; PL GXR AIR SUS(GGD***) ID=16.2	1-09503-316-0	08	1	0801-	●
55	WASHER; PL FXR AIR SUS(FGD***) ID=16.2	1-09503-316-0	08	1	0801-		●
55	WASHER; PL GXR AIR SUS(GGD***) ID=15	8-98010-627-1	04	1	0801-	●
55	WASHER; PL FXR AIR SUS(FGD***) ID=15	8-98010-627-1	04	1	0801-		●
81	BOLT; BRKT GXR AIR SUS(GGD***) M14X50	0-20951-450-0	02	1	0801-	●
81	BOLT; BRKT FXR AIR SUS(FGD***) M14X50	0-20951-450-0	02	1	0801-		●
82	NUT; BRKT GXR AIR SUS(GGD***) M14	0-91110-514-0	02	1	0801-	●
82	NUT; BRKT FXR AIR SUS(FGD***) M14	0-91110-514-0	02	1	0801-		●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (A)	8-97611-248-0	06	1	0801-1209		●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (A)	8-97642-212-0	06	1	1210-		●
456	PATCH; STOPPER GXR AIR SUS(GGD***) (B)	8-97611-249-0	04	1	0801-1209	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (B)	8-97611-249-0	04	1	0801-1209		●
456	PATCH; STOPPER GXR AIR SUS(GGD***) (B)	8-97642-213-0	04	1	1210-	●
456	PATCH; STOPPER FXR AIR SUS(FGD***) (B)	8-97642-213-0	04	1	1210-		●
456	PATCH; STOPPER GXR AIR SUS(GGD***) (A)	8-97611-248-0	08	1	0801-1209	●
456	PATCH; STOPPER GXR AIR SUS(GGD***) (A)	8-97642-212-0	08	1	1210-	●

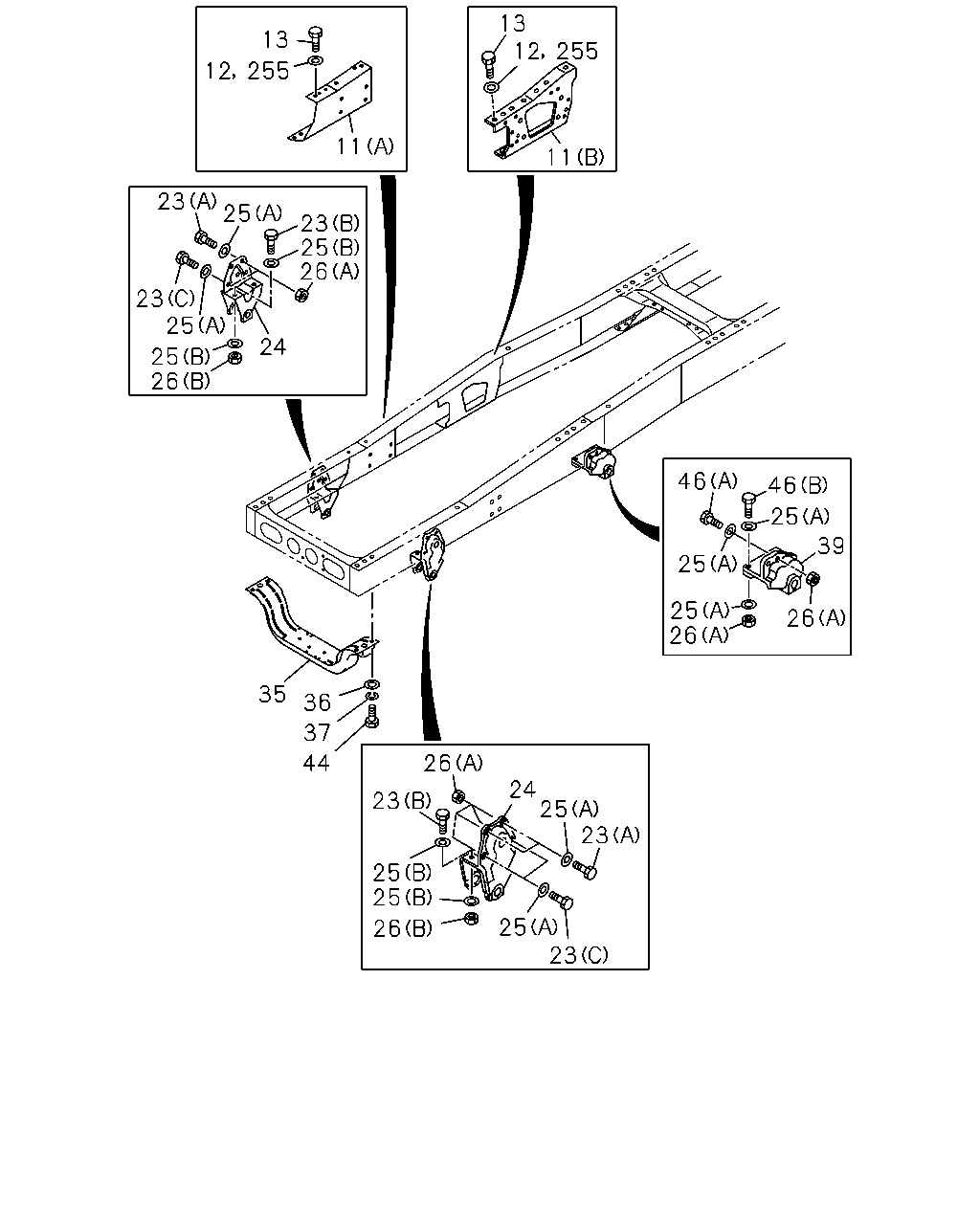

13 12 13 255 12 255 11 11 23 25 23 25 26 23 25 24 25 26 46 46 25 39 25 25 26 26 35 36 37 26 44 24 25 23 23 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	0801-	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	0801-	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	0801-	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	0801-	●	●
12	WASHER; PL,BRKT,ENG MTG GXR AIR SUS(GGD***) ID=15	8-98010-627-0	14	1	0801-0804	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	14	1	0805-	●
12	WASHER; PL,BRKT,ENG MTG GXR LEAF SUS(GGR***) ID=15	8-98010-627-0	10	1	0801-0804	●
13	BOLT; BRKT,ENG MTG GXR AIR SUS(GGD***) M14X40	0-20951-440-0	14	1	0801-0802	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	02	1	0803-		●
13	BOLT; BRKT,ENG MTG GXR AIR SUS(GGD***) M14X35	0-20951-435-0	04	1	0803-0804	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	0803-0804		●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	0805-	●	●
13	BOLT; BRKT,ENG MTG GXR LEAF SUS(GGR***) M14X40	0-20951-440-0	10	1	0801-0802	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	0803-	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0801-	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	0801-	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	0801-	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	0801-	●	●
25	WASHER; PL,BRKT GXR LEAF SUS(GGR***) (A) ID=15	8-98010-627-1	28	1	0801-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0801-	●	●
25	WASHER; PL,BRKT GXR AIR SUS(GGD***) (A) ID=15	8-98010-627-1	20	1	0801-	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	0801-		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0801-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0801-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0801-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0801-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0801-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	0801-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	0801-	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0801-0804	●	●
44	BOLT; UNDER MBR M16X50	0-20951-650-0	04	1	0805-0805	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0806-	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	0801-	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	0801-	●	●
255	WASHER; PL,BRKT FXR AIR SUS(FGD***) ID=15	8-98010-627-1	14	1	0801-		●
255	WASHER; PL,BRKT FXR LEAF SUS(FGR***) ID=15	8-98010-627-1	38	1	0801-		●
255	WASHER; PL,BRKT GXR LEAF SUS(GGR***) ID=15	8-98010-627-1	24	1	0801-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
