◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#57196) — 180 parça

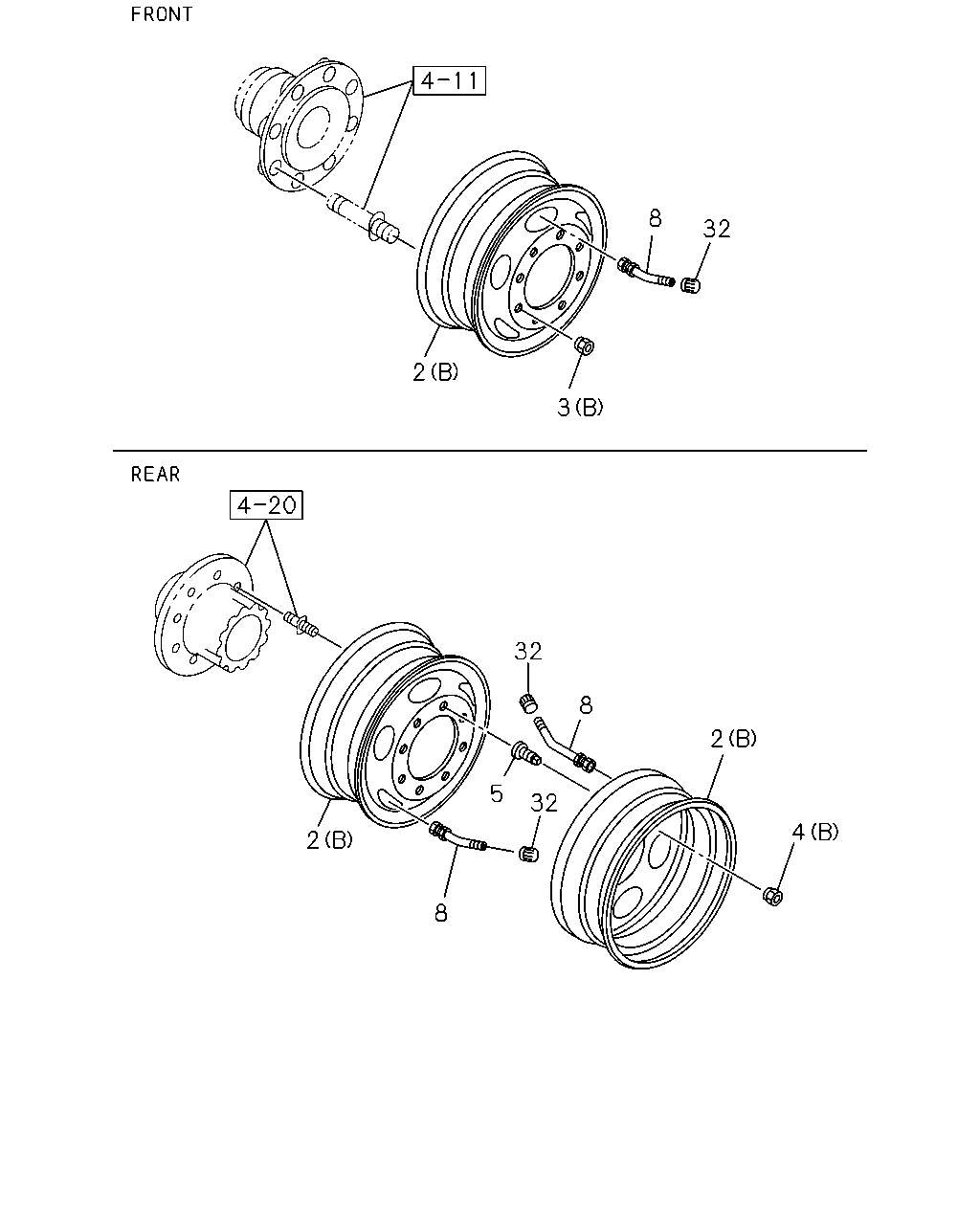

çizim 161012
8 32 2 3 32 8 2 5 32 4 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-729-0 01 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98281-497-0 01 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98281-497-0 01 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		1-42350-729-0 02 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		1-42350-729-0 04 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		1-42350-730-0 02 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		8-98217-247-0 02 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		8-98281-497-0 02 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		1-42350-730-0 04 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		8-98217-247-0 04 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		8-98281-497-0 04 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (B) SPARE 		1-42350-667-0 01 1 0801-1101 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-667-0 01 1 0801-1101 ●
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT 		1-42350-667-0 02 1 0801-1101 ●
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR 		1-42350-667-0 04 1 0801- ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 		1-42333-022-3 08 1 1202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD 		1-42334-022-3 08 1 1202- ● ●
3 NUT; WHEEL,FRT AXLE
(A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
3 NUT; WHEEL,FRT AXLE
(A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 		1-42333-022-3 08 1 0801-1101 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD 		1-42334-022-3 08 1 0801-1101 ● ●
4 NUT; WHEEL,RR AXLE
(A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
4 NUT; WHEEL,RR AXLE
(A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 RH THREAD 		8-97359-809-0 16 1 0801- ● ●
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 LH THREAD 		8-97359-810-0 16 1 0801- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 16 1 0801- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 16 1 0801- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-048-0 01 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-048-0 01 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-048-0 01 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-019-3 01 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-019-3 01 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-048-0 02 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-019-3 02 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-048-0 04 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-019-3 04 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-020-3 01 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-020-3 01 1 1102-1205 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1102-1205 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 1102-1205 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1102-1205 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1206- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-020-3 04 1 0801-1205 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-020-3 04 1 1206- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT 		1-42370-020-3 02 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 1102-1205 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-020-3 02 1 1206- ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42374-001-0 01 1 0801-1101 ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 0801-1101 ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 0801-1101 ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 0801-1101 ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42374-001-0 01 1 1102- ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1102- ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 1102- ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 1102- ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 0801- ● ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 0801- ● ● ● ●
32 CAP; VALVE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42374-001-0 02 1 0801- ●
32 CAP; VALVE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42374-001-0 04 1 0801- ●
çizim 161155
2 8 32 3 32 8 2 8 16 32 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-729-0 01 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-730-0 01 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98217-247-0 01 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98281-497-0 01 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		8-98281-497-0 01 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		8-98281-497-0 01 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		1-42350-729-0 02 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		1-42350-729-0 04 1 0801- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		1-42350-730-0 02 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		8-98217-247-0 02 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT 		8-98281-497-0 02 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408- ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		1-42350-730-0 04 1 0801-1205 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 0801-1205 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		8-98217-247-0 04 1 1206-1407 ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR 		8-98281-497-0 04 1 1408- ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (B) SPARE 		1-42350-667-0 01 1 0801-1101 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-667-0 01 1 0801-1101 ●
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT 		1-42350-667-0 02 1 0801-1101 ●
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REAR 		1-42350-667-0 04 1 0801- ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 		1-42333-022-3 08 1 1202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD 		1-42334-022-3 08 1 1202- ● ●
3 NUT; WHEEL,FRT AXLE
(A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
3 NUT; WHEEL,FRT AXLE
(A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 		1-42333-022-3 08 1 0801-1101 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 LH THREAD 		1-42334-022-3 08 1 0801-1101 ● ●
4 NUT; WHEEL,RR AXLE
(A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-050-1 20 1 0801-0907 ● ●
4 NUT; WHEEL,RR AXLE
(A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 RH THREAD 		8-97359-809-0 16 1 0801- ● ●
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M30 LH THREAD 		8-97359-810-0 16 1 0801- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-048-0 01 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-048-0 01 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-048-0 01 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> ,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-019-3 01 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-019-3 01 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-048-0 02 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-019-3 02 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-048-0 04 1 1206-1407 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-019-3 04 1 1408- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408- ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-020-3 01 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42370-020-3 01 1 1102-1205 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1102-1205 ● ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 1102-1205 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1102-1205 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1206- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-020-3 04 1 0801-1205 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42370-020-3 04 1 1206- ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 0801-1101 ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT 		1-42370-020-3 02 1 0801-1101 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 1102-1205 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42370-020-3 02 1 1206- ● ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		1-42370-024-0 02 1 0801-1003 ● ● ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		8-98167-052-0 02 1 1004- ● ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42374-001-0 01 1 0801-1101 ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 0801-1101 ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 0801-1101 ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 0801-1101 ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42374-001-0 01 1 1102- ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1102- ● ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 01 1 1102- ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 1102- ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 0801- ● ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 0801- ● ● ● ●
32 CAP; VALVE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42374-001-0 02 1 0801- ●
32 CAP; VALVE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42374-001-0 04 1 0801- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
