Isuzu WW
▶
TRUCKS
▶
FXR
▶
11143 - FXR/GXR EXC.EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

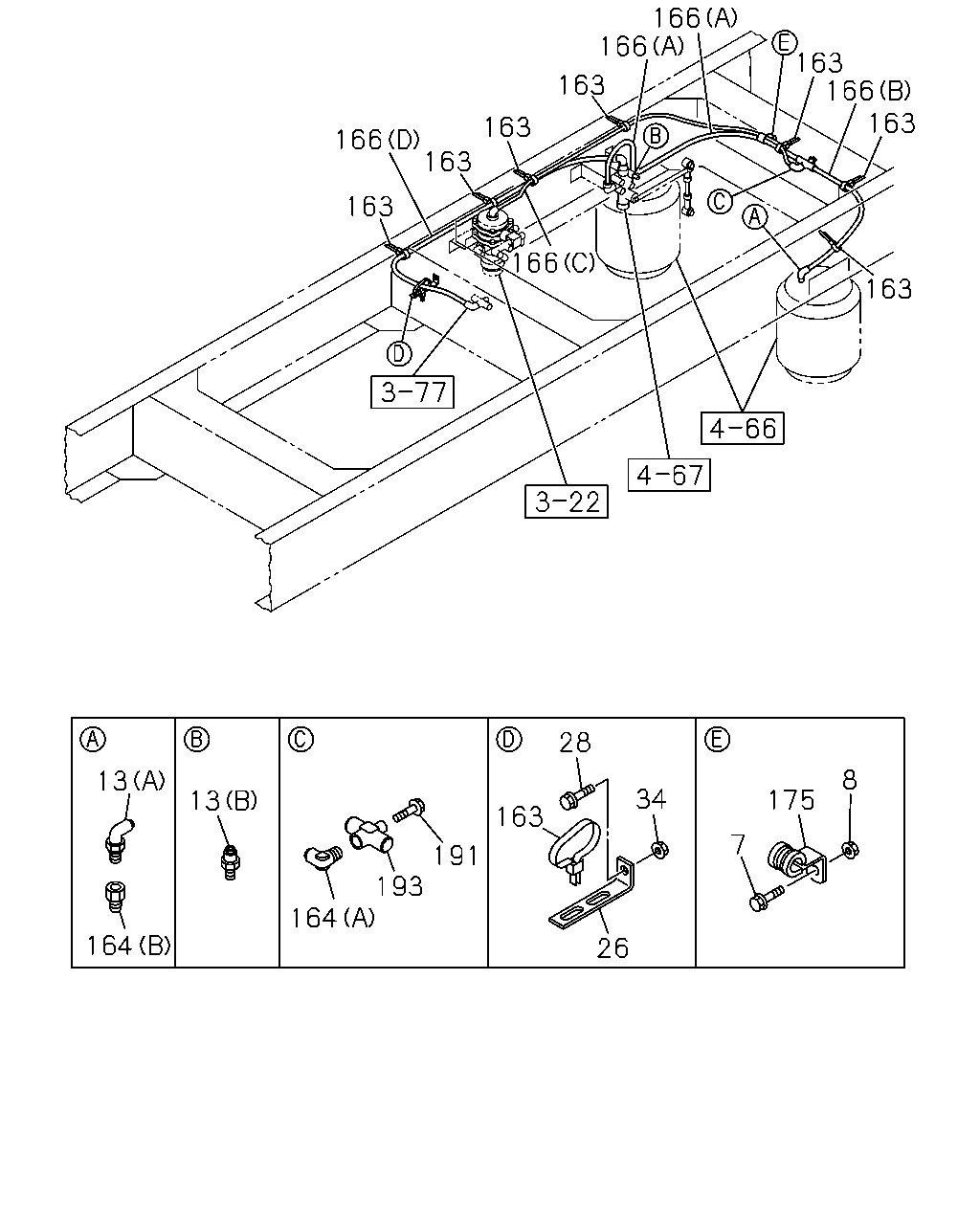

4-71 — AIR SUSPENSION PIPING
(#57195) — 18 parça
Tümü
A - FGD5MX
B - GGD5MX
166
166
163
166
163
163
163
166
163
163
166
163
28
8
13
34
175
13
163
7
191
193
164
164
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0803-0806
●
8
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0803-0806
●
13
UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0801-
●
●
13
UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT
1-09661-214-0
01
1
0801-
●
●
26
BRACKET; CLIP
L=100 H=30
1-47477-645-2
01
1
0801-
●
28
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0801-
●
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0801-
●
163
CLIP; BAND
L=350
1-09707-183-0
06
1
0801-
●
●
163
CLIP; BAND
L=350
1-09707-183-0
01
1
0801-
●
164
CONNECTOR
(B)
8-98120-199-0
01
1
0809-
●
●
164
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0801-
●
●
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0801-
●
●
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0801-
●
●
166
TUBE; NYLON
(C) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0801-
●
●
166
TUBE; NYLON
(D) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0801-
●
●
175
CLIP
ID=25 H=30 L=35
1-09700-944-0
01
1
0803-0806
●
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
0801-
●
●
193
UNION
DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0801-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
