◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#57190) — 26 parça

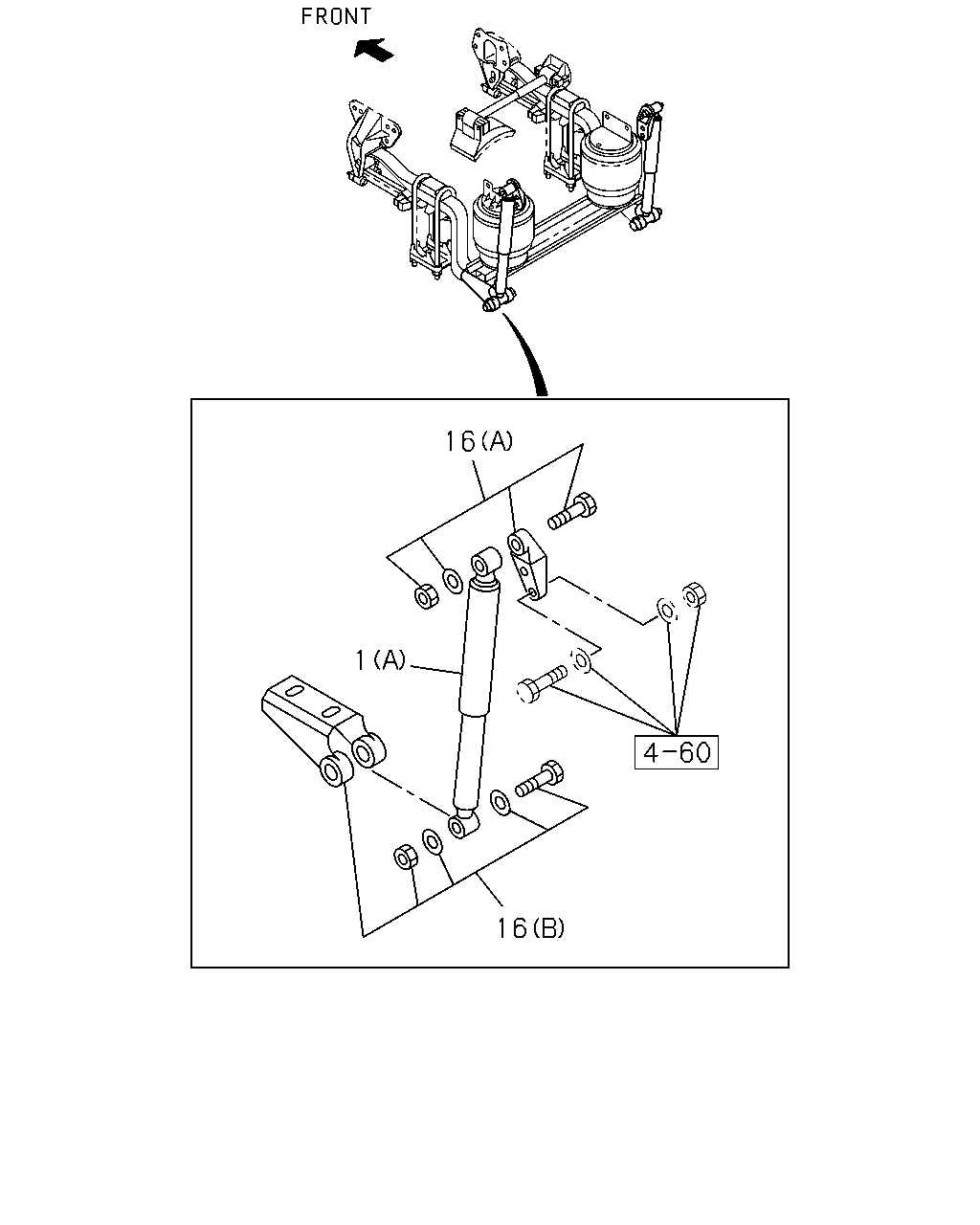

çizim 161048
16 1 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ABSORBER ASM; SHOCK,RR
REAR SHOCK ABSORBER<GL6> (B) 		1-51630-602-0 02 1 0801- ●
1 ABSORBER ASM; SHOCK,RR
(A) 		1-51630-746-0 02 1 0801- ● ●
16 BRACKET; S/ABS,RR
(C) 		1-51681-372-2 02 1 0801- ●
16 BRACKET; S/ABS,RR
(A) 		1-51681-823-0 02 1 0801- ● ●
16 BRACKET; S/ABS,RR
(B) 		1-51681-824-0 02 1 0801- ● ●

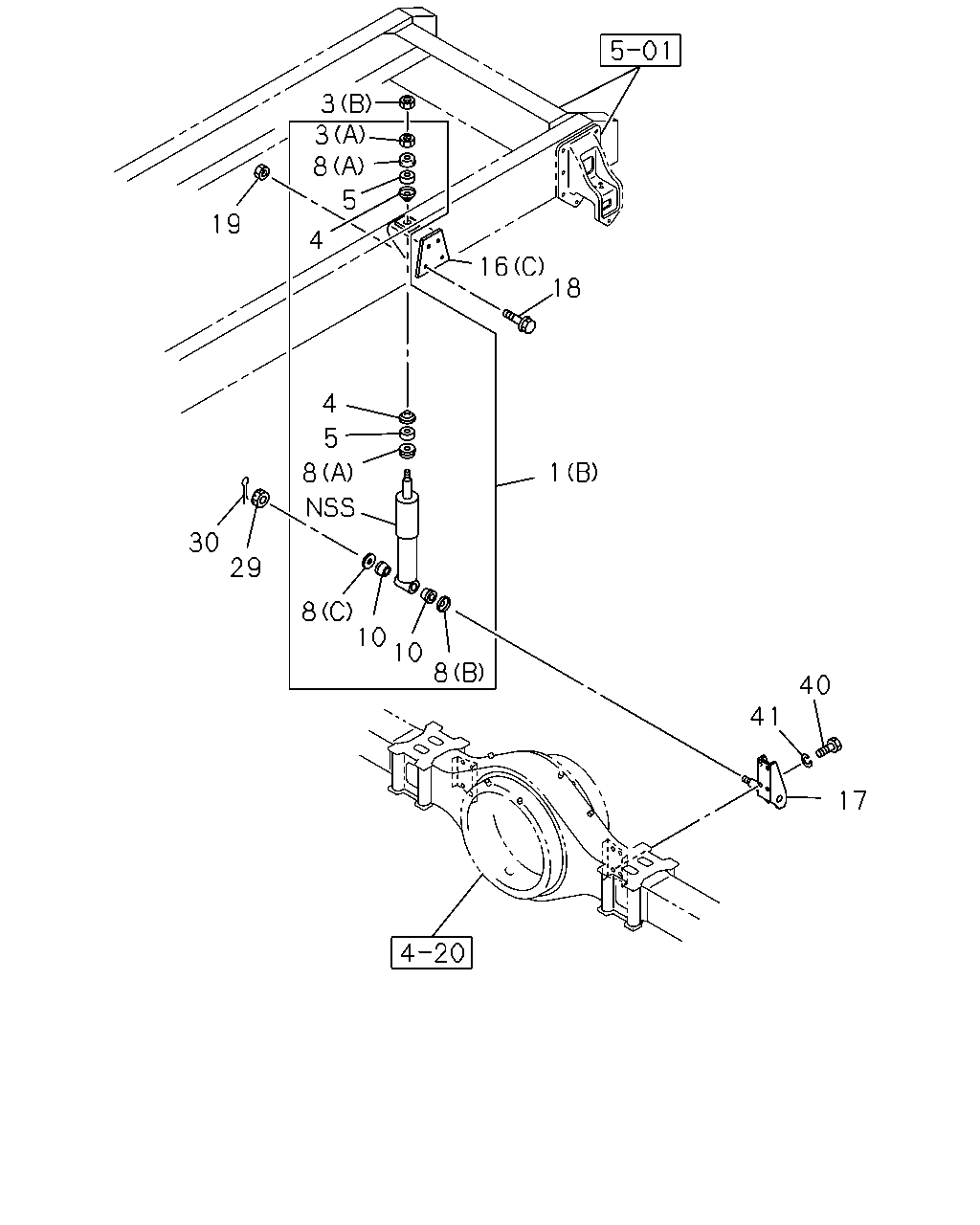

çizim 161053
3 3 8 5 19 4 16 18 4 5 1 8 30 29 8 10 10 8 40 41 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ABSORBER ASM; SHOCK,RR
REAR SHOCK ABSORBER<GL6> (B) 		1-51630-602-0 02 1 0801- ●
1 ABSORBER ASM; SHOCK,RR
(A) 		1-51630-746-0 02 1 0801- ● ●
3 NUT; S/ABS
REAR SHOCK ABSORBER<GL6> (B) M18 		0-91111-518-0 02 1 0801- ●
3 NUT; S/ABS
REAR SHOCK ABSORBER<GL6> (A) M18 		9-99111-418-0 02 1 0801- ●
4 WASHER; CENTER,S/ABS
REAR SHOCK ABSORBER<GL6> 		1-51631-072-0 04 1 0801- ●
5 BUSHING; RUBBER,S/ABS,UPR
REAR SHOCK ABSORBER<GL6> 		1-51631-073-0 04 1 0801- ●
8 WASHER; S/ABS
REAR SHOCK ABSORBER<GL6> (A) 		1-51631-071-0 04 1 0801- ●
8 WASHER; S/ABS
REAR SHOCK ABSORBER<GL6> (B) 		1-51631-074-0 02 1 0801- ●
8 WASHER; S/ABS
REAR SHOCK ABSORBER<GL6> (C) 		1-51631-075-0 02 1 0801- ●
10 BUSHING; RUBBER,S/ABS
REAR SHOCK ABSORBER<GL6> 		1-51631-076-0 04 1 0801- ●
16 BRACKET; S/ABS,RR
(C) 		1-51681-372-2 02 1 0801- ●
16 BRACKET; S/ABS,RR
(A) 		1-51681-823-0 02 1 0801- ● ●
16 BRACKET; S/ABS,RR
(B) 		1-51681-824-0 02 1 0801- ● ●
17 BRACKET; S/ABS LWR
REAR SHOCK ABSORBER<GL6> 		1-51681-716-0 01 1 0801- ●
17 BRACKET; S/ABS LWR
REAR SHOCK ABSORBER<GL6> 		1-51681-717-0 01 1 0801- ●
18 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 0801- ●
19 NUT; S/ABS BRKT
M14 		0-91110-514-0 08 1 0801- ●
29 NUT; LK,S/ABS,RR SUSP
REAR SHOCK ABSORBER<GL6> M24 		9-99116-424-0 02 1 0801- ●
30 PIN; SPLIT,S/ABS,RR SUSP
REAR SHOCK ABSORBER<GL6> OD=4.6 L=45 		0-81125-045-0 02 1 0801- ●
40 BOLT; LWR BRKT
REAR SHOCK ABSORBER<GL6> M14X30 		0-20851-430-0 08 1 0801- ●
41 WASHER; LK
REAR SHOCK ABSORBER<GL6> ID=14.2 		0-91510-614-0 08 1 0801- ●
