◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#57188) — 226 parça

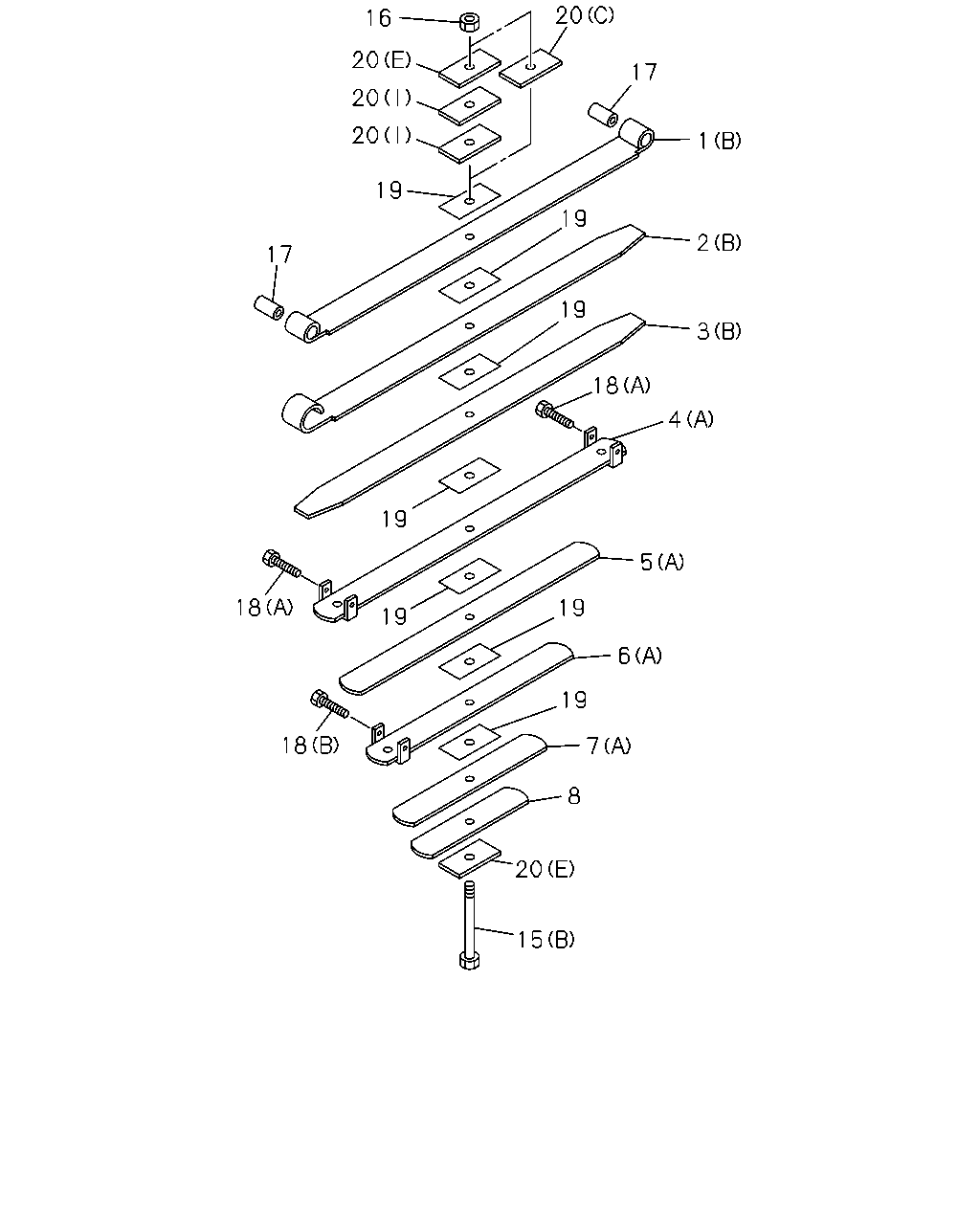

çizim 160970
20 16 20 17 20 20 1 19 19 2 17 19 3 18 4 19 5 18 19 19 6 19 18 7 8 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-140-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-143-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-163-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-141-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-144-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-164-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: E = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-145-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-165-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-826-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-166-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-827-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-167-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-828-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-168-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-829-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-169-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-830-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: D = 8-98098-675-0 		8-97615-395-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: G = 8-98107-912-0 		8-98131-831-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98053-122-0, H = 8-98112-651-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: F = 8-98107-909-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=175 ASM PART: G = 8-98107-912-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=195 ASM PART: E = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=185 ASM PART: D = 8-98098-675-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=130 ASM PART: B = 8-98053-738-0, C = 8-98098-673-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-98098-673-0, D = 8-98098-675-0, G = 8-98107-912-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, F = 8-98107-909-0, H = 8-98112-651-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98098-673-0, E = 8-98098-676-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: D = 8-98098-675-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: F = 8-98107-909-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98053-122-0 		1-51177-074-0 05 1 -
20 SEAT; LEAF SPR,FRT
(E), T=10 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-085-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: E = 8-98098-676-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: G = 8-98107-912-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=9 ASM PART: C = 8-98098-673-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=13 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=11 ASM PART: E = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: F = 8-98107-909-0 		1-51177-352-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98053-122-0 		1-51177-352-0 01 1 -

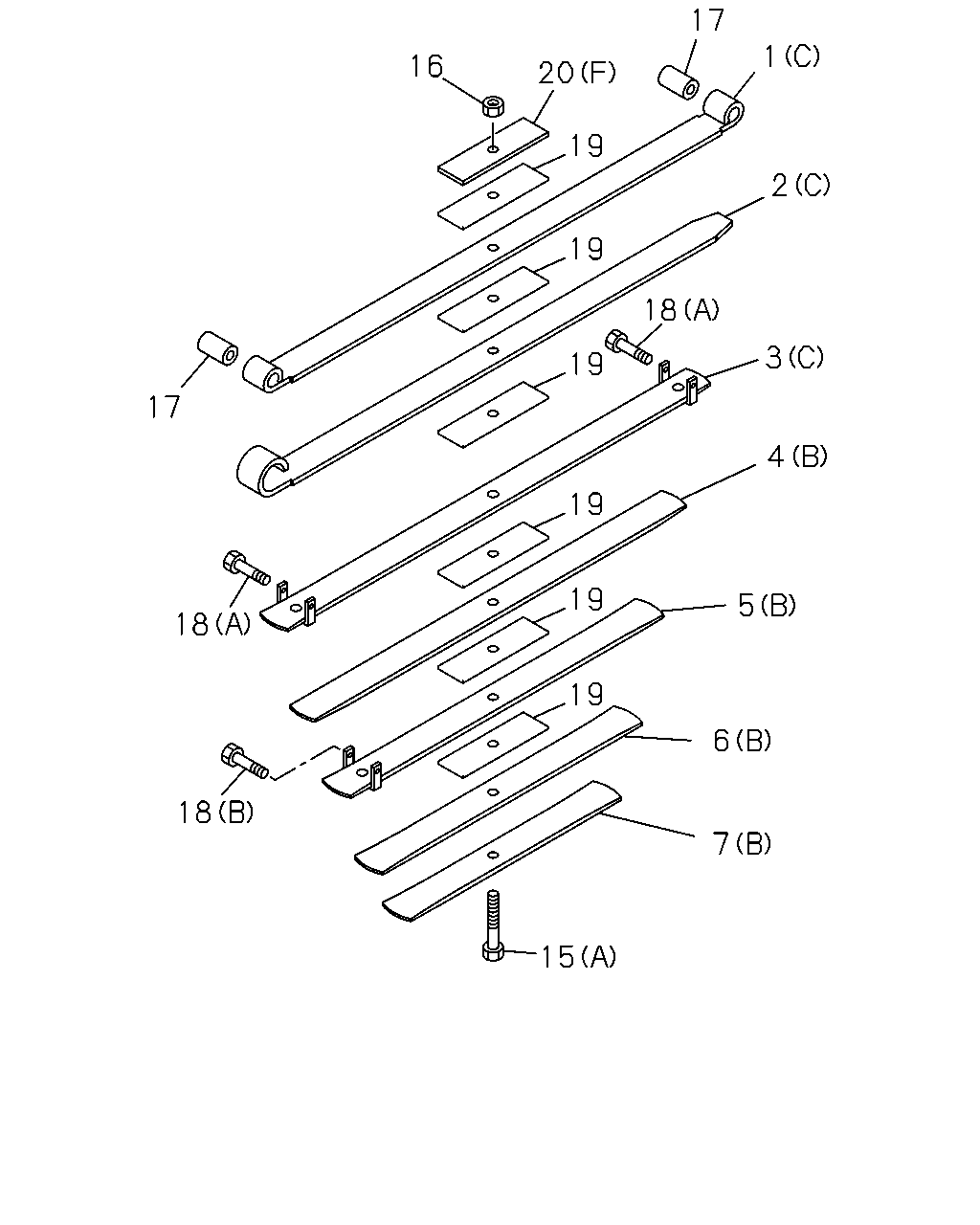

çizim 161007
17 1 16 20 19 2 19 18 3 19 17 4 19 19 5 18 19 6 18 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-140-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-143-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-163-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-141-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-144-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-164-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: E = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-145-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-165-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-826-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-166-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-827-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-167-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-828-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-168-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-829-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-169-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-830-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98053-122-0, H = 8-98112-651-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: F = 8-98107-909-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=175 ASM PART: G = 8-98107-912-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=195 ASM PART: E = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=185 ASM PART: D = 8-98098-675-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=130 ASM PART: B = 8-98053-738-0, C = 8-98098-673-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-98098-673-0, D = 8-98098-675-0, G = 8-98107-912-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, F = 8-98107-909-0, H = 8-98112-651-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98098-673-0, E = 8-98098-676-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: D = 8-98098-675-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: F = 8-98107-909-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98053-122-0 		1-51177-074-0 05 1 -
20 SEAT; LEAF SPR,FRT
(E), T=10 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-085-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: E = 8-98098-676-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: G = 8-98107-912-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=9 ASM PART: C = 8-98098-673-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=13 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=11 ASM PART: E = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: F = 8-98107-909-0 		1-51177-352-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98053-122-0 		1-51177-352-0 01 1 -

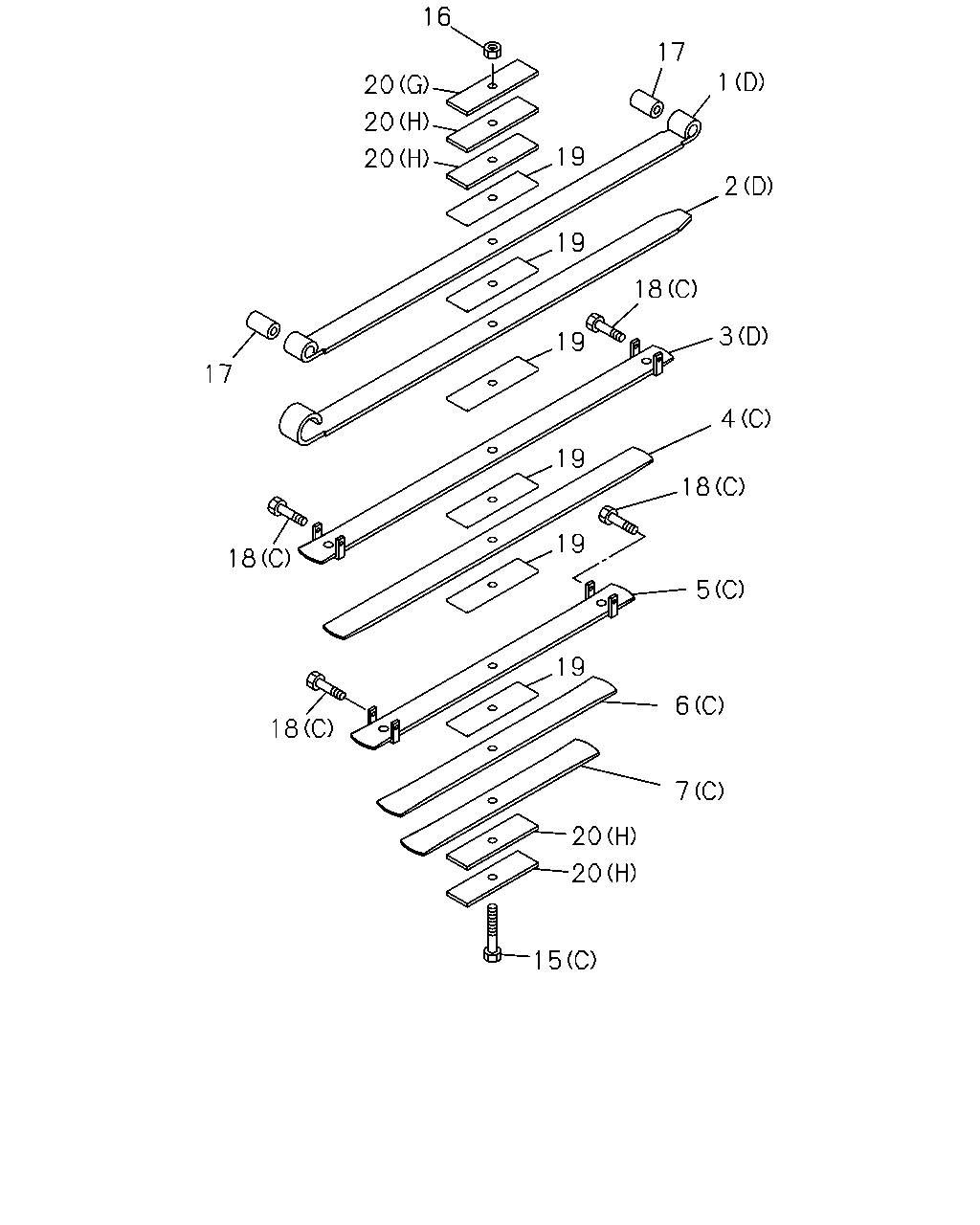

çizim 161009
16 17 1 20 20 19 20 2 19 18 3 19 17 4 19 18 19 18 5 19 6 18 7 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-140-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-143-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-163-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-141-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-144-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-164-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: E = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-145-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-165-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-826-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-166-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-827-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-167-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-828-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-168-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-829-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: E = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: D = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: C = 8-98098-673-0 		8-98091-169-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98107-912-0 		8-98131-830-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98053-122-0, H = 8-98112-651-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: F = 8-98107-909-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=175 ASM PART: G = 8-98107-912-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=195 ASM PART: E = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=185 ASM PART: D = 8-98098-675-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=130 ASM PART: B = 8-98053-738-0, C = 8-98098-673-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-98098-673-0, D = 8-98098-675-0, G = 8-98107-912-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, F = 8-98107-909-0, H = 8-98112-651-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98098-673-0, E = 8-98098-676-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: D = 8-98098-675-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: F = 8-98107-909-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98053-122-0 		1-51177-074-0 05 1 -
20 SEAT; LEAF SPR,FRT
(E), T=10 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-085-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: E = 8-98098-676-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: G = 8-98107-912-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=9 ASM PART: C = 8-98098-673-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=13 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=11 ASM PART: E = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: F = 8-98107-909-0 		1-51177-352-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98053-122-0 		1-51177-352-0 01 1 -

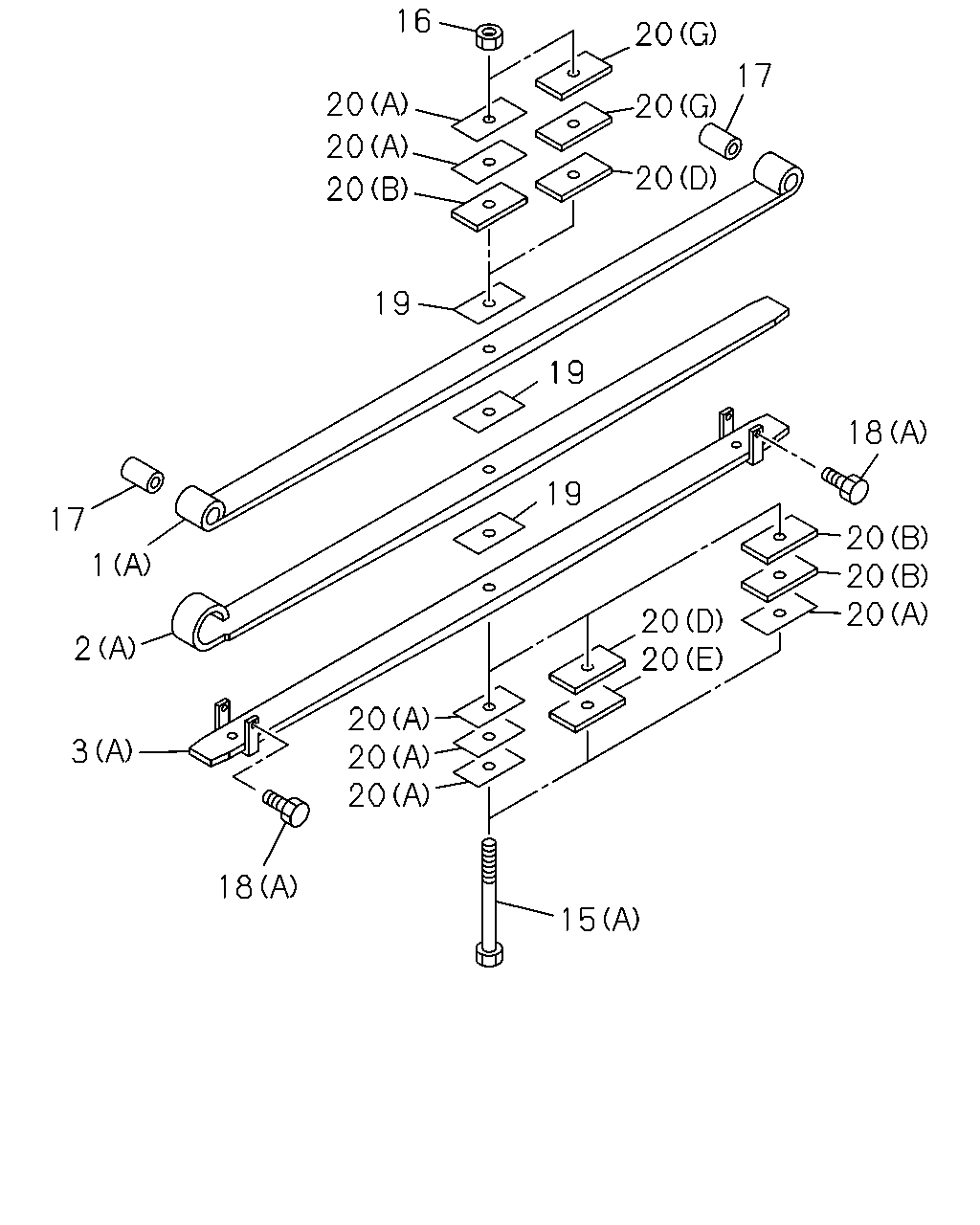

çizim 161014
16 20 17 20 20 20 20 20 19 19 18 19 17 20 20 20 1 20 20 2 20 20 20 3 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-140-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-143-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-163-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-824-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-141-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-144-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-164-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: E = 8-98098-676-0 		8-98140-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: E = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		8-98063-142-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98053-122-0, F = 8-98107-909-0 		8-98063-145-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98098-673-0 		8-98091-165-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: G = 8-98107-912-0 		8-98131-826-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=140 ASM PART: A = 8-98053-122-0, H = 8-98112-651-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: F = 8-98107-909-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=175 ASM PART: G = 8-98107-912-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=195 ASM PART: E = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=185 ASM PART: D = 8-98098-675-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=130 ASM PART: B = 8-98053-738-0, C = 8-98098-673-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, E = 8-98098-676-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: E = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, C = 8-98098-673-0, D = 8-98098-675-0, F = 8-98107-909-0, G = 8-98107-912-0, H = 8-98112-651-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-98098-673-0, D = 8-98098-675-0, G = 8-98107-912-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98053-122-0, B = 8-98053-738-0, F = 8-98107-909-0, H = 8-98112-651-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98098-673-0, E = 8-98098-676-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: D = 8-98098-675-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: F = 8-98107-909-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=7 ASM PART: A = 8-98053-122-0 		1-51177-074-0 05 1 -
20 SEAT; LEAF SPR,FRT
(E), T=10 ASM PART: D = 8-98098-675-0, G = 8-98107-912-0, H = 8-98112-651-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-085-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=9 ASM PART: E = 8-98098-676-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: G = 8-98107-912-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=9 ASM PART: C = 8-98098-673-0 		1-51177-114-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=13 ASM PART: B = 8-98053-738-0, H = 8-98112-651-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=11 ASM PART: E = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: F = 8-98107-909-0 		1-51177-352-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=15 ASM PART: A = 8-98053-122-0 		1-51177-352-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
