◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#57187) — 117 parça

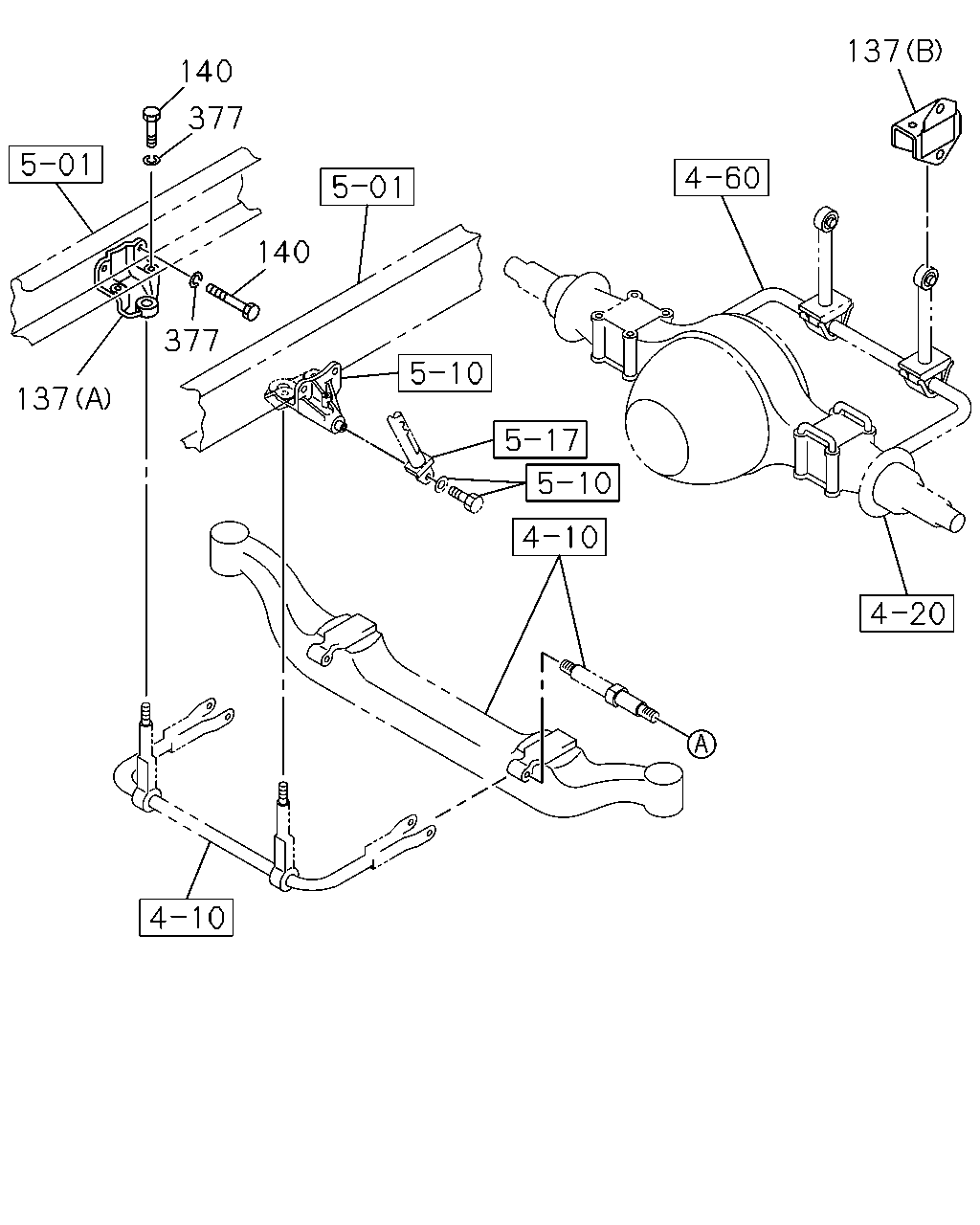

çizim 161006
137 140 377 140 377 137
BalonParca AdiParca NoAdetTipApplied Date A B C D
137 BRACKET; STAB BAR TO FRAME
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		1-51781-074-0 02 1 0801- ●
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-074-0 02 1 0801- ●
137 BRACKET; STAB BAR TO FRAME
(A) 		1-51781-111-0 01 1 0801- ● ● ● ●
138 NUT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> M14 		0-91110-514-0 06 1 0801-0804 ●
138 NUT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> M14 		0-91110-514-0 06 1 0805- ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 0805- ●
140 BOLT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> (B) M14X40 		0-20951-440-0 06 1 0801-0804 ●
140 BOLT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> (B) M14X40 		0-20951-440-0 06 1 0805- ●
140 BOLT; BRKT
(B) M14X40 		0-20951-440-0 06 1 0805- ●
140 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 0801- ● ● ● ●
377 WASHER; LK,BRKT
EMISSION REGULATION NEW LONG TERM<JBG> ID=15 		8-98010-627-0 16 1 0801-0804 ●
377 WASHER; LK,BRKT
EMISSION REGULATION NEW LONG TERM<JBG> ID=15 		8-98010-627-1 16 1 0805- ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 16 1 0805- ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-0 04 1 0801-0804 ● ● ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 0805- ● ●

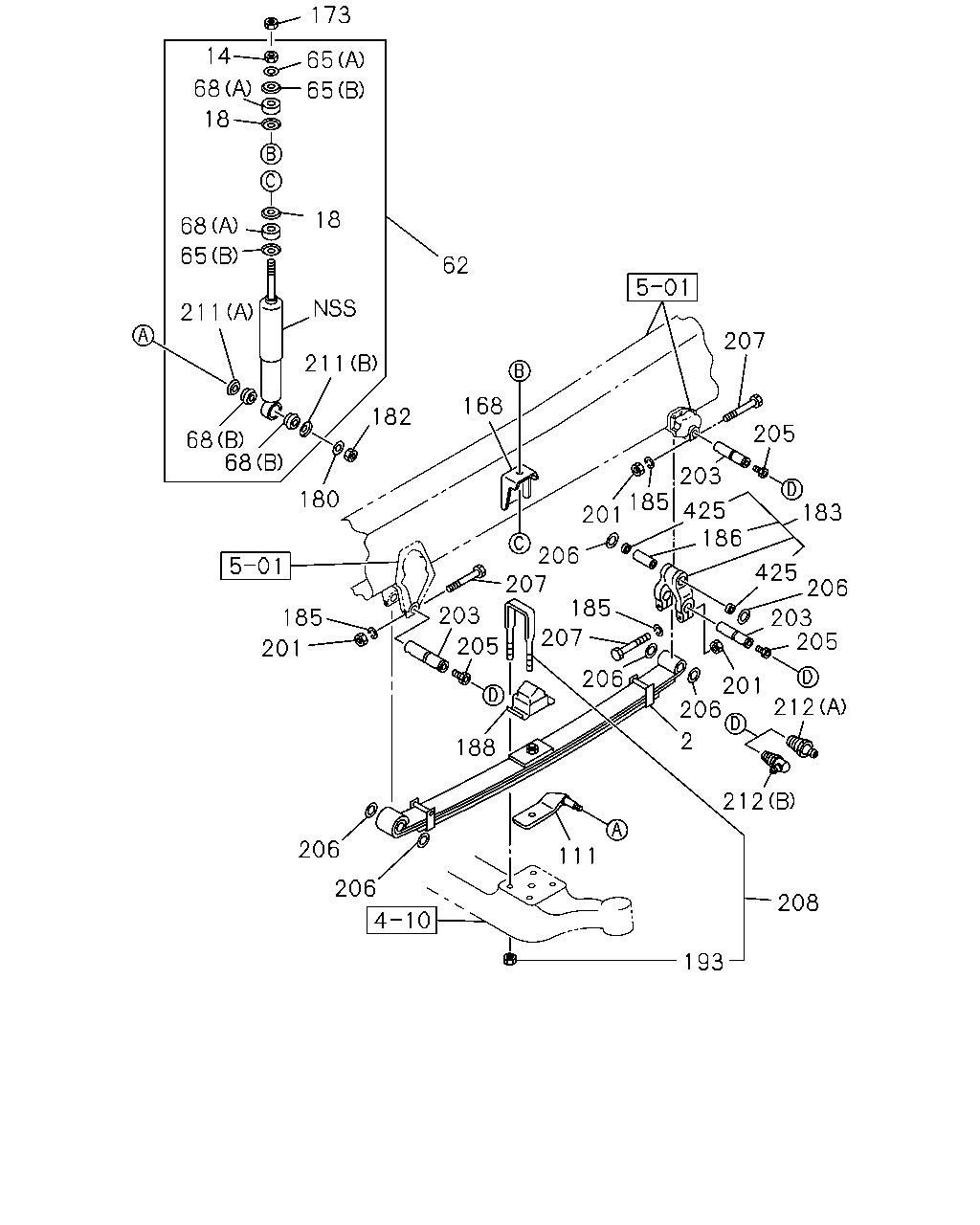

çizim 161037
173 14 65 68 65 18 18 68 65 62 211 207 211 168 182 205 68 68 203 183 180 185 425 186 201 206 207 425 206 185 203 185 203 205 207 205 201 206 201 206 212 2 188 212 206 111 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98053-738-0 01 1 0801- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98112-651-0 01 1 0801- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98098-675-0 02 1 0801-0801 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE MERITOR FG941(BFL) AUSTRALIA EQUIPMENT(RR3) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98098-675-0 02 1 0801-0801 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT AXLE MERITOR FG941(BFL) 8-LEAF 		8-98107-912-0 02 1 0801-0801 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT AXLE MERITOR FG941(BFL) 3-LEAF 		8-98107-909-0 02 1 0801- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98098-676-0 02 1 0801-0801 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98098-673-0 02 1 0801- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98053-122-0 02 1 0801- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT AXLE MERITOR FG941(BFL) AUSTRALIA EQUIPMENT(RR3) FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98053-122-0 02 1 0801- ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 01 1 0801- ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 01 1 0801- ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0801-0801 ● ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ> M14 		9-99111-414-0 02 1 0801-0801 ● ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0802- ● ●
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ> M14 		9-99111-414-0 02 1 0802- ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 02 1 0801- ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 02 1 0801- ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0801-0801 ● ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> ID=24 		1-51631-067-0 04 1 0801-0801 ● ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0802- ● ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> ID=24 		1-51631-067-0 04 1 0802- ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 0801-0801 ● ● ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 0802- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-837-0 01 1 0801- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-837-0 01 1 0801- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-830-0 02 1 0801- ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 01 1 0801- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 01 1 0801- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 02 1 0801- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 02 1 0801- ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0801-0801 ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=16.5 		1-09503-266-0 02 1 0801-0801 ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0802- ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=16.5 		1-09503-266-0 02 1 0802- ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0801-0801 ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=16.5 		1-51631-068-0 04 1 0801-0801 ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0802- ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=16.5 		1-51631-068-0 04 1 0802- ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 02 1 0801- ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 02 1 0801- ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 02 1 0801- ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 02 1 0801- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0801-0801 ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=16 T=25 		1-51631-069-0 04 1 0801-0801 ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0802- ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=16 T=25 		1-51631-069-0 04 1 0802- ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0801-0801 ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) 		9-51631-026-0 04 1 0801-0801 ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0802- ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) 		9-51631-026-0 04 1 0802- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0801-1004 ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005- ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0801-1004 ● ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005- ● ● ● ●
138 NUT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> M14 		0-91110-514-0 06 1 0801-0804 ●
138 NUT; BRKT
EMISSION REGULATION NEW LONG TERM<JBG> M14 		0-91110-514-0 06 1 0805- ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 0805- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0801- ● ● ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0801- ● ● ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0801- ● ● ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0801- ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0801-1005 ● ● ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006- ● ● ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0801- ● ● ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0801-1005 ● ● ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98075-087-0 02 1 0801-0801 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98075-087-0 02 1 0802- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-1 02 1 0801-0801 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 0802- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0801-1206 ● ● ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ● ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0801- ● ● ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0801- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0801- ● ● ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0801- ● ● ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0801- ● ● ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE MERITOR FG941(BFL) L=230 		1-87870-269-2 04 1 0801-0801 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0801-0801 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE MERITOR FG941(BFL) L=230 		1-87870-269-2 04 1 0802-1206 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT AXLE MERITOR FG941(BFL) L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0801-0801 ● ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE MERITOR FG941(BFL) L=210 		1-87870-380-1 04 1 0801-0801 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0802- ● ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE MERITOR FG941(BFL) L=210 		1-87870-380-2 04 1 0802- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=210 		1-87870-380-2 04 1 0802- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 01 1 0801- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 01 1 0801- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 01 1 0801- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 01 1 0801- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0801-0801 ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=27 		9-51631-027-0 02 1 0801-0801 ● ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0802- ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=27 		9-51631-027-0 02 1 0802- ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0801-0801 ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=21 		9-51631-028-0 02 1 0801-0801 ● ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0802- ● ●
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=21 		9-51631-028-0 02 1 0802- ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ● ● ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0801- ● ● ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0801-1005 ● ● ● ●
