◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#57182) — 16 parça

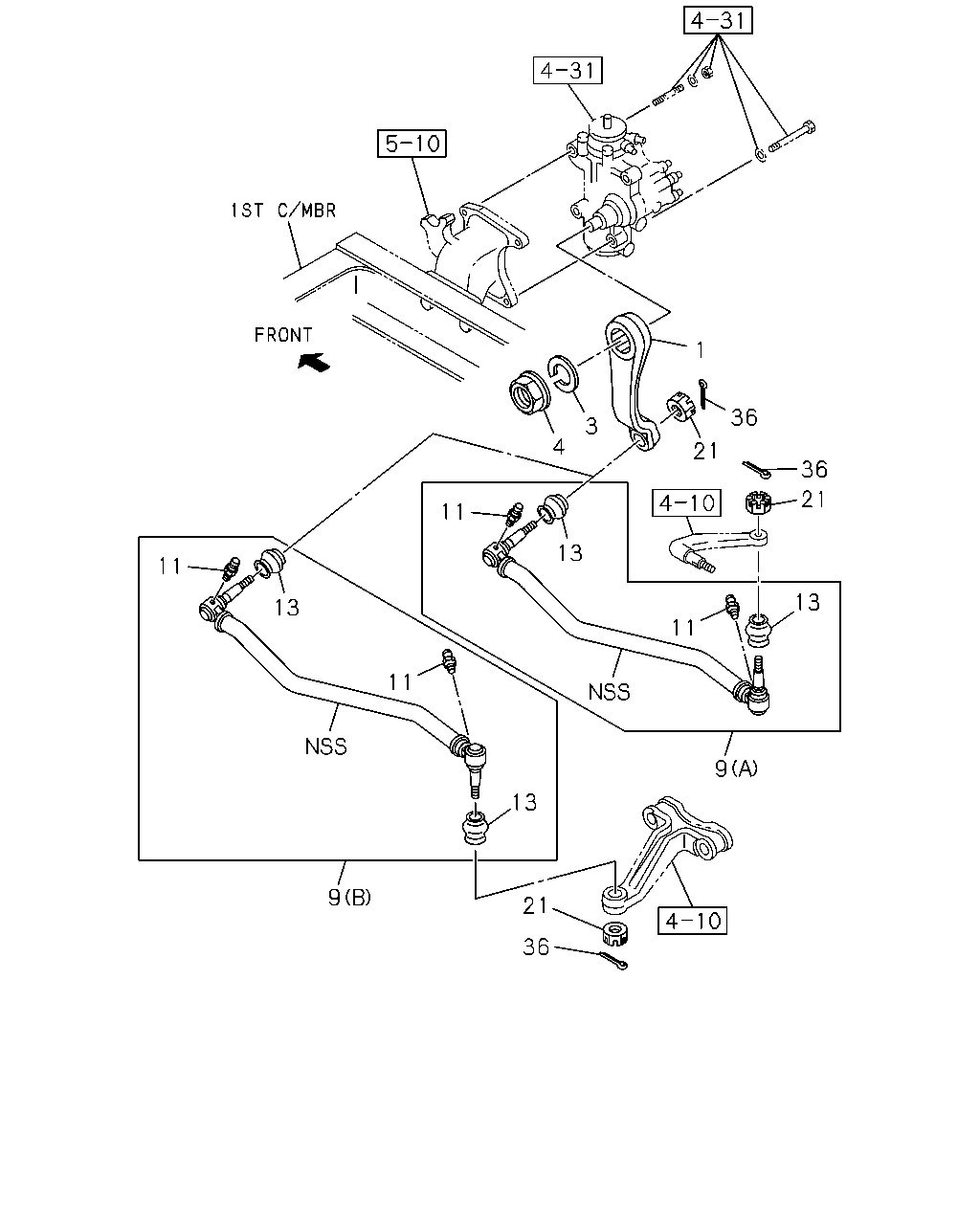

çizim 161016
1 36 3 4 21 36 21 11 13 11 13 13 11 11 9 13 9 21 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG 1-44341-515-1 01 1 0801- ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 0801- ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0801- ● ● ● ●
9 LINK; DRAG
(A) 		1-44380-319-1 01 1 0801- ● ●
9 LINK; DRAG
FRONT AXLE MERITOR FG941(BFL) (A) 		1-44380-319-1 01 1 0801- ●
9 LINK; DRAG
EXC. FRONT AXLE MERITOR FG941(BFL) (B) 		1-44380-320-1 01 1 0801-1104 ●
9 LINK; DRAG
(B) 		1-44380-320-1 01 1 0801-1104 ●
9 LINK; DRAG
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-44380-320-1 01 1 1105- ● ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 0801-1104 ● ● ● ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1105- ● ● ●
11 NIPPLE; GREASE,DRAG LINK
FRONT AXLE MERITOR FG941(BFL),FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-43159-132-0 02 1 1105- ●
13 BOOT; DRAG LINK 1-43159-134-0 02 1 0801-1104 ● ● ● ●
13 BOOT; DRAG LINK 1-43159-134-0 02 1 1105- ● ● ●
13 BOOT; DRAG LINK
FRONT AXLE MERITOR FG941(BFL),FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-43159-134-0 02 1 1105- ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-028-0 02 1 0801- ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0801- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
