◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#5718) — 54 parça

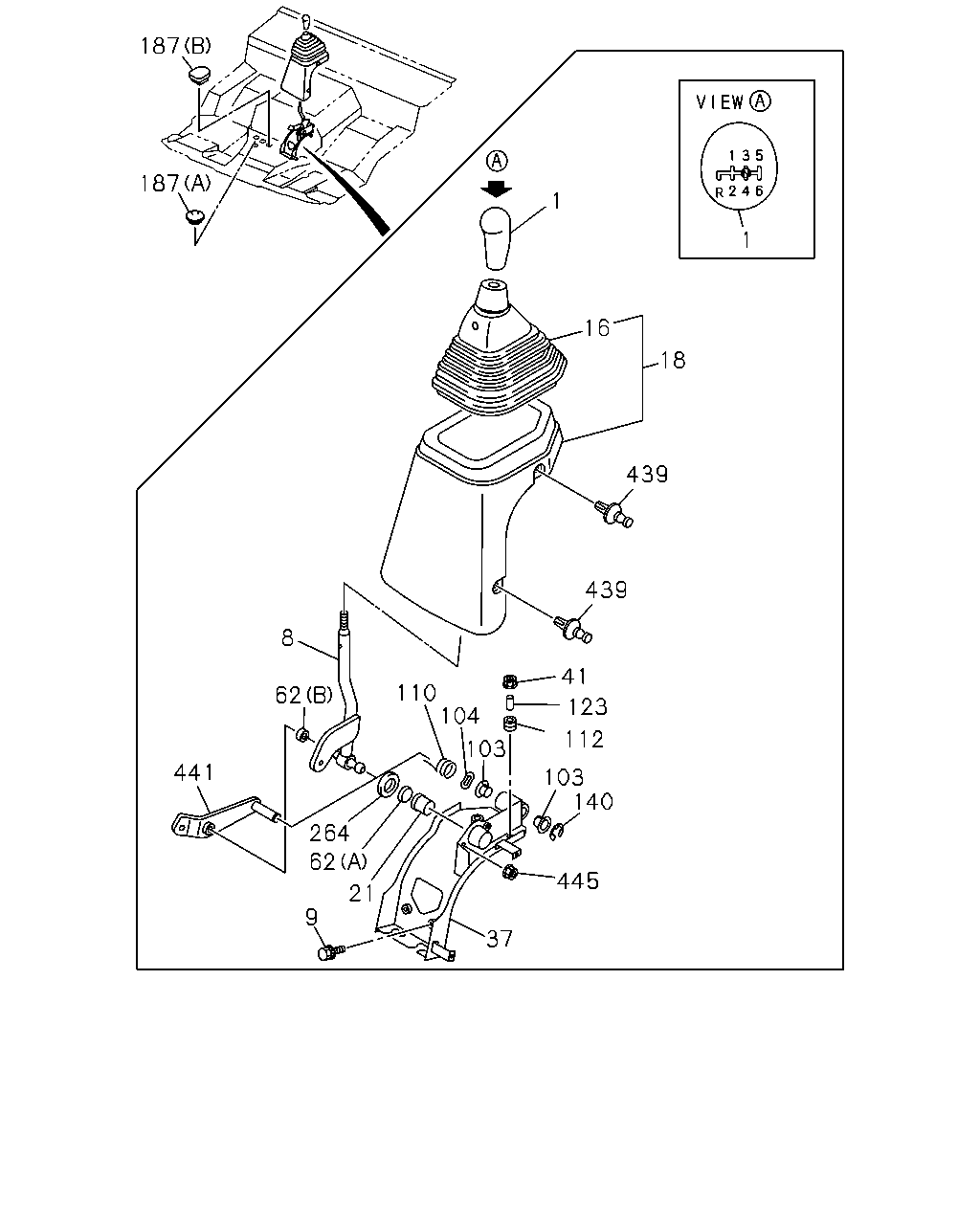

çizim 26366
187 187 1 1 16 18 439 439 8 41 110 104 62 123 112 103 441 103 140 264 62 445 21 9 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER 8-97500-145-1 01 1 0611- ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 9811-0610 ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0611- ●
8 LEVER; CHANGE 1-33619-462-0 01 1 0611- ●
8 LEVER; CHANGE 1-33619-604-0 01 1 9811-0610 ●
8 LEVER; CHANGE 1-33619-604-0 01 1 0611- ●
9 BOLT; CHANGE LEVER
M8X25 TAI 		8-94412-342-0 02 1 9811-0610 ●
9 BOLT; CHANGE LEVER
M8X25 TAI 		8-94412-342-0 02 1 0611- ● ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 9811-0610 ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0611- ● ●
18 BOOT; CHANGE LEVER 1-79998-910-0 01 1 9811-9906 ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 9907-0610 ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0611- ● ●
21 SEAT; CHANGE LEVER
TAI 		1-33619-429-0 01 1 9811-0610 ●
21 SEAT; CHANGE LEVER
TAI 		1-33619-429-0 01 1 0611- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 0611- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-603-0 01 1 9811-0610 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-603-0 01 1 0611- ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER TAI 		8-97065-435-0 02 1 9811-0107 ●
41 NUT; CHANGE LEVER
M8 FLANGE TAI 		8-97046-127-0 02 1 0108-0610 ●
41 NUT; CHANGE LEVER
M8 FLANGE TAI 		8-97046-127-0 02 1 0611- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) TAI 		1-33619-427-0 01 1 9811-0610 ●
62 SEAT; BALL,CHANGE LEVER
(A) TAI 		1-33619-427-0 01 1 0611- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) TAI 		8-97011-900-0 01 1 9811-0610 ●
62 SEAT; BALL,CHANGE LEVER
(B) TAI 		8-97011-900-0 01 1 0611- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 TAI 		8-94252-671-0 02 1 9811-0610 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 TAI 		8-94252-671-0 02 1 0611- ● ●
104 WASHER; WAVED
TAI 		1-09550-009-0 01 1 9811-0610 ●
104 WASHER; WAVED
TAI 		1-09550-009-0 01 1 0611- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0611- ●
110 SPRING; RETURN,CHANGE LEVER
TAI 		1-33619-586-0 01 1 9811-0610 ●
110 SPRING; RETURN,CHANGE LEVER
TAI 		1-33619-586-0 01 1 0611- ●
112 RUBBER; CUSHION
TAI 		1-33619-442-0 04 1 9811-0610 ●
112 RUBBER; CUSHION
TAI 		1-33619-442-0 04 1 0611- ● ●
123 COLLAR; DIST,CHANGE LEVER
TAI 		1-33619-443-0 04 1 9811-0610 ●
123 COLLAR; DIST,CHANGE LEVER
TAI 		1-33619-443-0 04 1 0611- ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9811-0604 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0605-0610 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0611- ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 9811-0610 ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0611- ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 9811-0610 ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0611- ● ●
264 PLATE; COVER
TAI 		1-33619-430-0 01 1 9811-0610 ●
264 PLATE; COVER
TAI 		1-33619-430-0 01 1 0611- ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9811-9906 ●
439 FASTENER; COVER
D8X13.5 TAI 		1-09987-270-0 04 1 9907-0610 ●
439 FASTENER; COVER
D8X13.5 TAI 		1-09987-270-0 04 1 0611- ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0611- ●
441 LEVER; SELECT
TAI 		1-33619-551-1 01 1 9811-0610 ●
441 LEVER; SELECT
TAI 		1-33619-551-1 01 1 0611- ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9811-0602 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603-0610 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
