Sayfa 4-20 - Isuzu EPC

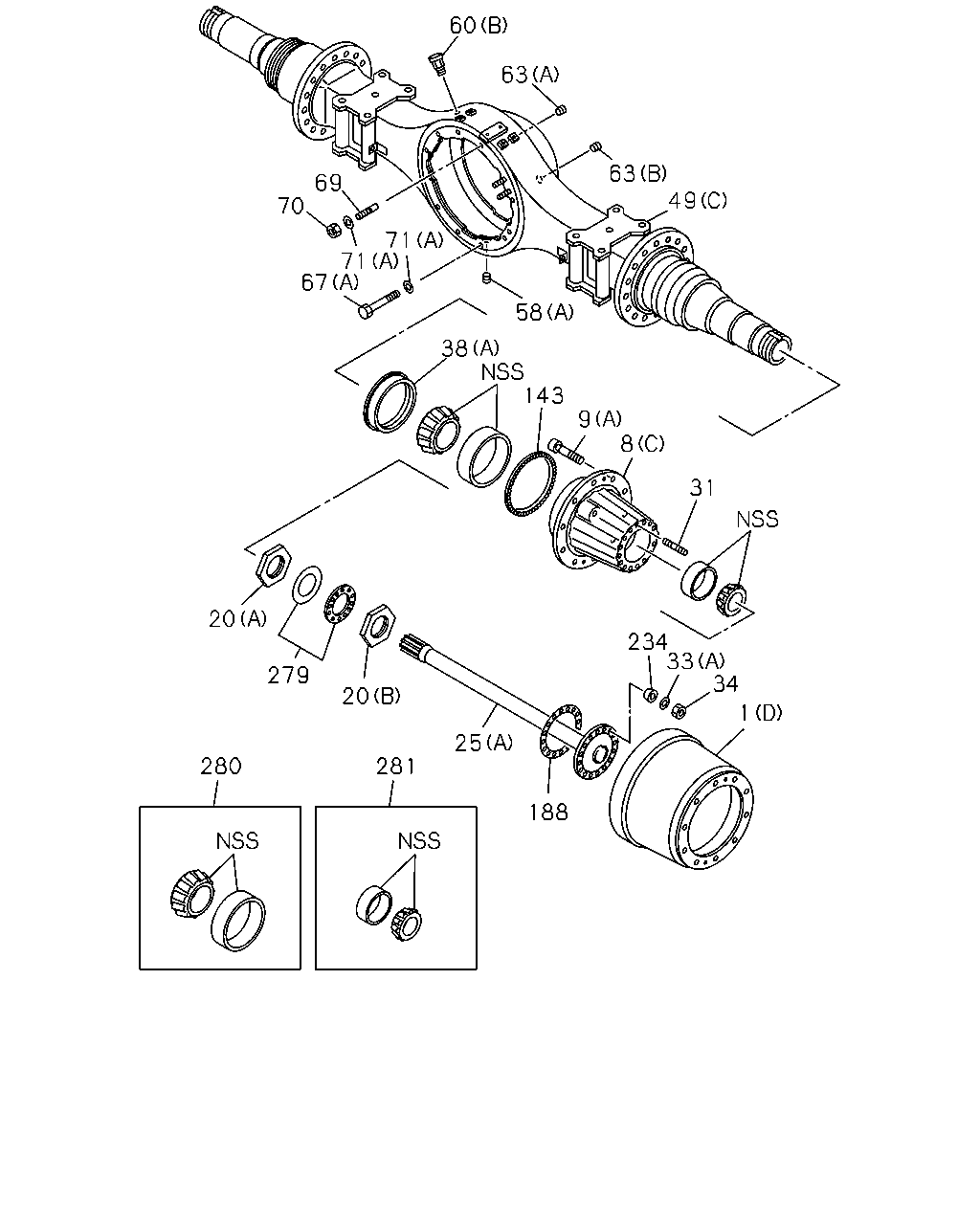

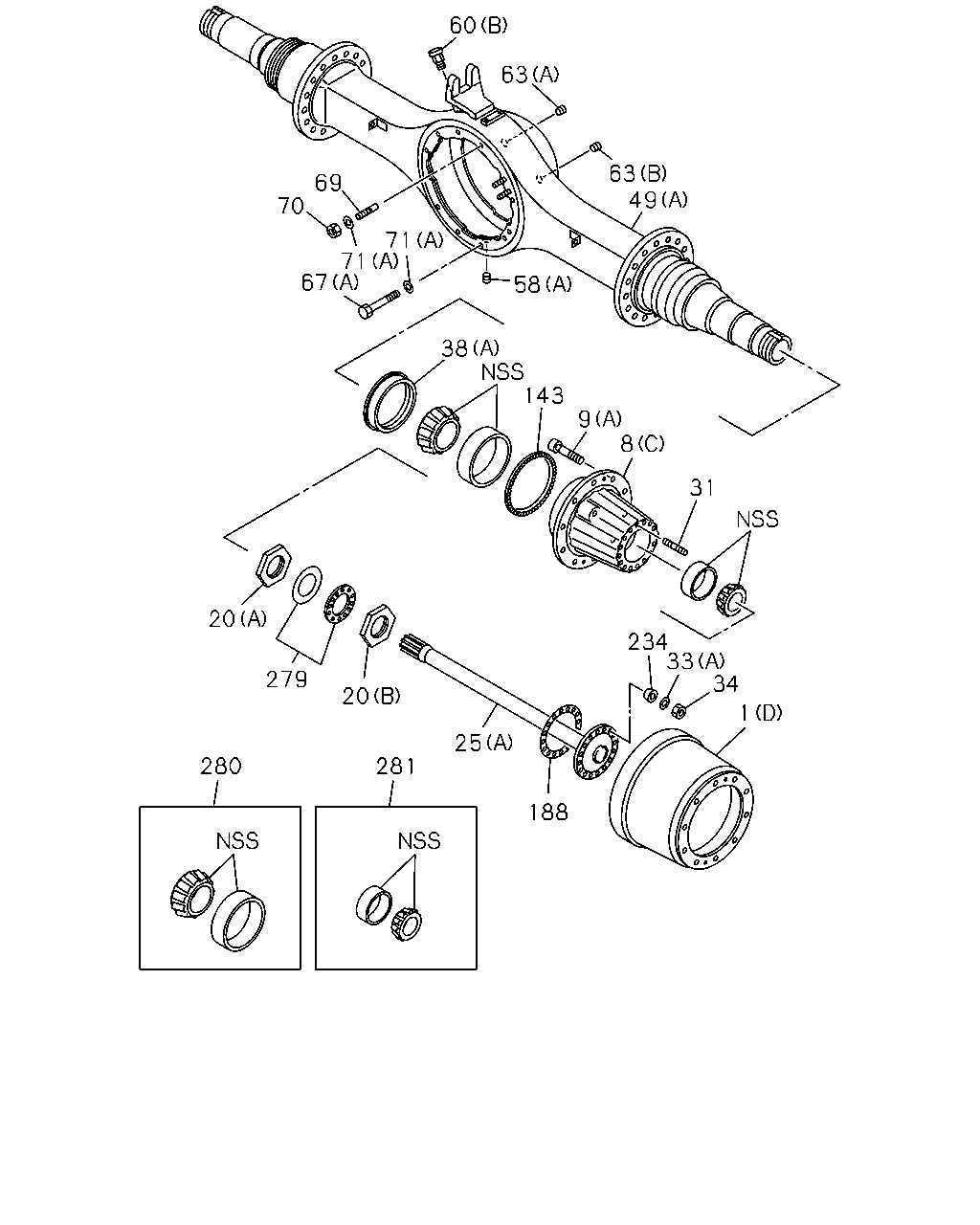

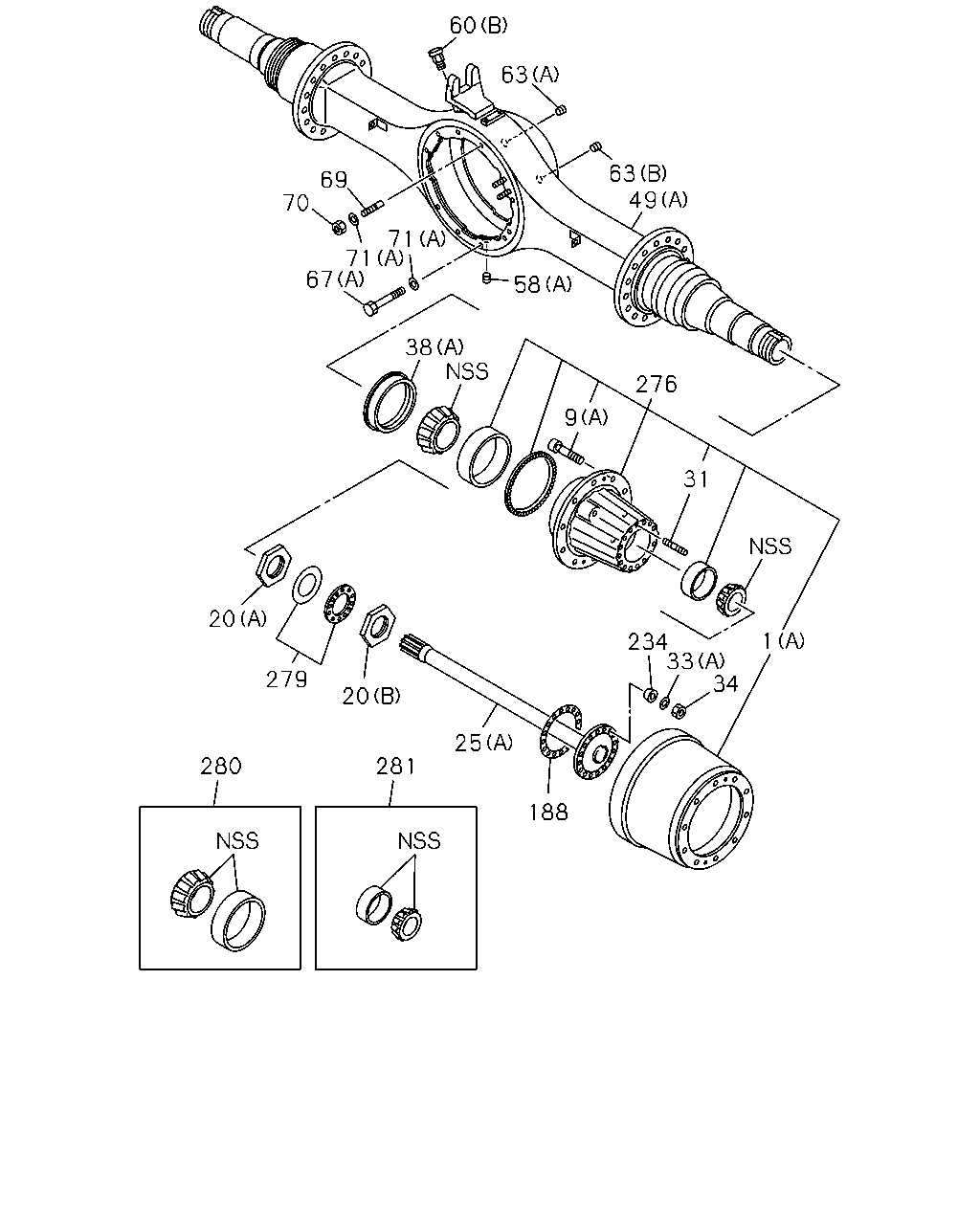

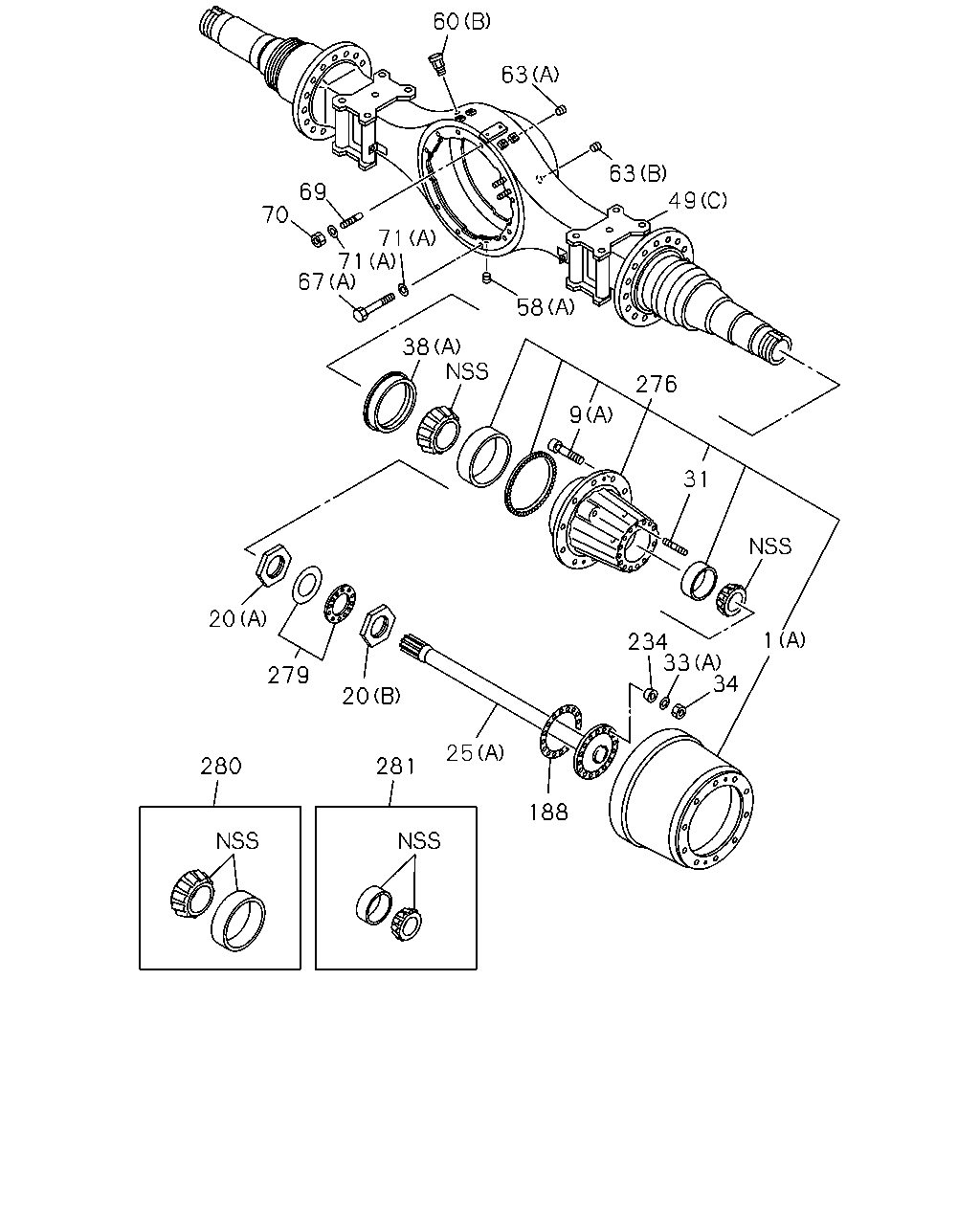

4-20 — REAR AXLE CASE AND SHAFT (#57176) — 548 parça

60 63 63 49 58 71 71 70 69 67 38 9 276 31 1 34 33 234 188 25 281 20 279 20 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0801-1204	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42315-419-0	02	1	0801-1204			●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D)	1-42315-422-0	02	1	1205-			●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-42315-358-0	02	1	0801-				●
1	DRUM; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42315-377-2	02	1	0801-			●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0801-				●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0801-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42339-033-0	20	1	0801-			●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-			●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-				●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-065-0	02	1	0801-			●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-067-0	02	1	0801-			●
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M88	9-09843-062-2	02	1	0801-			●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0801-				●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-375-0	02	1	0810-0910			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1050	8-98146-164-0	02	1	0911-			●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=951	1-42171-557-0	01	1	0801-			●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=1120	1-42171-558-0	01	1	0801-			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-355-0	02	1	0801-0809			●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0801-0809				●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0810-0910				●
25	SHAFT; AXLE,RR (B) L=1050	8-98146-168-0	02	1	0911-				●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0801-	●	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-171-0	16	1	0801-			●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0801-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42179-003-0	16	1	0801-			●
33	WASHER; AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=14.2	0-91510-814-0	20	1	0801-			●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0801-				●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0801-	●	●
34	NUT; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	16	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0801-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42319-172-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) NOK	1-09625-265-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) TKK	1-09625-350-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0801-				●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) REAR STABILIZER SHAFT<F61> (B)	8-98127-483-0	01	1	0809-			●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) REAR STABILIZER SHAFT<F61> (B)	8-98127-485-0	01	1	0809-				●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98107-340-0	01	1	0809-				●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-728-0	01	1	0801-1306			●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-755-0	01	1	1307-			●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0801-1107	●	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●	●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98079-032-1	01	1	0801-0808			●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98079-032-1	01	1	0809-			●
49	CASE; RR AXLE (B)	8-98064-525-0	01	1	0801-0802				●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98064-525-0	01	1	0803-				●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0801-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-054-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-				●
60	BREATHER; RR AXLE CASE (B)	1-09893-032-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-032-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-028-0	01	1	0801-1312			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-09893-028-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-011-1	01	1	0801-1412			●
60	BREATHER; RR AXLE CASE (A)	1-09893-011-1	01	1	0801-1412				●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-003-0	01	1	1501-			●
60	BREATHER; RR AXLE CASE (A)	1-09893-003-0	01	1	1501-				●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-135-0	02	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-054-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0801-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-136-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X70	0-10956-670-0	04	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X40	0-20951-640-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	06	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	06	1	0801-				●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0801-	●	●
69	STUD; AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) L=120.65	1-42119-184-0	04	1	0801-			●
70	NUT; CARRIER	1-42179-005-0	04	1	0801-	●	●
70	NUT; CARRIER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	04	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0801-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-41229-168-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=16.2	0-91510-816-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0801-				●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0801-	●	●
188	GASKET; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42175-013-0	02	1	0801-			●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0801-	●	●
234	DOWEL; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-162-0	16	1	0801-			●
276	HUB & DRUM ASM	1-42311-158-0	02	1	0801-1204	●	●
276	HUB & DRUM ASM FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42311-158-0	02	1	0801-1204			●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0801-	●	●
279	RING & WASHER; LK,BRG NUT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-022-0	02	1	0801-			●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0801-	●	●
280	BEARING SET; HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-012-0	02	1	0801-			●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0801-	●	●
281	BEARING SET; HUB,OUTER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-013-0	02	1	0801-			●

60 63 63 69 70 49 71 71 67 38 58 143 31 8 9 20 279 20 25 281 280 188 234 33 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0801-1204	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42315-419-0	02	1	0801-1204			●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D)	1-42315-422-0	02	1	1205-			●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-42315-358-0	02	1	0801-				●
1	DRUM; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42315-377-2	02	1	0801-			●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0801-				●
8	HUB; RR AXLE (C)	1-42311-164-0	02	1	1205-	●	●
8	HUB; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42311-164-0	02	1	1205-			●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-104-0	02	1	0801-				●
8	HUB; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42311-094-0	02	1	0801-			●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-085-0	02	1	0801-				●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0801-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42339-033-0	20	1	0801-			●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-			●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-				●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-065-0	02	1	0801-			●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-067-0	02	1	0801-			●
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M88	9-09843-062-2	02	1	0801-			●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0801-				●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-375-0	02	1	0810-0910			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1050	8-98146-164-0	02	1	0911-			●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=951	1-42171-557-0	01	1	0801-			●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=1120	1-42171-558-0	01	1	0801-			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-355-0	02	1	0801-0809			●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0801-0809				●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0810-0910				●
25	SHAFT; AXLE,RR (B) L=1050	8-98146-168-0	02	1	0911-				●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0801-	●	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-171-0	16	1	0801-			●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0801-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42179-003-0	16	1	0801-			●
33	WASHER; AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=14.2	0-91510-814-0	20	1	0801-			●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0801-				●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0801-	●	●
34	NUT; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	16	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0801-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42319-172-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) NOK	1-09625-265-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) TKK	1-09625-350-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0801-				●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) REAR STABILIZER SHAFT<F61> (B)	8-98127-483-0	01	1	0809-			●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) REAR STABILIZER SHAFT<F61> (B)	8-98127-485-0	01	1	0809-				●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98107-340-0	01	1	0809-				●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-728-0	01	1	0801-1306			●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-755-0	01	1	1307-			●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0801-1107	●	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●	●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98079-032-1	01	1	0801-0808			●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98079-032-1	01	1	0809-			●
49	CASE; RR AXLE (B)	8-98064-525-0	01	1	0801-0802				●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98064-525-0	01	1	0803-				●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0801-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-054-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-				●
60	BREATHER; RR AXLE CASE (B)	1-09893-032-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-032-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-028-0	01	1	0801-1312			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-09893-028-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-011-1	01	1	0801-1412			●
60	BREATHER; RR AXLE CASE (A)	1-09893-011-1	01	1	0801-1412				●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-003-0	01	1	1501-			●
60	BREATHER; RR AXLE CASE (A)	1-09893-003-0	01	1	1501-				●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-135-0	02	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-054-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0801-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-136-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X70	0-10956-670-0	04	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X40	0-20951-640-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	06	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	06	1	0801-				●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0801-	●	●
69	STUD; AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) L=120.65	1-42119-184-0	04	1	0801-			●
70	NUT; CARRIER	1-42179-005-0	04	1	0801-	●	●
70	NUT; CARRIER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	04	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0801-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-41229-168-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=16.2	0-91510-816-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0801-				●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●	●
143	RING; EXCITER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-224-0	02	1	1205-			●
143	RING; EXCITER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-42319-173-0	02	1	0801-			●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0801-	●	●
188	GASKET; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42175-013-0	02	1	0801-			●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0801-	●	●
234	DOWEL; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-162-0	16	1	0801-			●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0801-	●	●
279	RING & WASHER; LK,BRG NUT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-022-0	02	1	0801-			●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0801-	●	●
280	BEARING SET; HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-012-0	02	1	0801-			●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0801-	●	●
281	BEARING SET; HUB,OUTER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-013-0	02	1	0801-			●

60 63 63 58 276 49 31 1 34 33 234 188 25 20 281 280 279 20 38 71 71 67 70 69 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0801-1204	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42315-419-0	02	1	0801-1204			●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D)	1-42315-422-0	02	1	1205-			●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-42315-358-0	02	1	0801-				●
1	DRUM; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42315-377-2	02	1	0801-			●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0801-				●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0801-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42339-033-0	20	1	0801-			●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-			●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-				●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-065-0	02	1	0801-			●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-067-0	02	1	0801-			●
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M88	9-09843-062-2	02	1	0801-			●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0801-				●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-375-0	02	1	0810-0910			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1050	8-98146-164-0	02	1	0911-			●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=951	1-42171-557-0	01	1	0801-			●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=1120	1-42171-558-0	01	1	0801-			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-355-0	02	1	0801-0809			●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0801-0809				●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0810-0910				●
25	SHAFT; AXLE,RR (B) L=1050	8-98146-168-0	02	1	0911-				●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0801-	●	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-171-0	16	1	0801-			●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0801-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42179-003-0	16	1	0801-			●
33	WASHER; AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=14.2	0-91510-814-0	20	1	0801-			●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0801-				●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0801-	●	●
34	NUT; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	16	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0801-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42319-172-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) NOK	1-09625-265-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) TKK	1-09625-350-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0801-				●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) REAR STABILIZER SHAFT<F61> (B)	8-98127-483-0	01	1	0809-			●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) REAR STABILIZER SHAFT<F61> (B)	8-98127-485-0	01	1	0809-				●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98107-340-0	01	1	0809-				●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-728-0	01	1	0801-1306			●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-755-0	01	1	1307-			●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0801-1107	●	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●	●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98079-032-1	01	1	0801-0808			●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98079-032-1	01	1	0809-			●
49	CASE; RR AXLE (B)	8-98064-525-0	01	1	0801-0802				●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98064-525-0	01	1	0803-				●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0801-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-054-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-				●
60	BREATHER; RR AXLE CASE (B)	1-09893-032-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-032-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-028-0	01	1	0801-1312			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-09893-028-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-011-1	01	1	0801-1412			●
60	BREATHER; RR AXLE CASE (A)	1-09893-011-1	01	1	0801-1412				●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-003-0	01	1	1501-			●
60	BREATHER; RR AXLE CASE (A)	1-09893-003-0	01	1	1501-				●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-135-0	02	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-054-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0801-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-136-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X70	0-10956-670-0	04	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X40	0-20951-640-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	06	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	06	1	0801-				●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0801-	●	●
69	STUD; AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) L=120.65	1-42119-184-0	04	1	0801-			●
70	NUT; CARRIER	1-42179-005-0	04	1	0801-	●	●
70	NUT; CARRIER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	04	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0801-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-41229-168-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=16.2	0-91510-816-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0801-				●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0801-	●	●
188	GASKET; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42175-013-0	02	1	0801-			●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0801-	●	●
234	DOWEL; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-162-0	16	1	0801-			●
276	HUB & DRUM ASM	1-42311-158-0	02	1	0801-1204	●	●
276	HUB & DRUM ASM FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42311-158-0	02	1	0801-1204			●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0801-	●	●
279	RING & WASHER; LK,BRG NUT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-022-0	02	1	0801-			●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0801-	●	●
280	BEARING SET; HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-012-0	02	1	0801-			●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0801-	●	●
281	BEARING SET; HUB,OUTER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-013-0	02	1	0801-			●

74 75 76 63 64 60 60 71 67 59 58 49 9 21 16 25 33 30 24 20 15 8 143 1 37 38 43 10 8 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0801-1204	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42315-419-0	02	1	0801-1204			●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D)	1-42315-422-0	02	1	1205-			●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-42315-358-0	02	1	0801-				●
1	DRUM; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42315-377-2	02	1	0801-			●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0801-				●
8	HUB; RR AXLE (C)	1-42311-164-0	02	1	1205-	●	●
8	HUB; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42311-164-0	02	1	1205-			●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-104-0	02	1	0801-				●
8	HUB; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42311-094-0	02	1	0801-			●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-085-0	02	1	0801-				●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0801-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42339-033-0	20	1	0801-			●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-			●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-				●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0801-				●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) SKF	1-09812-256-0	02	1	1209-			●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-				●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) BEST VALUE PARTS	1-87610-136-0	02	1	1209-			●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-				●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) JTEKT	1-09812-232-0	02	1	0801-			●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0801-				●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TKK	1-09625-444-0	02	1	0801-			●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0801-				●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-065-0	02	1	0801-			●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-067-0	02	1	0801-			●
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M88	9-09843-062-2	02	1	0801-			●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0801-				●
21	WASHER; LK,BRG NUT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) ID=88	9-09854-112-0	02	1	0801-			●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0801-				●
24	BOLT; LK WASHER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M6X16 FLANGE	0-28650-616-0	06	1	0801-			●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0801-				●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-375-0	02	1	0810-0910			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1050	8-98146-164-0	02	1	0911-			●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=951	1-42171-557-0	01	1	0801-			●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=1120	1-42171-558-0	01	1	0801-			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-355-0	02	1	0801-0809			●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0801-0809				●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0810-0910				●
25	SHAFT; AXLE,RR (B) L=1050	8-98146-168-0	02	1	0911-				●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M14X58	1-09000-582-0	20	1	0801-			●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0801-				●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0801-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42179-003-0	16	1	0801-			●
33	WASHER; AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=14.2	0-91510-814-0	20	1	0801-			●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0801-				●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) BEST VALUE PARTS	1-87610-138-0	02	1	0801-1208			●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0801-1208				●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) BEST VALUE PARTS	1-87610-138-0	04	1	1209-			●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	04	1	1209-				●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) SKF	1-09812-257-0	02	1	1209-			●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-				●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) JTEKT	1-09812-233-0	02	1	0801-			●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0801-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42319-172-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) NOK	1-09625-265-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) TKK	1-09625-350-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0801-				●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) OD=179	1-09587-057-0	02	1	0801-			●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0801-				●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) REAR STABILIZER SHAFT<F61> (B)	8-98127-483-0	01	1	0809-			●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) REAR STABILIZER SHAFT<F61> (B)	8-98127-485-0	01	1	0809-				●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98107-340-0	01	1	0809-				●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-728-0	01	1	0801-1306			●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-755-0	01	1	1307-			●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0801-1107	●	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●	●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98079-032-1	01	1	0801-0808			●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98079-032-1	01	1	0809-			●
49	CASE; RR AXLE (B)	8-98064-525-0	01	1	0801-0802				●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98064-525-0	01	1	0803-				●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0801-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-054-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-				●
59	GASKET; DRAIN PLUG FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) ID=26.8	9-09920-605-0	01	1	0801-			●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0801-				●
60	BREATHER; RR AXLE CASE (B)	1-09893-032-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-032-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-028-0	01	1	0801-1312			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-09893-028-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-011-1	01	1	0801-1412			●
60	BREATHER; RR AXLE CASE (A)	1-09893-011-1	01	1	0801-1412				●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-003-0	01	1	1501-			●
60	BREATHER; RR AXLE CASE (A)	1-09893-003-0	01	1	1501-				●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-135-0	02	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-054-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-				●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) ID=26.8	9-09920-605-0	01	1	0801-			●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0801-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-136-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X70	0-10956-670-0	04	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X40	0-20951-640-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	06	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	06	1	0801-				●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0801-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-41229-168-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=16.2	0-91510-816-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0801-				●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M14X50	1-09040-066-0	12	1	0801-			●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M14X80	9-92621-480-0	04	1	0801-1504			●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M14X60	1-09040-084-0	04	1	1505-			●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0801-0802				●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM(BFA) M14X50	1-09040-066-0	16	1	0803-				●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) ID=14.2	0-91510-814-0	16	1	0801-			●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0801-				●
76	NUT; RR BRK ASM SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M14	0-91110-514-0	16	1	0801-			●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0801-				●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●	●
143	RING; EXCITER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-224-0	02	1	1205-			●
143	RING; EXCITER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-42319-173-0	02	1	0801-			●

63 63 49 60 69 71 70 71 67 38 143 58 8 9 31 234 33 34 1 188 25 281 20 279 20 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRUM; BRK,RR (A)	1-42315-419-0	02	1	0801-1204	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42315-419-0	02	1	0801-1204			●
1	DRUM; BRK,RR (D)	1-42315-422-0	02	1	1205-	●	●
1	DRUM; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D)	1-42315-422-0	02	1	1205-			●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C)	1-42315-358-0	02	1	0801-				●
1	DRUM; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42315-377-2	02	1	0801-			●
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0801-				●
8	HUB; RR AXLE (C)	1-42311-164-0	02	1	1205-	●	●
8	HUB; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42311-164-0	02	1	1205-			●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-104-0	02	1	0801-				●
8	HUB; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-42311-094-0	02	1	0801-			●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-085-0	02	1	0801-				●
9	PIN; WHEEL,RR AXLE (A)	1-42339-033-0	20	1	0801-	●	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42339-033-0	20	1	0801-			●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0801-				●
9	PIN; WHEEL,RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-			●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22X93 RH THREAD	1-42337-066-2	20	1	0801-				●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-065-0	02	1	0801-			●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	0801-	●	●
20	NUT; BRG,RR HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-067-0	02	1	0801-			●
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M88	9-09843-062-2	02	1	0801-			●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0801-				●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-375-0	02	1	0810-0910			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1050	8-98146-164-0	02	1	0911-			●
25	SHAFT; AXLE,RR (A) L=951	1-42171-557-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=951	1-42171-557-0	01	1	0801-			●
25	SHAFT; AXLE,RR (A) L=1120	1-42171-558-0	01	1	0801-	●	●
25	SHAFT; AXLE,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) L=1120	1-42171-558-0	01	1	0801-			●
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) L=1054	1-42171-355-0	02	1	0801-0809			●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0801-0809				●
25	SHAFT; AXLE,RR (B) L=1054	1-42171-355-0	02	1	0810-0910				●
25	SHAFT; AXLE,RR (B) L=1050	8-98146-168-0	02	1	0911-				●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	0801-	●	●
31	STUD; AXLE SHAFT TO HUB FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-171-0	16	1	0801-			●
33	WASHER; AXLE SHAFT (A)	1-42179-003-0	16	1	0801-	●	●
33	WASHER; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42179-003-0	16	1	0801-			●
33	WASHER; AXLE SHAFT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=14.2	0-91510-814-0	20	1	0801-			●
33	WASHER; AXLE SHAFT (B) ID=14.2	0-91510-814-0	20	1	0801-				●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	0801-	●	●
34	NUT; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	16	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (A)	1-42319-172-0	02	1	0801-	●	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42319-172-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) NOK	1-09625-265-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) NOK	1-09625-265-0	02	1	0801-				●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) TKK	1-09625-350-0	02	1	0801-			●
38	SEAL; OIL,RR HUB,INNER (B) TKK	1-09625-350-0	02	1	0801-				●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) REAR STABILIZER SHAFT<F61> (B)	8-98127-483-0	01	1	0809-			●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) REAR STABILIZER SHAFT<F61> (B)	8-98127-485-0	01	1	0809-				●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM(BFA) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98107-340-0	01	1	0809-				●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-728-0	01	1	0801-1306			●
49	CASE; RR AXLE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-42190-755-0	01	1	1307-			●
49	CASE; RR AXLE (A)	1-42190-729-0	01	1	0801-1107	●	●
49	CASE; RR AXLE (A)	1-42190-743-0	01	1	1108-1306	●	●
49	CASE; RR AXLE (A)	1-42190-754-0	01	1	1307-	●	●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	8-98079-032-1	01	1	0801-0808			●
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) EXC. REAR STABILIZER SHAFT<F61> (B)	8-98079-032-1	01	1	0809-			●
49	CASE; RR AXLE (B)	8-98064-525-0	01	1	0801-0802				●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98064-525-0	01	1	0803-				●
58	PLUG; DRAIN,AXLE CASE (A)	1-42129-054-0	01	1	0801-	●	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42129-054-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-			●
58	PLUG; DRAIN,AXLE CASE (B) M24X17 FLANGE	1-09604-023-0	01	1	0801-				●
60	BREATHER; RR AXLE CASE (B)	1-09893-032-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-032-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	0801-1312	●	●
60	BREATHER; RR AXLE CASE AUSTRALIA EQUIPMENT(RR3) (B)	1-09893-028-0	01	1	0801-1312			●
60	BREATHER; RR AXLE CASE (B)	1-09893-028-0	01	1	1401-	●	●
60	BREATHER; RR AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-09893-028-0	01	1	1401-			●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-011-1	01	1	0801-1412			●
60	BREATHER; RR AXLE CASE (A)	1-09893-011-1	01	1	0801-1412				●
60	BREATHER; RR AXLE CASE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09893-003-0	01	1	1501-			●
60	BREATHER; RR AXLE CASE (A)	1-09893-003-0	01	1	1501-				●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-135-0	02	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	0801-	●	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-42129-054-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-			●
63	PLUG; OIL FILLER,AXLE CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (A)	1-42119-136-0	08	1	0801-	●	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-42119-136-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X70	0-10956-670-0	04	1	0801-			●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) M16X40	0-20951-640-0	08	1	0801-			●
67	BOLT; FINAL DRIVE SETTING (B) M16X70	0-10956-670-0	06	1	0801-				●
67	BOLT; FINAL DRIVE SETTING (B) M16X40	0-20951-640-0	06	1	0801-				●
69	STUD; AXLE CASE L=120.65	1-42119-184-0	04	1	0801-	●	●
69	STUD; AXLE CASE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) L=120.65	1-42119-184-0	04	1	0801-			●
70	NUT; CARRIER	1-42179-005-0	04	1	0801-	●	●
70	NUT; CARRIER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-005-0	04	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (A)	1-41229-168-0	12	1	0801-	●	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-41229-168-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) ID=16.2	0-91510-816-0	12	1	0801-			●
71	WASHER; LK,FINAL DRIVE SETTING (B) ID=16.2	0-91510-816-0	12	1	0801-				●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●	●
143	RING; EXCITER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-224-0	02	1	1205-			●
143	RING; EXCITER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-42319-173-0	02	1	0801-			●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	0801-	●	●
188	GASKET; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42175-013-0	02	1	0801-			●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	0801-	●	●
234	DOWEL; AXLE SHAFT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42319-162-0	16	1	0801-			●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	0801-	●	●
279	RING & WASHER; LK,BRG NUT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-42179-022-0	02	1	0801-			●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	0801-	●	●
280	BEARING SET; HUB,INNER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-012-0	02	1	0801-			●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	0801-	●	●
281	BEARING SET; HUB,OUTER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-85573-013-0	02	1	0801-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
