Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#57175) — 250 parça

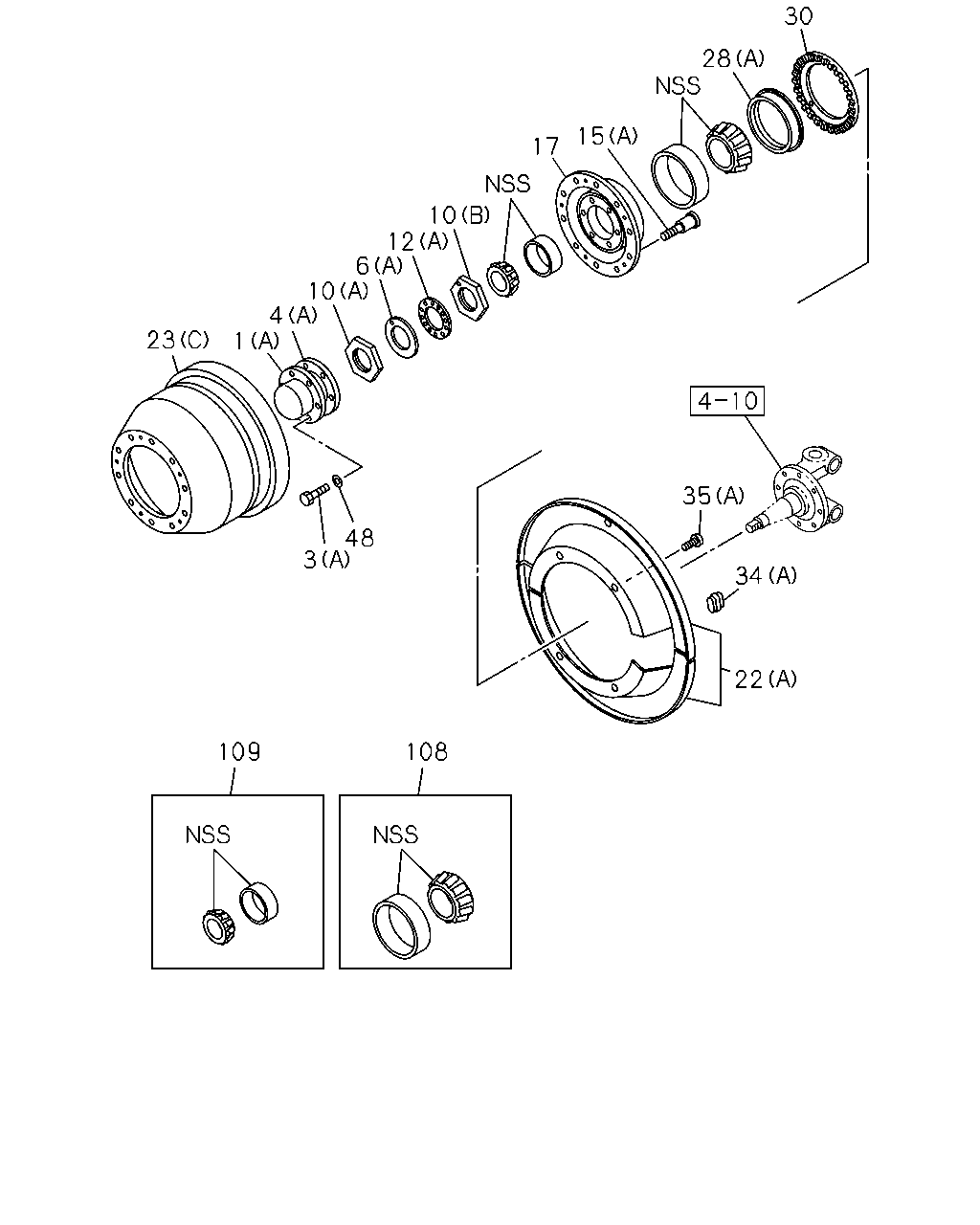

109 108 22 34 35 3 23 48 1 4 10 6 12 10 17 15 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0801-1507	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42313-028-0	02	1	0801-1507			●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-296-0	02	1	1508-			●
1	CAP; HUB,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156	9-42313-123-2	02	1	0801-			●
1	CAP; HUB,FRT AXLE (B) OD=156	9-42313-123-2	02	1	0801-				●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0801-	●	●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-189-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-				●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0801-1507	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-186-0	02	1	0801-1507			●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-302-0	02	1	1508-			●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42319-185-2	02	1	0801-			●
4	GASKET; HUB CAP,FRT WHEEL (B)	1-42319-185-2	02	1	0801-				●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0801-	●	●
6	WASHER; LK,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-018-0	02	1	0801-			●
6	WASHER; LK,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98084-561-0	02	1	0801-			●
6	WASHER; LK,FRT HUB (B) ID=48	8-98084-561-0	02	1	0801-				●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-016-0	02	1	0801-			●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (B)	1-42329-017-0	02	1	0801-			●
10	NUT; FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48	1-09840-012-5	02	1	0801-			●
10	NUT; FRT HUB BRG (C) M48	1-09840-012-5	02	1	0801-				●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0801-	●	●
12	WASHER; LK,FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-015-0	02	1	0801-			●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	1-09533-016-0	02	1	0801-0911			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	1-09533-016-0	02	1	0801-0911				●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98156-755-0	02	1	0912-			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	8-98156-755-0	02	1	0912-				●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0801-	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42337-063-0	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-				●
17	HUB; FRT AXLE	1-42311-163-0	02	1	1205-	●	●
17	HUB; FRT AXLE FRONT AXLE MERITOR FG941(BFL)	1-42311-163-0	02	1	1205-			●
17	HUB; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42312-160-0	02	1	0801-			●
17	HUB; FRT AXLE	1-42312-160-0	02	1	0801-				●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0801-	●	●
22	COVER SET; FRT BRK DRUM FRONT AXLE MERITOR FG941(BFL) (A)	1-47151-708-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-225-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM (B)	1-87831-225-0	02	1	0801-				●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0801-1204	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-42315-378-0	02	1	0801-1204			●
23	DRUM; BRK,FRT (C)	1-42315-420-0	02	1	1205-	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (C)	1-42315-420-0	02	1	1205-			●
23	DRUM; BRK,FRT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42315-365-0	02	1	0801-			●
23	DRUM; BRK,FRT (B)	1-42315-365-0	02	1	0801-				●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0801-	●	●
28	SEAL; OIL,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-636-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140	1-09625-041-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB (B) OD=140	1-09625-041-0	02	1	0801-				●
30	RING; EXCITER,FRT HUB	1-42319-223-0	02	1	1205-	●	●
30	RING; EXCITER,FRT HUB FRONT AXLE MERITOR FG941(BFL)	1-42319-223-0	02	1	1205-			●
30	RING; EXCITER,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42319-203-0	02	1	0801-0803			●
30	RING; EXCITER,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42319-203-0	02	1	0804-			●
30	RING; EXCITER,FRT HUB	1-42319-203-0	02	1	0804-				●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0801-	●	●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-87050-011-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-09333-151-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER (B)	1-09333-151-0	04	1	0801-				●
35	BOLT; DRUM COVER (A)	1-47159-176-0	12	1	0801-	●	●
35	BOLT; DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-47159-176-0	12	1	0801-			●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-583-0	04	1	0801-0805			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-583-0	04	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-789-0	04	1	0806-			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	0806-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12	1-47159-187-0	12	1	0801-			●
35	BOLT; DRUM COVER (D) M10X12	1-47159-187-0	12	1	0801-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	9-92061-845-0	08	1	0801-0805			●
35	BOLT; DRUM COVER (B) M18X45	9-92061-845-0	08	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	1-09000-790-0	08	1	0806-			●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	0806-				●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0801-1507	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL)	1-42319-190-0	12	1	0801-1507			●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-41519-055-0	12	1	1508-	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL)	1-41519-055-0	12	1	1508-			●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0801-	●	●
108	BEARING SET; HUB,INNER FRONT AXLE MERITOR FG941(BFL)	1-85573-010-0	02	1	0801-			●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0801-	●	●
109	BEARING SET; HUB,OUTER FRONT AXLE MERITOR FG941(BFL)	1-85573-011-0	02	1	0801-			●

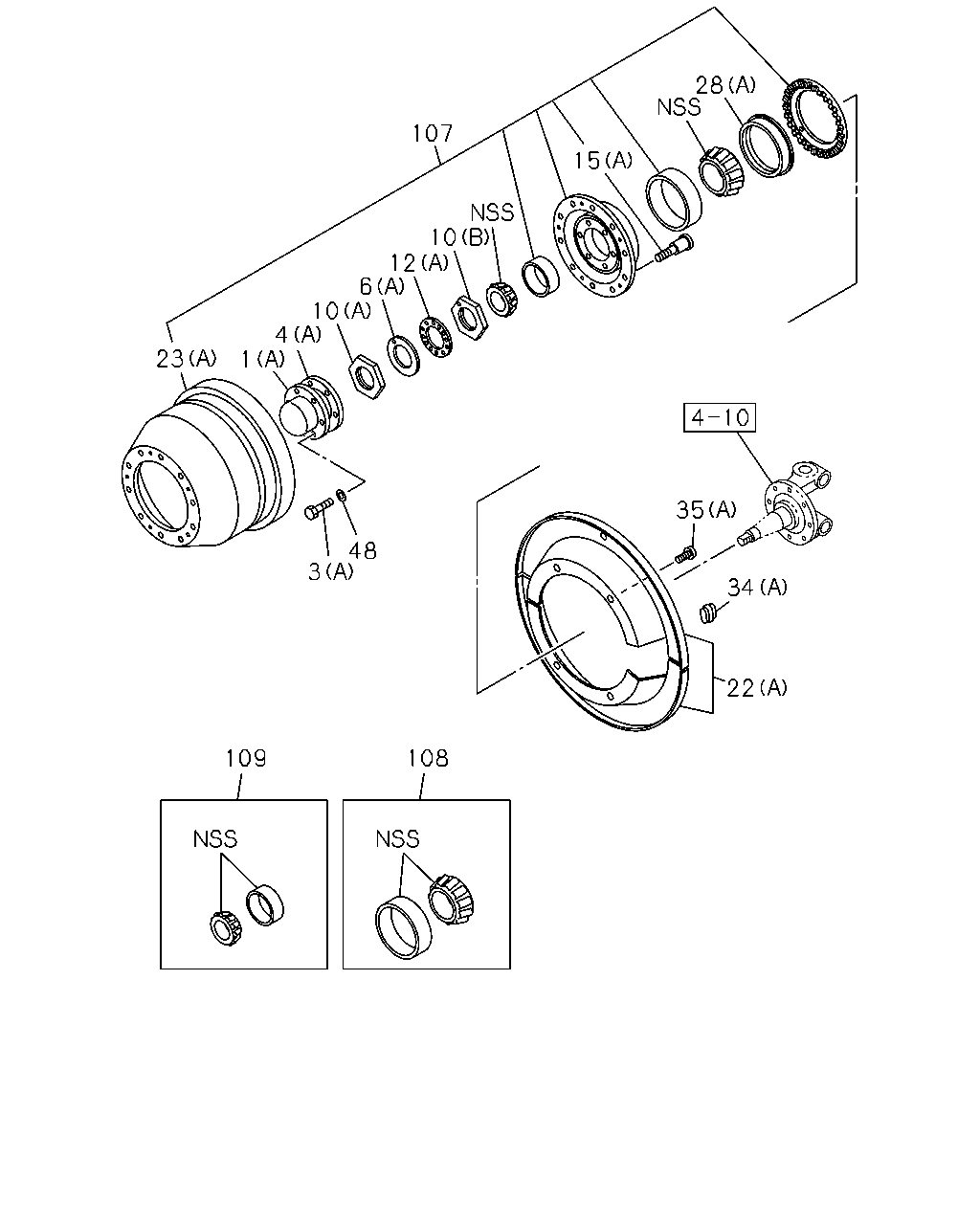

107 23 1 10 4 6 12 10 15 28 3 109 108 48 35 34 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0801-1507	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42313-028-0	02	1	0801-1507			●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-296-0	02	1	1508-			●
1	CAP; HUB,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156	9-42313-123-2	02	1	0801-			●
1	CAP; HUB,FRT AXLE (B) OD=156	9-42313-123-2	02	1	0801-				●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0801-	●	●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-189-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-				●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0801-1507	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-186-0	02	1	0801-1507			●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-302-0	02	1	1508-			●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42319-185-2	02	1	0801-			●
4	GASKET; HUB CAP,FRT WHEEL (B)	1-42319-185-2	02	1	0801-				●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0801-	●	●
6	WASHER; LK,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-018-0	02	1	0801-			●
6	WASHER; LK,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98084-561-0	02	1	0801-			●
6	WASHER; LK,FRT HUB (B) ID=48	8-98084-561-0	02	1	0801-				●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-016-0	02	1	0801-			●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (B)	1-42329-017-0	02	1	0801-			●
10	NUT; FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48	1-09840-012-5	02	1	0801-			●
10	NUT; FRT HUB BRG (C) M48	1-09840-012-5	02	1	0801-				●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0801-	●	●
12	WASHER; LK,FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-015-0	02	1	0801-			●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	1-09533-016-0	02	1	0801-0911			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	1-09533-016-0	02	1	0801-0911				●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98156-755-0	02	1	0912-			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	8-98156-755-0	02	1	0912-				●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0801-	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42337-063-0	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-				●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0801-	●	●
22	COVER SET; FRT BRK DRUM FRONT AXLE MERITOR FG941(BFL) (A)	1-47151-708-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-225-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM (B)	1-87831-225-0	02	1	0801-				●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0801-1204	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-42315-378-0	02	1	0801-1204			●
23	DRUM; BRK,FRT (C)	1-42315-420-0	02	1	1205-	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (C)	1-42315-420-0	02	1	1205-			●
23	DRUM; BRK,FRT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42315-365-0	02	1	0801-			●
23	DRUM; BRK,FRT (B)	1-42315-365-0	02	1	0801-				●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0801-	●	●
28	SEAL; OIL,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-636-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140	1-09625-041-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB (B) OD=140	1-09625-041-0	02	1	0801-				●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0801-	●	●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-87050-011-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-09333-151-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER (B)	1-09333-151-0	04	1	0801-				●
35	BOLT; DRUM COVER (A)	1-47159-176-0	12	1	0801-	●	●
35	BOLT; DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-47159-176-0	12	1	0801-			●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-583-0	04	1	0801-0805			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-583-0	04	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-789-0	04	1	0806-			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	0806-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12	1-47159-187-0	12	1	0801-			●
35	BOLT; DRUM COVER (D) M10X12	1-47159-187-0	12	1	0801-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	9-92061-845-0	08	1	0801-0805			●
35	BOLT; DRUM COVER (B) M18X45	9-92061-845-0	08	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	1-09000-790-0	08	1	0806-			●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	0806-				●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-42319-190-0	12	1	0801-1507	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL)	1-42319-190-0	12	1	0801-1507			●
48	WASHER; LK,HUB CAP,FRT WHEEL	1-41519-055-0	12	1	1508-	●	●
48	WASHER; LK,HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL)	1-41519-055-0	12	1	1508-			●
107	HUB & DRUM ASM	1-42311-152-0	02	1	0801-1204	●	●
107	HUB & DRUM ASM FRONT AXLE MERITOR FG941(BFL)	1-42311-152-0	02	1	0801-1204			●
108	BEARING SET; HUB,INNER	1-85573-010-0	02	1	0801-	●	●
108	BEARING SET; HUB,INNER FRONT AXLE MERITOR FG941(BFL)	1-85573-010-0	02	1	0801-			●
109	BEARING SET; HUB,OUTER	1-85573-011-0	02	1	0801-	●	●
109	BEARING SET; HUB,OUTER FRONT AXLE MERITOR FG941(BFL)	1-85573-011-0	02	1	0801-			●

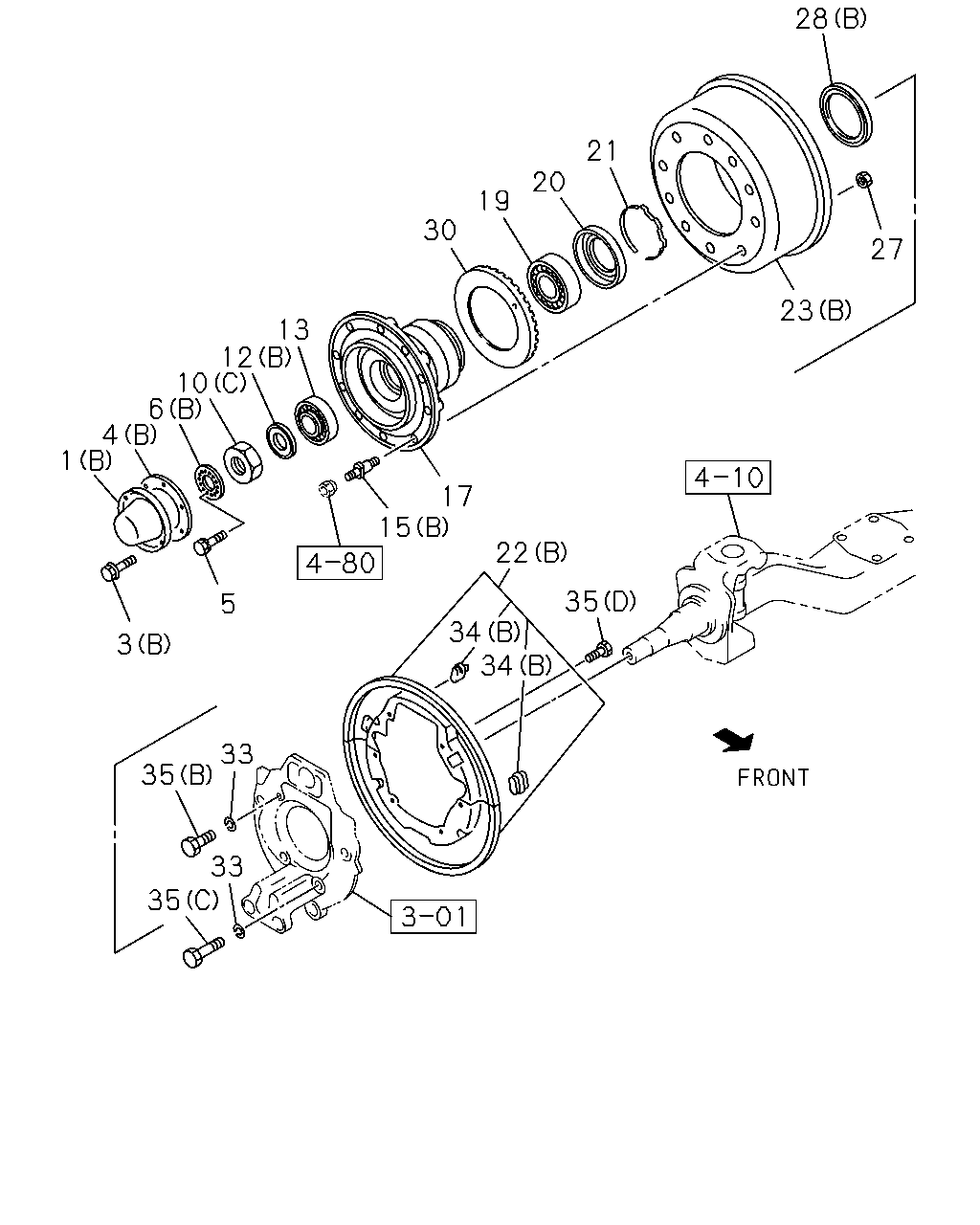

1 4 6 10 12 13 30 19 20 21 28 27 23 17 15 5 3 35 33 35 33 34 34 35 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAP; HUB,FRT AXLE (A)	1-42313-028-0	02	1	0801-1507	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42313-028-0	02	1	0801-1507			●
1	CAP; HUB,FRT AXLE (A)	8-98329-296-0	02	1	1508-	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-296-0	02	1	1508-			●
1	CAP; HUB,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=156	9-42313-123-2	02	1	0801-			●
1	CAP; HUB,FRT AXLE (B) OD=156	9-42313-123-2	02	1	0801-				●
3	BOLT; HUB CAP,FRT WHEEL (A)	1-42319-189-0	12	1	0801-	●	●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-189-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-			●
3	BOLT; HUB CAP,FRT WHEEL (B) M8X12 FLANGE	0-28050-812-0	12	1	0801-				●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-186-0	02	1	0801-1507	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	1-42319-186-0	02	1	0801-1507			●
4	GASKET; HUB CAP,FRT WHEEL (A)	8-98329-302-0	02	1	1508-	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE MERITOR FG941(BFL) (A)	8-98329-302-0	02	1	1508-			●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42319-185-2	02	1	0801-			●
4	GASKET; HUB CAP,FRT WHEEL (B)	1-42319-185-2	02	1	0801-				●
5	BOLT; LK WASHER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M6X16 HEX SOCKET	8-98084-271-0	04	1	0801-1201			●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0801-1201				●
5	BOLT; LK WASHER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-			●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-				●
6	WASHER; LK,FRT HUB (A)	1-42329-018-0	02	1	0801-	●	●
6	WASHER; LK,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-018-0	02	1	0801-			●
6	WASHER; LK,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98084-561-0	02	1	0801-			●
6	WASHER; LK,FRT HUB (B) ID=48	8-98084-561-0	02	1	0801-				●
10	NUT; FRT HUB BRG (A)	1-42329-016-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-016-0	02	1	0801-			●
10	NUT; FRT HUB BRG (B)	1-42329-017-0	02	1	0801-	●	●
10	NUT; FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (B)	1-42329-017-0	02	1	0801-			●
10	NUT; FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M48	1-09840-012-5	02	1	0801-			●
10	NUT; FRT HUB BRG (C) M48	1-09840-012-5	02	1	0801-				●
12	WASHER; LK,FRT HUB BRG (A)	1-42329-015-0	02	1	0801-	●	●
12	WASHER; LK,FRT HUB BRG FRONT AXLE MERITOR FG941(BFL) (A)	1-42329-015-0	02	1	0801-			●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	1-09533-016-0	02	1	0801-0911			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	1-09533-016-0	02	1	0801-0911				●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) ID=48	8-98156-755-0	02	1	0912-			●
12	WASHER; LK,FRT HUB BRG (B) ID=48	8-98156-755-0	02	1	0912-				●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) JTEKT	1-09812-234-0	02	1	0801-			●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0801-				●
15	PIN; WHEEL,FRT AXLE (A)	1-42337-063-0	20	1	0801-	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-42337-063-0	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-			●
15	PIN; WHEEL,FRT AXLE (B) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0801-				●
17	HUB; FRT AXLE	1-42311-163-0	02	1	1205-	●	●
17	HUB; FRT AXLE FRONT AXLE MERITOR FG941(BFL)	1-42311-163-0	02	1	1205-			●
17	HUB; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42312-160-0	02	1	0801-			●
17	HUB; FRT AXLE	1-42312-160-0	02	1	0801-				●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) JTEKT	1-09812-231-0	02	1	0801-			●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0801-				●
20	COVER; HUB BRG INNER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42319-039-0	02	1	0801-			●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0801-				●
21	RING; SNAP,HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-09587-017-0	02	1	0801-			●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0801-				●
22	COVER SET; FRT BRK DRUM (A)	1-47151-708-0	02	1	0801-	●	●
22	COVER SET; FRT BRK DRUM FRONT AXLE MERITOR FG941(BFL) (A)	1-47151-708-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-225-0	02	1	0801-			●
22	COVER SET; FRT BRK DRUM (B)	1-87831-225-0	02	1	0801-				●
23	DRUM; BRK,FRT (A)	1-42315-378-0	02	1	0801-1204	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-42315-378-0	02	1	0801-1204			●
23	DRUM; BRK,FRT (C)	1-42315-420-0	02	1	1205-	●	●
23	DRUM; BRK,FRT FRONT AXLE MERITOR FG941(BFL) (C)	1-42315-420-0	02	1	1205-			●
23	DRUM; BRK,FRT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-42315-365-0	02	1	0801-			●
23	DRUM; BRK,FRT (B)	1-42315-365-0	02	1	0801-				●
27	NUT; WHEEL PIN,FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22	1-09400-071-0	20	1	0801-			●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	0801-				●
28	SEAL; OIL,FRT HUB (A)	1-09625-636-0	02	1	0801-	●	●
28	SEAL; OIL,FRT HUB FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-636-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) OD=140	1-09625-041-0	02	1	0801-			●
28	SEAL; OIL,FRT HUB (B) OD=140	1-09625-041-0	02	1	0801-				●
30	RING; EXCITER,FRT HUB	1-42319-223-0	02	1	1205-	●	●
30	RING; EXCITER,FRT HUB FRONT AXLE MERITOR FG941(BFL)	1-42319-223-0	02	1	1205-			●
30	RING; EXCITER,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42319-203-0	02	1	0801-0803			●
30	RING; EXCITER,FRT HUB FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-42319-203-0	02	1	0804-			●
30	RING; EXCITER,FRT HUB	1-42319-203-0	02	1	0804-				●
33	WASHER; LK,DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) ID=18.2	0-91510-818-0	12	1	0801-			●
33	WASHER; LK,DRUM COVER ID=18.2	0-91510-818-0	12	1	0801-				●
34	COVER; CHECK HOLE,DRUM COVER (A)	1-87050-011-0	04	1	0801-	●	●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-87050-011-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-09333-151-0	04	1	0801-			●
34	COVER; CHECK HOLE,DRUM COVER (B)	1-09333-151-0	04	1	0801-				●
35	BOLT; DRUM COVER (A)	1-47159-176-0	12	1	0801-	●	●
35	BOLT; DRUM COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-47159-176-0	12	1	0801-			●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-583-0	04	1	0801-0805			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-583-0	04	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X65	1-09000-789-0	04	1	0806-			●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	0806-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) M10X12	1-47159-187-0	12	1	0801-			●
35	BOLT; DRUM COVER (D) M10X12	1-47159-187-0	12	1	0801-				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	9-92061-845-0	08	1	0801-0805			●
35	BOLT; DRUM COVER (B) M18X45	9-92061-845-0	08	1	0801-0805				●
35	BOLT; DRUM COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X45	1-09000-790-0	08	1	0806-			●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	0806-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
