Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#57174) — 609 parça

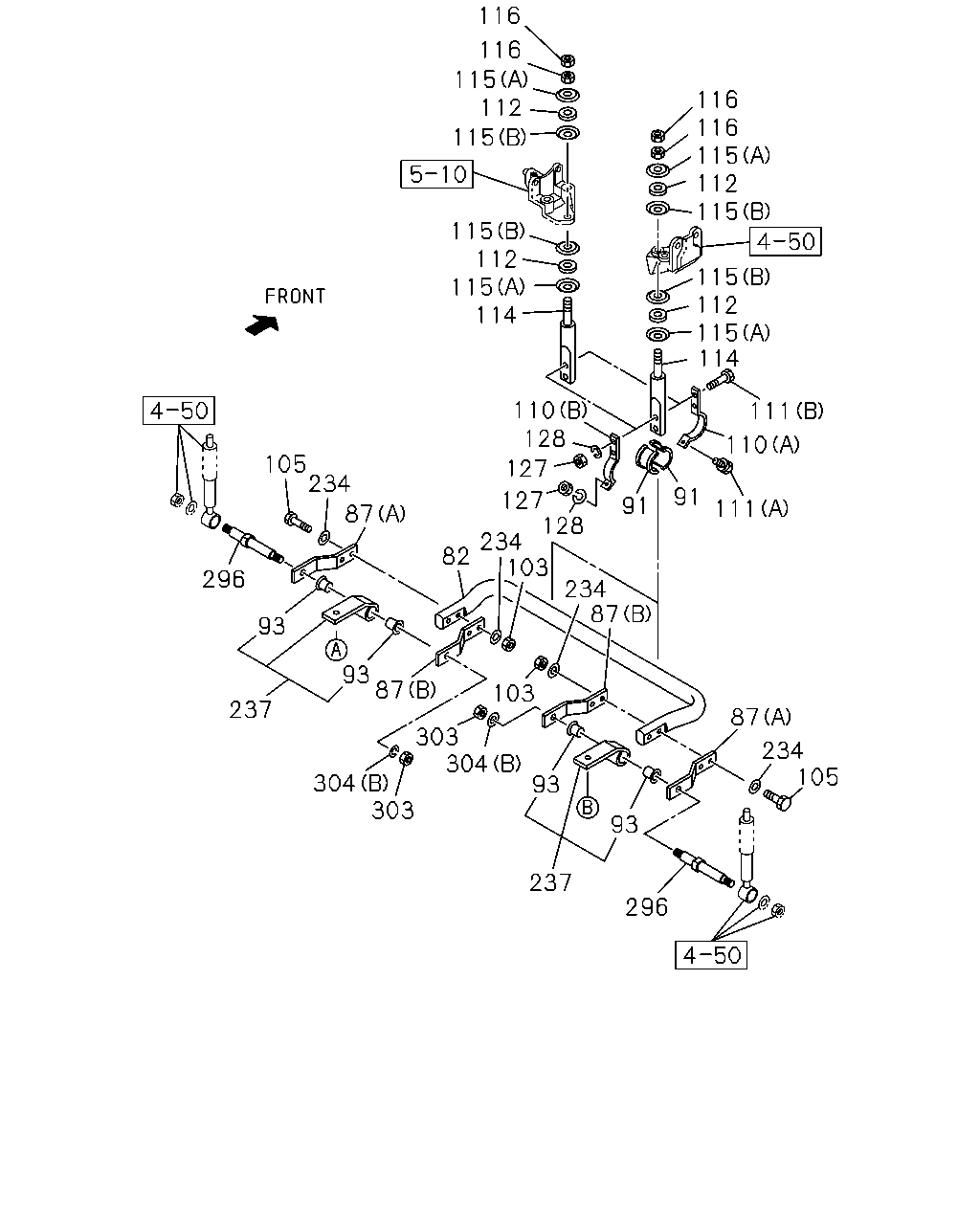

116 116 115 112 116 116 115 112 115 115 115 112 115 114 115 112 115 114 110 128 111 110 105 234 127 91 127 128 91 111 87 234 82 103 296 234 87 93 93 87 103 237 87 303 304 234 105 304 303 3 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-87831-111-7	02	1	0801-0801	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0801-0801		●
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-349-2	02	1	0802-	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	0801-			●	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	0801-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0801-0912	●	●	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-	●	●	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0801-0912	●	●	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-	●	●	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0801-			●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0801-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0801-	●	●	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0801-	●	●	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0801-0910	●	●	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-	●	●	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0801-	●	●	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0801-	●	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0801-0910	●	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-	●	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0801-0910	●	●	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-	●	●	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0801-	●	●	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	0801-	●	●	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0801-	●	●	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0801-	●	●	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0801-	●	●	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0801-	●	●	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0801-0912	●	●	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-	●	●	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0801-0910	●	●	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-	●	●	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0801-	●	●	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0801-0907	●	●	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-	●	●	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0801-	●	●	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0801-			●	●
304	WASHER; PL FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-011-0	02	1	0801-	●
304	WASHER; PL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=12.5	0-91614-512-0	04	1	0801-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	0801-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907	●	●	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●

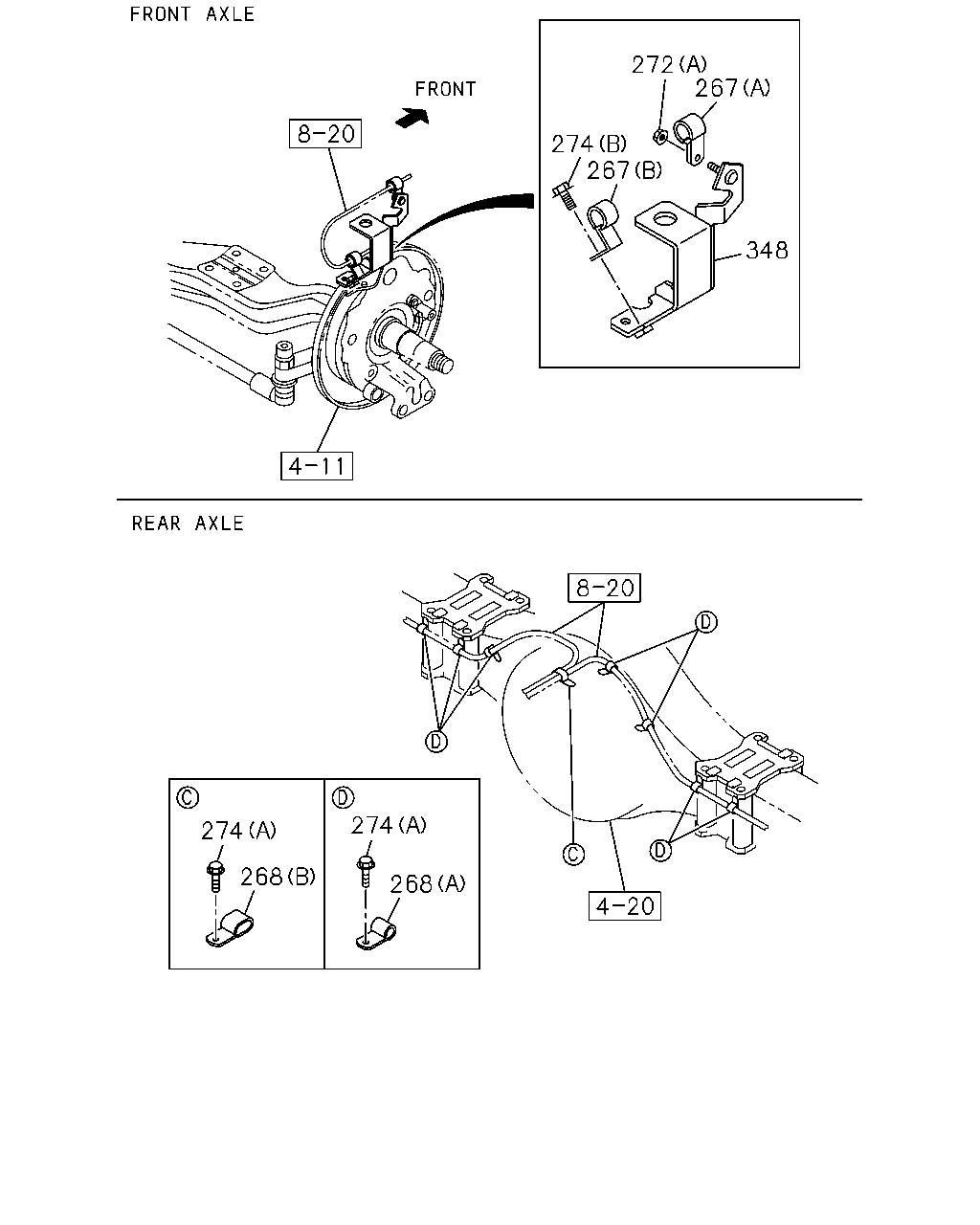

272 267 274 267 348 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0801-			●	●
267	CLIP; HARNESS FRONT AXLE MERITOR FG941(BFL) (A) ID=11 L=16	0-95235-025-0	02	1	0801-	●
267	CLIP; HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0801-			●	●
267	CLIP; HARNESS FRONT AXLE MERITOR FG941(BFL) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0801-	●
267	CLIP; HARNESS FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=11 L=20	0-95235-035-0	02	1	0801-0803	●
267	CLIP; HARNESS FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=11 L=20	0-95235-035-0	02	1	0804-	●
267	CLIP; HARNESS (C) ID=11 L=20	0-95235-035-0	02	1	0804-		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11X2 L=16	0-95325-025-0	01	1	0809-		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=30	1-09700-511-0	02	1	0809-		●
268	CLIP; HARNESS FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) ID=11 L=20	0-95235-035-0	08	1	0801-0808	●
268	CLIP; HARNESS FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) ID=11 L=20	0-95235-035-0	08	1	0809-	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=20	0-95235-035-0	08	1	0809-		●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0801-			●	●
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	02	1	0801-			●	●
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) ID=11 L=20	0-95235-035-0	09	1	0801-	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0801-			●	●
272	NUT; CLIP FRONT AXLE MERITOR FG941(BFL) (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●
272	NUT; CLIP FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10 FLANGE	0-91180-110-0	04	1	0801-0803	●
272	NUT; CLIP FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10 FLANGE	0-91180-110-0	04	1	0804-	●
272	NUT; CLIP (B) M10 FLANGE	0-91180-110-0	04	1	0804-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) M8X10 FLANGE	0-28050-810-0	11	1	0809-		●
274	BOLT; CLIP FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) M8X10 FLANGE	0-28050-810-0	08	1	0801-	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●		●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0801-			●	●
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) M8X10 FLANGE	0-28050-810-0	09	1	0801-	●
348	BRACKET; CLIP	8-98072-899-1	01	1	0801-			●	●
348	BRACKET; CLIP FRONT AXLE MERITOR FG941(BFL)	8-98072-899-1	01	1	0801-	●
348	BRACKET; CLIP	8-98072-900-1	01	1	0801-			●	●
348	BRACKET; CLIP FRONT AXLE MERITOR FG941(BFL)	8-98072-900-1	01	1	0801-	●

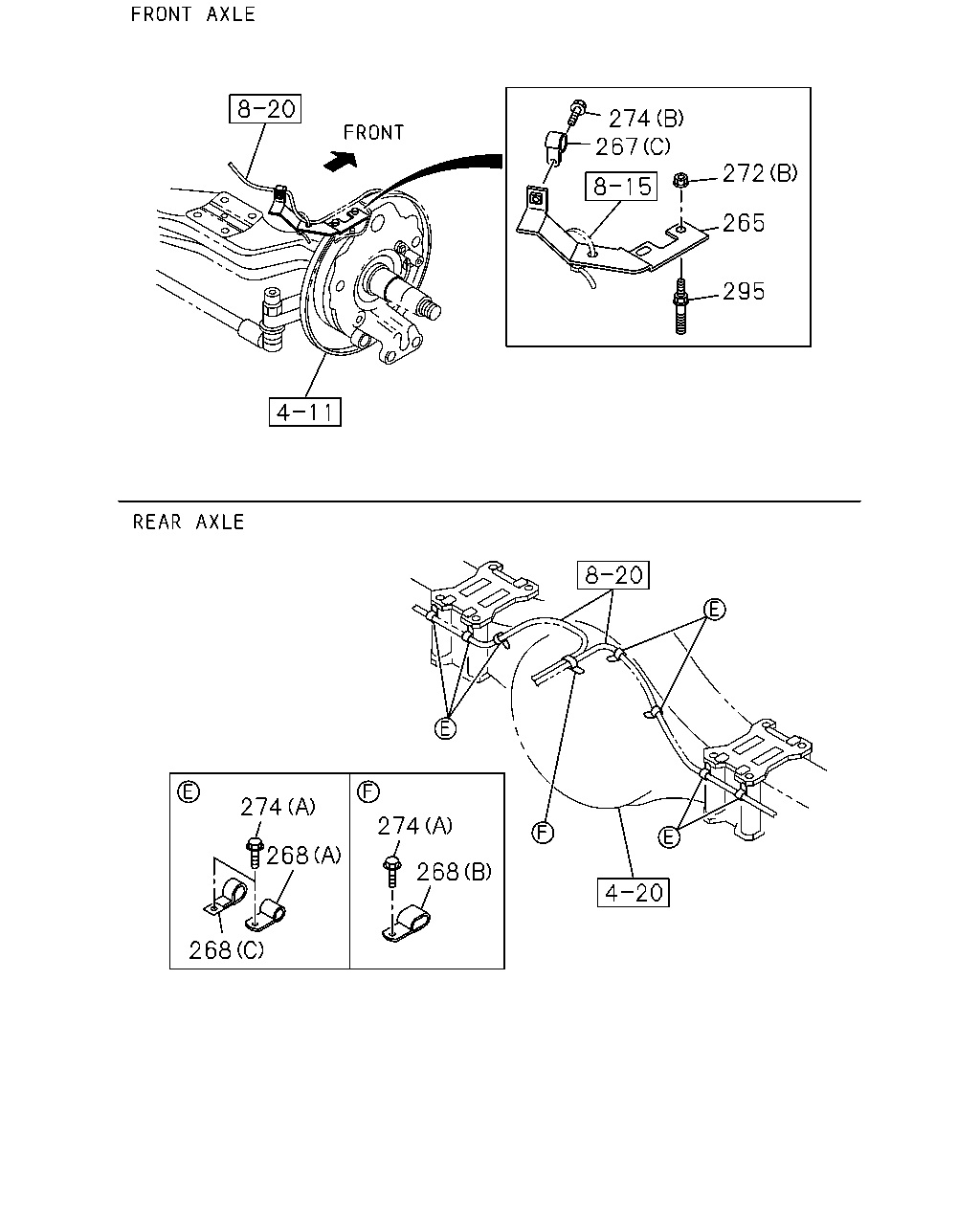

274 267 272 265 295 274 274 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
265	BRACKET; CLIP I BEAM	1-82698-505-0	01	1	0804-		●
265	BRACKET; CLIP I BEAM	1-82698-506-0	01	1	0804-		●
265	BRACKET; CLIP I BEAM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-82698-426-0	01	1	0801-	●
265	BRACKET; CLIP I BEAM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-82698-427-0	01	1	0801-	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0801-			●	●
267	CLIP; HARNESS FRONT AXLE MERITOR FG941(BFL) (A) ID=11 L=16	0-95235-025-0	02	1	0801-	●
267	CLIP; HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0801-			●	●
267	CLIP; HARNESS FRONT AXLE MERITOR FG941(BFL) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0801-	●
267	CLIP; HARNESS FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=11 L=20	0-95235-035-0	02	1	0801-0803	●
267	CLIP; HARNESS FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=11 L=20	0-95235-035-0	02	1	0804-	●
267	CLIP; HARNESS (C) ID=11 L=20	0-95235-035-0	02	1	0804-		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11X2 L=16	0-95325-025-0	01	1	0809-		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=30	1-09700-511-0	02	1	0809-		●
268	CLIP; HARNESS FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) ID=11 L=20	0-95235-035-0	08	1	0801-0808	●
268	CLIP; HARNESS FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) ID=11 L=20	0-95235-035-0	08	1	0809-	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=20	0-95235-035-0	08	1	0809-		●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0801-			●	●
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	02	1	0801-			●	●
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) ID=11 L=20	0-95235-035-0	09	1	0801-	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0801-			●	●
272	NUT; CLIP FRONT AXLE MERITOR FG941(BFL) (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●
272	NUT; CLIP FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10 FLANGE	0-91180-110-0	04	1	0801-0803	●
272	NUT; CLIP FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10 FLANGE	0-91180-110-0	04	1	0804-	●
272	NUT; CLIP (B) M10 FLANGE	0-91180-110-0	04	1	0804-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) M8X10 FLANGE	0-28050-810-0	11	1	0809-		●
274	BOLT; CLIP FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) M8X10 FLANGE	0-28050-810-0	08	1	0801-	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0801-	●		●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0801-			●	●
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) M8X10 FLANGE	0-28050-810-0	09	1	0801-	●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0801-0803	●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-		●

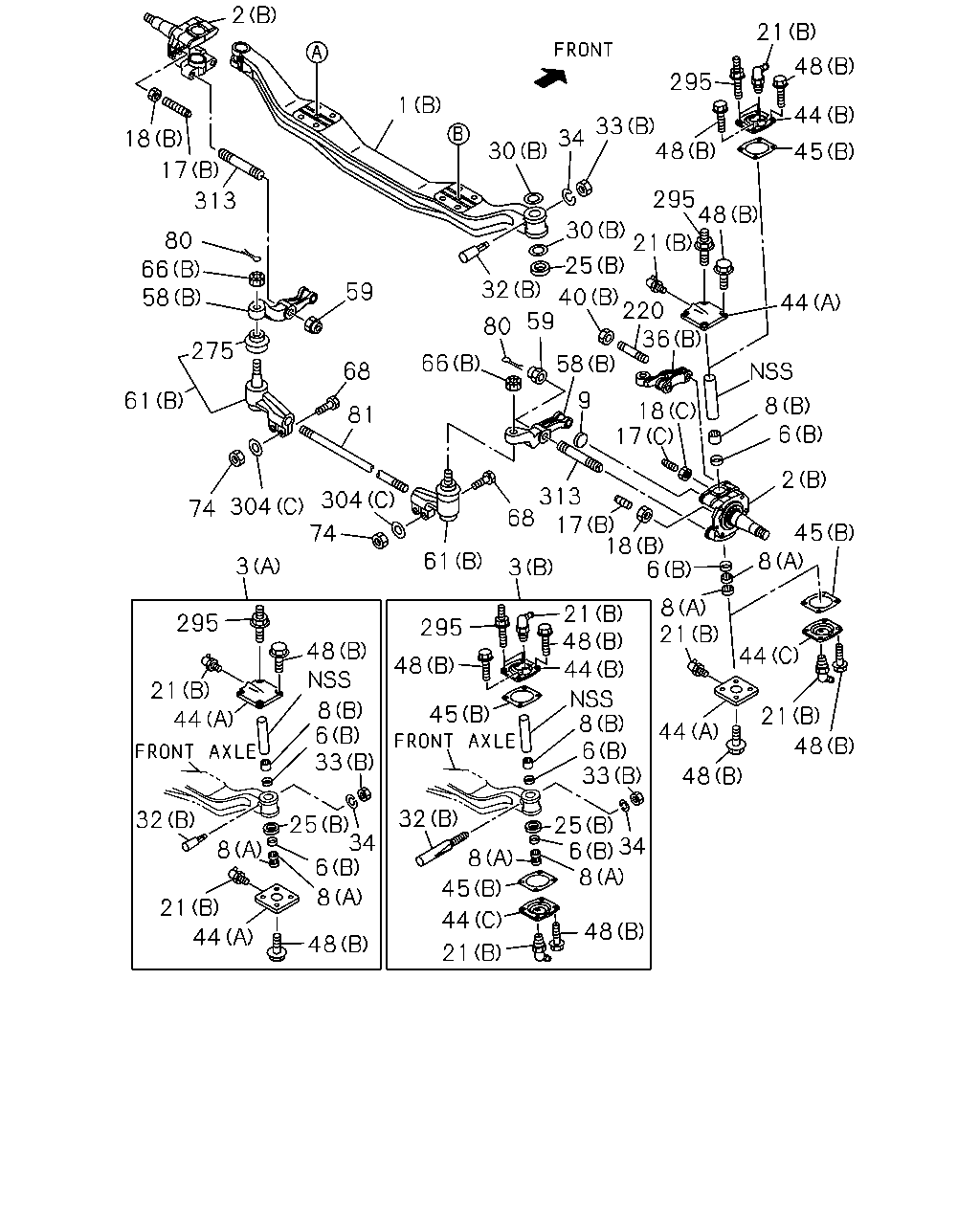

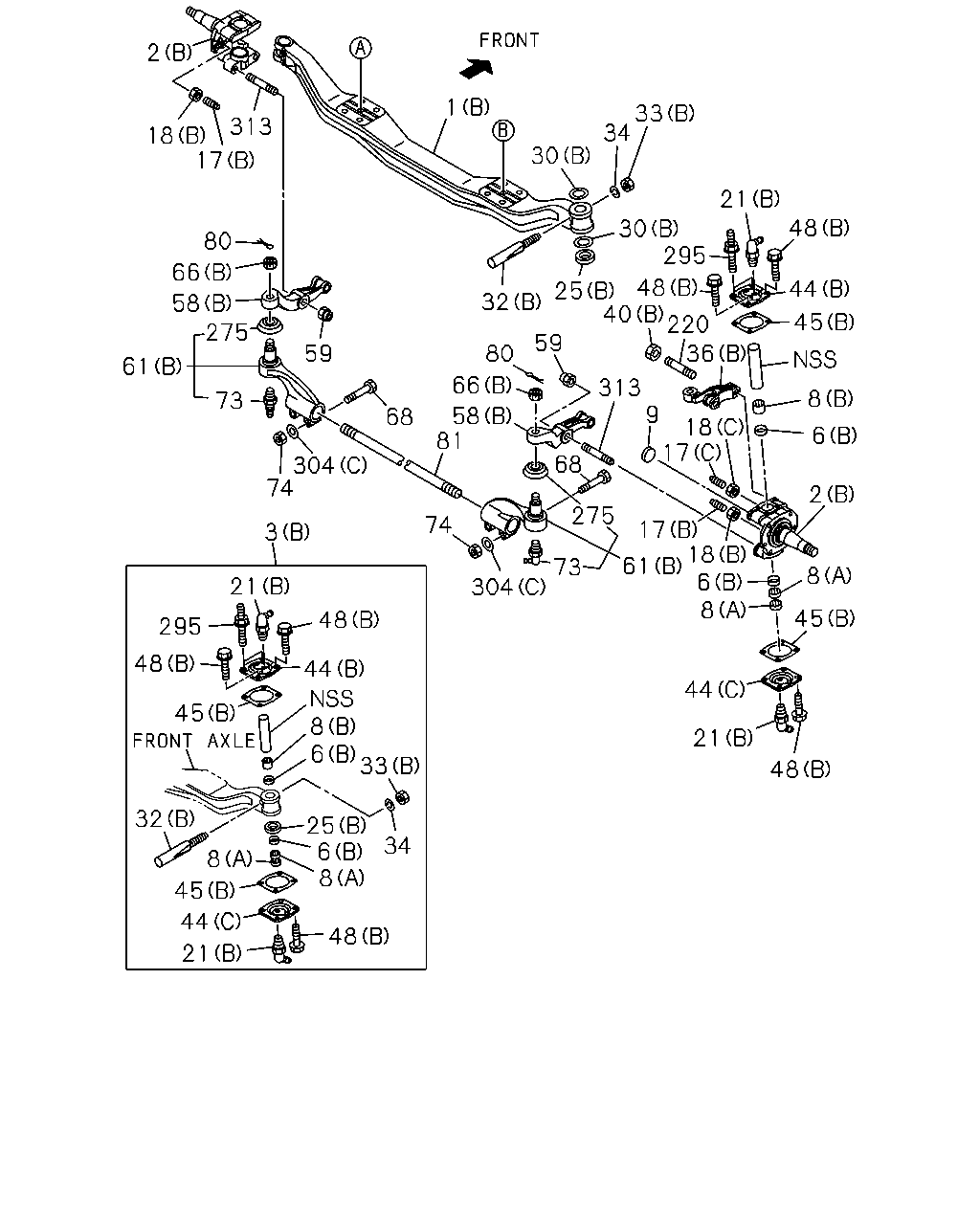

2 1 33 34 313 18 17 30 21 48 30 295 80 66 25 48 40 220 36 44 32 58 275 45 59 59 80 61 66 313 9 8 73 18 17 58 81 68 6 68 304 74 2 275 74 17 18 61 6 8 3 73 304 8 21 45 48 295 48 44 45 44 8 6 33 21 48 32 25 6 8 34 8 45 44 48 21

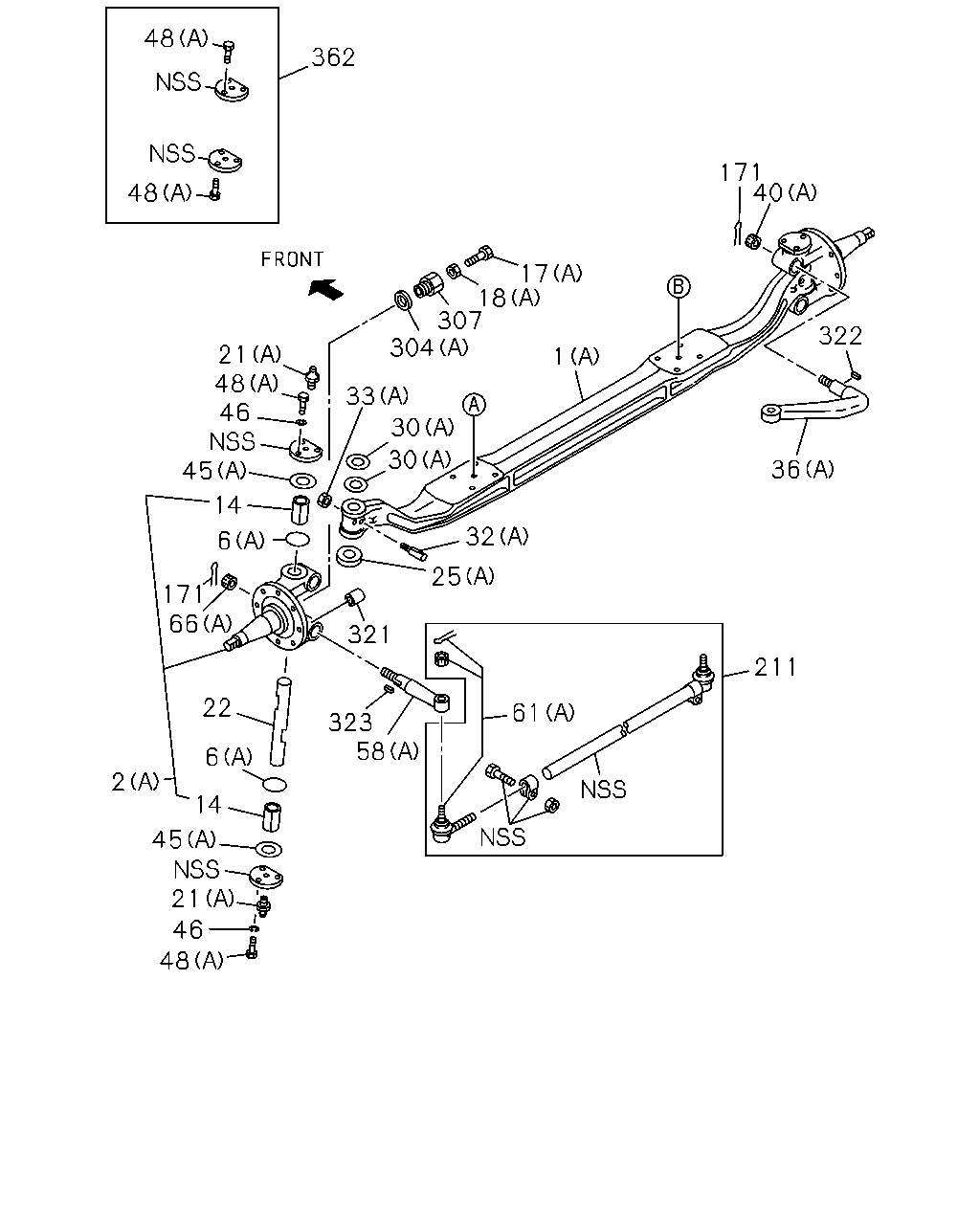

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT FRONT AXLE F075(FH5) (B)	1-43111-178-3	01	1	0801-	●	●
1	AXLE; FRT (A)	1-43111-167-0	01	1	0801-			●	●
1	AXLE; FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-43111-167-0	01	1	0801-	●
1	AXLE; FRT FRONT AXLE F066(FAU) (B)	1-43111-177-4	01	1	0801-	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0801-			●	●
2	KNUCKLE; FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43131-108-0	01	1	0801-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0801-			●	●
2	KNUCKLE; FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43132-107-0	01	1	0801-	●
2	KNUCKLE; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43131-118-1	01	1	0801-	●
2	KNUCKLE; FRT AXLE (B)	1-43131-118-1	01	1	0801-		●
2	KNUCKLE; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43132-101-1	01	1	0801-	●
2	KNUCKLE; FRT AXLE (B)	1-43132-101-1	01	1	0801-		●
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-87831-111-7	02	1	0801-0801	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0801-0801		●
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-349-2	02	1	0802-	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0801-			●	●
6	SEAL; KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-634-0	04	1	0801-	●
6	SEAL; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	9-09926-024-0	04	1	0801-	●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0801-		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) NTN	9-00096-242-0	04	1	0801-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0801-		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) NTN	9-00096-243-0	02	1	0801-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0801-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0801-0803		●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0801-			●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-014-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X53	1-09009-066-0	01	1	0801-	●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0801-		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X43	1-09009-190-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0801-			●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-013-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18	0-91110-518-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) OCTAGON M18	1-09469-011-1	01	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0801-		●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0801-			●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-48259-253-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-		●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0801-			●	●
25	BEARING; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-43173-004-0	02	1	0801-	●
25	BEARING; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) NSK	1-09829-043-2	02	1	0801-	●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0801-		●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.015"	1-43171-338-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.010"	1-43171-339-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.005"	1-43171-340-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-		●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=98.4	1-43116-014-0	02	1	0801-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=3.25"	1-43116-006-0	02	1	0801-	●
32	BOLT; KEY,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43116-002-2	02	1	0801-	●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0801-		●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0801-			●	●
33	NUT; KEY BOLT FRONT AXLE MERITOR FG941(BFL) (A)	1-43119-002-0	04	1	0801-	●
33	NUT; KEY BOLT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10	0-91110-510-0	02	1	0801-	●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0801-		●
34	WASHER; LK,KEY BOLT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) ID=10.2	0-91510-510-0	02	1	0801-	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0801-		●
36	ARM; KNUCKLE (A)	1-43133-088-0	01	1	0801-			●	●
36	ARM; KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43133-088-0	01	1	0801-	●
36	ARM; KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98061-893-0	01	1	0801-	●
36	ARM; KNUCKLE (B)	8-98061-893-0	01	1	0801-		●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0801-			●	●
40	NUT; KNUCKLE ARM FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-059-0	01	1	0801-	●
40	NUT; KNUCKLE ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22	1-09449-084-0	02	1	0801-	●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0801-		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-43175-025-0	04	1	0801-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0801-0801		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0801-			●	●
45	GASKET; KING PIN COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-044-0	04	1	0801-	●
45	GASKET; KING PIN COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-		●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0801-			●	●
48	BOLT; COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-045-0	12	1	0801-	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0801-0803	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-	●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	16	1	0801-0803		●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43134-061-0	01	1	0801-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43135-066-0	01	1	0801-	●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43134-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0801-		●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43135-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0801-		●
59	NUT; TIE ROD ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22	1-09449-084-0	04	1	0801-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0801-		●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43155-058-0	01	1	0801-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43156-058-0	01	1	0801-	●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-851-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-853-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0801-			●	●
66	NUT; TIE ROD END FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-052-0	02	1	0801-	●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805	●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805		●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24	1-09442-032-0	02	1	0806-	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M12X65	8-98053-922-0	04	1	0801-	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0801-		●
73	NIPPLE; GREASE,TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43159-133-0	02	1	1010-	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-		●
74	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M12	0-91110-512-0	04	1	0801-	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0801-		●
80	PIN; SPLIT,ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) OD=4.6 L=35	0-81125-035-0	02	1	0801-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0801-		●
81	ROD; TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43151-154-0	01	1	0801-1009	●
81	ROD; TIE	1-43151-154-0	01	1	0801-1009		●
81	ROD; TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98105-064-0	01	1	1010-	●
81	ROD; TIE	8-98105-064-0	01	1	1010-		●
220	STUD; KNUCKLE ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22X145	1-09300-127-1	02	1	0801-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0801-		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43159-107-0	02	1	0801-1009	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0801-1009		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98229-116-0	02	1	1307-	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-		●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0801-0803	●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-		●
304	WASHER; PL (A)	1-43149-011-0	02	1	0801-			●	●
304	WASHER; PL FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-011-0	02	1	0801-	●
304	WASHER; PL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=12.5	0-91614-512-0	04	1	0801-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	0801-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907	●	●	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
313	STUD; TIE ROD ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22X145	1-09300-127-1	04	1	0801-	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0801-		●

21 48 295 1 44 33 48 34 18 30 45 17 295 48 30 21 25 313 80 32 66 58 59 40 220 59 36 44 80 275 66 58 68 18 17 9 61 8 6 81 313 68 17 18 6 304 304 74 74 45 61 8 3 3 8 21 21 48 44 295 295 48 44 48 21 8 6 33 8 6 33 45 21 44 44 48 48 32 32 25 34 6 25 34 6 8 8 8 45 8 21 44 48 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT FRONT AXLE F075(FH5) (B)	1-43111-178-3	01	1	0801-	●	●
1	AXLE; FRT (A)	1-43111-167-0	01	1	0801-			●	●
1	AXLE; FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-43111-167-0	01	1	0801-	●
1	AXLE; FRT FRONT AXLE F066(FAU) (B)	1-43111-177-4	01	1	0801-	●	●
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-87831-111-7	02	1	0801-0801	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0801-0801		●
3	KING PIN SET FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-87831-349-2	02	1	0802-	●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0801-			●	●
6	SEAL; KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-634-0	04	1	0801-	●
6	SEAL; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	9-09926-024-0	04	1	0801-	●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0801-		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) NTN	9-00096-242-0	04	1	0801-	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0801-		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) NTN	9-00096-243-0	02	1	0801-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0801-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0801-0803		●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0801-			●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-014-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X53	1-09009-066-0	01	1	0801-	●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0801-		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X43	1-09009-190-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0801-			●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-013-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18	0-91110-518-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) OCTAGON M18	1-09469-011-1	01	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0801-		●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0801-			●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-48259-253-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-		●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0801-			●	●
25	BEARING; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-43173-004-0	02	1	0801-	●
25	BEARING; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) NSK	1-09829-043-2	02	1	0801-	●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0801-		●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.015"	1-43171-338-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.010"	1-43171-339-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.005"	1-43171-340-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-		●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=98.4	1-43116-014-0	02	1	0801-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=3.25"	1-43116-006-0	02	1	0801-	●
32	BOLT; KEY,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43116-002-2	02	1	0801-	●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0801-		●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0801-			●	●
33	NUT; KEY BOLT FRONT AXLE MERITOR FG941(BFL) (A)	1-43119-002-0	04	1	0801-	●
33	NUT; KEY BOLT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10	0-91110-510-0	02	1	0801-	●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0801-		●
34	WASHER; LK,KEY BOLT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) ID=10.2	0-91510-510-0	02	1	0801-	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0801-		●
36	ARM; KNUCKLE (A)	1-43133-088-0	01	1	0801-			●	●
36	ARM; KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43133-088-0	01	1	0801-	●
36	ARM; KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98061-893-0	01	1	0801-	●
36	ARM; KNUCKLE (B)	8-98061-893-0	01	1	0801-		●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0801-			●	●
40	NUT; KNUCKLE ARM FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-059-0	01	1	0801-	●
40	NUT; KNUCKLE ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22	1-09449-084-0	02	1	0801-	●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0801-		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-43175-025-0	04	1	0801-0801	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0801-0801		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98100-654-0	02	1	0802-	●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
44	COVER; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0801-			●	●
45	GASKET; KING PIN COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-044-0	04	1	0801-	●
45	GASKET; KING PIN COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-		●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0801-			●	●
48	BOLT; COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-045-0	12	1	0801-	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0801-0803	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-	●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	16	1	0801-0803		●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43134-061-0	01	1	0801-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43135-066-0	01	1	0801-	●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43134-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0801-		●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43135-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0801-		●
59	NUT; TIE ROD ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22	1-09449-084-0	04	1	0801-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0801-		●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43155-058-0	01	1	0801-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43156-058-0	01	1	0801-	●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-851-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-853-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0801-			●	●
66	NUT; TIE ROD END FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-052-0	02	1	0801-	●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805	●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805		●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24	1-09442-032-0	02	1	0806-	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M12X65	8-98053-922-0	04	1	0801-	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0801-		●
74	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M12	0-91110-512-0	04	1	0801-	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0801-		●
80	PIN; SPLIT,ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) OD=4.6 L=35	0-81125-035-0	02	1	0801-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0801-		●
81	ROD; TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43151-154-0	01	1	0801-1009	●
81	ROD; TIE	1-43151-154-0	01	1	0801-1009		●
81	ROD; TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98105-064-0	01	1	1010-	●
81	ROD; TIE	8-98105-064-0	01	1	1010-		●
220	STUD; KNUCKLE ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22X145	1-09300-127-1	02	1	0801-	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0801-		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43159-107-0	02	1	0801-1009	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0801-1009		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306		●
275	BOOT; ROD END,TIE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98229-116-0	02	1	1307-	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-		●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0801-0803	●
295	STUD; COVER,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0804-		●
304	WASHER; PL (A)	1-43149-011-0	02	1	0801-			●	●
304	WASHER; PL FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-011-0	02	1	0801-	●
304	WASHER; PL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=12.5	0-91614-512-0	04	1	0801-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	0801-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907	●	●	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
313	STUD; TIE ROD ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M22X145	1-09300-127-1	04	1	0801-	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0801-		●

48 362 171 40 48 322 17 18 307 304 21 48 46 45 1 33 30 30 36 14 32 6 25 171 66 321 211 22 61 323 58 6 2 14 45 21 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT FRONT AXLE F075(FH5) (B)	1-43111-178-3	01	1	0801-	●	●
1	AXLE; FRT (A)	1-43111-167-0	01	1	0801-			●	●
1	AXLE; FRT FRONT AXLE MERITOR FG941(BFL) (A)	1-43111-167-0	01	1	0801-	●
1	AXLE; FRT FRONT AXLE F066(FAU) (B)	1-43111-177-4	01	1	0801-	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0801-			●	●
2	KNUCKLE; FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43131-108-0	01	1	0801-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0801-			●	●
2	KNUCKLE; FRT AXLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43132-107-0	01	1	0801-	●
2	KNUCKLE; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43131-118-1	01	1	0801-	●
2	KNUCKLE; FRT AXLE (B)	1-43131-118-1	01	1	0801-		●
2	KNUCKLE; FRT AXLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43132-101-1	01	1	0801-	●
2	KNUCKLE; FRT AXLE (B)	1-43132-101-1	01	1	0801-		●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0801-			●	●
6	SEAL; KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-09625-634-0	04	1	0801-	●
6	SEAL; KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	9-09926-024-0	04	1	0801-	●
6	SEAL; KING PIN (B)	9-09926-024-0	04	1	0801-		●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0801-			●	●
14	BUSHING; KING PIN FRONT AXLE MERITOR FG941(BFL)	1-43149-015-0	04	1	0801-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0801-			●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-014-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) M18X53	1-09009-066-0	01	1	0801-	●
17	BOLT; STOPPER KNUCKLE (C) M18X53	1-09009-066-0	01	1	0801-		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18X43	1-09009-190-0	02	1	0801-	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0801-			●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-013-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M18	0-91110-518-0	02	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0801-		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) OCTAGON M18	1-09469-011-1	01	1	0801-	●
18	NUT; STOPPER BOLT,KNUCKLE (C) OCTAGON M18	1-09469-011-1	01	1	0801-		●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0801-			●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-48259-253-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0801-		●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0801-			●	●
22	PIN; KING,FRT AXLE FRONT AXLE MERITOR FG941(BFL)	1-43161-016-0	02	1	0801-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0801-			●	●
25	BEARING; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A)	1-43173-004-0	02	1	0801-	●
25	BEARING; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) NSK	1-09829-043-2	02	1	0801-	●
25	BEARING; THRUST,KING PIN (B) NSK	1-09829-043-2	02	1	0801-		●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.015"	1-43171-338-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.010"	1-43171-339-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0801-			●	●
30	WASHER; THRUST,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) T=0.005"	1-43171-340-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.875 -4.900	1-43171-185-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.900 -4.925	1-43171-186-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.925 -4.950	1-43171-187-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.950 -4.975	1-43171-188-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=4.975 -5.000	1-43171-189-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.000 -5.025	1-43171-190-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.025 -5.050	1-43171-191-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.050 -5.075	1-43171-192-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.075 -5.100	1-43171-193-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.100 -5.125	1-43171-194-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.125 -5.150	1-43171-195-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.150 -5.175	1-43171-196-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.175 -5.200	1-43171-197-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.200 -5.225	1-43171-198-0	AR	1	0801-		●
30	WASHER; THRUST,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-	●
30	WASHER; THRUST,KING PIN (B) T=5.225 -5.250	1-43171-199-0	AR	1	0801-		●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=98.4	1-43116-014-0	02	1	0801-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0801-			●	●
32	BOLT; KEY,KING PIN FRONT AXLE MERITOR FG941(BFL) (A) L=3.25"	1-43116-006-0	02	1	0801-	●
32	BOLT; KEY,KING PIN FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43116-002-2	02	1	0801-	●
32	BOLT; KEY,KING PIN (B)	1-43116-002-2	02	1	0801-		●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0801-			●	●
33	NUT; KEY BOLT FRONT AXLE MERITOR FG941(BFL) (A)	1-43119-002-0	04	1	0801-	●
33	NUT; KEY BOLT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10	0-91110-510-0	02	1	0801-	●
33	NUT; KEY BOLT (B) M10	0-91110-510-0	02	1	0801-		●
36	ARM; KNUCKLE (A)	1-43133-088-0	01	1	0801-			●	●
36	ARM; KNUCKLE FRONT AXLE MERITOR FG941(BFL) (A)	1-43133-088-0	01	1	0801-	●
36	ARM; KNUCKLE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98061-893-0	01	1	0801-	●
36	ARM; KNUCKLE (B)	8-98061-893-0	01	1	0801-		●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0801-			●	●
40	NUT; KNUCKLE ARM FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-059-0	01	1	0801-	●
40	NUT; KNUCKLE ARM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M22	1-09449-084-0	02	1	0801-	●
40	NUT; KNUCKLE ARM (B) M22	1-09449-084-0	02	1	0801-		●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0801-			●	●
45	GASKET; KING PIN COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-044-0	04	1	0801-	●
45	GASKET; KING PIN COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (B)	8-98100-656-1	04	1	0802-		●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0801-			●	●
46	WASHER; LK,COVER FRONT AXLE MERITOR FG941(BFL)	1-41519-055-0	12	1	0801-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0801-			●	●
48	BOLT; COVER FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-045-0	12	1	0801-	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0801-0803	●
48	BOLT; COVER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-	●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	12	1	0804-		●
48	BOLT; COVER (B) M10X25 FLANGE	0-28751-025-0	16	1	0801-0803		●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43134-061-0	01	1	0801-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0801-			●	●
58	ARM; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43135-066-0	01	1	0801-	●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43134-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43134-049-4	01	1	0801-		●
58	ARM; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-43135-049-4	01	1	0801-	●
58	ARM; TIE ROD (B)	1-43135-049-4	01	1	0801-		●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43155-058-0	01	1	0801-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0801-			●	●
61	ROD END; TIE ROD FRONT AXLE MERITOR FG941(BFL) (A)	1-43156-058-0	01	1	0801-	●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-851-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-851-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-753-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-106-0	01	1	1307-		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98054-853-0	01	1	0801-1009	●
61	ROD END; TIE ROD (B)	8-98054-853-0	01	1	0801-1009		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD (B)	8-98096-754-0	01	1	1010-1306		●
61	ROD END; TIE ROD FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (B)	8-98228-107-0	01	1	1307-		●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0801-			●	●
66	NUT; TIE ROD END FRONT AXLE MERITOR FG941(BFL) (A)	1-43139-052-0	02	1	0801-	●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805	●
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	0801-0805		●
66	NUT; TIE ROD END FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M24	1-09442-032-0	02	1	0806-	●
66	NUT; TIE ROD END (B) M24	1-09442-032-0	02	1	0806-		●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0801-			●	●
171	PIN; SPLIT,STRG ARM FRONT AXLE MERITOR FG941(BFL)	1-43139-048-0	03	1	0801-	●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0801-			●	●
211	ROD ASM; STEERING TIE ROD FRONT AXLE MERITOR FG941(BFL)	1-43150-861-0	01	1	0801-	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0801-			●	●
304	WASHER; PL FRONT AXLE MERITOR FG941(BFL) (A)	1-43149-011-0	02	1	0801-	●
304	WASHER; PL FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) ID=12.5	0-91614-512-0	04	1	0801-	●
304	WASHER; PL (C) ID=12.5	0-91614-512-0	04	1	0801-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907	●	●	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0801-			●	●
307	STOPPER; STEERING,RR FRONT AXLE MERITOR FG941(BFL)	1-43149-012-0	02	1	0801-	●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0801-			●	●
321	BUSHING; KNUCKLE FRONT AXLE MERITOR FG941(BFL)	1-42319-213-0	02	1	0801-	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0801-			●	●
322	KEY; KNUCKLE ARM FRONT AXLE MERITOR FG941(BFL)	1-43139-046-0	01	1	0801-	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0801-			●	●
323	KEY; TIE ROD ARM FRONT AXLE MERITOR FG941(BFL)	1-43139-046-0	02	1	0801-	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0801-			●	●
362	COVER SET; KING PIN FRONT AXLE MERITOR FG941(BFL)	1-43175-027-0	02	1	0801-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
