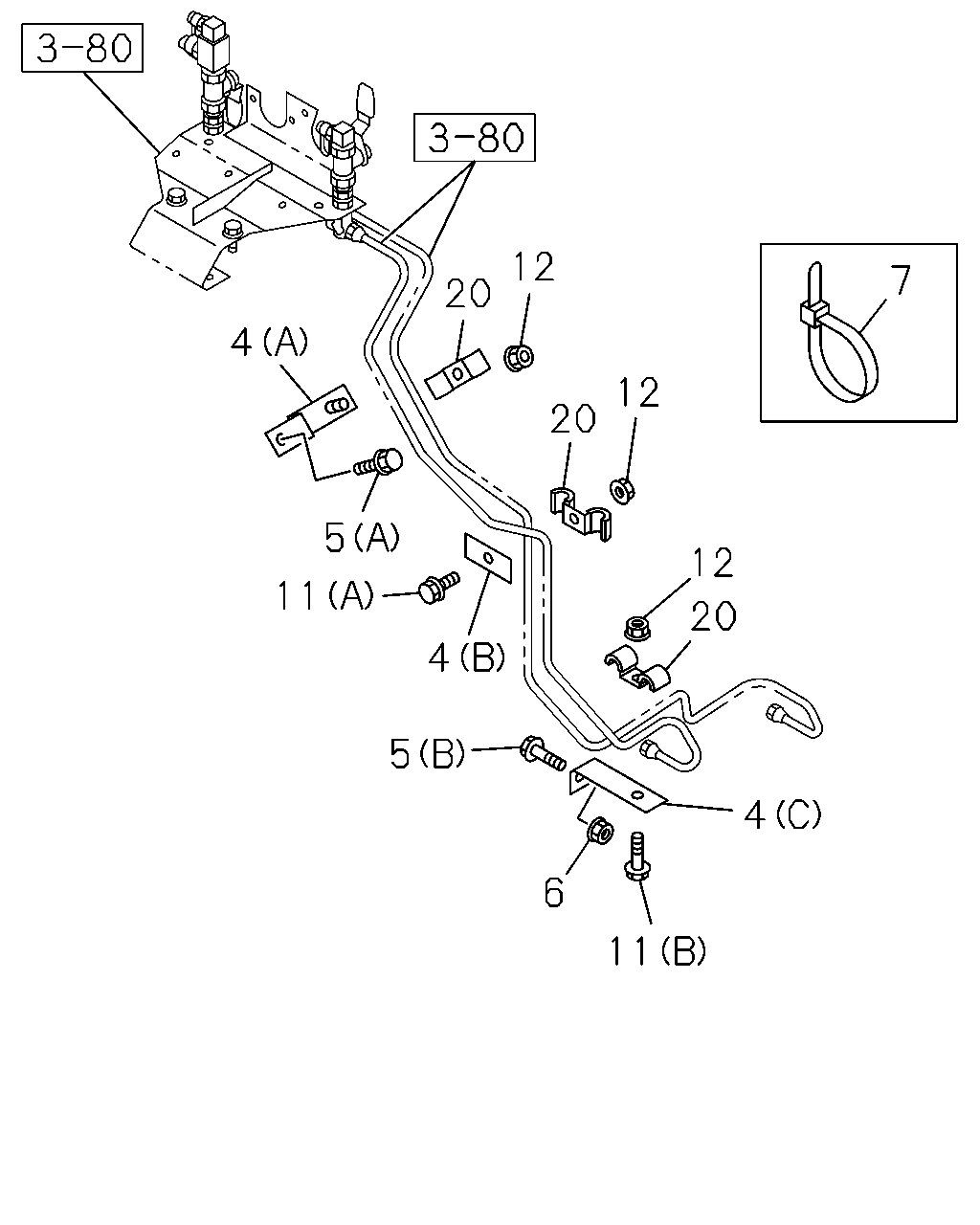

3-83 — FIXING PARTS; TRAILER PIPING
(#57172) — 21 parça
Tümü
A - GGD5MX
B - GGR5MX
12
7
20
4
12
20
5
12
11
20
4
5
4
6
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BRACKET; AIR PIPE
(B) L=50
1-47475-299-2
01
1
0801-0803
●
4
BRACKET; AIR PIPE
(B) L=50
1-47475-299-2
01
1
0804-
●
●
4
BRACKET; AIR PIPE
(C) L=90 B=25
1-47475-530-0
01
1
0801-0803
●
4
BRACKET; AIR PIPE
(C) L=90 B=25
1-47475-530-0
01
1
0804-
●
●
4
BRACKET; AIR PIPE
(A)
8-98100-296-0
01
1
0801-0803
●
4
BRACKET; AIR PIPE
(A)
8-98100-296-0
01
1
0804-
●
●
5
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
0801-0803
●
5
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
0804-
●
●
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
01
1
0801-0803
●
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
01
1
0804-
●
●
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0801-0803
●
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0804-
●
●
7
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1002-
●
11
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
0801-0803
●
11
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
0804-
●
●
11
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
0801-0803
●
11
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
0804-
●
●
12
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0801-0803
●
12
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0804-
●
●
20
CLIP; AIR PIPE
ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
0801-0803
●
20
CLIP; AIR PIPE
ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
0804-
●
●
