◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#57170) — 154 parça

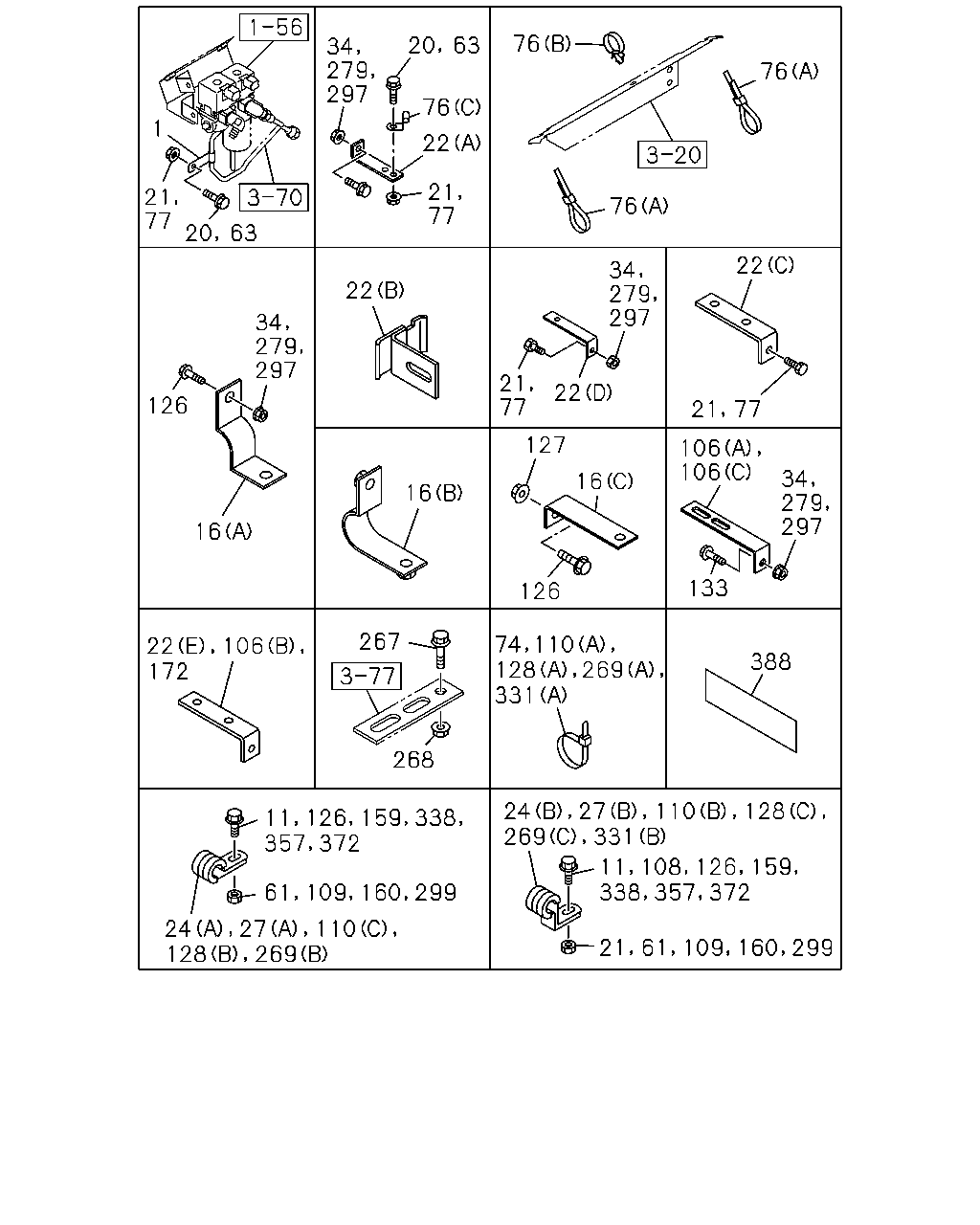

çizim 161013
76 20 63 34 279 297 76 76 1 22 21 77 21 77 76 20 63 22 34 279 297 22 34 279 297 21 77 22 126 127 106 106 34 279 297 16 16 16 133 126 267 331 22 172 106 388 268 110 128 11 11 61 110 21 77 74 110 128 269 126 159 338 357 372 109 160 299 24 27 128 269 24 27 269 331 108 126 159 338 357 372 21 61 109 160 299
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLIP; AIR PIPE
ID=7 L=40 		0-95234-675-0 01 1 0801- ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0804- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0804-0809 ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0810- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ● ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0809 ● ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0809 ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0809 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0809 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ● ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ● ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W) M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ●
16 BRACKET; PIPE CLIP
(A) 		1-47478-588-0 01 1 0801- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47478-589-0 01 1 0801-0806 ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-249-0 01 1 0807- ● ●
16 BRACKET; PIPE CLIP
(C) L=95 		1-82699-085-0 01 1 0801- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ● ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0807- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
22 BRACKET; CLIP
(E) L=90 		1-47477-755-1 01 1 0804- ●
22 BRACKET; CLIP
(A) L=95 		1-82698-557-0 01 1 0801- ● ● ● ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0803- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 0803- ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 02 1 0804-1101 ● ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ● ● ●
22 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 1201- ● ● ● ●
22 BRACKET; CLIP
(D) L=145 		1-47475-655-0 01 1 0801- ● ● ● ●
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0801- ● ● ● ●
24 CLIP; PIPE
(A) ID=25 L=50 		1-09701-019-0 03 1 0801- ● ● ● ●
27 CLIP; FLEX HOSE
(A) ID=24 L=27 		1-09700-809-0 01 1 0801-0802 ● ● ● ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0803- ● ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 0801- ● ● ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ● ● ●
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ● ● ● ●
74 CLIP; NYLON TUBE
AXLE-REAR MERITOR RS23-161<BGN> L=350 		1-09707-183-0 08 1 0810- ●
74 CLIP; NYLON TUBE
REAR AXLE R130<B5V> L=350 		1-09707-183-0 06 1 0804- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0804- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0801-0802 ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 0804- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0801- ● ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 0801- ● ● ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 0801- ● ● ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0801- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ● ● ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0804-0809 ● ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-47479-598-0 02 1 0807- ● ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 0804- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0801-0803 ● ● ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0804-0806 ● ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 0807- ● ● ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0801- ● ● ● ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 0801- ● ● ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0801-0802 ● ● ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0803-1201 ● ● ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1202- ● ● ●
108 BOLT; TUBE CLIP
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE 		0-28650-830-0 03 1 1202- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0801-0802 ● ● ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0803- ● ● ● ●
110 CLIP; BAND,NYLON TUBE
(C) ID=19 L=20 		0-95235-836-0 02 1 0801- ● ● ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0801-0802 ● ● ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0803-0803 ● ● ● ●
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 0804- ● ● ● ●
110 CLIP; BAND,NYLON TUBE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0801-0802 ● ● ● ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0801-0806 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0807-0809 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0806 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0807-0809 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
128 CLIP; NYLON TUBE
(B) ID=13 L=28 		0-95235-255-0 01 1 0804- ●
128 CLIP; NYLON TUBE
(B) ID=13 L=50 		1-09700-027-1 01 1 0804- ●
128 CLIP; NYLON TUBE
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0804- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 0801-0802 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0803-0805 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0806- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 0801- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0801-0809 ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0810- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0804- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0801-0803 ● ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0804- ● ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0801- ● ● ● ●
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
172 BRACKET; TUBE CLIP 1-47479-693-0 01 1 0801- ●
267 BOLT; CLIP BRKT
AXLE-REAR MERITOR RS23-161<BGN> M8X25 FLANGE 		0-28650-825-0 02 1 0801- ●
268 NUT; CLIP BRKT
AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE 		0-91180-108-0 02 1 0801- ●
269 CLIP; BAND,NYLON TUBE
AXLE-REAR MERITOR RS23-161<BGN> (A) L=350 		1-09707-183-0 28 1 0810- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0804- ● ●
269 CLIP; BAND,NYLON TUBE
REAR AXLE R130<B5V> (A) L=350 		1-09707-183-0 27 1 0804- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 19 1 0804- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 02 1 0801-0806 ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 0807- ● ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0803 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0804-0807 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0808- ● ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 23 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 22 1 0803-0807 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0801-0803 ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0801-0803 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0804- ● ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0804- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0801-0803 ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (B) ID=28 L=40 		1-09701-261-0 01 1 0801-0803 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 0804- ● ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (B) ID=28 L=40 		1-09701-261-0 01 1 0804- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 21 1 0801-0802 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0810- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0804- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0801-0803 ● ● ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0804-0809 ● ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0810- ● ●
297 NUT; BRKT
M12 		0-91110-512-0 02 1 0804- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ● ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0801- ● ● ● ●
331 CLIP; NYLON TUBE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0801- ● ● ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ● ● ●
357 BOLT; CLIP FIX
REAR AXLE R130<B5V> M8X10 FLANGE 		0-28050-810-0 01 1 0801- ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 0801- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0802- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ● ● ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0803 ● ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 0801- ● ● ● ●
