◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#5717) — 461 parça

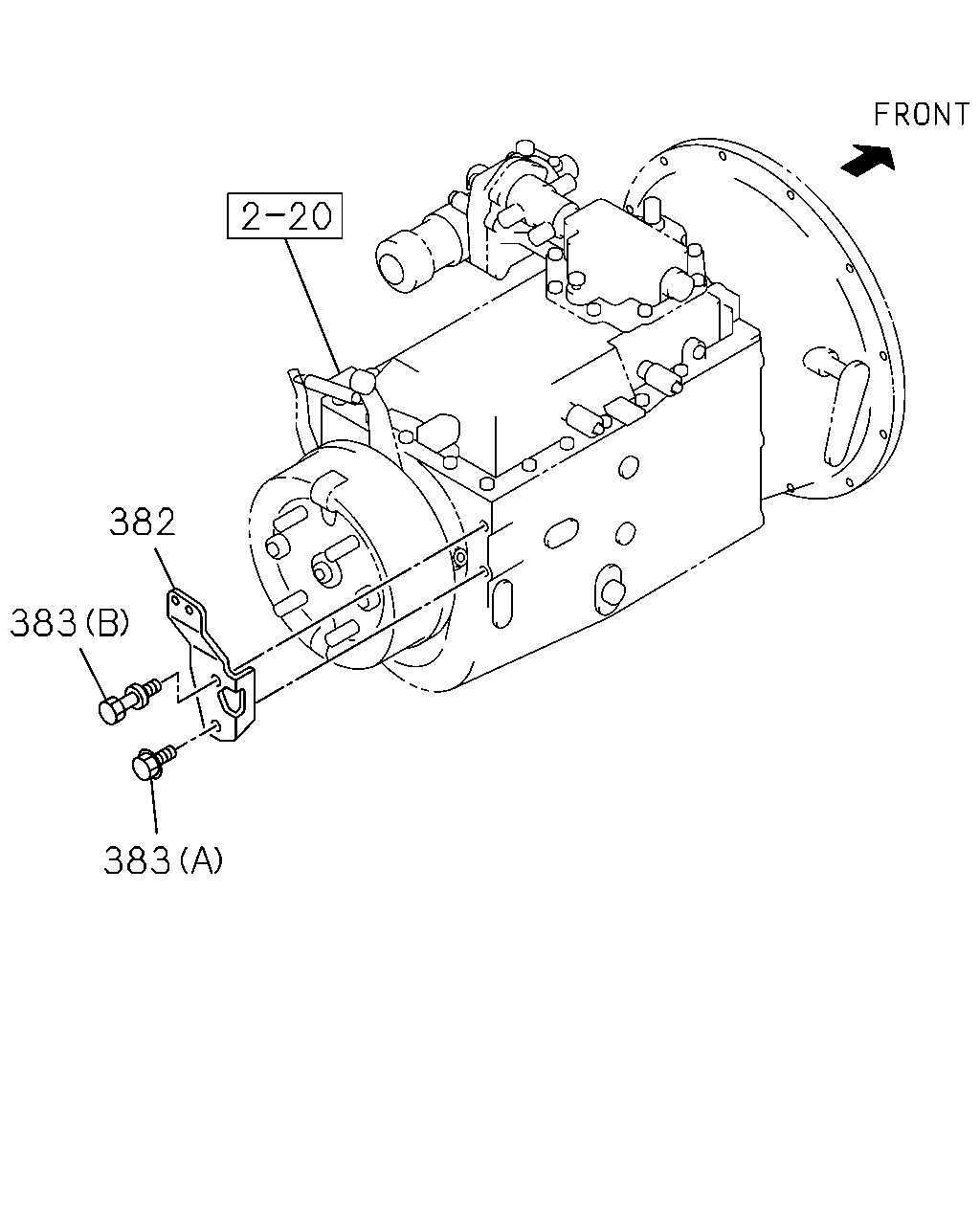

çizim 26409
382 383 383
BalonParca AdiParca NoAdetTipApplied Date A B C
382 BRACKET; PARKING BRK CONT CABLE 1-46147-109-0 01 1 9811-9904 ●
382 BRACKET; PARKING BRK CONT CABLE
FVR MIDDLE CHASSIS(FV****) 		1-46147-109-1 01 1 9905-0610 ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-268-0 01 1 0611- ●
382 BRACKET; PARKING BRK CONT CABLE
FRR MIDDLE CHASSIS(FR****) 		1-46147-223-0 01 1 9905-0610 ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-223-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(A) M14X25 FLANGE 		0-28851-425-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(B) 		1-46149-027-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(C) M10X22 FLANGE 		0-28181-022-0 03 1 9811-0610 ●
383 BOLT; BRKT,PARK BRAKE
(C) M10X22 FLANGE 		0-28181-022-0 03 1 0611- ●

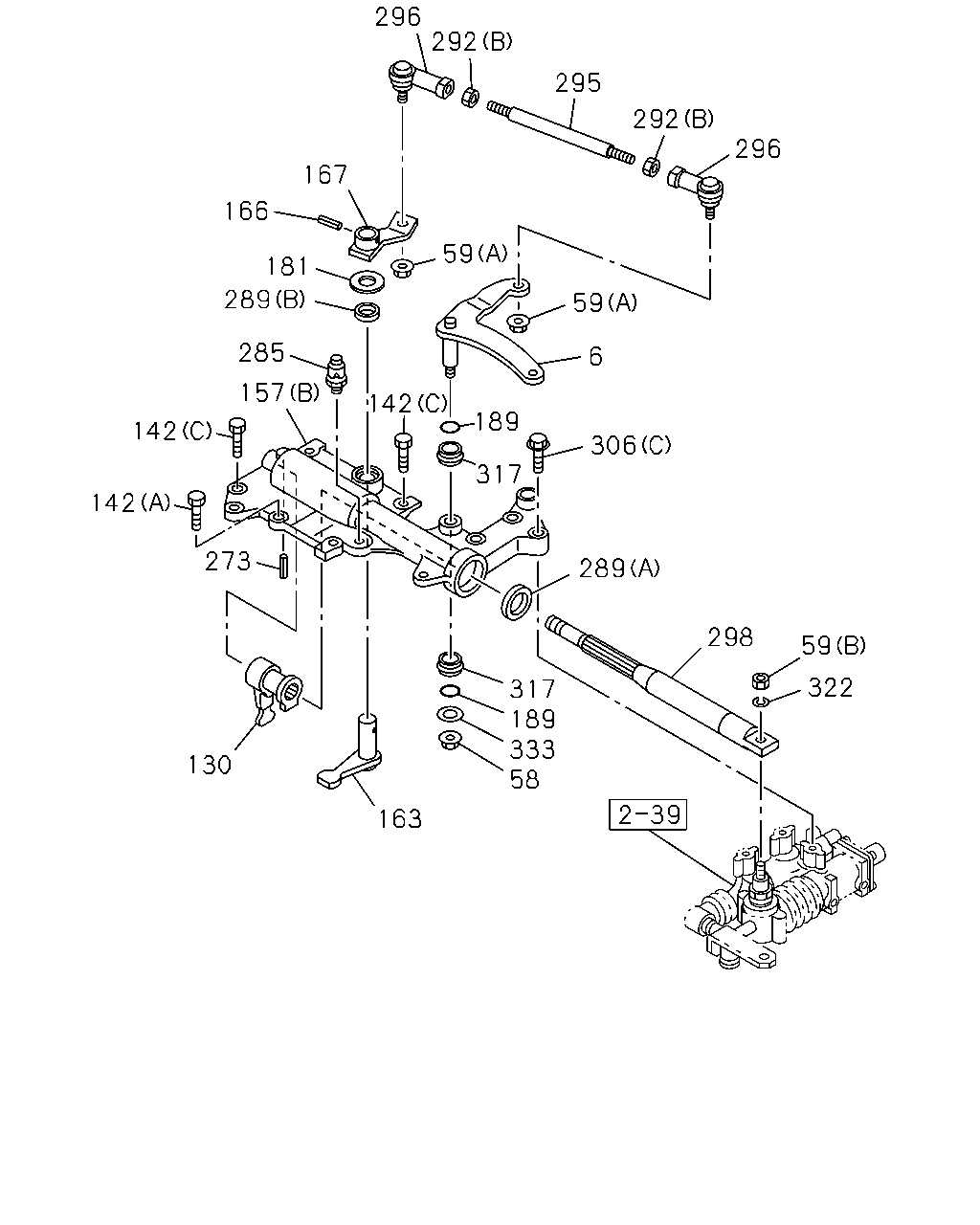

çizim 26531
296 292 295 292 296 167 166 59 181 289 59 285 6 157 142 189 142 306 317 142 273 289 298 59 322 317 189 333 58 130 163
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY 1-33651-686-2 01 1 9811-0610 ●
6 LEVER; RELAY 1-33651-686-2 01 1 0611- ●
58 NUT
M10 FLANGE 		0-91150-110-0 01 1 9811-0602 ●
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 0603-0610 ●
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 0611- ●
59 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9811-0602 ●
59 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
59 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0611- ●
59 NUT
(B) M12 		9-99110-412-0 01 1 9811-0512 ●
59 NUT
(B) M12 TAI 		0-91110-512-0 01 1 0601-0610 ●
59 NUT
(B) M12 TAI 		0-91110-512-0 01 1 0611- ●
130 LEVER; SHIFT,INTERNAL 1-33521-178-0 01 1 0611- ●
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 9811-0610 ●
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 0611- ●
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0611- ●
142 BOLT; QUAD BOX
(F) 		1-33549-260-0 02 1 0611- ●
142 BOLT; QUAD BOX
(G) 		1-33549-261-0 01 1 0611- ●
142 BOLT; QUAD BOX
(H) 		1-33549-262-0 16 1 0611- ●
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0611- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9811-0610 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0611- ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 04 1 9811-0512 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0601-0610 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0611- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9811-0610 ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL 1-33522-175-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 9811-0610 ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 0611- ●
166 PIN; SPR,SELECT LEVER
L=17 		1-09748-032-0 01 1 9811-0610 ●
166 PIN; SPR,SELECT LEVER
L=17 		1-09748-032-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 1-33521-160-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 9811-0610 ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 0611- ●
181 WASHER; PL,SELECT LEVER 1-33549-286-0 01 1 0611- ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 9811-0610 ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0611- ●
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 9811-0610 ●
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 0611- ●
273 PIN; SPR,STOPPER
D=4 		1-09748-031-0 01 1 9811-0610 ●
273 PIN; SPR,STOPPER
D=4 		1-09748-031-0 01 1 0611- ●
285 BREATHER; AIR,QUAD BOX 1-33149-014-0 01 1 0611- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9811-0610 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-274-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-275-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 9811-0610 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 9811-0610 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 0611- ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0611- ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9811-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0610 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0611-0705 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0706- ●
295 ROD; LINK,RELAY LEVER 9-08400-813-0 01 1 0611- ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 9811-0610 ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 0611-0705 ●
295 ROD; LINK,RELAY LEVER 8-98023-095-0 01 1 0706- ●
296 ROD END
L=48 		1-09760-038-1 02 1 9811-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0610 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0611-0705 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ●
298 SHAFT; SHIFT LEVER 1-33522-165-0 01 1 0611- ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 9811-0610 ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(A) 		1-33549-266-0 02 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(B) 		1-33549-267-0 04 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28081-050-0 03 1 9811-0512 ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28051-050-0 03 1 0601-0610 ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28051-050-0 03 1 0611- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9811-0610 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0611- ● ●
322 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9811-0603 ●
322 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0604-0610 ●
322 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0611-0705 ●
322 WASHER; LK 8-98031-750-0 01 1 0706- ●
333 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9811-0610 ●
333 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0611-0705 ●
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 0706- ●
çizim 99514
382 383
BalonParca AdiParca NoAdetTipApplied Date A B C
382 BRACKET; PARKING BRK CONT CABLE 1-46147-109-0 01 1 9811-9904 ●
382 BRACKET; PARKING BRK CONT CABLE
FVR MIDDLE CHASSIS(FV****) 		1-46147-109-1 01 1 9905-0610 ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-268-0 01 1 0611- ●
382 BRACKET; PARKING BRK CONT CABLE
FRR MIDDLE CHASSIS(FR****) 		1-46147-223-0 01 1 9905-0610 ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-223-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(A) M14X25 FLANGE 		0-28851-425-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(B) 		1-46149-027-0 01 1 0611- ●
383 BOLT; BRKT,PARK BRAKE
(C) M10X22 FLANGE 		0-28181-022-0 03 1 9811-0610 ●
383 BOLT; BRKT,PARK BRAKE
(C) M10X22 FLANGE 		0-28181-022-0 03 1 0611- ●

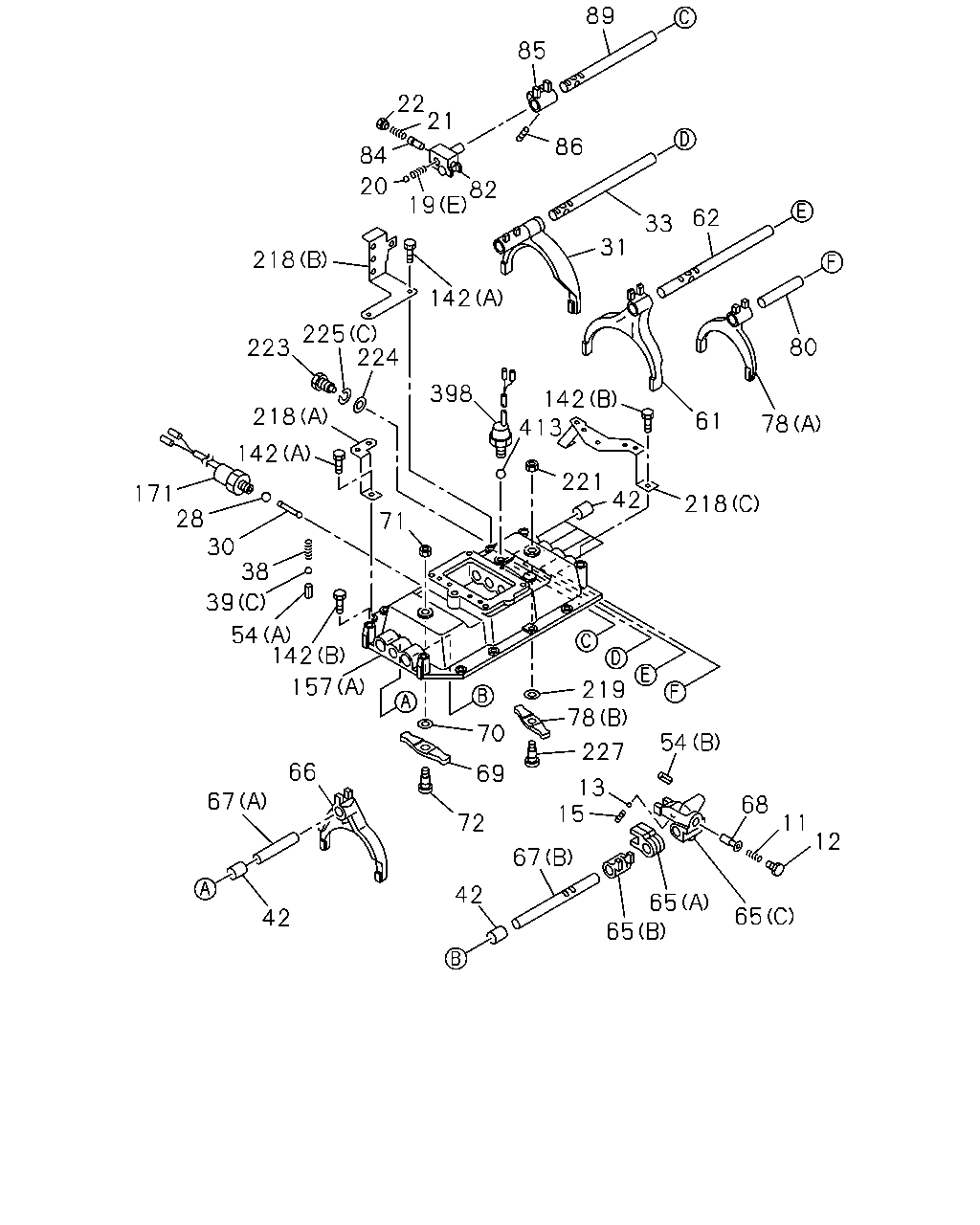

çizim 99516
89 85 22 21 84 86 20 82 19 62 33 31 218 142 225 224 80 223 398 142 413 218 61 78 142 221 42 171 28 30 38 218 71 39 54 142 157 219 78 70 54 227 66 69 13 15 67 68 72 11 12 67 42 65 65 65 42
BalonParca AdiParca NoAdetTipApplied Date A B C
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9811-0610 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0611- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9811-0610 ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0611- ●
13 BALL; LK,SHIFT SLEEVE 1-33119-357-0 03 1 0611- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9811-0610 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0611- ●
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 9811-0610 ●
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 0611- ●
19 SPRING; COIL COMP
(A) 		1-33519-109-0 01 1 0611- ●
19 SPRING; COIL COMP
(B) 		1-33519-110-0 01 1 0611- ●
19 SPRING; COIL COMP
(C) 		1-33519-111-0 01 1 0611- ●
19 SPRING; COIL COMP
(D) 		1-33519-112-0 01 1 0611- ●
19 SPRING; COIL COMP
(E) 		1-09580-441-0 01 1 9811-0610 ●
19 SPRING; COIL COMP
(E) 		1-09580-441-0 01 1 0611- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9811-0610 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0611- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9811-0610 ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0611- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9811-0610 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0611- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9811-0610 ●
28 BALL; INTER LK 9-00097-501-0 04 1 0611- ●
30 PIN; INTER LK 1-33519-115-0 03 1 0611- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9811-0610 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0611- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-576-0 01 1 0611- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9811-0610 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0611- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-468-0 01 1 0611- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9811-0610 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0611- ●
38 SPRING; DETENT 1-33549-283-0 04 1 0611- ●
38 SPRING; DETENT 1-09580-419-0 04 1 9811-9904 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9905-0610 ●
38 SPRING; DETENT 1-09580-379-0 04 1 0611- ●
39 BALL; DETENT
(A) 		1-33549-284-0 01 1 0611- ●
39 BALL; DETENT
(B) 		1-33549-287-0 04 1 0611- ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 9811-0610 ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 0611- ●
42 CAP; QUAD BOX 1-33549-345-0 06 1 0611- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9811-0610 ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0611- ●
54 PIN; SPR,SHIFT BLOCK
(B) 		1-09748-006-0 01 1 9811-0201 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 9811-0610 ●
54 PIN; SPR,SHIFT BLOCK
(A) 		1-09748-014-0 03 1 0611- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-576-0 01 1 0611- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9811-0610 ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0611- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-453-0 01 1 0611- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9811-0610 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0611- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9811-0610 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0611- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9811-0610 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0611- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9811-0610 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0611- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-577-0 01 1 0611- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9811-0610 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(C) 		1-33531-455-0 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 9811-0610 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 9811-0610 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0611- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9811-0610 ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0611- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9811-0610 ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0611- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9811-0610 ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0611- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9811-0602 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603-0610 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0611- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9811-0610 ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0611- ●
78 ARM; SHIFT,REV
(C) 		1-33511-563-0 01 1 0611- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9811-0610 ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0611- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9811-0610 ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0611- ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9811-0610 ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0611- ●
82 BLOCK; SHIFT,REV 1-33519-125-0 01 1 0611- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9811-0610 ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0611- ●
84 SLEEVE; REV 1-33516-025-0 01 1 9811-0610 ●
84 SLEEVE; REV 1-33516-025-0 01 1 0611- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9811-0610 ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0611- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9811-0610 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0611- ●
89 ROD; SHIFT,REV 1-33531-454-0 01 1 0611- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9811-0610 ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0611- ●
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0611- ●
142 BOLT; QUAD BOX
(F) 		1-33549-260-0 02 1 0611- ●
142 BOLT; QUAD BOX
(G) 		1-33549-261-0 01 1 0611- ●
142 BOLT; QUAD BOX
(H) 		1-33549-262-0 16 1 0611- ●
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0611- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9811-0610 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0611- ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 04 1 9811-0512 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0601-0610 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0611- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9811-0610 ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0611- ●
171 SWITCH; NEUTRAL 1-82440-106-0 01 1 0611- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9811-0610 ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0611-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-228-0 01 1 0611- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0611- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0611- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0611- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9811-0610 ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0611- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9811-0602 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603-0610 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0611- ●
223 SCREW; SET,QUAD BOX 1-33549-282-0 01 1 0611- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9811-0610 ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0611- ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9811-0605 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606-0610 ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0611- ●
225 WASHER; LK,QUAD BOX
(A) 		1-38119-050-0 02 1 0611- ●
225 WASHER; LK,QUAD BOX
(B) 		1-33549-264-0 04 1 0611- ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		9-09150-514-0 01 1 9811-0603 ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		0-91510-514-0 01 1 0604-0610 ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		0-91510-514-0 01 1 0611- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9811-0610 ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0611- ●
398 SWITCH; REV LAMP 1-82440-105-0 01 1 0611- ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9811-0602 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-0610 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0611- ●
413 BALL; BACK SW 1-33119-356-0 01 1 0611- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9811-0610 ●
413 BALL; BACK SW 9-00097-013-0 01 1 0611- ●

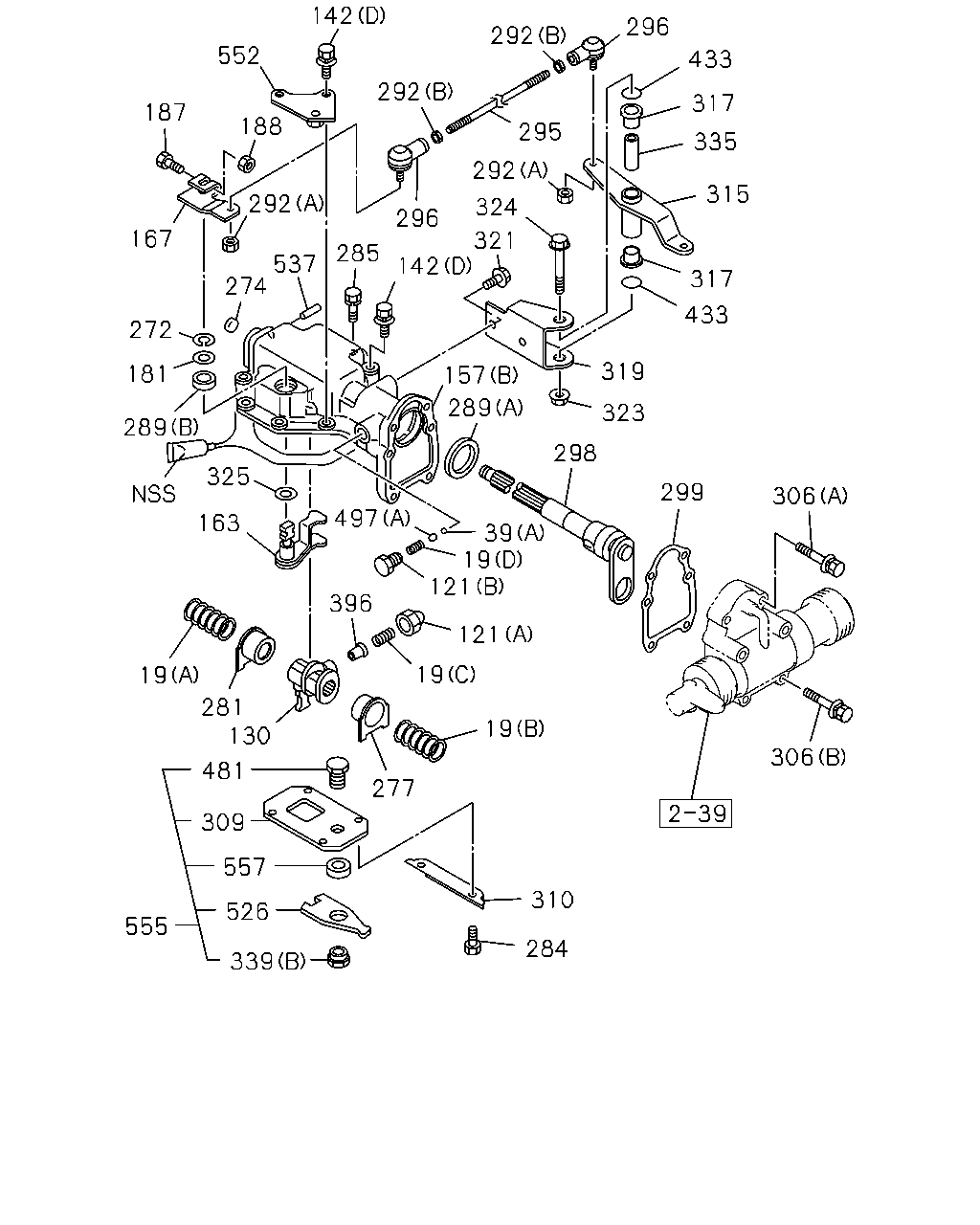

çizim 99518
142 296 292 552 433 292 317 187 188 295 335 292 315 292 324 296 167 321 142 285 537 274 317 433 272 319 181 157 289 323 289 298 325 497 299 306 163 39 19 121 396 121 19 19 281 130 19 306 481 277 309 557 310 526 555 284 339
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(A) 		1-33519-109-0 01 1 0611- ●
19 SPRING; COIL COMP
(B) 		1-33519-110-0 01 1 0611- ●
19 SPRING; COIL COMP
(C) 		1-33519-111-0 01 1 0611- ●
19 SPRING; COIL COMP
(D) 		1-33519-112-0 01 1 0611- ●
19 SPRING; COIL COMP
(E) 		1-09580-441-0 01 1 9811-0610 ●
19 SPRING; COIL COMP
(E) 		1-09580-441-0 01 1 0611- ●
39 BALL; DETENT
(A) 		1-33549-284-0 01 1 0611- ●
39 BALL; DETENT
(B) 		1-33549-287-0 04 1 0611- ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 9811-0610 ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 0611- ●
121 PLUG; DETENT SPR
(A) 		1-33119-354-0 01 1 0611- ●
121 PLUG; DETENT SPR
(B) 		1-33119-355-0 01 1 0611- ●
130 LEVER; SHIFT,INTERNAL 1-33521-178-0 01 1 0611- ●
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 9811-0610 ●
130 LEVER; SHIFT,INTERNAL 1-33521-165-0 01 1 0611- ●
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0611- ●
142 BOLT; QUAD BOX
(F) 		1-33549-260-0 02 1 0611- ●
142 BOLT; QUAD BOX
(G) 		1-33549-261-0 01 1 0611- ●
142 BOLT; QUAD BOX
(H) 		1-33549-262-0 16 1 0611- ●
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0611- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9811-0610 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0611- ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 04 1 9811-0512 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0601-0610 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0611- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9811-0610 ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL 1-33522-175-0 01 1 0611- ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 9811-0610 ●
163 LEVER; SELECT,INTERNAL 1-33522-153-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 1-33521-160-0 01 1 0611- ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 9811-0610 ●
167 LEVER; SELECT,EXTERNAL 1-33521-159-0 01 1 0611- ●
181 WASHER; PL,SELECT LEVER 1-33549-286-0 01 1 0611- ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 9811-0610 ●
181 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0611- ●
187 BOLT; SELECT LEVER
M8X45 FLANGE 		0-29260-845-0 01 1 0611- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0611- ●
272 RING; SNAP,QUAD BOX 1-33529-097-0 01 1 0611- ●
274 COVER; SHAFT,QUAD BOX 1-33549-272-0 01 1 0611- ●
277 PLATE; SPRING SEAT 1-33529-099-0 01 1 0611- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-099-0 01 1 0611- ●
284 BOLT; REAMER,QUAD BOX 1-33549-268-0 04 1 0611- ●
285 BREATHER; AIR,QUAD BOX 1-33149-014-0 01 1 0611- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9811-0610 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-274-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-275-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 9811-0610 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0611- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 9811-0610 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-600-0 01 1 0611- ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0611- ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9811-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-0610 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0611-0705 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0706- ●
295 ROD; LINK,RELAY LEVER 9-08400-813-0 01 1 0611- ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 9811-0610 ●
295 ROD; LINK,RELAY LEVER 9-08400-808-0 01 1 0611-0705 ●
295 ROD; LINK,RELAY LEVER 8-98023-095-0 01 1 0706- ●
296 ROD END
L=48 		1-09760-038-1 02 1 9811-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-0610 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0611-0705 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0706- ●
298 SHAFT; SHIFT LEVER 1-33522-165-0 01 1 0611- ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 9811-0610 ●
298 SHAFT; SHIFT LEVER 1-33522-163-0 01 1 0611- ●
299 GASKET; QUAD BOX TO POWER ASSISTOR
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-269-0 01 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(A) 		1-33549-266-0 02 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(B) 		1-33549-267-0 04 1 0611- ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28081-050-0 03 1 9811-0512 ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28051-050-0 03 1 0601-0610 ●
306 BOLT; SHIFT ASSISTOR
(C) M10X50 FLANGE 		0-28051-050-0 03 1 0611- ●
309 PLATE; SHIFT LEVER 1-33549-277-0 01 1 0611- ●
310 PLATE; LOCK,SHIFT LEVER 1-33549-270-0 01 1 0611- ●
315 LEVER; SELECT 1-33651-688-0 01 1 0611- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9811-0610 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0611- ● ●
319 BRACKET; SELECT LEVER 1-33657-655-0 01 1 0611- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0611- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0611- ●
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 0611- ●
325 SHIM; LEVER 1-33529-115-0 05 1 0611- ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-205-0 01 1 0611- ●
339 NUT; QUAD BOX
(A) 		1-33549-263-0 02 1 0611- ●
339 NUT; QUAD BOX
(B) 		1-33549-279-0 01 1 0611- ●
396 PLUNGER; SHIFT ROD 1-33529-098-0 01 1 0611- ●
433 GASKET; BUSHING 1-09623-594-0 02 1 0611- ●
481 BOLT; SHIFT LEVER 1-33549-280-0 01 1 0611- ●
497 BALL; SWITCH
(A) 		1-33119-356-0 01 1 0611- ●
497 BALL; SWITCH
(B) 		1-33119-357-0 01 1 0611- ●
526 LEVER; DETENT 1-33549-281-0 01 1 0611- ●
537 PIN; DETENT 1-33549-273-0 01 1 0611- ●
552 BRACKET 1-33657-656-0 01 1 0611- ●
555 PLATE ASM; SHIFT LEVER 1-33549-276-0 01 1 0611- ●
557 SPACER; SHIFT LEVER 1-33549-278-0 01 1 0611- ●

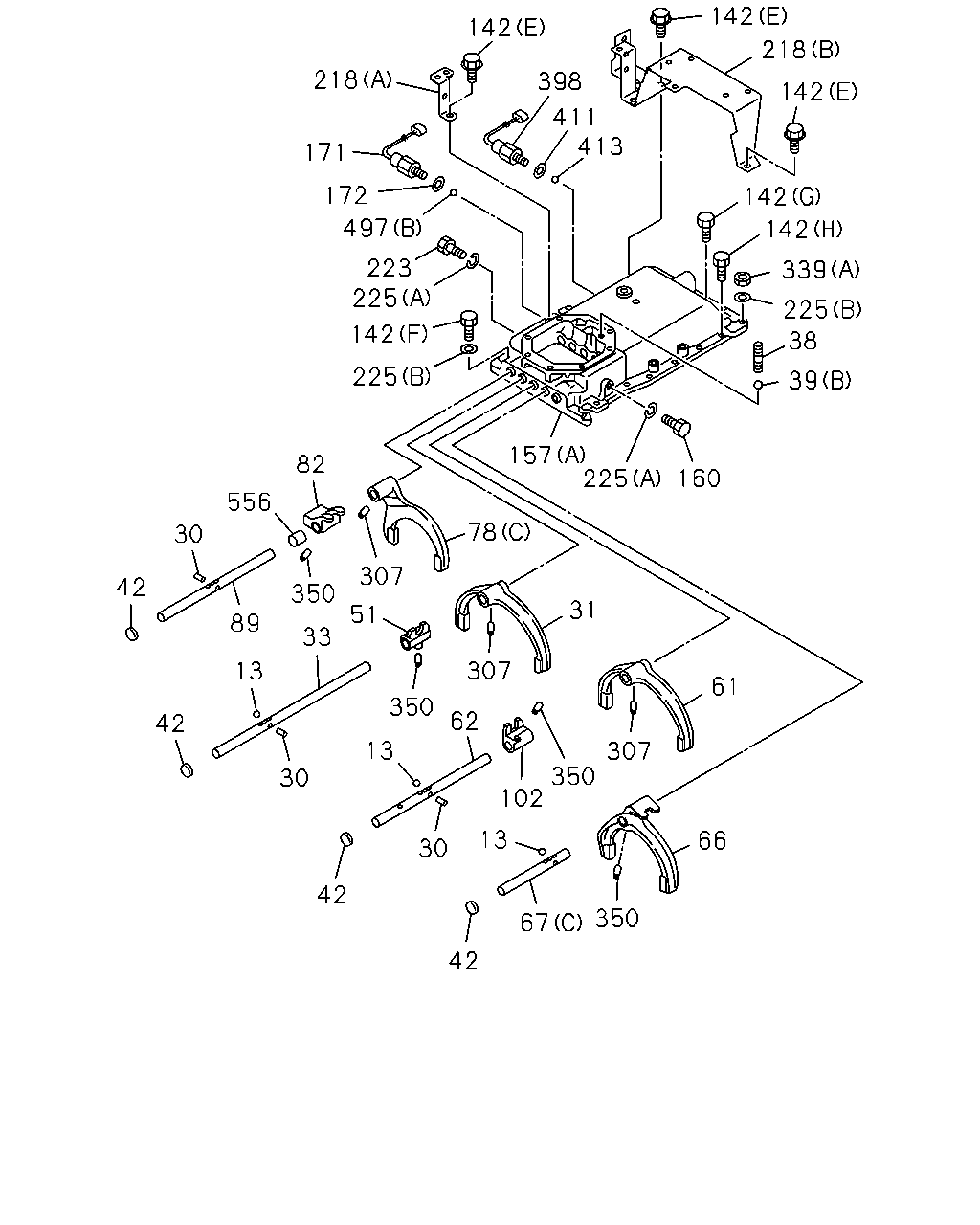

çizim 99523
142 142 218 218 398 142 411 413 171 172 142 497 142 223 225 339 225 142 38 225 39 157 225 82 160 556 78 30 307 42 350 31 51 89 33 307 13 61 350 62 42 13 307 350 102 30 13 66 30 42 350 67 42
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BALL; LK,SHIFT SLEEVE 1-33119-357-0 03 1 0611- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9811-0610 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0611- ●
30 PIN; INTER LK 1-33519-115-0 03 1 0611- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9811-0610 ●
30 PIN; INTER LK 9-33534-003-0 03 1 0611- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-576-0 01 1 0611- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9811-0610 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0611- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-468-0 01 1 0611- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9811-0610 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0611- ●
38 SPRING; DETENT 1-33549-283-0 04 1 0611- ●
38 SPRING; DETENT 1-09580-419-0 04 1 9811-9904 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9905-0610 ●
38 SPRING; DETENT 1-09580-379-0 04 1 0611- ●
39 BALL; DETENT
(A) 		1-33549-284-0 01 1 0611- ●
39 BALL; DETENT
(B) 		1-33549-287-0 04 1 0611- ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 9811-0610 ●
39 BALL; DETENT
(C) 		1-09843-012-0 04 1 0611- ●
42 CAP; QUAD BOX 1-33549-345-0 06 1 0611- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9811-0610 ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0611- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33519-124-0 01 1 0611- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-576-0 01 1 0611- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9811-0610 ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0611- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-453-0 01 1 0611- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9811-0610 ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0611- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-577-0 01 1 0611- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9811-0610 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(C) 		1-33531-455-0 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 9811-0610 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0611- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 9811-0610 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0611- ●
78 ARM; SHIFT,REV
(C) 		1-33511-563-0 01 1 0611- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9811-0610 ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0611- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9811-0610 ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0611- ●
82 BLOCK; SHIFT,REV 1-33519-125-0 01 1 0611- ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9811-0610 ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0611- ●
89 ROD; SHIFT,REV 1-33531-454-0 01 1 0611- ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9811-0610 ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0611- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33519-123-0 01 1 0611- ●
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0611- ●
142 BOLT; QUAD BOX
(F) 		1-33549-260-0 02 1 0611- ●
142 BOLT; QUAD BOX
(G) 		1-33549-261-0 01 1 0611- ●
142 BOLT; QUAD BOX
(H) 		1-33549-262-0 16 1 0611- ●
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0611- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9811-0610 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0611- ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28181-060-0 04 1 9811-0512 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0601-0610 ●
142 BOLT; QUAD BOX
(B) M10X60 FLANGE 		0-28151-060-0 04 1 0611- ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9811-0610 ●
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-479-0 01 1 0611- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 9811-0610 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0611- ●
160 PLUG; BLIND 1-33549-285-0 01 1 0611- ●
171 SWITCH; NEUTRAL 1-82440-106-0 01 1 0611- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9811-0610 ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0611-0702 ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-353-0 01 1 0611- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-228-0 01 1 0611- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0611- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 0611- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9811-0610 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 0611- ●
223 SCREW; SET,QUAD BOX 1-33549-282-0 01 1 0611- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9811-0610 ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0611- ●
225 WASHER; LK,QUAD BOX
(A) 		1-38119-050-0 02 1 0611- ●
225 WASHER; LK,QUAD BOX
(B) 		1-33549-264-0 04 1 0611- ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		9-09150-514-0 01 1 9811-0603 ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		0-91510-514-0 01 1 0604-0610 ●
225 WASHER; LK,QUAD BOX
(C) ID=14.2 		0-91510-514-0 01 1 0611- ●
307 SCREW; SET,BLOCK 1-33519-113-0 03 1 0611- ●
339 NUT; QUAD BOX
(A) 		1-33549-263-0 02 1 0611- ●
339 NUT; QUAD BOX
(B) 		1-33549-279-0 01 1 0611- ●
350 SCREW; SHIFT ARM 1-33519-113-0 04 1 0611- ●
398 SWITCH; REV LAMP 1-82440-105-0 01 1 0611- ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9811-0602 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-0610 ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0611- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-353-0 01 1 0611- ●
413 BALL; BACK SW 1-33119-356-0 01 1 0611- ●
413 BALL; BACK SW 9-00097-013-0 01 1 9811-0610 ●
413 BALL; BACK SW 9-00097-013-0 01 1 0611- ●
497 BALL; SWITCH
(A) 		1-33119-356-0 01 1 0611- ●
497 BALL; SWITCH
(B) 		1-33119-357-0 01 1 0611- ●
556 SPACER; SHIFT ROD 1-33519-114-0 01 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
