Sayfa 3-77 - Isuzu EPC

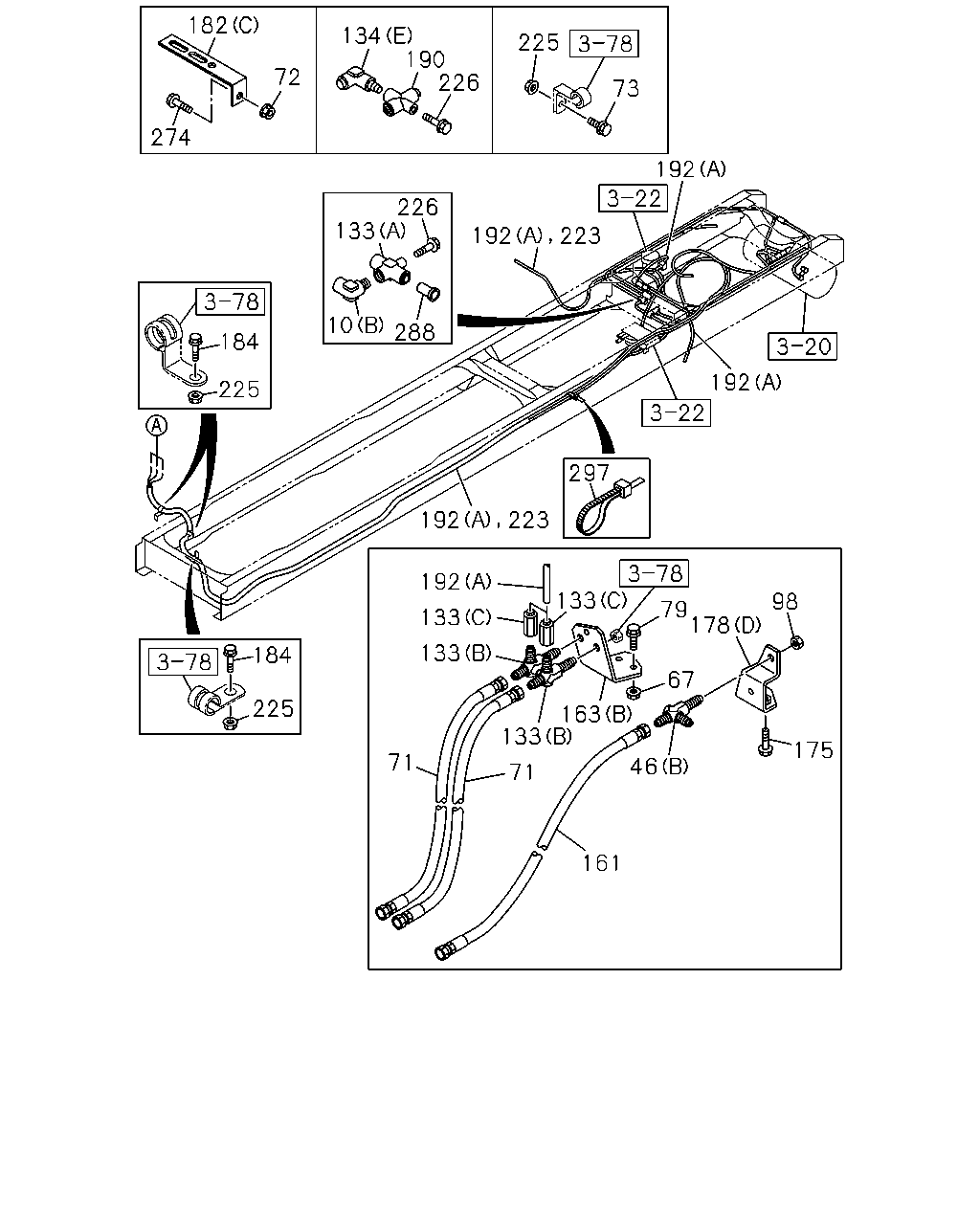

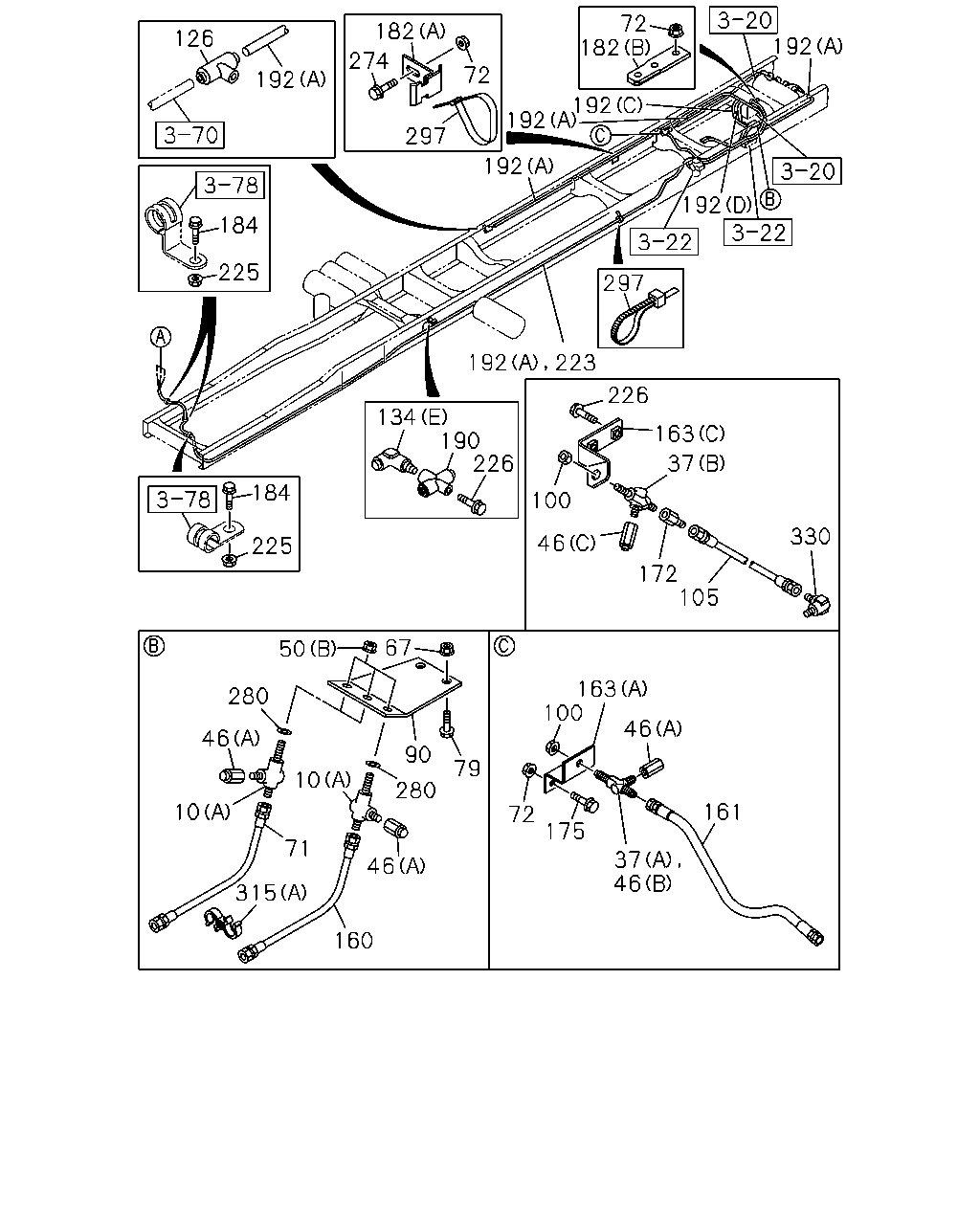

3-77 — BRAKE PIPING; AIR,REAR (#57169) — 493 parça

182 134 190 226 225 72 73 274 192 226 133 223 192 10 288 184 225 192 297 192 223 133 192 98 79 178 133 133 184 67 225 163 133 175 71 46 71 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	CONNECTOR; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN> (A) M16 2WAY	1-09650-182-1	02	1	0801-0805	●
10	CONNECTOR; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (A) M16 2WAY	1-09650-182-1	02	1	0806-	●
10	CONNECTOR; FLEX HOSE REAR AXLE R130<B5V> (A) M16 2WAY	1-09650-182-1	03	1	0801-0805	●
10	CONNECTOR; FLEX HOSE REAR AXLE R130<B5V> (A) M16 ELBOW	0-92135-210-0	01	1	0806-	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0803		●	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0809		●	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0809			●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0810-		●	●
46	NIPPLE; AIR PIPE DIFF LOCK<C3N> (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-	●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN> (B) M16 2WAY	1-09650-182-1	01	1	0801-0803	●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN> (B) M16 2WAY	1-09650-182-1	01	1	0804-0805	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	0804-0805			●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	0806-			●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0801-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0801-0803	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0804-	●		●
71	HOSE; FLEX,RWD RR L=600	1-09363-746-0	01	1	0804-			●
71	HOSE; FLEX,RWD RR L=580	1-09363-772-0	01	1	0804-			●
71	HOSE; FLEX,RWD RR AXLE-REAR MERITOR RS23-161<BGN> L=600	1-09363-746-0	02	1	0801-	●
71	HOSE; FLEX,RWD RR REAR AXLE R130<B5V> L=660	1-09363-814-0	02	1	0801-1104	●
71	HOSE; FLEX,RWD RR FINAL GEAR 17.5"<B5D> REAR AXLE R130<B5V> L=660	1-09363-814-0	02	1	1105-	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0804-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0801-0802	●
72	NUT; BRKT AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1101	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0804-			●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0804-			●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0801-	●
98	NUT; PIPE UNION M12	0-91110-512-0	01	1	0804-			●
133	UNION; NIPPLE (B) M16 2WAY	1-09650-182-1	02	1	0804-			●
133	UNION; NIPPLE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0804-			●
133	UNION; NIPPLE (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0801-0803		●	●
133	UNION; NIPPLE (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0804-0809		●	●
133	UNION; NIPPLE (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0804-0809			●
133	UNION; NIPPLE (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0810-		●	●
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-			●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0801-			●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-			●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●		●	●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-				●
134	CONNECTOR BRAKE REGULATION ADR<TDU> (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0801-1306	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306			●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-			●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-814-0	01	1	0804-			●
161	HOSE; FLEX,QUICK RELEASE VLV AXLE-REAR MERITOR RS23-161<BGN> L=490	1-09363-704-0	01	1	0801-	●
163	BRACKET; FLEX HOSE DIFF LOCK<C3N> (C)	8-98130-334-0	01	1	0809-	●
163	BRACKET; FLEX HOSE (B)	8-98114-702-0	01	1	0804-			●
163	BRACKET; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN> (A)	8-98092-676-0	01	1	0801-	●
175	BOLT; HOSE BRKT M10X25 FLANGE	0-28651-025-0	02	1	0804-			●
175	BOLT; HOSE BRKT AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0801-0805	●
178	BRACKET; UNION (D)	8-98114-771-0	01	1	0804-			●
178	BRACKET; UNION (E)	8-98031-033-1	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-	●			●
178	BRACKET; UNION AUSTRALIA EQUIPMENT(RR3) (B)	8-98057-822-0	01	1	0801-	●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	0801-1306	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0801-1306			●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	1307-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1307-			●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	0801-1306	●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	1307-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-		●	●
182	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-	●
182	BRACKET; TUBE CLIP AXLE-REAR MERITOR RS23-161<BGN> (B) L=100	1-47477-620-1	02	1	0801-	●
182	BRACKET; TUBE CLIP (C) L=100 H=30	1-47477-645-2	01	1	0801-		●
184	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0801-0802	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●	●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803	●		●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-0905				●
190	UNION; 3 WAY BRAKE REGULATION ADR<TDU> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-0905	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0906-			●	●
190	UNION; 3 WAY BRAKE REGULATION ADR<TDU> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0906-	●
192	TUBE; NYLON (A)	8-98114-349-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98114-354-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98115-506-0	01	1	0804-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-	●
192	TUBE; NYLON REAR AXLE R130<B5V> (A) L=930 OD=8	1-49218-617-1	02	1	0801-	●
192	TUBE; NYLON (A) L=930 OD=8	1-49218-617-1	02	1	0801-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-		●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0804-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0804-			●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-	●	●	●	●
226	BOLT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●
226	BOLT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
226	BOLT; UNION DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●		●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-0905		●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-0905				●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-0905	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-0905	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0906-		●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0906-			●	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0801-	●	●
288	PLUG OD=12	1-09661-617-0	01	1	0801-0803		●	●
288	PLUG OD=12	1-09661-617-0	01	1	0804-0809		●	●
288	PLUG OD=12	1-09661-617-0	01	1	0804-0809			●
288	PLUG OD=12	1-09661-617-0	01	1	0810-		●	●
297	CLIP; BAND AXLE-REAR MERITOR RS23-161<BGN> L=350	1-09707-183-0	09	1	0801-0802	●
297	CLIP; BAND REAR AXLE R130<B5V> L=350	1-09707-183-0	05	1	0801-0802	●

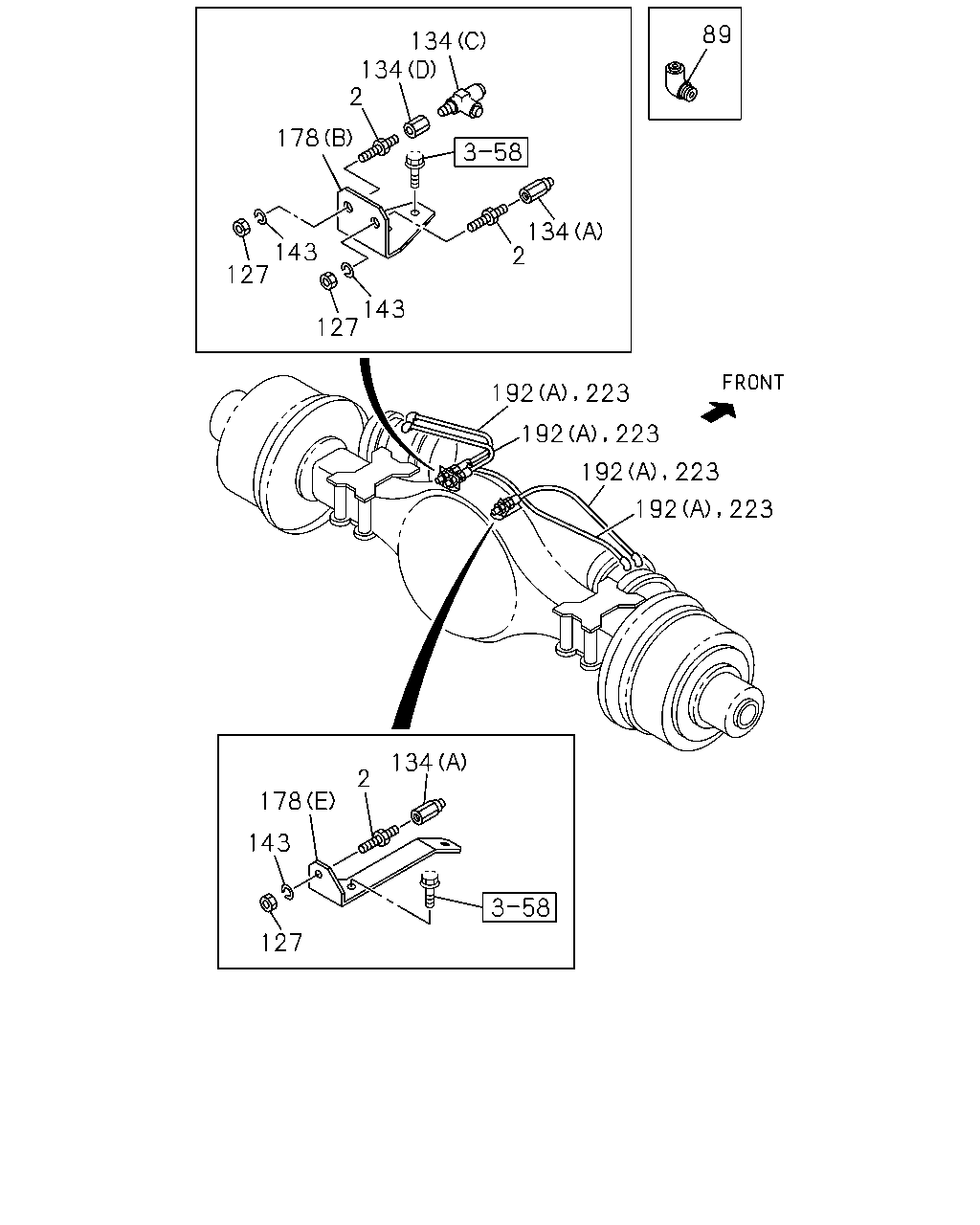

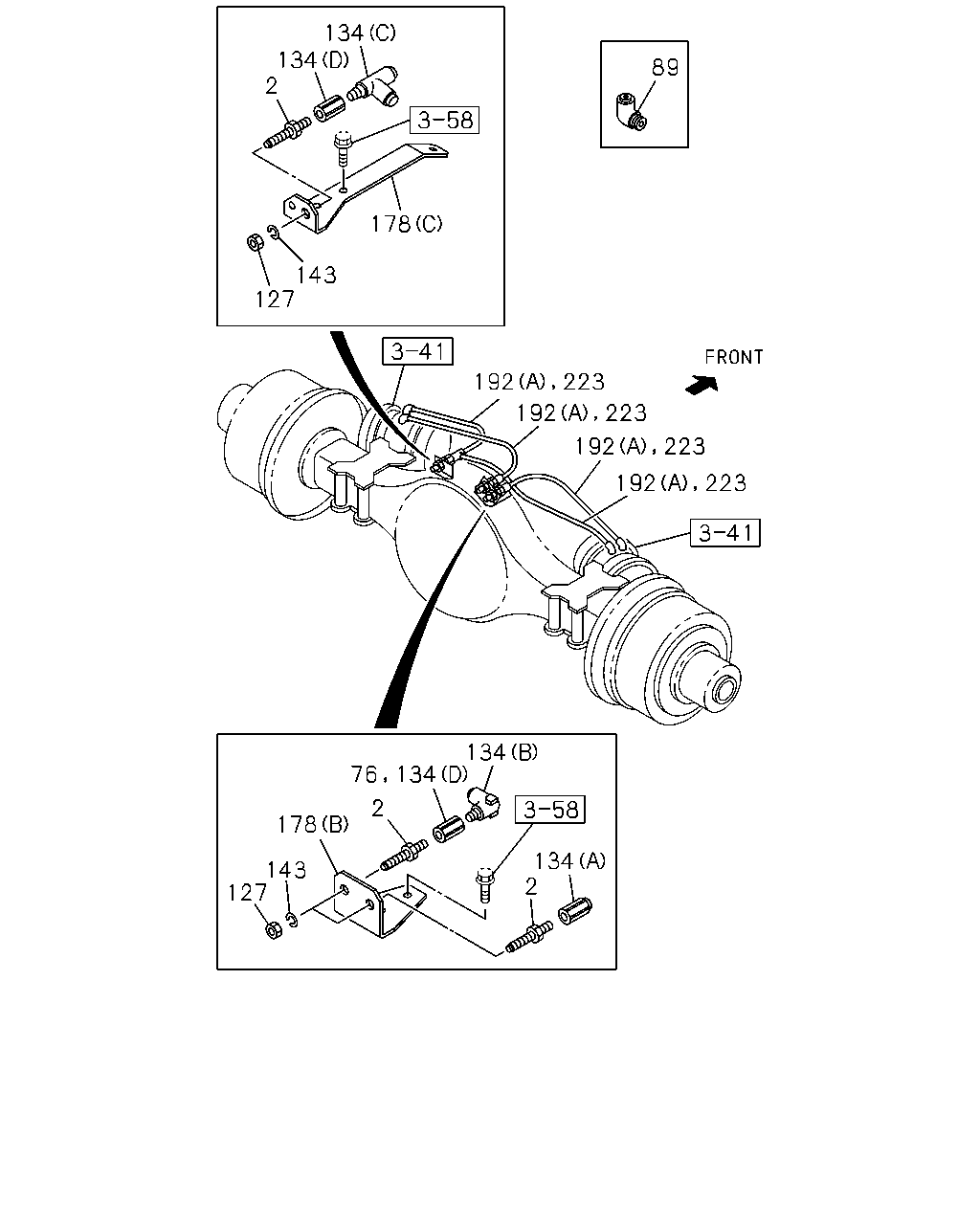

134 134 2 89 178 143 127 192 223 192 223 192 223 192 223 134 134 76 2 178 134 2 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	02	1	0801-	●
2	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	03	1	0801-1306	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	0801-1306			●
2	UNION; AIR PIPE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	03	1	1307-	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1307-			●
76	ADAPTER; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0804-			●
76	ADAPTER; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-	●
89	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0809-		●		●
127	NUT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0806-	●
127	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	02	1	0801-	●
127	NUT; UNION EXC. AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	03	1	0801-1306	●
127	NUT; UNION M16	0-91111-516-0	03	1	0801-1306			●
127	NUT; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	03	1	1307-	●
127	NUT; UNION M16	0-91111-516-0	03	1	1307-			●
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-			●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0801-			●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-			●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●		●	●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-				●
134	CONNECTOR BRAKE REGULATION ADR<TDU> (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0801-1306	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306			●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-			●
143	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	02	1	0801-	●
143	WASHER; LK,UNION EXC. AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	03	1	0801-1306	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	0801-1306			●
143	WASHER; LK,UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	03	1	1307-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1307-			●
178	BRACKET; UNION (D)	8-98114-771-0	01	1	0804-			●
178	BRACKET; UNION (E)	8-98031-033-1	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-	●			●
178	BRACKET; UNION AUSTRALIA EQUIPMENT(RR3) (B)	8-98057-822-0	01	1	0801-	●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	0801-1306	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0801-1306			●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	1307-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1307-			●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	0801-1306	●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	1307-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-		●	●
192	TUBE; NYLON (A)	8-98114-349-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98114-354-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98115-506-0	01	1	0804-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-	●
192	TUBE; NYLON REAR AXLE R130<B5V> (A) L=930 OD=8	1-49218-617-1	02	1	0801-	●
192	TUBE; NYLON (A) L=930 OD=8	1-49218-617-1	02	1	0801-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-		●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0804-	●	●	●	●

220 212 218 315 315 220 315

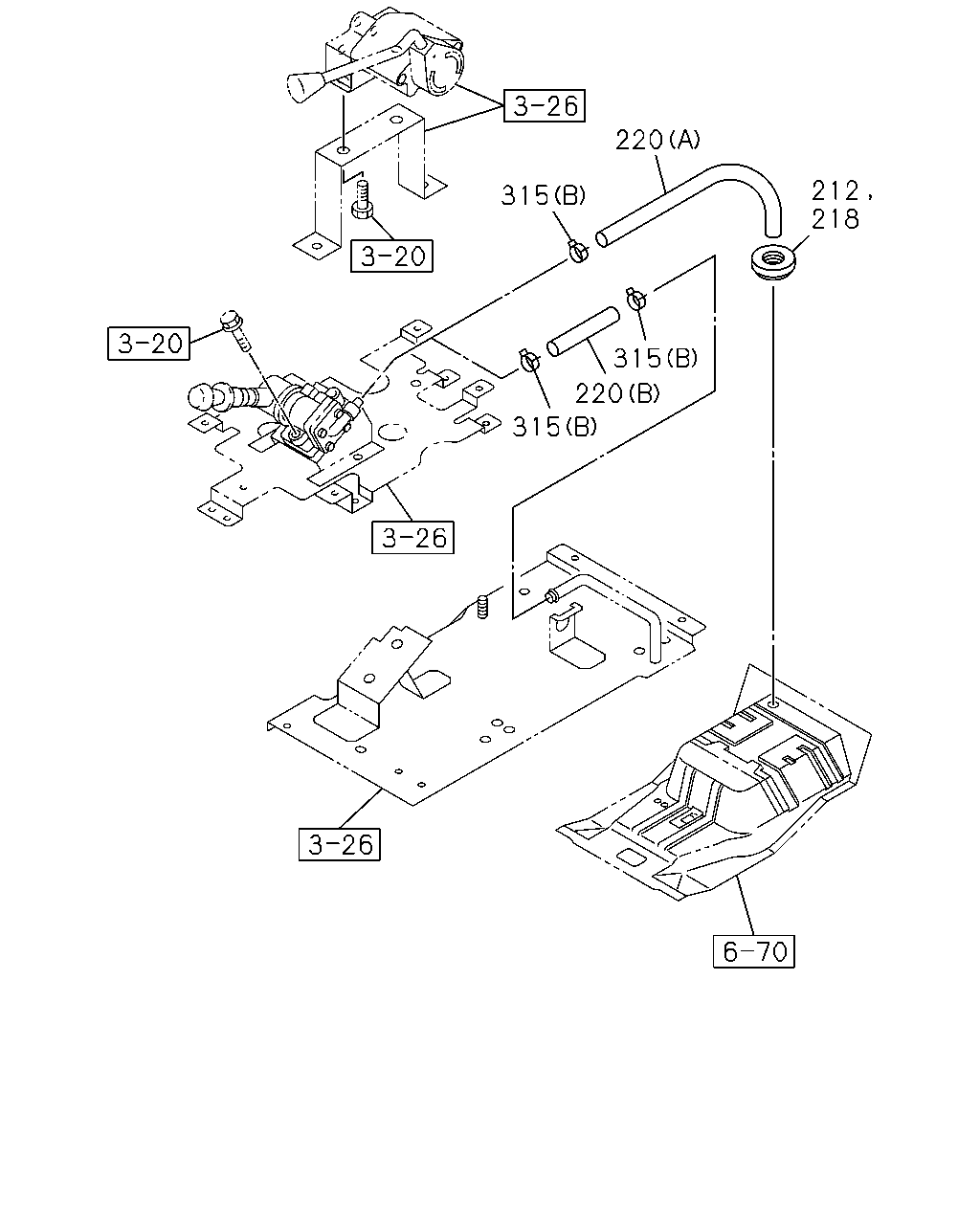

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	0801-1101		●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1102	●	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1103-		●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1103-	●			●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1004-1101	●			●
220	HOSE; VINYL,EXH,PARKING BRK VLV (A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1004-	●			●
220	HOSE; VINYL,EXH,PARKING BRK VLV (B) L=220 SERVICED BY L=10000	9-09914-701-0	01	1	1004-		●	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-	●			●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003		●	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101		●	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-		●	●

192 72 182 182 126 274 72 192 192 192 297 192 192 184 225 297 192 223 226 134 190 226 163 37 184 100 330 46 225 172 105 67 50 163 100 280 46 46 90 79 10 280 161 10 72 175 71 37 46 46 315 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	CONNECTOR; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN> (A) M16 2WAY	1-09650-182-1	02	1	0801-0805	●
10	CONNECTOR; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (A) M16 2WAY	1-09650-182-1	02	1	0806-	●
10	CONNECTOR; FLEX HOSE REAR AXLE R130<B5V> (A) M16 2WAY	1-09650-182-1	03	1	0801-0805	●
10	CONNECTOR; FLEX HOSE REAR AXLE R130<B5V> (A) M16 ELBOW	0-92135-210-0	01	1	0806-	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0803		●	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0809		●	●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0809			●
10	CONNECTOR; FLEX HOSE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0810-		●	●
37	UNION; AIR PIPE DIFF LOCK<C3N> (B) M12 2WAY	1-09654-059-2	01	1	0809-	●
37	UNION; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN> (A) M16 2WAY	1-09650-182-1	01	1	0806-	●
46	NIPPLE; AIR PIPE DIFF LOCK<C3N> (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-	●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN> (B) M16 2WAY	1-09650-182-1	01	1	0801-0803	●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN> (B) M16 2WAY	1-09650-182-1	01	1	0804-0805	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	0804-0805			●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	0806-			●
46	NIPPLE; AIR PIPE AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0801-	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●	●
50	NUT; UNION BRKT AXLE-REAR MERITOR RS23-161<BGN> (B) M12	0-91111-512-0	02	1	0801-0805	●
50	NUT; UNION BRKT AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (B) M12	0-91111-512-0	02	1	0806-	●
50	NUT; UNION BRKT REAR AXLE R130<B5V> (B) M12	0-91111-512-0	03	1	0801-0805	●
50	NUT; UNION BRKT REAR AXLE R130<B5V> (B) M16	0-91111-516-0	01	1	0806-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0801-0803	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0804-	●		●
71	HOSE; FLEX,RWD RR L=600	1-09363-746-0	01	1	0804-			●
71	HOSE; FLEX,RWD RR L=580	1-09363-772-0	01	1	0804-			●
71	HOSE; FLEX,RWD RR AXLE-REAR MERITOR RS23-161<BGN> L=600	1-09363-746-0	02	1	0801-	●
71	HOSE; FLEX,RWD RR REAR AXLE R130<B5V> L=660	1-09363-814-0	02	1	0801-1104	●
71	HOSE; FLEX,RWD RR FINAL GEAR 17.5"<B5D> REAR AXLE R130<B5V> L=660	1-09363-814-0	02	1	1105-	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0804-			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0801-0802	●
72	NUT; BRKT AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1101	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-1101	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●		●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1102-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0804-			●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0801-	●
90	BRACKET; PIPE UNION REAR AXLE R130<B5V>	8-98105-010-0	01	1	0801-0805	●
90	BRACKET; PIPE UNION AXLE-REAR MERITOR RS23-161<BGN>	1-47477-851-1	01	1	0801-0805	●
90	BRACKET; PIPE UNION AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V>	1-47477-851-1	01	1	0806-	●
100	NUT; UNION AXLE-REAR MERITOR RS23-161<BGN> M12	0-91111-512-0	01	1	0801-0808	●
100	NUT; UNION AXLE-REAR MERITOR RS23-161<BGN> M12	0-91111-512-0	01	1	0809-	●
100	NUT; UNION DIFF LOCK<C3N> M12	0-91111-512-0	01	1	0809-	●
105	HOSE; FLEX DIFF LOCK<C3N> L=430	1-09363-677-0	01	1	0809-	●
126	UNION; NYLON TUBE	1-09661-128-0	01	1	0801-0803	●			●
126	UNION; NYLON TUBE	1-09661-128-0	01	1	0804-				●
126	UNION; NYLON TUBE BRAKE REGULATION ADR<TDU>	1-09661-128-0	01	1	0804-	●
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-			●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0801-			●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-			●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●		●	●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-				●
134	CONNECTOR BRAKE REGULATION ADR<TDU> (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0801-1306	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306			●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-			●
160	HOSE; FLEX,SPR CHAMBER REAR AXLE R130<B5V> L=580	1-09363-772-0	01	1	0801-1104	●
160	HOSE; FLEX,SPR CHAMBER FINAL GEAR 17.5"<B5D> REAR AXLE R130<B5V> L=580	1-09363-772-0	01	1	1105-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=660	1-09363-814-0	01	1	0804-			●
161	HOSE; FLEX,QUICK RELEASE VLV AXLE-REAR MERITOR RS23-161<BGN> L=490	1-09363-704-0	01	1	0801-	●
163	BRACKET; FLEX HOSE DIFF LOCK<C3N> (C)	8-98130-334-0	01	1	0809-	●
163	BRACKET; FLEX HOSE (B)	8-98114-702-0	01	1	0804-			●
163	BRACKET; FLEX HOSE AXLE-REAR MERITOR RS23-161<BGN> (A)	8-98092-676-0	01	1	0801-	●
172	ADAPTER; UNION DIFF LOCK<C3N>	8-98120-199-0	01	1	0809-	●
175	BOLT; HOSE BRKT M10X25 FLANGE	0-28651-025-0	02	1	0804-			●
175	BOLT; HOSE BRKT AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0801-0805	●
182	BRACKET; TUBE CLIP (A)	1-47479-693-0	01	1	0801-	●
182	BRACKET; TUBE CLIP AXLE-REAR MERITOR RS23-161<BGN> (B) L=100	1-47477-620-1	02	1	0801-	●
182	BRACKET; TUBE CLIP (C) L=100 H=30	1-47477-645-2	01	1	0801-		●
184	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0801-0802	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●	●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803	●		●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-0905				●
190	UNION; 3 WAY BRAKE REGULATION ADR<TDU> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-0905	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0906-			●	●
190	UNION; 3 WAY BRAKE REGULATION ADR<TDU> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0906-	●
192	TUBE; NYLON (A)	8-98114-349-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98114-354-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98115-506-0	01	1	0804-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-	●
192	TUBE; NYLON REAR AXLE R130<B5V> (A) L=930 OD=8	1-49218-617-1	02	1	0801-	●
192	TUBE; NYLON (A) L=930 OD=8	1-49218-617-1	02	1	0801-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-		●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0804-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0804-			●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-	●	●	●	●
226	BOLT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0806-0808	●
226	BOLT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
226	BOLT; UNION DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●		●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-0905		●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-0905				●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-0905	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-0905	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0906-		●	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0906-			●	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
274	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0801-	●	●
280	WASHER; LK REAR AXLE R130<B5V> ID=12.2	0-91510-812-0	02	1	0806-	●
280	WASHER; LK REAR AXLE R130<B5V> ID=16.2	0-91510-816-0	01	1	0806-	●
297	CLIP; BAND AXLE-REAR MERITOR RS23-161<BGN> L=350	1-09707-183-0	09	1	0801-0802	●
297	CLIP; BAND REAR AXLE R130<B5V> L=350	1-09707-183-0	05	1	0801-0802	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-	●			●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003		●	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101		●	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-		●	●
330	UNION; FLEX HOSE DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●

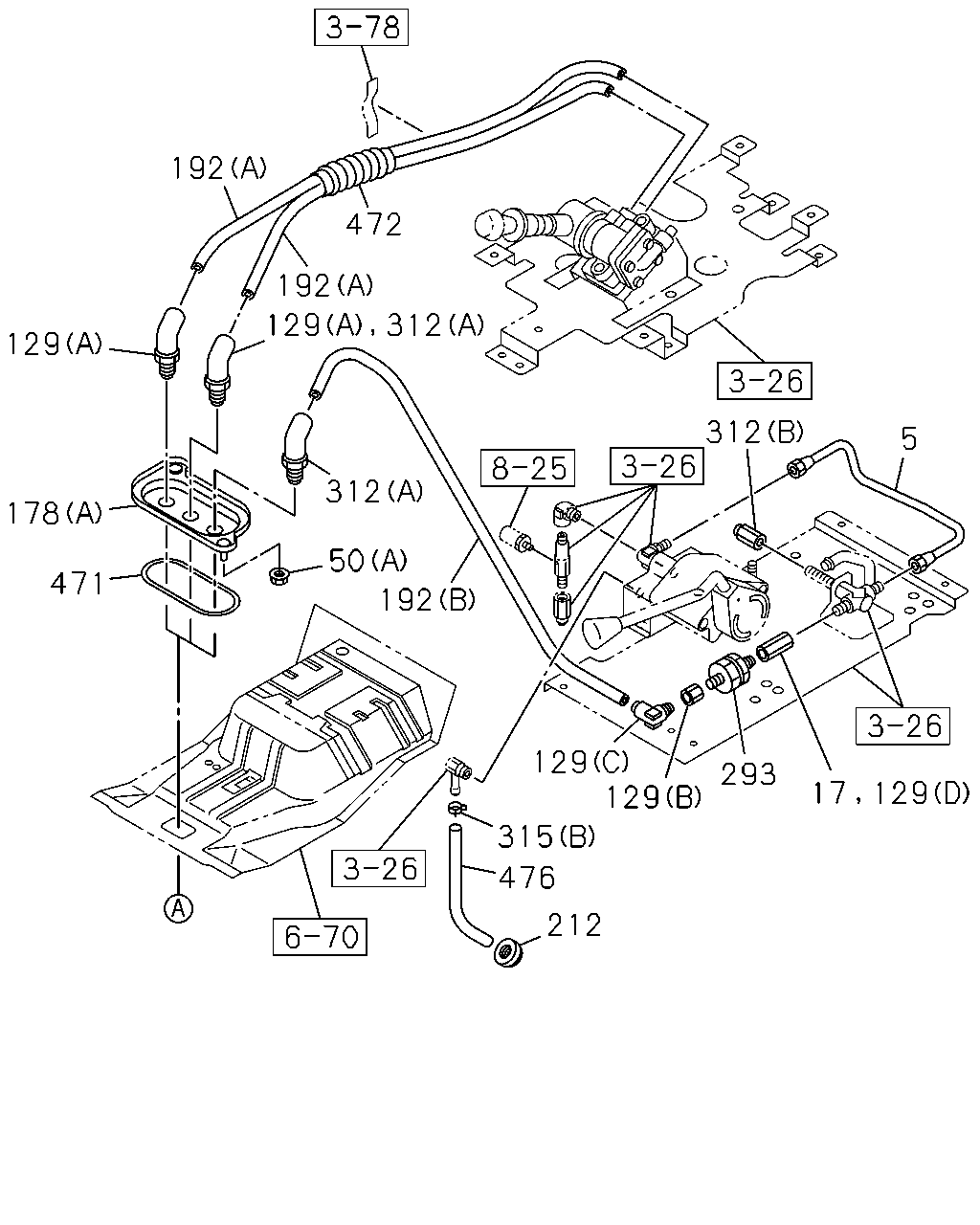

192 472 192 129 312 129 312 5 312 178 50 471 192 129 129 293 17 129 315 476 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	PIPE; AIR,UNION TO PARKING VLV	8-97610-775-1	01	1	0801-		●	●
17	UNION; AIR PIPE M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-1101		●	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●	●
50	NUT; UNION BRKT AXLE-REAR MERITOR RS23-161<BGN> (B) M12	0-91111-512-0	02	1	0801-0805	●
50	NUT; UNION BRKT AXLE-REAR MERITOR RS23-161<BGN>,REAR AXLE R130<B5V> (B) M12	0-91111-512-0	02	1	0806-	●
50	NUT; UNION BRKT REAR AXLE R130<B5V> (B) M12	0-91111-512-0	03	1	0801-0805	●
50	NUT; UNION BRKT REAR AXLE R130<B5V> (B) M16	0-91111-516-0	01	1	0806-	●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1102-		●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101	●	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1102-	●	●	●	●
129	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	0801-1006		●	●
129	CONNECTOR; NYLON TUBE (C)	8-97633-756-0	01	1	1007-		●	●
129	CONNECTOR; NYLON TUBE (B)	1-09660-930-1	01	1	0801-1006		●	●
129	CONNECTOR; NYLON TUBE (B)	8-97633-768-0	01	1	1007-		●	●
178	BRACKET; UNION (D)	8-98114-771-0	01	1	0804-			●
178	BRACKET; UNION (E)	8-98031-033-1	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-	●			●
178	BRACKET; UNION AUSTRALIA EQUIPMENT(RR3) (B)	8-98057-822-0	01	1	0801-	●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	0801-1306	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0801-1306			●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	1307-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1307-			●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	0801-1306	●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	1307-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-		●	●
192	TUBE; NYLON (A)	8-98114-349-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98114-354-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98115-506-0	01	1	0804-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-	●
192	TUBE; NYLON REAR AXLE R130<B5V> (A) L=930 OD=8	1-49218-617-1	02	1	0801-	●
192	TUBE; NYLON (A) L=930 OD=8	1-49218-617-1	02	1	0801-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-		●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	0801-1101		●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1102	●	●	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1103-		●	●
293	VALVE; CHECK	1-48410-479-1	01	1	0801-		●	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101	●			●
312	CONNECTOR; SUPPLY (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0801-		●	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0801-1101		●	●
312	CONNECTOR; SUPPLY (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-		●	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-	●			●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0801-	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	0801-1003		●	●
315	CLIP (B) ID=14	8-94238-572-0	03	1	1004-1101		●	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	1102-		●	●
471	SEAL; BRKT	1-79738-832-0	01	1	0801-	●	●	●	●
472	TUBE; SPUTTER	8-98108-051-0	01	1	0801-	●			●
472	TUBE; SPUTTER	8-98108-051-0	02	1	0801-		●	●
476	PIPE; VINYL,EXH L=180 SERVICED BY L=10000	9-09914-701-0	01	1	0801-1101		●	●

89 134 134 2 178 134 2 143 127 143 127 192 223 192 223 192 223 192 223 134 2 178 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	02	1	0801-	●
2	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	03	1	0801-1306	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	0801-1306			●
2	UNION; AIR PIPE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) M16 L=74	0-92123-310-0	03	1	1307-	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1307-			●
89	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0809-		●		●
127	NUT; UNION AXLE-REAR MERITOR RS23-161<BGN> M8 FLANGE	0-91180-108-0	02	1	0806-	●
127	NUT; UNION AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	02	1	0801-	●
127	NUT; UNION EXC. AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	03	1	0801-1306	●
127	NUT; UNION M16	0-91111-516-0	03	1	0801-1306			●
127	NUT; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) M16	0-91111-516-0	03	1	1307-	●
127	NUT; UNION M16	0-91111-516-0	03	1	1307-			●
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-			●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0801-			●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0801-			●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●		●	●
134	CONNECTOR (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-				●
134	CONNECTOR BRAKE REGULATION ADR<TDU> (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-	●
134	CONNECTOR (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1307-	●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-1306	●
134	CONNECTOR AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0801-1306	●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	1307-	●
134	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0801-1306			●
134	CONNECTOR FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1307-			●
143	WASHER; LK,UNION AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	02	1	0801-	●
143	WASHER; LK,UNION EXC. AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	03	1	0801-1306	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	0801-1306			●
143	WASHER; LK,UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) ID=16.2	0-91510-816-0	03	1	1307-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	1307-			●
178	BRACKET; UNION (D)	8-98114-771-0	01	1	0804-			●
178	BRACKET; UNION (E)	8-98031-033-1	01	1	0801-			●
178	BRACKET; UNION (A)	8-98017-054-1	01	1	0801-	●			●
178	BRACKET; UNION AUSTRALIA EQUIPMENT(RR3) (B)	8-98057-822-0	01	1	0801-	●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	0801-1306	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0801-1306			●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-034-1	01	1	1307-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1307-			●
178	BRACKET; UNION EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	0801-1306	●
178	BRACKET; UNION FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-98057-823-0	01	1	1307-	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0801-		●	●
192	TUBE; NYLON (A)	8-98114-349-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98114-354-0	01	1	0804-			●
192	TUBE; NYLON (A)	8-98115-506-0	01	1	0804-			●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98094-048-0	01	1	0801-	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98094-049-0	01	1	0801-0805	●
192	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (D)	8-98119-996-0	01	1	0806-	●
192	TUBE; NYLON REAR AXLE R130<B5V> (A) L=930 OD=8	1-49218-617-1	02	1	0801-	●
192	TUBE; NYLON (A) L=930 OD=8	1-49218-617-1	02	1	0801-			●
192	TUBE; NYLON (B)	8-98017-537-0	01	1	0801-		●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE FINAL GEAR 17.5"<B5D> EXC. AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1307-			●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0804-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
