3-70 — BRAKE PIPING; AIR,AIR MASTER (#57167) — 178 parça

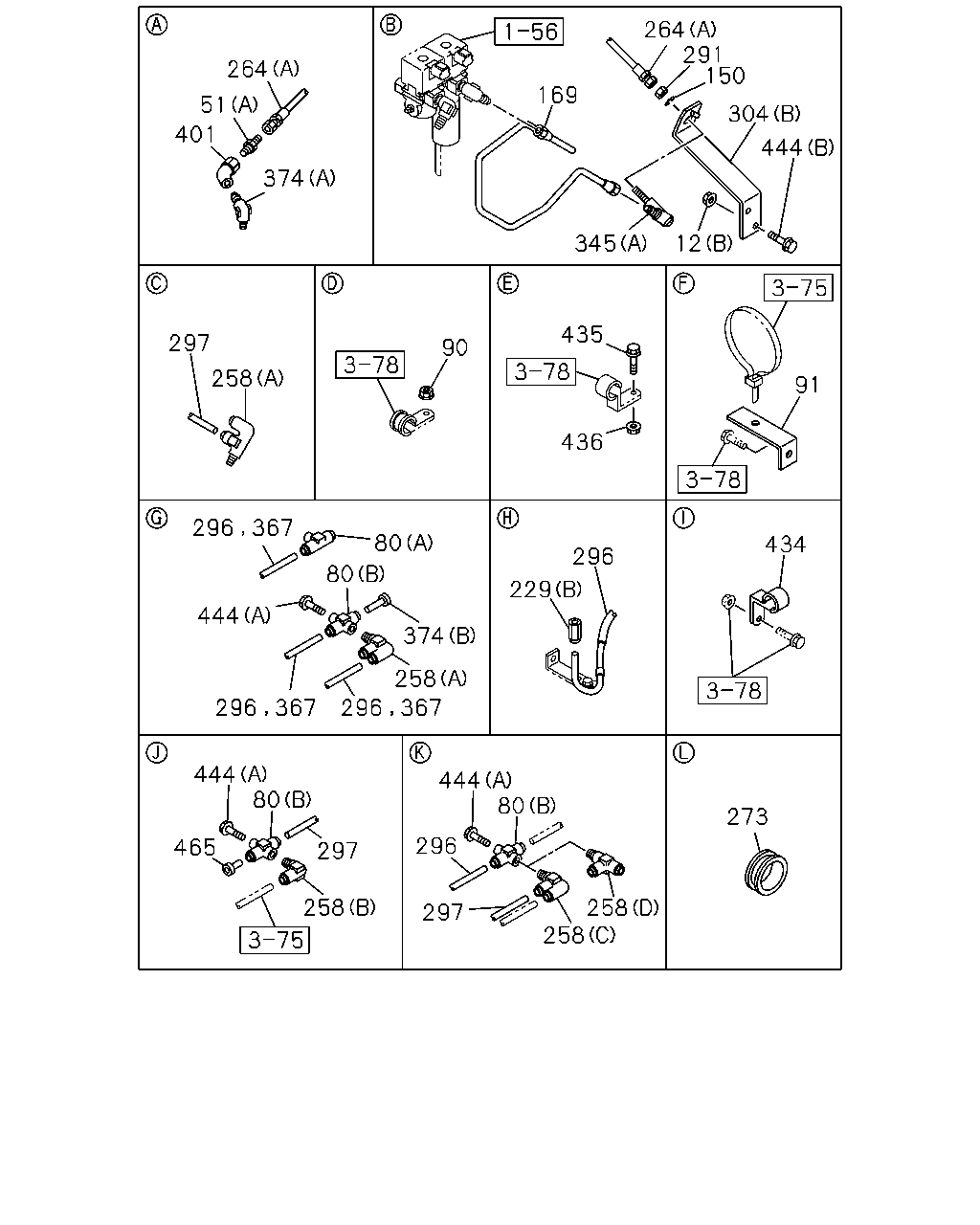

264 291 150 264 169 51 304 401 444 374 12 345 435 297 90 258 91 436 80 434 296 80 229 444 374 258 444 80 444 80 273 296 465 297 258 258 258 297 296 367 296 367 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	NUT; UNION (B) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
12	NUT; UNION (A) M22	0-91111-522-0	01	1	0801-	●	●	●	●
51	UNION DIFF LOCK<C3N> (B) PT3/8 4WAY	1-09661-489-0	01	1	0809-			●
51	UNION (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-	●	●	●
80	UNION; 3 WAY DIFF LOCK<C3N> (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0809-0901	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803		●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	02	1	0801-0803	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205		●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●	●
80	UNION; 3 WAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-		●
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0801-	●		●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0801-	●	●	●	●
91	BRACKET; TUBE CLIP L=60 H=30	1-47477-716-1	02	1	0801-0803	●	●	●	●
91	BRACKET; TUBE CLIP L=60 H=30	1-47477-716-1	02	1	0804-	●	●	●
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0801-	●	●	●
169	PIPE; AIR,UNION TO FLEX HOSE L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-	●	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-	●	●	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0801-	●	●	●	●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-0901	●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE (D)	1-09660-969-0	01	1	0804-1006				●
258	CONNECTOR; NYLON TUBE (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1007-1205				●
258	CONNECTOR; NYLON TUBE (D)	1-09660-969-0	01	1	1206-				●
258	CONNECTOR; NYLON TUBE (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0801-0803	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0804-	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-1205	●	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-	●		●
258	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-		●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0801-0808	●	●	●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-	●	●
258	CONNECTOR; NYLON TUBE EXC. DIFF LOCK<C3N> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-			●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	0801-	●	●	●	●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	0801-	●	●	●	●
291	NUT; UNION M12	9-09840-280-0	01	1	0801-	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●		●
296	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1202-	●		●
296	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1202-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0801-0801	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0802-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0804-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
304	BRACKET; UNION (B)	8-97615-626-3	01	1	0801-	●	●	●
304	BRACKET; UNION (A)	8-97610-362-1	01	1	0801-	●	●	●	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0804-0901				●
345	UNION; AIR PIPE DIFF LOCK<C3N> (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-				●
345	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0801-	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1202-	●		●
367	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1202-		●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0801-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●	●	●
374	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0804-0901				●
374	CONNECTOR DIFF LOCK<C3N> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-	●
374	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-				●
374	CONNECTOR (B) OD=8	1-09661-616-0	01	1	0801-0808		●
374	CONNECTOR EXC. DIFF LOCK<C3N> (B) OD=8	1-09661-616-0	01	1	0809-		●
374	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-	●	●	●
401	CONNECTOR; FLEX HOSE R1/4 & RC1/4	1-09664-211-0	01	1	0801-	●	●	●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	0801-	●	●	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0801-	●	●	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0801-	●	●	●	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0808	●	●	●	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1205	●	●	●	●
444	BOLT; UNION DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1205	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-	●	●	●	●
444	BOLT; UNION DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-				●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	02	1	0801-1205	●	●	●	●
444	BOLT; UNION (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-	●		●
444	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
444	BOLT; UNION (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●
465	PLUG OD=8	1-09661-616-0	01	1	0801-1205	●	●	●	●
465	PLUG OD=8	1-09661-616-0	01	1	1206-	●		●
465	PLUG NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=8	1-09661-616-0	01	1	1206-		●

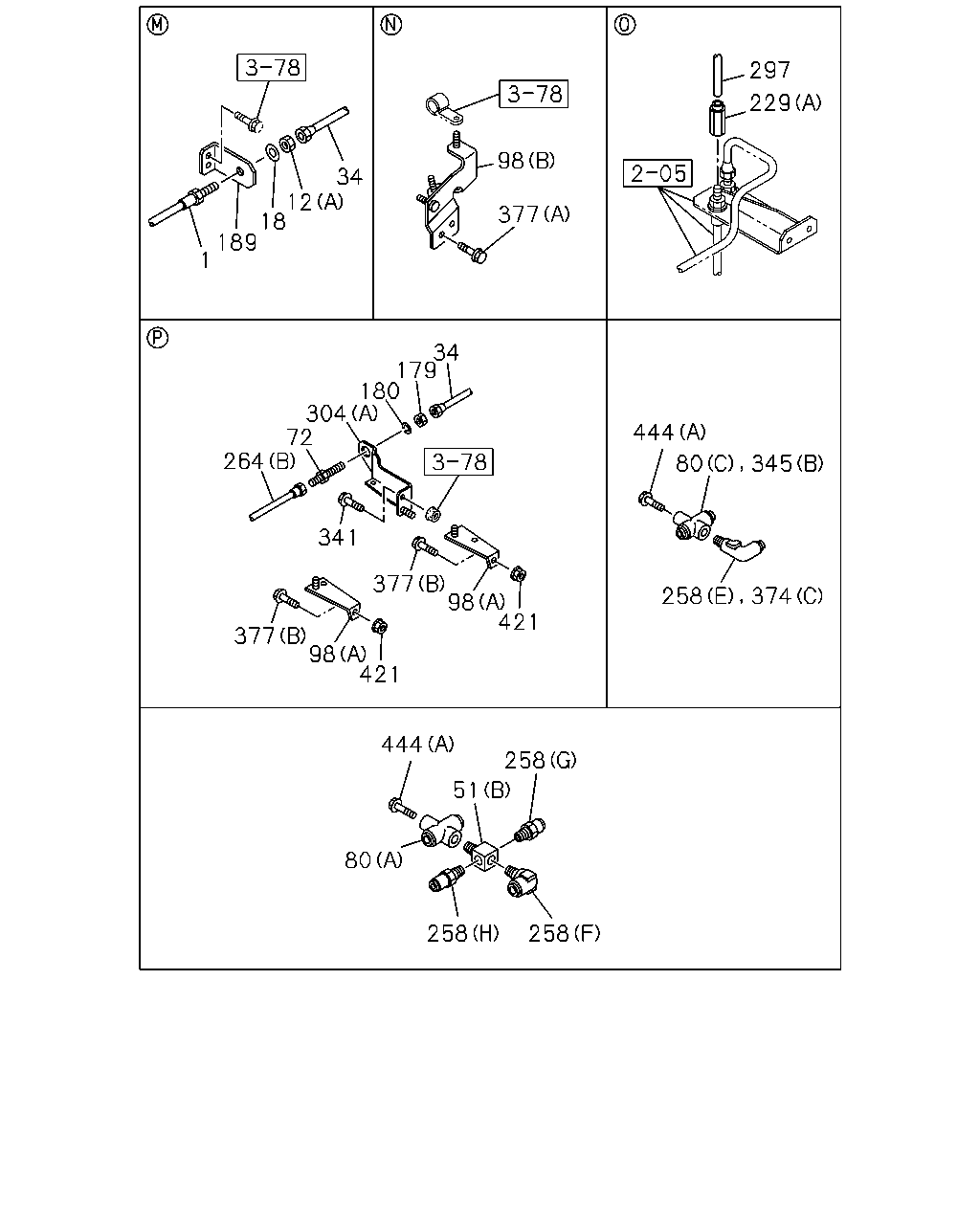

297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 444 341 377 98 421 377 98 421 444 258 51 80 258 258 80 345 258 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK	8-98100-332-0	01	1	0801-	●	●	●	●
12	NUT; UNION (B) M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
12	NUT; UNION (A) M22	0-91111-522-0	01	1	0801-	●	●	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0801-	●	●	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	0801-	●	●	●	●
51	UNION DIFF LOCK<C3N> (B) PT3/8 4WAY	1-09661-489-0	01	1	0809-			●
51	UNION (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-	●	●	●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	0801-	●	●	●	●
80	UNION; 3 WAY DIFF LOCK<C3N> (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0809-0901	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803		●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	02	1	0801-0803	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205		●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●	●
80	UNION; 3 WAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-		●
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0801-	●		●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	0801-	●	●	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	0801-	●	●	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	0801-	●	●	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0801-	●	●	●	●
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	0801-	●	●	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-	●	●	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0801-	●	●	●	●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-0901	●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE DIFF LOCK<C3N> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-			●
258	CONNECTOR; NYLON TUBE (D)	1-09660-969-0	01	1	0804-1006				●
258	CONNECTOR; NYLON TUBE (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1007-1205				●
258	CONNECTOR; NYLON TUBE (D)	1-09660-969-0	01	1	1206-				●
258	CONNECTOR; NYLON TUBE (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0801-0803	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0804-	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-1205	●	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-	●		●
258	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-		●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0801-0808	●	●	●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-	●	●
258	CONNECTOR; NYLON TUBE EXC. DIFF LOCK<C3N> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-			●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	0801-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
304	BRACKET; UNION (B)	8-97615-626-3	01	1	0801-	●	●	●
304	BRACKET; UNION (A)	8-97610-362-1	01	1	0801-	●	●	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●	●	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0804-0901				●
345	UNION; AIR PIPE DIFF LOCK<C3N> (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-				●
345	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0801-	●	●	●
374	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0804-0901				●
374	CONNECTOR DIFF LOCK<C3N> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-	●
374	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-				●
374	CONNECTOR (B) OD=8	1-09661-616-0	01	1	0801-0808		●
374	CONNECTOR EXC. DIFF LOCK<C3N> (B) OD=8	1-09661-616-0	01	1	0809-		●
374	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-	●	●	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●	●
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0808	●	●	●	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1205	●	●	●	●
444	BOLT; UNION DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-1205	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-	●	●	●	●
444	BOLT; UNION DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	1206-				●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	02	1	0801-1205	●	●	●	●
444	BOLT; UNION (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-	●		●
444	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
444	BOLT; UNION (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●	●

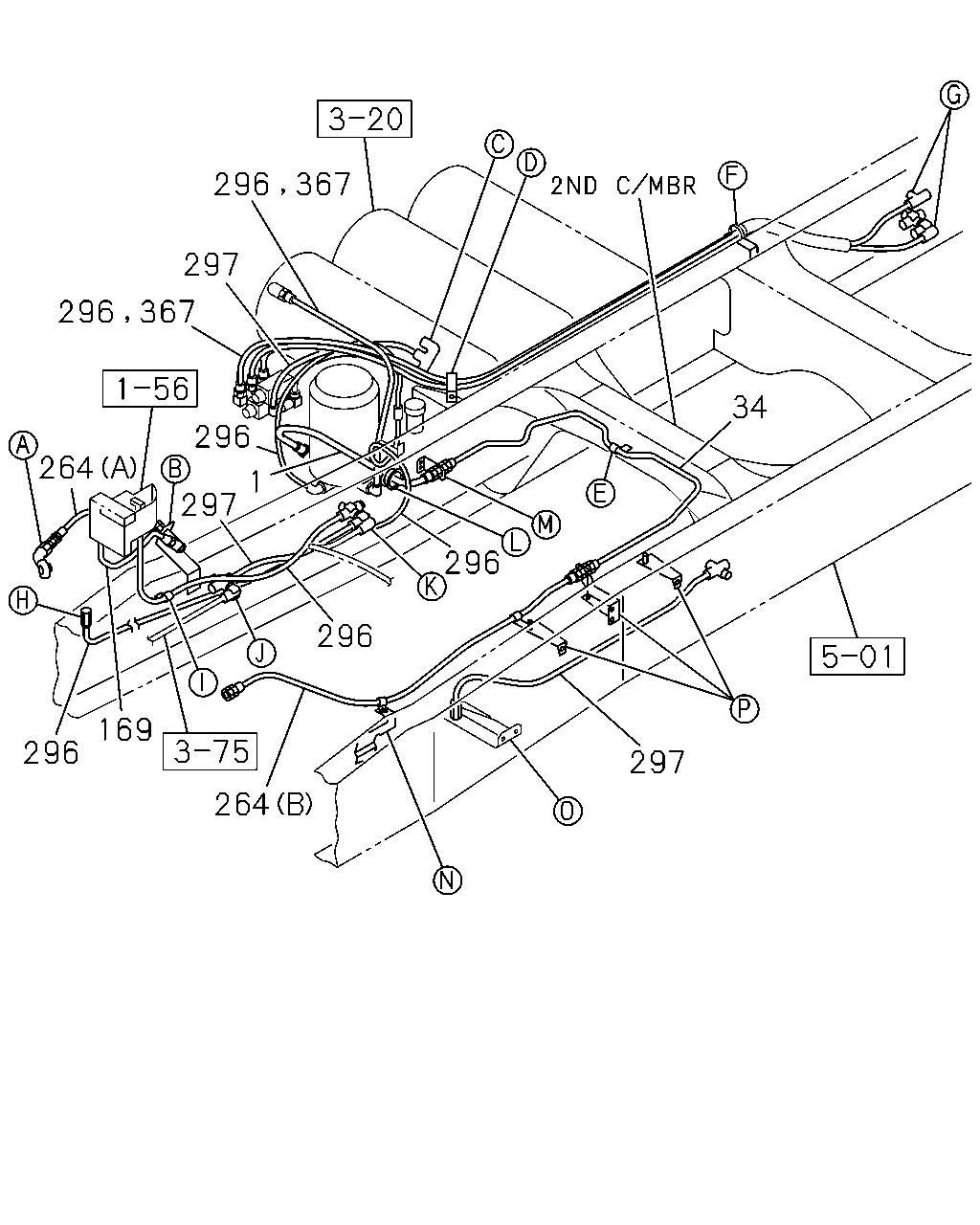

296 297 296 34 296 297 264 1 296 296 169 296 297 264 367 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK	8-98100-332-0	01	1	0801-	●	●	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	0801-	●	●	●	●
169	PIPE; AIR,UNION TO FLEX HOSE L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-	●	●	●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●		●
296	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1202-	●		●
296	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1202-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0801-0801	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0802-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0804-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1202-	●		●
367	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	1202-		●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0801-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
