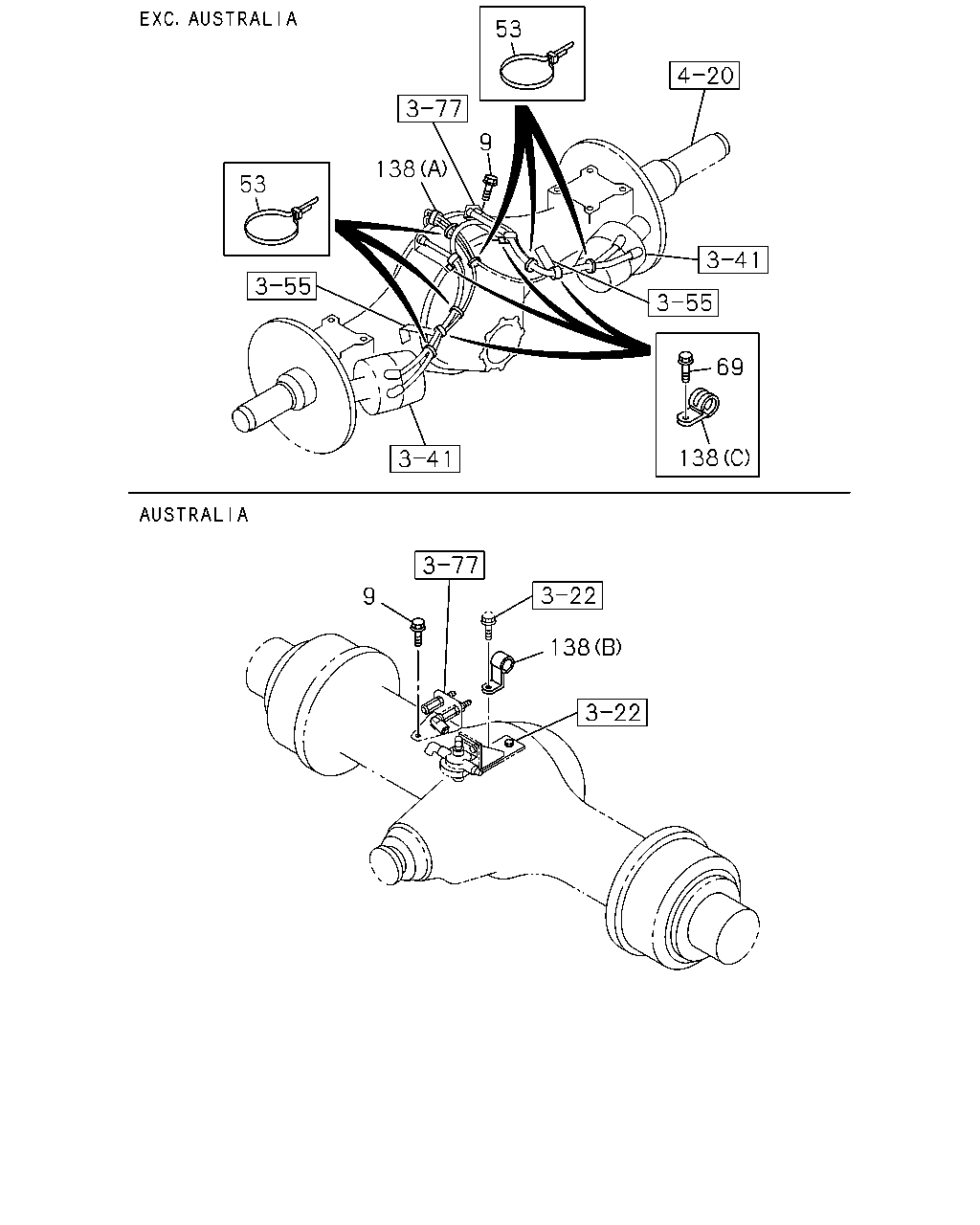

3-58 — FIXING PARTS; OIL PIPING
(#57166) — 13 parça
Tümü
A - FGR5MX
B - GGR5MX
C - FGD5MX
D - GGD5MX
53
9
138
53
69
138
9
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
9
BOLT; BRKT
AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE
0-28050-816-0
02
1
0801-
●
9
BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE
0-28050-816-0
08
1
0801-
●
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
0801-
●
53
CLIP; UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=250
1-09707-126-0
06
1
0801-
●
53
CLIP; UNION
L=250
1-09707-126-0
06
1
0801-
●
53
CLIP; UNION
L=250
1-09707-126-0
03
1
0801-
●
●
69
BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE
0-28050-820-0
04
1
0801-
●
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
04
1
0801-
●
138
CLIP; TUBE
REAR AXLE R130<B5V> (A) ID=11X2 L=20
0-95325-035-0
01
1
0801-
●
138
CLIP; TUBE
(A) ID=11X2 L=20
0-95325-035-0
01
1
0801-
●
138
CLIP; TUBE
AUSTRALIA EQUIPMENT(RR3) (B) ID=21 H=25.5 L=26
8-94176-806-0
01
1
0801-
●
138
CLIP; TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=35 L=33
1-09700-945-0
04
1
0801-
●
138
CLIP; TUBE
(C) ID=35 L=33
1-09700-945-0
04
1
0801-
●
