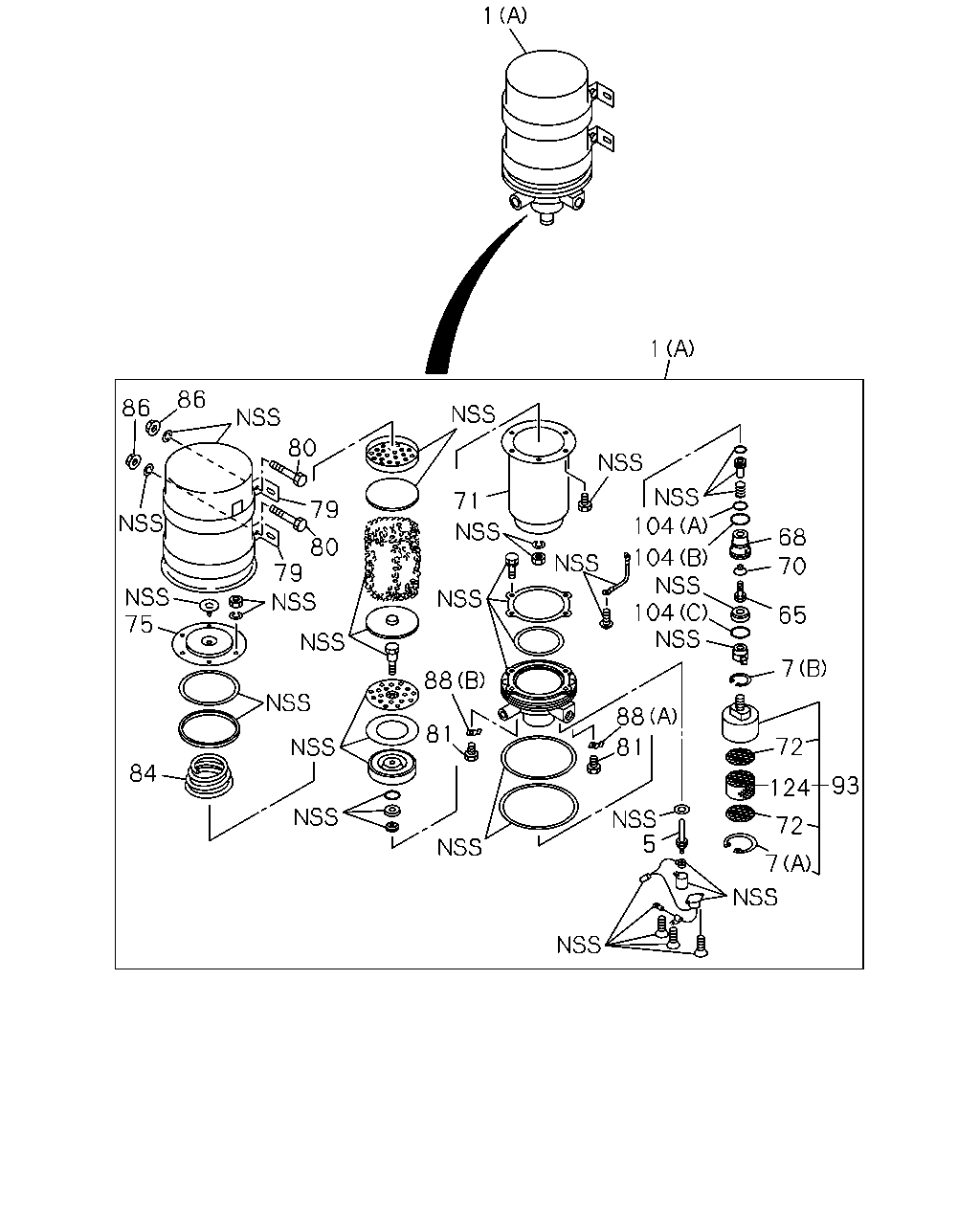

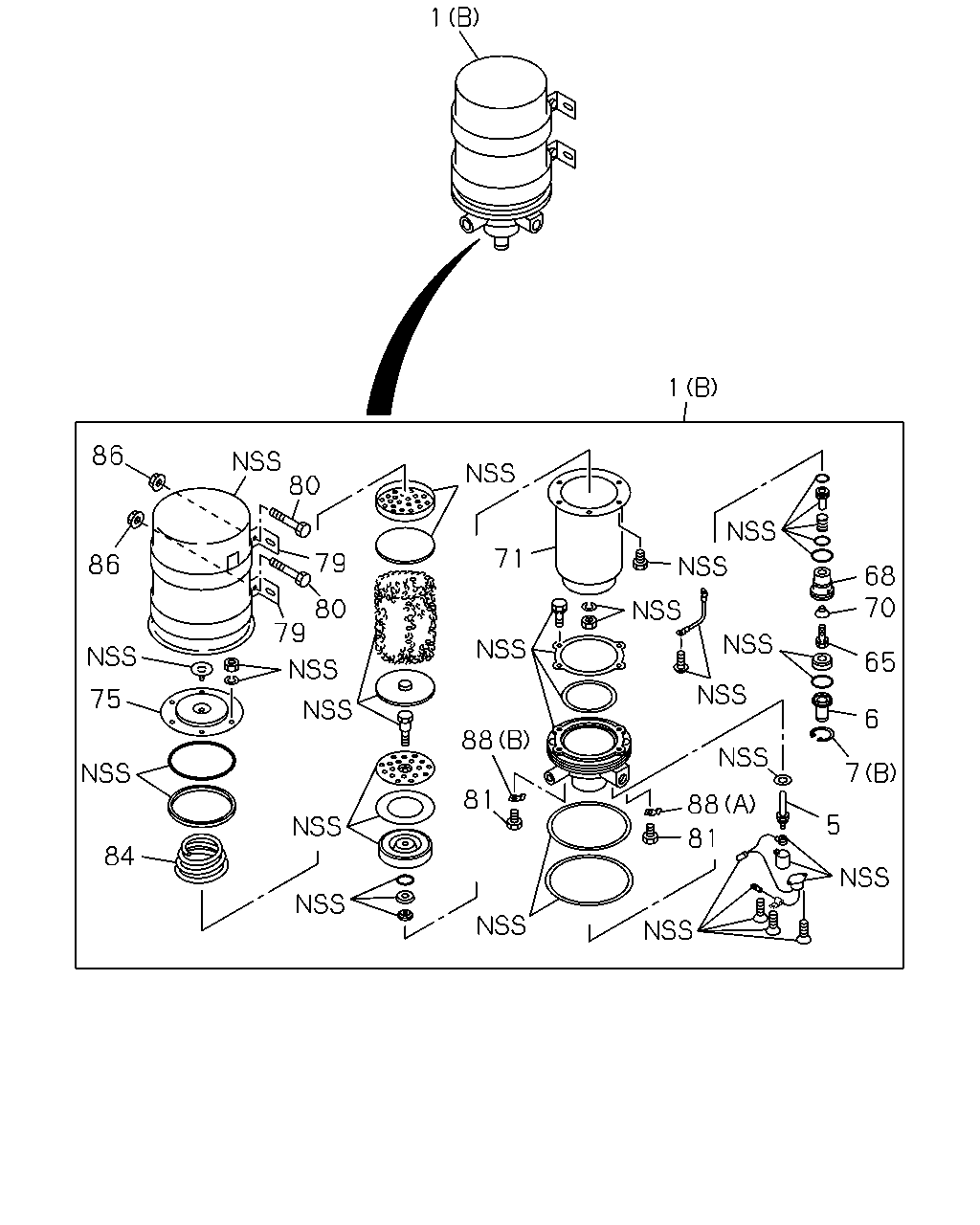

3-46 — AIR DRYER (#57164) — 75 parça

1 1 86 80 80 79 71 79 86 68 70 65 75 6 88 7 81 88 5 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (B)	1-48190-277-1	01	1	0801-	●
1	DRYER; AIR (A)	1-48190-347-1	01	1	0801-		●	●
1	DRYER; AIR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48190-347-1	01	1	0801-				●
5	HEATER ASM; AIR DRYER	1-48199-085-0	02	1	0801-	●	●	●	●
6	COVER; EXH,AIR DRYER	1-48199-101-0	01	1	0801-	●
7	RING; SNAP,AIR DRYER (A)	1-47769-017-0	01	1	0801-		●	●
7	RING; SNAP,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47769-017-0	01	1	0801-				●
7	RING; SNAP,AIR DRYER (B)	1-48199-154-0	01	1	0801-	●	●	●	●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0801-	●	●	●	●
68	BODY; VALVE	1-48199-216-0	01	1	0801-	●	●	●	●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0801-	●	●	●	●
71	CASE; INNER,AIR DRYER	1-48199-156-1	01	1	0801-	●	●	●	●
75	COVER; CASE,AIR DRYER	1-48199-167-0	01	1	0801-	●	●	●	●
79	BRACKET; AIR DRYER	1-48199-189-0	02	1	0801-	●	●	●	●
80	BOLT; BRKT	1-48199-190-0	02	1	0801-	●	●	●	●
81	BOLT; CASE,AIR DRYER	1-48199-177-0	02	1	0801-	●	●	●	●
84	SPRING; AIR DRYER	1-48199-166-0	01	1	0801-	●	●	●	●
86	NUT; BRKT	1-48199-320-0	02	1	0801-	●	●	●	●
88	PLATE; STOPPER (A)	1-48199-178-0	01	1	0801-	●	●	●	●
88	PLATE; STOPPER (B)	1-48199-179-0	01	1	0801-	●	●	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

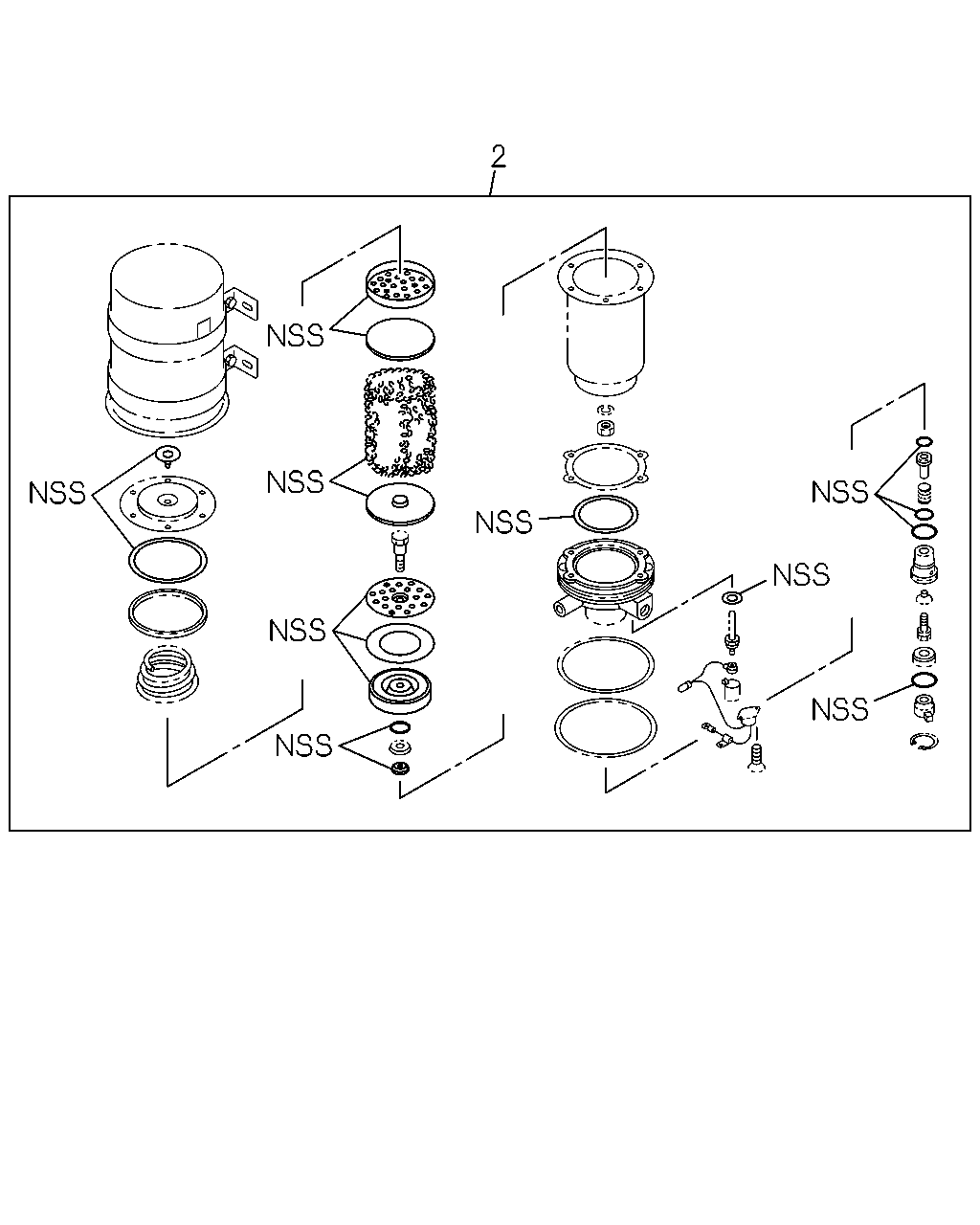

	2	REPAIR KIT; AIR DRYER	1-85576-226-0	01	1	0801-	●	●	●	●

3 68 70 65 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	PISTON KIT; AIR DRYER	1-85576-123-1	01	1	0801-		●	●
3	PISTON KIT; AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-85576-123-1	01	1	0801-				●
3	PISTON KIT; AIR DRYER	1-85576-057-1	01	1	0801-	●
4	THERMOSTAT KIT; AIR DRYER	1-85576-057-1	01	1	1002-		●	●
4	THERMOSTAT KIT; AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-85576-057-1	01	1	1002-				●
4	THERMOSTAT KIT; AIR DRYER	1-85576-254-0	01	1	0801-1001	●	●	●	●
4	THERMOSTAT KIT; AIR DRYER	1-85576-254-0	01	1	1002-	●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0801-	●	●	●	●
68	BODY; VALVE	1-48199-216-0	01	1	0801-	●	●	●	●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0801-	●	●	●	●

1 1 86 86 80 104 71 79 68 70 80 79 104 104 75 65 7 88 88 81 72 81 84 93 124 5 72 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (B)	1-48190-277-1	01	1	0801-	●
1	DRYER; AIR (A)	1-48190-347-1	01	1	0801-		●	●
1	DRYER; AIR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48190-347-1	01	1	0801-				●
5	HEATER ASM; AIR DRYER	1-48199-085-0	02	1	0801-	●	●	●	●
7	RING; SNAP,AIR DRYER (A)	1-47769-017-0	01	1	0801-		●	●
7	RING; SNAP,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47769-017-0	01	1	0801-				●
7	RING; SNAP,AIR DRYER (B)	1-48199-154-0	01	1	0801-	●	●	●	●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	0801-	●	●	●	●
68	BODY; VALVE	1-48199-216-0	01	1	0801-	●	●	●	●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	0801-	●	●	●	●
71	CASE; INNER,AIR DRYER	1-48199-156-1	01	1	0801-	●	●	●	●
72	PLATE; FILTER,AIR DRYER	1-48199-464-0	02	1	0801-		●	●
72	PLATE; FILTER,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48199-464-0	02	1	0801-				●
75	COVER; CASE,AIR DRYER	1-48199-167-0	01	1	0801-	●	●	●	●
79	BRACKET; AIR DRYER	1-48199-189-0	02	1	0801-	●	●	●	●
80	BOLT; BRKT	1-48199-190-0	02	1	0801-	●	●	●	●
81	BOLT; CASE,AIR DRYER	1-48199-177-0	02	1	0801-	●	●	●	●
84	SPRING; AIR DRYER	1-48199-166-0	01	1	0801-	●	●	●	●
86	NUT; BRKT	1-48199-320-0	02	1	0801-	●	●	●	●
88	PLATE; STOPPER (A)	1-48199-178-0	01	1	0801-	●	●	●	●
88	PLATE; STOPPER (B)	1-48199-179-0	01	1	0801-	●	●	●	●
93	SILENCER; AIR DRYER	1-48199-462-0	01	1	0801-		●	●
93	SILENCER; AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48199-462-0	01	1	0801-				●
104	GASKET (A)	1-48199-108-0	01	1	0801-		●	●
104	GASKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48199-108-0	01	1	0801-				●
104	GASKET (B)	1-48199-109-0	01	1	0801-		●	●
104	GASKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48199-109-0	01	1	0801-				●
104	GASKET (C)	1-48199-153-0	01	1	0801-		●	●
104	GASKET NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48199-153-0	01	1	0801-				●
124	FILTER; SILENCER	1-48199-465-0	01	1	0801-		●	●
124	FILTER; SILENCER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48199-465-0	01	1	0801-				●

1 1 8 13 13 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRYER; AIR (B)	1-48190-277-1	01	1	0801-	●
1	DRYER; AIR (A)	1-48190-347-1	01	1	0801-		●	●
1	DRYER; AIR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48190-347-1	01	1	0801-				●

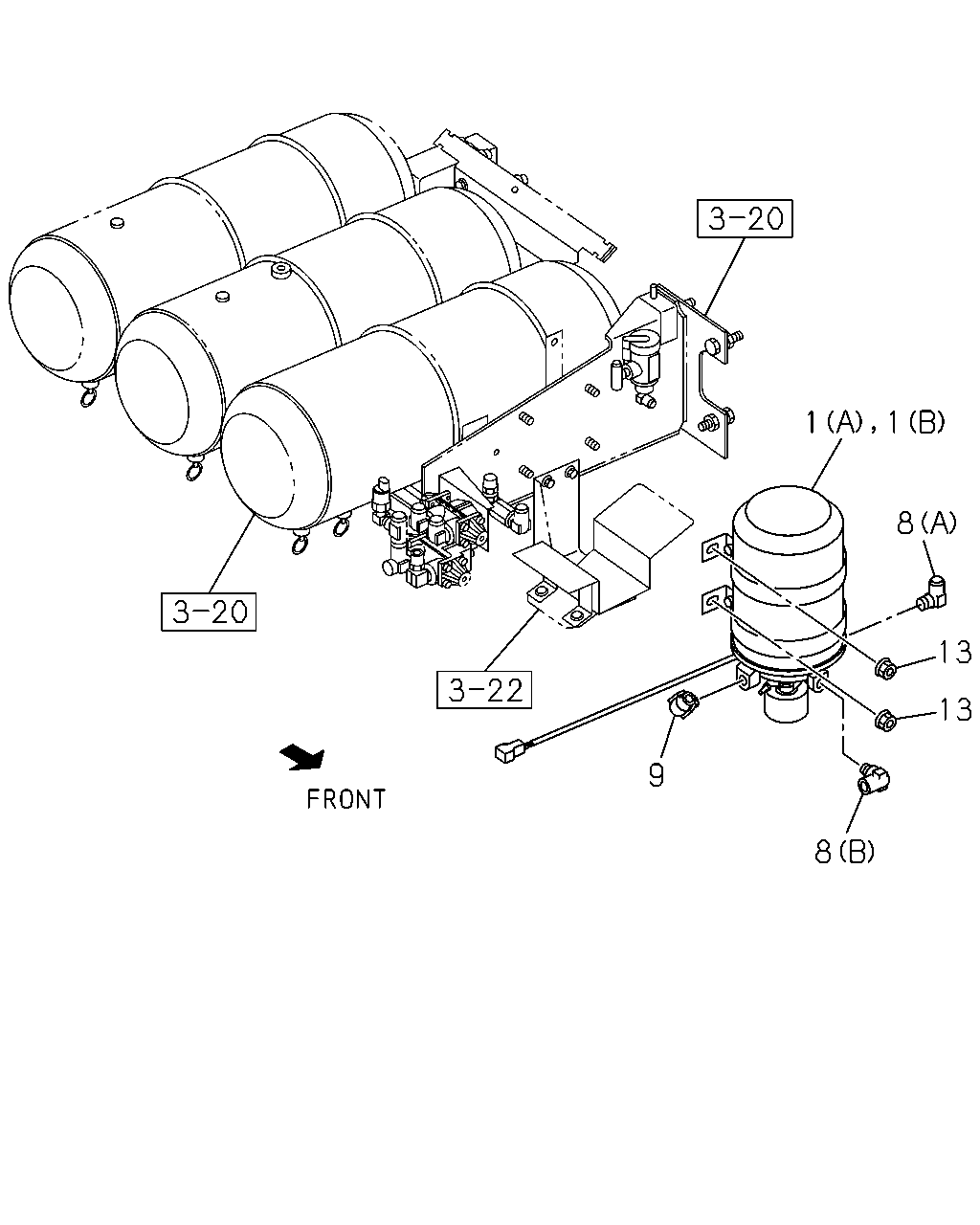

8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0801-0803		●	●
8	CONNECTOR; OUT,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0801-0803				●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0804-	●	●	●	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-0803		●	●
8	CONNECTOR; OUT,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-0803				●
8	CONNECTOR; OUT,AIR DRYER (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0804-	●	●	●	●
9	CONNECTOR; PIPE,AIR DRYER M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0801-0803		●	●
9	CONNECTOR; PIPE,AIR DRYER NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0801-0803				●
9	CONNECTOR; PIPE,AIR DRYER M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0804-	●	●	●	●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	04	1	0801-	●	●	●	●
