Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#57162) — 274 parça

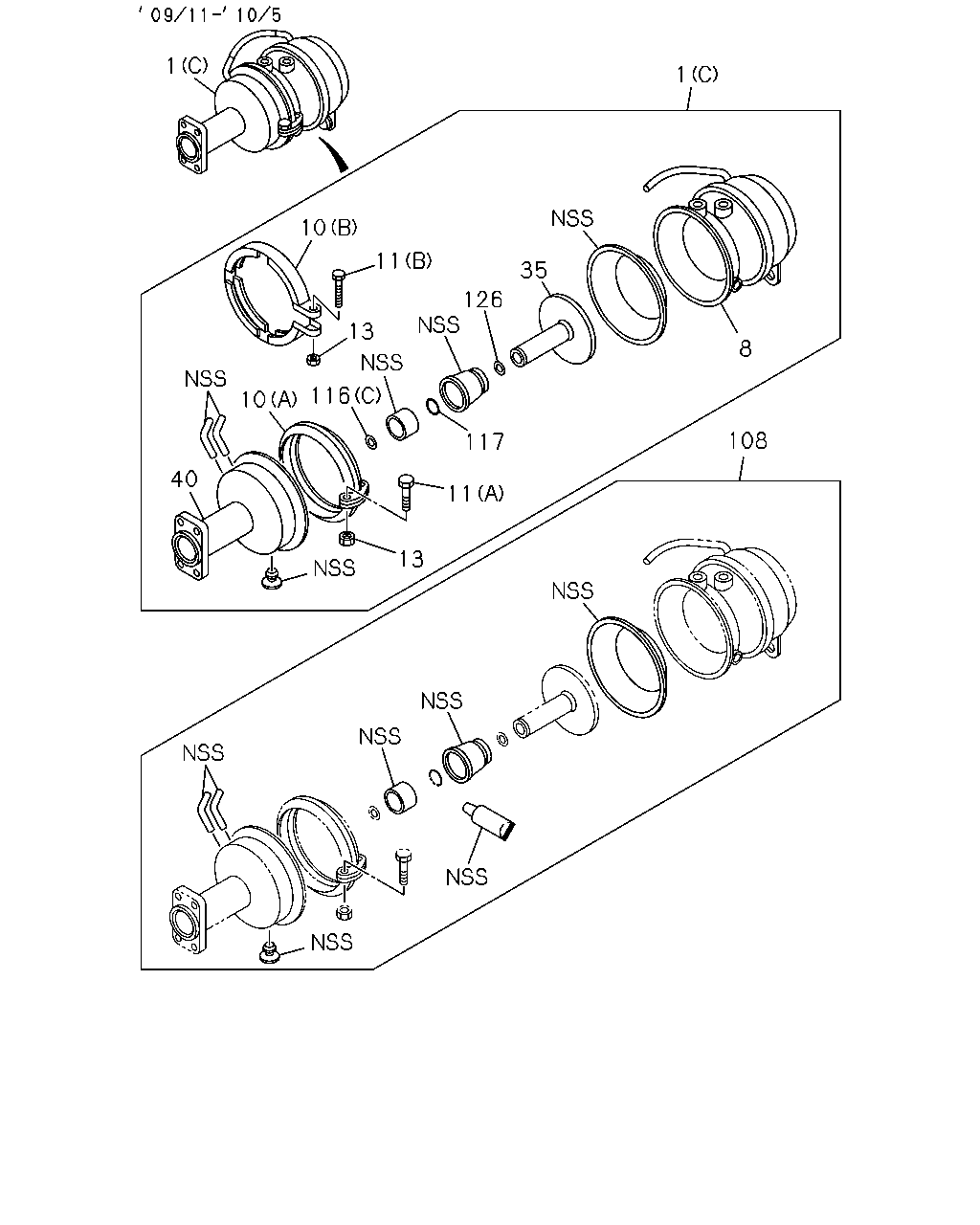

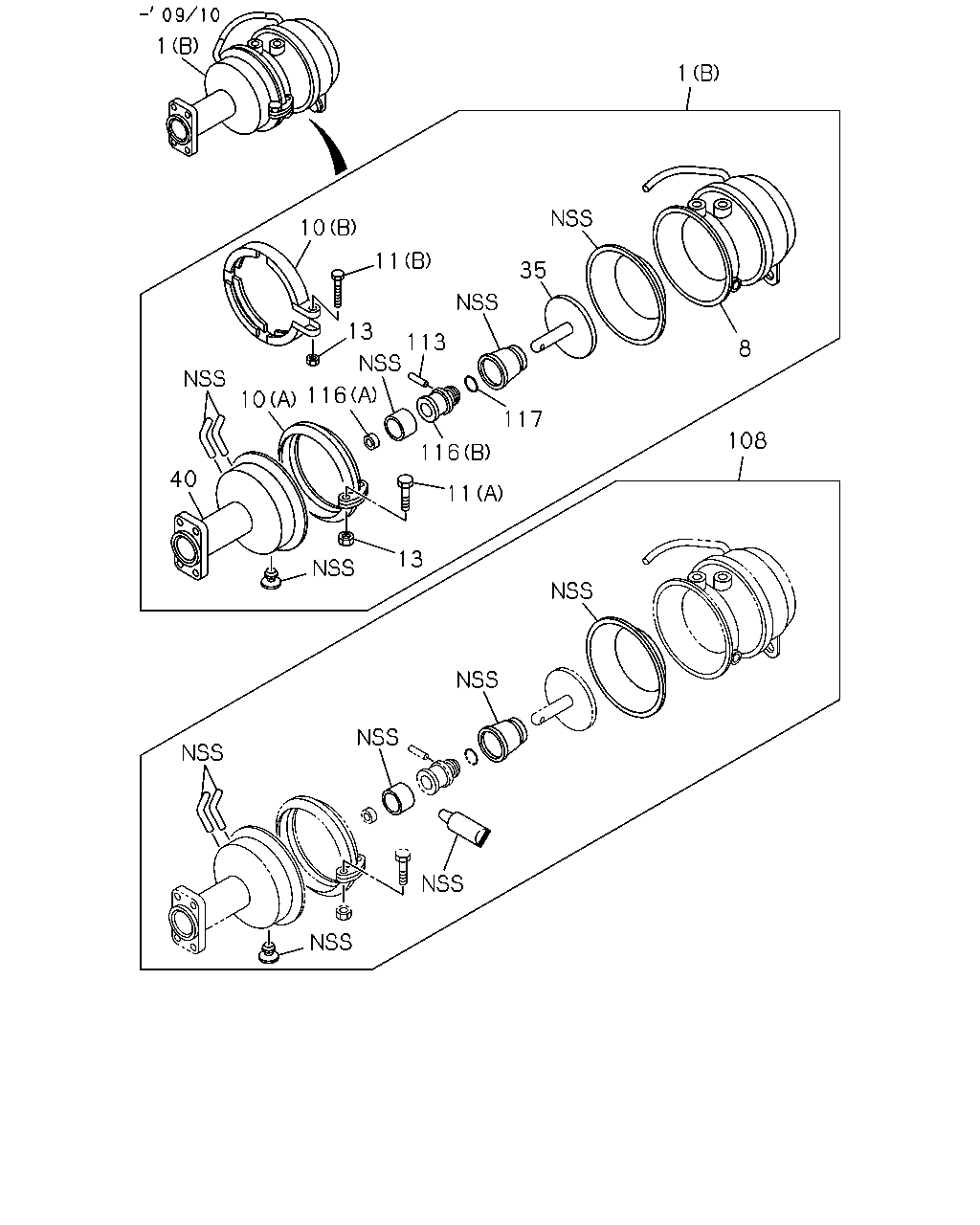

1 1 10 11 35 13 113 8 116 10 117 108 116 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-941-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-959-0	01	1	1212-			●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-942-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-960-0	01	1	1212-			●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-868-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-868-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-698-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-698-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-097-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-097-0	01	1	1006-				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-869-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-869-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-699-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-699-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-098-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-098-0	01	1	1006-				●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-095-2	01	1	0801-1005			●
8	SHELL; CYL,SPR CHAMBER	1-48251-095-2	01	1	0801-1005				●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-097-2	01	1	0801-1005			●
8	SHELL; CYL,SPR CHAMBER	1-48251-097-2	01	1	0801-1005				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-149-0	02	1	0801-0901			●
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0801-0901				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-256-0	02	1	0902-			●
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-146-0	04	1	0801-0901			●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0801-0901				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-257-0	02	1	0902-			●
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	04	1	0801-0901			●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0801-0901				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	02	1	0902-			●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48263-022-0	02	1	0801-0910			●
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0801-0910				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-974-0	02	1	0911-			●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-140-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-140-1	01	1	0801-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-141-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-141-1	01	1	0801-				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-85576-320-0	02	1	0801-0910			●
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0801-0910				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-982-0	02	1	0911-			●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-				●
113	PIN; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-153-0	02	1	0801-0910			●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0801-0910				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-152-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0801-0910				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98146-963-0	02	1	0911-			●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-154-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-155-0	02	1	0801-0910			●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-966-0	02	1	0911-			●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-				●

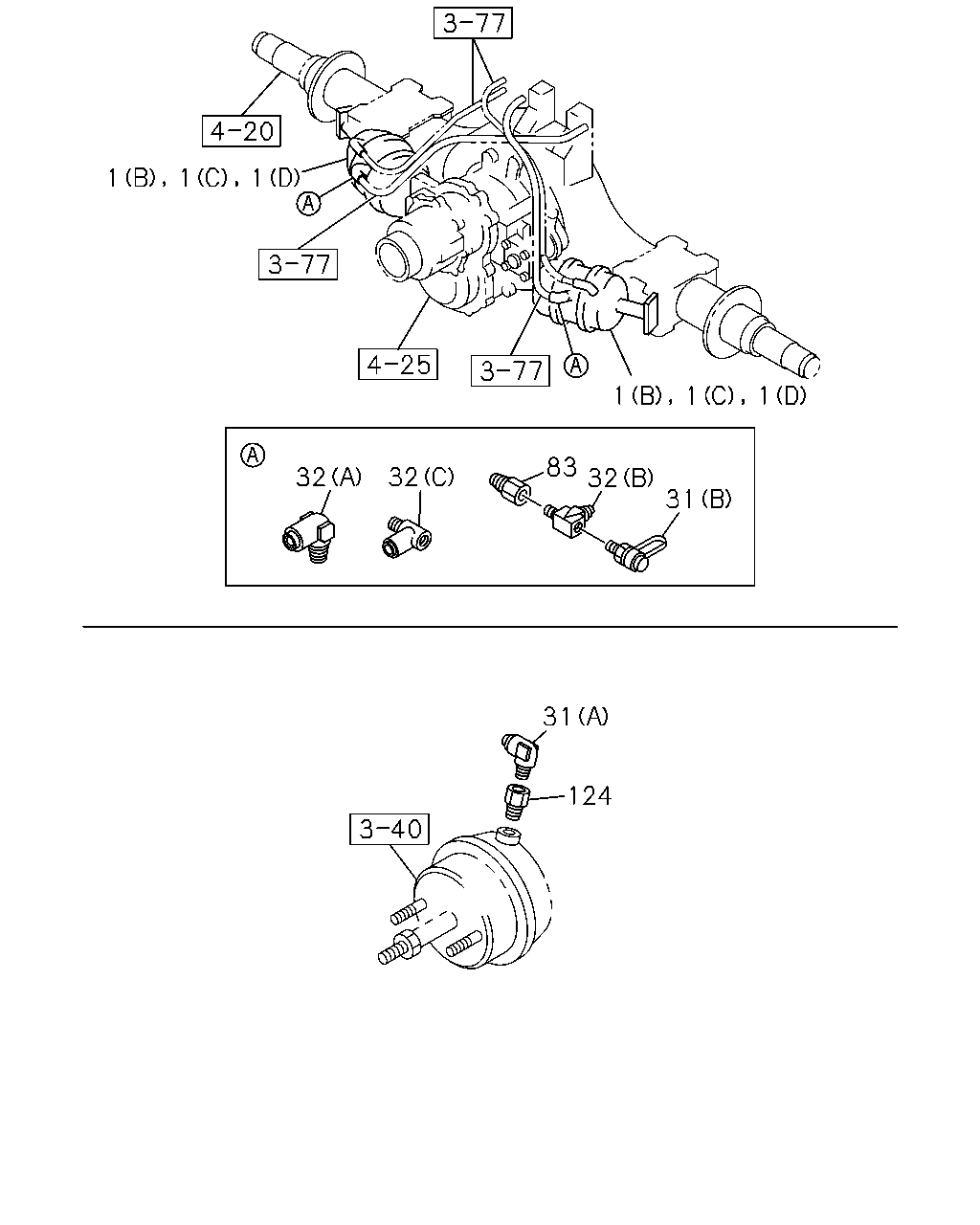

1 1 1 1 1 1 83 32 32 32 31 31 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-941-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-959-0	01	1	1212-			●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-942-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-960-0	01	1	1212-			●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-868-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-868-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-698-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-698-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-097-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-097-0	01	1	1006-				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-869-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-869-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-699-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-699-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-098-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-098-0	01	1	1006-				●
31	CONNECTOR (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-	●	●
31	CONNECTOR FRONT AXLE MERITOR FG941(BFL) (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-			●
31	CONNECTOR (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
31	CONNECTOR AXLE-REAR MERITOR RS23-161<BGN> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-				●
32	CONNECTOR; SPR CHAMBER ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0809-				●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0802				●
32	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0803-				●
83	ADAPTER; SPR CHAMBER NPTF3/8 & RC3/8	1-09660-548-0	02	1	0801-	●	●
83	ADAPTER; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> NPTF3/8 & RC3/8	1-09660-548-0	02	1	0801-			●
124	ADAPTER	1-09660-547-0	01	1	0801-0805	●	●
124	ADAPTER FRONT AXLE MERITOR FG941(BFL)	1-09660-547-0	01	1	0801-0805			●
124	ADAPTER R1/4 & PT3/8	8-98113-889-0	01	1	0806-	●	●
124	ADAPTER FRONT AXLE MERITOR FG941(BFL) R1/4 & PT3/8	8-98113-889-0	01	1	0806-			●

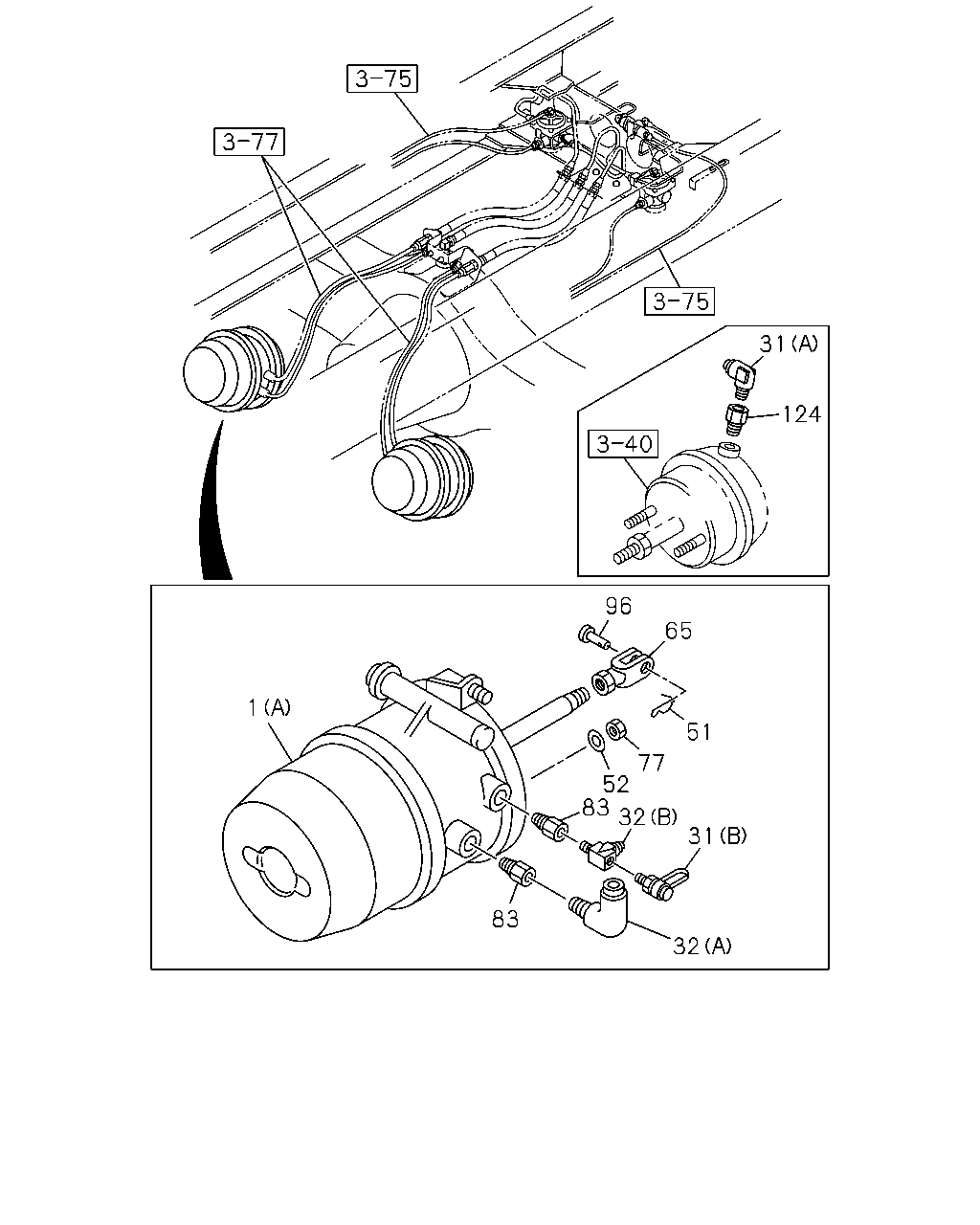

31 124 96 65 1 51 77 52 83 32 31 83 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-941-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-959-0	01	1	1212-			●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-942-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-960-0	01	1	1212-			●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-868-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-868-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-698-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-698-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-097-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-097-0	01	1	1006-				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-869-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-869-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-699-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-699-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-098-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-098-0	01	1	1006-				●
31	CONNECTOR (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-	●	●
31	CONNECTOR FRONT AXLE MERITOR FG941(BFL) (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-			●
31	CONNECTOR (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
31	CONNECTOR AXLE-REAR MERITOR RS23-161<BGN> (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-				●
32	CONNECTOR; SPR CHAMBER ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0809-				●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0801-			●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0802				●
32	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0803-				●
51	PIN; SPLIT	1-48259-275-0	02	1	0801-	●	●
51	PIN; SPLIT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-48259-275-0	02	1	0801-			●
52	WASHER; PL	1-41519-038-0	04	1	0801-	●	●
52	WASHER; PL FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-41519-038-0	04	1	0801-			●
65	JOINT; JAW	1-48259-321-0	02	1	0801-	●	●
65	JOINT; JAW FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-48259-321-0	02	1	0801-			●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0801-	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-87050-052-0	04	1	0801-			●
83	ADAPTER; SPR CHAMBER NPTF3/8 & RC3/8	1-09660-548-0	02	1	0801-	●	●
83	ADAPTER; SPR CHAMBER AXLE-REAR MERITOR RS23-161<BGN> NPTF3/8 & RC3/8	1-09660-548-0	02	1	0801-			●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0801-	●	●
96	PIN; JAW JOINT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-48259-273-0	02	1	0801-			●
124	ADAPTER	1-09660-547-0	01	1	0801-0805	●	●
124	ADAPTER FRONT AXLE MERITOR FG941(BFL)	1-09660-547-0	01	1	0801-0805			●
124	ADAPTER R1/4 & PT3/8	8-98113-889-0	01	1	0806-	●	●
124	ADAPTER FRONT AXLE MERITOR FG941(BFL) R1/4 & PT3/8	8-98113-889-0	01	1	0806-			●

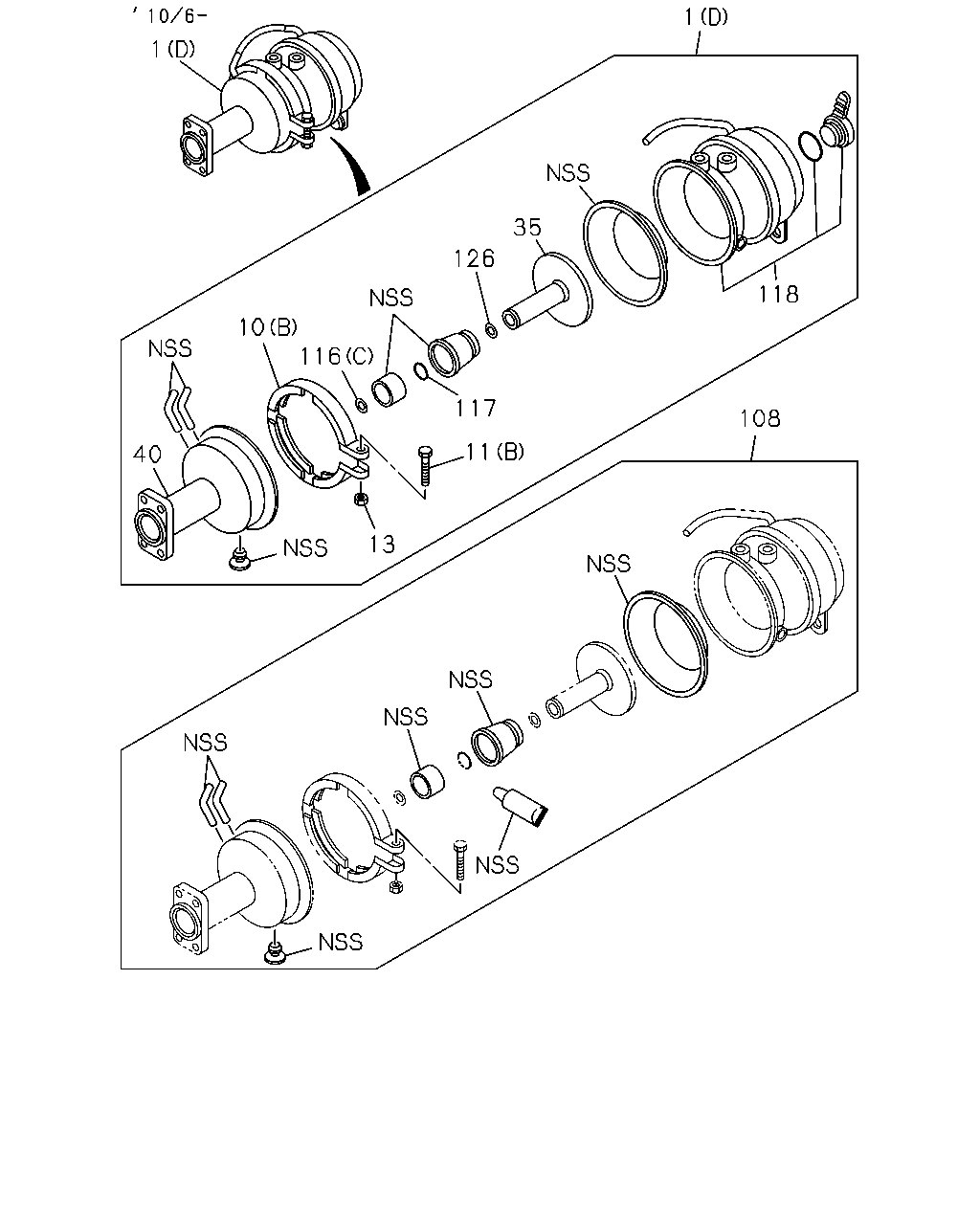

1 1 10 11 35 126 13 8 116 10 108 117 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-941-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-959-0	01	1	1212-			●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-942-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-960-0	01	1	1212-			●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-868-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-868-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-698-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-698-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-097-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-097-0	01	1	1006-				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-869-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-869-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-699-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-699-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-098-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-098-0	01	1	1006-				●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-095-2	01	1	0801-1005			●
8	SHELL; CYL,SPR CHAMBER	1-48251-095-2	01	1	0801-1005				●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-097-2	01	1	0801-1005			●
8	SHELL; CYL,SPR CHAMBER	1-48251-097-2	01	1	0801-1005				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-149-0	02	1	0801-0901			●
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0801-0901				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-256-0	02	1	0902-			●
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-146-0	04	1	0801-0901			●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0801-0901				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-257-0	02	1	0902-			●
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	04	1	0801-0901			●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0801-0901				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	02	1	0902-			●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48263-022-0	02	1	0801-0910			●
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0801-0910				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-974-0	02	1	0911-			●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-140-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-140-1	01	1	0801-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-141-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-141-1	01	1	0801-				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-85576-320-0	02	1	0801-0910			●
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0801-0910				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-982-0	02	1	0911-			●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-152-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0801-0910				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98146-963-0	02	1	0911-			●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-154-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-155-0	02	1	0801-0910			●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-966-0	02	1	0911-			●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-				●
126	SHIM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-965-0	AR	1	0911-			●
126	SHIM	8-98146-965-0	AR	1	0911-				●

1 1 35 126 118 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CHAMBER ASM; SPRING (A)	1-48250-941-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-941-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-959-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-959-0	01	1	1212-			●
1	CHAMBER ASM; SPRING (A)	1-48250-942-0	01	1	0801-1211	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-942-0	01	1	0801-1211			●
1	CHAMBER ASM; SPRING (A)	1-48250-960-0	01	1	1212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-48250-960-0	01	1	1212-			●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-868-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-868-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-698-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-698-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-097-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-097-0	01	1	1006-				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48250-869-3	01	1	0801-0910			●
1	CHAMBER ASM; SPRING (B)	1-48250-869-3	01	1	0801-0910				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98145-699-0	01	1	0911-1005			●
1	CHAMBER ASM; SPRING (C)	8-98145-699-0	01	1	0911-1005				●
1	CHAMBER ASM; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (D)	1-87412-098-0	01	1	1006-			●
1	CHAMBER ASM; SPRING (D)	1-87412-098-0	01	1	1006-				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-149-0	02	1	0801-0901			●
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0801-0901				●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-256-0	02	1	0902-			●
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-146-0	04	1	0801-0901			●
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0801-0901				●
11	BOLT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-257-0	02	1	0902-			●
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	04	1	0801-0901			●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0801-0901				●
13	NUT; CLAMP RING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-147-0	02	1	0902-			●
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48263-022-0	02	1	0801-0910			●
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0801-0910				●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-974-0	02	1	0911-			●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-140-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-140-1	01	1	0801-				●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48251-141-1	01	1	0801-			●
40	COVER ASM; LWR,SPR CHAMBER	1-48251-141-1	01	1	0801-				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-85576-320-0	02	1	0801-0910			●
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0801-0910				●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-982-0	02	1	0911-			●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	0911-				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-48269-152-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0801-0910				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	8-98146-963-0	02	1	0911-			●
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-				●
116	GUIDE; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-48269-154-0	02	1	0801-0910			●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48269-155-0	02	1	0801-0910			●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0801-0910				●
117	RING; SPR CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-966-0	02	1	0911-			●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-				●
118	CHAMBER; PIGGY BACK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-87412-113-0	01	1	1006-			●
118	CHAMBER; PIGGY BACK	1-87412-113-0	01	1	1006-				●
118	CHAMBER; PIGGY BACK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-87412-114-0	01	1	1006-			●
118	CHAMBER; PIGGY BACK	1-87412-114-0	01	1	1006-				●
126	SHIM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98146-965-0	AR	1	0911-			●
126	SHIM	8-98146-965-0	AR	1	0911-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
