◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#57161) — 333 parça

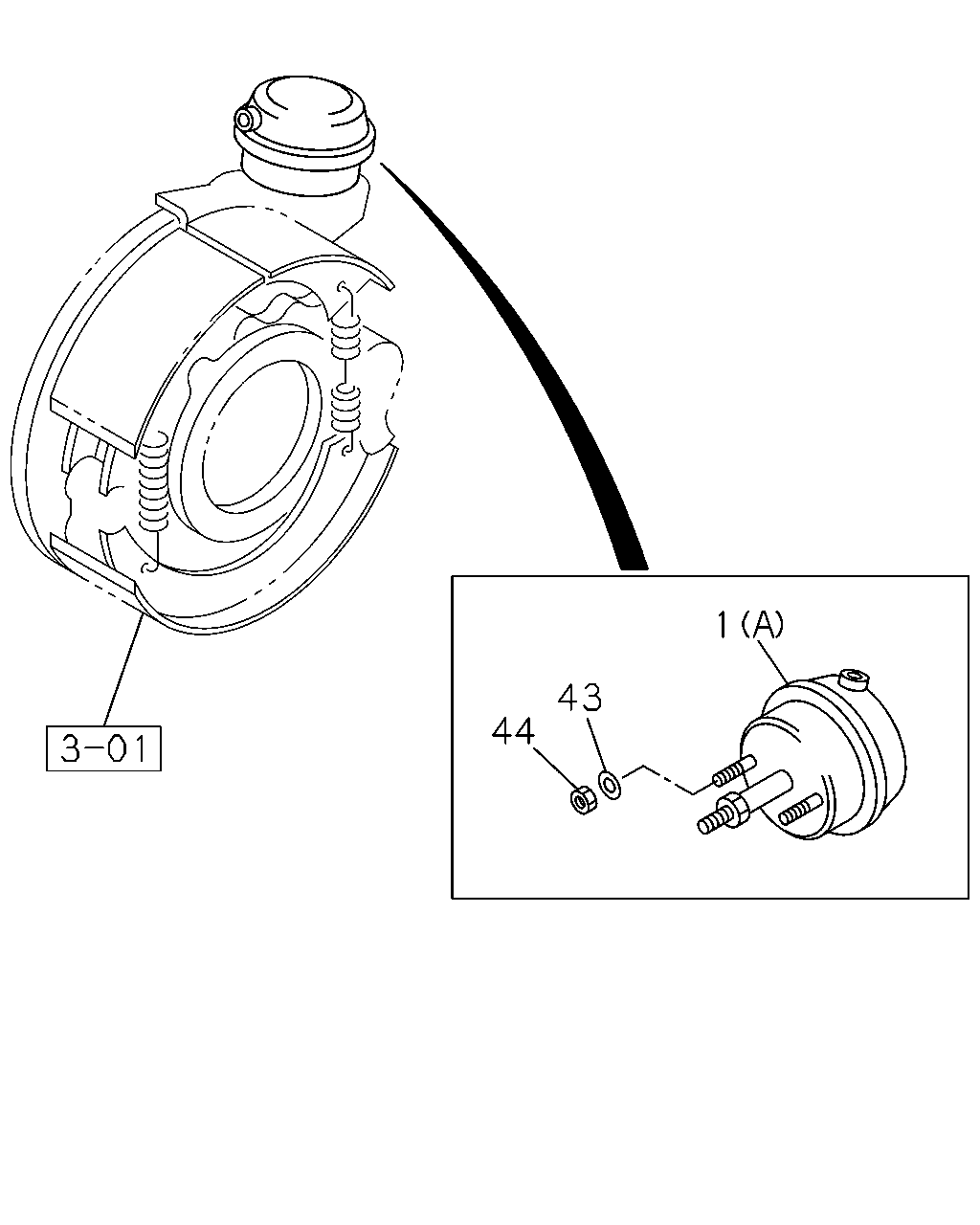

çizim 160890
1 43 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
43 WASHER; LK,POWER CHAMBER 1-41519-038-0 04 1 0801- ● ●
43 WASHER; LK,POWER CHAMBER
FRONT AXLE MERITOR FG941(BFL) 		1-41519-038-0 04 1 0801- ●
44 NUT; POWER CHAMBER 1-87050-052-0 04 1 0801- ● ●
44 NUT; POWER CHAMBER
FRONT AXLE MERITOR FG941(BFL) 		1-87050-052-0 04 1 0801- ●

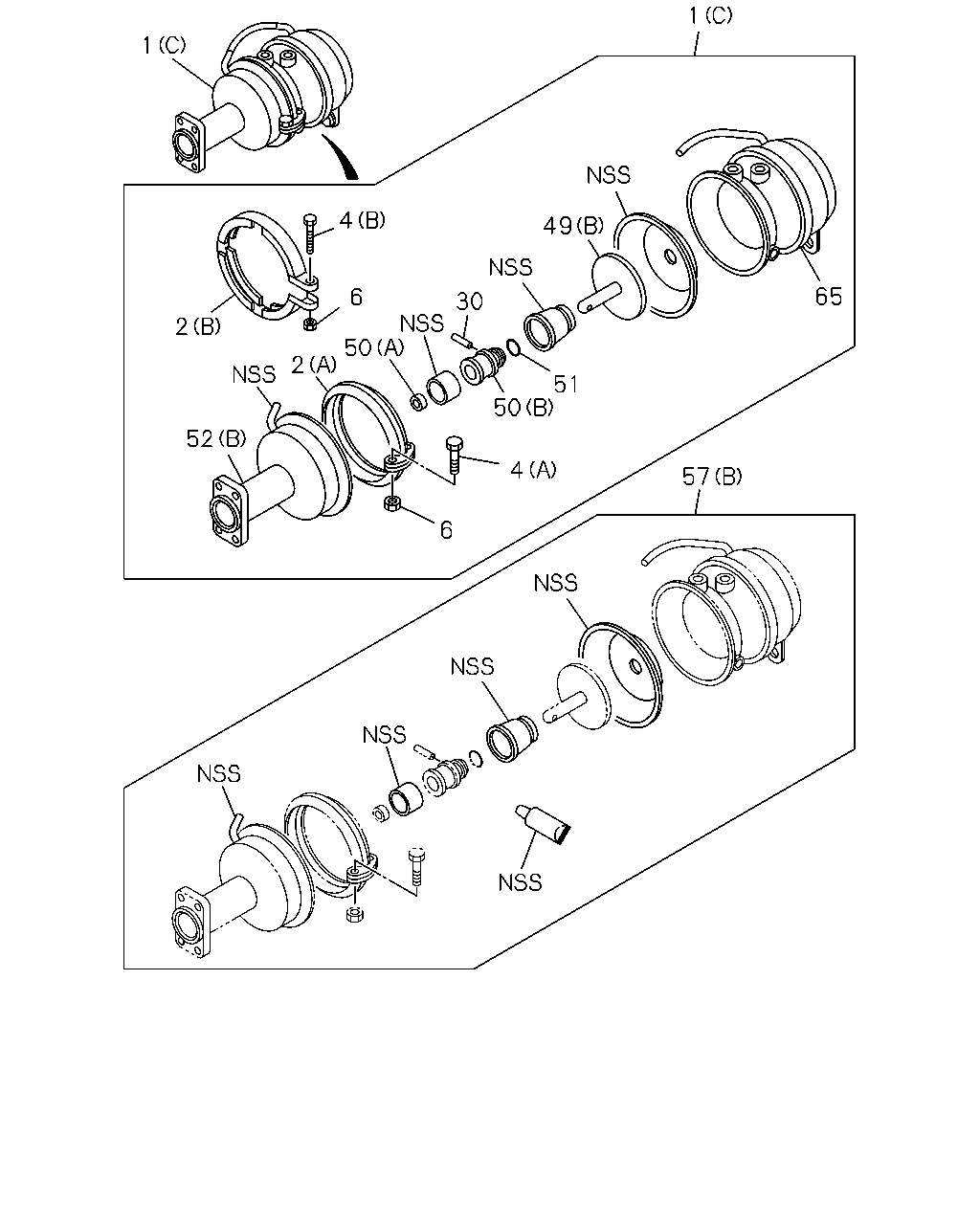

çizim 160947
1 1 4 49 65 6 30 2 50 2 51 50 52 4 57 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0902-0910 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0902-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
30 PIN; STRAIGHT,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-153-0 02 1 0801-0910 ●
30 PIN; STRAIGHT,SPR CHAMBER 1-48269-153-0 02 1 0801-0910 ●
49 ROD; PUSH,SPR CHAMBER
(B) 		1-48263-021-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
(D) 		8-98146-972-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
(A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-154-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-966-0 02 1 0911- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0804-0910 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		1-85576-327-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
(D) 		8-98146-980-0 02 1 0911- ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
(A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-978-0 02 1 0911- ●
65 CHAMBER; PIGGY BACK 1-48251-183-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-111-0 01 1 1006- ●
65 CHAMBER; PIGGY BACK 1-48251-184-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-112-0 01 1 1006- ●

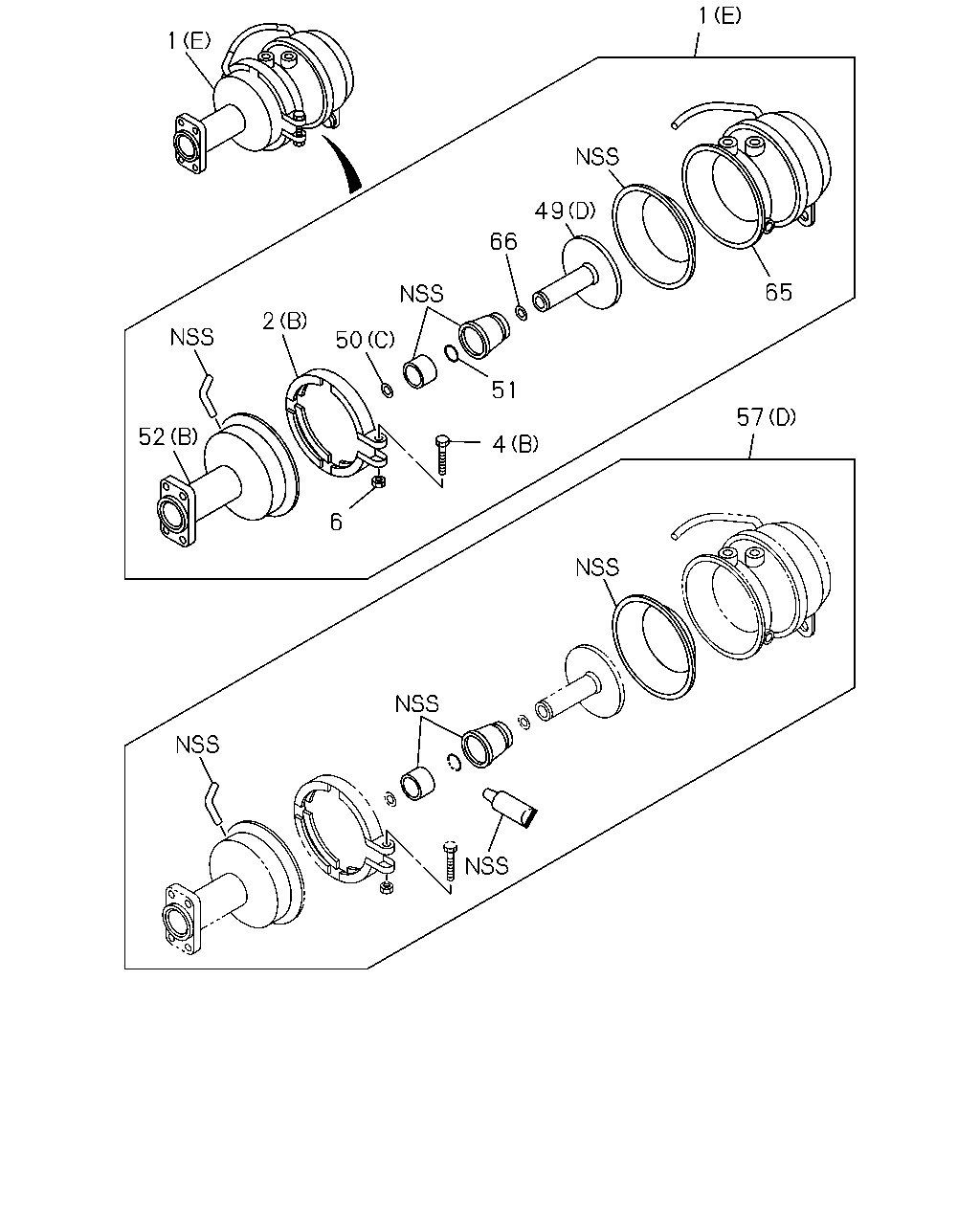

çizim 160954
1 1 49 66 65 2 50 51 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0902-0910 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0902-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		1-48263-021-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
(D) 		8-98146-972-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
(A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-154-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-966-0 02 1 0911- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0804-0910 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		1-85576-327-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
(D) 		8-98146-980-0 02 1 0911- ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
(A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-978-0 02 1 0911- ●
65 CHAMBER; PIGGY BACK 1-48251-183-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-111-0 01 1 1006- ●
65 CHAMBER; PIGGY BACK 1-48251-184-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-112-0 01 1 1006- ●
66 SHIM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-965-0 AR 1 0911- ●
66 SHIM 8-98146-965-0 AR 1 0911- ●

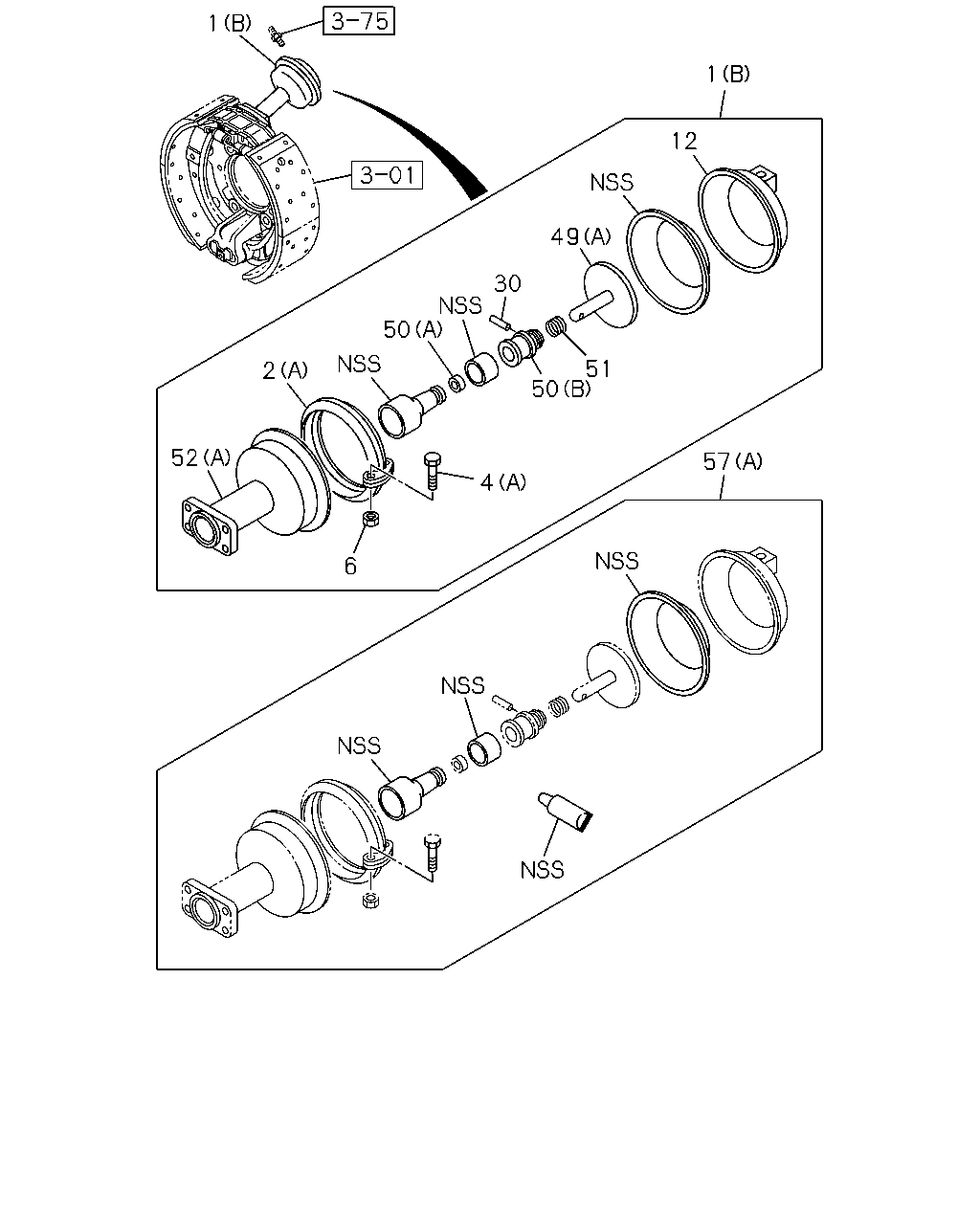

çizim 160987
1 1 12 4 30 50 51 50 2 52 57 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0902-0910 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0902-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
12 COVER ASM; LWR,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48251-103-0 02 1 0801-0803 ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 0801-0803 ●
12 COVER ASM; LWR,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48251-103-0 02 1 0804- ●
30 PIN; STRAIGHT,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-153-0 02 1 0801-0910 ●
30 PIN; STRAIGHT,SPR CHAMBER 1-48269-153-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-154-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-966-0 02 1 0911- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0804-0910 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		1-85576-327-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
(D) 		8-98146-980-0 02 1 0911- ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
(A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-978-0 02 1 0911- ●

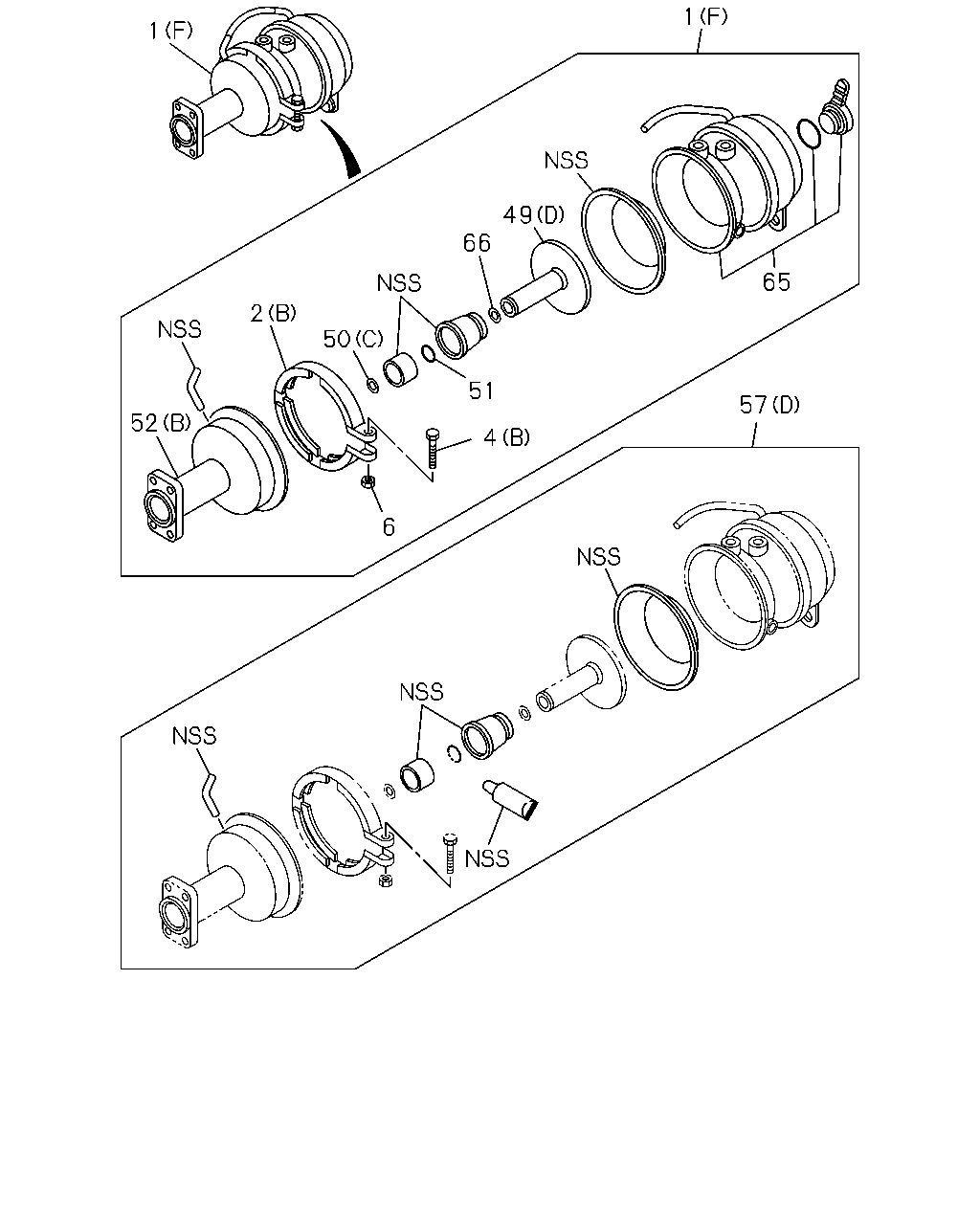

çizim 161143
1 1 49 66 65 2 50 51 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0902-0910 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0902-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		1-48263-021-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
(D) 		8-98146-972-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
(A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-154-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-966-0 02 1 0911- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0804-0910 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		1-85576-327-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
(D) 		8-98146-980-0 02 1 0911- ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
(A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-978-0 02 1 0911- ●
65 CHAMBER; PIGGY BACK 1-48251-183-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-111-0 01 1 1006- ●
65 CHAMBER; PIGGY BACK 1-48251-184-1 01 1 0804-1005 ●
65 CHAMBER; PIGGY BACK 1-87412-112-0 01 1 1006- ●
66 SHIM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-965-0 AR 1 0911- ●
66 SHIM 8-98146-965-0 AR 1 0911- ●

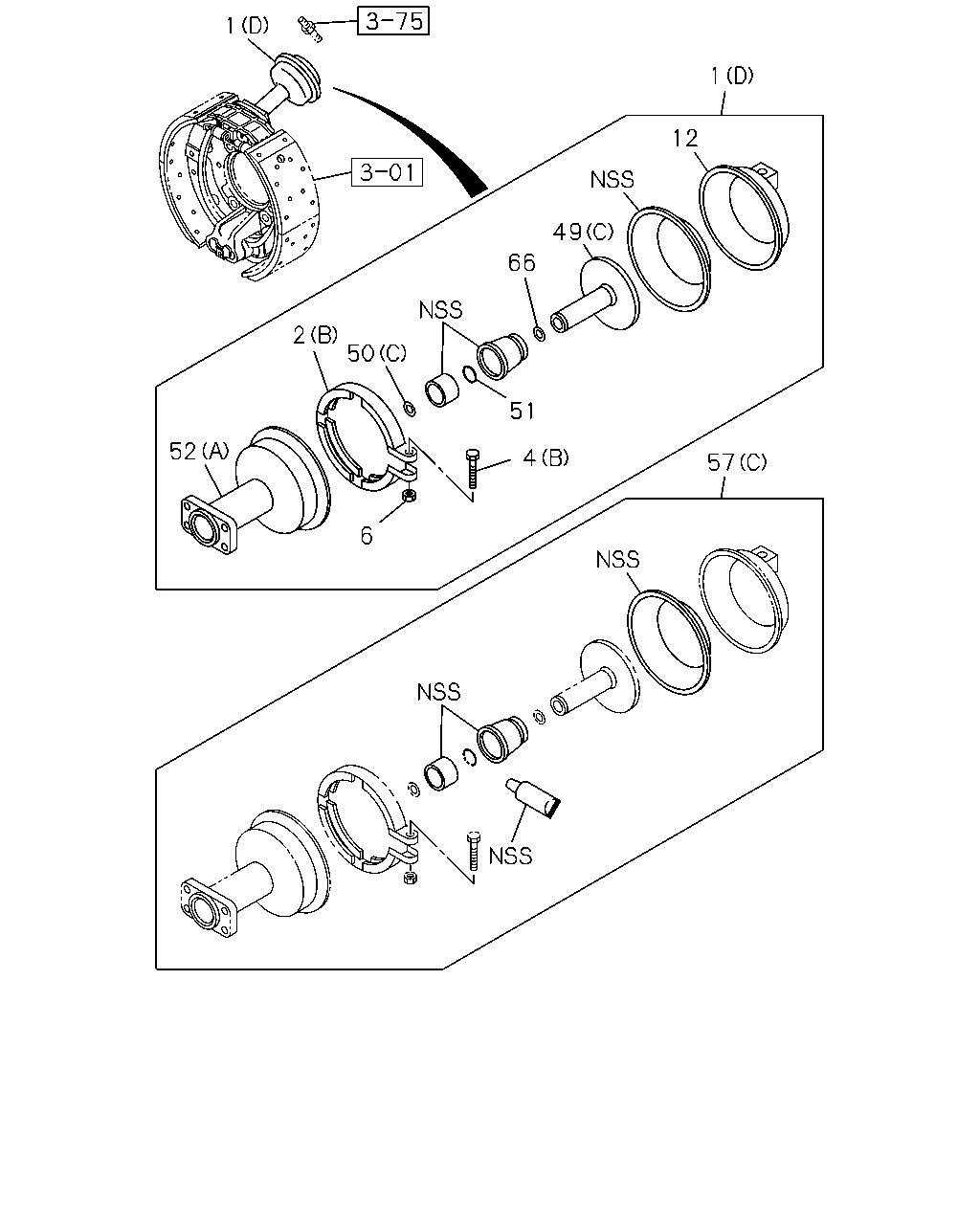

çizim 161153
1 1 12 49 66 2 50 51 52 4 57 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-900-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-684-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-087-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-901-2 01 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
(E) 		8-98145-685-0 01 1 0911-1005 ●
1 CHAMBER ASM; POWER,FRT BRK
(F) 		1-87412-088-0 01 1 1006- ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-938-0 02 1 0801- ● ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-48250-938-0 02 1 0801- ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-837-0 02 1 0801-0803 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48250-837-0 02 1 0804-0910 ●
1 CHAMBER ASM; POWER,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		8-98145-680-1 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0902-0910 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
(B) 		1-48269-256-0 02 1 0911- ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
(A) 		1-48269-149-0 02 1 0801-0901 ●
2 RING; CLAMP,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-149-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0902-0910 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
(B) 		1-48269-257-0 02 1 0911- ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
(A) 		1-48269-146-0 04 1 0801-0901 ●
4 BOLT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-146-0 04 1 0902-0910 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING 1-48269-147-0 04 1 0801-0901 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 04 1 0902-0910 ●
6 NUT; CLAMP RING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-147-0 02 1 0911- ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 0911- ●
12 COVER ASM; LWR,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48251-103-0 02 1 0801-0803 ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 0801-0803 ●
12 COVER ASM; LWR,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48251-103-0 02 1 0804- ●
49 ROD; PUSH,SPR CHAMBER
(B) 		1-48263-021-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
(D) 		8-98146-972-0 02 1 0911- ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
(A) 		1-48263-020-0 02 1 0801-0803 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48263-020-0 02 1 0804-0910 ●
49 ROD; PUSH,SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-969-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(A) 		1-48269-152-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
(C) 		8-98146-963-1 02 1 0911- ●
50 GUIDE; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-48269-154-0 02 1 0801-0910 ●
50 GUIDE; SPR CHAMBER
(B) 		1-48269-154-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER 1-48269-155-0 02 1 0801-0910 ●
51 RING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-966-0 02 1 0911- ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 0911- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-078-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
(B) 		1-48251-079-1 01 1 0804- ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
(A) 		1-48251-153-0 02 1 0801-0803 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-153-0 02 1 0804-0910 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-48251-195-1 02 1 0911-1403 ●
52 HOUSING; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		8-98248-793-0 02 1 1404- ●
57 REPAIR KIT; SPR CHAMBER
(B) 		1-85576-327-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
(D) 		8-98146-980-0 02 1 0911- ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
(A) 		1-85576-326-0 02 1 0801-0803 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-85576-326-0 02 1 0804-0910 ●
57 REPAIR KIT; SPR CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98146-978-0 02 1 0911- ●
66 SHIM
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		8-98146-965-0 AR 1 0911- ●
66 SHIM 8-98146-965-0 AR 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
