Sayfa 2-26 - Isuzu EPC

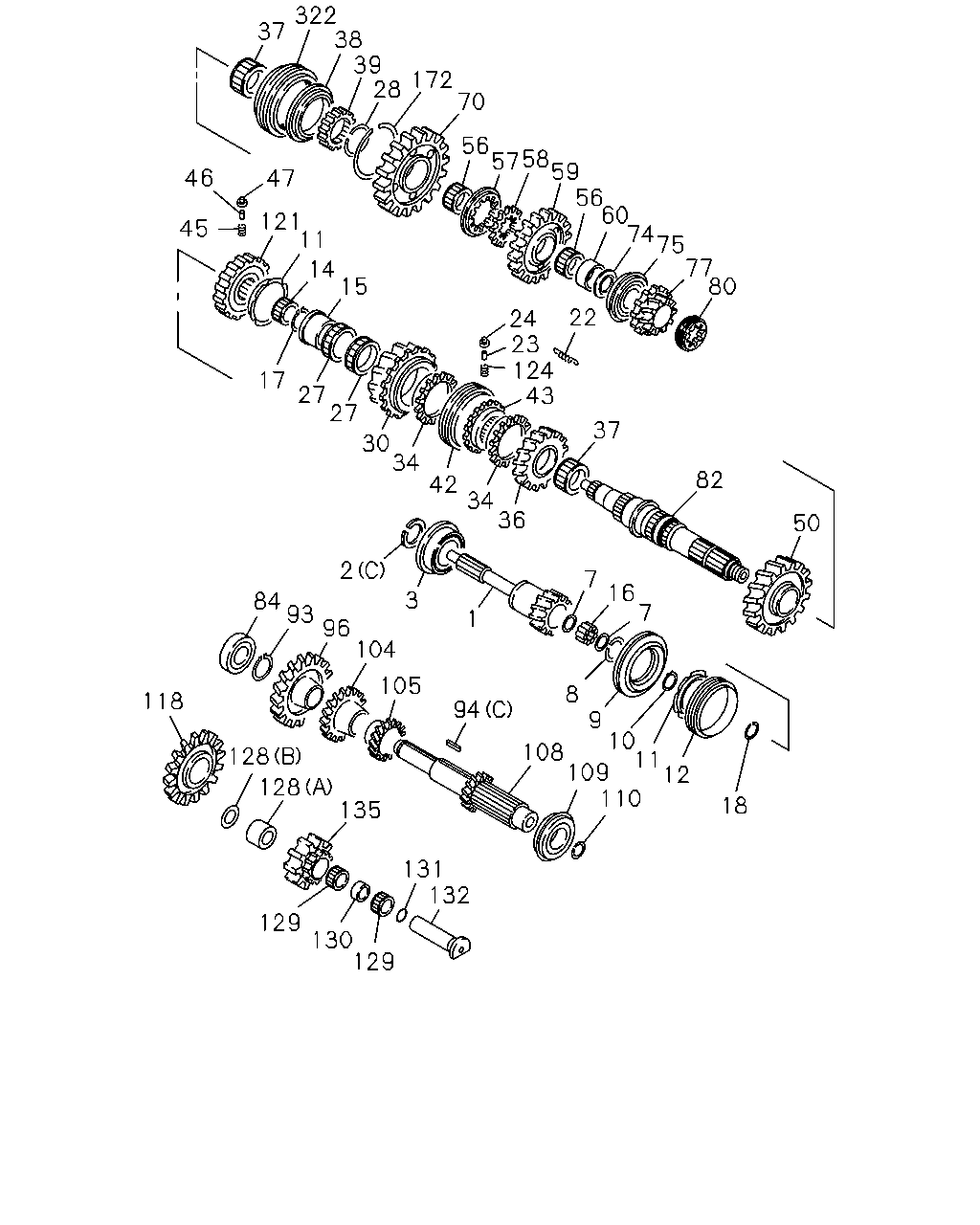

2-26 — MANUAL TRANSMISSION GEAR (#5716) — 343 parça

322 37 38 39 28 172 70 56 57 58 59 56 60 74 75 77 80 46 47 121 11 45 14 15 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 2 7 16 7 3 84 93 96 104 1 105 8 118 94 9 10 11 12 108 109 110 128 128 135 18 131 132 129 130 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-919-0	01	1	0611-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9811-0006		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-0610		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (A)	1-33219-202-0	01	1	0611-	●
2	RING; SNAP,TOP GEAR SHAFT (B)	1-33219-203-0	01	1	0611-	●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0611-			●
3	BEARING; TOP GEAR SHAFT	1-33219-205-0	01	1	0611-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9811-0610		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0611-			●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9811-0610		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0611-			●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9811-0610		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0611-			●
9	CLUTCH; DOG,TOP GEAR	1-33265-473-0	01	1	0611-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9811-0610		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0611-			●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9811-0610		●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	0611-			●
11	RING; BLOCK,5TH & 6TH	1-33265-476-0	02	1	0611-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9811-0610		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0611-			●
12	SLEEVE; 5TH & 6TH	1-33262-204-0	01	1	0611-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9811-0610		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0611-			●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9811-0610		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0611-			●
15	COLLAR; 4TH GEAR	1-33234-088-0	01	1	0611-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9811-0610		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0611-			●
16	BEARING; PILOT,MAINSHAFT	1-33219-204-0	01	1	0611-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9811-0610		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0611-			●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9811-0610		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0611-			●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9811-0610		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0611-			●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9811-0610		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0611-			●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9811-0610		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0611-			●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9811-0610		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0611-			●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9811-0610		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0611-			●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9811-0610		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0611-			●
30	GEAR; 4TH,MAINSHAFT Z=27	1-33252-457-0	01	1	0611-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9811-0610		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0611-			●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9811-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-0610		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0611-			●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-469-0	01	1	0611-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9811-0610		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0611-			●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9811-0610		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0611-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9811-0610		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0611-			●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9811-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-0610		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0611-			●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9811-0610		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0611-			●
42	SLEEVE Z=54	1-33262-154-0	01	1	9811-0610		●
42	SLEEVE Z=54	1-33262-154-0	01	1	0611-			●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-266-0	01	1	0611-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9811-0610		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0611-			●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9811-0610		●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	0611-			●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9811-0610		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0611-			●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9811-0610		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0611-			●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-409-0	01	1	0611-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9811-0610		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0611-			●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9811-0610		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0611-			●
57	SLEEVE; REV	1-33262-202-0	01	1	0611-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9811-0610		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0611-			●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9811-0610		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0611-			●
59	GEAR; REV MAINSHAFT Z=43	1-33257-079-0	01	1	0611-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9811-0610		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	0611-			●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9811-0009		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0610		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0611-			●
70	GEAR; 1ST,MAINSHAFT Z=46	1-33251-408-0	01	1	0611-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9811-0610		●
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	0611-			●
74	WASHER; THRUST,REV GEAR	1-33239-302-0	01	1	0611-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9811-0610		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0611-			●
75	BEARING; MAINSHAFT	1-33239-303-0	01	1	0611-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9811-0610		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0611-			●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9811-0610		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0611-			●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-636-0	01	1	0611-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9811-0610		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0611-			●
80	GEAR; SPD DRIVE Z=5	1-33371-066-0	01	1	0611-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9811-0610		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0611-			●
82	SHAFT; MAIN,TRANS	1-33231-304-0	01	1	0611-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9811-0610		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0611-			●
84	BEARING; COUNTER SHAFT,FRT	1-33319-162-0	01	1	0611-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9811-0610		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0611-			●
93	RING; SNAP,COUNTER FRT BRG	1-33319-159-0	01	1	0611-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9811-0610		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0611-			●
94	KEY; FEATHER,COUNTER SHAFT (A)	1-33319-157-0	01	1	0611-	●
94	KEY; FEATHER,COUNTER SHAFT (B)	1-33319-158-0	01	1	0611-	●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	02	1	9811-0610		●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	02	1	0611-			●
94	KEY; FEATHER,COUNTER SHAFT (C) L=55	1-09735-025-0	02	1	9811-0610		●
94	KEY; FEATHER,COUNTER SHAFT (C) L=55	1-09735-025-0	02	1	0611-			●
96	GEAR; COUNTER DRIVE Z=44	1-33331-251-0	01	1	0611-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9811-0610		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0611-			●
104	GEAR; 4TH,COUNTER Z=33	1-33338-342-0	01	1	0611-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9811-0610		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0611-			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9811-0610		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0611-			●
108	SHAFT; COUNTER Z=12-18-16-25	1-33311-305-0	01	1	0611-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9811-0610		●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	0611-			●
109	BEARING; COUNTER SHAFT,RR	1-33319-161-0	01	1	0611-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9811-0610		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0611-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9811-0610		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0611-			●
110	RING; SNAP,COUNTER BRG	1-33319-160-0	01	1	0611-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9811-0610		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0611-			●
118	GEAR; 6TH,COUNTER Z=47	1-33338-341-0	01	1	0611-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9811-0610		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0611-			●
121	HUB; CLU,6TH	1-33261-243-0	01	1	0611-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9811-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0610		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0611-			●
124	SPRING; PLUNGER,CLU HUB	1-33264-040-0	09	1	0611-	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9811-0610		●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	0611-			●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9811-0610		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0611-			●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9811-0610		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0611-			●
129	BEARING; NEEDLE,IDLER	1-33359-009-0	05	1	0611-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9811-0610		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0611-			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9811-0610		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0611-			●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9811-0610		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0611-			●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9811-0610		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0611-			●
132	SHAFT; REV	1-33351-030-0	01	1	0611-	●
132	SHAFT; REV	1-33351-017-0	01	1	9811-0610		●
132	SHAFT; REV	1-33351-017-0	01	1	0611-			●
135	GEAR; REV IDLER Z=30-21	1-33331-252-0	01	1	0611-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9811-0610		●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	0611-			●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9811-0610		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0611-			●
322	SLEEVE; SYN,LOW & 2ND	1-33262-214-0	01	1	0611-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9811-0610		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0611-			●

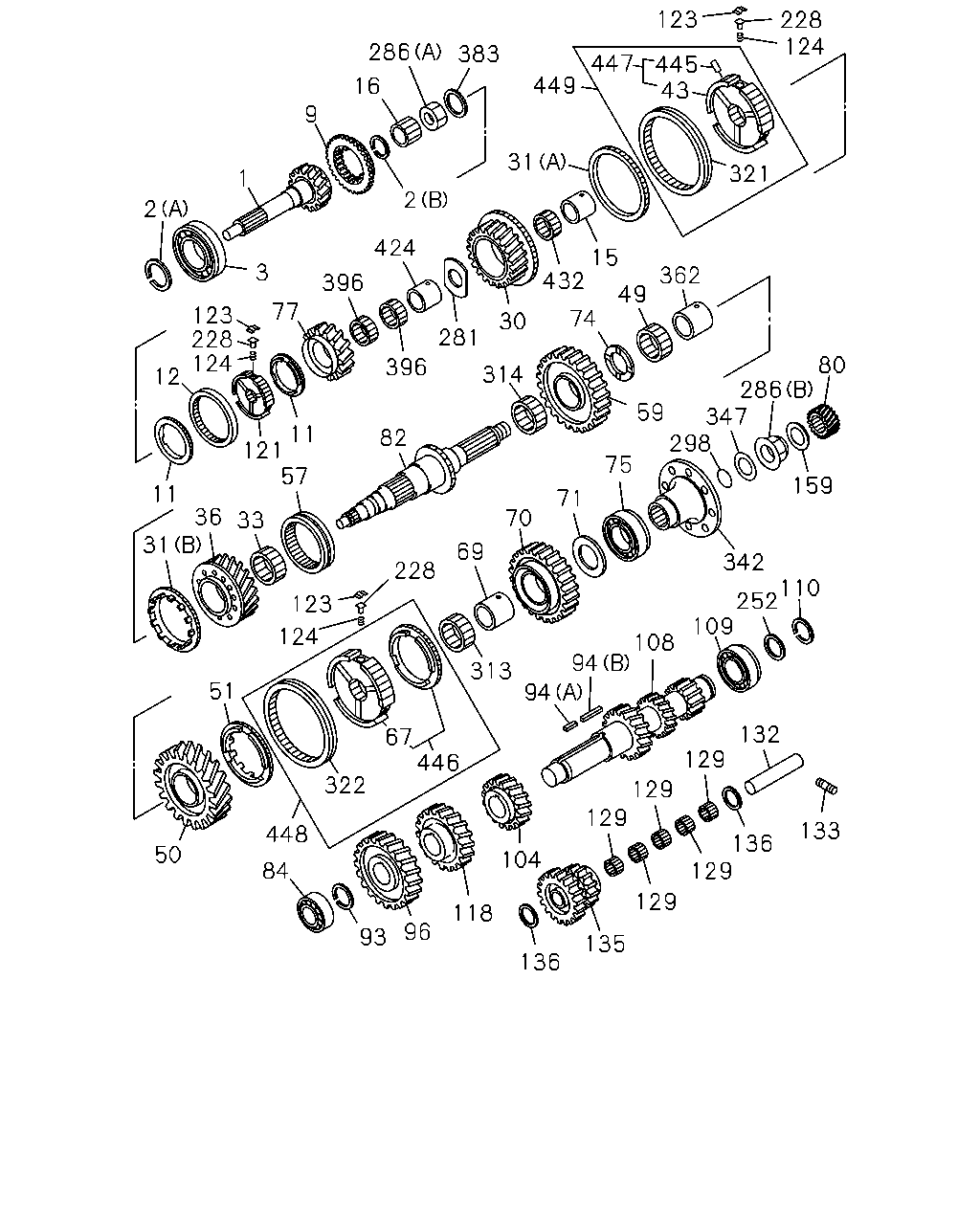

123 228 124 286 383 447 445 43 449 16 9 31 321 1 2 2 424 15 432 3 362 396 49 77 123 228 124 74 30 281 80 286 347 298 396 314 12 59 11 82 121 57 75 159 11 71 36 31 70 33 69 342 228 110 252 109 123 124 108 94 313 51 94 132 67 446 129 322 129 129 133 448 136 129 50 104 84 129 118 96 93 135 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-919-0	01	1	0611-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9811-0006		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-0610		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (A)	1-33219-202-0	01	1	0611-	●
2	RING; SNAP,TOP GEAR SHAFT (B)	1-33219-203-0	01	1	0611-	●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0611-			●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9811-0610		●
2	RING; SNAP,TOP GEAR SHAFT (C) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0611-			●
3	BEARING; TOP GEAR SHAFT	1-33219-205-0	01	1	0611-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9811-0610		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0611-			●
9	CLUTCH; DOG,TOP GEAR	1-33265-473-0	01	1	0611-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9811-0610		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0611-			●
11	RING; BLOCK,5TH & 6TH	1-33265-476-0	02	1	0611-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9811-0610		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0611-			●
12	SLEEVE; 5TH & 6TH	1-33262-204-0	01	1	0611-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9811-0610		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0611-			●
15	COLLAR; 4TH GEAR	1-33234-088-0	01	1	0611-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9811-0610		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0611-			●
16	BEARING; PILOT,MAINSHAFT	1-33219-204-0	01	1	0611-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9811-0610		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0611-			●
30	GEAR; 4TH,MAINSHAFT Z=27	1-33252-457-0	01	1	0611-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9811-0610		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0611-			●
31	RING; BLOCK,3RD & 4TH (A)	1-33265-475-0	01	1	0611-	●
31	RING; BLOCK,3RD & 4TH (B)	1-33265-477-0	01	1	0611-	●
33	BEARING; NEEDLE,3RD GEAR	1-33259-083-0	01	1	0611-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-469-0	01	1	0611-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9811-0610		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0611-			●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-266-0	01	1	0611-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9811-0610		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0611-			●
49	BEARING; NEEDLE,2ND GEAR	1-33259-083-0	01	1	0611-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-409-0	01	1	0611-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9811-0610		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0611-			●
51	RING; BLOCK,LOW & 2ND	1-33265-477-0	01	1	0611-	●
57	SLEEVE; REV	1-33262-202-0	01	1	0611-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9811-0610		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0611-			●
59	GEAR; REV MAINSHAFT Z=43	1-33257-079-0	01	1	0611-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9811-0610		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	0611-			●
67	HUB; CLU,1ST TO REV	1-33261-265-0	01	1	0611-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-088-0	01	1	0611-	●
70	GEAR; 1ST,MAINSHAFT Z=46	1-33251-408-0	01	1	0611-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9811-0610		●
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	0611-			●
71	WASHER; THRUST,LOW	1-33239-268-0	01	1	0611-	●
74	WASHER; THRUST,REV GEAR	1-33239-302-0	01	1	0611-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9811-0610		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0611-			●
75	BEARING; MAINSHAFT	1-33239-303-0	01	1	0611-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9811-0610		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0611-			●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9811-0610		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0611-			●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-636-0	01	1	0611-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9811-0610		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0611-			●
80	GEAR; SPD DRIVE Z=5	1-33371-066-0	01	1	0611-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9811-0610		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0611-			●
82	SHAFT; MAIN,TRANS	1-33231-304-0	01	1	0611-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9811-0610		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0611-			●
84	BEARING; COUNTER SHAFT,FRT	1-33319-162-0	01	1	0611-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9811-0610		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0611-			●
93	RING; SNAP,COUNTER FRT BRG	1-33319-159-0	01	1	0611-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9811-0610		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0611-			●
94	KEY; FEATHER,COUNTER SHAFT (A)	1-33319-157-0	01	1	0611-	●
94	KEY; FEATHER,COUNTER SHAFT (B)	1-33319-158-0	01	1	0611-	●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	02	1	9811-0610		●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	02	1	0611-			●
94	KEY; FEATHER,COUNTER SHAFT (C) L=55	1-09735-025-0	02	1	9811-0610		●
94	KEY; FEATHER,COUNTER SHAFT (C) L=55	1-09735-025-0	02	1	0611-			●
96	GEAR; COUNTER DRIVE Z=44	1-33331-251-0	01	1	0611-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9811-0610		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0611-			●
104	GEAR; 4TH,COUNTER Z=33	1-33338-342-0	01	1	0611-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9811-0610		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0611-			●
108	SHAFT; COUNTER Z=12-18-16-25	1-33311-305-0	01	1	0611-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9811-0610		●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	0611-			●
109	BEARING; COUNTER SHAFT,RR	1-33319-161-0	01	1	0611-	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9811-0610		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0611-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9811-0610		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0611-			●
110	RING; SNAP,COUNTER BRG	1-33319-160-0	01	1	0611-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9811-0610		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0611-			●
118	GEAR; 6TH,COUNTER Z=47	1-33338-341-0	01	1	0611-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9811-0610		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0611-			●
121	HUB; CLU,6TH	1-33261-243-0	01	1	0611-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9811-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0610		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0611-			●
123	BLOCK; INDEX,SYN	1-33269-072-0	09	1	0611-	●
124	SPRING; PLUNGER,CLU HUB	1-33264-040-0	09	1	0611-	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9811-0610		●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	0611-			●
129	BEARING; NEEDLE,IDLER	1-33359-009-0	05	1	0611-	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9811-0610		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0611-			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9811-0610		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0611-			●
132	SHAFT; REV	1-33351-030-0	01	1	0611-	●
132	SHAFT; REV	1-33351-017-0	01	1	9811-0610		●
132	SHAFT; REV	1-33351-017-0	01	1	0611-			●
133	SCREW; SET,REV SHAFT	1-33359-008-0	01	1	0611-	●
135	GEAR; REV IDLER Z=30-21	1-33331-252-0	01	1	0611-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9811-0610		●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	0611-			●
136	WASHER; THRUST,REV IDLE,RR	1-33359-010-0	02	1	0611-	●
159	SPACER; SPD DRIVE GEAR	1-33159-047-0	01	1	0611-	●
228	PLUNGER; SYN	1-33263-032-0	09	1	0611-	●
252	SPACER T=3.0	1-33239-263-0	01	1	0611-	●
252	SPACER T=3.1	1-33239-264-0	01	1	0611-	●
252	SPACER T=3.2	1-33239-265-0	01	1	0611-	●
252	SPACER T=3.3	1-33239-266-0	01	1	0611-	●
281	WASHER; THRUST,MAINSHAFT	1-33239-269-0	01	1	0611-	●
286	NUT; LK,MAINSHAFT (A)	1-33239-272-0	01	1	0611-	●
286	NUT; LK,MAINSHAFT (B)	1-33239-274-0	01	1	0611-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-37249-167-0	01	1	0611-	●
313	BEARING; NEEDLE,LOW GEAR	1-33259-077-0	01	1	0611-	●
314	BEARING; NEEDLE,REV GEAR	1-33259-077-0	01	1	0611-	●
321	SLEEVE; SYN,4TH & 3RD	1-33262-205-0	01	1	0611-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-214-0	01	1	0611-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9811-0610		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0611-			●
342	FLANGE; OUTPUT	1-37243-323-0	01	1	0611-	●
347	WASHER; FLANGE	1-37249-166-0	01	1	0611-	●
362	COLLAR; 2ND GEAR	1-33234-093-0	01	1	0611-	●
383	WASHER; LK	1-33239-271-0	01	1	0611-	●
396	BEARING; NEEDLE,MAINSHAFT	1-33239-267-0	02	1	0611-	●
424	COLLAR; 6TH GEAR	1-33234-090-0	01	1	0611-	●
432	BEARING; NEEDLE,4TH	1-33259-077-0	01	1	0611-	●
445	PIN; CLU HUB	1-33269-071-0	01	1	0611-	●
446	HUB ASM; CLU 1ST & 2ND	1-33261-267-0	01	1	0611-	●
447	HUB ASM; CLU 3RD & 4TH	1-33261-268-0	01	1	0611-	●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33269-087-0	01	1	0611-	●
449	SYNCHRONIZER ASM; 3RD & 4TH	1-33269-088-0	01	1	0611-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
