Isuzu WW
▶
TRUCKS
▶
FXR
▶
11143 - FXR/GXR EXC.EURO5
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#57159) — 130 parça
Tümü
A - GGR5MX
B - GGD5MX
C - FGD5MX
D - FGR5MX
◀

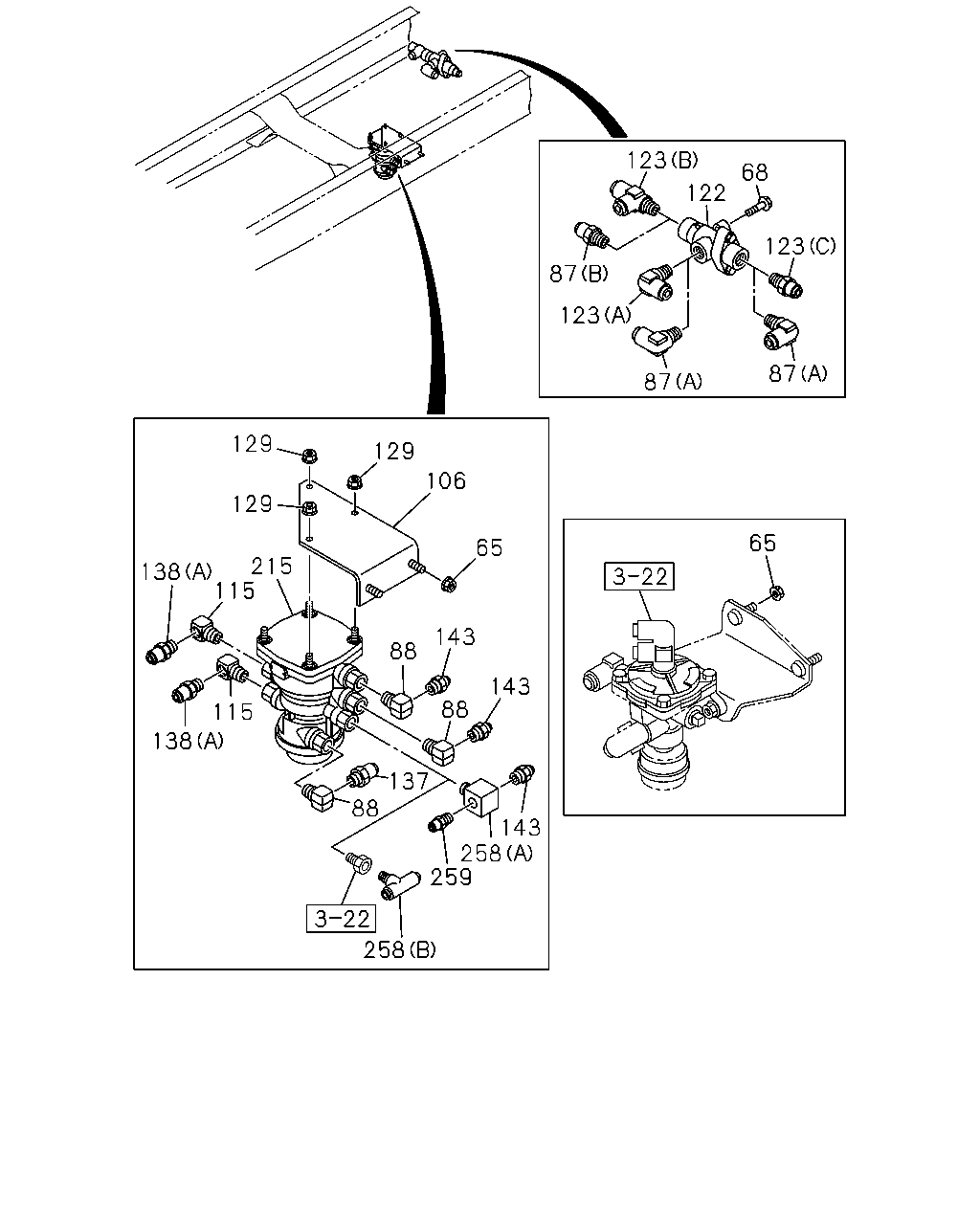

[326A] VALVE;DOUBLE CHECK AND TRAILER CONT (36 parça)

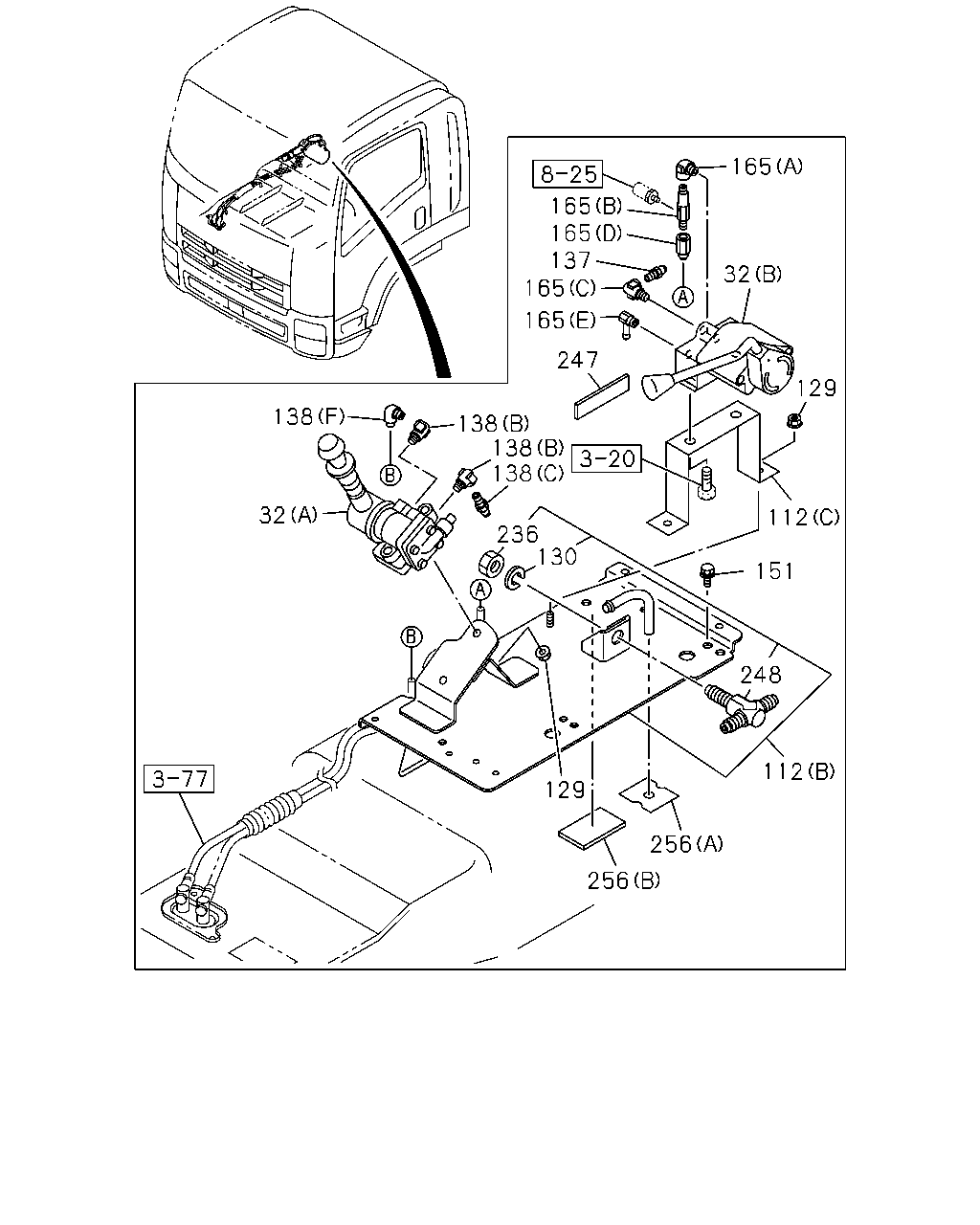

[326A] CONT VALVE;GXR (29 parça)

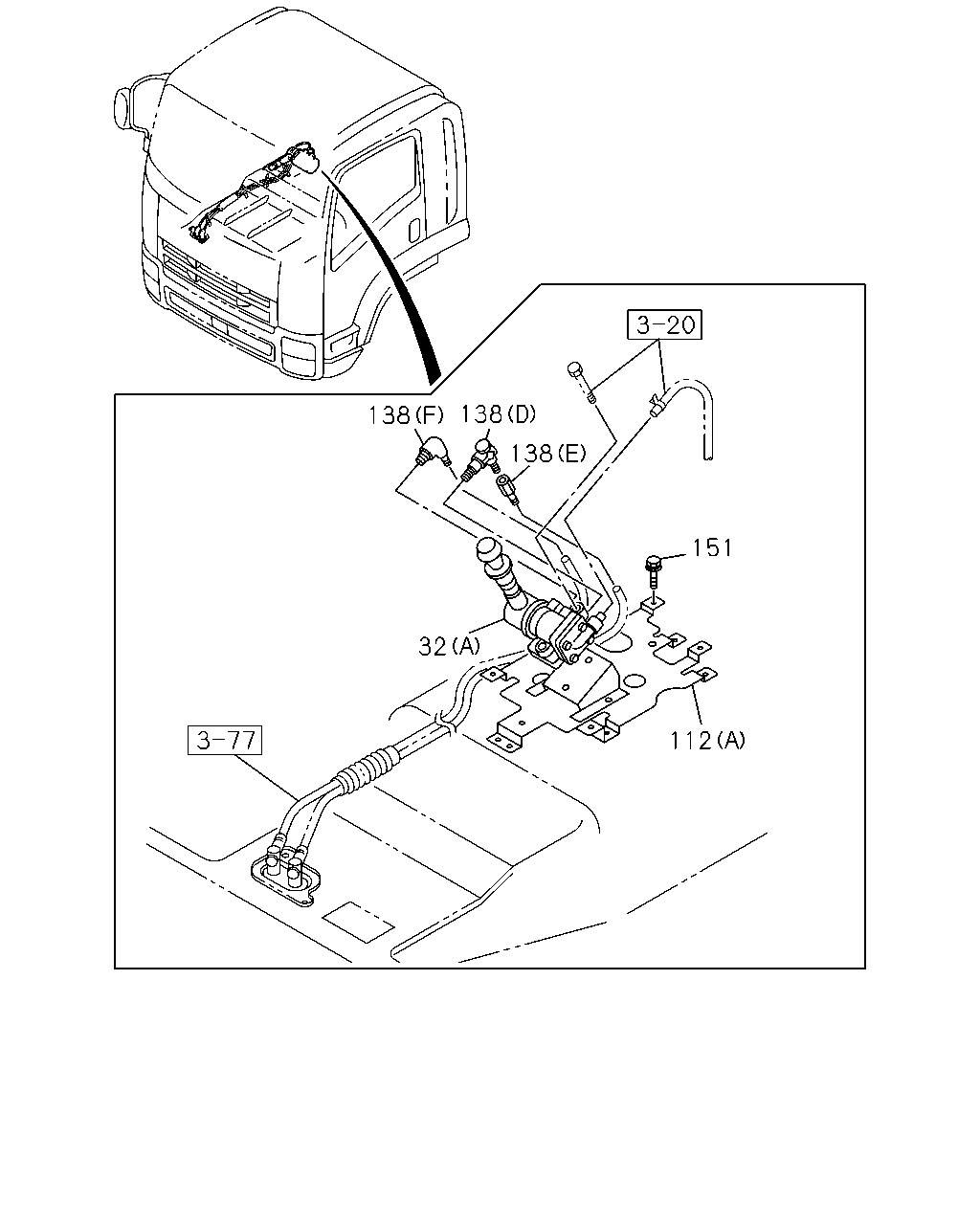

[326A] CONT VALVE;FXR (12 parça)

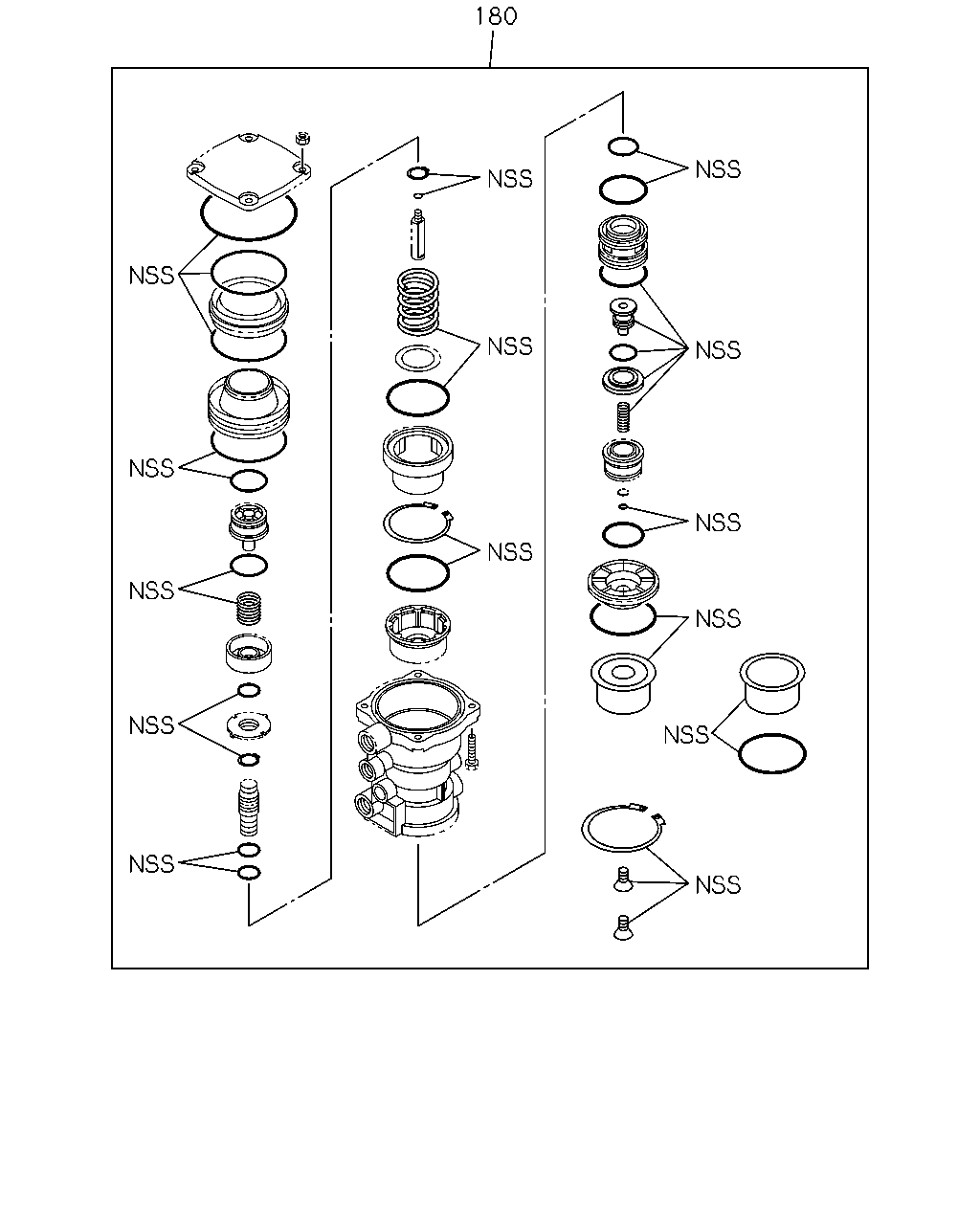

[326A] COMPONENT AND REPAIR KIT NO.2 (26 parça)
[326A] COMPONENT AND REPAIR KIT NO.1 (26 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
▶
123
122
68
123
87
87
123
87
65
143
258
259
258
88
137
88
143
143
88
65
106
129
129
129
215
115
138
115
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
0804-1001
●
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
1002-
●
●
65
NUT; RELAY VLV
M10 FLANGE
0-91180-210-0
02
1
0801-
●
68
BOLT; DOUBLE CHECK VLV
M8X20 FLANGE
0-28050-820-0
02
1
0804-
●
68
BOLT; DOUBLE CHECK VLV
M8X16 FLANGE
0-28050-816-0
02
1
0801-
●
87
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0804-
●
87
CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0804-
●
88
CONNECTOR; ELBOW
PT3/8 ELBOW
1-09660-696-0
03
1
0801-
●
●
106
BRACKET; VLV
8-98114-682-0
01
1
0804-
●
106
BRACKET; VLV
8-98110-679-0
01
1
0801-0803
●
●
106
BRACKET; VLV
8-98110-679-1
01
1
0804-
●
115
CONNECTOR; DUAL RELAY VLV
PT3/8 ELBOW
1-09660-696-0
02
1
0801-
●
●
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
0801-0803
●
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
0804-
●
●
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0801-
●
123
CONNECTOR; DBL CHECK VLV
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0801-
●
123
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & R3/8 3WAY
1-09660-997-0
01
1
0801-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
03
1
0804-
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
05
1
0801-0803
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
0804-
●
●
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0801-
●
●
●
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0801-
●
●
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
0804-
●
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
0801-0803
●
●
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
0804-
●
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
0801-
●
●
258
CONNECTOR; 3 WAY
(B) DIN8X2 & R3/8 3WAY
1-09660-996-0
01
1
0804-
●
258
CONNECTOR; 3 WAY
(A)
1-09656-708-0
01
1
0801-0803
●
●
258
CONNECTOR; 3 WAY
(A)
1-09656-708-0
01
1
0804-
●
259
CONNECTOR; STRAIGHT
DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0801-0803
●
●
259
CONNECTOR; STRAIGHT
DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0804-
●
165
165
165
137
165
32
165
247
129
138
138
138
138
32
112
236
130
151
248
112
129
256
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0801-
●
●
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
0801-
●
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
0801-
●
●
112
BRACKET; CONT VLV
(C)
1-73908-268-0
01
1
0801-
●
●
112
BRACKET; CONT VLV
(B)
8-98049-855-2
01
1
0801-
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
03
1
0804-
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
05
1
0801-0803
●
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
0804-
●
●
130
WASHER; LK,VLV
ID=16.2
0-91510-816-0
01
1
0807-
●
●
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0801-
●
●
●
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0801-
●
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
0801-
●
●
●
●
165
CONNECTOR; HAND BRK VLV
(A)
1-09650-352-1
01
1
0801-
●
●
165
CONNECTOR; HAND BRK VLV
(B) M14
1-09656-391-2
01
1
0801-0801
●
●
165
CONNECTOR; HAND BRK VLV
(B)
1-09660-335-1
01
1
0802-
●
●
165
CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY
1-09660-693-0
02
1
0801-
●
●
165
CONNECTOR; HAND BRK VLV
(D) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0801-0801
●
●
165
CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0802-
●
●
165
CONNECTOR; HAND BRK VLV
(E)
8-97062-077-1
01
1
0801-
●
●
236
NUT
M16
0-91111-516-0
01
1
0807-
●
●
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
1105-
●
●
248
UNION
M16 3WAY
0-92148-610-0
01
1
0801-
●
●
256
SEAL
(B) 100X40
1-72498-022-1
01
1
0801-1104
●
●
256
SEAL
(A)
1-79996-382-0
01
1
0801-
●
●
138
138
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0801-
●
●
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
0801-
●
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
0801-
●
●
112
BRACKET; CONT VLV
(C)
1-73908-268-0
01
1
0801-
●
●
112
BRACKET; CONT VLV
(B)
8-98049-855-2
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0801-
●
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0801-
●
●
●
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
0801-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0801-
●
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
0801-
●
●
●
●
4
32
32
5
8
9
6
10
11
12
7
13
14
15
16
17
18
19
20
21
22
25
24
5
23
25
11
28
24
13
14
15
16
18
21
2
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

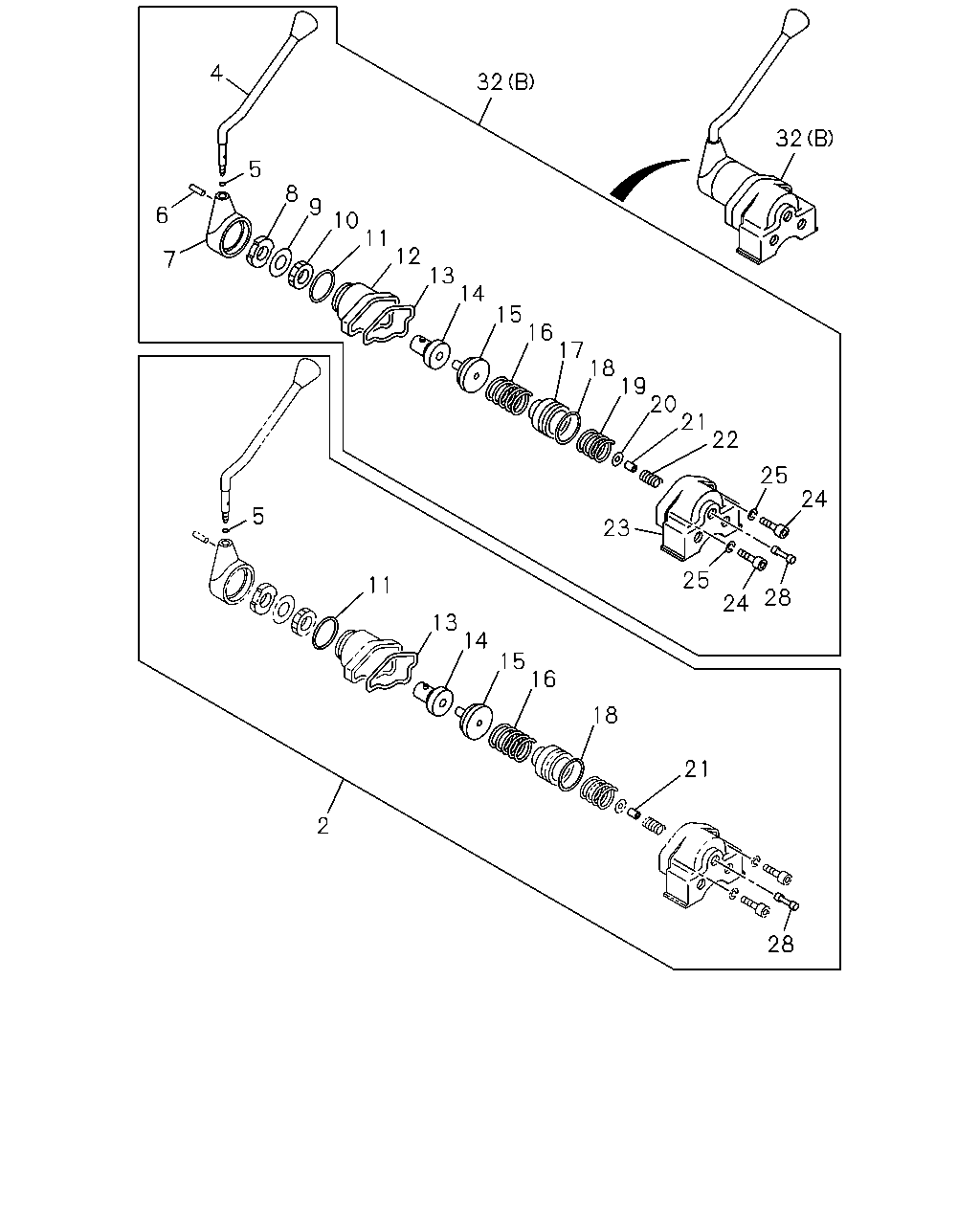

2
REPAIR KIT; HAND BRK VLV
1-85576-180-0
01
1
0801-
●
●
4
HANDLE ASM; BRK VLV
1-48119-144-0
01
1
0801-
●
●
5
GASKET; HANDLE
1-48119-128-0
01
1
0801-
●
●
6
PIN; SPR
1-48119-143-0
01
1
0801-
●
●
7
HEAD; BRK VLV
1-48119-131-1
01
1
0801-
●
●
8
STOPPER; BRK VLV
1-48119-136-0
01
1
0801-
●
●
9
WASHER; LK,ADJ
1-48119-123-0
01
1
0801-
●
●
10
RING; ADJ
1-48119-122-0
01
1
0801-
●
●
11
GASKET; HD TO COVER
1-48119-130-0
01
1
0801-
●
●
12
COVER; BRK VLV
1-48129-097-1
01
1
0801-
●
●
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
0801-
●
●
14
FOLLOWER; CAM
1-48129-109-0
01
1
0801-
●
●
15
CAM; FOLLOWER
1-48129-110-0
01
1
0801-
●
●
16
SPRING; GRUDUATING
1-48129-101-0
01
1
0801-
●
●
17
PISTON; SPR
1-48129-095-0
01
1
0801-
●
●
18
GASKET; BODY
1-48129-096-0
01
1
0801-
●
●
19
SPRING; PISTON
1-48129-094-0
01
1
0801-
●
●
20
GUIDE; VLV
1-48129-090-0
01
1
0801-
●
●
21
VALVE; IN & EXH
1-48121-017-0
01
1
0801-
●
●
22
SPRING; VLV
1-48123-024-0
01
1
0801-
●
●
23
BODY; BRK VLV
1-48111-060-1
01
1
0801-
●
●
24
BOLT; EXH VLV
1-48129-092-0
02
1
0801-
●
●
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
0801-
●
●
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
0801-
●
●
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0801-
●
●
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
0801-
●
●
51
32
52
53
54
55
54
36
37
34
38
39
40
41
42
43
35
3
44
46
50
48
49
45
47
164
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

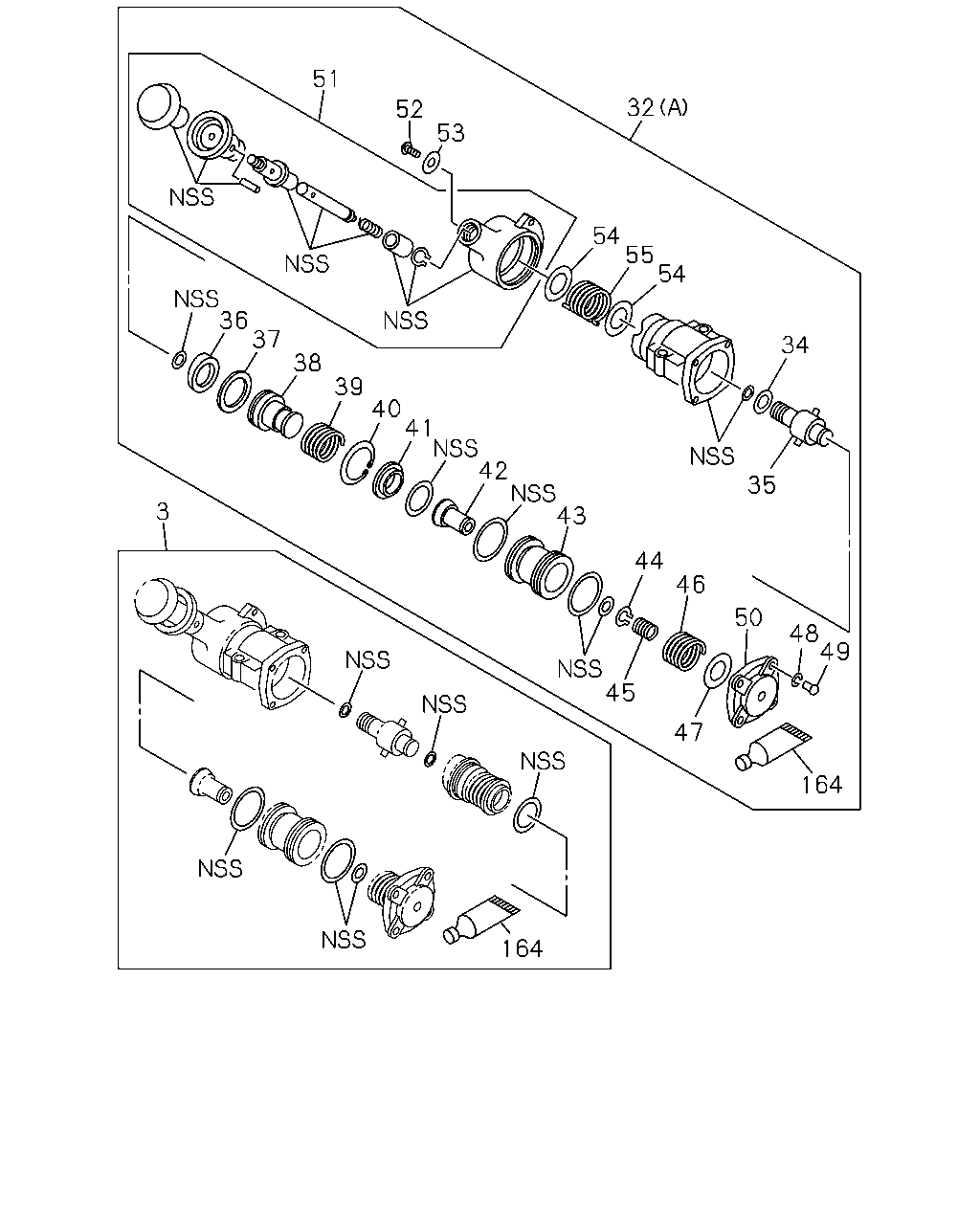

3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0801-
●
●
●
●
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0801-
●
●
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
0801-
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0801-
●
●
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
0801-
●
●
●
●
36
RING; CAM
1-48469-056-0
01
1
0801-
●
●
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
0801-
●
●
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
0801-
●
●
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0801-
●
●
●
●
40
RING; SNAP
1-48469-067-0
01
1
0801-
●
●
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
0801-
●
●
●
●
42
VALVE; FEED
1-48469-065-0
01
1
0801-
●
●
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0801-
●
●
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0801-
●
●
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
0801-
●
●
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0801-
●
●
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0801-
●
●
●
●
48
WASHER; COVER
1-48469-091-0
04
1
0801-
●
●
●
●
49
SCREW; COVER
1-48469-092-0
04
1
0801-
●
●
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0801-
●
●
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0801-
●
●
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
0801-
●
●
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
0801-
●
●
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
0801-
●
●
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0801-
●
●
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0801-
●
●
●
●
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
0801-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
