Sayfa 3-22 - Isuzu EPC

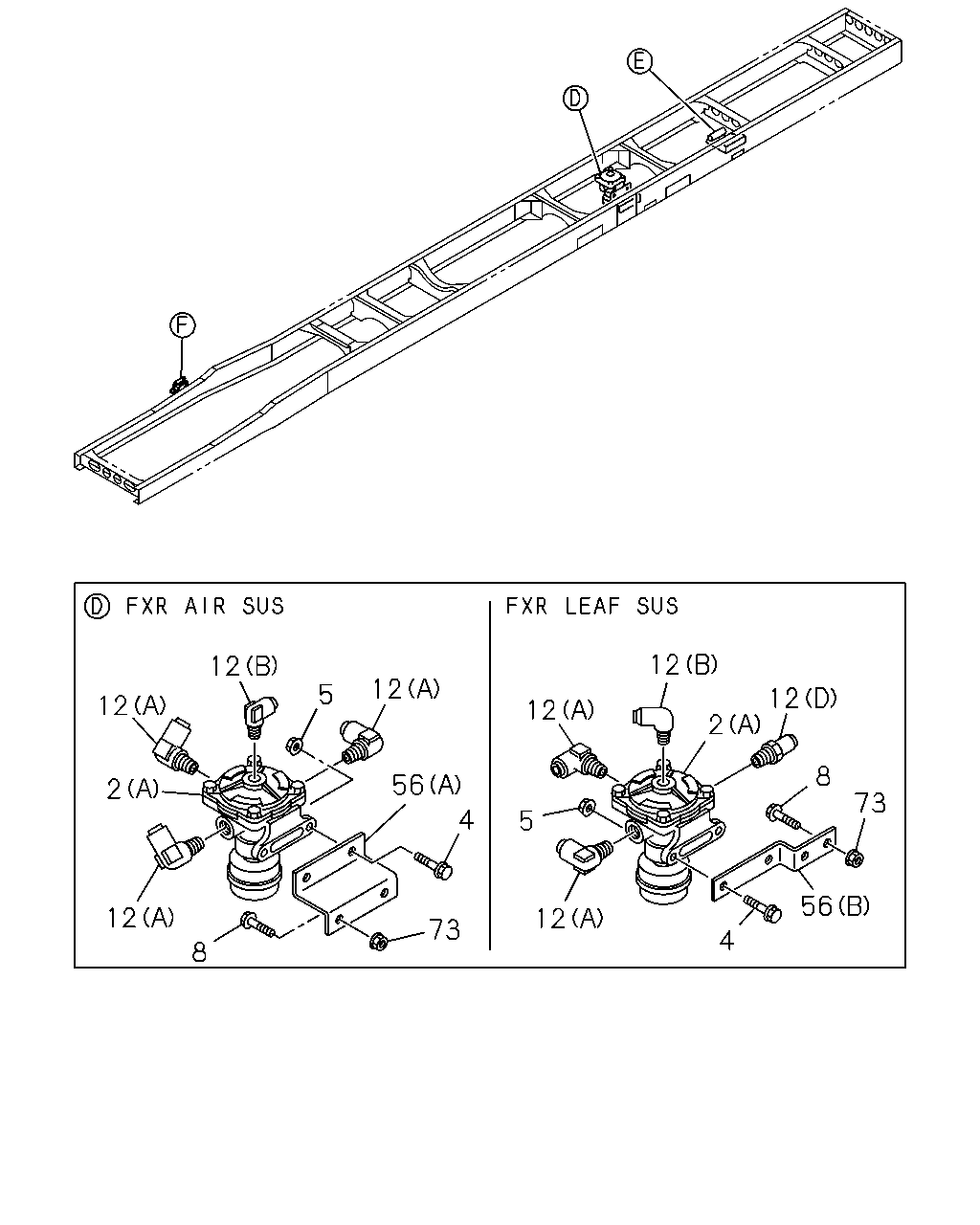

3-22 — AIR CONTROL PARTS (#57158) — 687 parça

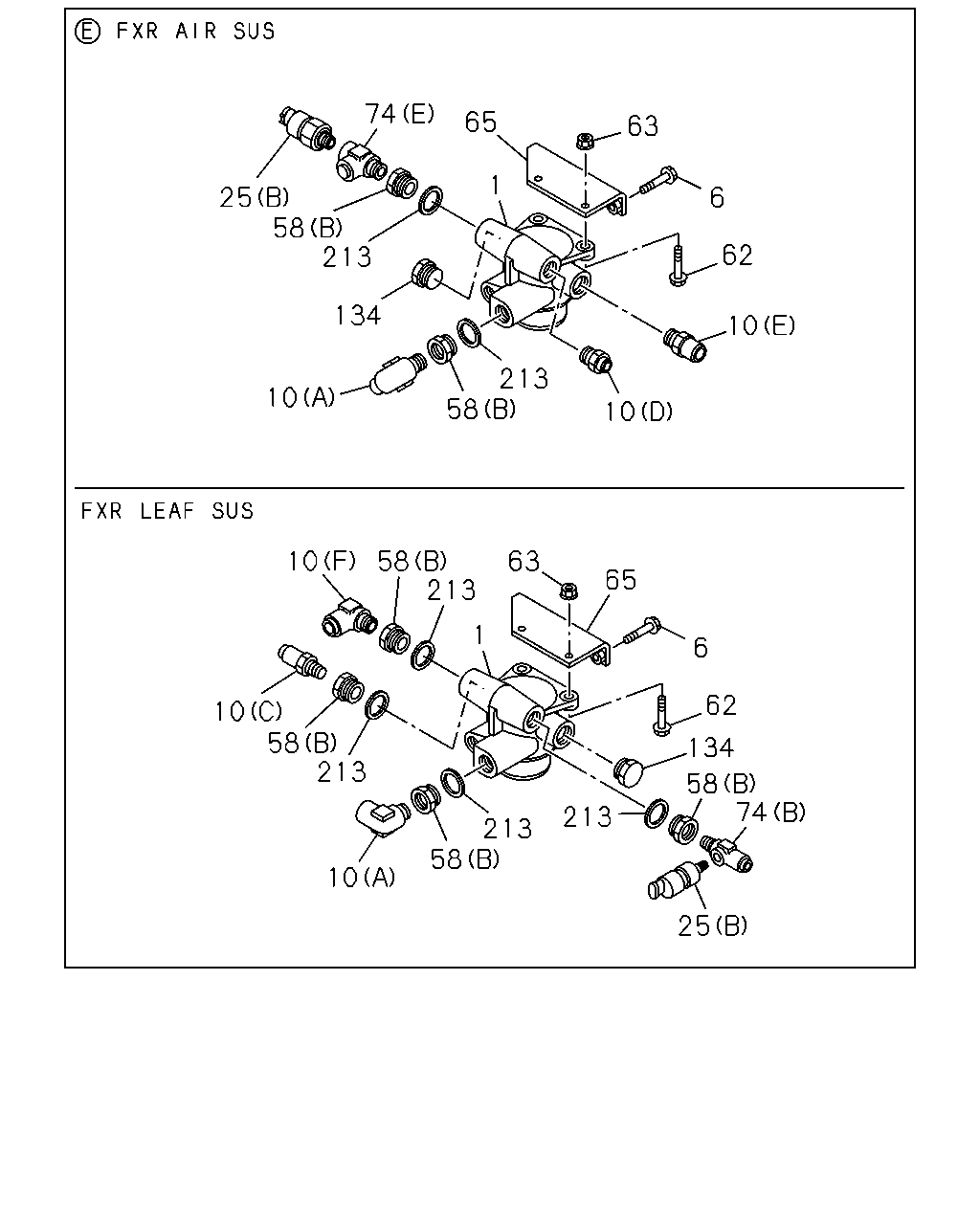

74 65 63 1 25 58 213 6 62 134 10 213 58 10 10 58 213 63 10 65 1 6 62 10 58 213 134 58 74 213 213 58 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0801-0803	●	●	●
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0804-	●	●	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (H)	1-09661-515-0	01	1	0804-0905				●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (J) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0906-				●
10	CONNECTOR (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-				●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0804-				●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-0803	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0804-1001	●	●		●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1002-	●	●	●	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-0806	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0807-	●		●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0802		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0803	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0806	●	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-	●	●		●
10	CONNECTOR (G) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0806			●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0807-1001			●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0804-	●		●	●
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	0804-		●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0804-	●	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (D) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-0803	●	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-	●		●	●
58	ADAPTER BRAKE REGULATION ADR<TDU> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	0801-1001	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	0801-1001		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	1002-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	1002-		●
58	ADAPTER (A)	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-0803		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001		●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●		●
62	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28650-825-0	02	1	0801-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-0803	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0801-0803		●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0804-		●
65	BRACKET; RELAY VLV RR	8-98114-386-0	01	1	0804-				●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (F) PT3/8 3WAY	1-09661-300-0	01	1	0804-				●
74	CONNECTOR; 3WAY (A)	1-09661-232-0	01	1	0801-	●	●	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-0803		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0804-		●		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0801-0803	●		●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0804-	●		●	●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	0801-1001	●	●
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	1002-	●	●	●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=16.2 OD=24	9-09571-416-0	01	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	04	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	02	1	0801-1001	●
213	GASKET ID=22.5	9-09571-422-0	02	1	1002-	●		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0801-0802		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0803-0803		●	●
213	GASKET ID=22.5	9-09571-422-0	03	1	0804-1001		●	●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	0804-1001				●
213	GASKET ID=22.5	9-09571-422-0	03	1	1002-		●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	1002-				●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0802			●

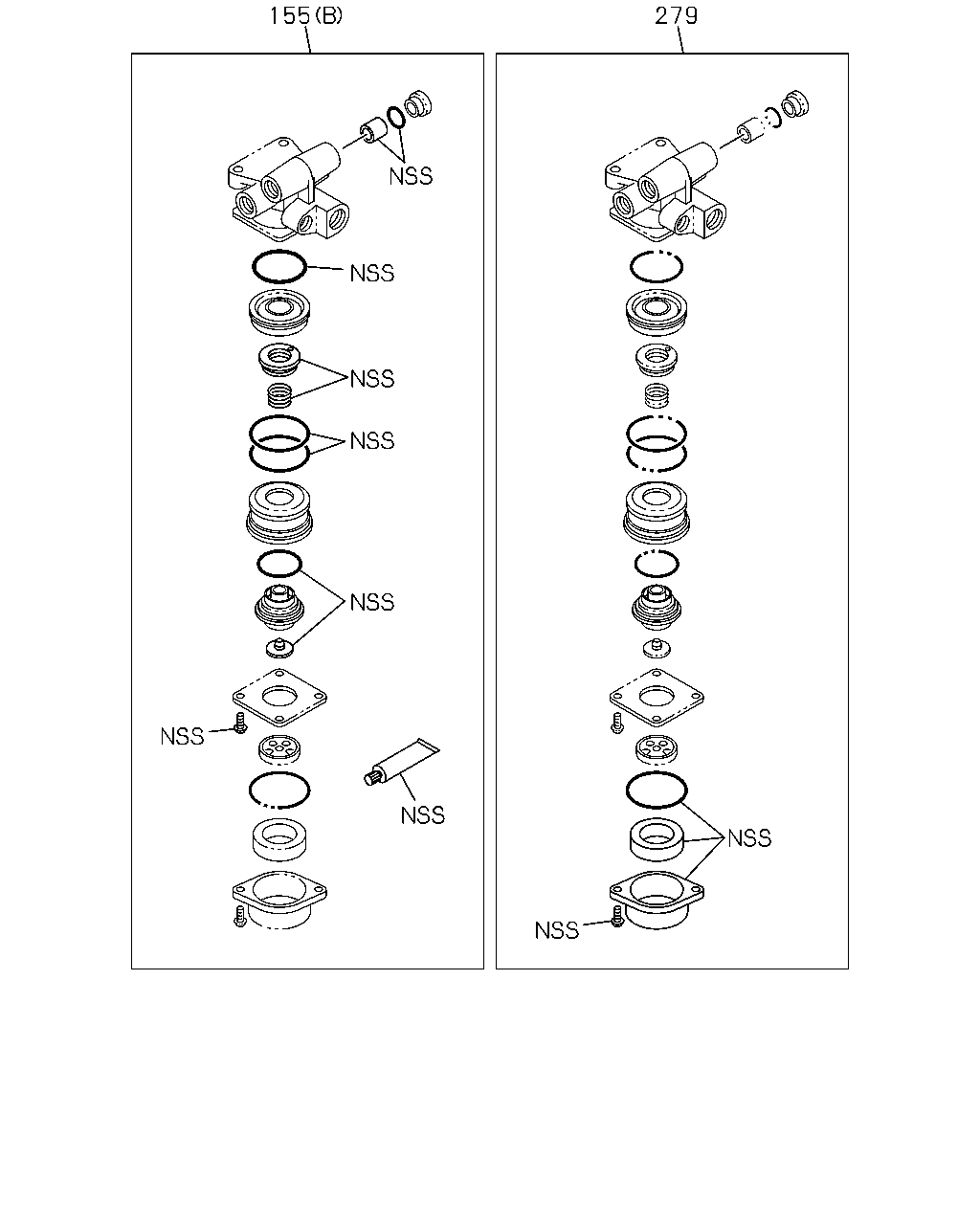

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (D)	1-85576-393-0	01	1	0804-				●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-447-0	01	1	0801-			●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	0801-1001	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	0801-1001		●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	1002-	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	1002-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1002-			●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0801-	●	●	●	●

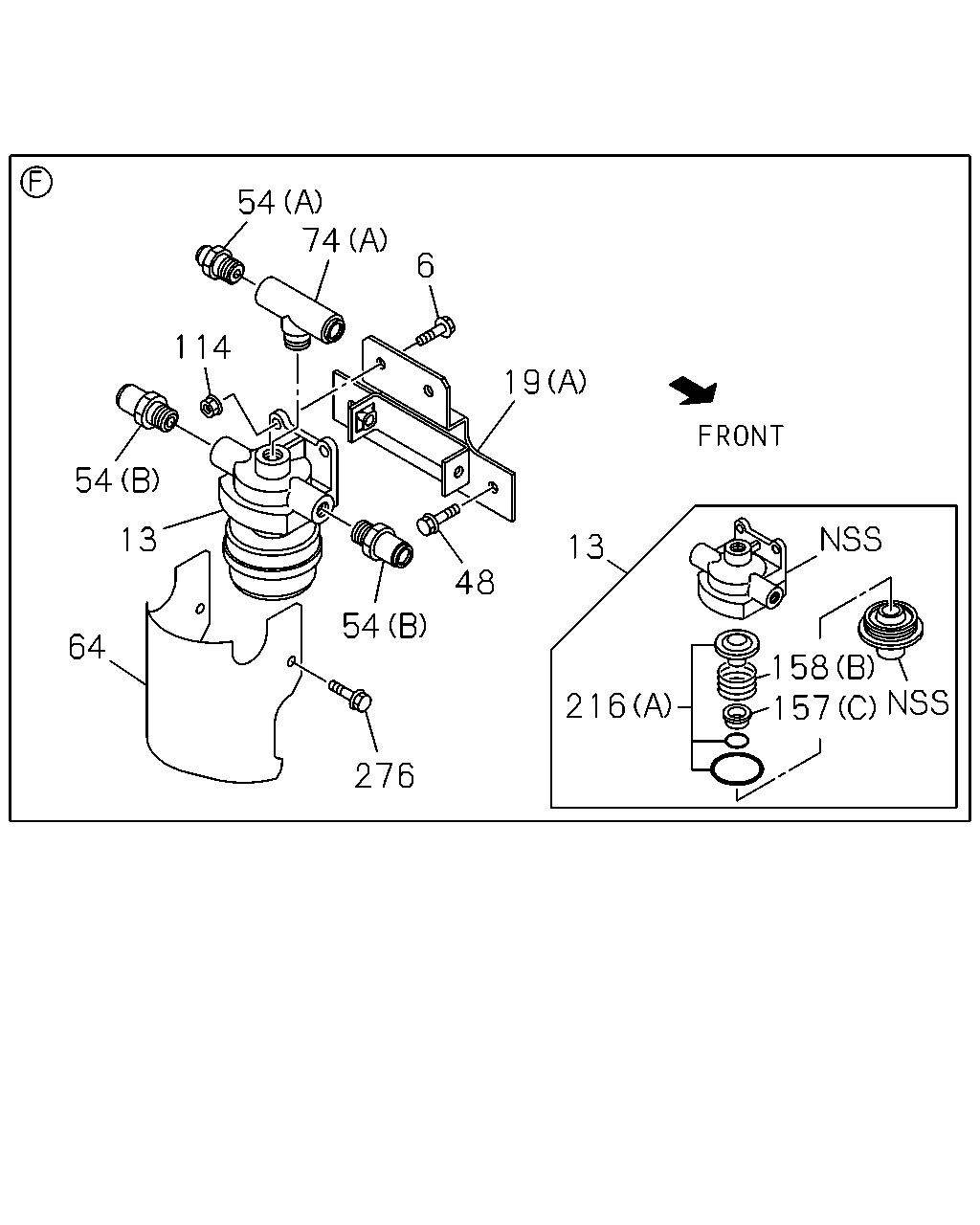

54 74 6 114 19 54 13 13 48 54 64 158 157 216 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	0801-	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98179-172-0	01	1	1108-	●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	0801-1107	●		●
19	BRACKET; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98033-795-0	01	1	0801-1107		●
19	BRACKET; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98033-795-0	01	1	1108-		●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-	●	●	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-	●	●	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	0801-	●	●	●	●
74	CONNECTOR; 3WAY (F) PT3/8 3WAY	1-09661-300-0	01	1	0804-				●
74	CONNECTOR; 3WAY (A)	1-09661-232-0	01	1	0801-	●	●	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-0803		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0804-		●		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0801-0803	●		●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0804-	●		●	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●	●
114	NUT; VLV ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	04	1	0801-			●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (C)	1-48419-020-0	01	1	1009-		●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	1-48419-036-0	01	1	0801-1008		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	0801-1001		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	1002-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●		●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	9-48419-003-0	01	1	0801-		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	0801-1001		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	1002-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	01	1	0801-1008	●		●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	1-85579-062-0	01	1	0801-1008		●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	01	1	1009-	●		●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98171-596-0	01	1	1009-		●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●	●	●

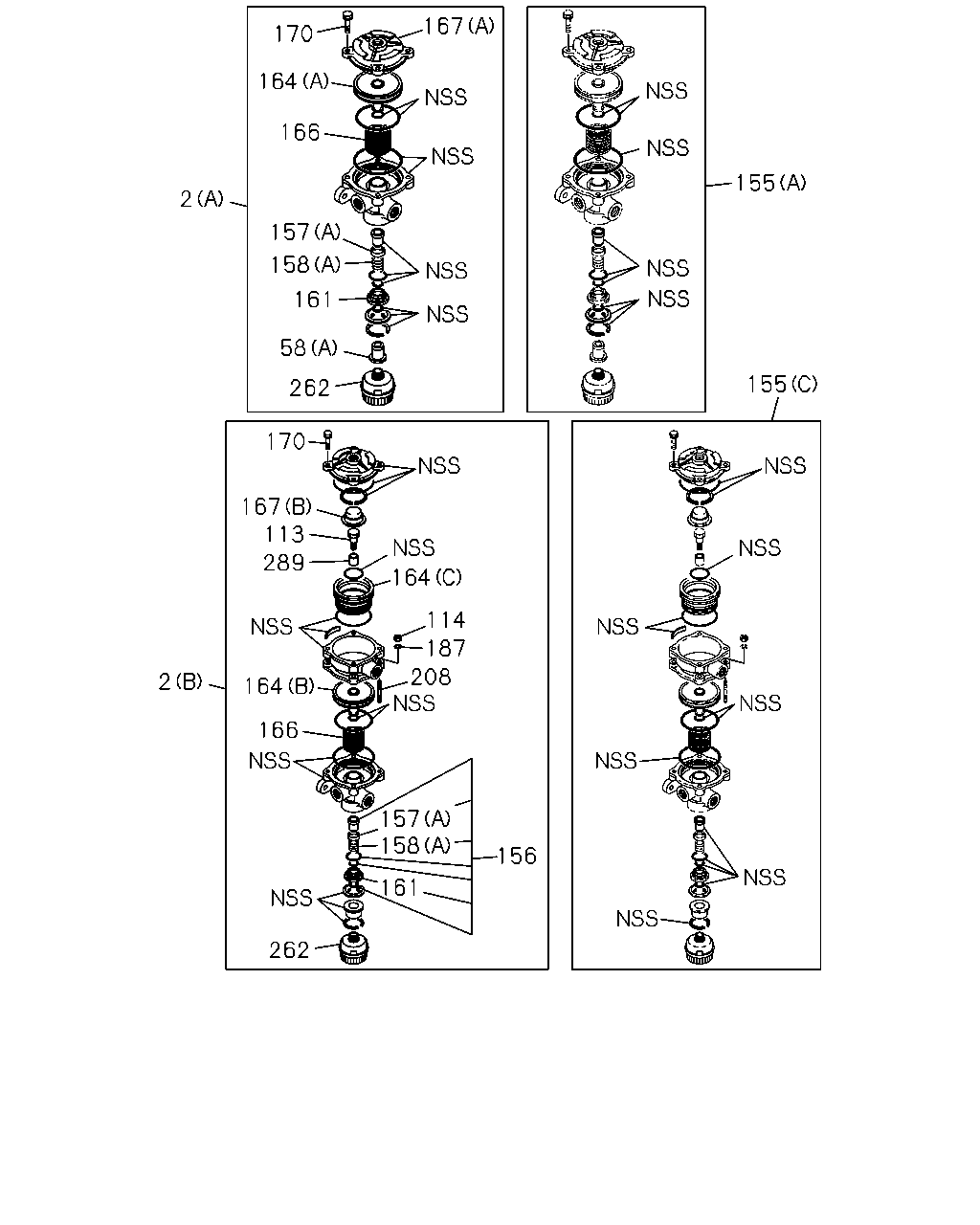

167 170 164 166 155 2 157 158 161 58 155 262 170 167 113 289 164 114 187 208 2 164 166 157 158 156 161 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47720-153-0	01	1	0804-				●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	0801-1001		●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	1002-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (D) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-0803	●	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-	●		●	●
58	ADAPTER BRAKE REGULATION ADR<TDU> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	0801-1001	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	0801-1001		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	1002-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	1002-		●
58	ADAPTER (A)	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-0803		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001		●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
113	BOLT; VLV ANTILOCK BRAKE SYSTEM(BFA)	1-47769-062-0	01	1	0801-			●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●	●
114	NUT; VLV ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	04	1	0801-			●

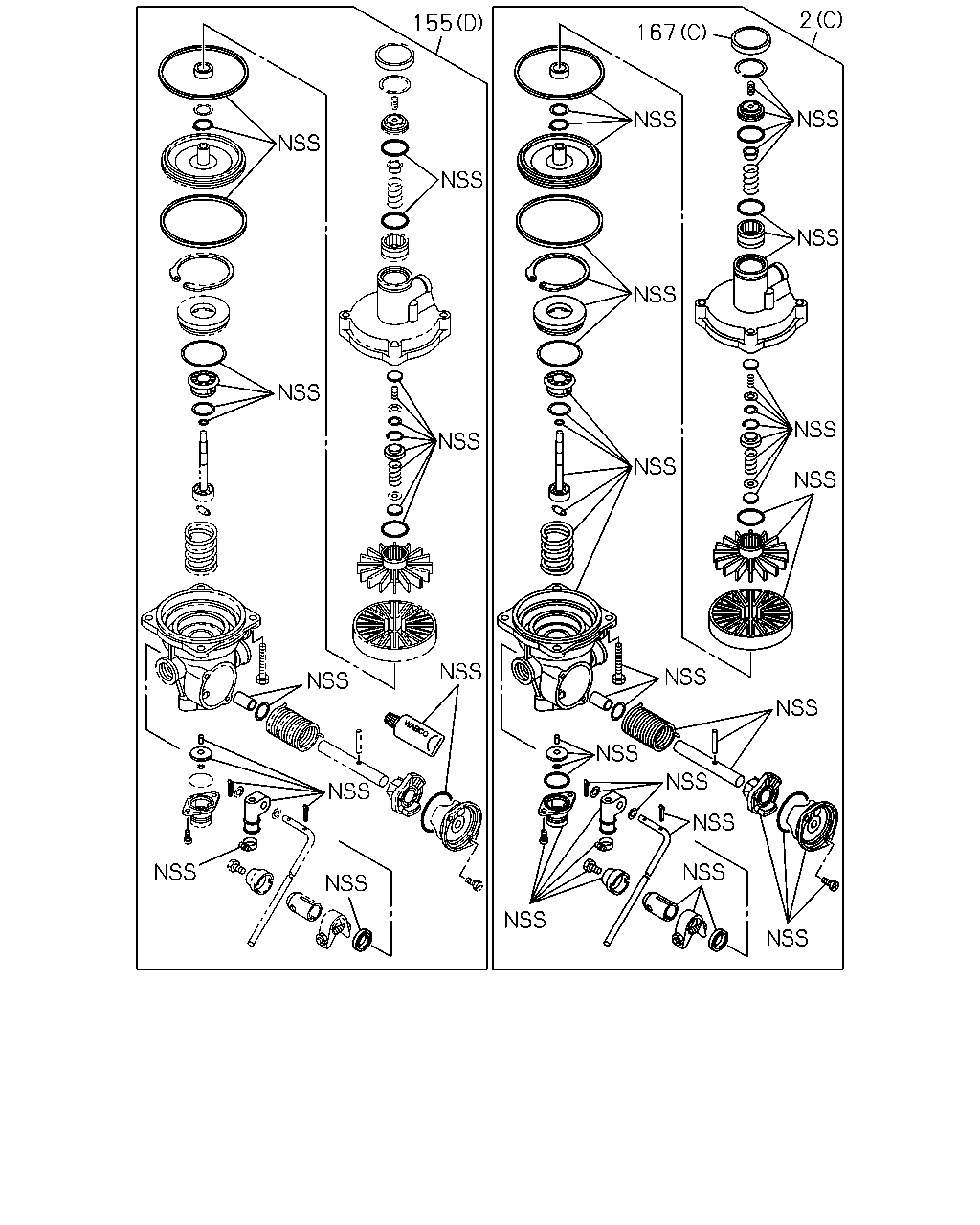

155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (D)	1-85576-393-0	01	1	0804-				●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-447-0	01	1	0801-			●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	0801-1001	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	0801-1001		●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	1002-	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	1002-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1002-			●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●	●	●
156	VALVE ASM; INL ANTILOCK BRAKE SYSTEM(BFA)	1-47842-010-0	01	1	0801-			●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (C)	1-48419-020-0	01	1	1009-		●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	1-48419-036-0	01	1	0801-1008		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	0801-1001		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	1002-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●		●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	9-48419-003-0	01	1	0801-		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	0801-1001		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	1002-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	0801-1001	●		●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	0801-1001		●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	1002-	●		●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	1002-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	1002-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-058-0	01	1	0801-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47769-059-0	01	1	0801-			●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	0801-1001	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	0801-1001		●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	1002-	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	1002-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	1002-			●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	01	1	0801-1001	●		●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-47819-090-0	01	1	0801-1001		●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	01	1	1002-	●		●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-47819-090-0	01	1	1002-		●
166	SPRING; PISTON	1-47819-090-0	01	1	1002-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47729-001-0	01	1	0804-				●
167	COVER; VALVE (D)	1-48119-625-0	04	1	0801-	●		●	●
167	COVER; VALVE BRAKE REGULATION ADR<TDU> (D)	1-48119-625-0	04	1	0801-		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-063-0	01	1	0801-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0801-1001	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	0801-1001		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1002-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	1002-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1002-			●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	04	1	0801-1001	●		●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-039-0	04	1	0801-1001		●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	04	1	1002-	●		●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-039-0	04	1	1002-		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1002-			●
187	WASHER; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) ID=8.2	1-09985-177-0	04	1	0801-			●
208	STUD ANTILOCK BRAKE SYSTEM(BFA)	1-47769-064-0	04	1	0801-			●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	0801-1001	●		●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	0801-1001		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	0801-1001		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	1002-	●		●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	1002-		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	1002-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-			●
289	COLLOR ANTILOCK BRAKE SYSTEM(BFA)	1-47769-061-0	01	1	0801-			●

74 58 213 65 63 25 10 1 6 62 58 213 74 213 58 10 10 63 58 213 65 6 1 25 74 213 58 10 62 10 10 213 213 58 232 10 74 58 10 74 12 12 56 55 2 4 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

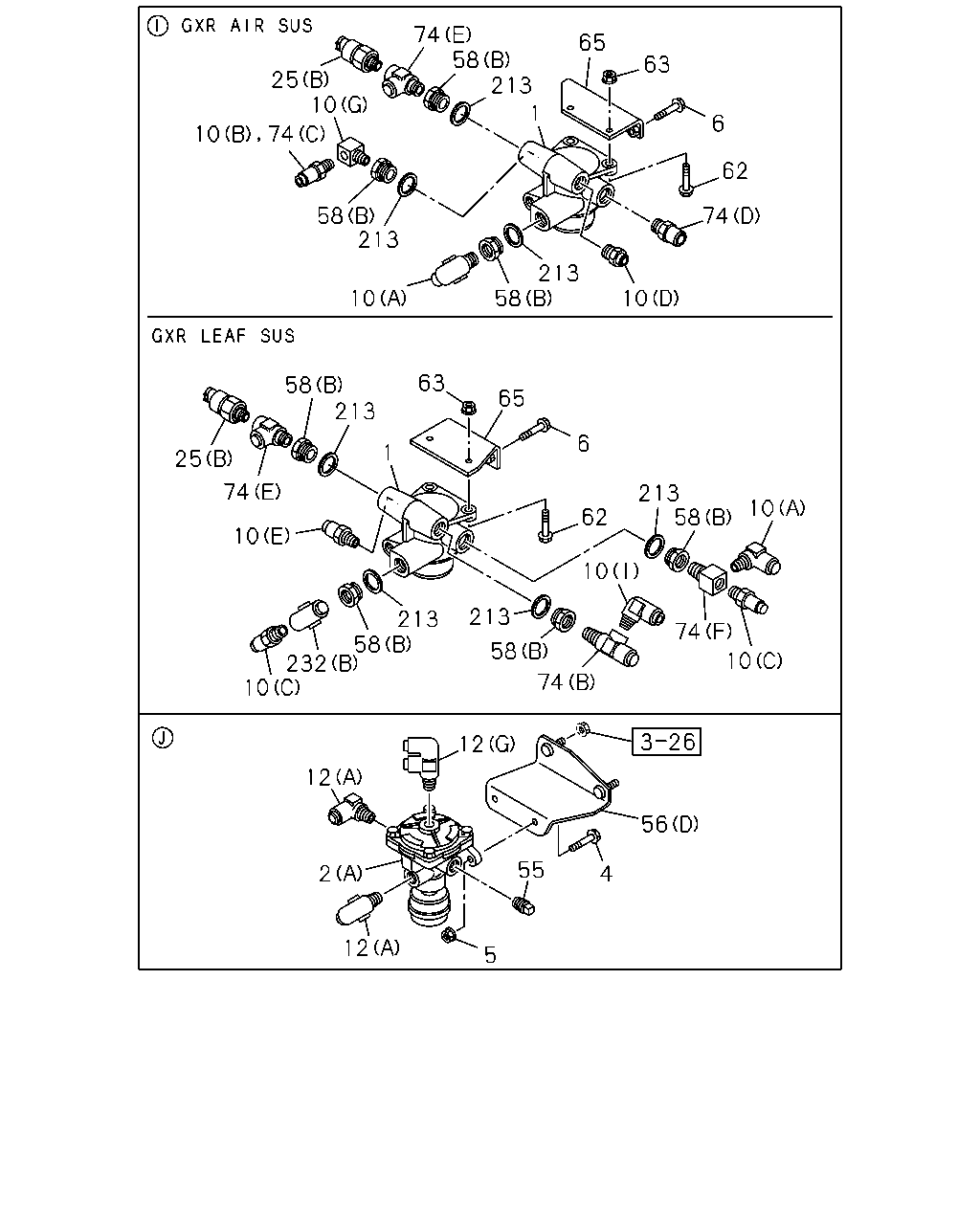

1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0801-0803	●	●	●
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0804-	●	●	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47720-153-0	01	1	0804-				●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	0801-1001		●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	1002-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	1002-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	0801-1001		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	1002-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●	●	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (H)	1-09661-515-0	01	1	0804-0905				●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (J) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0906-				●
10	CONNECTOR (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-				●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0804-				●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-0803	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0804-1001	●	●		●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1002-	●	●	●	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-0806	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0807-	●		●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0802		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0803	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0806	●	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-	●	●		●
10	CONNECTOR (G) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0806			●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0807-1001			●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0804-	●		●	●
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	0804-		●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0804-	●	●	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1002-			●
56	BRACKET; RELAY VLV (D)	8-98164-901-0	01	1	1002-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98114-681-0	01	1	0804-				●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (D) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-0803	●	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-	●		●	●
58	ADAPTER BRAKE REGULATION ADR<TDU> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	0801-1001	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	0801-1001		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	1002-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	1002-		●
58	ADAPTER (A)	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-0803		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001		●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●		●
62	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28650-825-0	02	1	0801-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-0803	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●	●	●

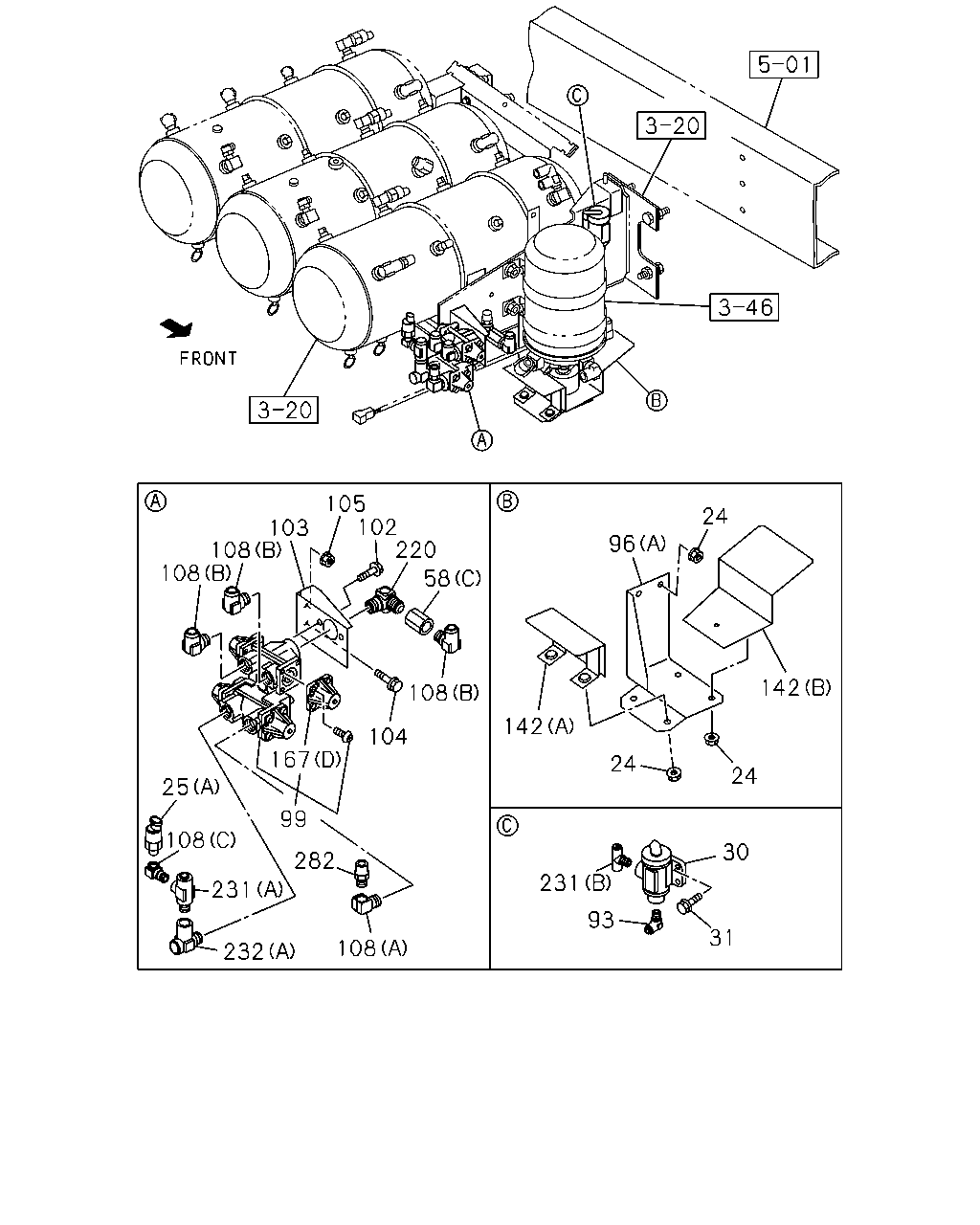

63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0801-0803		●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0804-		●
65	BRACKET; RELAY VLV RR	8-98114-386-0	01	1	0804-				●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0801-	●	●	●
74	CONNECTOR; 3WAY (F) PT3/8 3WAY	1-09661-300-0	01	1	0804-				●
74	CONNECTOR; 3WAY (A)	1-09661-232-0	01	1	0801-	●	●	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0801-0803		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0804-		●		●
74	CONNECTOR; 3WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0806			●
74	CONNECTOR; 3WAY (D) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-1001			●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0801-0803	●		●
74	CONNECTOR; 3WAY (E) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0804-	●		●	●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=16.2 OD=24	9-09571-416-0	01	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	04	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	02	1	0801-1001	●
213	GASKET ID=22.5	9-09571-422-0	02	1	1002-	●		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0801-0802		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0803-0803		●	●
213	GASKET ID=22.5	9-09571-422-0	03	1	0804-1001		●	●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	0804-1001				●
213	GASKET ID=22.5	9-09571-422-0	03	1	1002-		●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	1002-				●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0802			●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	0804-1001				●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1002-			●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0801-0803	●	●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0804-	●		●	●
232	VALVE; CHECK BRAKE REGULATION ADR<TDU> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0804-		●

12 56 12 2 4 211 73 8 52 52 12 12 5 24 96 24 96 10 56 12 213 58 211 234 10 12 58 213 213 58 12 2 12 52 108 211 12 108 213 58

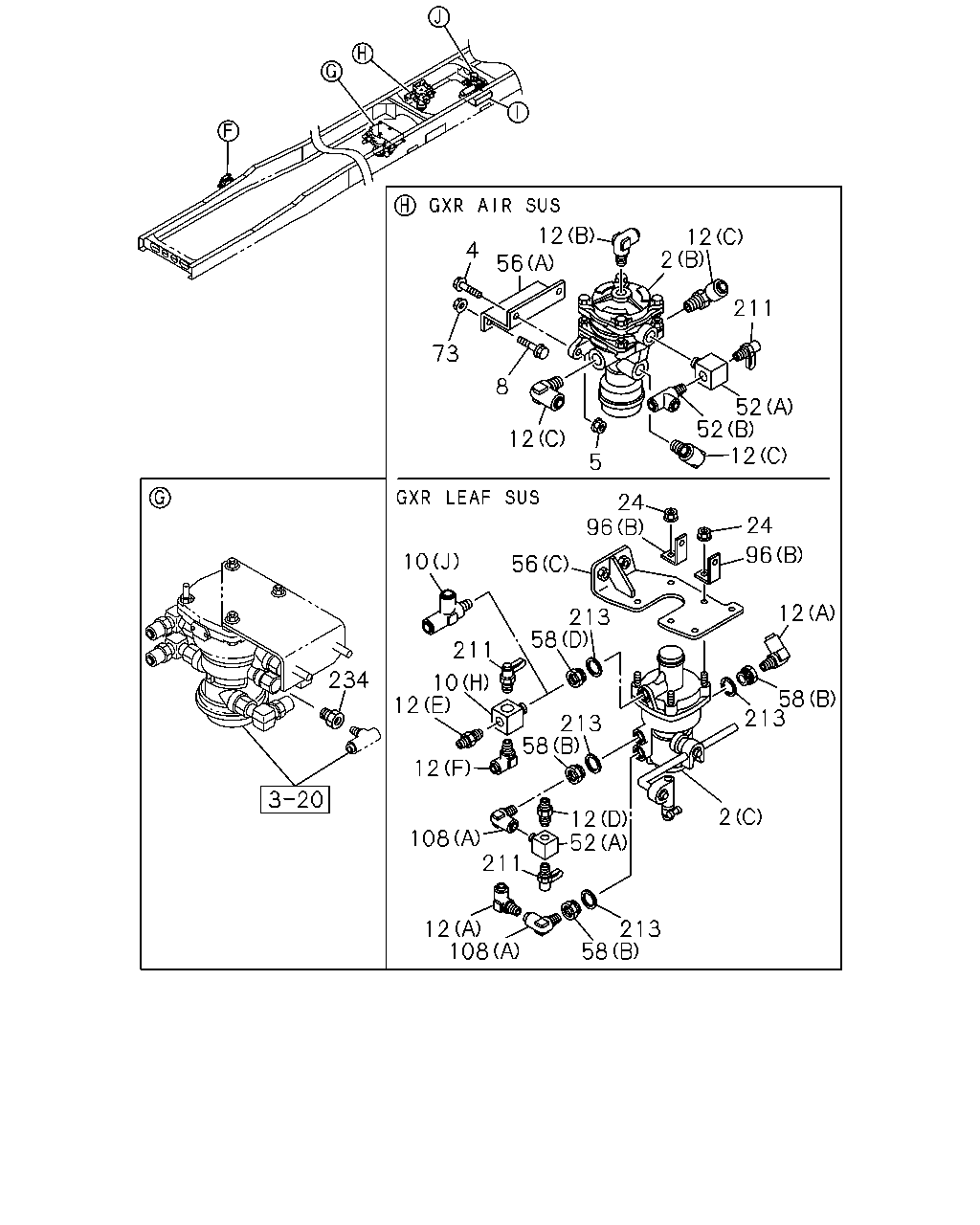

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47720-153-0	01	1	0804-				●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	0801-1001		●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	1002-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	1002-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	0801-1001		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	1002-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE	0-28650-835-0	02	1	0804-				●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0801-	●	●	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-			●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (H)	1-09661-515-0	01	1	0804-0905				●
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (J) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	0906-				●
10	CONNECTOR (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-				●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0804-				●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-0803	●	●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0804-1001	●	●		●
10	CONNECTOR (E) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1002-	●	●	●	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-0806	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0807-	●		●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0802		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0803	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0804-0806	●	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0807-	●	●		●
10	CONNECTOR (G) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0806			●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-0806			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0807-1001			●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
24	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	0804-				●
24	NUT M8 FLANGE	0-91180-108-0	06	1	0801-	●	●	●	●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09656-708-0	01	1	0801-0803			●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09656-708-0	01	1	0804-			●	●
52	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0801-			●
56	BRACKET; RELAY VLV (D)	8-98164-901-0	01	1	1002-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98114-681-0	01	1	0804-				●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (D) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-0803	●	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-	●		●	●
58	ADAPTER BRAKE REGULATION ADR<TDU> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	0801-1001	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	0801-1001		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	1002-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	1002-		●
58	ADAPTER (A)	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-0803		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001		●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-	●	●	●
96	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47477-694-0	02	1	0804-				●
96	BRACKET (A)	8-98093-436-0	01	1	0801-	●	●	●	●
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0804-				●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0804-		●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	0804-		●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (A) PT3/8 ELBOW	1-09660-696-0	01	1	0804-		●
211	CONNECTOR; TEST ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0804-				●
211	CONNECTOR; TEST ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-			●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=16.2 OD=24	9-09571-416-0	01	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	04	1	0804-				●
213	GASKET ID=22.5	9-09571-422-0	02	1	0801-1001	●
213	GASKET ID=22.5	9-09571-422-0	02	1	1002-	●		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0801-0802		●
213	GASKET ID=22.5	9-09571-422-0	03	1	0803-0803		●	●
213	GASKET ID=22.5	9-09571-422-0	03	1	0804-1001		●	●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	0804-1001				●
213	GASKET ID=22.5	9-09571-422-0	03	1	1002-		●
213	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	03	1	1002-				●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0802			●
234	UNION PT3/8	1-09664-210-0	01	1	0804-			●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0801-	●	●	●	●

45 47 59 62 63 47 158 47 157 216 19 47 45 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	BRACKET; QUICK RELEASE VLV (B)	8-98179-172-0	01	1	1108-	●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (B)	8-98033-795-0	01	1	0801-1107	●		●
19	BRACKET; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98033-795-0	01	1	0801-1107		●
19	BRACKET; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98033-795-0	01	1	1108-		●
45	VALVE; QUICK RELEASE	1-48410-733-0	01	1	0801-1008	●		●
45	VALVE; QUICK RELEASE AUSTRALIA EQUIPMENT(RR3)	1-48410-733-0	01	1	0801-1008		●
45	VALVE; QUICK RELEASE	8-98170-207-0	01	1	1009-	●		●
45	VALVE; QUICK RELEASE AUSTRALIA EQUIPMENT(RR3)	8-98170-207-0	01	1	1009-		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●		●
47	CONNECTOR; RELAY VLV,CONT AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-		●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●		●
47	CONNECTOR; RELAY VLV,CONT AUSTRALIA EQUIPMENT(RR3) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0801-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	02	1	0801-	●		●
59	BOLT; RELEASE VALVE FIX AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28050-816-0	01	1	0801-		●
59	BOLT; RELEASE VALVE FIX AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28050-820-0	01	1	0801-		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0801-	●		●
62	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28650-825-0	02	1	0801-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-0803	●	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-0803	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0801-0803		●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0804-	●		●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0804-		●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	0801-1008	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●	●	●	●
157	RETAINER; VALVE (C)	1-48419-020-0	01	1	1009-	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (C)	1-48419-020-0	01	1	1009-		●
157	RETAINER; VALVE (B)	1-48419-036-0	01	1	0801-1008	●		●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	1-48419-036-0	01	1	0801-1008		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	0801-1001	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	0801-1001		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	01	1	1002-	●		●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48213-002-0	01	1	1002-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1002-			●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●		●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(RR3) (B)	9-48419-003-0	01	1	0801-		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	0801-1001	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	0801-1001		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	01	1	1002-	●		●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-089-0	01	1	1002-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1002-			●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	01	1	0801-1008	●		●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	1-85579-062-0	01	1	0801-1008		●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	01	1	1009-	●		●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(RR3) (B)	8-98171-596-0	01	1	1009-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-1001	●		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	0801-1001	●		●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	0801-1001		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	0801-1001		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●	●	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-	●		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	01	1	1002-	●		●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	1002-		●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-149-0	01	1	1002-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1002-			●

12 12 12 5 12 12 12 2 8 56 2 73 4 5 56 12 12 73 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47720-153-0	01	1	0804-				●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	0801-1001		●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	1002-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE	0-28651-030-0	02	1	0801-0805		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	0806-1001		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	1002-	●		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28651-035-0	02	1	1002-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1002-			●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-1001	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	0801-1001		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	1002-	●		●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91180-210-0	02	1	1002-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	1002-			●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE	0-28650-835-0	02	1	0804-				●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	02	1	0801-	●	●	●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0804-0905				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0804-1001				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-			●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1002-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0803		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-				●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0801-			●
56	BRACKET; RELAY VLV (D)	8-98164-901-0	01	1	1002-			●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98114-681-0	01	1	0804-				●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	8-98031-257-0	01	1	0801-		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-233-0	01	1	0801-	●		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	02	1	0801-	●	●	●

103 108 108 105 58 220 102 108 104 167 25 99 108 282 232 108 231 142 24 24 231 93 31 30 142 96 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	0804-				●
24	NUT M8 FLANGE	0-91180-108-0	06	1	0801-	●	●	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0804-	●		●	●
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	0804-		●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-0803	●	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0804-	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0801-	●	●	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●	●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (D) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0804-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-1001	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1002-	●		●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-0803	●	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-	●		●	●
58	ADAPTER BRAKE REGULATION ADR<TDU> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0804-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	0801-1001	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	0801-1001		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-154-0	01	1	1002-	●		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-154-0	01	1	1002-		●
58	ADAPTER (A)	1-48219-154-0	01	1	1002-			●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-0802		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0803-0803		●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001		●	●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0804-1001				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-		●
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1002-				●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0802			●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-	●	●	●	●
96	BRACKET ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47477-694-0	02	1	0804-				●
96	BRACKET (A)	8-98093-436-0	01	1	0801-	●	●	●	●
99	VALVE; PROTECTION	1-48110-288-0	01	1	0801-0803				●
99	VALVE; PROTECTION	1-48110-290-3	01	1	0804-				●
99	VALVE; PROTECTION	1-48110-294-3	01	1	0801-	●	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	0801-0803	●	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	0804-	●		●	●
102	BOLT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	02	1	0804-		●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	0801-0803	●	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	0804-	●		●	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU>	8-98093-563-0	01	1	0804-		●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	0801-0803	●	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	0804-	●	●	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	0804-	●	●	●	●
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0804-				●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0804-		●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	0804-		●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0801-0803	●	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0804-	●		●	●
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> (A) PT3/8 ELBOW	1-09660-696-0	01	1	0804-		●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	0801-	●	●	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	0801-	●	●	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47729-001-0	01	1	0804-				●
167	COVER; VALVE (D)	1-48119-625-0	04	1	0801-	●		●	●
167	COVER; VALVE BRAKE REGULATION ADR<TDU> (D)	1-48119-625-0	04	1	0801-		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-063-0	01	1	0801-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0801-1001	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	0801-1001		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1002-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	1002-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1002-			●
220	CONNECTOR; 3WAY	8-98031-238-0	01	1	0801-0803	●	●	●
220	CONNECTOR; 3WAY	8-98031-238-0	01	1	0804-	●		●	●
220	CONNECTOR; 3WAY BRAKE REGULATION ADR<TDU>	8-98031-238-0	01	1	0804-		●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	0801-	●	●	●	●
231	CONNECTOR; NYLON TUBE (A)	1-09661-027-0	01	1	0801-0803	●	●	●
231	CONNECTOR; NYLON TUBE (A)	1-09661-027-0	01	1	0804-	●		●	●
231	CONNECTOR; NYLON TUBE BRAKE REGULATION ADR<TDU> (A)	1-09661-027-0	01	1	0804-		●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	0804-1001				●
232	VALVE; CHECK (B)	1-48320-031-1	01	1	1002-			●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0801-0803	●	●	●
232	VALVE; CHECK (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0804-	●		●	●
232	VALVE; CHECK BRAKE REGULATION ADR<TDU> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0804-		●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0803	●	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-	●		●	●
282	CONNECTOR; STRAIGHT BRAKE REGULATION ADR<TDU> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0804-		●

2 155 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47720-153-0	01	1	0804-				●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	0801-1001	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	0801-1001		●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	01	1	1002-	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-997-0	01	1	1002-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1002-			●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47720-164-0	01	1	0801-			●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (D)	1-85576-393-0	01	1	0804-				●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-447-0	01	1	0801-			●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	0801-1001	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	0801-1001		●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	01	1	1002-	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-294-0	01	1	1002-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1002-			●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47729-001-0	01	1	0804-				●
167	COVER; VALVE (D)	1-48119-625-0	04	1	0801-	●		●	●
167	COVER; VALVE BRAKE REGULATION ADR<TDU> (D)	1-48119-625-0	04	1	0801-		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47769-063-0	01	1	0801-			●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0801-1001	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	0801-1001		●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	1002-	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	1002-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	1002-			●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	0801-	●		●	●
	241	REPAIR KIT; PROTECTION VALVE BRAKE REGULATION ADR<TDU>	1-85576-451-2	01	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
