◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#57157) — 1093 parça

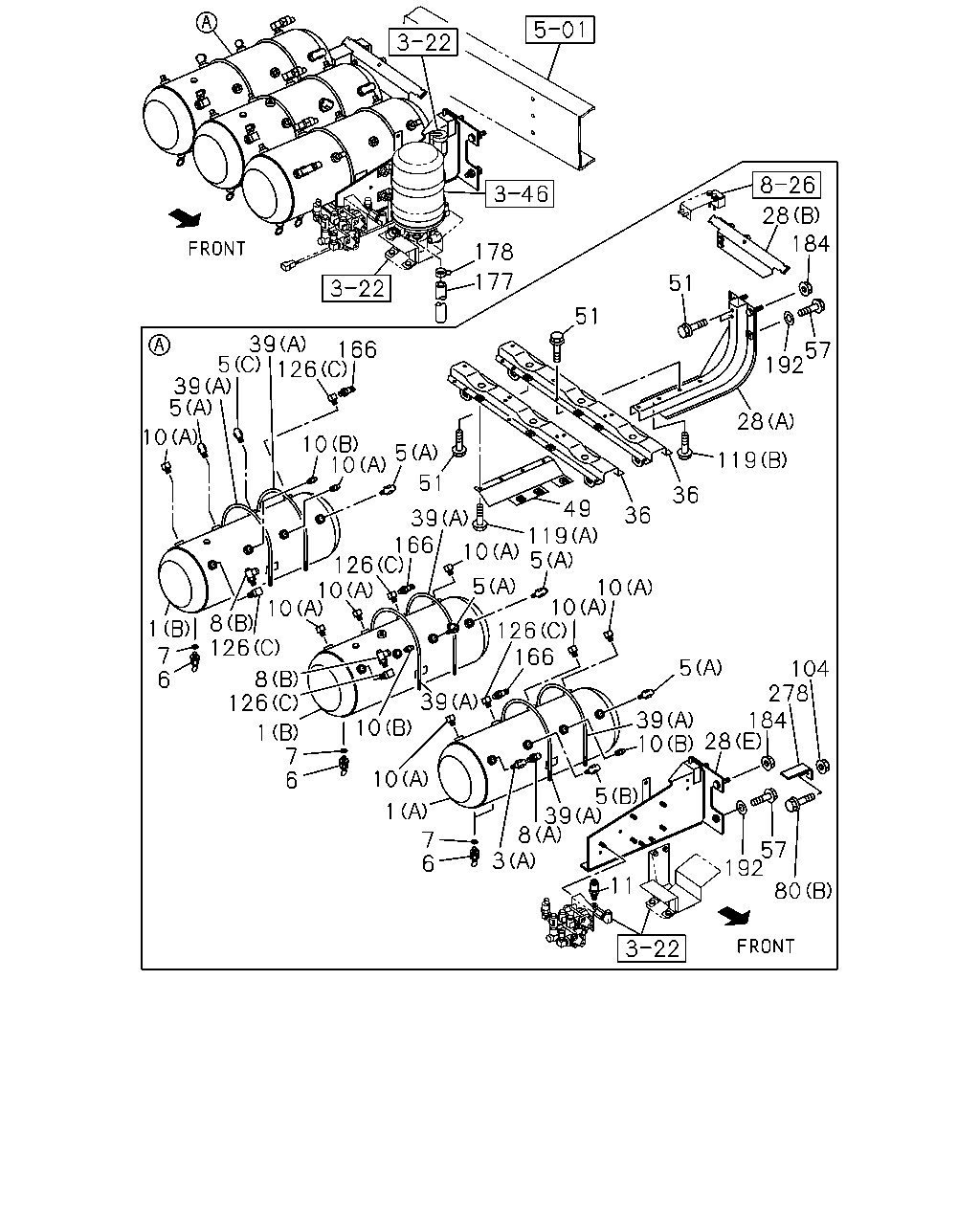

çizim 160856
28 184 178 177 51 51 39 166 5 126 39 5 57 192 28 10 10 10 5 119 51 36 49 11 5 36 39 166 126 10 10 5 10 10 126 166 10 8 126 1 7 6 5 104 278 184 28 8 126 39 10 39 10 1 7 6 10 5 1 39 8 3 7 6 57 192 11 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1412- ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-0803 ● ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-0803 ● ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0804-1106 ● ● ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0804-1106 ● ● ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ● ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ● ● ●
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 0801-0803 ● ● ●
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 0804-1106 ● ● ● ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0804-1001 ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0801-0803 ● ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0804- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 02 1 0801-1001 ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1002- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0906-1411 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 1412- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0803 ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0803 ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0804-0905 ● ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0804-0905 ● ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0906-1411 ● ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0906-1411 ● ●
5 UNION; AIR TANK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0906-1411 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1412- ● ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1412- ● ● ● ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0806 ● ● ● ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0807-0905 ● ● ● ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0906- ● ●
5 UNION; AIR TANK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0906- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ● ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801-0803 ● ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0804- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804-1411 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0804-0806 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1412- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0906-1411 ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1412- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0804- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 05 1 1412- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1412- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804-1411 ● ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804-1411 ● ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804-1411 ● ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1412- ● ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1412- ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1412- ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0804-1411 ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0804-1411 ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1412- ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1412- ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804-0806 ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0807-1411 ● ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1412- ● ● ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-0803 ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0804- ● ● ●
28 BRACKET; AIR TANK
BRAKE REGULATION ADR<TDU> (D) 		8-98092-756-1 01 1 0804- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-0 02 1 0801-0803 ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0804- ● ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0804- ● ● ●
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR<TDU> (B) L=210 		1-48317-458-1 02 1 0804- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0804- ● ● ● ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 0801- ● ● ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 0801- ● ● ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 0801- ● ● ● ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0805- ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
BRAKE REGULATION ADR<TDU> M10 		0-91110-510-0 04 1 0806- ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801-0803 ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0804- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801-0803 ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0803 ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0804-0805 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0803 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0804-0804 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0801- ● ● ● ●
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0801- ● ● ● ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 02 1 1412- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0804-1411 ● ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0804-1411 ● ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0804-1411 ● ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1412- ● ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1412- ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1412- ● ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 0804- ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 0804- ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 0801- ● ● ● ●
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0801- ● ● ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 0801- ● ● ● ●

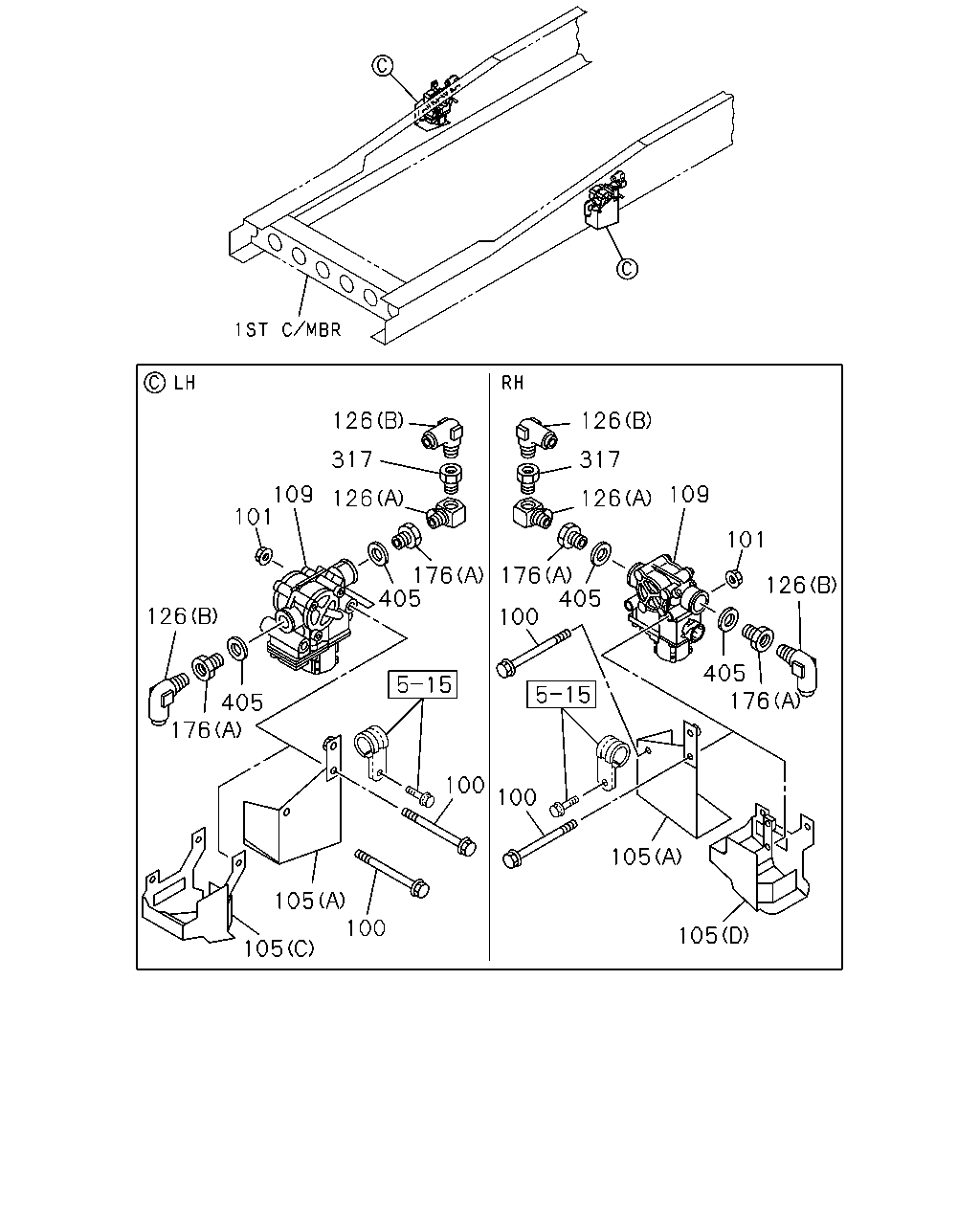

çizim 160858
126 317 126 109 101 126 176 405 105 105 100 100 100 105 105 100 405 176 126 126 317 109 126 101 405 176 405 176
BalonParca AdiParca NoAdetTipApplied Date A B C D
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-0802 ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0803-0803 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505- ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0801-0802 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0803-0810 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 0811-1504 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-152-0 01 1 1505- ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0801-0802 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0803-0803 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 0804-1504 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-153-0 01 1 1505- ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 0801-1504 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98272-749-0 01 1 1505- ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-0802 ● ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0803-1504 ● ● ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505- ● ● ● ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 0804- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801-0802 ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803- ● ● ● ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 0804- ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801-0802 ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0803-0803 ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ●

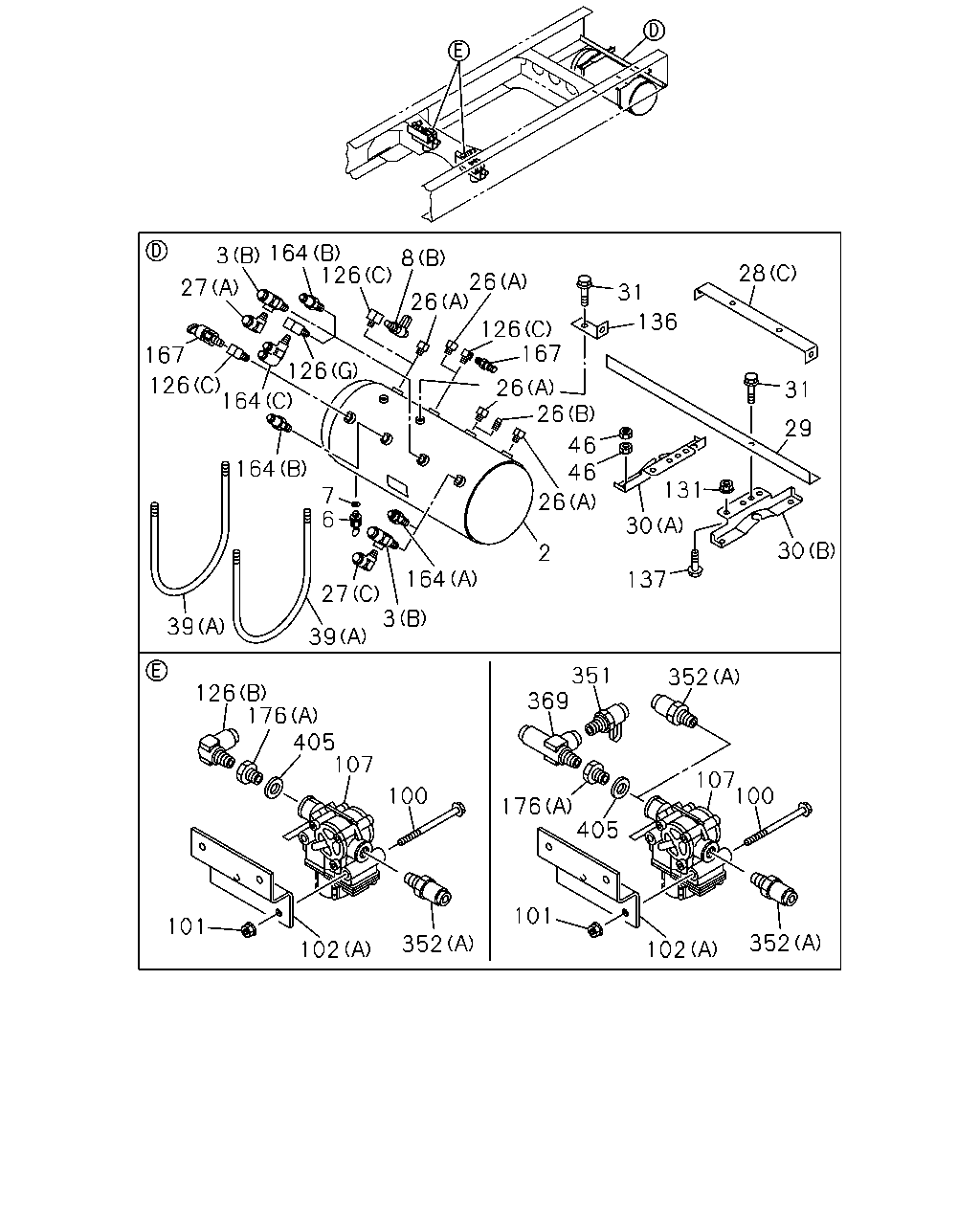

çizim 160878
3 27 167 126 164 126 164 164 6 27 39 39 164 7 126 8 26 26 126 26 167 26 46 46 26 2 137 30 131 136 31 28 31 29 30 352 351 369 176 405 101 102 352 100 107 100 107 405 176 126 101 02 352 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 TANK; AIR 8-97617-855-1 01 1 0801-0803 ● ● ●
2 TANK; AIR 8-97617-855-1 01 1 0804-1106 ● ● ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0804-1001 ●

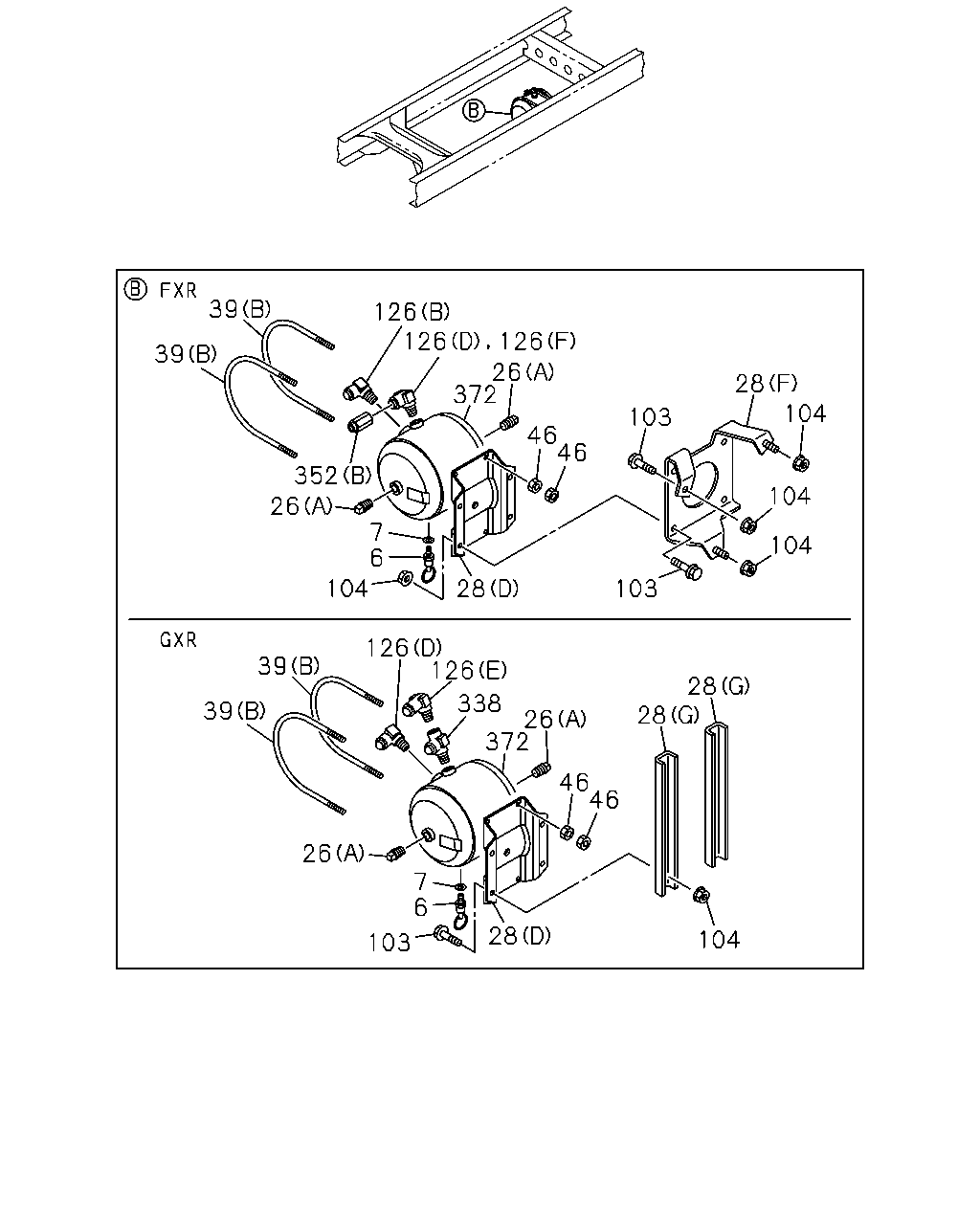

3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0801-0803 ● ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0804- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 02 1 0801-1001 ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1002- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0804- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804-1411 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0804-0806 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1412- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0906-1411 ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1412- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0804- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ● ● ●

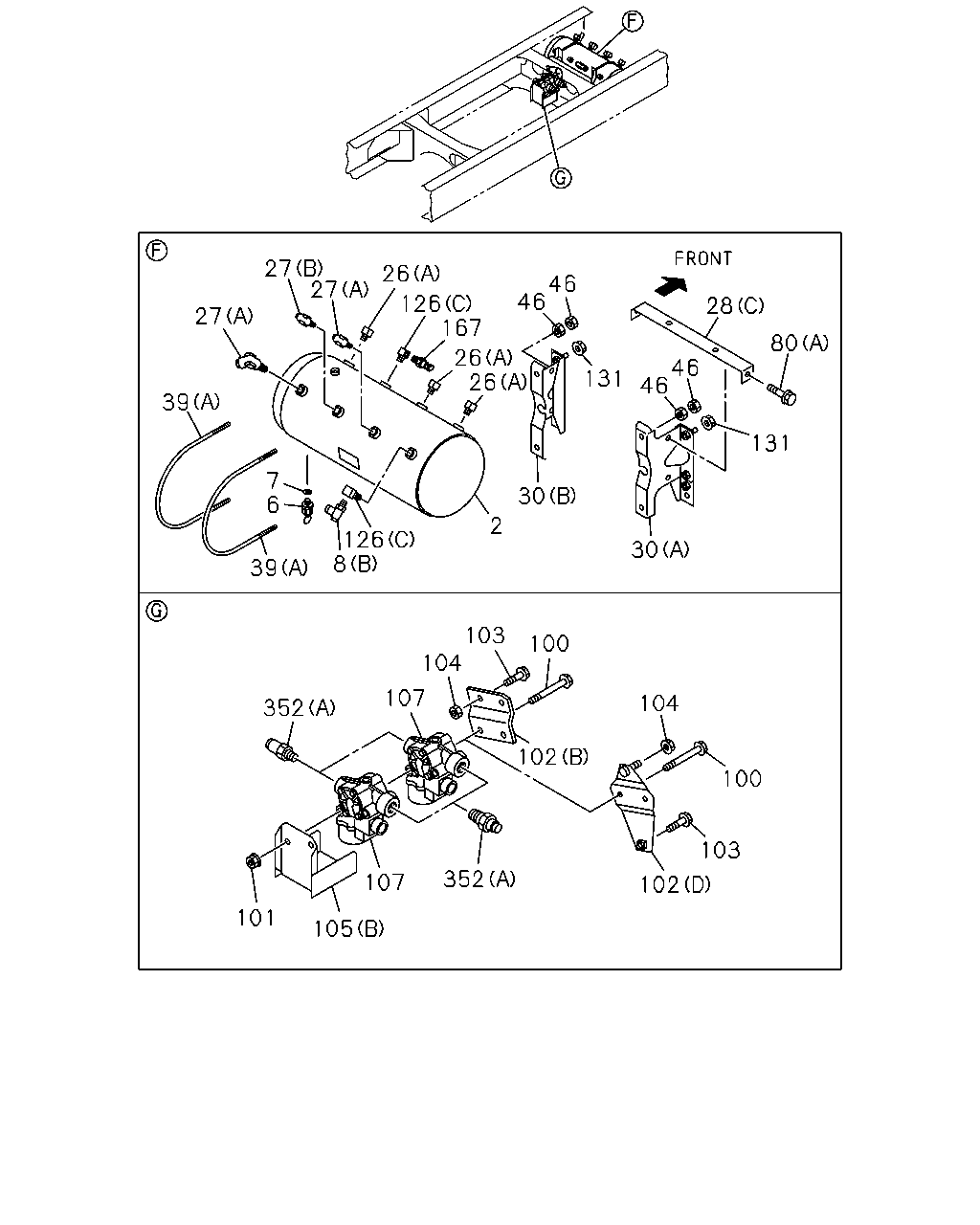

26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
BRAKE REGULATION ADR<TDU> (A) PT3/8 		9-09204-517-0 02 1 0804- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804- ● ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1001 ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-0803 ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0804- ● ● ●
28 BRACKET; AIR TANK
BRAKE REGULATION ADR<TDU> (D) 		8-98092-756-1 01 1 0804- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-0 02 1 0801-0803 ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0804- ● ●

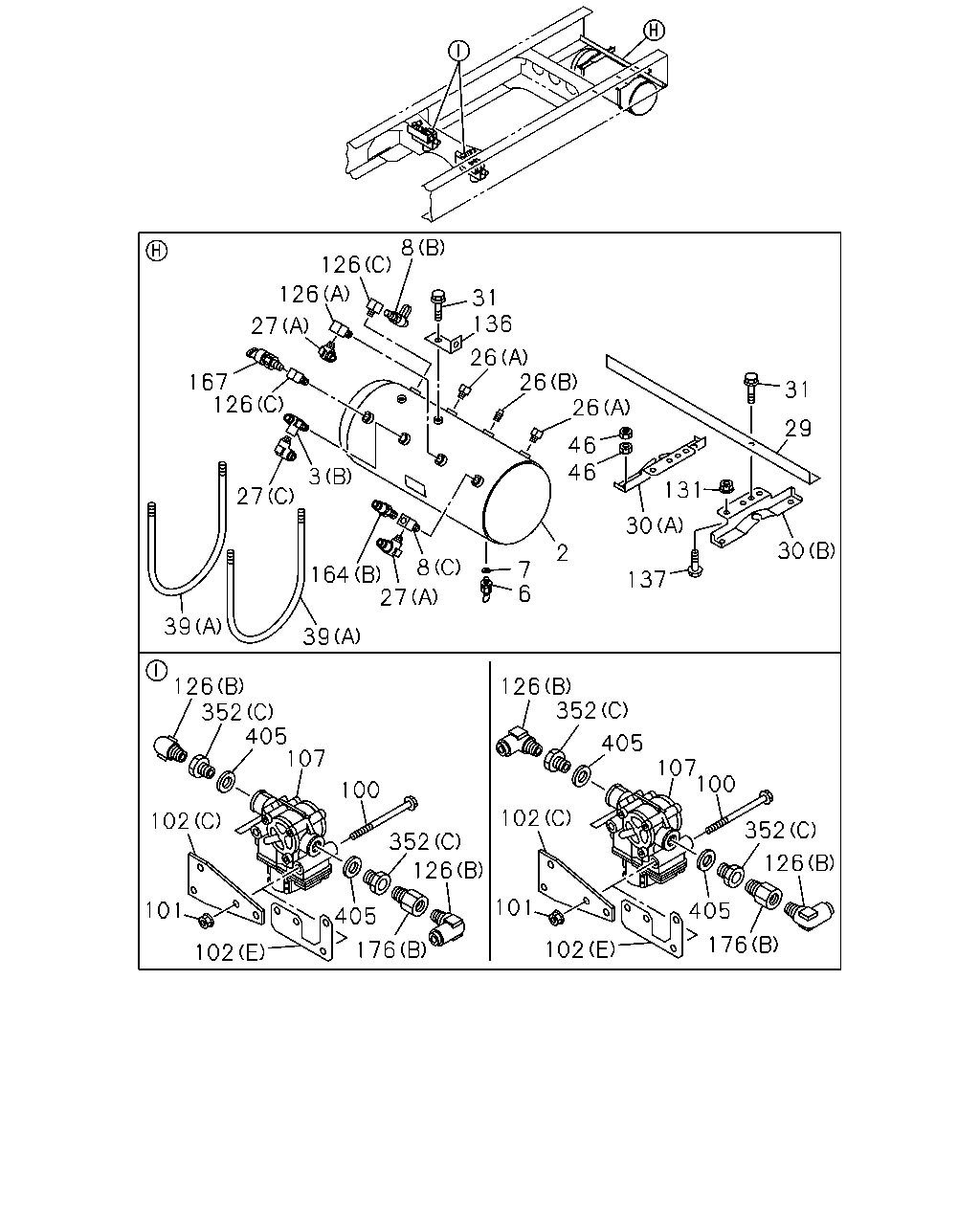

29 BRACKET; AIR TANK 8-97620-998-0 01 1 0801-0803 ● ●
29 BRACKET; AIR TANK 8-97620-998-0 01 1 0804- ● ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0804- ● ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0804- ● ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0804-0806 ● ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ● ●
31 BOLT; BRKT TO FRAME
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0804- ● ● ●
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR<TDU> (B) L=210 		1-48317-458-1 02 1 0804- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
BRAKE REGULATION ADR<TDU> M8 		0-91110-508-0 08 1 0804- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-0802 ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0803-0803 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505- ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-304-0 02 1 0804-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (E) 		8-98300-209-0 02 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98059-827-0 01 1 0801-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-524-0 01 1 1505- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-0803 ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0804-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0801-0803 ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0804- ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0801-0803 ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0804-0806 ● ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0807- ● ● ●
136 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=55 B=25 		1-47478-439-0 01 1 0807- ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0801-0803 ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0804- ● ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1002- ●
164 CONNECTOR; SUB AIR TANK
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0804- ● ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 0804- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801-0802 ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803- ● ● ● ●
351 CONNECTOR; TEST
ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0804- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) 		1-09661-027-0 01 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801-0802 ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0803-0803 ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ●
çizim 160883
27 27 27 26 26 126 26 46 46 131 30 2 126 8 39 6 7 39 167 46 46 30 131 80 28 104 100 103 102 102 100 103 104 107 352 101 105 107 352
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 TANK; AIR 8-97617-855-1 01 1 0801-0803 ● ● ●
2 TANK; AIR 8-97617-855-1 01 1 0804-1106 ● ● ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0804- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804-1411 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0804-0806 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1412- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0906-1411 ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1412- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0804- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
BRAKE REGULATION ADR<TDU> (A) PT3/8 		9-09204-517-0 02 1 0804- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804- ● ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1001 ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-0803 ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0804- ● ● ●
28 BRACKET; AIR TANK
BRAKE REGULATION ADR<TDU> (D) 		8-98092-756-1 01 1 0804- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-0 02 1 0801-0803 ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0804- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0804- ● ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0804- ● ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0804- ● ● ●
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR<TDU> (B) L=210 		1-48317-458-1 02 1 0804- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
BRAKE REGULATION ADR<TDU> M8 		0-91110-508-0 08 1 0804- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-0802 ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0803-0803 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505- ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-304-0 02 1 0804-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (E) 		8-98300-209-0 02 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98059-827-0 01 1 0801-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-524-0 01 1 1505- ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ● ● ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0801-0803 ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804-0804 ● ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804- ● ● ●
103 BOLT; BRKT
BRAKE REGULATION ADR<TDU> M10X25 FLANGE 		0-28651-025-0 04 1 0804- ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0801-0803 ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0804- ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0805- ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
BRAKE REGULATION ADR<TDU> M10 		0-91110-510-0 04 1 0806- ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801-0803 ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0804- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801-0803 ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0803 ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0804-0805 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0803 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0804-0804 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0801-0802 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0803-0810 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 0811-1504 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-152-0 01 1 1505- ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0801-0802 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0803-0803 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 0804-1504 ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-153-0 01 1 1505- ● ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 0801-1504 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98272-749-0 01 1 1505- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-0803 ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0804-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0801-0803 ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0804- ● ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0804- ● ● ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0804- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
çizim 160887
39 126 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103 126 126 39 28 28 338 39 26 372 46 46 26 7 6 28 104 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0804- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804-1411 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0804-0806 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1412- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
BRAKE REGULATION ADR<TDU> (A) PT3/8 		9-09204-517-0 02 1 0804- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804- ● ● ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-0803 ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0804- ● ● ●
28 BRACKET; AIR TANK
BRAKE REGULATION ADR<TDU> (D) 		8-98092-756-1 01 1 0804- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-0 02 1 0801-0803 ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0804- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0804- ● ● ●
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR<TDU> (B) L=210 		1-48317-458-1 02 1 0804- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
BRAKE REGULATION ADR<TDU> M8 		0-91110-508-0 08 1 0804- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0804- ● ● ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0801-0803 ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804-0804 ● ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804- ● ● ●
103 BOLT; BRKT
BRAKE REGULATION ADR<TDU> M10X25 FLANGE 		0-28651-025-0 04 1 0804- ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0801-0803 ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0804- ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0805- ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
BRAKE REGULATION ADR<TDU> M10 		0-91110-510-0 04 1 0806- ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801-0803 ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0804- ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801-0803 ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0803 ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0804-0805 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0803 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0804-0804 ● ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
338 CONNECTOR; 3WAY VLV
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0804- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 0801-0803 ● ● ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 0804- ● ● ●
372 TANK; AIR,ACCESORY
BRAKE REGULATION ADR<TDU> 		8-98090-803-1 01 1 0804- ●
çizim 160961
244 241 245 246 158 241
BalonParca AdiParca NoAdetTipApplied Date A B C D
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 0801- ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0801- ● ● ● ●
241 BOLT; SET,CONT VLV
M10X20 FLANGE 		0-28051-020-0 02 1 0801- ● ●
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0801-1003 ● ●
244 PIPE; VINYL,EXH
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 0801-1003 ● ●
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0801-1003 ● ●
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 02 1 0801-1003 ● ●
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0801-1003 ● ●
çizim 160998
8 126 126 27 167 3 126 31 26 136 26 46 26 46 31 29 30 131 30 137 2 7 6 8 27 164 39 27 39 126 352 405 107 100 352 126 405 176 102 101 102 176 405 126 352 100 107 405 352 126 102 101 102
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 TANK; AIR 8-97617-855-1 01 1 0801-0803 ● ● ●
2 TANK; AIR 8-97617-855-1 01 1 0804-1106 ● ● ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0804-1001 ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0801-0803 ● ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0804- ● ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 02 1 0801-1001 ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1002- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-017-0 01 1 0804- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804-1411 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1412- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804-0806 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0807- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1412- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1412- ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804-0806 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0804-0806 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0807-0905 ● ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0807-0905 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0906-1411 ● ●
7 GASKET; DRAIN COCK
BRAKE REGULATION ADR<TDU> ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=14 		1-09630-145-0 01 1 0906-1411 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1412- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 0906-1411 ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1412- ●
8 CONNECTOR; AIR TANK
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0804- ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0804-0905 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0906-1411 ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1412- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
BRAKE REGULATION ADR<TDU> (A) PT3/8 		9-09204-517-0 02 1 0804- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0804- ● ● ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1001 ●
29 BRACKET; AIR TANK 8-97620-998-0 01 1 0801-0803 ● ●
29 BRACKET; AIR TANK 8-97620-998-0 01 1 0804- ● ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0804- ● ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0801-0803 ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0804- ● ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0804-0806 ● ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0807- ● ● ●
31 BOLT; BRKT TO FRAME
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28650-820-0 01 1 0807- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0804- ● ● ●
39 U-BOLT; AIR TANK
BRAKE REGULATION ADR<TDU> (B) L=210 		1-48317-458-1 02 1 0804- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0803 ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
BRAKE REGULATION ADR<TDU> M8 		0-91110-508-0 08 1 0804- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X85 		1-09044-074-0 04 1 1505- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-0802 ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0803-0803 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0804-1504 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 1505- ● ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0804- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-304-0 02 1 0804-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (E) 		8-98300-209-0 02 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98059-827-0 01 1 0801-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		8-98300-524-0 01 1 1505- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-0803 ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0804-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09660-778-1 01 1 1002- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 04 1 0906-1411 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 06 1 1412- ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0803- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-0802 ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0803-0803 ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0804- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0804-0905 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0906-1411 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1412- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804- ● ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-0803 ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ● ● ●
126 CONNECTOR; ELBOW
BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804-0804 ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0801-0803 ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0804- ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0801-0803 ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0804-0806 ● ● ● ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0807- ● ● ●
136 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=55 B=25 		1-47478-439-0 01 1 0807- ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0801-0803 ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0804- ● ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1002- ●
164 CONNECTOR; SUB AIR TANK
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0803 ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0804- ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0801-0803 ● ● ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0804- ● ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 0804- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801-0802 ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803- ● ● ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0804- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801-0802 ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0803-0803 ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ● ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
