Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#57155) — 248 parça

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-47649-031-0	02	1	0801-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0801-		●
297	RING; SNAP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-47649-034-1	02	1	0801-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0801-		●
301	CLIP; ANTI LOTATION FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47621-017-0	04	1	0801-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0801-		●
311	BOOT; WEDGE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-042-0	02	1	0801-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0801-		●
319	RING; DRIVE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-200-0	04	1	0801-	●
319	RING; DRIVE	1-47629-200-0	04	1	0801-		●
327	SPRING; ADJ FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-196-0	04	1	0801-	●
327	SPRING; ADJ	1-47629-196-0	04	1	0801-		●
328	CAGE; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-192-0	04	1	0801-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0801-		●
329	SCREW; LOCATING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47619-149-1	04	1	0801-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0801-		●
334	SPRING; ROD FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-041-0	02	1	0801-	●
334	SPRING; ROD	1-47649-041-0	02	1	0801-		●
335	RETAINER; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-020-0	02	1	0801-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0801-		●
346	REPAIR KIT; EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-85576-403-0	02	1	0801-	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0801-		●
347	REPAIR KIT; BOOT,EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-85576-404-0	02	1	0801-	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0801-		●
348	CAP; EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-044-0	02	1	0801-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0801-		●

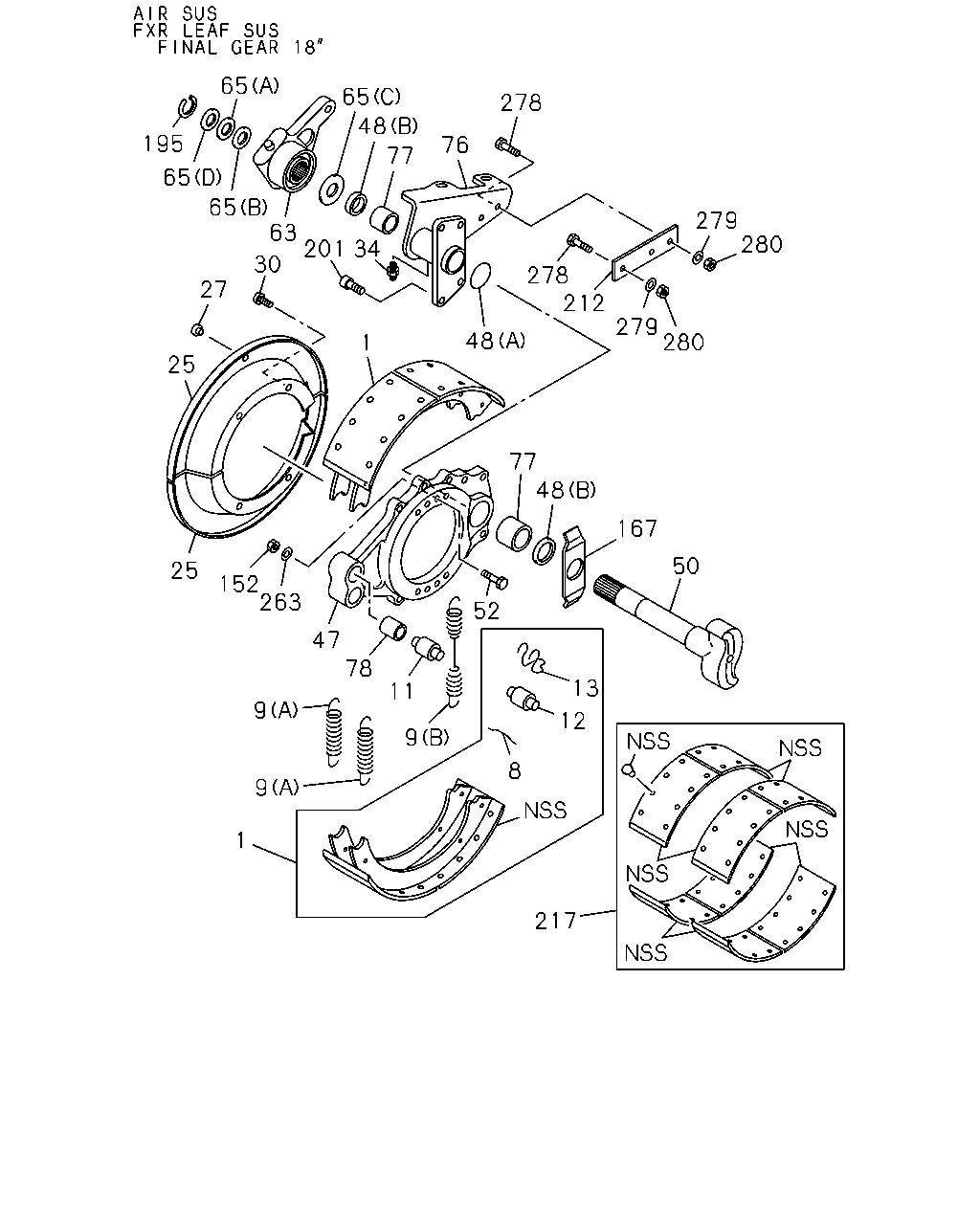

65 195 65 65 63 201 34 65 48 77 76 278 278 280 280 279 212 278 48 50 167 48 77 1 30 27 25 25 152 263 47 78 11 9 9 9 1 13 12 8 217 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR	1-47120-734-0	04	1	0801-			●	●
1	SHOE; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47120-734-0	04	1	0801-	●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47170-324-0	01	1	0801-	●
1	SHOE; BRK,RR LEADING	1-47170-324-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47170-325-0	01	1	0801-	●
1	SHOE; BRK,RR TRAILING	1-47170-325-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47170-326-0	01	1	0801-	●
1	SHOE; BRK,RR LEADING	1-47170-326-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47170-327-0	01	1	0801-	●
1	SHOE; BRK,RR TRAILING	1-47170-327-0	01	1	0801-		●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-116-0	04	1	0801-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47119-116-0	04	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47119-136-0	02	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE TRAILING	1-47119-136-0	02	1	0801-		●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47119-172-0	02	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE LEADING	1-47119-172-0	02	1	0801-		●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0801-			●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-47119-114-0	04	1	0801-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0801-			●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-47119-115-0	02	1	0801-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	1-09583-365-1	02	1	0801-	●
9	SPRING; RETURN,BRK SHOE (C)	1-09583-365-1	02	1	0801-		●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0801-			●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47131-040-0	04	1	0801-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) L=138.5	1-47131-045-0	04	1	0801-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0801-		●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	04	1	0801-			●	●
12	ROLLER; CAM,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47119-141-0	04	1	0801-	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	04	1	0801-			●	●
13	CLIP; ROLLER PIN,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47119-118-0	04	1	0801-	●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0801-			●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47151-774-0	02	1	0801-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-808-0	01	1	0801-1309	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	0801-1309		●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-878-0	02	1	1310-	●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-809-0	01	1	0801-1309	●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	0801-1309		●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0801-			●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-87050-011-0	04	1	0801-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-09333-151-0	04	1	0801-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0801-		●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0801-			●	●
30	BOLT; DRUM COVER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47159-176-0	12	1	0801-	●
30	BOLT; DRUM COVER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M10X12	1-47159-187-0	12	1	0801-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0801-		●
34	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0801-			●	●
34	NIPPLE; GREASE,CHAMBER BRKT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-48259-253-0	02	1	0801-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0801-			●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47137-374-0	02	1	0801-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47137-549-0	01	1	0801-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47137-550-0	01	1	0801-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0801-0802		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-472-0	02	1	0803-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98091-253-1	02	1	1307-		●
48	SEAL; OIL,CM/SHF,RR BRK (A)	1-47149-056-0	02	1	0801-			●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-47149-056-0	02	1	0801-	●
48	SEAL; OIL,CM/SHF,RR BRK (B)	1-47149-057-0	04	1	0801-			●	●
48	SEAL; OIL,CM/SHF,RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-47149-057-0	04	1	0801-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-124-0	01	1	0801-			●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47141-124-0	01	1	0801-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-125-0	01	1	0801-			●	●
50	CAMSHAFT; BRK,RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47141-125-0	01	1	0801-	●
52	BOLT; ANCHOR BRKT	1-47139-122-0	16	1	0801-			●	●
52	BOLT; ANCHOR BRKT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47139-122-0	16	1	0801-	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-106-0	02	1	0801-			●	●
63	ADJUSTER ASM; SLACK,RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-48270-106-0	02	1	0801-	●
65	SPACER; SLACK ADJ,BRK (A) T=0.06"	1-47139-121-0	02	1	0801-			●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) T=0.06"	1-47139-121-0	02	1	0801-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47149-059-0	02	1	0801-			●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-47149-059-0	02	1	0801-	●
65	SPACER; SLACK ADJ,BRK (D) T=0.03"	1-47149-060-0	02	1	0801-			●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (D) T=0.03"	1-47149-060-0	02	1	0801-	●
65	SPACER; SLACK ADJ,BRK (C)	1-47149-065-0	02	1	0801-			●	●
65	SPACER; SLACK ADJ,BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (C)	1-47149-065-0	02	1	0801-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47145-029-0	01	1	0801-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47145-030-0	01	1	0801-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-022-0	01	1	0801-			●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-47145-023-0	01	1	0801-			●	●
77	BUSHING	1-47146-012-0	04	1	0801-			●	●
77	BUSHING FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47146-012-0	04	1	0801-	●
78	BUSHING; BRKT	1-47139-117-0	04	1	0801-			●	●
78	BUSHING; BRKT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47139-117-0	04	1	0801-	●
152	NUT; ANCHOR BRKT	1-41229-169-0	16	1	0801-			●	●
152	NUT; ANCHOR BRKT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-41229-169-0	16	1	0801-	●
167	WASHER; ADJ CAM	1-47149-077-0	02	1	0801-			●	●
167	WASHER; ADJ CAM FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47149-077-0	02	1	0801-	●
195	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0801-			●	●
195	RING; SNAP,CM/SHF FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-87050-005-0	02	1	0801-	●
201	BOLT; BRKT,POWER CHAMBER	1-47139-119-0	08	1	0801-			●	●
201	BOLT; BRKT,POWER CHAMBER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47139-119-0	08	1	0801-	●
212	STAY	1-47149-081-0	02	1	0801-			●	●
212	STAY FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47149-081-0	02	1	0801-	●
217	LINING KIT; RR BRK	1-87050-157-0	01	1	0801-			●	●
217	LINING KIT; RR BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-87050-157-0	01	1	0801-	●
263	WASHER; PL,ANCHOR BRKT	1-41519-038-0	16	1	0801-			●	●
263	WASHER; PL,ANCHOR BRKT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-41519-038-0	16	1	0801-	●
278	BOLT; SUPPORT	1-41329-038-0	06	1	0801-			●	●
278	BOLT; SUPPORT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-41329-038-0	06	1	0801-	●
279	WASHER; SUPPORT	1-47149-083-0	06	1	0801-			●	●
279	WASHER; SUPPORT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47149-083-0	06	1	0801-	●
280	NUT; SUPPORT	1-47149-082-0	06	1	0801-			●	●
280	NUT; SUPPORT FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47149-082-0	06	1	0801-	●

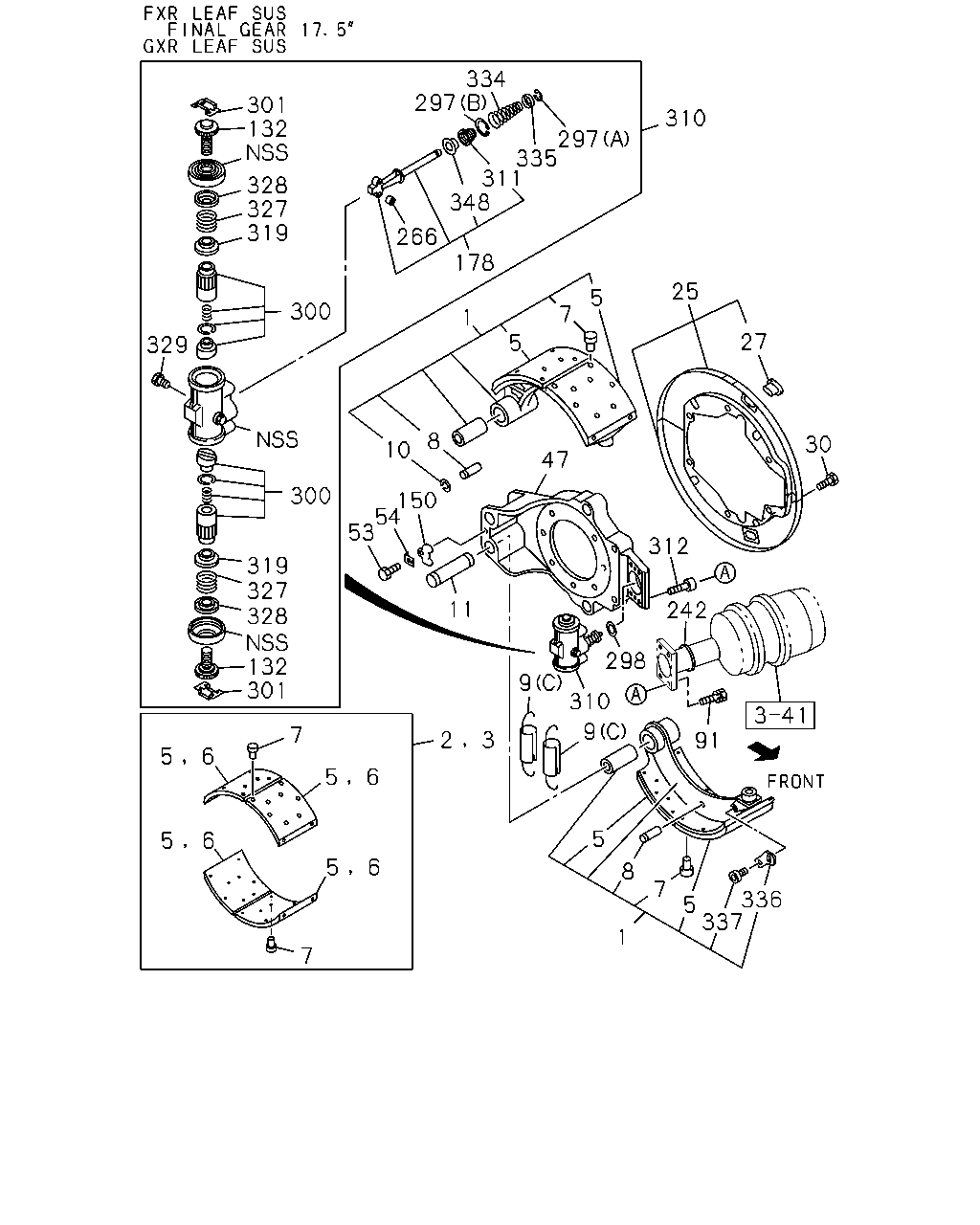

334 297 132 310 297 335 311 348 328 327 319 266 178 25 5 300 7 1 27 5 329 8 30 10 47 300 150 54 53 312 319 327 328 132 301 11 242 298 9 310 9 7 2 3 91 5 6 5 6 5 5 6 5 6 8 336 5 337 7 1 7 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR	1-47120-734-0	04	1	0801-			●	●
1	SHOE; BRK,RR FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47120-734-0	04	1	0801-	●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47170-324-0	01	1	0801-	●
1	SHOE; BRK,RR LEADING	1-47170-324-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47170-325-0	01	1	0801-	●
1	SHOE; BRK,RR TRAILING	1-47170-325-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47170-326-0	01	1	0801-	●
1	SHOE; BRK,RR LEADING	1-47170-326-0	01	1	0801-		●
1	SHOE; BRK,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47170-327-0	01	1	0801-	●
1	SHOE; BRK,RR TRAILING	1-47170-327-0	01	1	0801-		●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-88310-775-1	02	1	0801-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	0801-		●
2	LINING SET; RR BRK,STANDARD FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) BEST VALUE PARTS	1-87610-132-0	01	1	0801-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	0801-		●
3	LINING SET; RR BRK,OVER SIZE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-88310-776-1	02	1	0801-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	0801-		●
5	LINING; RR BRK SHOE,STANDARD FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47126-093-0	08	1	0801-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	0801-		●
6	LINING; RR BRK SHOE,OVER SIZE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47126-094-0	08	1	0801-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	0801-		●
7	RIVET; LINING,RR BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) L=15.5	1-09732-053-0	AR	1	0801-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	0801-		●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-116-0	04	1	0801-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47119-116-0	04	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) TRAILING	1-47119-136-0	02	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE TRAILING	1-47119-136-0	02	1	0801-		●
8	PIN; RETURN SPRING,RR BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) LEADING	1-47119-172-0	02	1	0801-	●
8	PIN; RETURN SPRING,RR BRK SHOE LEADING	1-47119-172-0	02	1	0801-		●
9	SPRING; RETURN,BRK SHOE (A)	1-47119-114-0	04	1	0801-			●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A)	1-47119-114-0	04	1	0801-	●
9	SPRING; RETURN,BRK SHOE (B)	1-47119-115-0	02	1	0801-			●	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B)	1-47119-115-0	02	1	0801-	●
9	SPRING; RETURN,BRK SHOE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C)	1-09583-365-1	02	1	0801-	●
9	SPRING; RETURN,BRK SHOE (C)	1-09583-365-1	02	1	0801-		●
10	RING; SNAP,SPR PIN FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) ID=10	0-91805-510-0	02	1	0801-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	0801-		●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-040-0	04	1	0801-			●	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47131-040-0	04	1	0801-	●
11	PIN; ANCHOR,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) L=138.5	1-47131-045-0	04	1	0801-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0801-		●
25	COVER SET; RR BRK DRUM	1-47151-774-0	02	1	0801-			●	●
25	COVER SET; RR BRK DRUM FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47151-774-0	02	1	0801-	●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-808-0	01	1	0801-1309	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	0801-1309		●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-878-0	02	1	1310-	●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47151-809-0	01	1	0801-1309	●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	0801-1309		●
27	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0801-			●	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-87050-011-0	04	1	0801-	●
27	COVER; CHECK HOLE,DRUM COVER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-09333-151-0	04	1	0801-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0801-		●
30	BOLT; DRUM COVER	1-47159-176-0	12	1	0801-			●	●
30	BOLT; DRUM COVER FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47159-176-0	12	1	0801-	●
30	BOLT; DRUM COVER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M10X12	1-47159-187-0	12	1	0801-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0801-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-374-0	02	1	0801-			●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C)	1-47137-374-0	02	1	0801-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47137-549-0	01	1	0801-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47137-550-0	01	1	0801-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0801-0802		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-472-0	02	1	0803-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98091-253-1	02	1	1307-		●
53	BOLT; LOCK PLATE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M10X16	0-20851-016-0	02	1	0801-0910	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0801-0910		●
53	BOLT; LOCK PLATE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M10X16	1-47139-173-0	02	1	0911-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	0911-		●
54	WASHER; LK,ANCHOR PIN,RR BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47133-011-0	02	1	0801-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0801-		●
91	BOLT; CHAMBER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M10X53	1-47139-148-0	08	1	0801-	●
91	BOLT; CHAMBER M10X53	1-47139-148-0	08	1	0801-		●
132	SCREW; ADJ,RR BRK FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47623-035-2	04	1	0801-	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	0801-		●
150	PLATE; LK,ANCHOR PIN FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47133-010-0	02	1	0801-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0801-		●
178	WEDGE; RR WHEEL CYL FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47640-012-0	02	1	0801-	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	0801-		●
242	SEAL FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47159-186-0	04	1	0801-	●
242	SEAL	1-47159-186-0	04	1	0801-		●
266	ROLLER; WEDGE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47643-007-0	04	1	0801-	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	0801-		●
297	RING; SNAP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (A)	1-47649-031-0	02	1	0801-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0801-		●
297	RING; SNAP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)	1-47649-034-1	02	1	0801-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0801-		●
298	GASKET FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-48259-231-0	02	1	0801-	●
298	GASKET	1-48259-231-0	02	1	0801-		●
300	SLEEVE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-247-1	04	1	0801-	●
300	SLEEVE	1-47629-247-1	04	1	0801-		●
301	CLIP; ANTI LOTATION FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47621-017-0	04	1	0801-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0801-		●
310	EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47601-087-0	02	1	0801-	●
310	EXPANDER	1-47601-087-0	02	1	0801-		●
311	BOOT; WEDGE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-042-0	02	1	0801-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0801-		●
312	BOLT; EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0801-	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0801-		●
319	RING; DRIVE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-200-0	04	1	0801-	●
319	RING; DRIVE	1-47629-200-0	04	1	0801-		●
327	SPRING; ADJ FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-196-0	04	1	0801-	●
327	SPRING; ADJ	1-47629-196-0	04	1	0801-		●
328	CAGE; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47629-192-0	04	1	0801-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0801-		●
329	SCREW; LOCATING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47619-149-1	04	1	0801-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0801-		●
334	SPRING; ROD FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-041-0	02	1	0801-	●
334	SPRING; ROD	1-47649-041-0	02	1	0801-		●
335	RETAINER; SPRING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-020-0	02	1	0801-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0801-		●
336	PLATE; PIVOT FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47119-152-0	04	1	0801-	●
336	PLATE; PIVOT	1-47119-152-0	04	1	0801-		●
337	BOLT; PLATE FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47119-153-0	04	1	0801-	●
337	BOLT; PLATE	1-47119-153-0	04	1	0801-		●
348	CAP; EXPANDER FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C)	1-47649-044-0	02	1	0801-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
