◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#57154) — 214 parça

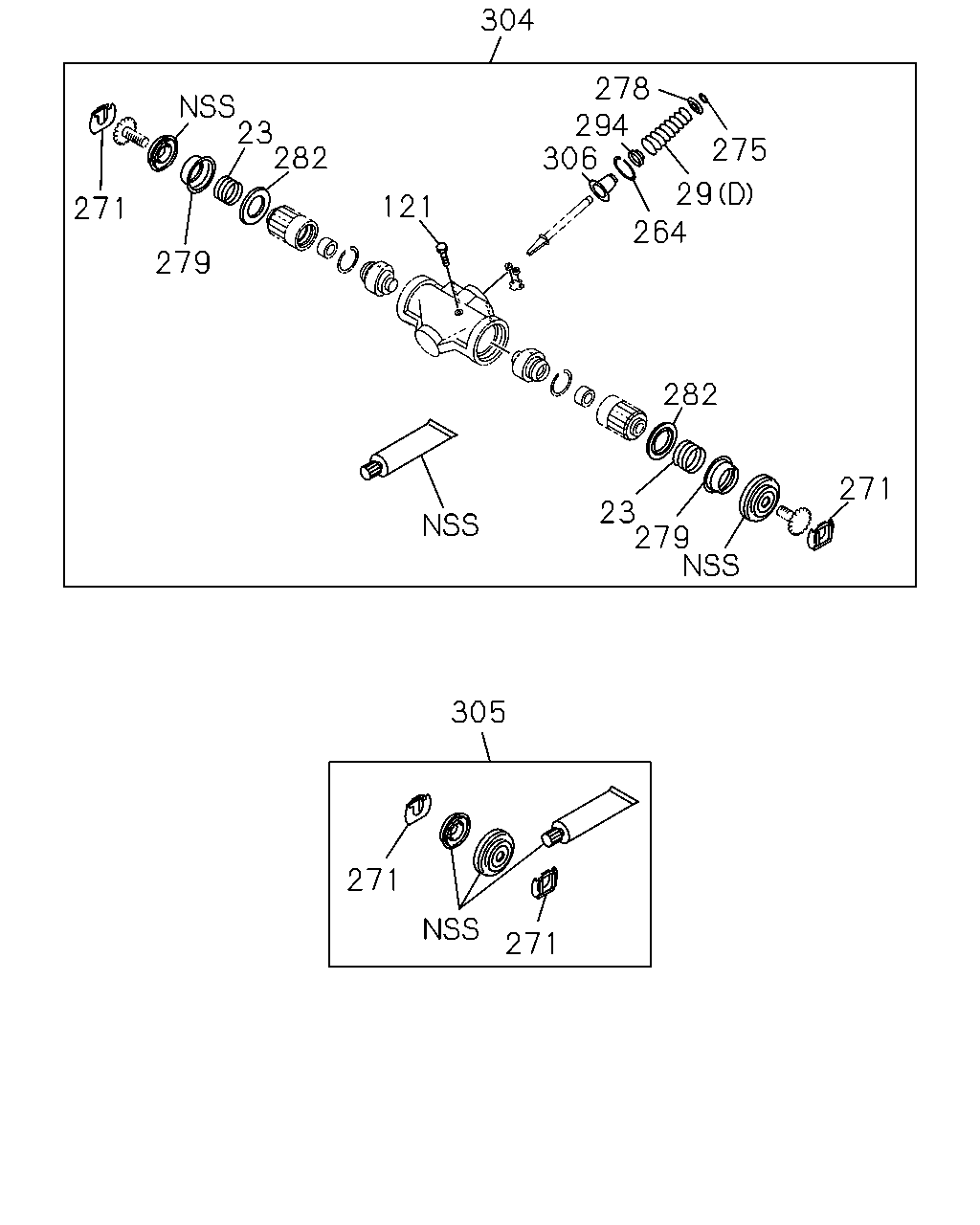

çizim 160853
304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 SPRING; COIL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-196-0 04 1 0801- ●
23 SPRING; COIL 1-47629-196-0 04 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47119-114-0 04 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47119-119-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		1-47649-041-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 0801- ●
121 SCREW; LK SPR FRT WHEEL CYL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47619-149-1 04 1 0801- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0801- ●
264 RING; SNAP,SPR PIN
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-034-1 02 1 0801- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0801- ●
271 CLIP; ADJ
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47621-017-0 04 1 0801- ●
271 CLIP; ADJ 1-47621-017-0 04 1 0801- ●
275 RING; RETAINER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-031-0 02 1 0801- ●
275 RING; RETAINER 1-47649-031-0 02 1 0801- ●
278 RETAINER; SPRING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-020-0 02 1 0801- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0801- ●
279 CAGE; SPRING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-192-0 04 1 0801- ●
279 CAGE; SPRING 1-47629-192-0 04 1 0801- ●
282 RING; DRIVE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-200-0 04 1 0801- ●
282 RING; DRIVE 1-47629-200-0 04 1 0801- ●
294 BOOT; WEDGE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-042-0 02 1 0801- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0801- ●
304 REPAIR KIT; EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-85576-403-0 02 1 0801- ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0801- ●
305 REPAIR KIT; BOOT,EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-85576-404-0 02 1 0801- ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0801- ●
306 CAP; EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-044-0 02 1 0801- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0801- ●

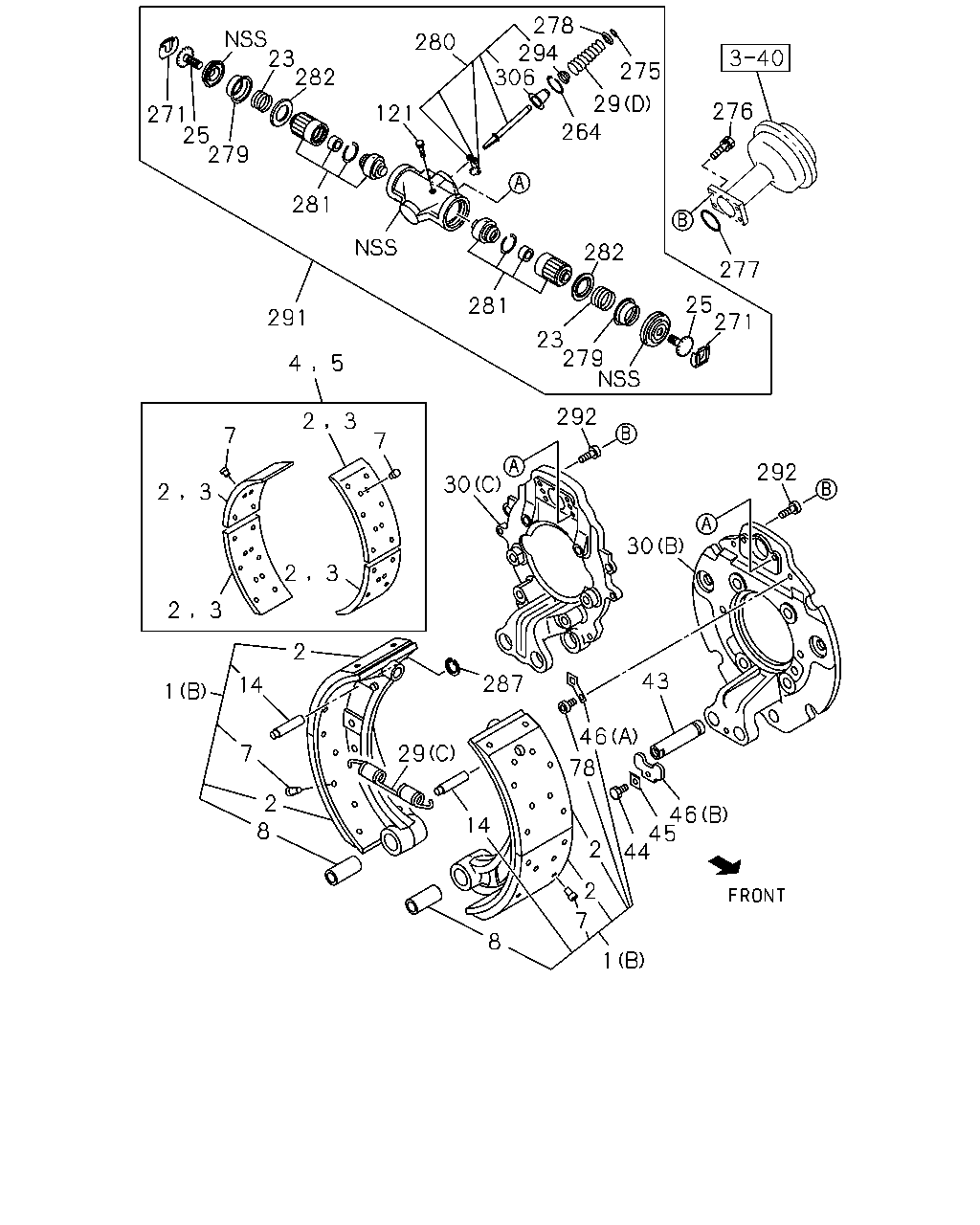

çizim 160896
278 294 306 23 282 280 275 29 276 121 271 25 279 264 281 282 277 25 271 281 291 23 279 5 4 292 2 3 7 7 30 292 2 3 2 30 3 2 3 2 43 287 14 1 46 29 7 78 2 8 46 45 44 14 2 2 7 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,FRT
(A) 		1-47120-832-0 04 1 0801- ● ●
1 SHOE; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47120-832-0 04 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) LEADING 		1-47170-316-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-316-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) TRAILING 		1-47170-317-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-317-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) LEADING 		1-47170-318-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-318-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) TRAILING 		1-47170-319-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-319-0 01 1 0801- ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47126-698-0 08 1 0801- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 0801- ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47126-699-0 08 1 0801- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 0801- ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-88311-314-0 02 1 0801- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 0801- ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) BEST VALUE PARTS 		1-87610-128-0 01 1 0801- ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 0801- ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-88311-315-0 02 1 0801- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 0801- ●
7 RIVET; LINING,FRT BRK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) L=15.5 		1-09732-053-0 80 1 0801- ●
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 0801- ●
8 BUSHING; BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47112-020-0 04 1 0801- ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0801- ●
14 PIN; SHOE RETURN SPR
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47119-177-1 04 1 0801- ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 0801- ●
23 SPRING; COIL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-196-0 04 1 0801- ●
23 SPRING; COIL 1-47629-196-0 04 1 0801- ●
25 SCREW; ADJ,FRT WHEEL CYL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47623-035-2 04 1 0801- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47119-114-0 04 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47119-119-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		1-47649-041-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 0801- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-580-0 01 1 0801- ● ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47137-580-0 01 1 0801- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-581-0 01 1 0801- ● ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47137-581-0 01 1 0801- ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-47137-512-0 02 1 0801-1005 ●
30 BRACKET; ANCHOR,FRT
(B) 		1-47137-512-0 02 1 0801-1005 ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98091-252-0 02 1 1006- ●
30 BRACKET; ANCHOR,FRT
(C) 		8-98091-252-0 02 1 1006- ●
43 PIN; ANCHOR 1-47131-040-0 04 1 0801- ● ●
43 PIN; ANCHOR
FRONT AXLE MERITOR FG941(BFL) 		1-47131-040-0 04 1 0801- ●
43 PIN; ANCHOR
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) L=115.5 		1-47131-044-0 04 1 0801- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0801- ●
44 BOLT; LOCK,ANCHOR PIN
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X16 		0-20851-016-0 02 1 0801-0910 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0801-0910 ●
44 BOLT; LOCK,ANCHOR PIN
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X16 		1-47139-173-0 02 1 0911- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 0911- ●
45 WASHER; LK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47133-011-0 02 1 0801- ●
45 WASHER; LK 1-47133-011-0 02 1 0801- ●
46 PLATE; LOCK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-47119-152-0 04 1 0801- ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0801- ●
46 PLATE; LOCK
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-47133-010-0 02 1 0801- ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0801- ●
78 BOLT; LK,PLATE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47119-153-0 04 1 0801- ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 0801- ●
121 SCREW; LK SPR FRT WHEEL CYL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47619-149-1 04 1 0801- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0801- ●
264 RING; SNAP,SPR PIN
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-034-1 02 1 0801- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0801- ●
271 CLIP; ADJ
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47621-017-0 04 1 0801- ●
271 CLIP; ADJ 1-47621-017-0 04 1 0801- ●
275 RING; RETAINER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-031-0 02 1 0801- ●
275 RING; RETAINER 1-47649-031-0 02 1 0801- ●
276 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0804-0906 ●
276 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907-0910 ●
276 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 0911- ●
276 BOLT; CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X42.5 		1-47139-163-0 08 1 0801-0803 ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 0801-0803 ●
276 BOLT; CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M10X42.5 		1-47139-163-0 08 1 0804- ●
277 RING; CHAMBER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-48259-231-0 02 1 0801- ●
277 RING; CHAMBER 1-48259-231-0 02 1 0801- ●
278 RETAINER; SPRING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-020-0 02 1 0801- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0801- ●
279 CAGE; SPRING
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-192-0 04 1 0801- ●
279 CAGE; SPRING 1-47629-192-0 04 1 0801- ●
280 WEDGE; FRT WHEEL CYL
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47640-012-0 02 1 0801- ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 0801- ●
281 SLEEVE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-247-1 04 1 0801- ●
281 SLEEVE 1-47629-247-1 04 1 0801- ●
282 RING; DRIVE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47629-200-0 04 1 0801- ●
282 RING; DRIVE 1-47629-200-0 04 1 0801- ●
287 RING; SNAP
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) ID=10 		0-91805-510-0 08 1 0801- ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 0801- ●
291 EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47601-087-0 02 1 0801- ●
291 EXPANDER 1-47601-087-0 02 1 0801- ●
292 BOLT; EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0801- ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0801- ●
294 BOOT; WEDGE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-042-0 02 1 0801- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0801- ●
306 CAP; EXPANDER
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-47649-044-0 02 1 0801- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0801- ●

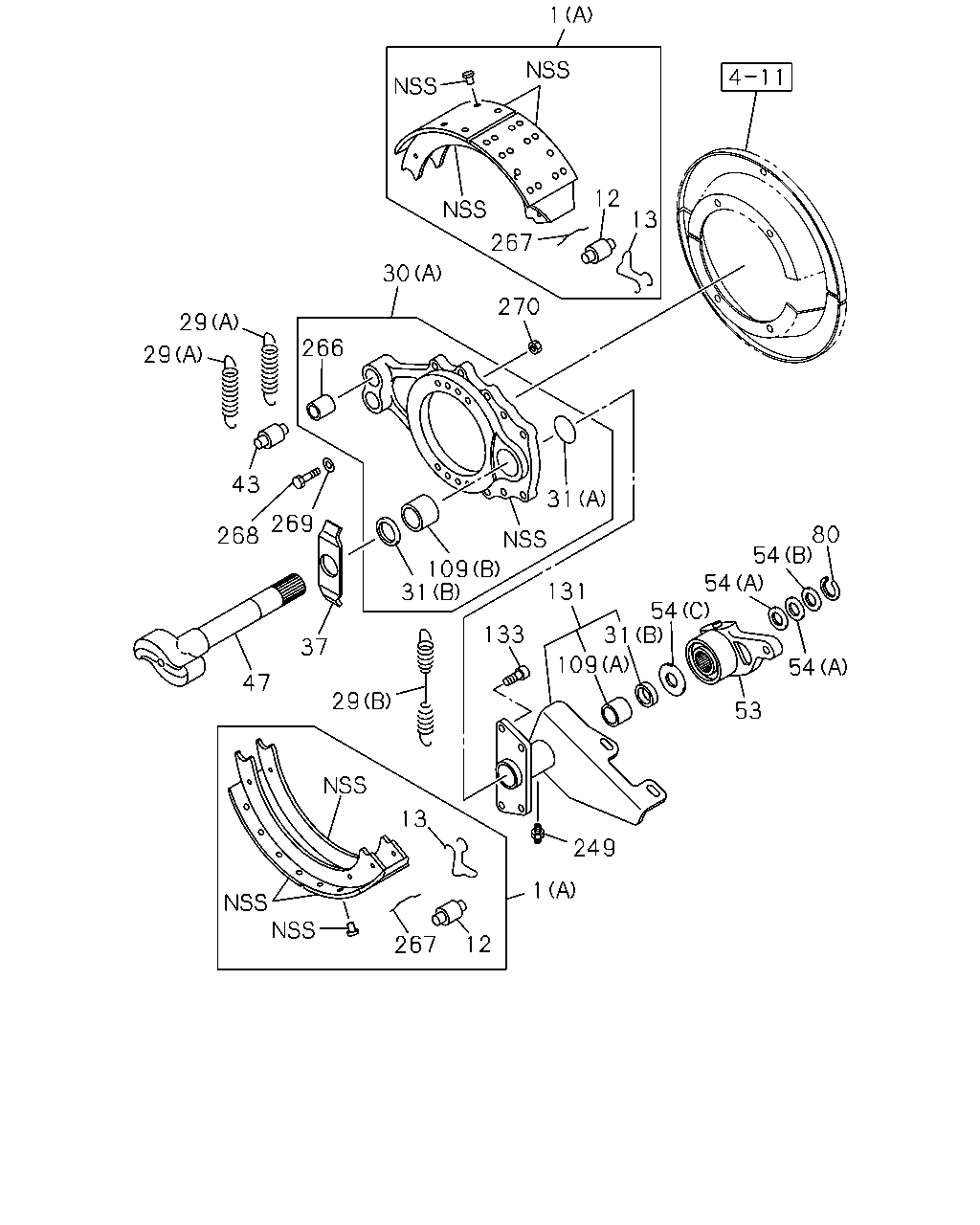

çizim 161054
1 12 13 267 270 30 266 29 29 43 268 269 37 47 29 109 31 131 133 31 80 54 54 54 31 109 53 54 249 1 12 267 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,FRT
(A) 		1-47120-832-0 04 1 0801- ● ●
1 SHOE; BRK,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47120-832-0 04 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) LEADING 		1-47170-316-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-316-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) TRAILING 		1-47170-317-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-317-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) LEADING 		1-47170-318-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-318-0 01 1 0801- ●
1 SHOE; BRK,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) TRAILING 		1-47170-319-0 01 1 0801- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-319-0 01 1 0801- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 02 1 0801- ● ●
12 ROLLER; CAM,BRK SHOE
FRONT AXLE MERITOR FG941(BFL) 		1-47119-141-0 02 1 0801- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 0801- ● ●
13 CLIP; ROLLER PIN,BRK SHOE
FRONT AXLE MERITOR FG941(BFL) 		1-47119-118-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47119-114-0 04 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 0801- ● ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47119-119-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0801-0802 ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 02 1 0803- ●
29 SPRING; RETURN,FRT BRK SHOE
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (D) 		1-47649-041-0 02 1 0801- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 0801- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-580-0 01 1 0801- ● ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47137-580-0 01 1 0801- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-581-0 01 1 0801- ● ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47137-581-0 01 1 0801- ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) 		1-47137-512-0 02 1 0801-1005 ●
30 BRACKET; ANCHOR,FRT
(B) 		1-47137-512-0 02 1 0801-1005 ●
30 BRACKET; ANCHOR,FRT
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) 		8-98091-252-0 02 1 1006- ●
30 BRACKET; ANCHOR,FRT
(C) 		8-98091-252-0 02 1 1006- ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 0801- ● ●
31 SEAL; OIL,CM/SHF
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47149-056-0 02 1 0801- ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 02 1 0801- ● ●
31 SEAL; OIL,CM/SHF
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47149-057-0 02 1 0801- ●
37 WASHER; ADJ CAM 1-47149-087-0 02 1 0801- ● ●
37 WASHER; ADJ CAM
FRONT AXLE MERITOR FG941(BFL) 		1-47149-087-0 02 1 0801- ●
43 PIN; ANCHOR 1-47131-040-0 04 1 0801- ● ●
43 PIN; ANCHOR
FRONT AXLE MERITOR FG941(BFL) 		1-47131-040-0 04 1 0801- ●
43 PIN; ANCHOR
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) L=115.5 		1-47131-044-0 04 1 0801- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0801- ●
47 CAMSHAFT; FRT BRK 1-47141-140-0 01 1 0801- ● ●
47 CAMSHAFT; FRT BRK
FRONT AXLE MERITOR FG941(BFL) 		1-47141-140-0 01 1 0801- ●
47 CAMSHAFT; FRT BRK 1-47141-141-0 01 1 0801- ● ●
47 CAMSHAFT; FRT BRK
FRONT AXLE MERITOR FG941(BFL) 		1-47141-141-0 01 1 0801- ●
53 ADJUSTER ASM; SLACK 1-48270-107-0 02 1 0801- ● ●
53 ADJUSTER ASM; SLACK
FRONT AXLE MERITOR FG941(BFL) 		1-48270-107-0 02 1 0801- ●
54 SPACER; CM/SHF
(A) T=0.06" 		1-47139-121-0 02 1 0801- ● ●
54 SPACER; CM/SHF
FRONT AXLE MERITOR FG941(BFL) (A) T=0.06" 		1-47139-121-0 02 1 0801- ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 0801- ● ●
54 SPACER; CM/SHF
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47149-059-0 02 1 0801- ●
54 SPACER; CM/SHF
(A) T=0.03" 		1-47149-060-0 02 1 0801- ● ●
54 SPACER; CM/SHF
FRONT AXLE MERITOR FG941(BFL) (A) T=0.03" 		1-47149-060-0 02 1 0801- ●
54 SPACER; CM/SHF
(C) 		1-47149-065-0 02 1 0801- ● ●
54 SPACER; CM/SHF
FRONT AXLE MERITOR FG941(BFL) (C) 		1-47149-065-0 02 1 0801- ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0801- ● ●
80 RING; SNAP,CM/SHF
FRONT AXLE MERITOR FG941(BFL) 		1-87050-005-0 02 1 0801- ●
109 BUSHING; CM/SHF,FRT BRK
(A) 		1-47146-012-0 02 1 0801- ● ●
109 BUSHING; CM/SHF,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (A) 		1-47146-012-0 02 1 0801- ●
109 BUSHING; CM/SHF,FRT BRK
(B) 		1-47146-017-0 02 1 0801- ● ●
109 BUSHING; CM/SHF,FRT BRK
FRONT AXLE MERITOR FG941(BFL) (B) 		1-47146-017-0 02 1 0801- ●
131 BRACKET; POWER CHAMBER 1-48258-245-0 01 1 0801- ● ●
131 BRACKET; POWER CHAMBER
FRONT AXLE MERITOR FG941(BFL) 		1-48258-245-0 01 1 0801- ●
131 BRACKET; POWER CHAMBER 1-48258-246-0 01 1 0801- ● ●
131 BRACKET; POWER CHAMBER
FRONT AXLE MERITOR FG941(BFL) 		1-48258-246-0 01 1 0801- ●
133 BOLT; BRKT 1-47139-116-0 08 1 0801- ● ●
133 BOLT; BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-47139-116-0 08 1 0801- ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0801- ● ●
249 NIPPLE; GREASE,CHAMBER BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-48259-253-0 02 1 0801- ●
266 BUSHING; BRKT 1-47139-117-0 04 1 0801- ● ●
266 BUSHING; BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-47139-117-0 04 1 0801- ●
267 PIN; RETURN SPRING,FRT BRK SHOE 1-47119-116-0 02 1 0801- ● ●
267 PIN; RETURN SPRING,FRT BRK SHOE
FRONT AXLE MERITOR FG941(BFL) 		1-47119-116-0 02 1 0801- ●
268 BOLT; ANCHOR BRKT 1-47139-122-0 12 1 0801- ● ●
268 BOLT; ANCHOR BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-47139-122-0 12 1 0801- ●
269 WASHER; ANCHOR BRKT 1-41519-102-0 28 1 0801- ● ●
269 WASHER; ANCHOR BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-41519-102-0 28 1 0801- ●
270 NUT; ANCHOR BRKT 1-41229-169-0 14 1 0801- ● ●
270 NUT; ANCHOR BRKT
FRONT AXLE MERITOR FG941(BFL) 		1-41229-169-0 14 1 0801- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
