2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#57150) — 35 parça

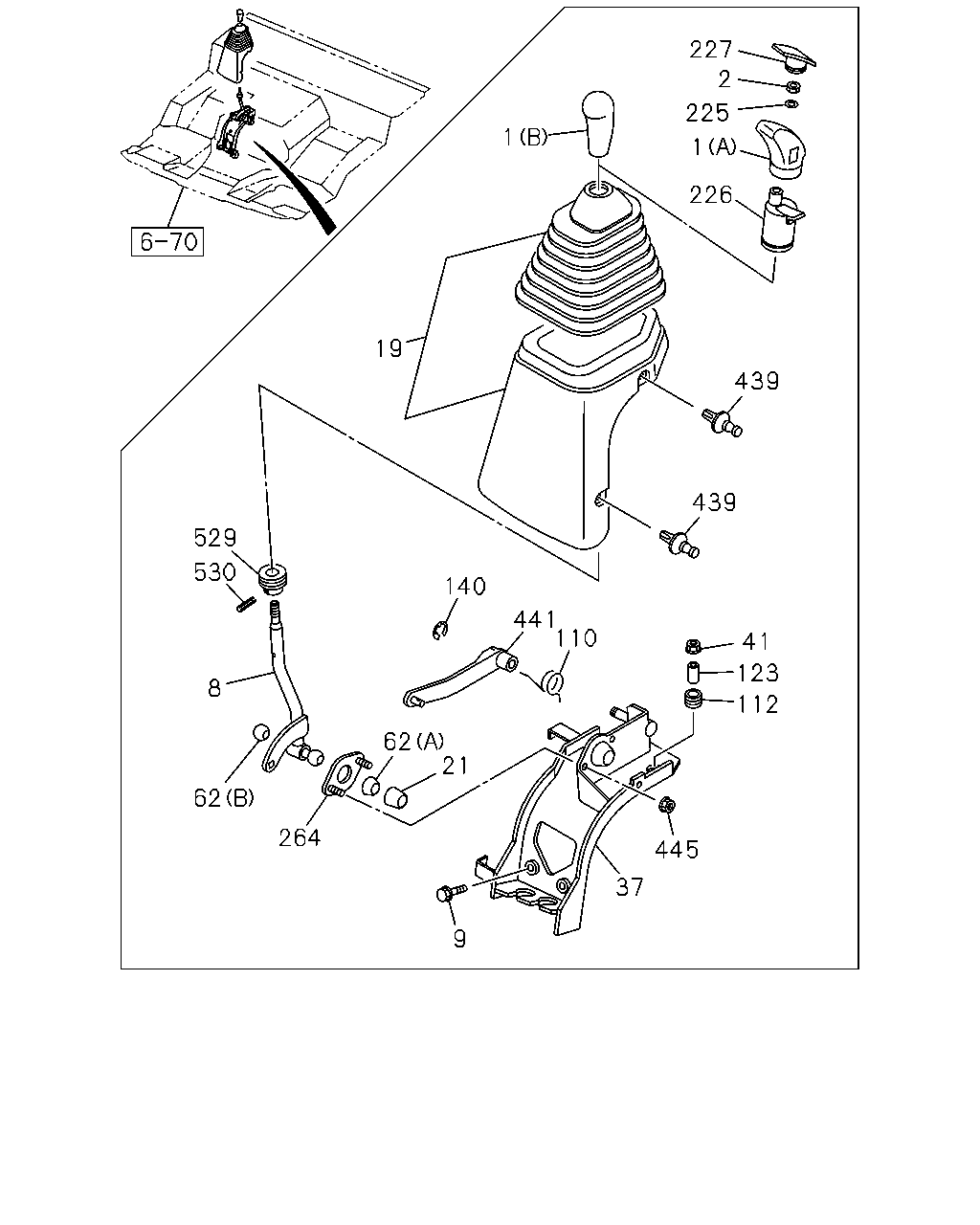

çizim 160857
227 2 225 1 1 226 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 KNOB; CHANGE LEVER
(A) 		1-33611-038-0 01 1 0801- ● ● ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-099-1 01 1 0801- ●
2 NUT; KNOB
M10 FLANGE 		0-91180-210-0 01 1 0801- ● ● ●
8 LEVER; CHANGE 8-98079-300-0 01 1 0801-1502 ● ● ●
8 LEVER; CHANGE 8-98221-569-0 01 1 1503- ● ● ●
8 LEVER; CHANGE 8-98079-299-0 01 1 0801-1502 ●
8 LEVER; CHANGE 8-98296-343-0 01 1 1503- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0801- ● ● ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-0 01 1 0807-0901 ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 0902- ● ● ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97413-102-0 01 1 0801-0806 ● ● ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97413-102-0 01 1 0807-0901 ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0801- ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98079-298-0 01 1 0801-1311 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98245-920-0 01 1 1312-1502 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98296-342-0 01 1 1503- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98079-297-0 01 1 0801-1311 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98245-919-0 01 1 1312-1502 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98296-341-0 01 1 1503- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0801- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0801- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0801- ● ● ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0801- ● ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0801- ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0801- ● ● ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0801- ● ● ● ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0801- ● ● ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0801- ● ● ●
227 COVER; KNOB 8-98013-168-0 01 1 0801- ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0801- ● ● ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0801- ● ● ● ●
441 LEVER; SELECT 8-98079-302-0 01 1 0801- ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0801- ● ● ● ●
529 RING; BOOT 1-33619-504-0 01 1 0801- ●
530 PIN; SPRING 1-33619-505-0 01 1 0801- ●
