2-25 — SPEEDOMETER DRIVEN GEAR (#5715) — 66 parça

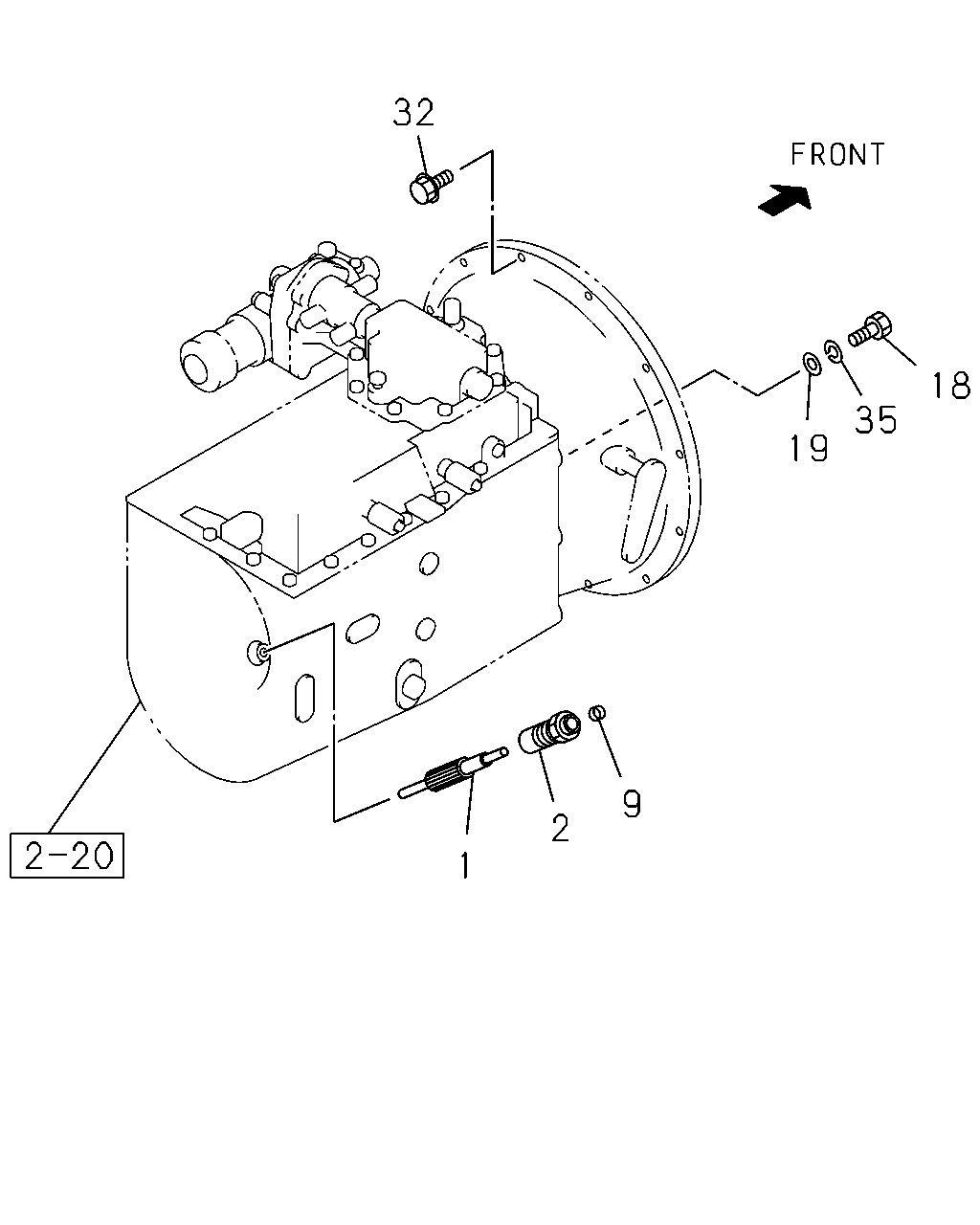

32 18 35 19 9 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-188-0	01	1	0611-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	9811-0610		●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0611-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-083-0	01	1	0611-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9811-0610		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0611-			●
9	SEAL; OIL,DRIVEN GEAR	1-33379-012-0	01	1	0611-	●
18	BOLT; CLU HSG TO TRANS L=50	1-33119-358-0	06	1	0611-	●
18	BOLT; CLU HSG TO TRANS L=55	1-33119-359-0	02	1	0611-	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9811-0512		●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-0610		●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0611-			●
19	WASHER; PL,CLU HSG TO TRANS	1-33119-361-0	08	1	0611-	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9811-0605		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-0610		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X45 FLANGE	0-28151-045-0	02	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X50 FLANGE	0-28151-050-0	02	1	0611-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X40 FLANGE	0-28751-040-0	10	1	0611-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28781-030-0	10	1	9811-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28751-030-0	10	1	0601-0610		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28751-030-0	08	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X20,M10X26 L=56	1-09049-014-1	02	1	9811-0610		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X20,M10X26 L=56	1-09049-014-1	02	1	0611-			●
35	WASHER; LK,CLU HSG TO TRANS	1-33119-360-0	08	1	0611-	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9811-0603		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-0610		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0611-			●

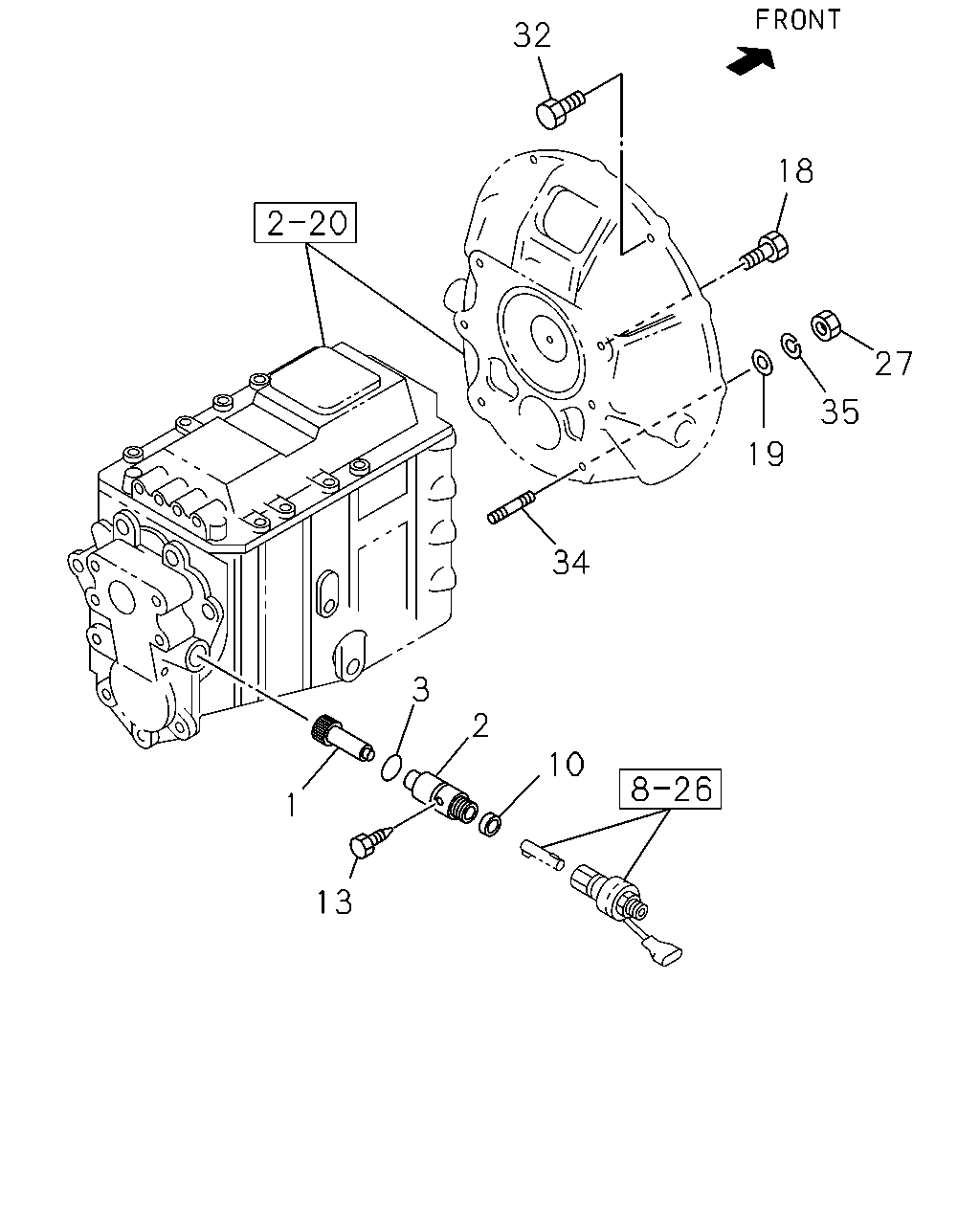

32 18 27 35 19 34 3 2 10 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-188-0	01	1	0611-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	9811-0610		●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0611-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-083-0	01	1	0611-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9811-0610		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0611-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9811-0610		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0611-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9811-0610		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0611-			●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9811-0610		●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0611-			●
18	BOLT; CLU HSG TO TRANS L=50	1-33119-358-0	06	1	0611-	●
18	BOLT; CLU HSG TO TRANS L=55	1-33119-359-0	02	1	0611-	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9811-0512		●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0601-0610		●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0611-			●
19	WASHER; PL,CLU HSG TO TRANS	1-33119-361-0	08	1	0611-	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9811-0605		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-0610		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0611-			●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9811-0512		●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-0610		●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X45 FLANGE	0-28151-045-0	02	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X50 FLANGE	0-28151-050-0	02	1	0611-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X40 FLANGE	0-28751-040-0	10	1	0611-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28781-030-0	10	1	9811-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28751-030-0	10	1	0601-0610		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X30 FLANGE	0-28751-030-0	08	1	0611-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X20,M10X26 L=56	1-09049-014-1	02	1	9811-0610		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X20,M10X26 L=56	1-09049-014-1	02	1	0611-			●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9811-0610		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0611-			●
35	WASHER; LK,CLU HSG TO TRANS	1-33119-360-0	08	1	0611-	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9811-0603		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-0610		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0611-			●
