2-26 — MANUAL TRANSMISSION GEAR (#57148) — 308 parça

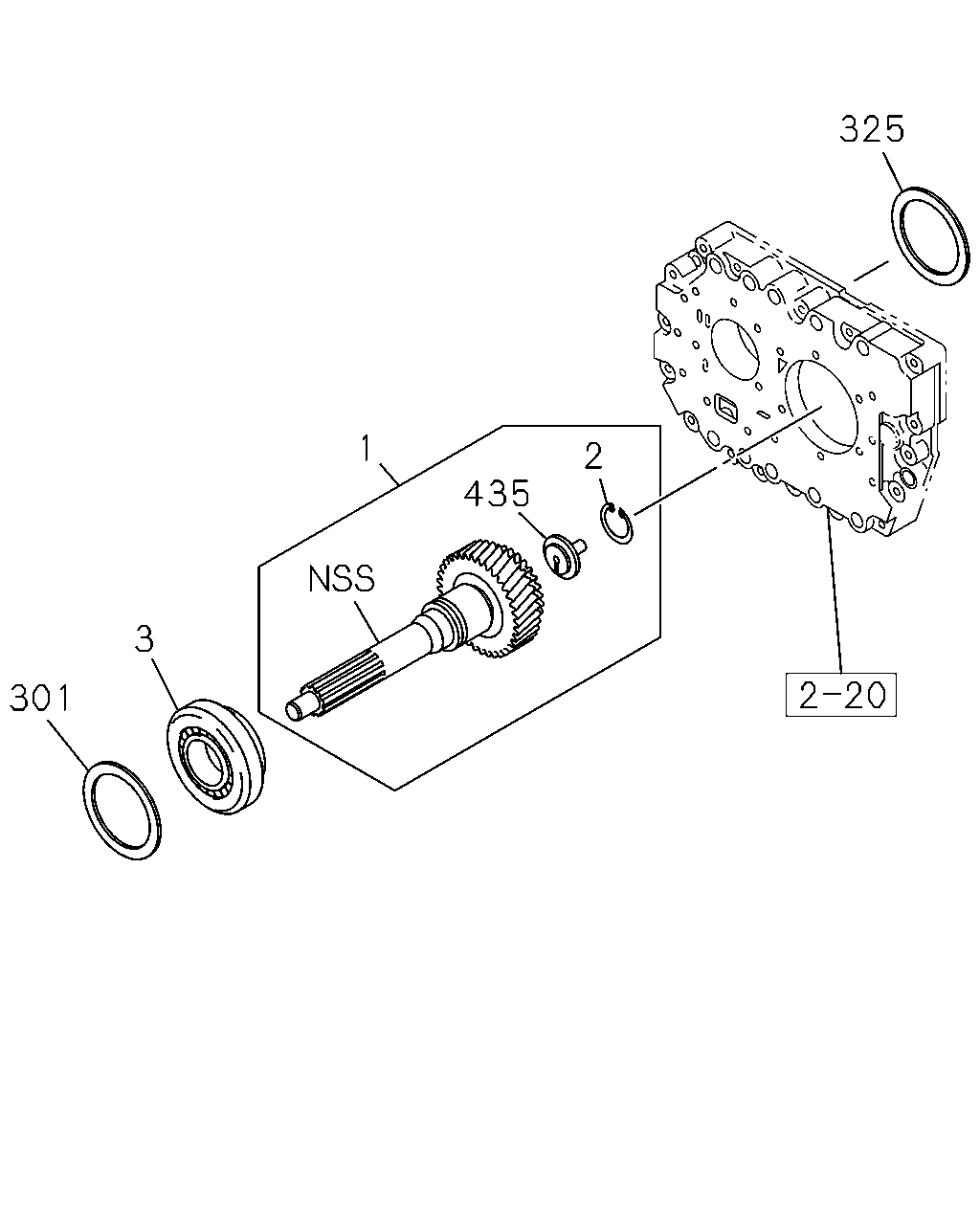

çizim 160822
325 1 2 435 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-038-0 01 1 0801-
2 RING; SNAP,TOP GEAR SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33219-159-0 01 1 0910-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.80 		1-33139-039-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.70 		1-33139-041-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.30 		1-33139-223-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.25 		1-33139-224-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.20 		1-33139-225-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.15 		1-33139-226-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.10 		1-33139-227-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.05 		1-33139-228-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=2.00 		1-33139-229-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.95 		1-33139-230-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.90 		1-33139-231-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.85 		1-33139-232-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.75 		1-33139-233-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-C(1E1) T=1.65 		1-33139-234-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 0910-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.20 		1-33139-047-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.10 		1-33139-050-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.05 		1-33139-203-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.15 		1-33139-204-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.25 		1-33139-205-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0801-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=0.90 		1-33139-207-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=0.95 		1-33139-208-0 01 1 0907-0909
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0801-0906
301 SHIM; TOP GEAR SHAFT
6UZ1 TC-N(1C9) T=1.00 		1-33139-209-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=1.50 		8-98080-571-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.40 		1-33389-086-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.35 		1-33389-087-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.30 		1-33389-088-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.25 		1-33389-089-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0801-1010
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.50 		1-33389-049-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0801-0906
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.45 		1-33389-050-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0801-0906
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.40 		1-33389-051-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0801-
435 PIPE; INPUTSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33219-158-0 01 1 0910-

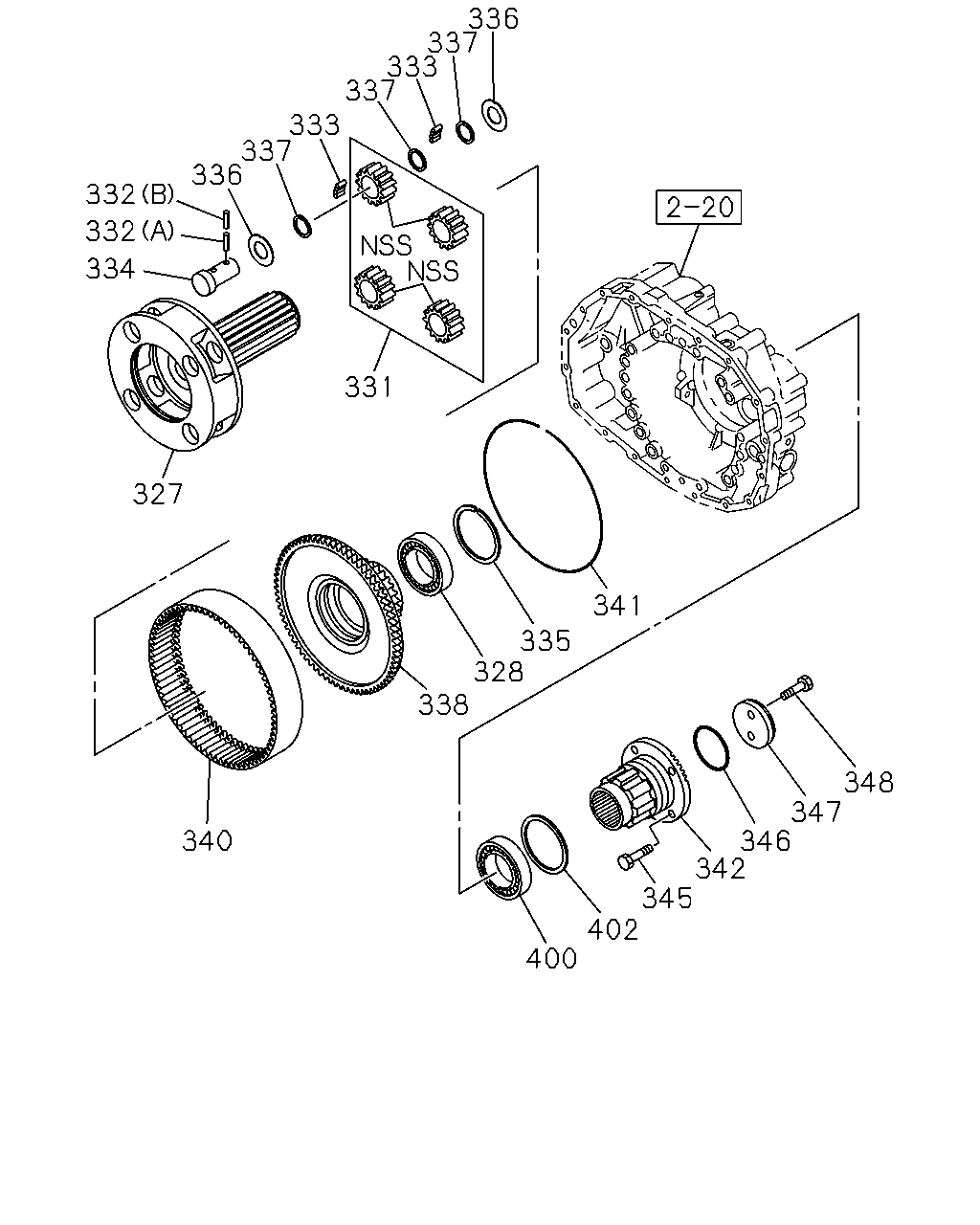

çizim 160825
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0801-
328 BEARING; CARRIER 1-33339-094-0 01 1 0801-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0801-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0801-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0801-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0801-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 0801-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0801-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0801-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0801-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0801-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0801-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0801-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0801-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0801-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0801-
340 GEAR; RING
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33339-099-0 01 1 0907-1106
340 GEAR; RING 1-33339-099-0 01 1 1107-
340 GEAR; RING 1-33339-095-0 01 1 0801-0906
340 GEAR; RING
6UZ1 TC-N(1C9) 		1-33339-095-0 01 1 0907-1106
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0801-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0801-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0801-
346 GASKET; FLANGE 1-37249-156-0 01 1 0801-
347 WASHER; FLANGE 1-09509-060-0 01 1 0801-
348 BOLT; SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-37249-215-0 02 1 1011-1106
348 BOLT; SHAFT 1-37249-215-0 02 1 1107-
348 BOLT; SHAFT 1-37249-207-0 02 1 0801-1010
348 BOLT; SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-37249-207-0 02 1 1011-1106
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0801-
402 SHIM
T=2.20 		1-33139-064-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=2.20 		1-33139-064-0 01 1 0907-1106
402 SHIM
T=2.10 		1-33139-065-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=2.10 		1-33139-065-0 01 1 0907-1106
402 SHIM
T=2.00 		1-33139-066-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=2.00 		1-33139-066-0 01 1 0907-1106
402 SHIM
T=1.90 		1-33139-067-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.90 		1-33139-067-0 01 1 0907-1106
402 SHIM
T=1.80 		1-33139-068-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.80 		1-33139-068-0 01 1 0907-1106
402 SHIM
T=1.70 		1-33139-069-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.70 		1-33139-069-0 01 1 0907-1106
402 SHIM
T=1.60 		1-33139-070-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.60 		1-33139-070-0 01 1 0907-1106
402 SHIM
T=1.50 		1-33139-071-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.50 		1-33139-071-0 01 1 0907-1106
402 SHIM
T=1.40 		1-33139-072-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.40 		1-33139-072-0 01 1 0907-1106
402 SHIM
T=1.30 		1-33139-073-0 01 1 0801-0906
402 SHIM
6UZ1 TC-N(1C9) T=1.30 		1-33139-073-0 01 1 0907-1106

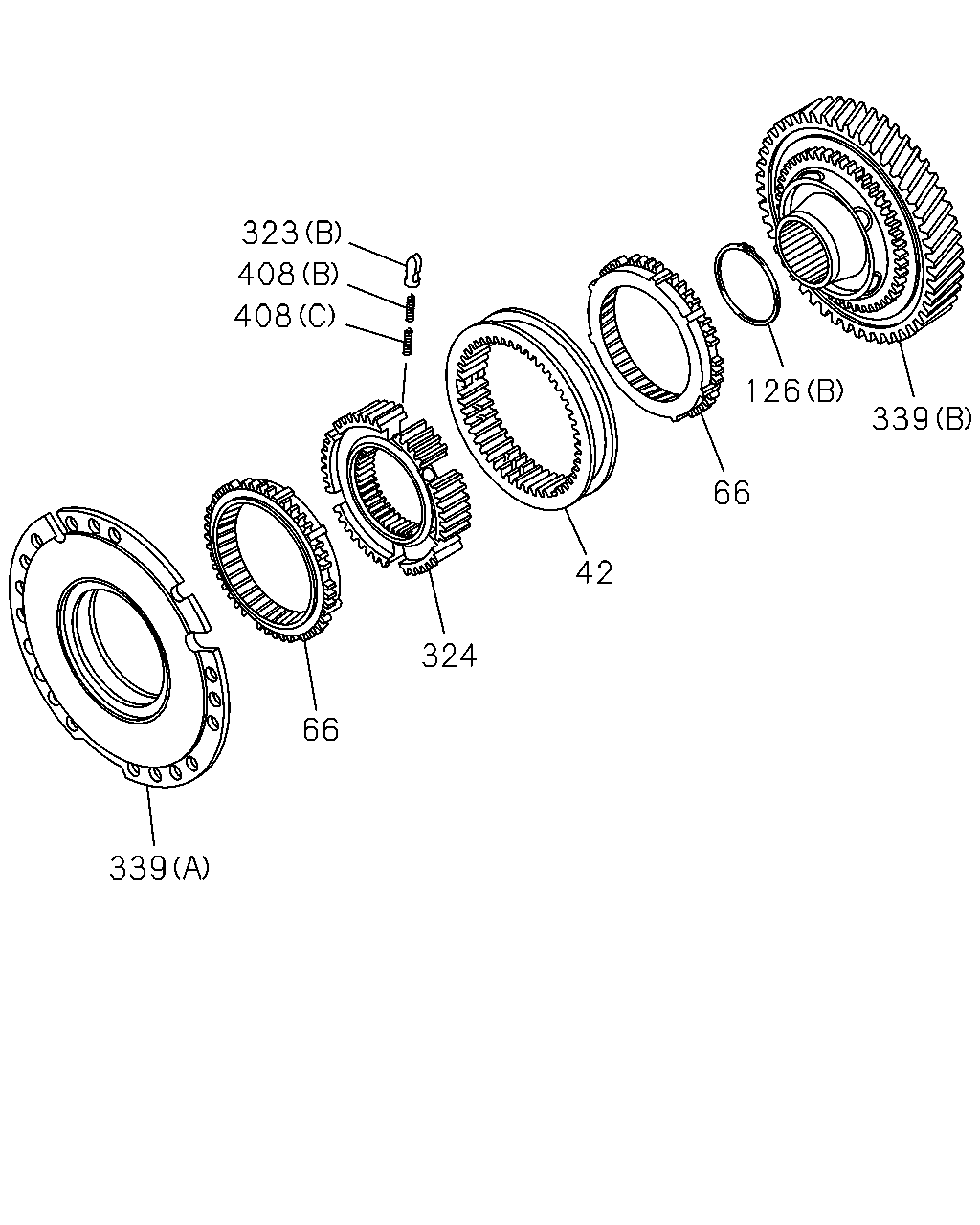

çizim 160848
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 0801-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0801-
323 INSERT
(B) 		1-33263-027-0 09 1 0801-
323 INSERT
(A) 		1-33263-030-0 06 1 0801-
324 HUB; CLU 1-33261-230-0 01 1 0801-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0801-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0801-
408 SPRING
(B) 		1-33269-038-0 09 1 0801-
408 SPRING
(C) 		1-33269-039-0 09 1 0801-
408 SPRING
(A) 		1-33269-042-0 06 1 0801-

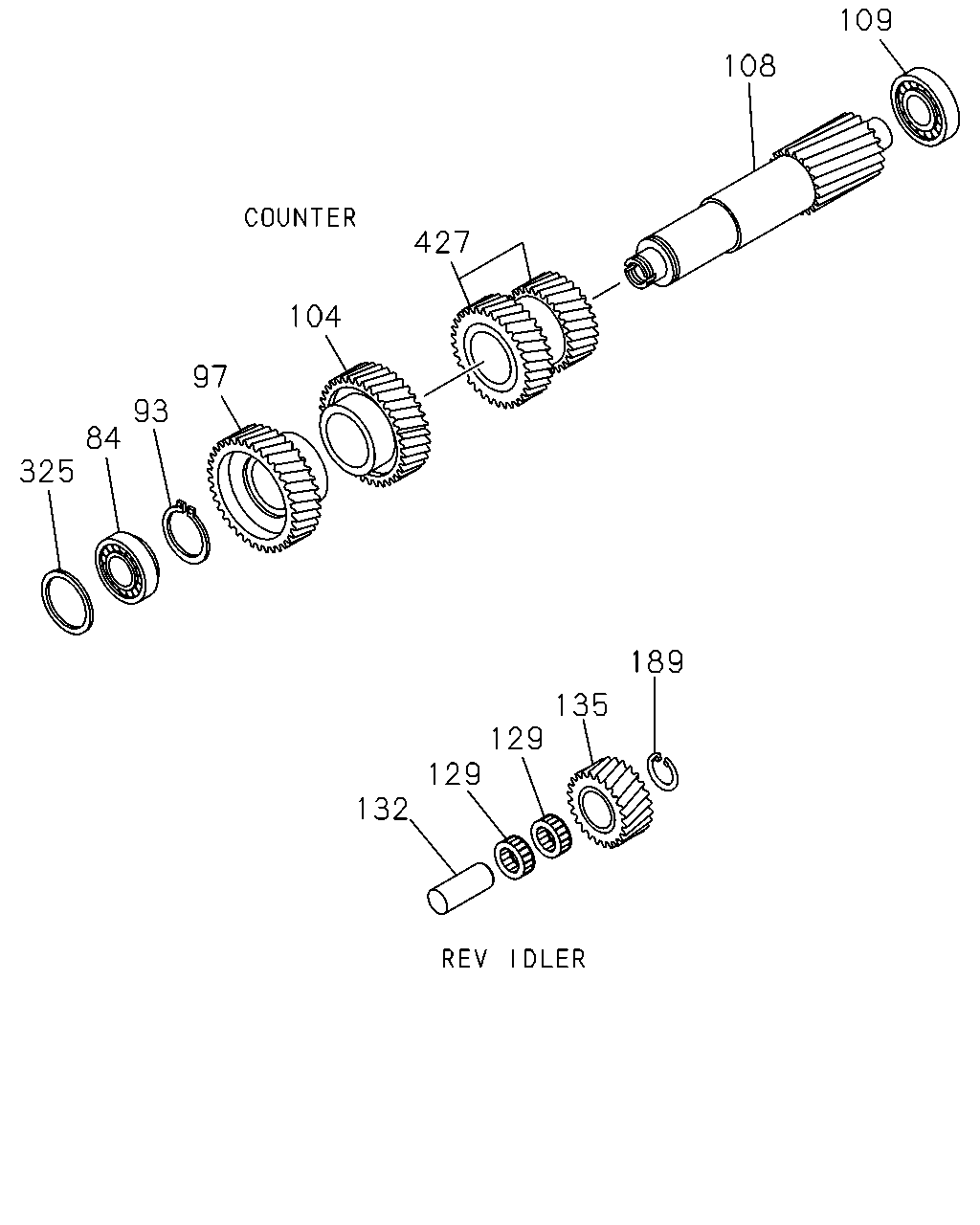

çizim 160849
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0801-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0801-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0801-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0801-
108 SHAFT; COUNTER 1-33311-347-0 01 1 0801-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0801-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 0801-
132 SHAFT; REV 1-33351-024-0 01 1 0801-
135 GEAR; REV IDLER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33361-096-0 01 1 1011-1106
135 GEAR; REV IDLER 1-33361-096-0 01 1 1107-
135 GEAR; REV IDLER 1-33361-092-0 01 1 0801-1010
135 GEAR; REV IDLER
SHIFT PATTERN SINGLE-H<EDY> 		1-33361-092-0 01 1 1011-1106
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=1.50 		8-98080-571-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.40 		1-33389-086-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.35 		1-33389-087-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.30 		1-33389-088-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-C(1E1) T=2.25 		1-33389-089-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0910-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0801-1010
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.50 		1-33389-049-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0801-0906
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.45 		1-33389-050-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0801-0906
325 SHIM; COUNTER SHAFT BRG
6UZ1 TC-N(1C9) T=1.40 		1-33389-051-0 01 1 0907-0909
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0801-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0801-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 0801-1305
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306-

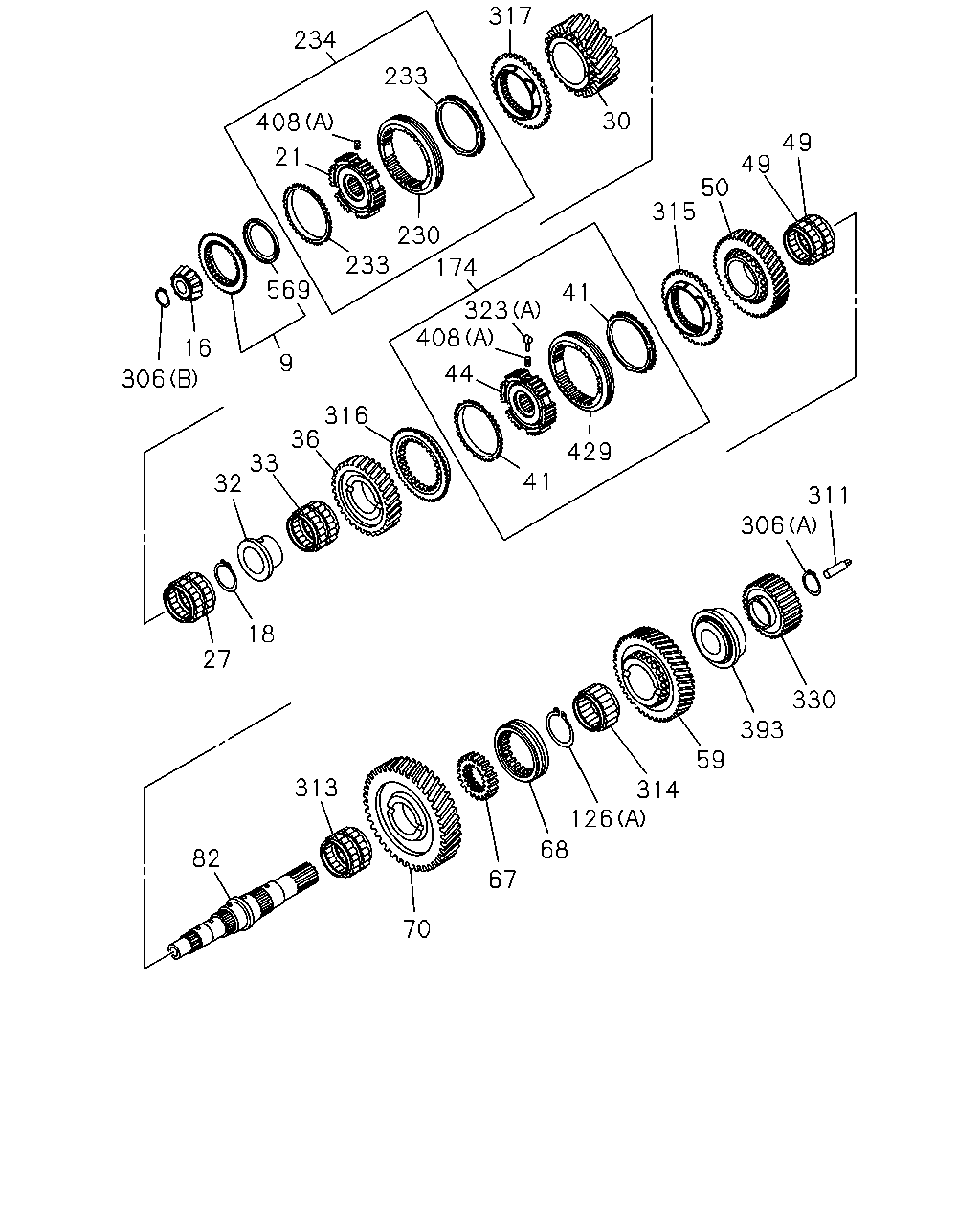

çizim 160870
317 234 233 30 408 49 21 49 50 315 230 233 174 569 41 323 408 16 9 44 306 316 36 429 33 32 41 311 306 18 27 330 393 59 313 314 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 0801-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0801-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0801-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0801-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 0801-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0801-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0801-1305
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 0801-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0801-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0801-
44 HUB; CLU,2ND & 3RD,MAIN
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33261-303-0 01 1 1011-1106
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1107-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0801-1010
44 HUB; CLU,2ND & 3RD,MAIN
SHIFT PATTERN SINGLE-H<EDY> 		1-33261-231-0 01 1 1011-1106
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 0801-
50 GEAR; 2ND,MAINSHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33251-448-0 01 1 1011-1106
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1107-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0801-1010
50 GEAR; 2ND,MAINSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33251-435-0 01 1 1011-1106
59 GEAR; REV MAINSHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33257-101-0 01 1 1011-1106
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1107-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0801-1010
59 GEAR; REV MAINSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33257-100-0 01 1 1011-1106
67 HUB; CLU,1ST TO REV
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33259-135-0 01 1 0907-1106
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1107-
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0801-0906
67 HUB; CLU,1ST TO REV
6UZ1 TC-N(1C9) 		1-33259-048-0 01 1 0907-1106
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0801-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0801-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0801-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0801-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0801-
174 SYNCHRONIZER ASM; 2ND-3RD
6UZ1 TC-N(1C9) 		1-33260-169-0 01 1 0801-1106
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0801-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0801-
234 SYNCHRONIZER ASM; 4TH TO 5TH
6UZ1 TC-N(1C9) 		1-33260-170-0 01 1 0801-1106
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0801-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0801-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0801-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0801-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 0801-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 0801-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0801-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0801-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0801-
323 INSERT
(B) 		1-33263-027-0 09 1 0801-
323 INSERT
(A) 		1-33263-030-0 06 1 0801-
330 GEAR; SUN
6UZ1 TC-C(1E1) 		1-33259-134-0 01 1 0907-0909
330 GEAR; SUN 1-33259-134-0 01 1 0910-
330 GEAR; SUN 1-33259-105-0 01 1 0801-0906
330 GEAR; SUN
6UZ1 TC-N(1C9) 		1-33259-105-0 01 1 0907-0909
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0801-
408 SPRING
(B) 		1-33269-038-0 09 1 0801-
408 SPRING
(C) 		1-33269-039-0 09 1 0801-
408 SPRING
(A) 		1-33269-042-0 06 1 0801-
429 SLEEVE; 2ND & 3RD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33262-244-0 01 1 1011-1106
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1107-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0801-1010
429 SLEEVE; 2ND & 3RD
SHIFT PATTERN SINGLE-H<EDY> 		1-33262-192-0 01 1 1011-1106
569 DAM; OIL 1-33269-097-0 01 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
