2-20 — MANUAL TRANSMISSION ASM AND CASE (#57146) — 139 parça

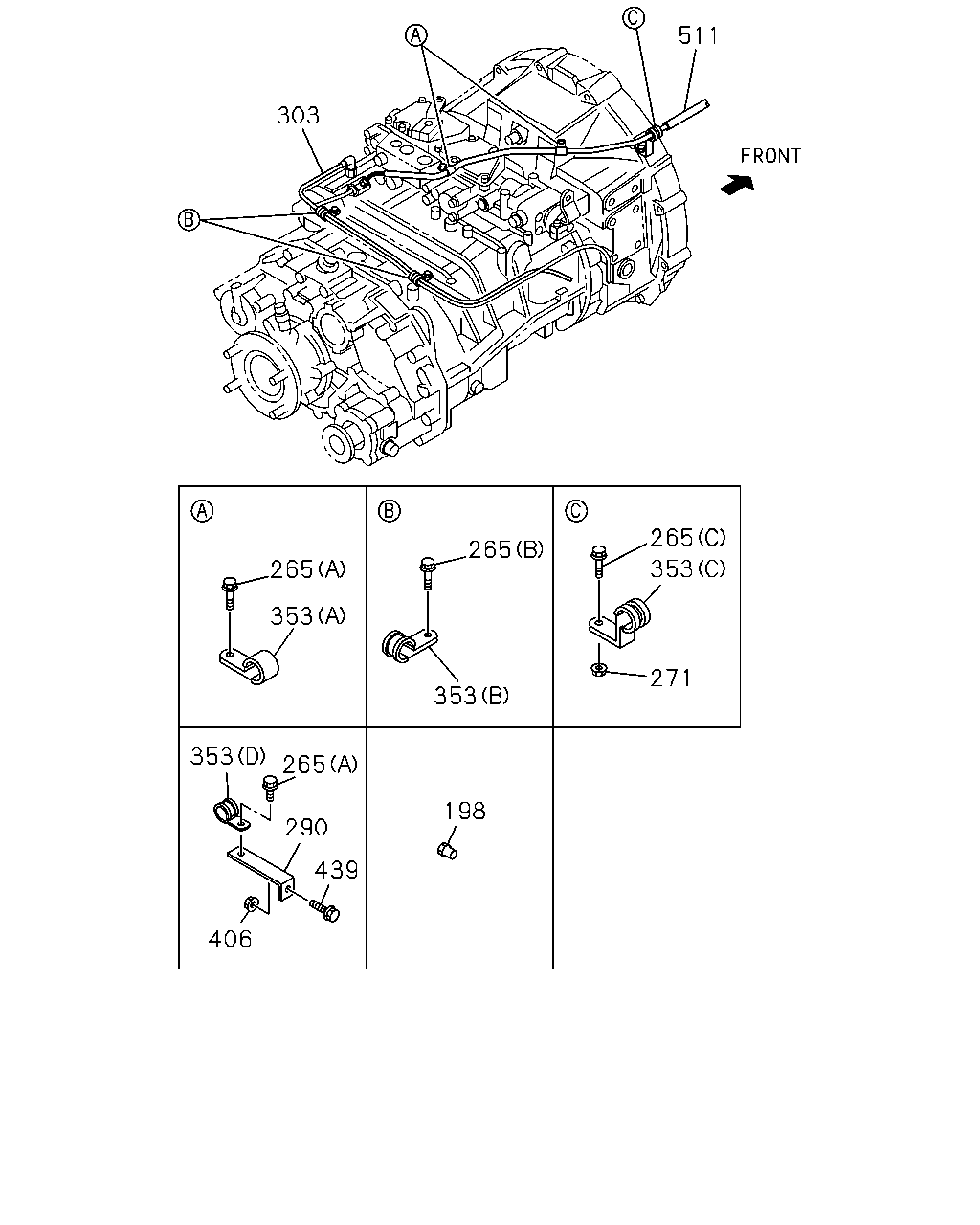

511 303 265 265 353 265 353 271 353 353 265 198 290 439 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	ADAPTER; NYLON TUBE SHIFT PATTERN DOUBLE-H<EDZ> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0804-
265	BOLT; CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (A) M8X20 FLANGE	0-28050-820-0	01	1	0801-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (C) M8X14 FLANGE	0-28080-814-0	01	1	0801-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (B) M8X20 FLANGE	0-28650-820-0	02	1	0801-
271	NUT; CLIP SHIFT PATTERN SINGLE-H<EDY> M8 FLANGE	0-91180-108-0	01	1	0801-0803
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0804-
290	BRACKET; CLIP SHIFT PATTERN DOUBLE-H<EDZ> L=95	1-82699-085-0	01	1	0804-
303	TUBE; NYLON SHIFT PATTERN SINGLE-H<EDY> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0801-0803
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0804-
353	CLIP; NYLON TUBE SHIFT PATTERN DOUBLE-H<EDZ> (D) ID=18 L=28	1-09701-067-0	01	1	0804-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (A) ID=11 L=20	0-95235-035-0	02	1	0801-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0801-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (B) ID=18 L=28	1-09701-067-0	02	1	0801-
406	NUT; BRKT SHIFT PATTERN DOUBLE-H<EDZ> M8 FLANGE	0-91180-108-0	01	1	0804-
439	BOLT; BRKT SHIFT PATTERN DOUBLE-H<EDZ> M8X25 FLANGE	0-28650-825-0	01	1	0804-
511	TUBE; CORRUGATE SHIFT PATTERN SINGLE-H<EDY> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0801-0803
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0804-

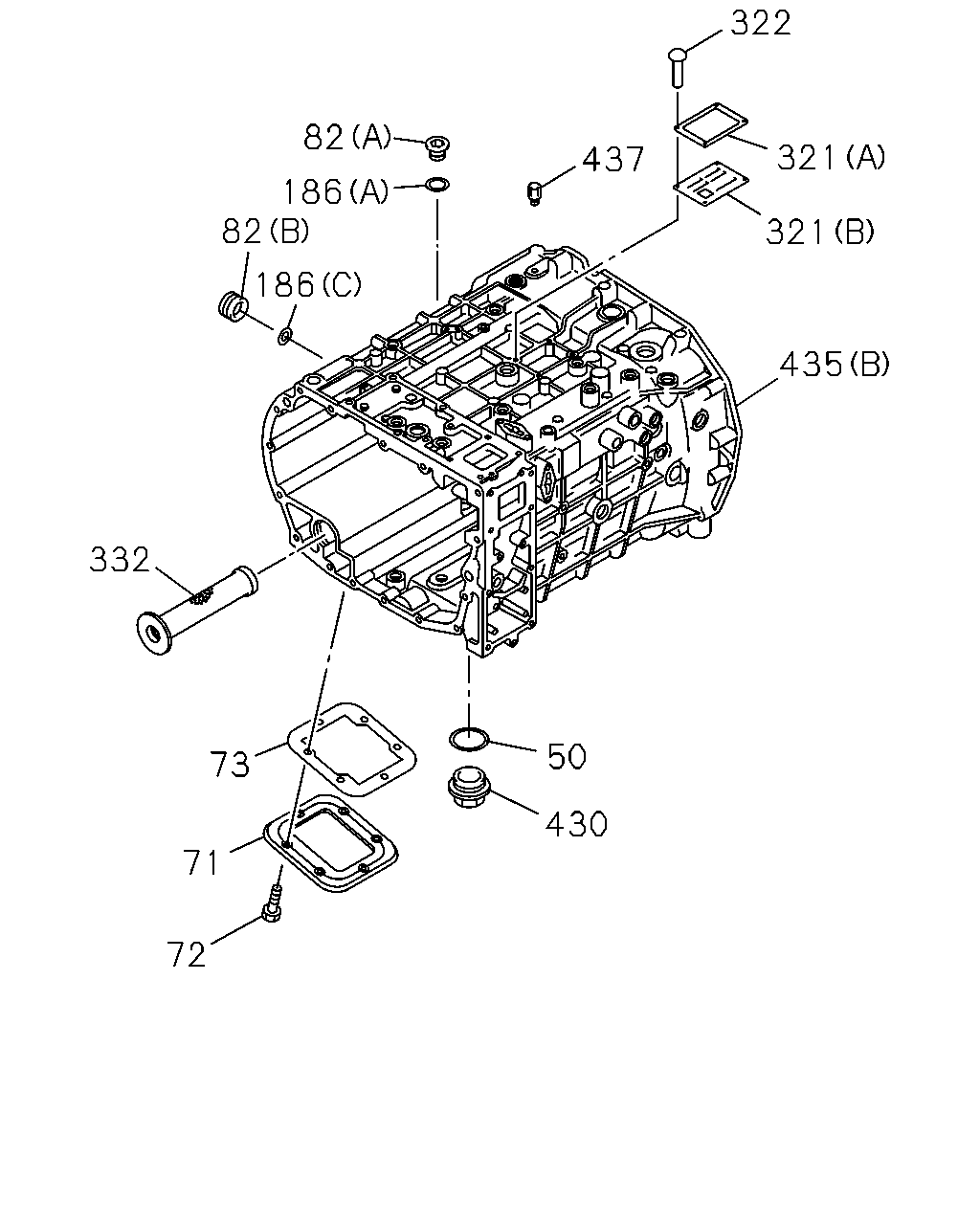

322 82 321 437 186 82 321 186 435 332 50 73 430 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	0801-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	0801-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER 6UZ1 TC-C(1E1) M10X22	1-33119-592-0	06	1	1011-1106
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1107-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	0801-1010
72	BOLT; SIDE COVER 6UZ1 TC-N(1C9) M10X22	1-36129-014-1	06	1	1011-1106
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	0801-
82	PLUG; SCREW,CASE 6UZ1 TC-C(1E1) (C)	1-34539-113-0	02	1	1011-1106
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1107-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0801-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	0801-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0801-1010
82	PLUG; SCREW,CASE 6UZ1 TC-N(1C9) (C)	1-33119-285-0	02	1	1011-1106
186	RING; SEAL (A)	1-33119-249-0	01	1	0801-
186	RING; SEAL (B)	1-33119-286-0	02	1	0801-
186	RING; SEAL (C)	1-33119-435-0	02	1	0801-
321	PLATE; NAME (A)	1-33119-519-0	01	1	0801-
321	PLATE; NAME (B)	1-33119-520-0	01	1	0801-
322	RIVET; NAME PLATE	1-33119-556-0	04	1	0801-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
332	FILTER; OIL	1-33119-437-0	01	1	0801-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	0801-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33111-371-0	01	1	0801-
435	CASE; TRANS (A)	1-33111-373-0	01	1	0801-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33111-372-0	01	1	0801-
437	BREATHER; TRANS	1-36122-004-0	01	1	0801-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-

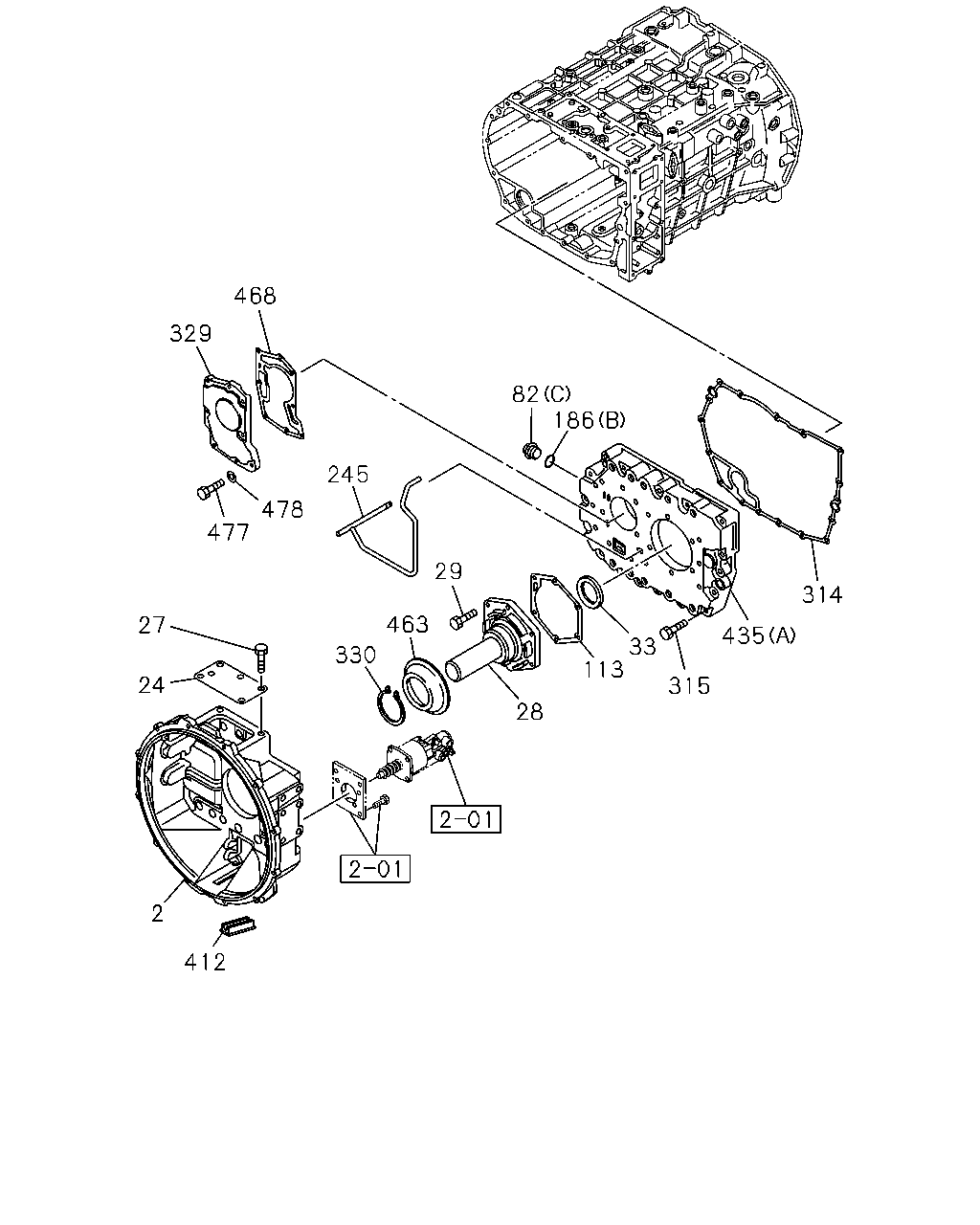

468 329 82 186 245 478 477 29 314 463 27 435 33 113 330 24 315 28 2 2 2 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU 6UZ1 TC-C(1E1)	1-31111-232-0	01	1	1011-1106
2	HOUSING; CLU	1-31111-232-0	01	1	1107-
2	HOUSING; CLU	1-31111-225-0	01	1	0801-1010
2	HOUSING; CLU 6UZ1 TC-N(1C9)	1-31111-225-0	01	1	1011-1106
24	COVER; CHECK HOLE,DUST	1-31119-051-0	01	1	0801-1305
24	COVER; CHECK HOLE,DUST	1-31119-061-0	01	1	1306-
27	BOLT; COVER TO CLU HSG 6UZ1 TC-C(1E1)	1-31119-058-0	03	1	1011-1106
27	BOLT; COVER TO CLU HSG	1-31119-058-0	03	1	1107-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	03	1	0801-1010
27	BOLT; COVER TO CLU HSG 6UZ1 TC-N(1C9)	1-31119-025-0	03	1	1011-1106
28	COVER; FRT,TRANS CASE	1-33121-167-0	01	1	0801-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	0801-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	0801-
82	PLUG; SCREW,CASE 6UZ1 TC-C(1E1) (C)	1-34539-113-0	02	1	1011-1106
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1107-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0801-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	0801-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0801-1010
82	PLUG; SCREW,CASE 6UZ1 TC-N(1C9) (C)	1-33119-285-0	02	1	1011-1106
113	GASKET; FRT COVER TO TRANS CASE	1-33122-024-0	01	1	0801-
186	RING; SEAL (A)	1-33119-249-0	01	1	0801-
186	RING; SEAL (B)	1-33119-286-0	02	1	0801-
186	RING; SEAL (C)	1-33119-435-0	02	1	0801-
245	PIPE; OIL	1-33119-517-0	01	1	0801-
314	GASKET; CASE	1-33112-052-0	01	1	0801-
315	BOLT; CASE M10X70	1-33119-522-0	17	1	0801-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
329	PUMP ASM; OIL 6UZ1 TC-C(1E1)	1-34150-123-0	01	1	1011-1106
329	PUMP ASM; OIL	1-34150-123-0	01	1	1107-
329	PUMP ASM; OIL	1-34150-121-0	01	1	0801-1010
329	PUMP ASM; OIL 6UZ1 TC-N(1C9)	1-34150-121-0	01	1	1011-1106
330	RING; RET	1-33129-005-0	01	1	0801-
412	CAP; CLU HSG 6UZ1 TC-C(1E1)	1-31119-015-0	01	1	1011-1106
412	CAP; CLU HSG	1-31119-015-0	01	1	1107-
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33111-371-0	01	1	0801-
435	CASE; TRANS (A)	1-33111-373-0	01	1	0801-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33111-372-0	01	1	0801-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0801-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP 6UZ1 TC-C(1E1)	1-34159-122-0	01	1	0907-0909
468	GASKET; OIL PUMP	1-34159-122-0	01	1	0910-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	0801-0906
468	GASKET; OIL PUMP 6UZ1 TC-N(1C9)	1-34159-063-0	01	1	0907-0909
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	0801-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP 6UZ1 TC-C(1E1)	1-33549-577-0	08	1	1011-1106
478	WASHER; LK,OIL PUMP	1-33549-577-0	08	1	1107-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	0801-1010
478	WASHER; LK,OIL PUMP 6UZ1 TC-N(1C9)	1-36129-007-0	08	1	1011-1106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 6UZ1 TC-N(1C9)	8-98074-834-0	01	1	0801-0909
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN SINGLE-H<EDY>	8-98133-473-0	01	1	0910-1106
1	TRANSMISSION ASM; MANUAL 6UZ1 TC-N(1C9)	8-98167-319-1	01	1	1107-
1	TRANSMISSION ASM; MANUAL 6UZ1 TC-C(1E1)	8-98075-090-0	01	1	0801-0906
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN DOUBLE-H<EDZ>	8-98133-471-0	01	1	0907-1010
1	TRANSMISSION ASM; MANUAL 6UZ1 TC-C(1E1)	8-98167-317-1	01	1	1011-

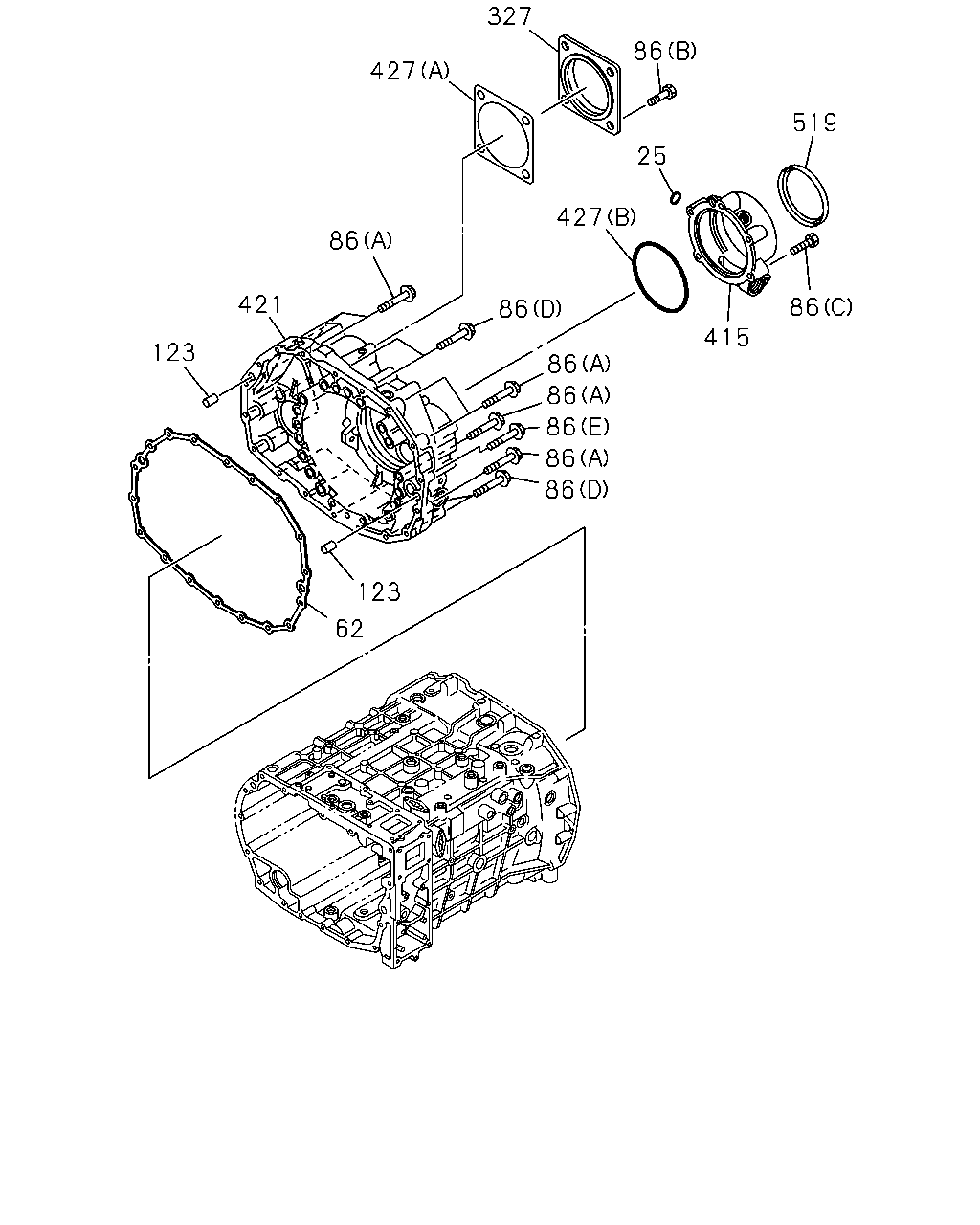

327 427 86 25 427 519 86 415 86 421 123 86 86 86 86 86 86 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	0801-
62	GASKET; RR COVER	1-33132-087-0	01	1	0801-
86	BOLT; RR COVER 6UZ1 TC-C(1E1) (B) M12X25	1-33119-594-0	04	1	1011-1106
86	BOLT; RR COVER (B) M12X25	1-33119-594-0	04	1	1107-
86	BOLT; RR COVER (B) M12X25	1-33119-400-0	04	1	0801-1010
86	BOLT; RR COVER 6UZ1 TC-N(1C9) (B) M12X25	1-33119-400-0	04	1	1011-1106
86	BOLT; RR COVER (A) M10X70	1-33119-522-0	12	1	0801-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER (D) M10X110	1-33139-057-0	05	1	0801-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER (E) M10X50	1-33139-058-0	01	1	0801-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	0801-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0801-
327	COVER; RR,COUNTER	1-33131-165-0	01	1	0801-1305
327	COVER; RR,COUNTER	1-33131-273-0	01	1	1306-
415	COVER; BRG SHIFT PATTERN DOUBLE-H<EDZ>	1-33131-269-0	01	1	0907-1106
415	COVER; BRG	1-33131-269-0	01	1	1107-
415	COVER; BRG	1-33131-262-0	01	1	0801-0906
415	COVER; BRG 6UZ1 TC-N(1C9)	1-33131-262-0	01	1	0907-1106
421	COVER; RR,TRANS	1-33131-261-0	01	1	0801-1305
421	COVER; RR,TRANS	1-33131-275-0	01	1	1306-
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	0801-
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	0801-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
519	GASKET; SHAFT	1-33139-059-0	01	1	0801-
