2-05 — CLUTCH PIPING (#57144) — 145 parça
çizim 160810
235 101 210 16 42 206 30 207 206 207 42 16 210 106 51 107 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; FLEX HOSE
ID=18 L=28 H=30 		1-09701-110-0 01 1 0802-1201 ● ● ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 02 1 0801-0801 ● ● ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 01 1 0802-1201 ● ● ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1202- ● ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0804-0805 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0806- ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0801-0803 ● ● ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-0805 ● ●
27 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE 		0-91180-108-0 02 1 0804-0805 ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
27 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE 		0-91180-108-0 01 1 0806- ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0801- ● ● ● ●
30 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0803 ● ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0803 ● ● ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
30 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0805 ● ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ● ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 0801- ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 0801-1402 ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 0801-1201 ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ● ● ●
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0801- ● ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 0801-1201 ● ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1202- ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0801-0805 ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806- ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806- ● ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 0801- ● ● ● ●
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 0801- ● ● ● ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0803 ● ● ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 0804- ●
206 CLIP; TUBE
BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 01 1 0804- ●
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 0801-0803 ● ● ●
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 0804- ●
206 CLIP; TUBE
BRAKE REGULATION ADR<TDU> (B) ID=16 H=25 L=25 		1-09701-162-0 01 1 0804- ●
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0803 ● ● ●
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0804- ●
207 BOLT; CLIP
BRAKE REGULATION ADR<TDU> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0804- ●
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0801-1201 ● ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1202- ● ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ● ● ●
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804- ●
210 NUT; CLIP
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 01 1 0804- ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0801- ● ● ● ●

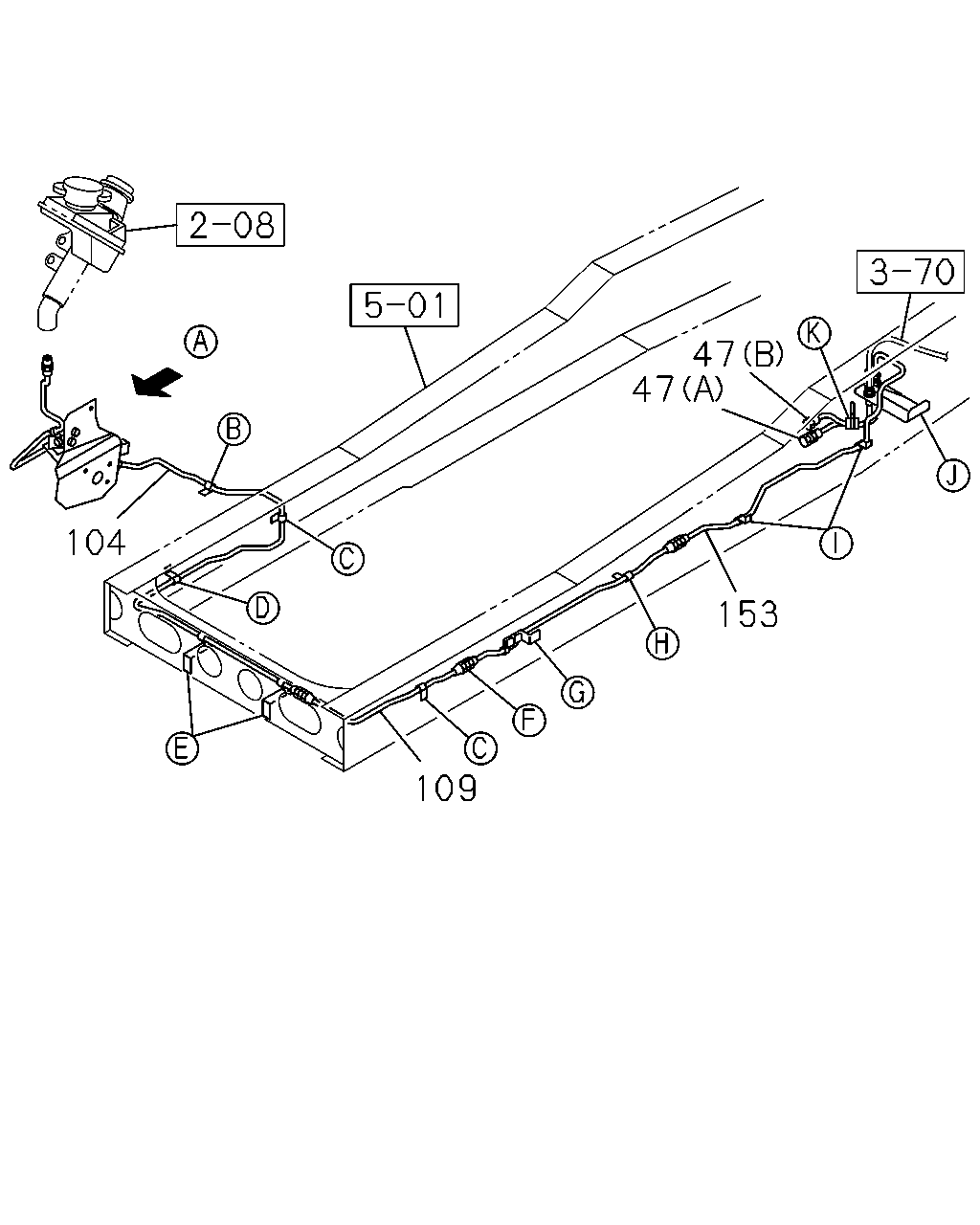

çizim 160855
47 47 104 153 109
BalonParca AdiParca NoAdetTipApplied Date A B C D
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 0801- ● ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 0801- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2570 SERVICED BY L=2700 		1-47428-772-0 01 1 0801-0805 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 0806- ● ● ● ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 0806- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=2038 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0805 ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 0806- ● ● ● ●

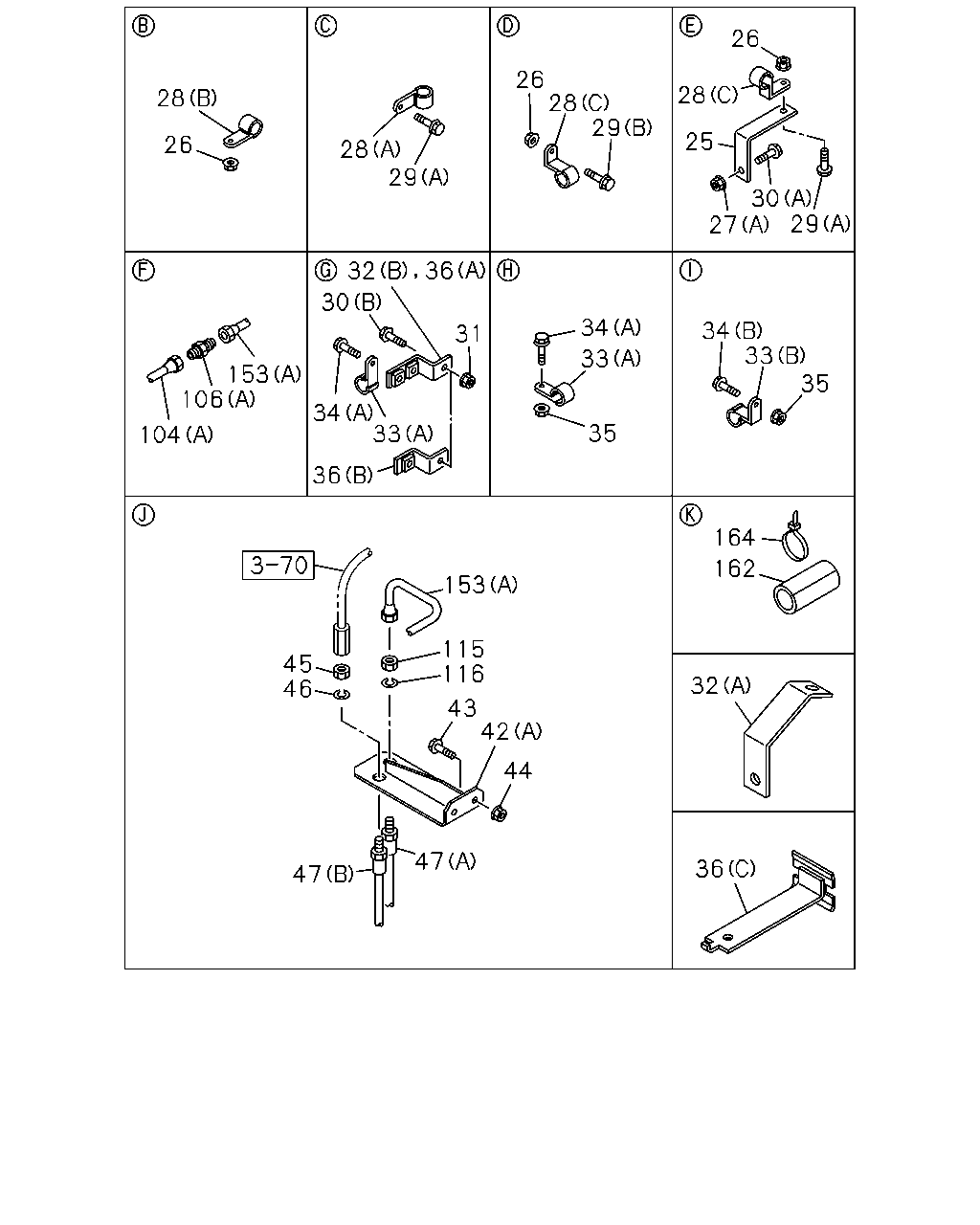

çizim 161150
26 26 28 29 28 28 25 26 28 29 30 30 34 34 33 35 31 33 153 106 34 33 35 104 36 164 162 153 115 116 45 46 32 43 42 44 47 36 47 29 27 36 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 BRACKET; OIL PIPE 8-97621-141-0 02 1 0804-0805 ●
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 0806- ●
25 BRACKET; OIL PIPE 8-98105-075-0 02 1 0801-0803 ● ● ● ●
25 BRACKET; OIL PIPE 8-98105-075-0 02 1 0804-0805 ● ●
25 BRACKET; OIL PIPE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-98105-075-0 02 1 0804-0805 ●
25 BRACKET; OIL PIPE 8-98123-057-0 01 1 0806- ● ●
25 BRACKET; OIL PIPE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		8-98123-057-0 01 1 0806- ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 04 1 0801-0805 ● ● ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0806- ● ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0804-0805 ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0806- ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0801-0803 ● ● ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-0805 ● ●
27 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE 		0-91180-108-0 02 1 0804-0805 ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
27 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE 		0-91180-108-0 01 1 0806- ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0801- ● ● ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 0801- ● ● ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 0801- ● ● ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 03 1 0801-0805 ● ● ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 0806- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0801-0801 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0802-0805 ● ● ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ● ● ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
30 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0804- ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0803 ● ● ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0803 ● ● ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
30 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0805 ● ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ● ● ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ●
31 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0806- ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0805 ● ● ● ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806- ● ● ● ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
31 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91180-108-0 01 1 0806- ●
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806- ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-057-0 01 1 0806- ● ●
32 BRACKET; CLIP OIL PIPE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 		8-98123-057-0 01 1 0806- ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 0806- ● ● ● ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 0806- ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 0801-0805 ● ● ● ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 0806- ● ● ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 0801-0802 ● ● ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 0803-0803 ● ● ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 0804- ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0802-0805 ● ● ● ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0806- ● ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0801-0802 ● ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0803 ● ● ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0804- ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0802 ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-0803 ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0804-0805 ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0806- ● ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0806- ● ● ● ●
36 BRACKET; CLIP
(A) 		1-47479-482-0 01 1 0801-0802 ● ● ● ●
36 BRACKET; CLIP
(B) 		8-97624-332-0 01 1 0803-0805 ● ● ● ●
36 BRACKET; CLIP
(C) 		8-98124-099-0 01 1 0806- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 0801- ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 0801-1402 ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 0801-1201 ● ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0801- ● ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 0801- ● ● ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 0801- ● ● ● ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 0801- ● ● ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 0801- ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2570 SERVICED BY L=2700 		1-47428-772-0 01 1 0801-0805 ● ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 0806- ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0801-0805 ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806- ● ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806- ● ● ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 0801- ● ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0801- ● ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0801- ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=2038 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0805 ● ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 0806- ● ● ● ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 0801-1201 ● ● ● ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1202- ● ● ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 0801-1201 ● ● ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1202- ● ● ● ●
