1-56 — EXHAUST BRAKE SYSTEM (#57141) — 21 parça

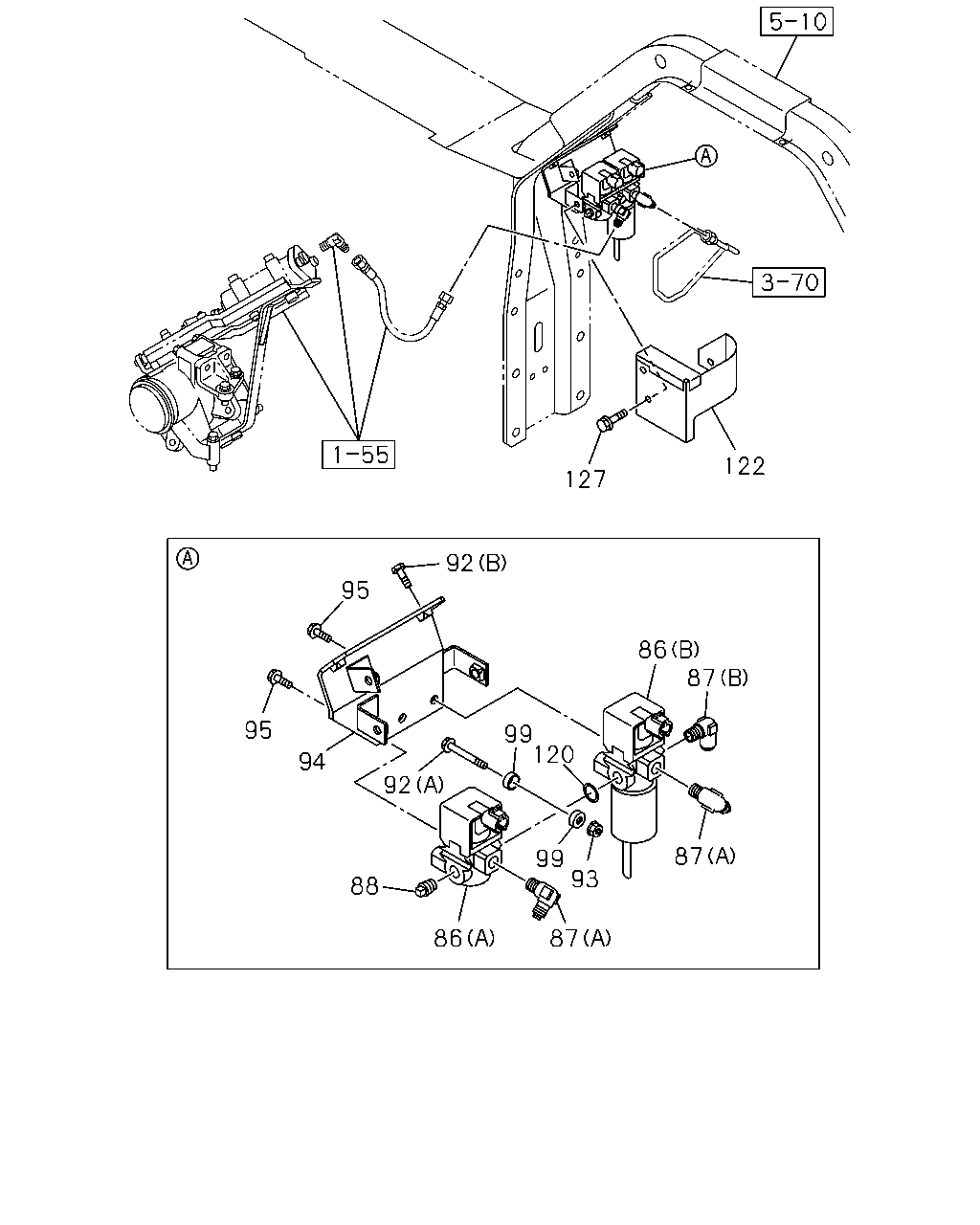

çizim 160805
122 127 92 95 86 87 95 99 120 94 92 87 99 93 88 86 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0801-0803 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0804- ● ●
86 VALVE; MAG,EXH BRK
(B) 		8-97376-939-3 01 1 0801-0910 ●
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 0911- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0801- ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801-0803 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0804- ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0801-0803 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0804- ● ●
92 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 0801- ●
92 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
93 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0801- ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98093-565-1 01 1 0801-0803 ●
94 BRACKET; MAG VLV,EXH BRAKE 8-98093-565-1 01 1 0804- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0801-0803 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0804- ● ●
99 WASHER; MAG VLV 1-82569-266-0 02 1 0801- ●
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0801- ●
122 PROTECTOR; MAG VLV 8-98093-439-1 01 1 0801- ● ●
127 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 03 1 0801- ● ●
